使用状态机模式，借助飞书机器人实现RPA流程的远程调度

功能介绍

飞书机器人可以设置事件回调，并支持长链接模式，开发者通过集成飞书 SDK 与开放平台建立一条 WebSocket 全双工通道，当有事件回调发生时，开放平台会通过该通道向开发者发送消息。 与传统的 Webhook 模式相比，长连接模式大大降低了接入成本，将原先 1 周左右的开发周期降低到 5 分钟。具体优势如下：

  1. 测试阶段无需使用内网穿透工具，通过长连接模式在本地开发环境中即可接收事件回调；
  2. 只在建连时进行鉴权，后续事件推送均为明文数据，无需开发者再处理解密和验签逻辑；
  3. 只需保证运行环境具备访问公网能力即可，无需提供公网 IP 或域名；
  4. 无需部署防火墙和配置白名单。

接入限制：

  1. 目前仅支持企业自建应用
  2. 每个应用最多建立 50 个连接（每初始化一个 client 就是一个连接）

借助飞书的这个能力，我们可以开发一个飞书机器人，实现跟我们的RPA客户端进行交互，实现远程控制的功能。这里我们借助状态机模式，实现远程控制任务的启停，代码如下：

package services

import (
    "context"
    "encoding/json"
    "errors"
    "fmt"
    lark "github.com/larksuite/oapi-sdk-go/v3"
    larkcore "github.com/larksuite/oapi-sdk-go/v3/core"
    "github.com/larksuite/oapi-sdk-go/v3/event/dispatcher"
    larkim "github.com/larksuite/oapi-sdk-go/v3/service/im/v1"
    larkws "github.com/larksuite/oapi-sdk-go/v3/ws"
    "github.com/spf13/viper"
    "gobot/backend/constants"
    "gobot/backend/log"
    "gobot/backend/models"
    "gobot/backend/utils"
    "os"
    "path/filepath"
    "strconv"
    "strings"
    )

func InitLarkListener(ctx context.Context) {
    larkAppId := viper.GetString("lark.app_id")
    larkAppSecret := viper.GetString("lark.app_secret")
    if larkAppId != "" && larkAppSecret != "" {
       client := lark.NewClient(larkAppId, larkAppSecret)
       stateMachine := StateMachine{state: InitialState, ctx: ctx}
       // 注册事件回调，OnP2MessageReceiveV1 为接收消息 v2.0；OnCustomizedEvent 内的 message 为接收消息 v1.0。
       eventHandler := dispatcher.NewEventDispatcher("", "").
          OnP2MessageReceiveV1(func(ctx context.Context, event *larkim.P2MessageReceiveV1) error {
             fmt.Printf("[ OnP2MessageReceiveV1 access ], data: %s\n", larkcore.Prettify(event))
             content := event.Event.Message.Content
             contentResult := map[string]string{}
             err := json.Unmarshal([]byte(*content), &contentResult)
             if err != nil {
                return err
             }
             stateMachine.handleInput(contentResult["text"], *event.Event.Message.MessageId, client)
             return nil
          })
       // 创建Client
       cli := larkws.NewClient(larkAppId, larkAppSecret,
          larkws.WithEventHandler(eventHandler),
          larkws.WithLogLevel(larkcore.LogLevelDebug),
       )
       // 启动客户端
       err := cli.Start(context.Background())
       if err != nil {
          log.Logger.Logger.Err(err).Msg("飞书事件回调注册失败")
       } else {
          log.Logger.Logger.Info().Msg("飞书事件回调停止")
       }
    }
}

func replayTextMsg(client *lark.Client, msgId string, msg string) error {
    // 构建文本消息
    content := larkim.NewTextMsgBuilder().
       Text(msg).
       Build()

    // 创建请求对象
    req := larkim.NewReplyMessageReqBuilder().
       MessageId(msgId).
       Body(larkim.NewReplyMessageReqBodyBuilder().
          Content(content).
          MsgType(larkim.MsgTypeText).
          Build()).
       Build()
    // 发起请求
    resp, err := client.Im.Message.Reply(context.Background(), req)

    // 处理错误
    if err != nil {
       return err
    }

    // 服务端错误处理
    if !resp.Success() {
       return errors.New(fmt.Sprintf("%d,%s,%s", resp.Code, resp.Msg, resp.RequestId()))

    }
    // 业务处理
    return nil
}

// 定义状态机的状态
const (
    InitialState = iota
    QueryProcessListState
    SetProcessParamsState    StartProcessConfirmState    QueryRunningTasksState    StopProcessConfirmState)

type StateMachine struct {
    ctx        context.Context
    state      int
    projectId  string
    taskId     string
    paramArray []string
    paramIndex int
    paramData  map[string]interface{}
}

// 处理用户输入
func (sm *StateMachine) handleInput(input string, messageId string, client *lark.Client) {
    if strings.ToLower(input) == "初始化" {
       sm.handleRestoreInitialState(true, messageId, client)
       return
    }
    switch sm.state {
    case InitialState:
       sm.handleInitialState(input, messageId, client)
    case QueryProcessListState:
       sm.handleQueryProcessListState(input, messageId, client)
    case SetProcessParamsState:
       sm.handleSetProcessParamsState(input, messageId, client)
    case StartProcessConfirmState:
       sm.handleStartProcessConfirmState(input, messageId, client)
    case QueryRunningTasksState:
       sm.handleQueryRunningTasksState(input, messageId, client)
    case StopProcessConfirmState:
       sm.handleStopProcessConfirmState(input, messageId, client)
    }
}

// 初始状态处理
func (sm *StateMachine) handleInitialState(input string, messageId string, client *lark.Client) {
    if strings.ToLower(input) == "运行流程" {
       projects, err := QueryProjectPage()
       if err != nil {
          _ = replayTextMsg(client, messageId, "查询流程列表失败,请稍后重试")
          return
       }
       message := "请选择要运行的流程序号："
       for i, project := range projects {
          message += fmt.Sprintf("%d. %s  ", i+1, project.Name)
       }
       _ = replayTextMsg(client, messageId, message)
       sm.state = QueryProcessListState
    } else if strings.ToLower(input) == "停止流程" {
       runningFlows, err := GetRunningFlows()
       if err != nil {
          _ = replayTextMsg(client, messageId, "查询运行中的任务列表失败,请稍后重试")
          return
       }
       message := "请选择要停止的任务序号："
       for i, runningFlow := range runningFlows {
          message += fmt.Sprintf("%d. %s  ", i+1, runningFlow.ProjectName)
       }
       _ = replayTextMsg(client, messageId, message)
       sm.state = QueryRunningTasksState
    } else {
       _ = replayTextMsg(client, messageId, "无效的输入,请点击下方的操作按钮,并根据提示进行输入")
    }
}

// 查询流程列表状态处理
func (sm *StateMachine) handleQueryProcessListState(input string, messageId string, client *lark.Client) {
    processID, _ := strconv.Atoi(input)
    projects, err := QueryProjectPage()
    if err != nil {
       _ = replayTextMsg(client, messageId, "查询流程列表失败,请稍后重试")
       return
    }
    if processID >= 1 && processID <= len(projects) {
       project := projects[processID-1]
       sm.projectId = project.Id
       subFlowPath := filepath.Join(project.Path, constants.BaseDir, constants.DevDir, "main.flow")
       if !utils.PathExist(subFlowPath) {
          return
       }
       data, err := os.ReadFile(subFlowPath)
       if err != nil {
          return
       }
       flowData := models.FlowData{}
       err = json.Unmarshal(data, &flowData)
       if err != nil {
          return
       }
       sm.paramArray = make([]string, 0)
       for _, param := range flowData.Params {
          if param.Direction == "In" {
             sm.paramArray = append(sm.paramArray, param.Name)
          }
       }
       sm.paramIndex = 0
       sm.paramData = make(map[string]interface{})
       if len(sm.paramArray) == 0 {
          _ = replayTextMsg(client, messageId, "该流程无需设置启动参数,是否启动流程？(是/否)")
          sm.state = StartProcessConfirmState
       } else {
          _ = replayTextMsg(client, messageId, "请设置流程参数:【"+sm.paramArray[sm.paramIndex]+"】的值")
          sm.state = SetProcessParamsState
       }
    } else {
       _ = replayTextMsg(client, messageId, "无效的流程编号，请重新输入。")
    }
}

// 设置流程参数状态处理
func (sm *StateMachine) handleSetProcessParamsState(input string, messageId string, client *lark.Client) {
    sm.paramData[sm.paramArray[sm.paramIndex]] = input
    sm.paramIndex++
    if sm.paramIndex < len(sm.paramArray) {
       _ = replayTextMsg(client, messageId, "请设置流程参数:【"+sm.paramArray[sm.paramIndex]+"】的值")
       sm.state = SetProcessParamsState
       return
    } else {
       _ = replayTextMsg(client, messageId, "参数设置完成,是否启动流程？(是/否)")
       sm.state = StartProcessConfirmState
    }
}

// 启动流程确认状态处理
func (sm *StateMachine) handleStartProcessConfirmState(input string, messageId string, client *lark.Client) {
    if input == "是" {
       project, err := QueryProjectById(sm.projectId)
       if err != nil {
          return
       }
       project.InputParam = sm.paramData
       err = ModifyProject(*project)
       if err != nil {
          return
       }
       err = RunProject(sm.ctx, sm.projectId, "飞书机器人")
       if err != nil {
          _ = replayTextMsg(client, messageId, "流程启动失败,失败原因:"+err.Error())
          return
       } else {
          _ = replayTextMsg(client, messageId, "流程启动成功")
       }
       // 这里可以添加启动流程的代码
       sm.handleRestoreInitialState(false, messageId, client)
    } else if input == "否" {
       _ = replayTextMsg(client, messageId, "取消启动流程,如有其他需求，请点击下方的按钮发起。")
       sm.handleRestoreInitialState(false, messageId, client)
    } else {
       _ = replayTextMsg(client, messageId, "无效的命令，请重新输入是或否。")
    }
}

// 查询运行中任务状态处理
func (sm *StateMachine) handleQueryRunningTasksState(input string, messageId string, client *lark.Client) {
    runningFlows, err := GetRunningFlows()
    if err != nil {
       _ = replayTextMsg(client, messageId, "查询运行中的任务列表失败,请稍后重试")
       return
    }
    taskID, _ := strconv.Atoi(input)
    if taskID >= 1 && taskID <= len(runningFlows) {
       sm.taskId = runningFlows[taskID-1].Id
       _ = replayTextMsg(client, messageId, "是否要停止对应的任务?(是/否)")
       sm.state = StopProcessConfirmState
    } else {
       _ = replayTextMsg(client, messageId, "无效的任务编号，请重新输入。")
    }
}

// 停止流程确认状态处理
func (sm *StateMachine) handleStopProcessConfirmState(input string, messageId string, client *lark.Client) {
    if input == "是" {
       err := TerminateFlow(sm.ctx, sm.taskId)
       if err != nil {
          _ = replayTextMsg(client, messageId, "任务停止失败,失败原因:"+err.Error())
          return
       } else {
          _ = replayTextMsg(client, messageId, "任务停止成功")
       }
       // 这里可以添加停止任务的代码
       sm.handleRestoreInitialState(false, messageId, client)
    } else if input == "否" {
       _ = replayTextMsg(client, messageId, "取消停止任务,如有其他需求，请点击下方的按钮发起。")
       sm.handleRestoreInitialState(false, messageId, client)
    } else {
       _ = replayTextMsg(client, messageId, "无效的命令，请重新输入是或否。")
    }
}

// 停止流程确认状态处理
func (sm *StateMachine) handleRestoreInitialState(replay bool, messageId string, client *lark.Client) {
    sm.paramData = make(map[string]interface{})
    sm.paramArray = make([]string, 0)
    sm.paramIndex = 0
    sm.projectId = ""
    sm.taskId = ""
    sm.state = InitialState
    if replay {
       _ = replayTextMsg(client, messageId, "已重新初始化,请点击下方的操作按钮,并根据提示进行输入")
    }
}

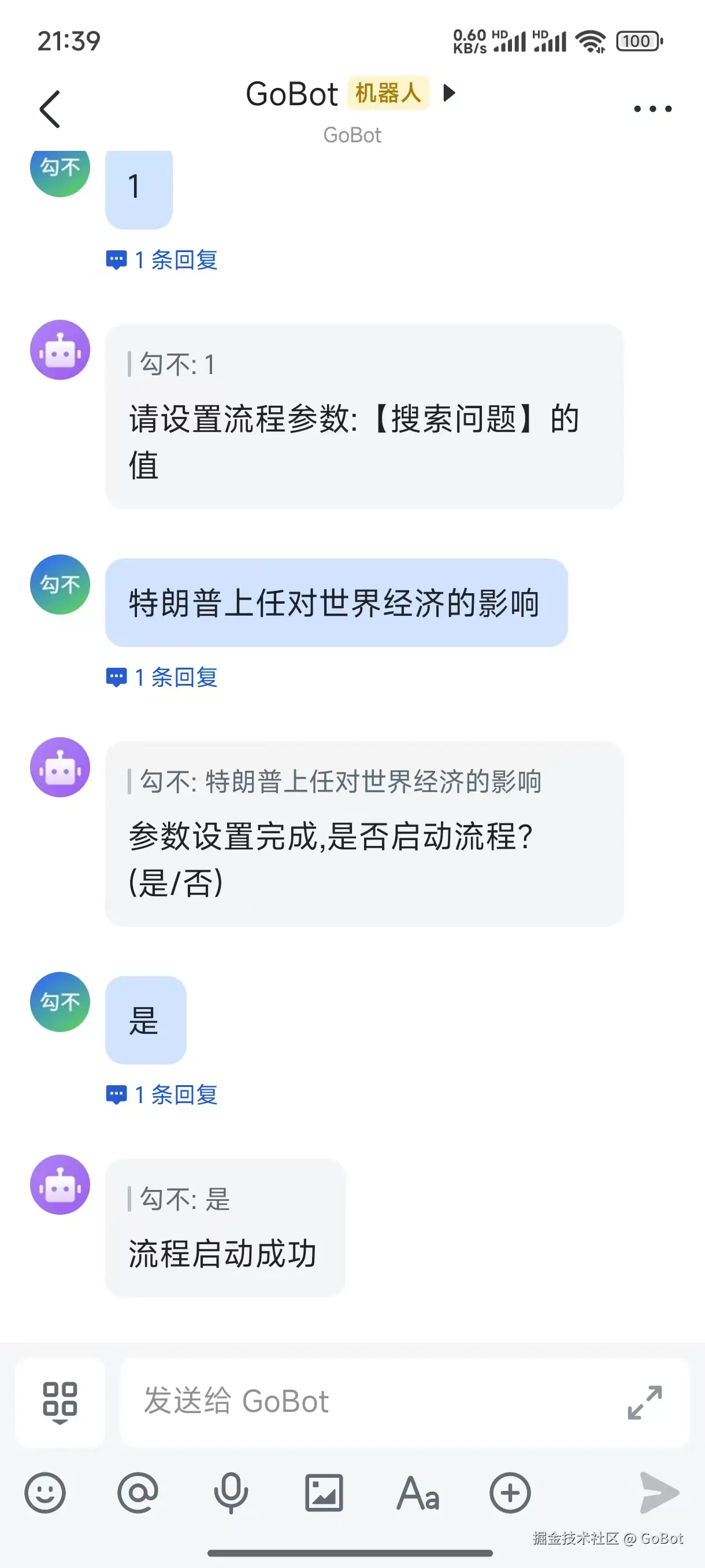

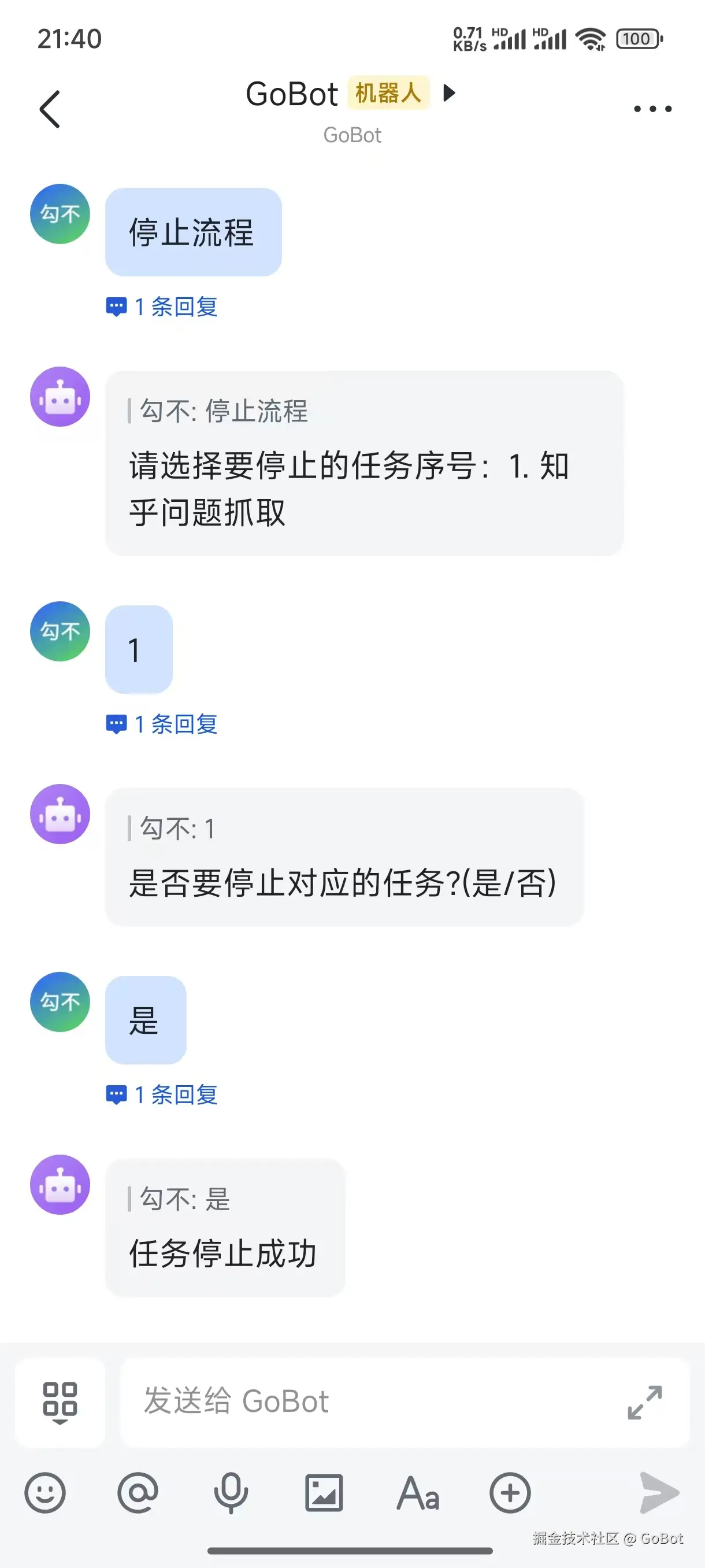

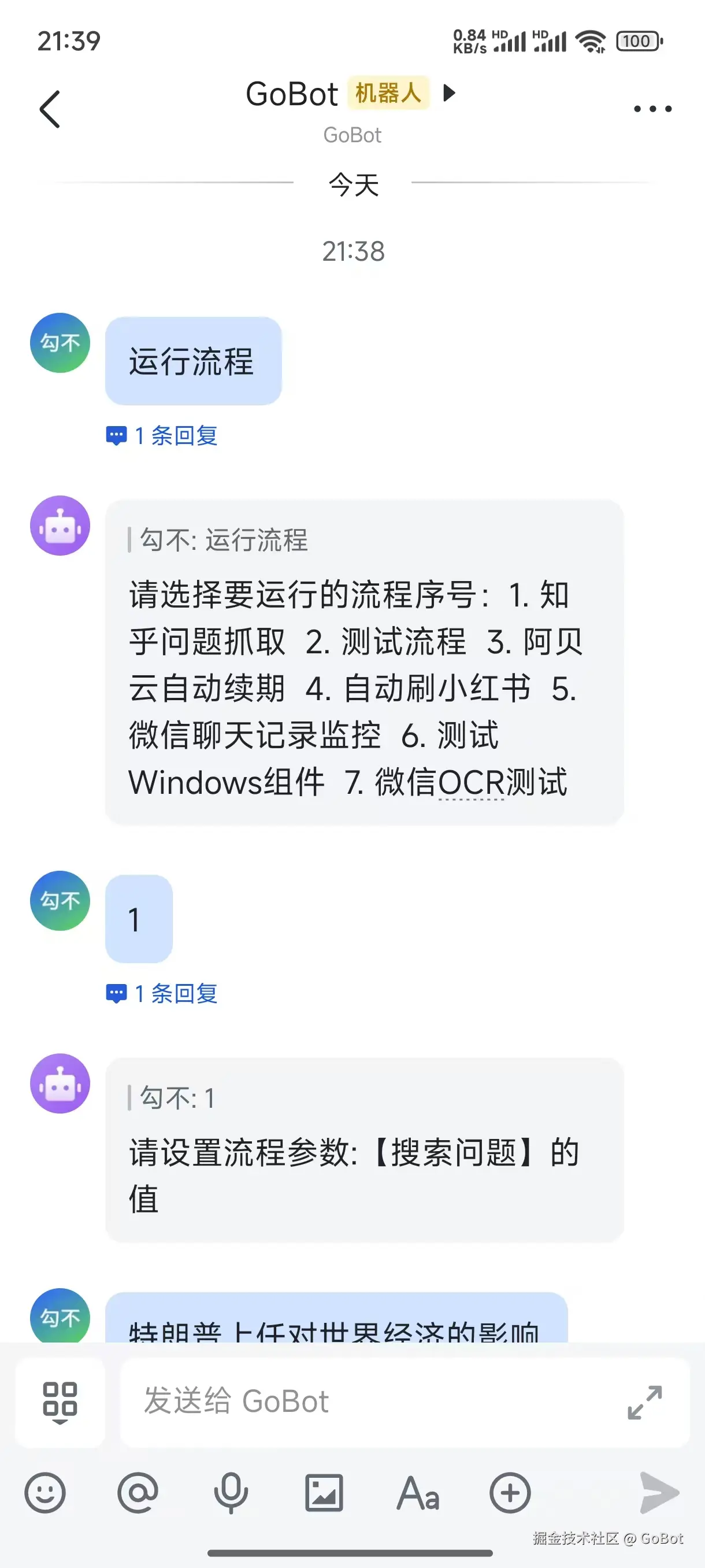

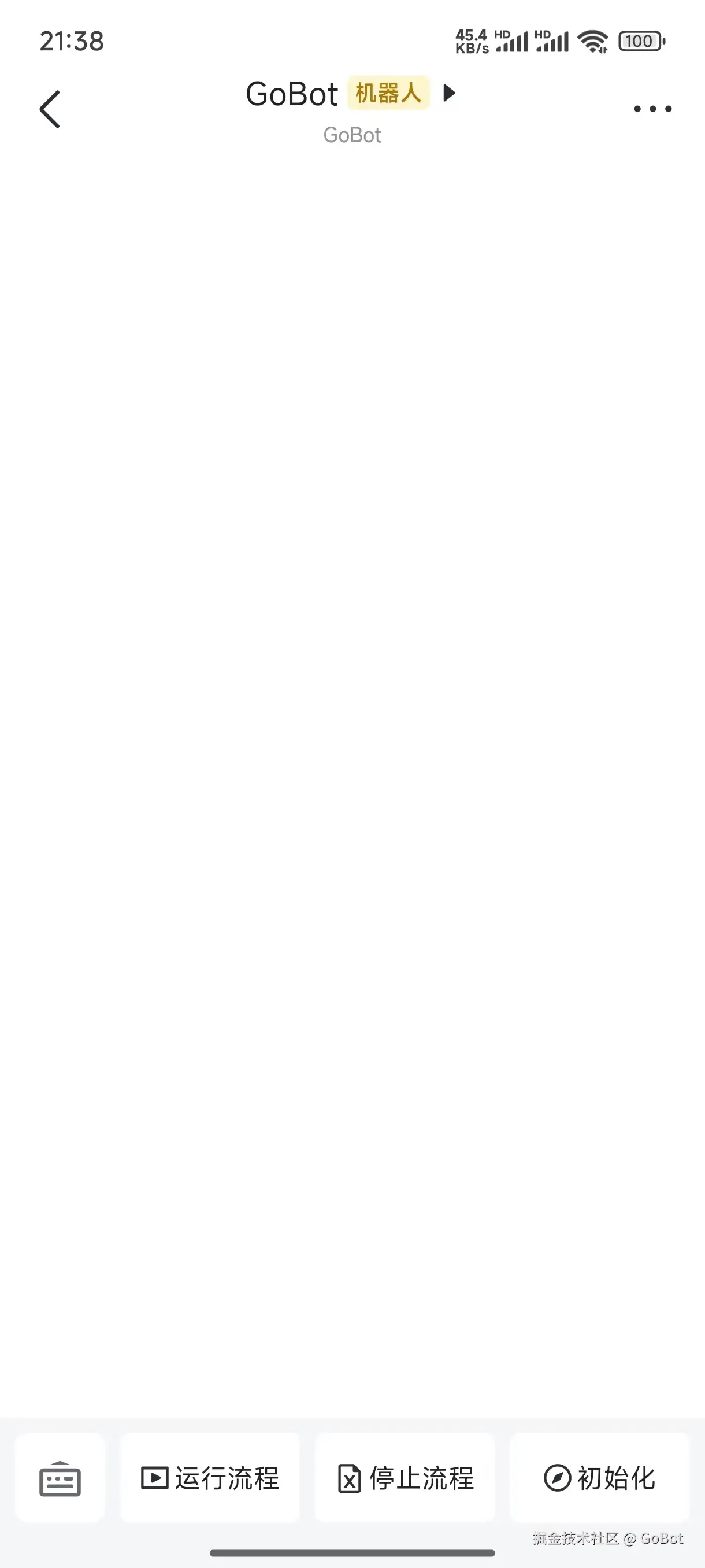

效果如下
