核心思路：
onPcEvent(pc,localUid,remoteUid){
const that = this
this.channel = pc.createDataChannel("chat");
pc.ontrack = function(event) {
that.setRemoteDomVideoStream("remoteVideo01",event.track)
};
pc.onnegotiationneeded = function(e){
console.log("重新协商",e)
}
pc.ondatachannel = function(ev) {
console.log('Data channel is created!');
};
pc.onicecandidate = (event) => {
if (event.candidate) {
that.linkSocket.emit('candidate',{'targetUid':remoteUid,"userId":localUid,"candidate":event.candidate})
} else {
/* 在此次协商中，没有更多的候选了 */
console.log("在此次协商中，没有更多的候选了")
}
}
}
- 创建
offer信令设置为本地描述后发送给 B 。
- 等 B 创建应答信令之后，信令服务器会将其转发到 A 这边。
async onRemoteAnswer(fromUid,answer){
await this.localRtcPc.setRemoteDescription(answer);
}
- A 接受 B 的
answer信令后，将其设置为remoteDesc。

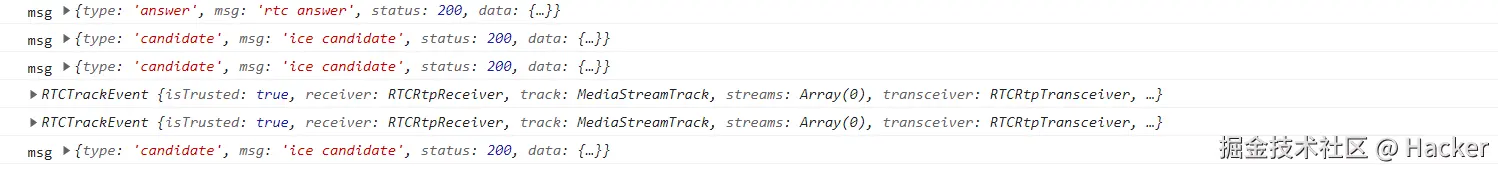

注意看日志中的
candidate，这个过程是贯穿整个会话的，直到ice候选完成。
被呼叫端B。
被呼叫端的过程和呼叫端类似，大体代码如下：
async initCalleeInfo(localUid,fromUid){
//初始化pc
this.localRtcPc = new PeerConnection()
//初始化本地媒体信息
let localStream = await this.getLocalUserMedia({ audio: true, video: true })
for (const track of localStream.getTracks()) {
this.localRtcPc.addTrack(track);
}
//dom渲染
await this.setDomVideoStream("localdemo01",localStream)
//监听
this.onPcEvent(this.localRtcPc,localUid,fromUid)
}
- B 接听后同时初始化 pc。
- B 创建本地
mediaStream，并添加到 pc 对象中，同时渲染在本地预览 Dom 元素。
- 同 A 初始化回调监听。
- 当然此时 A 发送的
offer信令通过信令服务器转发到 B 这边，B 将其设置为remoteDesc后，同时创建answer信令。
async onRemoteOffer(fromUid,offer){
//B接受到A的offer 设置为remote desc
this.localRtcPc.setRemoteDescription(offer)
//创建应答
let answer = await this.localRtcPc.createAnswer();
//设置为local desc
await this.localRtcPc.setLocalDescription(answer);
//并通过信令服务器发送给A
let params = {"targetUid":fromUid,"userId":getParams("userId"),"answer":answer}
this.linkSocket.emit("answer",params)
}
在双方监听的 pc 核心方法ontrack中，就能拿到双方的音频和视频信息了 （ B 能显示 A 音频 就是靠从ontrack拿到 A 的音频数据 然后显示到 B 的 Vidio 标签中）
createDataChannel 这个方法是 WebRTC对象是自带的一个 可以不通过中专服务器就可以直接向链接端发送 文本信息的方法（类 IM 数据发送）
本质上 就是 A 创建好 Web RTC 对象已经初始化好各种链接，然后当发起通话链接动作的时候，把动作发给 server 端（通过 web socket），B 接收到拿到视频流信息 然后完成视频通话
核心代码部分
主要步骤
<template>
<div style="width: 98%;height: 98vh;margin-top: 30px;">
<el-row :gutter="20">
<el-col :span="6">
<div style="width: 100%;height: 800px;" >
<ul v-for="(item,index) in roomUserList" :key="index">
<el-tag size="mini" @click="getStats" type="success">{{'用户'+item.nickname}}</el-tag>
<el-tag v-if="userInfo.userId === item.userId" type="danger" size="mini" @click="changeBitRate()" >增加比特率</el-tag>
<el-button size="mini" type="primary" v-if="userInfo.userId !== item.userId" @click="call(item)">通话</el-button>
<el-button v-if="userInfo.userId === item.userId" size="mini" type="danger"@click="openVideoOrNot">切换</el-button>
</ul>
</div>
</el-col>
<el-col :span="18">
<el-row>
<div style="width: 800px;height: 200px;display: flex;flex-direction: row;align-items: center;">
<el-form :model="formInline" label-width="250px" class="demo-form-inline">
<el-form-item label="发送消息">
<el-input v-model="formInline.rtcmessage" placeholder="消息"></el-input>
</el-form-item>
<el-form-item label="远端消息">
<div>{{formInline.rtcmessageRes}}</div>
</el-form-item>
<el-form-item>
<el-button type="primary" @click="sendMessageUserRtcChannel">点击发送</el-button>
</el-form-item>
</el-form>
</div>
</el-row>
<el-row>
<div style="display: flex;flex-direction: row;justify-content: flex-start;">
<video @click="streamInfo('localdemo01')" id="localdemo01" autoplay controls muted></video>
<video @click="streamInfo('remoteVideo01')" id="remoteVideo01" autoplay controls muted></video>
</div>
</el-row>
</el-col>
</el-row>
</div>
</template>
<script>
function handleError(error) {
// alert("摄像头无法正常使用，请检查是否占用或缺失")
console.error('navigator.MediaDevices.getUserMedia error: ', error.message, error.name);
}
var PeerConnection = window.RTCPeerConnection ||
window.mozRTCPeerConnection ||
window.webkitRTCPeerConnection;
const { io } = require("socket.io-client");
function getParams(queryName){
let url = window.location.href
let query = decodeURI(url.split('?')[1]);
let vars = query.split("&");
for (var i = 0; i < vars.length; i++) {
var pair = vars[i].split("=");
if (pair[0] === queryName) {
return pair[1];
}
}
return null;
}
export default {
name:'demo03-one2one',
data(){
return{
linkSocket:undefined,
rtcPcParams:{
iceServers: [
{ url: "stun:stun.l.google.com:19302"},// 谷歌的公共服务
]
},
roomUserList:[],
userInfo:{},//用户信息
formInline:{
rtcmessage:undefined,
rtcmessageRes:undefined,//响应
},
localRtcPc:undefined,
rtcmessage:undefined,
mapSender:[],//发送的媒体
}
},
created() {
if(getParams("userId")){
this.init(getParams("userId"),getParams("roomId"),getParams('userId'))
}
},
methods:{
async setDomVideoStream(domId,newStream){
let video = document.getElementById(domId)
let stream = video.srcObject
if(stream){
stream.getAudioTracks().forEach( e=>{
stream.removeTrack(e)
})
stream.getVideoTracks().forEach(e=>{
stream.removeTrack(e)
})
}
video.srcObject =newStream
video.muted = true
},
setRemoteDomVideoStream(domId,track){
let video = document.getElementById(domId)
let stream = video.srcObject
if(stream){
stream.addTrack(track)
}else{
let newStream = new MediaStream()
newStream.addTrack(track)
video.srcObject =newStream
video.muted = true
}
},
init(userId,roomId,nickname){
const that = this
this.userInfo = {
userId:userId,
roomId:roomId,
nickname:nickname
}
this.linkSocket = io(this.$serverSocketUrl, {
reconnectionDelayMax: 10000,
transports: ["websocket"],
query: {
"userId": userId,
"roomId": roomId,
"nickname":nickname
}
});
this.linkSocket.on("connect",(e)=>{
console.log("server init connect success",that.linkSocket)
})
this.linkSocket.on("roomUserList",(e)=>{
console.log("roomUserList",e)
that.roomUserList = e
})
this.linkSocket.on("msg",async (e)=>{
console.log("msg",e)
if(e['type'] === 'join' || e['type'] === 'leave'){
setTimeout(()=>{
let params = {"roomId":getParams('roomId')}
that.linkSocket.emit('roomUserList',params)
},1000)
}
if(e['type'] === 'call'){
await that.onCall(e)
}
if(e['type'] === 'offer'){
await that.onRemoteOffer(e['data']['userId'],e['data']['offer'])
}
if(e['type'] === 'answer'){
await that.onRemoteAnswer(e['data']['userId'],e['data']['answer'])
}
if(e['type'] === 'candidate'){
that.localRtcPc.addIceCandidate(e.data.candidate)
}
})
this.linkSocket.on("error",(e)=>{
console.log("error",e)
})
},
/**
* 获取设备 stream
* @param constraints
* @returns {Promise<MediaStream>}
*/
async getLocalUserMedia(constraints){
return await navigator.mediaDevices.getUserMedia(constraints).catch(handleError)
},
async call(item){
this.initCallerInfo(getParams('userId'),item.userId)
let params ={
"userId": getParams('userId'),"targetUid":item.userId}
this.linkSocket.emit('call',params)
},
async onCall(e){
console.log("远程呼叫：",e)
await this.initCalleeInfo(e.data['targetUid'],e.data['userId'])
},
async initCalleeInfo(localUid,fromUid){
//初始化pc
this.localRtcPc = new PeerConnection()
//初始化本地媒体信息
let localStream = await this.getLocalUserMedia({ audio: true, video: true })
for (const track of localStream.getTracks()) {
this.localRtcPc.addTrack(track);
}
// dom渲染
await this.setDomVideoStream("localdemo01",localStream)
//监听
this.onPcEvent(this.localRtcPc,localUid,fromUid)
},
async initCallerInfo(callerId,calleeId){
this.mapSender = []
//初始化pc
this.localRtcPc = new PeerConnection()
//获取本地媒体并添加到pc中
let localStream = await this.getLocalUserMedia({ audio: true, video: true })
for (const track of localStream.getTracks()) {
this.mapSender.push(this.localRtcPc.addTrack(track));
}
// 本地dom渲染
await this.setDomVideoStream("localdemo01",localStream)
//回调监听
this.onPcEvent(this.localRtcPc,callerId,calleeId)
//创建offer
let offer = await this.localRtcPc.createOffer({iceRestart:true});
//设置offer未本地描述
await this.localRtcPc.setLocalDescription(offer)
//发送offer给被呼叫端
let params = {"targetUid":calleeId,"userId":callerId,"offer":offer}
this.linkSocket.emit("offer",params)
},
onPcEvent(pc,localUid,remoteUid){
const that = this
this.channel = pc.createDataChannel("chat");
pc.ontrack = function(event) {
console.log(event)
that.setRemoteDomVideoStream("remoteVideo01",event.track)
};
pc.onnegotiationneeded = function(e){
console.log("重新协商",e)
}
pc.ondatachannel = function(ev) {
console.log('Data channel is created!');
ev.channel.onopen = function() {
console.log('Data channel ------------open----------------');
};
ev.channel.onmessage = function(data) {
console.log('Data channel ------------msg----------------',data);
that.formInline.rtcmessageRes = data.data
};
ev.channel.onclose = function() {
console.log('Data channel ------------close----------------');
};
};
pc.onicecandidate = (event) => {
if (event.candidate) {
that.linkSocket.emit('candidate',{'targetUid':remoteUid,"userId":localUid,"candidate":event.candidate})
} else {
/* 在此次协商中，没有更多的候选了 */
console.log("在此次协商中，没有更多的候选了")
}
}
},
sendMessageUserRtcChannel(){
if(!this.channel){
this.$message.error("请先建立webrtc连接")
}
this.channel.send(this.formInline.rtcmessage)
this.formInline.rtcmessage = undefined
},
async onRemoteOffer(fromUid,offer){
this.localRtcPc.setRemoteDescription(offer)
let answer = await this.localRtcPc.createAnswer();
await this.localRtcPc.setLocalDescription(answer);
let params = {"targetUid":fromUid,"userId":getParams("userId"),"answer":answer}
this.linkSocket.emit("answer",params)
},
async onRemoteAnswer(fromUid,answer){
await this.localRtcPc.setRemoteDescription(answer);
},
sendMsgToOne(event,params){
},
changeBitRate(){
console.log(this.localRtcPc);
const senders = this.localRtcPc.getSenders();
const send = senders.find((s) => s.track.kind === 'video')
const parameters = send.getParameters();
parameters.encodings[0].maxBitrate = 1 * 1000 * 1024;
send.setParameters(parameters);
}
,
/**
* 打开或关闭摄像头
*/
openVideoOrNot(){
const senders = this.localRtcPc.getSenders();
const send = senders.find((s) => s.track.kind === 'video')
send.track.enabled = !send.track.enabled //控制视频显示与否
},
/**
* 获取屏幕分享的媒体流
* @author suke
* @returns {Promise<void>}
*/
async getShareMedia(){
const constraints = {
video:{width:1920,height:1080},
audio:true
};
if (window.stream) {
window.stream.getTracks().forEach(track => {
track.stop();
});
}
return await navigator.mediaDevices.getDisplayMedia(constraints).catch(handleError);
},
streamInfo(domId){
let video = document.getElementById(domId)
console.log(video.srcObject)
},
getStats(){
const that = this
const senders = this.localRtcPc.getSenders();
const send = senders.find((s) => s.track.kind === 'video')
console.log(send.getParameters().encodings);
let lastResultForStats;//上次计算结果
setInterval(() => {
that.localRtcPc.getStats().then(res => {
res.forEach(report => {
let bytes;
let headerBytes;
let packets;
// console.log(report)
//出口宽带 outbound-rtp 入口宽带 inbound-rtp
if (report.type === 'outbound-rtp' && report.kind ==='video') {
const now = report.timestamp;
bytes = report.bytesSent;
headerBytes = report.headerBytesSent;
packets = report.packetsSent;
console.log(bytes,headerBytes,packets)
if (lastResultForStats && lastResultForStats.has(report.id)) {
let bf = bytes-lastResultForStats.get(report.id).bytesSent
let hbf = headerBytes - lastResultForStats.get(report.id).headerBytesSent
let pacf = packets - lastResultForStats.get(report.id).packetsSent
let t = now - lastResultForStats.get(report.id).timestamp
// calculate bitrate
const bitrate = Math.floor(8 * bf/t);
const headerrate = Math.floor(8 * hbf/t);
const packetrate = Math.floor(1000 * pacf/t);
console.log(`Bitrate ${bitrate} kbps, overhead ${headerrate} kbps, ${packetrate} packets/second`);
}
}
})
lastResultForStats = res
})
},4000)
},
}
}
</script>
<style scoped>
#localdemo01{
width: 300px;
height: 200px;
}
#remoteVideo01{
width: 300px;
height: 200px;
}
</style>
const {hSet,hGetAll,hDel} = require('./redis')
const {getMsg,getParams} = require('./common')
const http = require('http')
var fs=require('fs');
var express = require('express');
const { log } = require('console');
var app = express();
//http server
app.use(express.static('./dist'));
app.use(function (req, res,next) {
res.sendfile('./dist/index.html'); //路径根据自己文件配置
});
var server=http.createServer(app)
//socket server
let io = require('socket.io')(server,{allowEIO3:true});
//自定义命令空间 nginx代理 /mediaServerWsUrl { http://xxxx:18080/socket.io/ }
// io = io.of('mediaServerWsUrl')
server.listen(18080, async() => {
console.log('服务器启动成功 *:18080');
});
io.on('connection', async (socket) => {
await onListener(socket)
});
const userMap = new Map() // user - > socket
const roomKey = "meeting-room::"
/**
* DB data
* @author suke
* @param {Object} userId
* @param {Object} roomId
* @param {Object} nickname
* @param {Object} pub
*/
async function getUserDetailByUid(userId,roomId,nickname,pub){
let res = JSON.stringify(({"userId":userId,"roomId":roomId,"nickname":nickname,"pub":pub}))
return res
}
/**
* 监听
* @param {Object} s
*/
async function onListener(s){
let url = s.client.request.url
let userId = getParams(url,'userId')
let roomId = getParams(url,'roomId')
let nickname = getParams(url,'nickname')
let pub = getParams(url,'pub')
console.log("client uid："+userId+" roomId: "+roomId+" 【"+nickname+"】online ")
//user map
userMap.set(userId,s)
//room cache
if(roomId){
await hSet(roomKey+roomId,userId, await getUserDetailByUid(userId,roomId,nickname,pub))
console.log("roomId",roomId)
oneToRoomMany(roomId,getMsg('join',userId+ ' join then room',200,{userId:userId,nickname:nickname}))
}
s.on('msg', async (data) => {
console.log("msg",data)
await oneToRoomMany(roomId,data)
});
s.on('disconnect', () => {
console.log("client uid："+userId+" roomId: "+roomId+" 【"+nickname+"】 offline ")
userMap.delete(userId)
if(roomId){
hDel(roomKey+roomId,userId)
oneToRoomMany(roomId,getMsg('leave',userId+' leave the room ',200,{userId:userId,nickname:nickname}))
}
});
s.on('roomUserList', async (data) => {
// console.log("roomUserList msg",data)
s.emit('roomUserList',await getRoomOnlyUserList(data['roomId']))
})
s.on('call',(data) => {
let targetUid = data['targetUid']
oneToOne(targetUid,getMsg('call',"远程呼叫",200,data))
})
s.on('candidate',(data) => {
let targetUid = data['targetUid']
oneToOne(targetUid,getMsg('candidate',"ice candidate",200,data))
})
s.on('offer',(data) => {
let targetUid = data['targetUid']
oneToOne(targetUid,getMsg('offer',"rtc offer",200,data))
})
s.on('answer',(data) => {
let targetUid = data['targetUid']
oneToOne(targetUid,getMsg('answer',"rtc answer",200,data))
})
s.on('applyMic',(data) => {
let targetUid = data['targetUid']
oneToOne(targetUid,getMsg('applyMic',"apply mic",200,data))
})
s.on('acceptApplyMic',(data) => {
let targetUid = data['targetUid']
oneToOne(targetUid,getMsg('acceptApplyMic',"acceptApplyMic mic",200,data))
})
s.on('refuseApplyMic',(data) => {
let targetUid = data['targetUid']
oneToOne(targetUid,getMsg('refuseApplyMic',"refuseApplyMic mic",200,data))
})
}
/**
* ono to one
* @author suke
* @param {Object} uid
* @param {Object} msg
*/
function oneToOne(uid,msg){
let s = userMap.get(uid)
if(s){
s.emit('msg',msg)
}else{
console.log(uid+"用户不在线")
}
}
/**
* 获取房间用户列表(k-v) 原始KV数据
* @author suke
* @param {Object} roomId
*/
async function getRoomUser(roomId){
return await hGetAll(roomKey+roomId)
}
/**
* 获取房间用户列表(list)
* @author suke
* @param {Object} roomId
*/
async function getRoomOnlyUserList(roomId){
let resList = []
let uMap = await hGetAll(roomKey+roomId)
for(const key in uMap){
let detail = JSON.parse(uMap[key])
resList.push(detail);
}
return resList
}
/**
* broadcast
* @author suc
* @param {Object} roomId
* @param {Object} msg
*/
async function oneToRoomMany(roomId,msg){
let uMap = await getRoomUser(roomId)
for(const uid in uMap){
oneToOne(uid,msg)
}
}
