示例
运行环境JDK11
implementation("org.jetbrains.kotlinx:kotlinx-coroutines-core:1.9.0")
implementation("org.jetbrains.kotlin:kotlin-stdlib:2.0.21")
private fun logX(any: Any?) {
println("[Time:${LocalTime.now()} Thread:${Thread.currentThread().name}] $any ".trimIndent())
}
private fun wait(timeOut: Int, char: Char = '.') {
var time = 0L
val min = 150L
if (timeOut < min) return
while (time <= timeOut) {
Thread.sleep(min)
time += min
print(char)
}
println()
}
fun main() {
// 指定到单线程调度器
val dispatcher = Executors.newSingleThreadScheduledExecutor().asCoroutineDispatcher()
val parentJob = Job()
val scope = CoroutineScope(dispatcher + parentJob)
// 协程1
val coroutine1 = scope.launch {
logX("coroutine1 start")
// 协程2
val coroutine2 = launch {
logX("coroutine2 start")
// 让子job无法多等一会，观察父子job之间的关系
delay(Long.MAX_VALUE - 1)
logX("coroutine2 end")
}
// 协程3
val coroutine3 = launch {
logX("coroutine3 start")
// 让子job无法多等一会，观察父子job之间的关系
delay(Long.MAX_VALUE - 1)
logX("coroutine3 end")
}
// 这样协程1就不会执行完
coroutine3.join()
logX("coroutine1 end")
}
// 等子job
wait(10000)
// 取消
scope.cancel()
while (parentJob.isActive)
Thread.yield()
// 关闭线程池
dispatcher.close()
logX("main end")
}
输出
[Time:18:37:30.848391300 Thread:pool-1-thread-1] coroutine1 start
[Time:18:37:30.884485100 Thread:pool-1-thread-1] coroutine2 start
[Time:18:37:30.885488700 Thread:pool-1-thread-1] coroutine3 start
...................................................................
[Time:18:37:41.289701 Thread:main] main end
parentJob关联协程1
public fun Job(parent: Job? = null): CompletableJob = JobImpl(parent)
public interface CompletableJob : Job {
// 结束这个Job
public fun complete(): Boolean
// 使用给定异常结束这个Job
public fun completeExceptionally(exception: Throwable): Boolean
}
parentJob是CompletableJob类型，这种类型可以使用complete方法结束协程，也可以使用异常来完成协程（completeExceptionally）。
internal open class JobImpl(parent: Job?) : JobSupport(true), CompletableJob {
init { initParentJob(parent) } // parent为null
/**
* Returns `true` for job that do not have "body block" to complete and should immediately go into
* completing state and start waiting for children.
*/
override val onCancelComplete get() = true
......
}
同时也继承了JobSupport类。这是一个非常重要的类，继承这个类的节点可以当做子节点，也可以当做父节点。
当使用Job()时，它是没有父Job的，即它自己就是顶层Job
public fun CoroutineScope.launch(
context: CoroutineContext = EmptyCoroutineContext,
start: CoroutineStart = CoroutineStart.DEFAULT,
block: suspend CoroutineScope.() -> Unit
): Job {
val newContext = newCoroutineContext(context)
val coroutine = if (start.isLazy)
LazyStandaloneCoroutine(newContext, block) else
StandaloneCoroutine(newContext, active = true)
coroutine.start(start, coroutine, block)
return coroutine
}

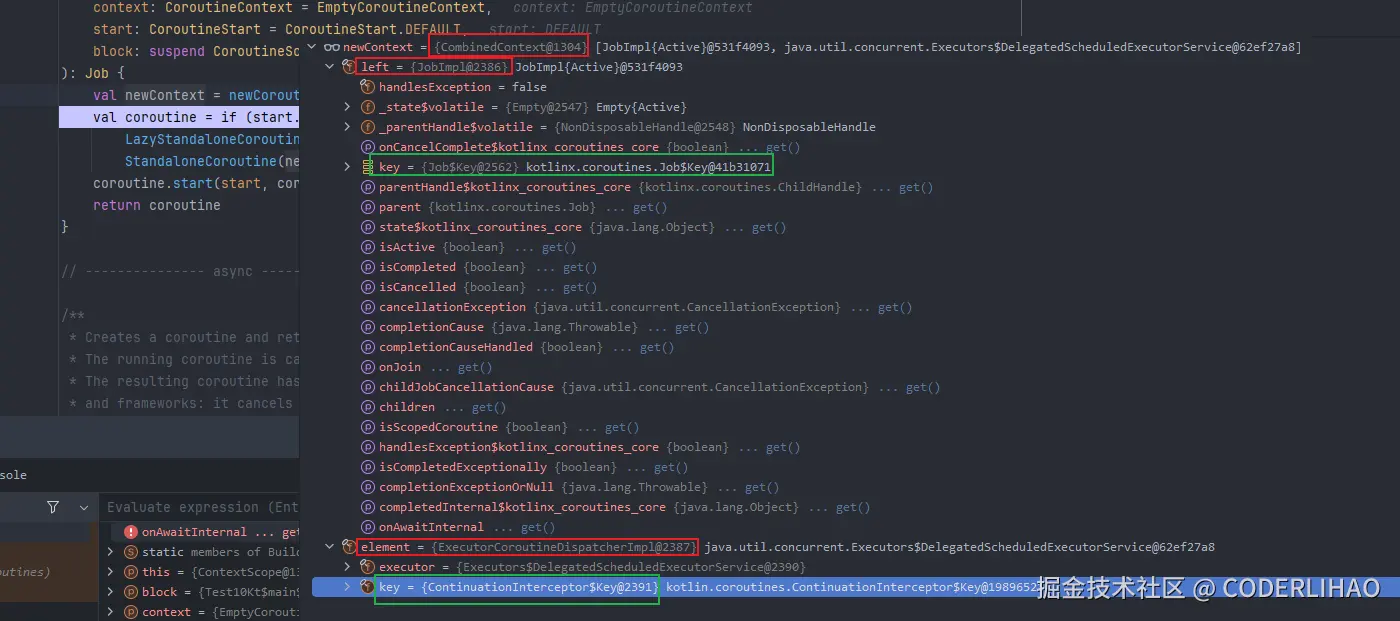

运行到第一层的launch，我们看下newContext的值。它是CombinedContext，即一种组合context，里面的element是我们定义的线程池调度器，还有一个left指向的是一个Job。
接下来就是初始化StandaloneCoroutine，StandaloneCoroutine因为继承自AbstractCoroutine。
private open class StandaloneCoroutine(
parentContext: CoroutineContext,
active: Boolean
) : AbstractCoroutine<Unit>(parentContext, initParentJob = true, active = active) {
override fun handleJobException(exception: Throwable): Boolean {
handleCoroutineException(context, exception)
return true
}
}
public abstract class AbstractCoroutine<in T>(
parentContext: CoroutineContext,
initParentJob: Boolean,
active: Boolean
) : JobSupport(active), Job, Continuation<T>, CoroutineScope {
......
init {
//
if (initParentJob) initParentJob(parentContext[Job])
}
.....
}
StandaloneCoroutine的initParentJob的值都是true。parentContext就是上面的创建出来的newContext，里面有Job，即parentContext[Job]是不为null的。它的值就是我们示例中的parentJob。
protected fun initParentJob(parent: Job?) {
assert { parentHandle == null }
if (parent == null) {
parentHandle = NonDisposableHandle
return
}
// start方法就是确保子协程启动的时候，父协程也必须是启动状态的
// 就是改变状态
parent.start() // make sure the parent is started
val handle = parent.attachChild(this)
parentHandle = handle
// now check our state _after_ registering (see tryFinalizeSimpleState order of actions)
if (isCompleted) {
handle.dispose()
parentHandle = NonDisposableHandle // release it just in case, to aid GC
}
}
JobSupport有一个状态state字段，表示当前Job的状态。初始化的时候是EMPTY，即EMPTY_ACTIVE或者EMPTY_NEW。如果没有子节点，就是EMPTY。如果有一个子节点，它的值会变成ChildHandleNode。如果有多个子节点，它的值会变成NodeList，NodeList是一个双向链表，它自己就是链表的头，链表的ChildHandleNode节点代表的是它的子协程，当然可以有其他的节点，比如协程要结束的时候会添加ListClosed节点，
如果父协程先一步子协程执行完代码块，父协程还需要检查子协程是否结束，就会注册一个ChildCompletion到子协程的NodeList链表中。
private val _state = atomic<Any?>(if (active) EMPTY_ACTIVE else EMPTY_NEW)
internal val state: Any? get() = _state.value
private class ChildHandleNode(
@JvmField val childJob: ChildJob
) : JobNode(), ChildHandle {
override val parent: Job get() = job
override val onCancelling: Boolean get() = true
override fun invoke(cause: Throwable?) = childJob.parentCancelled(job)
override fun childCancelled(cause: Throwable): Boolean = job.childCancelled(cause)
}
public final override fun attachChild(child: ChildJob): ChildHandle {
// 创建一个ChildHandleNode
val node = ChildHandleNode(child).also { it.job = this }
//
val added = tryPutNodeIntoList(node) { _, list ->
// 能到这里，说明Job的state已经是NodeList或者Finishing了
// 往NodeList这个双向链表中添加node
// First, try to add a child along the cancellation handlers
val addedBeforeCancellation = list.addLast(
node,
LIST_ON_COMPLETION_PERMISSION or LIST_CHILD_PERMISSION or LIST_CANCELLATION_PERMISSION
)
if (addedBeforeCancellation) {
// The child managed to be added before the parent started to cancel or complete. Success.
true
} else {
.....
}
}
// 添加成功，返回node
if (added) return node
/** We can only end up here if [tryPutNodeIntoList] detected a final state. */
node.invoke((state as? CompletedExceptionally)?.cause)
return NonDisposableHandle
}
private inline fun tryPutNodeIntoList(
node: JobNode,
tryAdd: (Incomplete, NodeList) -> Boolean
): Boolean {
// 循环检查state
loopOnState { state ->
// 协程1刚刚初始化，state的值就是EMPTY_ACTIVE
when (state) {
is Empty -> { // EMPTY_X state -- no completion handlers
if (state.isActive) {
// try to move to the SINGLE state
// state的值从EMPTY_ACTIVE变成了ChildHandleNode
if (_state.compareAndSet(state, node)) return true
} else
promoteEmptyToNodeList(state) // that way we can add listener for non-active coroutine
}
// 如果state已经是ChildHandleNode，说明还有当前协程已经有子协程了
// 如果state已经是NodeList，就看tryAdd方法能不能加到链表了
is Incomplete -> when (val list = state.list) {
// 如果state已经是ChildHandleNode，它的list是null，就先创建一个NodeList
// 让state的值变成这个NodeList，同时把之前的ChildHandleNode添加到这个NodeList双向链表中
// 因为这里没有返回值，会循环回来继续添加node
null -> promoteSingleToNodeList(state as JobNode)
// 这里state已经是NodeList状态了，即当前协程已经有子协程了
// 使用tryAdd方法来添加node
else -> if (tryAdd(state, list)) return true
}
// 添加不成功返回false
else -> return false
}
}
}
tryPutNodeIntoList方法就是把node添加到父协程中，如果state已经是ChildHandleNode，说明还有当前协程已经有一个子协程了。ChildHandleNode是Incomplete的子类。它的list是null，就先创建一个NodeList，让state的值变成这个NodeList，同时把之前的ChildHandleNode添加到这个NodeList双向链表中。
如果state已经是NodeList状态了，即当前协程已经有多个子协程了(>=1)，现在想再添加一个node，就要tryAdd方法了。

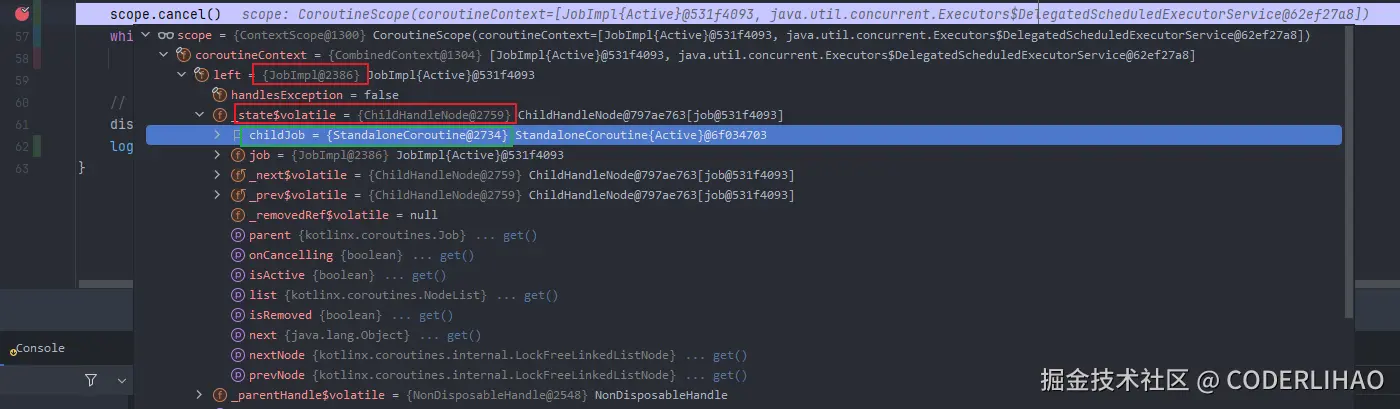

我们看看parentJob的state，已经变成了ChildHandleNode，说明它关联一个字协程，即示例中的协程1。
协程1关联协程2和协程3
launch执行的时候会创建StandaloneCoroutine，这个类中会调用initParentJob方法。
按照上面的逻辑，协程1一开始的state是EMPTY_ACTIVE，后面执行到协程2的launch，同样也会调用initParentJob方法。也是就是说添加关联是子协程的主动行为。让parent自己关联
parent.attachChild(this)
协程1的state从一开始的EMPTY_ACTIVE变成了ChildHandleNode。

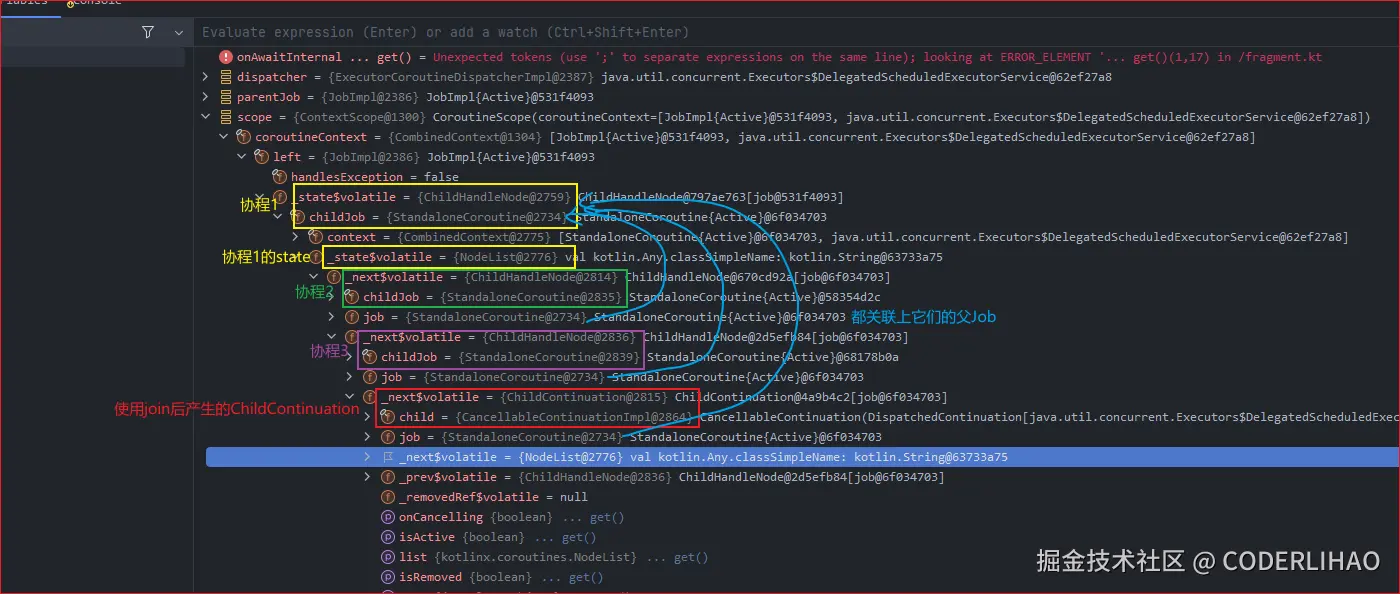

然后执行到协程3，协程3主动关联它的父Job，这时父job，即协程1，关联协程3时，发现自己的state是ChildHandleNode，就创建一个NodeList，把协程1刚刚的ChildHandleNode添加到这个NodeList链表中，再把协程1的state变成这个NodeList，最后把协程3关联到NodeList中。
但是我们的示例中使用了join()，协程会挂起在这里，等待coroutine3结束，但是我们delay了一个超长的时间，coroutine3是一直delay下去了，执行不完。join操作会向当前协程（协程1）关联一个ChildContinuation节点。当父协程取消的时候可以通知到它的子协程，看看是怎么关联进去的。
// Same as ChildHandleNode, but for cancellable continuation
private class ChildContinuation(
@JvmField val child: CancellableContinuationImpl<*>
) : JobNode() {
// 为true表示ChildContinuation对取消事件也感兴趣
// 为false表示ChildContinuation只对完成时间感兴趣
override val onCancelling get() = true
override fun invoke(cause: Throwable?) {
child.parentCancelled(child.getContinuationCancellationCause(job))
}
}
coroutine3.join()
public final override suspend fun join() {
....
return joinSuspend() // slow-path wait
}
// cont就是CancellableContinuationImpl
private suspend fun joinSuspend() = suspendCancellableCoroutine<Unit> { cont ->
// We have to invoke join() handler only on cancellation, on completion we will be resumed regularly without handlers
cont.disposeOnCancellation(invokeOnCompletion(handler = ResumeOnCompletion(cont)))
}
public suspend inline fun <T> suspendCancellableCoroutine(
crossinline block: (CancellableContinuation<T>) -> Unit
): T =
suspendCoroutineUninterceptedOrReturn { uCont ->
val cancellable = CancellableContinuationImpl(uCont.intercepted(), resumeMode = MODE_CANCELLABLE)
cancellable.initCancellability()
block(cancellable)
cancellable.getResult()
}
也就是说协程1需要等CancellableContinuationImpl执行结束才能恢复执行。
public override fun initCancellability() {
val handle = installParentHandle()
?: return // fast path -- don't do anything without parent
// now check our state _after_ registering, could have completed while we were registering,
// but only if parent was cancelled. Parent could be in a "cancelling" state for a while,
// so we are helping it and cleaning the node ourselves
if (isCompleted) {
// Can be invoked concurrently in 'parentCancelled', no problems here
handle.dispose()
_parentHandle.value = NonDisposableHandle
}
}
private fun installParentHandle(): DisposableHandle? {
val parent = context[Job] ?: return null // don't do anything without a parent
// Install the handle
// 当父协程取消的时候可以通知到它的子协程,因为ChildContinuation中有这个this引用
// 这个this就是CancellableContinuationImpl，里面有一个delegate，即DispatchedContinuation
// 这个DispatchedContinuation就含有外面协程的引用
val handle = parent.invokeOnCompletion(handler = ChildContinuation(this))
_parentHandle.compareAndSet(null, handle)
return handle
}
context就是协程1中的context，所以parent就是协程1的StandaloneCoroutine
internal fun Job.invokeOnCompletion(
invokeImmediately: Boolean = true,
handler: JobNode,
): DisposableHandle = when (this) {
is JobSupport -> invokeOnCompletionInternal(invokeImmediately, handler)
else -> invokeOnCompletion(handler.onCancelling, invokeImmediately, handler::invoke)
}
this就是协程1的StandaloneCoroutine，即是JobSupport类型
internal fun invokeOnCompletionInternal(
invokeImmediately: Boolean,
node: JobNode
): DisposableHandle {
// node是ChildContinuation，它的job字段就是协程1的StandaloneCoroutine
node.job = this
// Create node upfront -- for common cases it just initializes JobNode.job field,
// for user-defined handlers it allocates a JobNode object that we might not need, but this is Ok.
val added = tryPutNodeIntoList(node) { state, list ->
// ChildContinuation的 onCancelling为true，表示ChildContinuation可以响应取消事件
if (node.onCancelling) {
// 没有异常，rootCause为null
val rootCause = (state as? Finishing)?.rootCause
if (rootCause == null) {
// 添加到链表
list.addLast(node, LIST_CANCELLATION_PERMISSION or LIST_ON_COMPLETION_PERMISSION)
} else {
.....
}
} else {
....
}
}
when {
added -> return node
invokeImmediately -> node.invoke((state as? CompletedExceptionally)?.cause)
}
return NonDisposableHandle
}

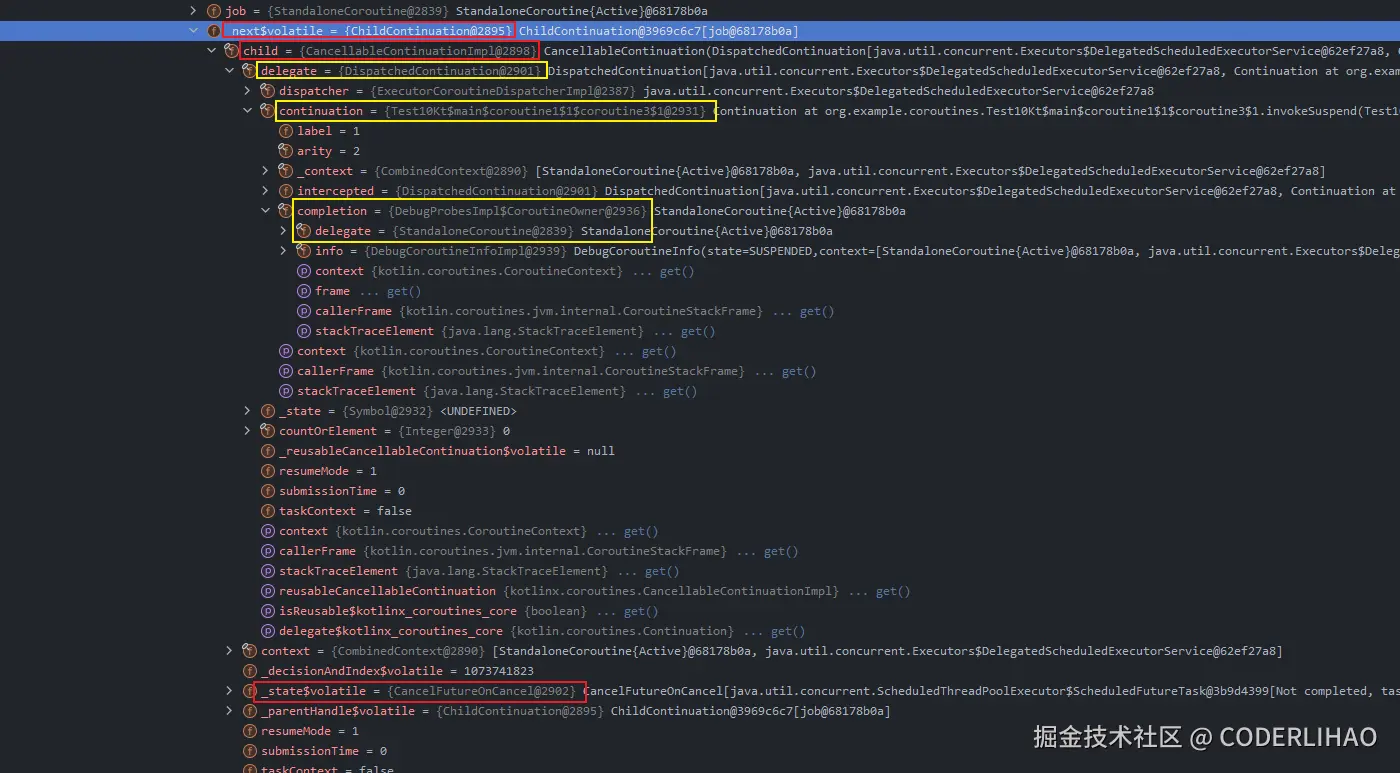

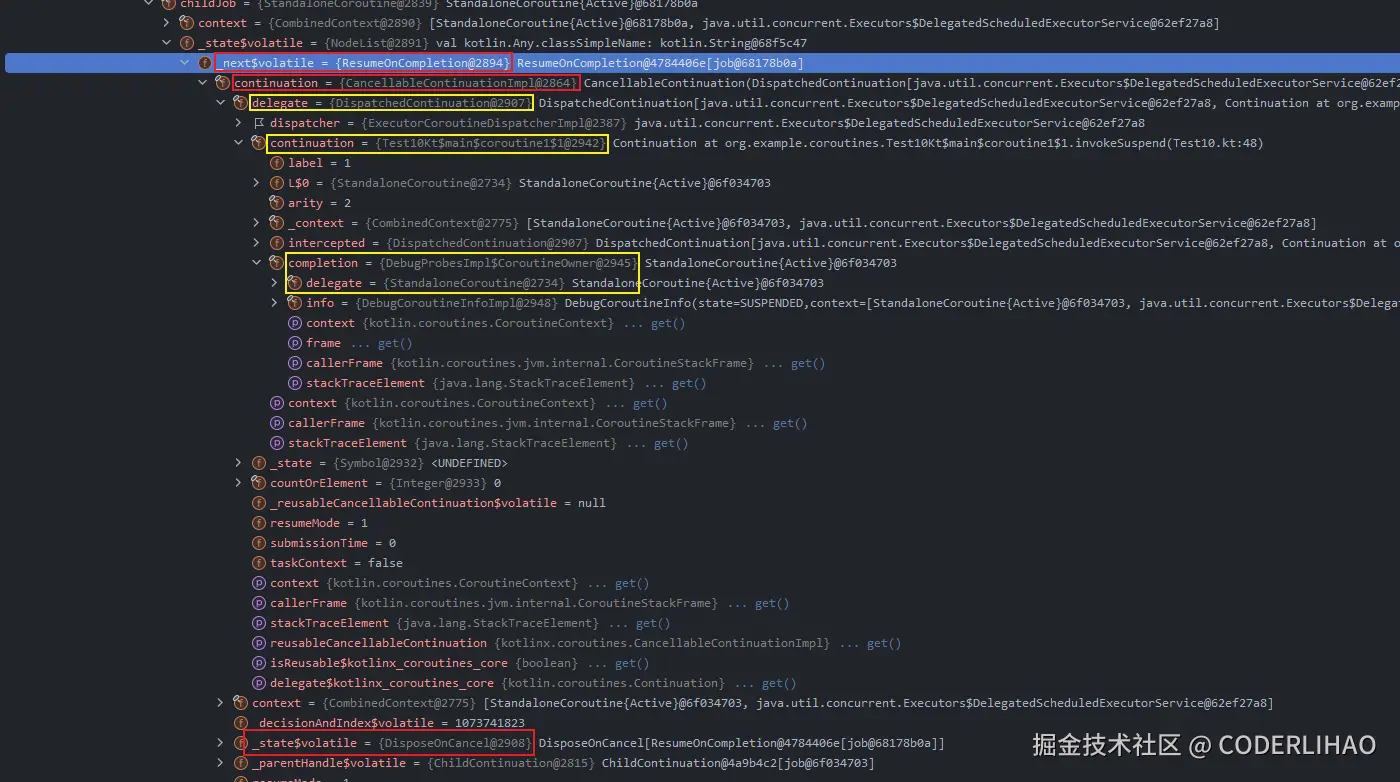

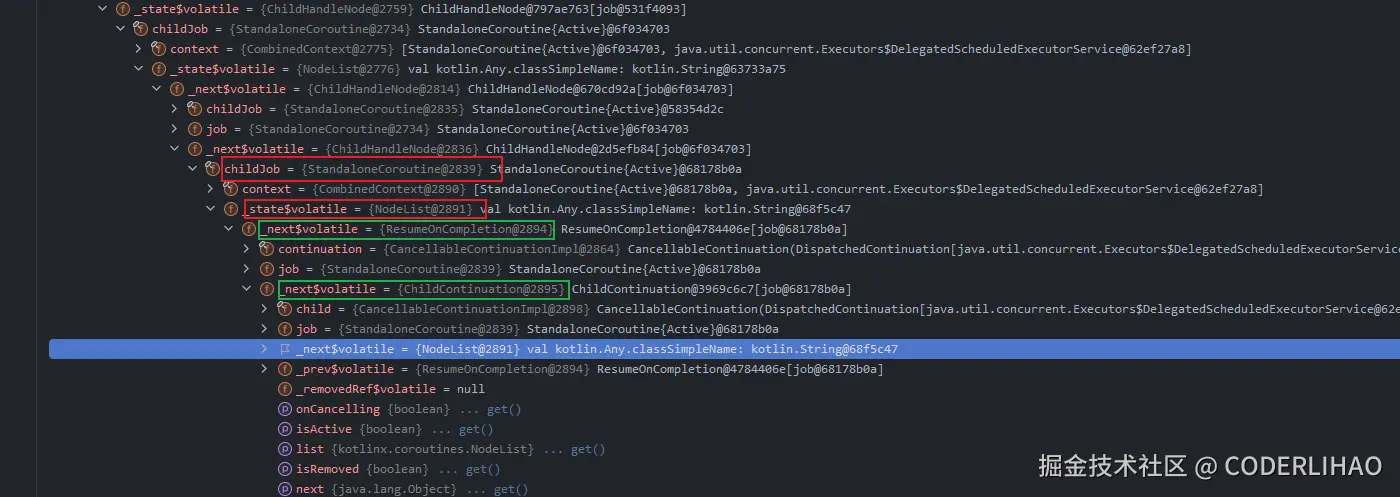

我们现在知道协程1已经关联了协程2和协程3，协程1的state已经是NodeList了，所以tryPutNodeIntoList(node)，就直接添加到NodeList的链表中。
协程2的状态
协程2中使用了delay方法
public suspend fun delay(timeMillis: Long) {
if (timeMillis <= 0) return // don't delay
return suspendCancellableCoroutine sc@ { cont: CancellableContinuation<Unit> ->
// if timeMillis == Long.MAX_VALUE then just wait forever like awaitCancellation, don't schedule.
if (timeMillis < Long.MAX_VALUE) {
cont.context.delay.scheduleResumeAfterDelay(timeMillis, cont)
}
}
}
cont是 CancellableContinuationImpl
uCont就是协程2对象，内部有一个completion字段，这个值就是执行到launch的时候创建的StandaloneCoroutine
public suspend inline fun <T> suspendCancellableCoroutine(
crossinline block: (CancellableContinuation<T>) -> Unit
): T =
suspendCoroutineUninterceptedOrReturn { uCont ->
val cancellable = CancellableContinuationImpl(uCont.intercepted(), resumeMode = MODE_CANCELLABLE)
cancellable.initCancellability()
block(cancellable)
cancellable.getResult()
}
suspend修饰的方法，经过CPS修改后，方法最后会有一个Continuation类型参数，我们说的协成是我们自己写大代码块，其实这坨代码块还要经过层层修饰封装，这才有了协程的切换线程，协程的管理等业务。
所以suspendCoroutineUninterceptedOrReturn方法是没有源码的，是虚拟机asm实现的，干什么呢，就是帮我们拿到外面的Continuation类型参数。

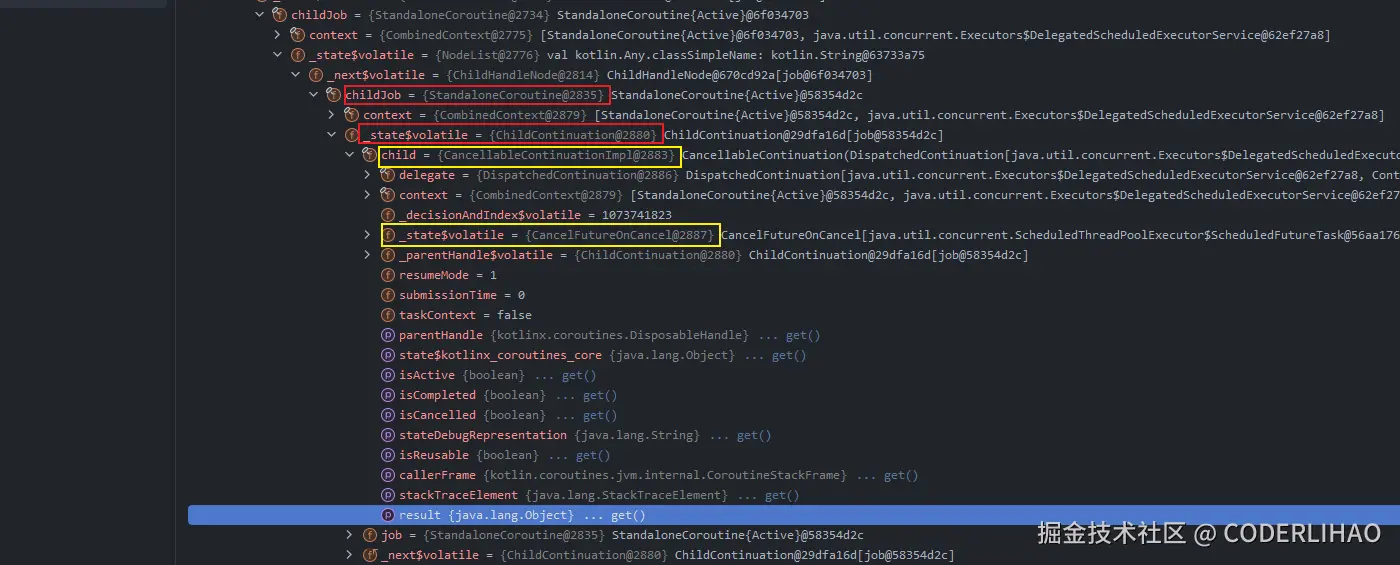

执行initCancellability后，协程2的state从EMPTY_ACTIVE变成了ChildContinuation。
同时CancellableContinuationImpl的state值就会变成CancelFutureOnCancel,当有取消事件的时候，协程2就可以遍历它的NodeList，找到这个CancelFutureOnCancel，执行它的invok方法，把这个delay事件从线程池的任务中删除。
override fun scheduleResumeAfterDelay(timeMillis: Long, continuation: CancellableContinuation<Unit>) {
val future = (executor as? ScheduledExecutorService)?.scheduleBlock(
ResumeUndispatchedRunnable(this, continuation),
continuation.context,
timeMillis
)
// If everything went fine and the scheduling attempt was not rejected -- use it
if (future != null) {
continuation.invokeOnCancellation(CancelFutureOnCancel(future))
return
}
// Otherwise fallback to default executor
DefaultExecutor.scheduleResumeAfterDelay(timeMillis, continuation)
}
协程3的状态
协程3和协程2基本一样，它也有一个ChildContinuation，除此之外，还有一个ResumeOnCompletion。
因为使用了coroutine3.join()，协程3
private suspend fun joinSuspend() = suspendCancellableCoroutine<Unit> { cont ->
// We have to invoke join() handler only on cancellation, on completion we will be resumed regularly without handlers
cont.disposeOnCancellation(invokeOnCompletion(handler = ResumeOnCompletion(cont)))
}
cont就是CancellableContinuationImpl
internal fun Job.invokeOnCompletion(
invokeImmediately: Boolean = true,
handler: JobNode,
): DisposableHandle = when (this) {
// this就是coroutine3，即StandaloneCoroutine
is JobSupport -> invokeOnCompletionInternal(invokeImmediately, handler)
else -> invokeOnCompletion(handler.onCancelling, invokeImmediately, handler::invoke)
}
internal fun invokeOnCompletionInternal(
invokeImmediately: Boolean,
node: JobNode
): DisposableHandle {
// node是ResumeOnCompletion，this是协程3关联的StandaloneCoroutine
node.job = this
// Create node upfront -- for common cases it just initializes JobNode.job field,
// for user-defined handlers it allocates a JobNode object that we might not need, but this is Ok.
val added = tryPutNodeIntoList(node) { state, list ->
......
}
when {
added -> return node
invokeImmediately -> node.invoke((state as? CompletedExceptionally)?.cause)
}
return NonDisposableHandle
}
ResumeOnCompletion内部的continuation指向的就是CancellableContinuationImpl，而CancellableContinuationImpl内部的delegate就是DispatchedContinuation，当协程3完后后会通知协程1可以恢复执行，就是因为这里可以引用到协程1，直接调用协程1的resume就可以继续在Join后的代码了。
