AndroidAOSP定制之关闭某些app的通知
前言：
最近在做AOSP系统定制时发现gms定制好了后，Google应用商店用不了，提示此设备未获得Play保护机制认证，Google应用和服务无法在此设备上运行,查看官方文档和资料，说是由于Android设备id生成不对引起的，可以通过修改系统属性解决，需求简单描述还是如何默认关闭掉Google Play服务的通知，或者某个app的通知.

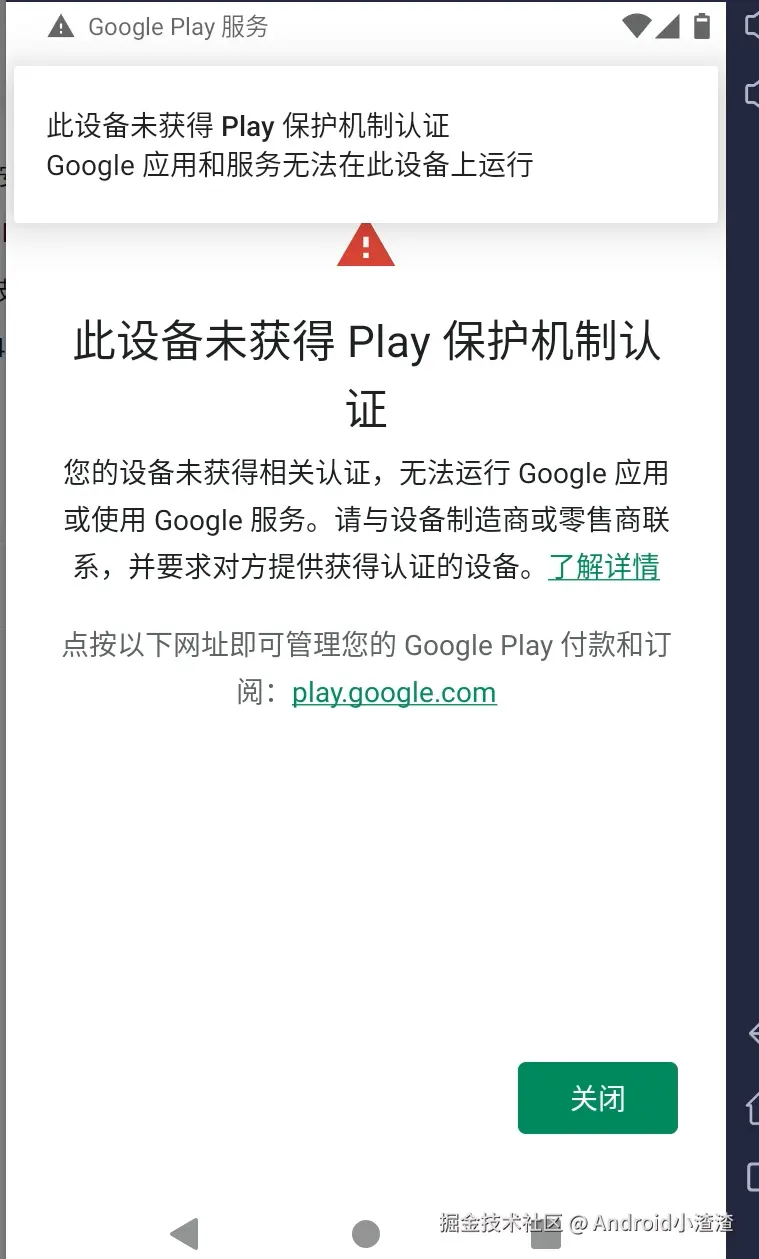

1.报错信息如下：
2.解决方法1：

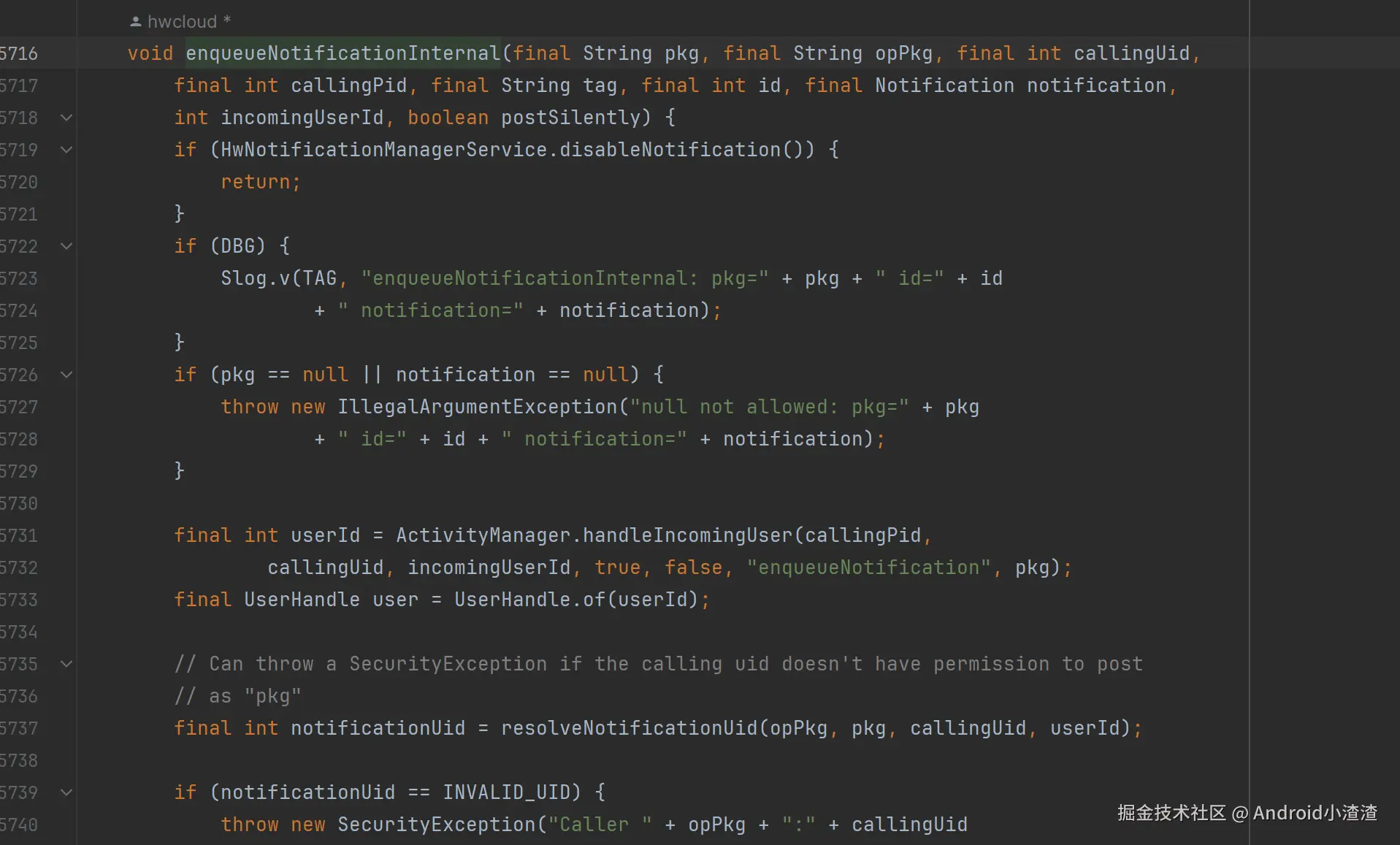

- 源码路径：/frameworks/base/services/core/java/com/android/server/notification/NotificationManagerService.java
- 源码：
- 通过包名判断过滤过需要关闭通知的应用
void enqueueNotificationInternal(final String pkg, final String opPkg, final int callingUid,
final int callingPid, final String tag, final int id, final Notification notification,
int incomingUserId, boolean postSilently) {
if (HwNotificationManagerService.disableNotification()) {
return;
}
if (DBG) {
Slog.v(TAG, "enqueueNotificationInternal: pkg=" + pkg + " id=" + id
+ " notification=" + notification);
}
if (pkg == null || notification == null) {
throw new IllegalArgumentException("null not allowed: pkg=" + pkg
+ " id=" + id + " notification=" + notification);
}
final int userId = ActivityManager.handleIncomingUser(callingPid,
callingUid, incomingUserId, true, false, "enqueueNotification", pkg);
final UserHandle user = UserHandle.of(userId);
// Can throw a SecurityException if the calling uid doesn't have permission to post
// as "pkg"
final int notificationUid = resolveNotificationUid(opPkg, pkg, callingUid, userId);
if (notificationUid == INVALID_UID) {
throw new SecurityException("Caller " + opPkg + ":" + callingUid
+ " trying to post for invalid pkg " + pkg + " in user " + incomingUserId);
}
checkRestrictedCategories(pkg, notification);
// Fix the notification as best we can.
try {
fixNotification(notification, pkg, tag, id, userId);
} catch (Exception e) {
Slog.e(TAG, "Cannot fix notification", e);
return;
}
mUsageStats.registerEnqueuedByApp(pkg);
final StatusBarNotification n = new StatusBarNotification(
pkg, opPkg, id, tag, notificationUid, callingPid, notification,
user, null, mSystemClock.currentTimeMillis());
// setup local book-keeping
String channelId = notification.getChannelId();
if (mIsTelevision && (new Notification.TvExtender(notification)).getChannelId() != null) {
channelId = (new Notification.TvExtender(notification)).getChannelId();
}
String shortcutId = n.getShortcutId();
final NotificationChannel channel = mPreferencesHelper.getConversationNotificationChannel(
pkg, notificationUid, channelId, shortcutId,
true /* parent ok */, false /* includeDeleted */);
if (channel == null) {
final String noChannelStr = "No Channel found for "
+ "pkg=" + pkg
+ ", channelId=" + channelId
+ ", id=" + id
+ ", tag=" + tag
+ ", opPkg=" + opPkg
+ ", callingUid=" + callingUid
+ ", userId=" + userId
+ ", incomingUserId=" + incomingUserId
+ ", notificationUid=" + notificationUid
+ ", notification=" + notification;
Slog.e(TAG, noChannelStr);
boolean appNotificationsOff = mPreferencesHelper.getImportance(pkg, notificationUid)
== NotificationManager.IMPORTANCE_NONE;
if (!appNotificationsOff) {
doChannelWarningToast("Developer warning for package "" + pkg + ""\n" +
"Failed to post notification on channel "" + channelId + ""\n" +
"See log for more details");
}
return;
}
final NotificationRecord r = new NotificationRecord(getContext(), n, channel);
r.setIsAppImportanceLocked(mPreferencesHelper.getIsAppImportanceLocked(pkg, callingUid));
r.setPostSilently(postSilently);
r.setFlagBubbleRemoved(false);
r.setPkgAllowedAsConvo(mMsgPkgsAllowedAsConvos.contains(pkg));
if ((notification.flags & Notification.FLAG_FOREGROUND_SERVICE) != 0) {
final boolean fgServiceShown = channel.isFgServiceShown();
if (((channel.getUserLockedFields() & NotificationChannel.USER_LOCKED_IMPORTANCE) == 0
|| !fgServiceShown)
&& (r.getImportance() == IMPORTANCE_MIN
|| r.getImportance() == IMPORTANCE_NONE)) {
// Increase the importance of foreground service notifications unless the user had
// an opinion otherwise (and the channel hasn't yet shown a fg service).
if (TextUtils.isEmpty(channelId)
|| NotificationChannel.DEFAULT_CHANNEL_ID.equals(channelId)) {
r.setSystemImportance(IMPORTANCE_LOW);
} else {
channel.setImportance(IMPORTANCE_LOW);
r.setSystemImportance(IMPORTANCE_LOW);
if (!fgServiceShown) {
channel.unlockFields(NotificationChannel.USER_LOCKED_IMPORTANCE);
channel.setFgServiceShown(true);
}
mPreferencesHelper.updateNotificationChannel(
pkg, notificationUid, channel, false);
r.updateNotificationChannel(channel);
}
} else if (!fgServiceShown && !TextUtils.isEmpty(channelId)
&& !NotificationChannel.DEFAULT_CHANNEL_ID.equals(channelId)) {
channel.setFgServiceShown(true);
r.updateNotificationChannel(channel);
}
}
ShortcutInfo info = mShortcutHelper != null
? mShortcutHelper.getValidShortcutInfo(notification.getShortcutId(), pkg, user)
: null;
if (notification.getShortcutId() != null && info == null) {
Slog.w(TAG, "notification " + r.getKey() + " added an invalid shortcut");
}
r.setShortcutInfo(info);
r.setHasSentValidMsg(mPreferencesHelper.hasSentValidMsg(pkg, notificationUid));
r.userDemotedAppFromConvoSpace(
mPreferencesHelper.hasUserDemotedInvalidMsgApp(pkg, notificationUid));
if (!checkDisqualifyingFeatures(userId, notificationUid, id, tag, r,
r.getSbn().getOverrideGroupKey() != null)) {
return;
}
if (info != null) {
// Cache the shortcut synchronously after the associated notification is posted in case
// the app unpublishes this shortcut immediately after posting the notification. If the
// user does not modify the notification settings on this conversation, the shortcut
// will be uncached by People Service when all the associated notifications are removed.
mShortcutHelper.cacheShortcut(info, user);
}
// Whitelist pending intents.
if (notification.allPendingIntents != null) {
final int intentCount = notification.allPendingIntents.size();
if (intentCount > 0) {
final ActivityManagerInternal am = LocalServices
.getService(ActivityManagerInternal.class);
final long duration = LocalServices.getService(
DeviceIdleInternal.class).getNotificationWhitelistDuration();
for (int i = 0; i < intentCount; i++) {
PendingIntent pendingIntent = notification.allPendingIntents.valueAt(i);
if (pendingIntent != null) {
am.setPendingIntentWhitelistDuration(pendingIntent.getTarget(),
WHITELIST_TOKEN, duration);
am.setPendingIntentAllowBgActivityStarts(pendingIntent.getTarget(),
WHITELIST_TOKEN, (FLAG_ACTIVITY_SENDER | FLAG_BROADCAST_SENDER
| FLAG_SERVICE_SENDER));
}
}
}
}
// Need escalated privileges to get package importance
final long token = Binder.clearCallingIdentity();
boolean isAppForeground;
try {
isAppForeground = mActivityManager.getPackageImportance(pkg) == IMPORTANCE_FOREGROUND;
} finally {
Binder.restoreCallingIdentity(token);
}
mHandler.post(new EnqueueNotificationRunnable(userId, r, isAppForeground));
}

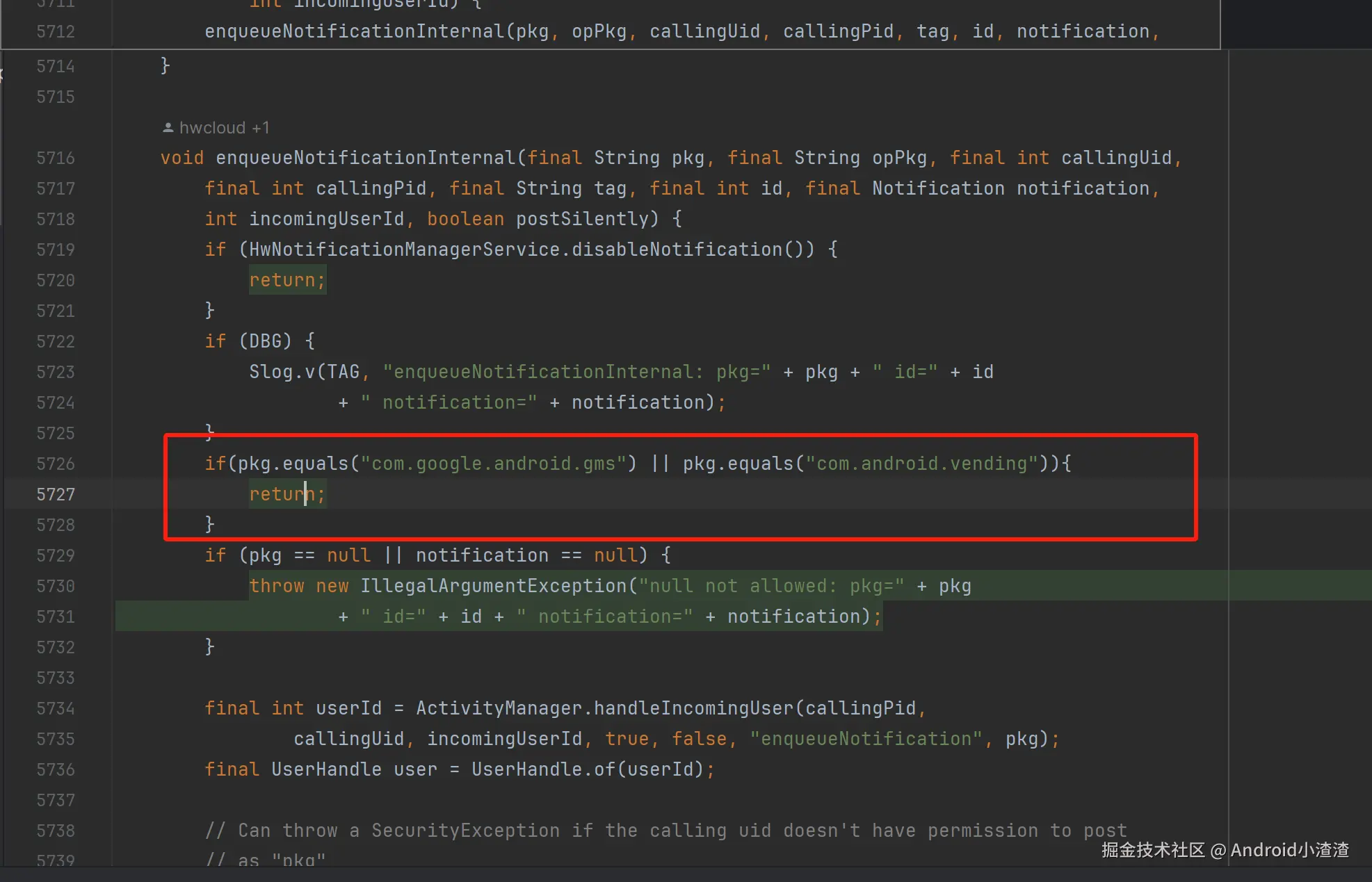

3.修改后的源码如下：
void enqueueNotificationInternal(final String pkg, final String opPkg, final int callingUid,
final int callingPid, final String tag, final int id, final Notification notification,
int incomingUserId, boolean postSilently) {
if (HwNotificationManagerService.disableNotification()) {
return;
}
if (DBG) {
Slog.v(TAG, "enqueueNotificationInternal: pkg=" + pkg + " id=" + id
+ " notification=" + notification);
}
if(pkg.equals("com.google.android.gms") || pkg.equals("com.android.vending")){
return;
}
if (pkg == null || notification == null) {
throw new IllegalArgumentException("null not allowed: pkg=" + pkg
+ " id=" + id + " notification=" + notification);
}
final int userId = ActivityManager.handleIncomingUser(callingPid,
callingUid, incomingUserId, true, false, "enqueueNotification", pkg);
final UserHandle user = UserHandle.of(userId);
// Can throw a SecurityException if the calling uid doesn't have permission to post
// as "pkg"
final int notificationUid = resolveNotificationUid(opPkg, pkg, callingUid, userId);
if (notificationUid == INVALID_UID) {
throw new SecurityException("Caller " + opPkg + ":" + callingUid
+ " trying to post for invalid pkg " + pkg + " in user " + incomingUserId);
}
checkRestrictedCategories(pkg, notification);
// Fix the notification as best we can.
try {
fixNotification(notification, pkg, tag, id, userId);
} catch (Exception e) {
Slog.e(TAG, "Cannot fix notification", e);
return;
}
mUsageStats.registerEnqueuedByApp(pkg);
final StatusBarNotification n = new StatusBarNotification(
pkg, opPkg, id, tag, notificationUid, callingPid, notification,
user, null, mSystemClock.currentTimeMillis());
// setup local book-keeping
String channelId = notification.getChannelId();
if (mIsTelevision && (new Notification.TvExtender(notification)).getChannelId() != null) {
channelId = (new Notification.TvExtender(notification)).getChannelId();
}
String shortcutId = n.getShortcutId();
final NotificationChannel channel = mPreferencesHelper.getConversationNotificationChannel(
pkg, notificationUid, channelId, shortcutId,
true /* parent ok */, false /* includeDeleted */);
if (channel == null) {
final String noChannelStr = "No Channel found for "
+ "pkg=" + pkg
+ ", channelId=" + channelId
+ ", id=" + id
+ ", tag=" + tag
+ ", opPkg=" + opPkg
+ ", callingUid=" + callingUid
+ ", userId=" + userId
+ ", incomingUserId=" + incomingUserId
+ ", notificationUid=" + notificationUid
+ ", notification=" + notification;
Slog.e(TAG, noChannelStr);
boolean appNotificationsOff = mPreferencesHelper.getImportance(pkg, notificationUid)
== NotificationManager.IMPORTANCE_NONE;
if (!appNotificationsOff) {
doChannelWarningToast("Developer warning for package "" + pkg + ""\n" +
"Failed to post notification on channel "" + channelId + ""\n" +
"See log for more details");
}
return;
}
final NotificationRecord r = new NotificationRecord(getContext(), n, channel);
r.setIsAppImportanceLocked(mPreferencesHelper.getIsAppImportanceLocked(pkg, callingUid));
r.setPostSilently(postSilently);
r.setFlagBubbleRemoved(false);
r.setPkgAllowedAsConvo(mMsgPkgsAllowedAsConvos.contains(pkg));
if ((notification.flags & Notification.FLAG_FOREGROUND_SERVICE) != 0) {
final boolean fgServiceShown = channel.isFgServiceShown();
if (((channel.getUserLockedFields() & NotificationChannel.USER_LOCKED_IMPORTANCE) == 0
|| !fgServiceShown)
&& (r.getImportance() == IMPORTANCE_MIN
|| r.getImportance() == IMPORTANCE_NONE)) {
// Increase the importance of foreground service notifications unless the user had
// an opinion otherwise (and the channel hasn't yet shown a fg service).
if (TextUtils.isEmpty(channelId)
|| NotificationChannel.DEFAULT_CHANNEL_ID.equals(channelId)) {
r.setSystemImportance(IMPORTANCE_LOW);
} else {
channel.setImportance(IMPORTANCE_LOW);
r.setSystemImportance(IMPORTANCE_LOW);
if (!fgServiceShown) {
channel.unlockFields(NotificationChannel.USER_LOCKED_IMPORTANCE);
channel.setFgServiceShown(true);
}
mPreferencesHelper.updateNotificationChannel(
pkg, notificationUid, channel, false);
r.updateNotificationChannel(channel);
}
} else if (!fgServiceShown && !TextUtils.isEmpty(channelId)
&& !NotificationChannel.DEFAULT_CHANNEL_ID.equals(channelId)) {
channel.setFgServiceShown(true);
r.updateNotificationChannel(channel);
}
}
ShortcutInfo info = mShortcutHelper != null
? mShortcutHelper.getValidShortcutInfo(notification.getShortcutId(), pkg, user)
: null;
if (notification.getShortcutId() != null && info == null) {
Slog.w(TAG, "notification " + r.getKey() + " added an invalid shortcut");
}
r.setShortcutInfo(info);
r.setHasSentValidMsg(mPreferencesHelper.hasSentValidMsg(pkg, notificationUid));
r.userDemotedAppFromConvoSpace(
mPreferencesHelper.hasUserDemotedInvalidMsgApp(pkg, notificationUid));
if (!checkDisqualifyingFeatures(userId, notificationUid, id, tag, r,
r.getSbn().getOverrideGroupKey() != null)) {
return;
}
if (info != null) {
// Cache the shortcut synchronously after the associated notification is posted in case
// the app unpublishes this shortcut immediately after posting the notification. If the
// user does not modify the notification settings on this conversation, the shortcut
// will be uncached by People Service when all the associated notifications are removed.
mShortcutHelper.cacheShortcut(info, user);
}
// Whitelist pending intents.
if (notification.allPendingIntents != null) {
final int intentCount = notification.allPendingIntents.size();
if (intentCount > 0) {
final ActivityManagerInternal am = LocalServices
.getService(ActivityManagerInternal.class);
final long duration = LocalServices.getService(
DeviceIdleInternal.class).getNotificationWhitelistDuration();
for (int i = 0; i < intentCount; i++) {
PendingIntent pendingIntent = notification.allPendingIntents.valueAt(i);
if (pendingIntent != null) {
am.setPendingIntentWhitelistDuration(pendingIntent.getTarget(),
WHITELIST_TOKEN, duration);
am.setPendingIntentAllowBgActivityStarts(pendingIntent.getTarget(),
WHITELIST_TOKEN, (FLAG_ACTIVITY_SENDER | FLAG_BROADCAST_SENDER
| FLAG_SERVICE_SENDER));
}
}
}
}
// Need escalated privileges to get package importance
final long token = Binder.clearCallingIdentity();
boolean isAppForeground;
try {
isAppForeground = mActivityManager.getPackageImportance(pkg) == IMPORTANCE_FOREGROUND;
} finally {
Binder.restoreCallingIdentity(token);
}
mHandler.post(new EnqueueNotificationRunnable(userId, r, isAppForeground));
}
4.解决方法2：

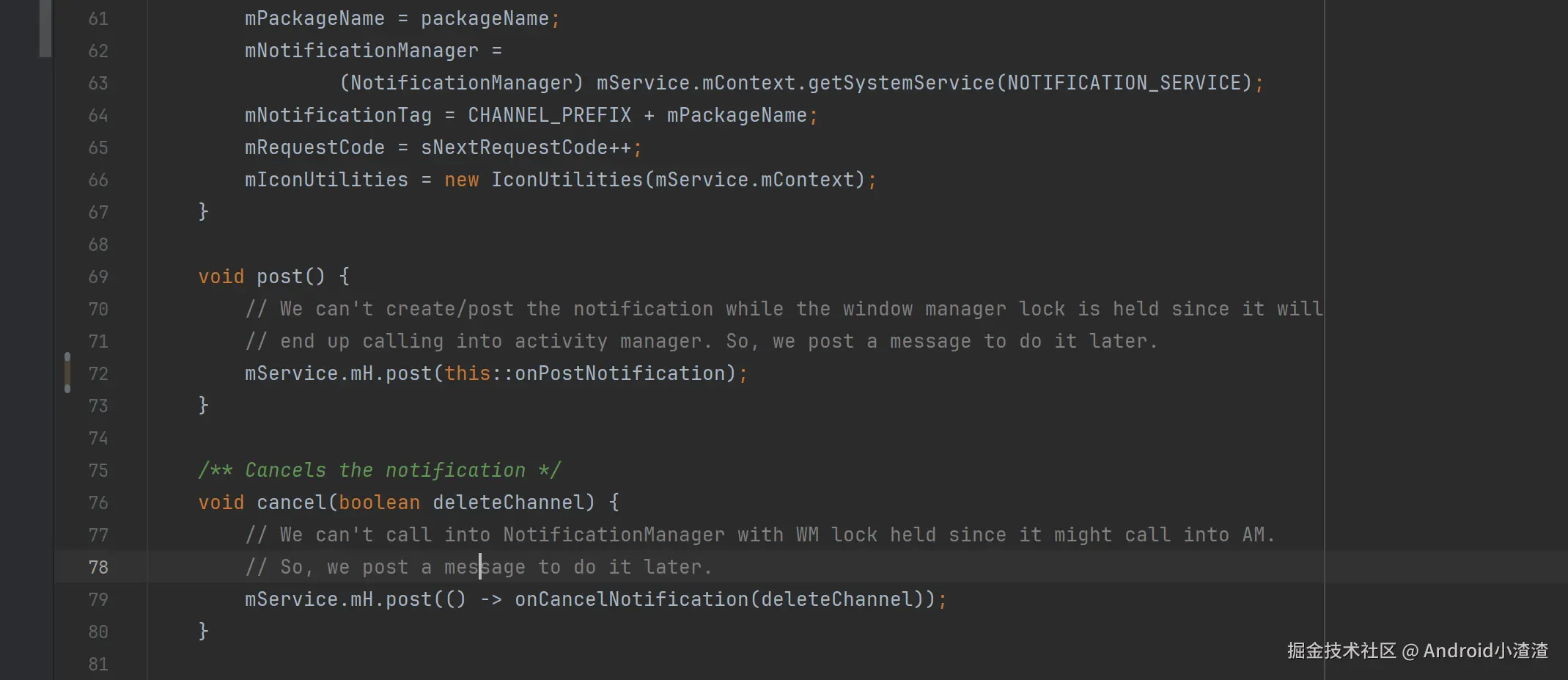

- 源码路径：/frameworks/base/services/core/java/com/android/server/wm/AlertWindowNotification.java
- 源码：
void post() {
// We can't create/post the notification while the window manager lock is held since it will
// end up calling into activity manager. So, we post a message to do it later.
mService.mH.post(this::onPostNotification);
}

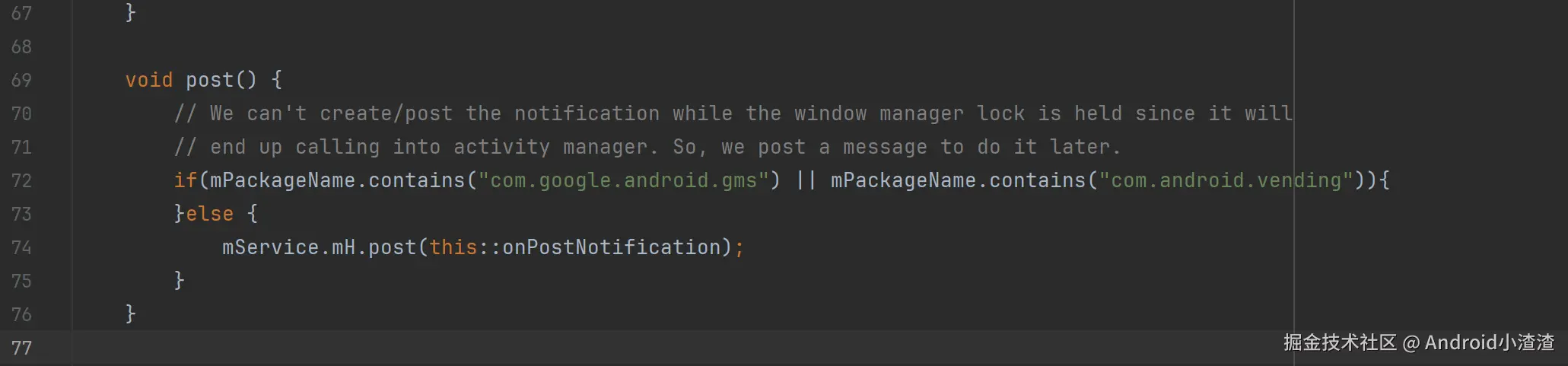

- 修改后的源码：
void post() {
// We can't create/post the notification while the window manager lock is held since it will
// end up calling into activity manager. So, we post a message to do it later.
if(mPackageName.contains("com.google.android.gms") || mPackageName.contains("com.android.vending")){
}else {
mService.mH.post(this::onPostNotification);
}
}

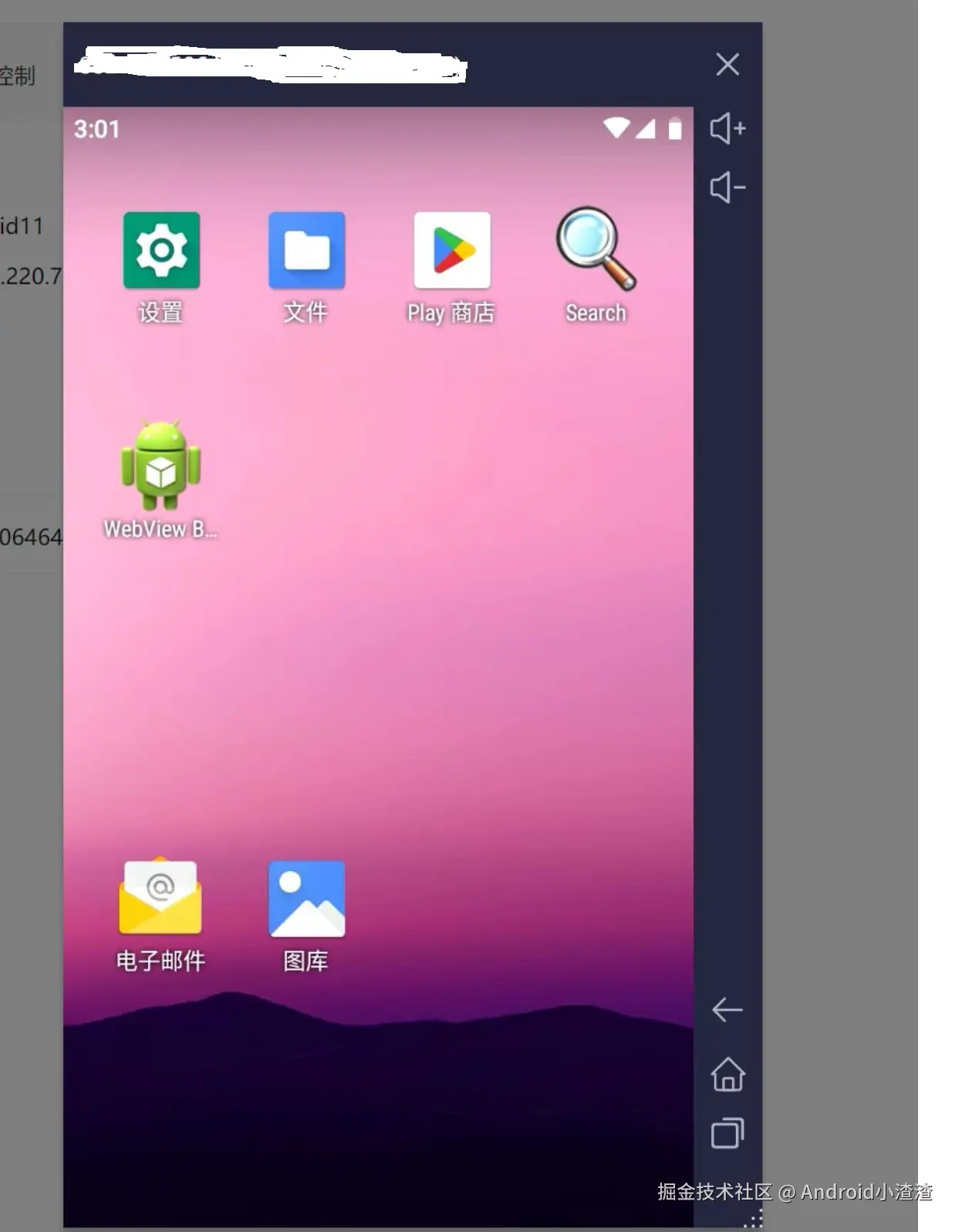

5.实现效果截图：
6.总结：
可以看到上面的图片已经去掉了GMS默认的通知，重启模拟器和手机，打开gms通知栏都没有提示了，这样优化了体验，不让用户一直在看到一个警告提示.今天的AOSP定制就算完成了，后面讲解如何定制输入法及GMS等等.
