介绍
使用compose仿写的简单版小红书APP,使用的技术包括VersionCatalog、Navigation、Paging3、自定义Layout、NestedScrollConnection、compose共享元素、EdgeToEdge、自定义主题

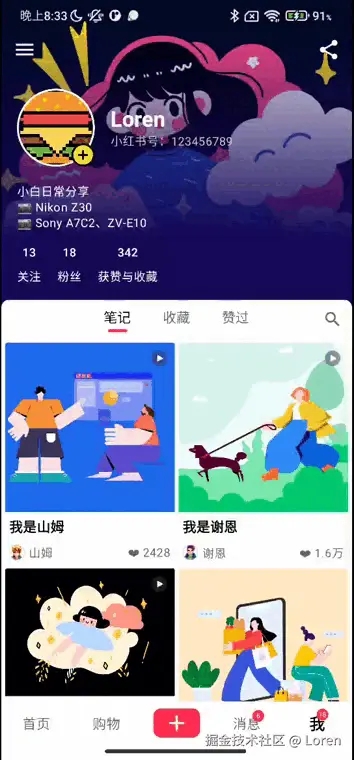

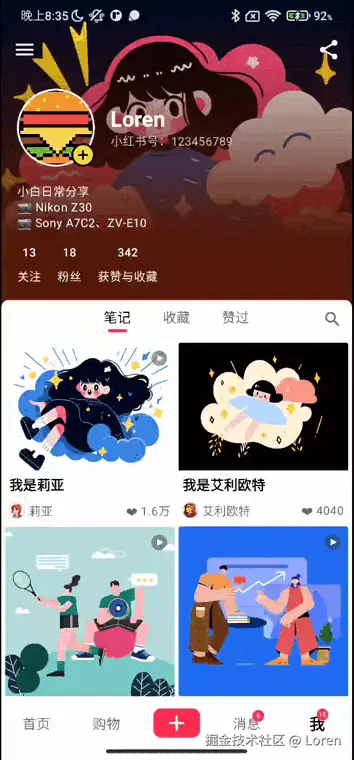

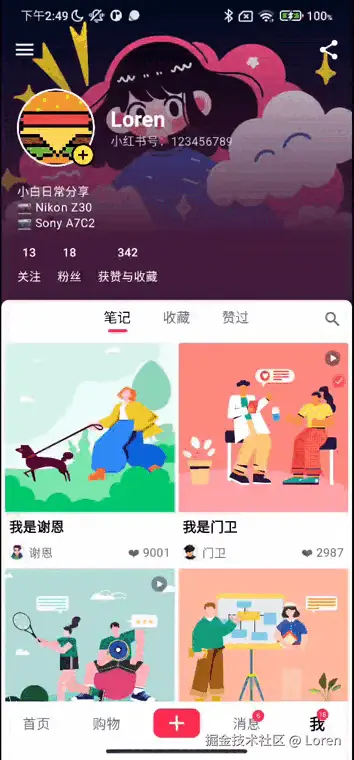

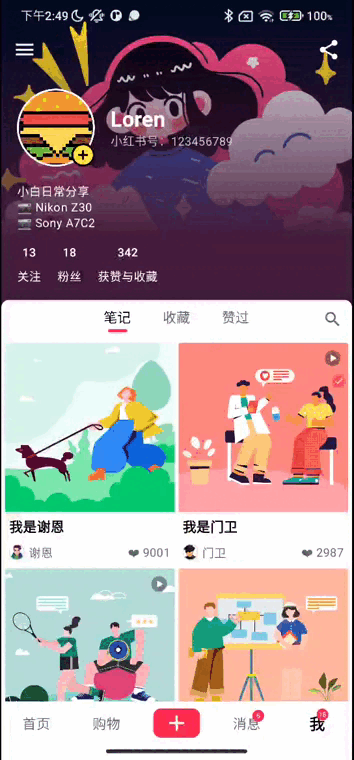

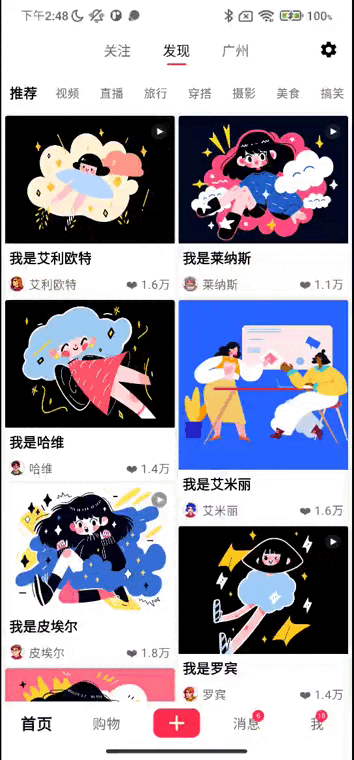

效果图

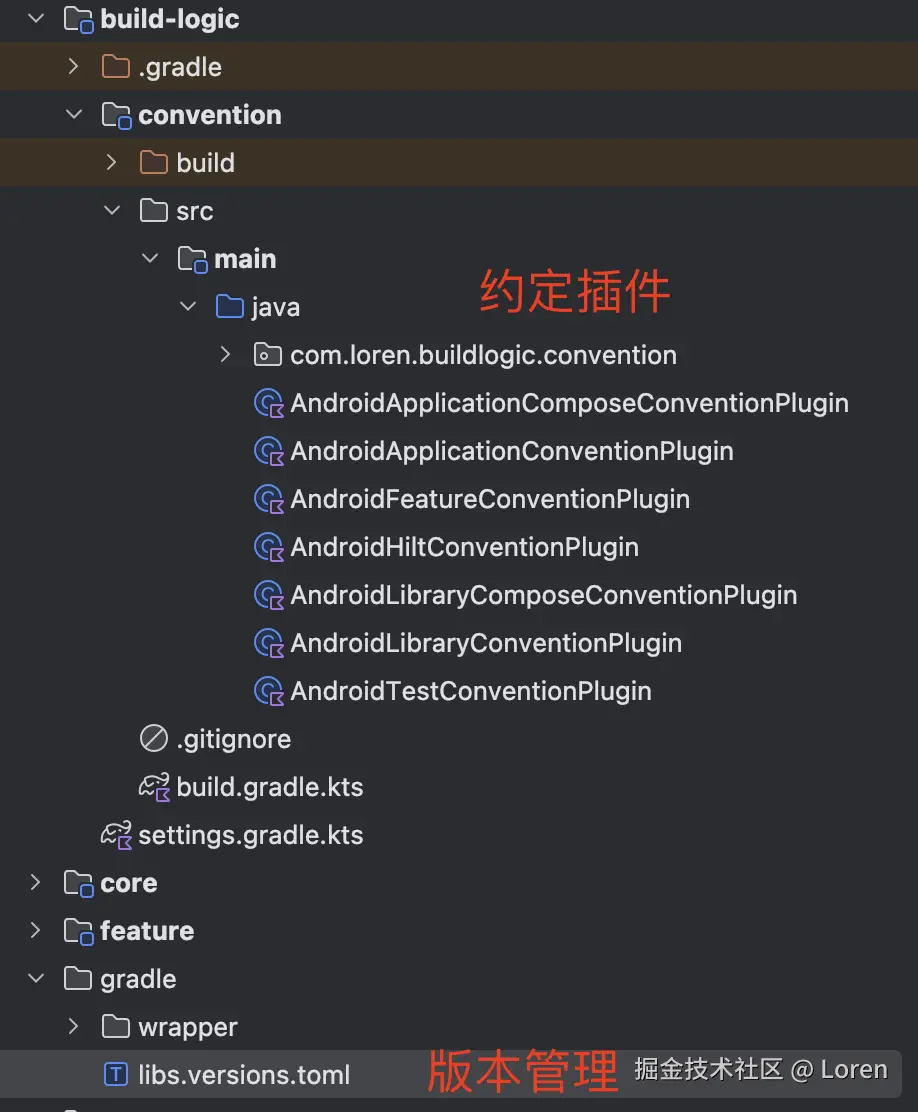

版本管理
版本管理使用了VersionCatalog,可以参考官方项目nowinandroid、文章一、文章二
路由导航

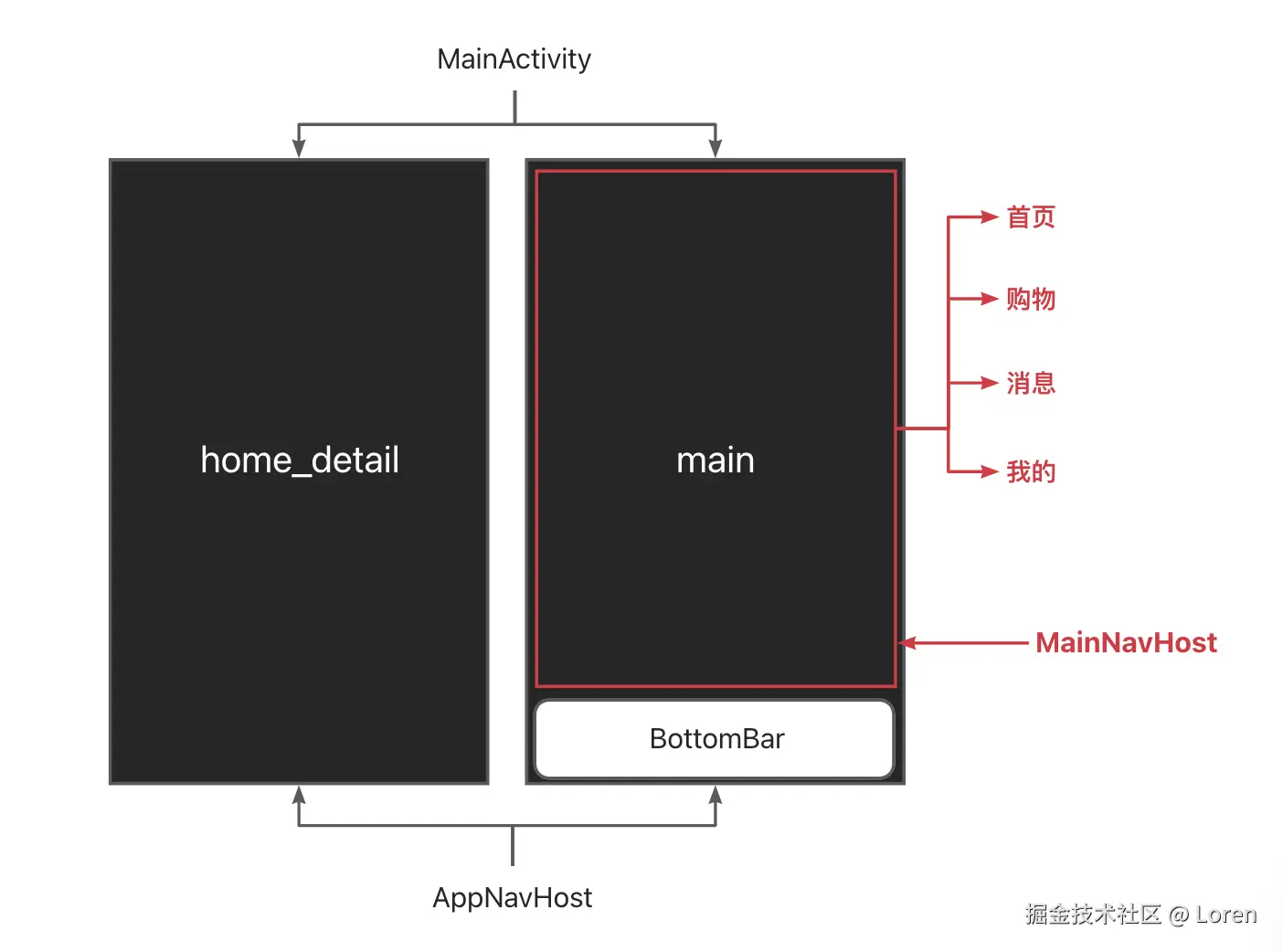

使用Navigation进行导航,图例如下
这里在AppNavHost
中有两个导航页,一个是main
,一个是detail
,main
里面嵌套了一个MainNavHost
导航。
之所以这样涉及是由于MainNavHost
导航的大小不包括底部BottomBar,如果detail
页面写在这个导航,就会导致打开详情页页面大小无法撑满屏幕,所以使用嵌套导航的结构
class MainActivity {
setContent {
AppNavHost()
}
}
fun AppNavHost() {
composable("main") {
Scaffold(
bottomBar = {
BottomBar()
}
) { paddingValues -> // 这里的原因导致MainNavHost的高度是去除了bottomBar
Box(modifier = Modifier.fillMaxSize().padding(paddingValues)) {
MainNavHost()
}
}
}
composable("home_detail")
}
fun MainNavHost() {
composable("home")
composable("shopping")
composable("message")
composable("me")
}
首页结构
一、自定义ScrollableTabRow
TabRow1+TabRow2我们仿写官方的ScrollableTabRow
自定义一个RedBookTabRow

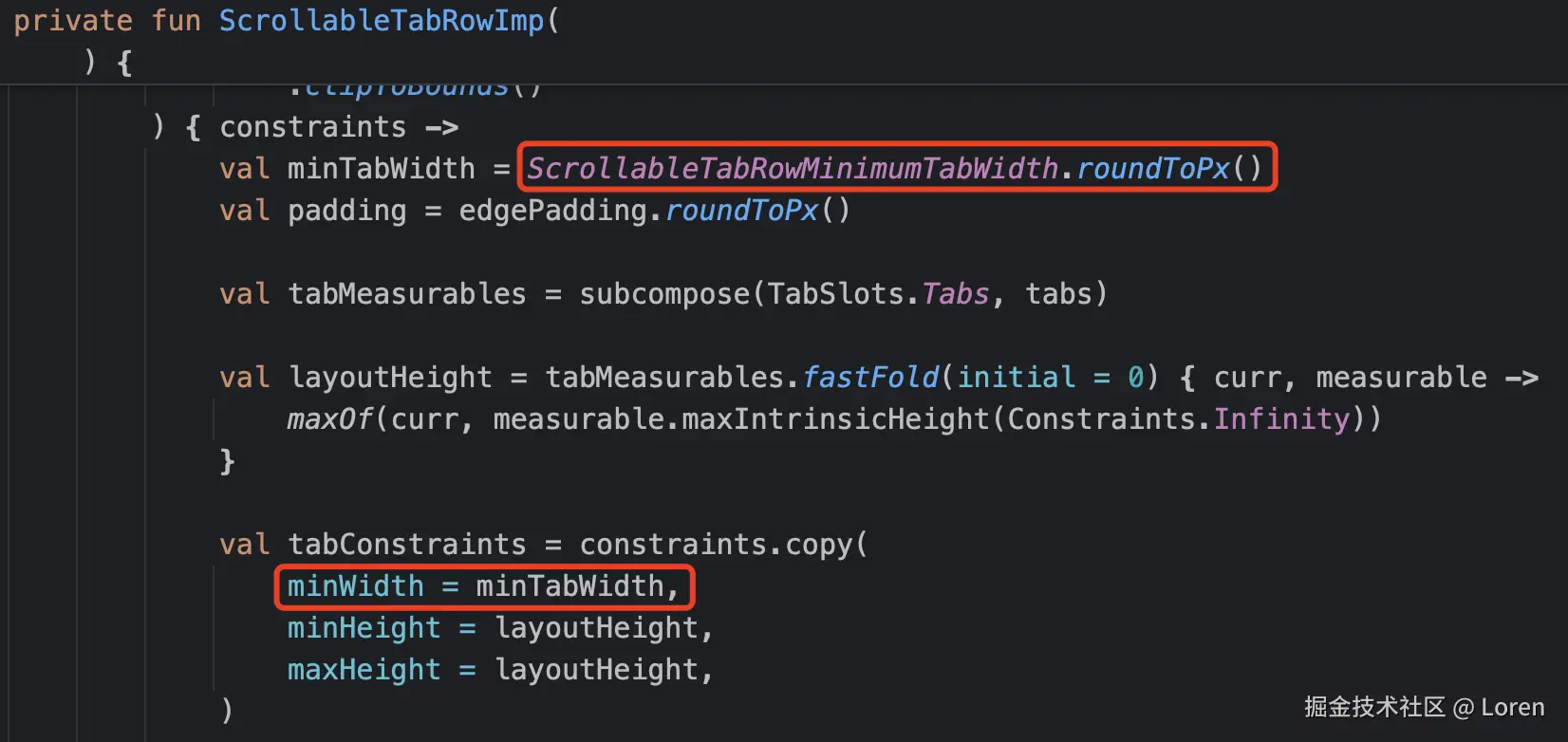

,之所以自定义是因为官方的ScrollableTabRow

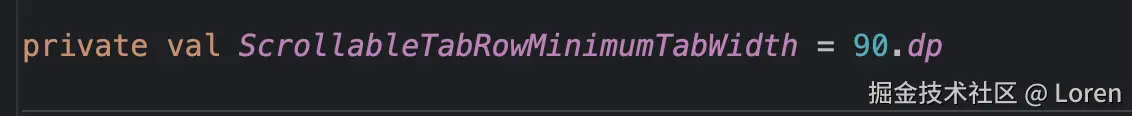

有个默认的最小宽度90.dp
,并且无法自定义,而横向滚动tabRow我们希望tab的宽度是根据每个tab内容宽度自适应的。

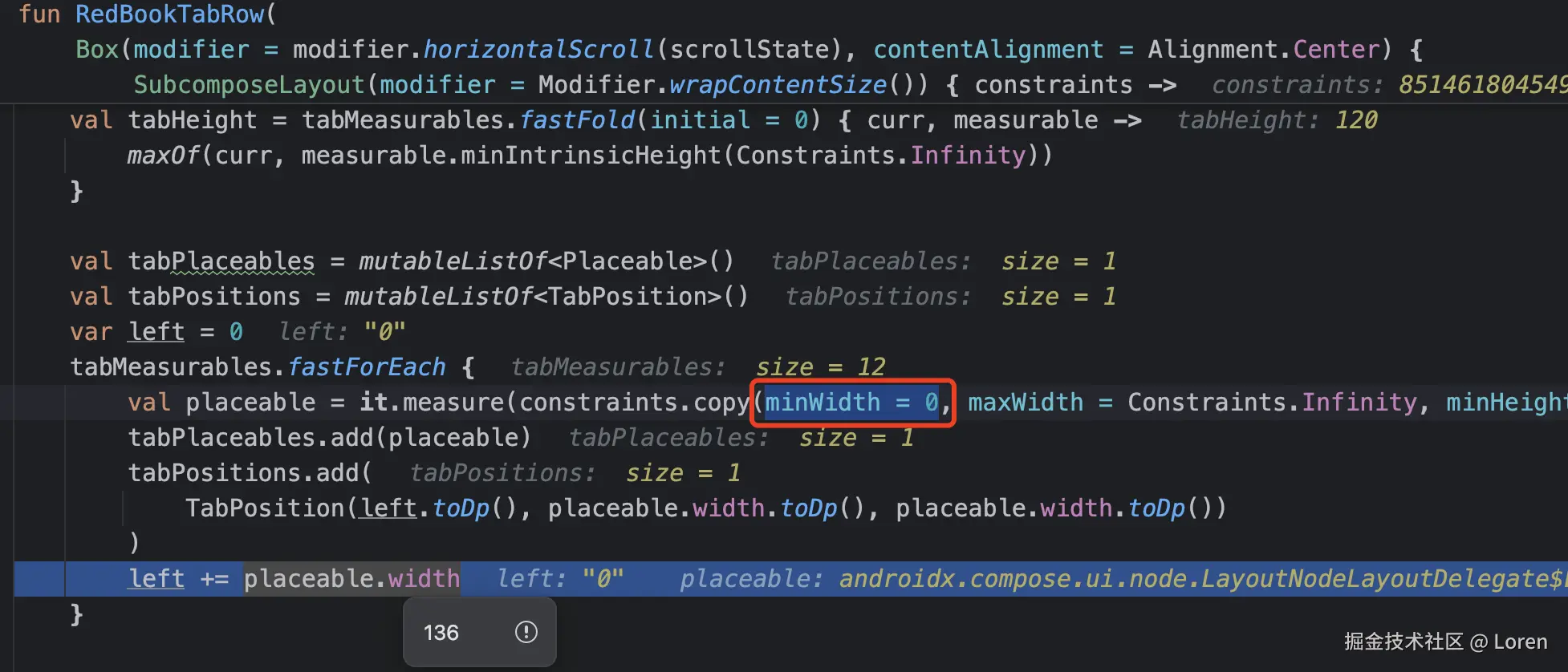

修改如下

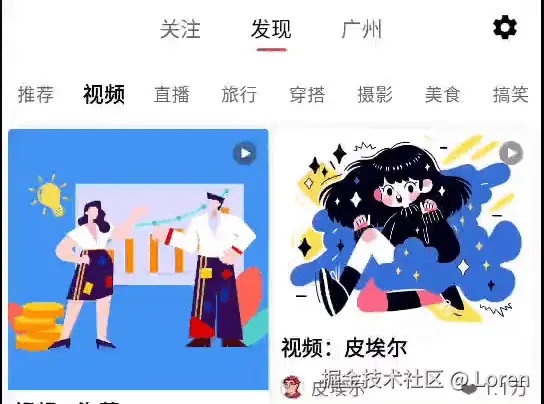

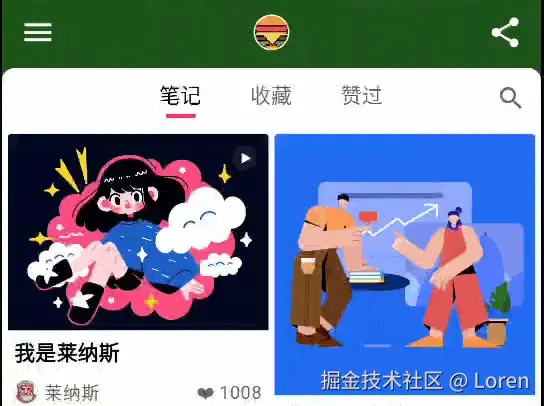

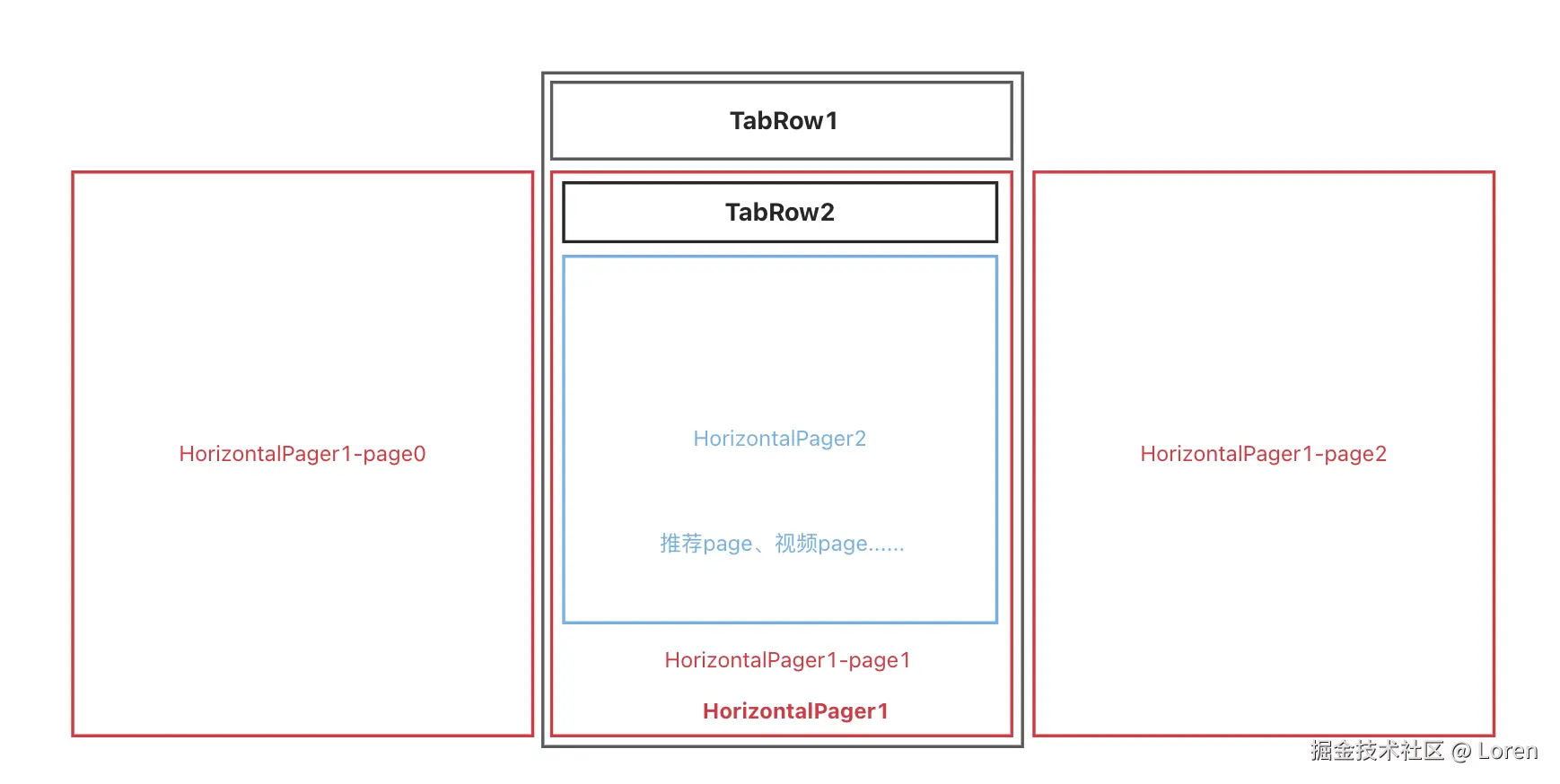

二、HorizontalPage左右滚动优先级
当TabRow1
与TabRow2
都显示的时候,左右切换优先处理内部的HorizontalPager2,当TabRow2
隐藏的时候,希望优先处理外部的HorizontalPager1
// 使用userScrollEnabled简单处理即可,隐藏直接userScrollEnabled=false
HorizontalPager(
state = pagerState,
modifier = Modifier.fillMaxSize(),
userScrollEnabled = animateHeaderState.flag,
)

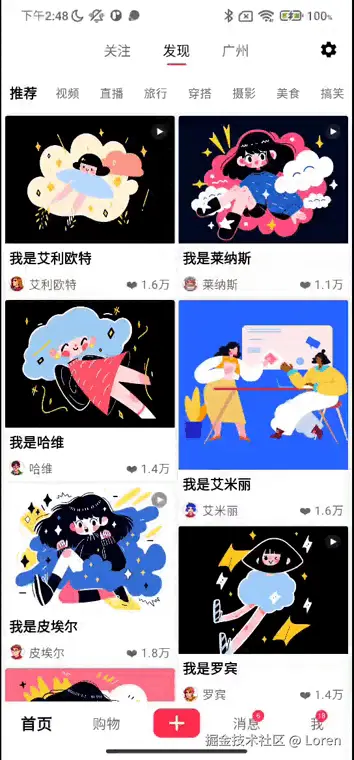

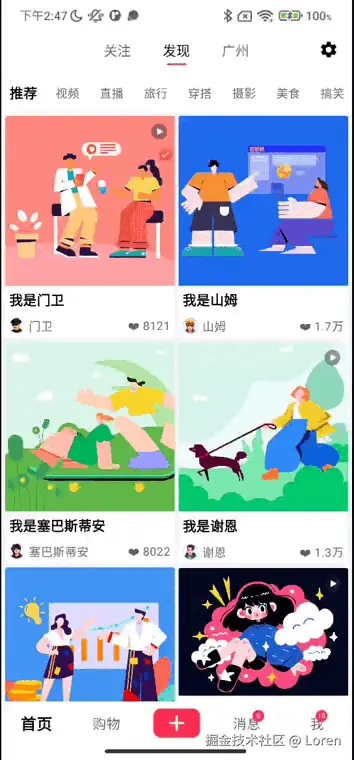

三、下拉刷新&上拉加载&Paging3数据渲染
下拉刷新我们自定义了一个控件CommonRefresh
,配合Paging3
,完成了列表内容的滚动加载。
下拉刷新控件
这里通过自定义Layout
+NestedScrollConnection
实现
具体思路可以参考这篇文章中的下拉刷新,我们基于这个修改一下
点击查看完整代码
@Composable
fun CommonRefresh(
modifier: Modifier = Modifier,
state: CommonRefreshState,
onRefresh: (suspend () -> Unit)? = null,
headerIndicator: (@Composable () -> Unit)? = {
CommonRefreshHeader(
modifier = Modifier
.padding(16.dp)
.fillMaxWidth()
.height(28.dp),
state = state
)
},
content: @Composable () -> Unit
) {
LaunchedEffect(state.isRefreshing) {
if (state.isRefreshing) {
state.animateIsOver = false
onRefresh?.invoke()
} else {
state.animateOffsetTo(0f)
}
}
Layout(
modifier = modifier.nestedScroll(state.connection),
content = {
content()
headerIndicator?.invoke()
}
) { measurables, constraints ->
val contentPlaceable = measurables[0].measure(constraints)
val headerPlaceable = measurables.getOrNull(1)?.measure(constraints.copy(minHeight = 0, maxHeight = Constraints.Infinity))
state.headerHeight = headerPlaceable?.height?.toFloat() ?: 0f
layout(constraints.maxWidth, constraints.maxHeight) {
contentPlaceable.placeRelative(0, state.indicatorOffset.roundToInt())
headerPlaceable?.placeRelative(0, -headerPlaceable.height + state.indicatorOffset.roundToInt())
}
}
}
@Composable
fun rememberCommonRefreshState(
coroutineScope: CoroutineScope = rememberCoroutineScope()
): CommonRefreshState {
return remember {
CommonRefreshState(coroutineScope)
}
}
@Stable
class CommonRefreshState(private val coroutineScope: CoroutineScope) {
var headerHeight = 0f
var enableRefresh = true
var isRefreshing by mutableStateOf(false)
var animateIsOver by mutableStateOf(true)
private val _indicatorOffset = Animatable(0f)
private val mutatorMutex = MutatorMutex()
val indicatorOffset: Float
get() = _indicatorOffset.value
fun isLoading() = !animateIsOver || isRefreshing
suspend fun animateOffsetTo(offset: Float, durationMillis: Int = AnimationConstants.DefaultDurationMillis) {
mutatorMutex.mutate {
_indicatorOffset.animateTo(offset, animationSpec = tween(durationMillis)) {
if (this.value == 0f) {
animateIsOver = true
}
}
}
}
suspend fun snapOffsetTo(offset: Float) {
mutatorMutex.mutate(MutatePriority.UserInput) {
_indicatorOffset.snapTo(offset)
}
}
private fun consumed(needConsumedY: Float) {
if (needConsumedY == 0f) return
coroutineScope.launch {
snapOffsetTo(indicatorOffset + needConsumedY)
}
}
internal val connection = object : NestedScrollConnection {
override fun onPreScroll(available: Offset, source: NestedScrollSource): Offset {
return when {
enableRefresh && available.y < 0 -> {
val canConsumed = (available.y * 0.5f).coerceAtLeast(0 - indicatorOffset)
consumed(canConsumed)
available.copy(x = 0f, y = canConsumed / 0.5f)
}
else -> Offset.Zero
}
}
override fun onPostScroll(consumed: Offset, available: Offset, source: NestedScrollSource): Offset {
return when {
enableRefresh && available.y > 0 -> {
val canConsumed = available.y * 0.5f
consumed(canConsumed)
if (source == NestedScrollSource.Fling && indicatorOffset > headerHeight) {
throw CancellationException()
}
available.copy(x = 0f, y = canConsumed / 0.5f)
}
else -> Offset.Zero
}
}
override suspend fun onPreFling(available: Velocity): Velocity {
if (indicatorOffset >= headerHeight) {
if (!isLoading()) {
isRefreshing = true
animateOffsetTo(headerHeight)
return available
}
}
return super.onPreFling(available)
}
override suspend fun onPostFling(consumed: Velocity, available: Velocity): Velocity {
if (indicatorOffset > 0) {
if (isRefreshing && indicatorOffset > headerHeight) {
animateOffsetTo(headerHeight)
} else if (!isRefreshing) {
animateOffsetTo(0f)
}
return available
}
return super.onPostFling(consumed, available)
}
}
}
@Composable
fun CommonRefreshHeader(modifier: Modifier = Modifier, state: CommonRefreshState) {
if (state.isRefreshing) {
CircleLoading(modifier = modifier)
} else {
val progress = (state.indicatorOffset.coerceAtLeast(0f) / state.headerHeight.coerceAtLeast(1f)).coerceAtMost(1f)
val rotate = 0f
Box(
modifier = modifier,
contentAlignment = Alignment.Center
) {
CircleProgress(
modifier = Modifier
.fillMaxSize()
.rotate(rotate),
progress = progress
)
}
}
}

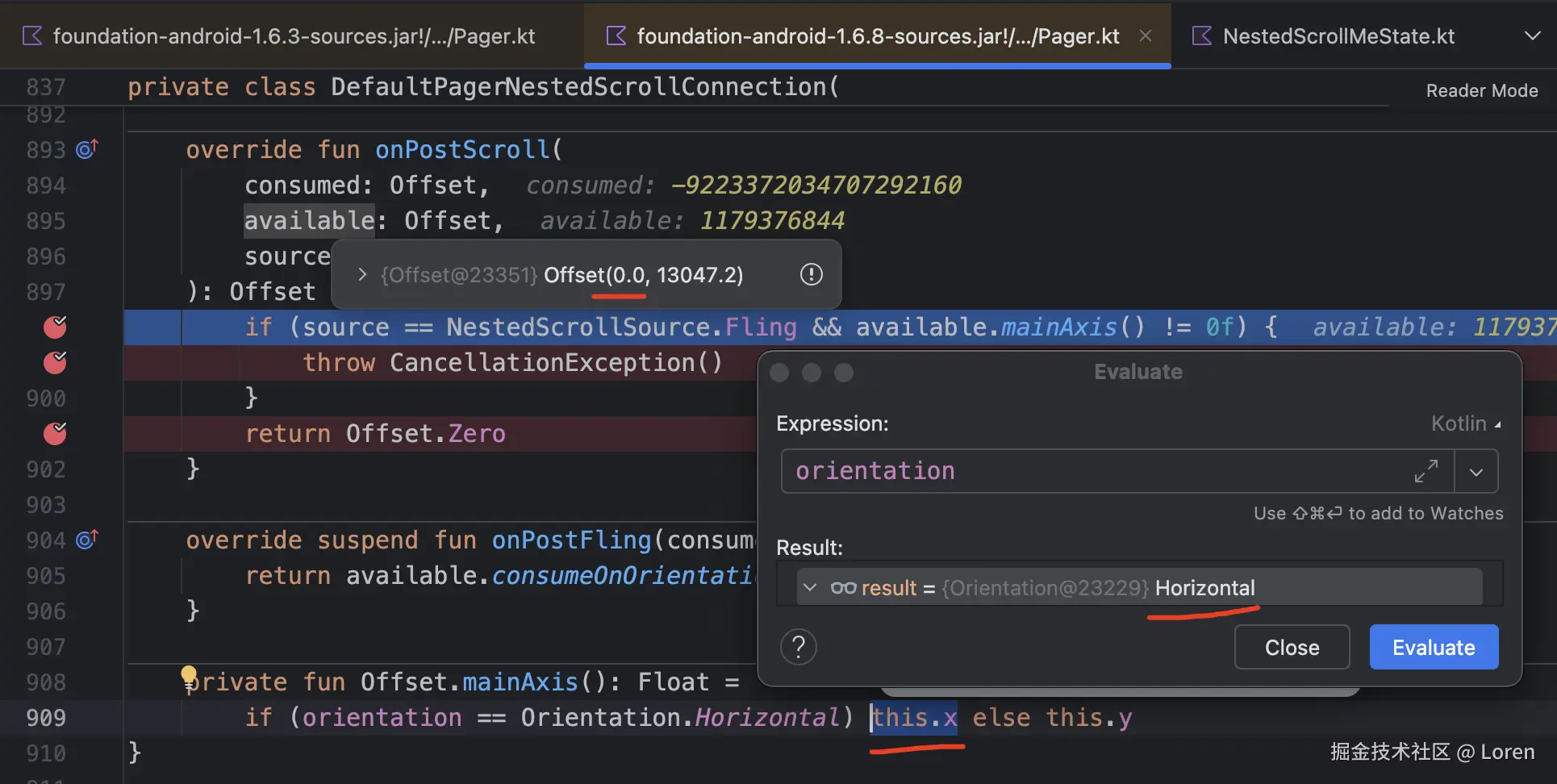

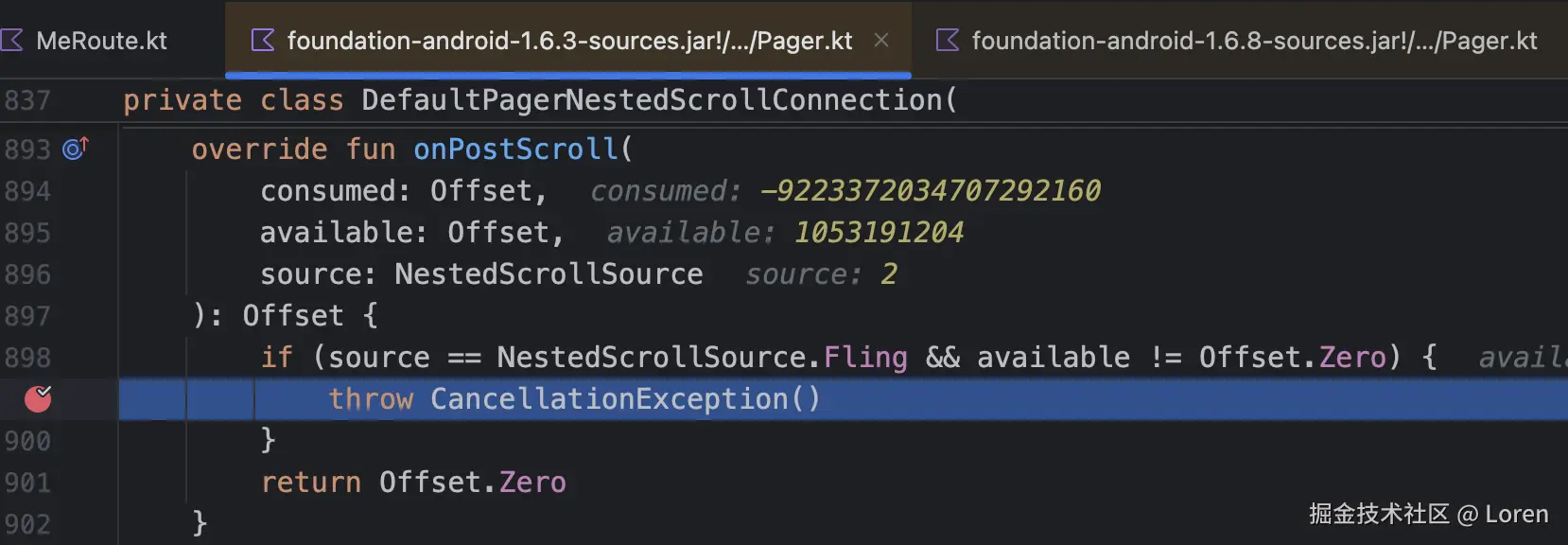

注意点:我们希望快速下拉的时候如果header不要一直往下滚动,,也不是僵硬的到某个高度直接折叠,而是header已经完全展示后就马上折叠起来
onPostScroll() {
if (source == NestedScrollSource.Fling && indicatorOffset > headerHeight) {
throw CancellationException()
}
}
Paging3使用步骤
- 定义
PagingSource
class CommonPagingSource(
private val pictures: List<Int>,
private val mockUsers: List<UserBean>,
private val isVideo: Boolean = false,
private val mockPages: Int = 3,
) : PagingSource<Int, ContentBean>() {
override fun getRefreshKey(state: PagingState<Int, ContentBean>): Int? {
return state.anchorPosition?.let { state.closestPageToPosition(it)?.prevKey }
}
override suspend fun load(params: LoadParams<Int>): LoadResult<Int, ContentBean> {
return try {
val page = params.key ?: 1
val data = requestData(page, params.loadSize) ?: emptyList()
LoadResult.Page(
data = data,
prevKey = if (page == 1) null else page - 1,
nextKey = if (data.isEmpty()) null else page + 1
)
} catch (e: Exception) {
LoadResult.Error(e)
}
}
private suspend fun requestData(page: Int, pageSize: Int): List<ContentBean>? {
if (page > mockPages) {
return null
} else {
val list = mutableListOf<ContentBean>()
pictures.forEachIndexed { index, pic ->
val user = mockUsers[index]
list.add(
ContentBean(
id = Random.nextLong(),
pic = pic,
title = if (isVideo) "视频:${user.userName}" else "我是${user.userName}",
user = user,
likeNum = Random.nextInt(0, 20000),
isVideo = if (isVideo) true else Random.nextBoolean()
)
)
}
delay(2000)
Log.v("Loren", "加载数据page=$page size=$pageSize")
return list.shuffled().takeLast(pageSize)
}
}
}
- 创建PagingData流
class CommonContentRepository @Inject constructor(
@Dispatcher(MyDispatchers.IO) private val ioDispatcher: CoroutineDispatcher,
@MockDataModule.MockContentPic private val pictures: List<Int>,
private val mockUsers: List<UserBean>
) {
val commonPagingFlow = Pager(
config = PagingConfig(
pageSize = 20, // 每次加载20条
initialLoadSize = 20, // 首次默认加载20条
prefetchDistance = 4 // 滚动到离当前显示项还有4条时开始预取数据
),
pagingSourceFactory = { CommonPagingSource(pictures, mockUsers, isVideo = false, mockPages = 3) }
).flow.flowOn(ioDispatcher)
}
@HiltViewModel
class HomeViewModel @Inject constructor(
private val commonContentRepository: CommonContentRepository
) : ViewModel() {
val commonPagingFlow = commonContentRepository.commonPagingFlow.cachedIn(viewModelScope)
}
- 根据数据流展示UI
// 首次加载展示loading
if (lazyPagingItems.loadState.refresh is LoadState.Loading && lazyPagingItems.itemCount == 0) {
CircleLoading(
modifier = Modifier.fillMaxSize()
)
}
// 加载更多时展示loading
pagingItems.loadState.append is LoadState.Loading -> {
item(span = StaggeredGridItemSpan.FullLine) {
CircleLoading()
}
}
// 没有更多数据了
pagingItems.loadState.append == LoadState.NotLoading(true) -> {
// 没有数据了
item(span = StaggeredGridItemSpan.FullLine) {
Box(
modifier = Modifier
.fillMaxWidth()
.wrapContentHeight()
.padding(8.dp),
contentAlignment = Alignment.Center
) {
Text(text = "没有数据了", style = RedBookTheme.textStyle.bodySmall, color = RedBookTheme.colors.body)
}
}
}
- 下拉刷新触发paging的refresh
val homePagingItems = homeViewModel.commonPagingFlow.collectAsLazyPagingItems()
LaunchedEffect(homePagingItems.loadState.refresh) {
when {
homePagingItems.loadState.refresh is LoadState.NotLoading -> {
refreshState.isRefreshing = false
}
homePagingItems.loadState.refresh is LoadState.Error -> {
refreshState.isRefreshing = false
}
}
}
CommonRefresh(
modifier = Modifier.fillMaxSize(),
state = refreshState,
onRefresh = {
homePagingItems.refresh()
}
) {}
四、自定义CircleProgress
@Composable
fun CircleProgress(
modifier: Modifier = Modifier,
color: Color = Color.LightGray,
progress: Float = 1f
) {
Canvas(modifier = modifier.drawWithCache {
val ringStrokeWidth = 3.dp.toPx()
val radius = min(size.width, size.height) / 2 - ringStrokeWidth
val topTopLeft = Offset(size.width / 2 - radius, size.height / 2 - radius)

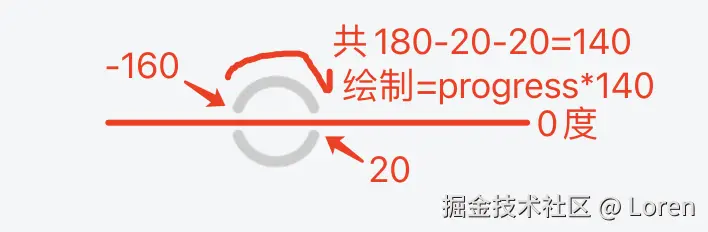

// 两个半圆弧形中间有一点间隔 取一个圆弧140度 左右各减少20度
onDrawWithContent {
val sweepAngle = 140f * progress
// 绘制上半圆
drawArc(
color = color,
startAngle = -160f,
sweepAngle = sweepAngle,
useCenter = false,
topLeft = topTopLeft,
size = Size(radius * 2, radius * 2),
style = Stroke(width = ringStrokeWidth, cap = StrokeCap.Round)
)
// 绘制下半圆
drawArc(
color = color,
startAngle = 20f,
sweepAngle = sweepAngle,
useCenter = false,
topLeft = topTopLeft,
size = Size(radius * 2, radius * 2),
style = Stroke(width = ringStrokeWidth, cap = StrokeCap.Round)
)
}
}) {}
}
我的页面结构

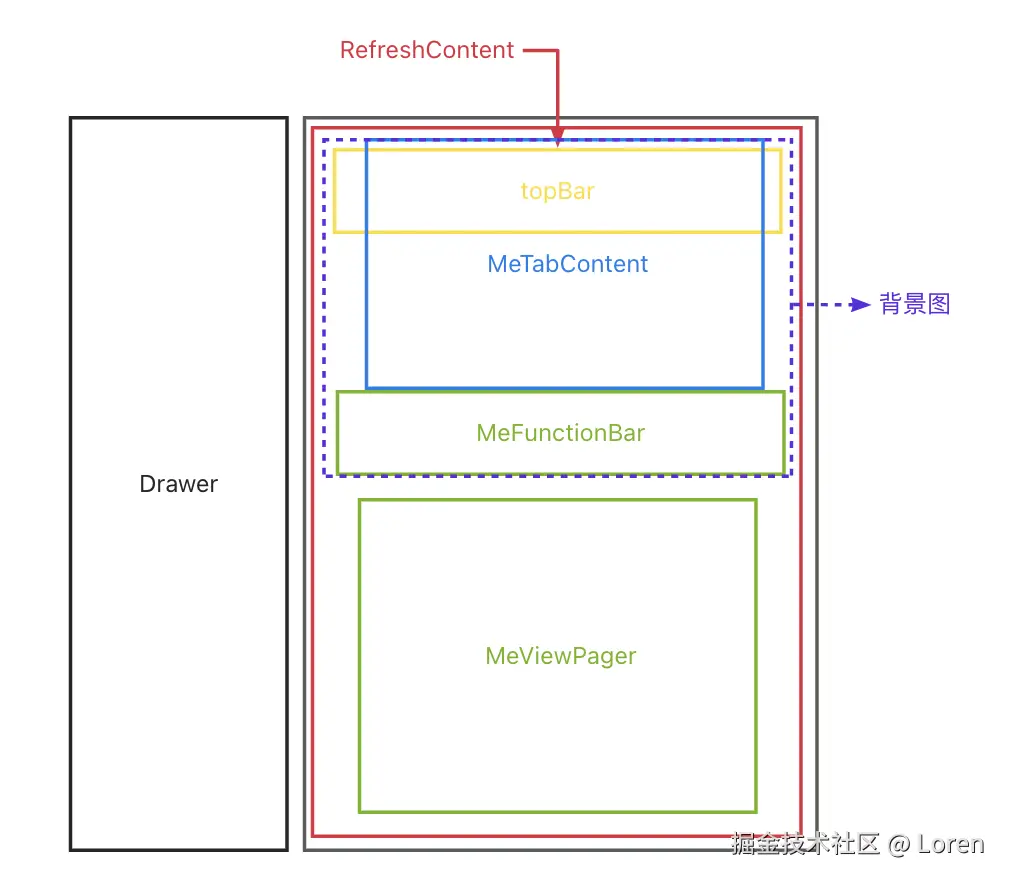

// 大致布局 实际通过自定义Layout布局
Drawer {
Box {
RefreshContent()
TopBar()
}
}
RefreshContent() {
Column {
Box {
BackgroundImg()
Column {
MeTabContent()
MeFunctionBar()
}
}
MeViewPager()
}
}

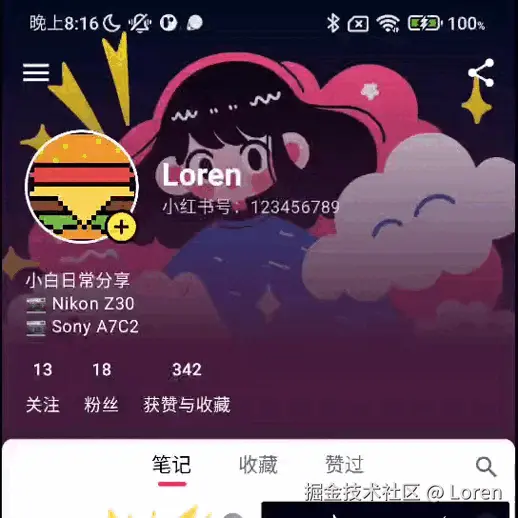

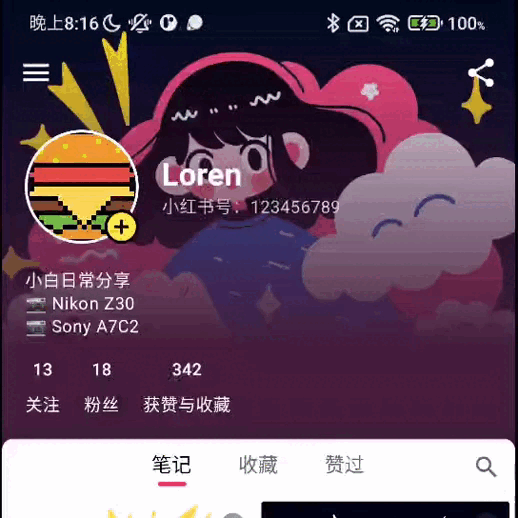

页面的协调滚动分析

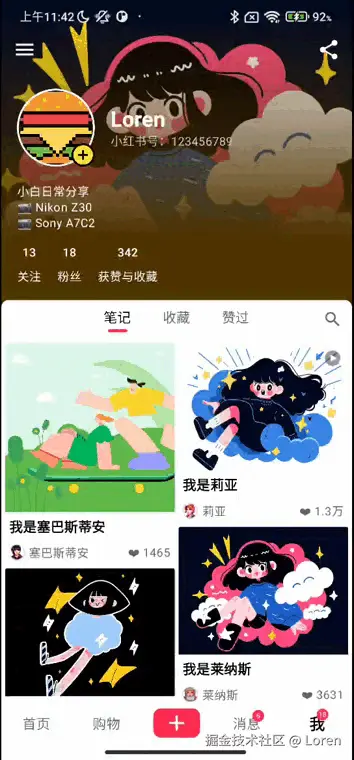

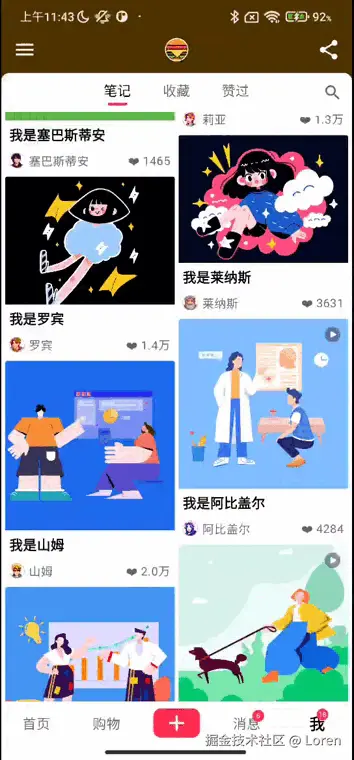

向上滚动 | 向下滚动 | 非列表区域的滚动 |
---|---|---|

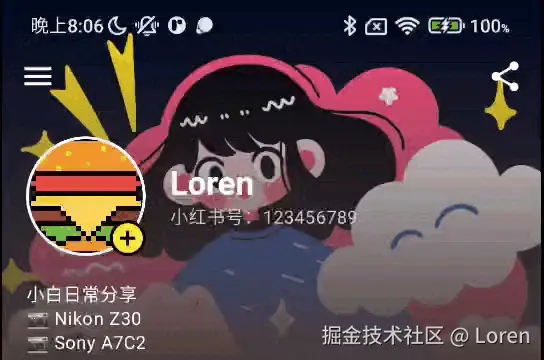

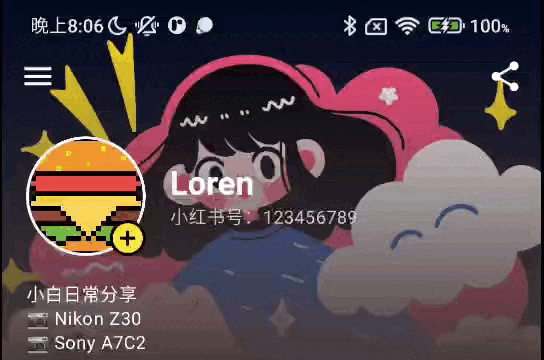

TopBar 透明度改变 0->1MeTabContent 折叠,折叠高度=整个顶部内容高度-TopBar高度-FunctionBar高度MeFunctionBar 吸顶 | TopBar 透明度改变 1->0MeViewPager 内部的滚动布局滚动到顶部时MeTabContent 展开可展开高度=整个顶部内容高度-TopBar高度-FunctionBar高度,到顶时触发刷新 MeFunctionBar 吸顶 | 手指在顶部区域也能拖拽,下拉刷新,上拉最多只能折叠MeTabContent |
通过上面的三种情况分析,首先我们需要分别测量出TopBar
、MeTabContent
、MeFunctionBar
对应的高度用于滚动计算。
创建一个类管理协调滚动、记录控件高度以及记录偏移量
// 部分代码片段
class NestedScrollMeState {
var topBarHeight = 0
var contentBarHeight = 0
var functionBarHeight = 0
private val _offset = Animatable(0f)
val offset: Float // 布局滚动的偏移量
get() = _offset.value
}
@Composable
fun rememberNestedScrollMeState() = remember {
NestedScrollMeState()
}
稍微布局一下
// 部分代码片段
val state = rememberNestedScrollMeState()
SubcomposeLayout(
modifier = Modifier.fillMaxSize()
) { constraints ->
val topBar = subcompose("topBar") {
MeTopBar()
}.first().measure(constraints.copy(minHeight = 0, maxHeight = Constraints.Infinity))
state.topBarHeight = topBar.height // 记录高度
val refreshContent = subcompose("refreshContent") {
RefreshContent()
}.first().measure(constraints.copy(minHeight = 0, maxHeight = constraints.maxHeight))
layout(constraints.maxWidth, constraints.maxHeight) {
refreshContent.placeRelative(0, 0)
topBar.placeRelative(0, 0)
}
}
SubcomposeLayout(
modifier = Modifier.fillMaxSize()
) { constraints ->
val functionBar = subcompose("functionBar") {
MeFunctionBar()
}.first().measure(constraints.copy(minHeight = 0, maxHeight = Constraints.Infinity))
state.functionBarHeight = functionBar.height // 记录高度
val contentBar = subcompose("contentBar") {
MeTabContent()
}.first().measure(constraints.copy(minHeight = 0, maxHeight = Constraints.Infinity))
state.contentBarHeight = contentBar.height // 记录高度
val backgroundImage = subcompose("backgroundImage") {
AsyncImage(
modifier = Modifier
.fillMaxSize(),
model = R.drawable.pic_vitality,
contentDescription = "background",
contentScale = ContentScale.Crop,
)
}.first().measure(
constraints.copy(
minHeight = state.contentBarHeight, // 图片撑满顶部内容布局
maxHeight = Constraints.Infinity
)
)
val viewPager = subcompose("viewPager") {
MeViewPager()
}.first().measure(
constraints.copy(
minHeight = 0,
maxHeight = constraints.maxHeight - topBarHeight - functionBar.height // 底部内容区域=总高度-topBarHeight-functionBarHeight
)
)
layout(constraints.maxWidth, constraints.maxHeight) {
backgroundImage.placeRelative(0, 0)
contentBar.placeRelative(0, 0)
functionBar.placeRelative(0, contentBar.height - functionBar.height)
viewPager.placeRelative(0, contentBar.height)
}
}
这个时候我们的布局是不会根据偏移量而滚动的,然后我们需要让上面的布局根据滚动偏移量做文章
layout(constraints.maxWidth, constraints.maxHeight) {
backgroundImage.placeRelative(0, state.offset.toInt().coerceAtMost(0))
contentBar.placeRelative(0, state.offset.toInt())
functionBar.placeRelative(0, contentBar.height - functionBar.height + state.offset.toInt())
viewPager.placeRelative(0, contentBar.height + state.offset.toInt())
}
背景图随着拖动放大缩小,图片高度变化根据下拉刷新的偏移量+原本高度
val backgroundImage = subcompose("backgroundImage") {
AsyncImage(
modifier = Modifier
.fillMaxSize()
.graphicsLayer {
translationY = -refreshState.indicatorOffset
},
model = R.drawable.pic_vitality,
contentDescription = "background",
contentScale = ContentScale.Crop,
)
}.first().measure(
// 图片高度根据下拉刷新的偏移量+原本高度
constraints.copy(
minHeight = (state.contentBarHeight + refreshState.indicatorOffset.coerceAtLeast(0f)).toInt(),
maxHeight = Constraints.Infinity
)
)

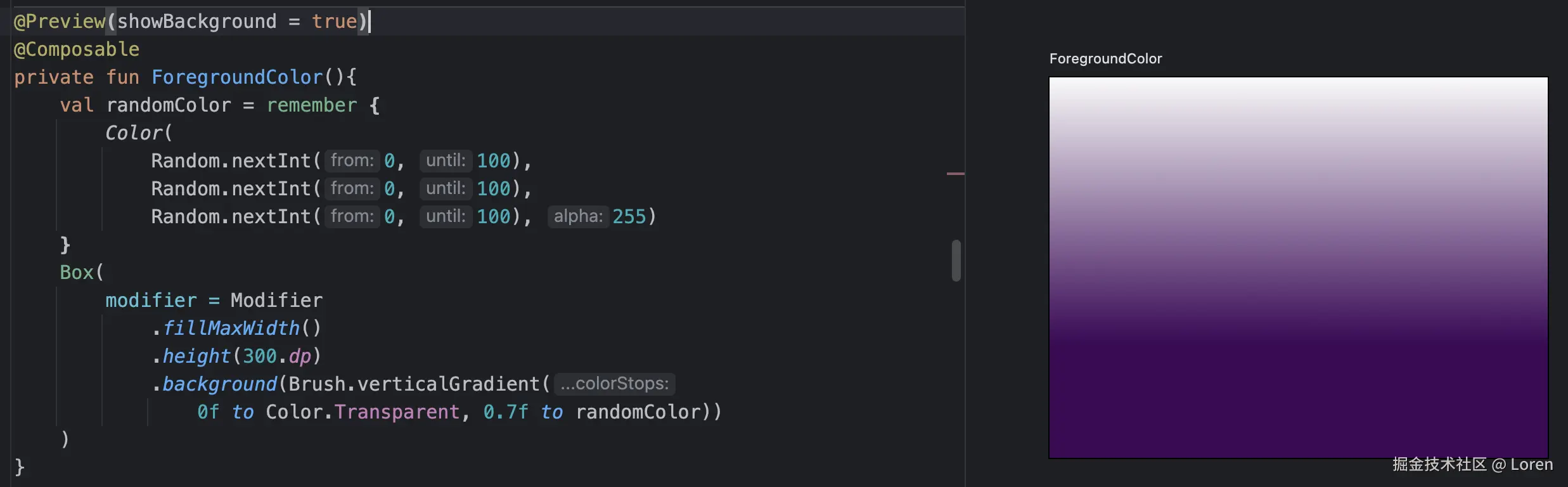

一、MeTabContent前景渐变色
二、TopBar透明度变化及动画
滚动到头像底部的时候,TopBar的透明度变为1,使用上面生成的那个随机颜色,并且做头像小动画。透明度变化fraction=state.offset/滚动到头像底部的距离
,backgroundColor=randomColor.copy(alpha = fraction)
三、嵌套滑动处理
- 手指向上滑动的情况,此时
available.y<0
,如果functionBar
没有滚动到顶部,则预先劫持滑动事件,消费后再交由子布局,所以在onPreScroll
中进行消费,functionBar
吸顶后则不需要再消费 - 手指向下滑动的情况,此时
available.y>0
,在onPostScroll
中进行消费,这里有可消费值代表底部数据已经滚到顶了,剩余的y事件交给这里处理,最多只能消费到offset为0的情况,再剩下没消费的y值传递给父onPostScrol
,即下拉刷新控件
internal val connection = object : NestedScrollConnection {
override fun onPreScroll(available: Offset, source: NestedScrollSource): Offset {
val needConsumedY = when {
available.y < 0 && offset > -(contentBarHeight - topBarHeight - functionBarHeight) -> {
// drag up
available.y.coerceAtLeast(-(contentBarHeight - topBarHeight - functionBarHeight) - offset)
}
else -> 0f
}
consumed(needConsumedY)
return available.copy(x = 0f, y = needConsumedY)
}
override fun onPostScroll(consumed: Offset, available: Offset, source: NestedScrollSource): Offset {
val needConsumedY = when {
available.y > 0 && offset < 0 -> {
// drag down
available.y.coerceAtMost(-offset)
}
else -> 0f
}
consumed(needConsumedY)
return available.copy(x = 0f, y = needConsumedY)
}
}
private fun consumed(needConsumedY: Float) {
if (needConsumedY == 0f) return
coroutineScope.launch {
// 调整offset
snapOffsetTo(offset + needConsumedY)
}
}
踩坑点
一开始我的HorizontalPager
版本是1.6.3,然后我把这个connection
设置到最外层,发现当我快速下滑时,无法展开上面的内容
查看源码可知,HorizontalPager有一个DefaultPagerNestedScrollConnection
消费顺序:父onPreScroll
->子onPreScroll
->子onPostScroll
->父onPostScroll
所以当我把我的connection设置到最外层,即HorizontalPager
是子控件时,会优先响应HorizontalPager
的onPostScroll
,当我手指快速滑动时throw CancellationException()
导致无法展开上面被折叠的内容,所以最后我把我的connection设置到我笔记页面的LazyVerticalStaggeredGrid上。
The bug on JetBrains/compose-multiplatform#4395
Fix on Fix nested scroll when Pager involved in scrolling process
PS:后续我升级物料清单Compose 1.6.8
解决了这个问题
四、TabContent区域的手势滚动
实现方式查看官方文档 可滚动的修饰符
通过 scrollable
修饰符与滚动修饰符不同,scrollable
会检测滚动手势并捕获增量,但不会偏移其内容。系统会通过 ScrollableState
,此修饰符才能正常运行。
构建ScrollableState
时,您必须提供consumeScrollDelta
函数,该函数将在每个滚动步骤中调用(通过手势输入,平滑)滚动或快速滑动)。该函数必须返回滚动距离所消耗的量,以确保事件在存在具有scrollable
的嵌套元素时传播修饰符。
我们构建一个ScrollState
,返回的needConsumedY
就是滚动所需要消耗的量,向下滚动时,可以消耗任意Y值,向上滚动时,我们希望吸顶后就不继续消耗Y值了。
val scrollState = ScrollableState {
val needConsumedY = when {
it > 0 && offset < 0 -> {
// drag down
it
}
it < 0 && offset > -(contentBarHeight - topBarHeight - functionBarHeight) -> {
// drag up
it.coerceAtLeast(-(contentBarHeight - topBarHeight - functionBarHeight) - offset)
}
else -> 0f
}
consumed(needConsumedY)
needConsumedY
}
// 滚动值记录到offset
private fun consumed(needConsumedY: Float) {
if (needConsumedY == 0f) return
coroutineScope.launch {
snapOffsetTo(offset + needConsumedY)
}
}
fun MeTabContent() {
Box(
modifier = Modifier
.scrollable(
state = state.scrollState,
orientation = Orientation.Vertical
)
)
}
五、记录我的页面的滚动位置以及背景渐变色
切换bottomBar发现我的页面的滚动位置以及颜色状态都丢失了
没有Saver | 有Saver |
---|---|
使用rememberSaverable
,由于Color不是可序列化的数据结构,通过自定义Saver实现
val randomColor = rememberSaveable(state, saver = ColorSaver) {
Color(Random.nextInt(0, 100), Random.nextInt(0, 100), Random.nextInt(0, 100), 255)
}
val ColorSaver = Saver<Color, Long>(
save = { it.value.toLong() },
restore = { Color(it.toULong()) }
)
@Composable
fun rememberNestedScrollMeState(coroutineScope: CoroutineScope) = rememberSaveable(saver = NestedScrollMeStateSaver(coroutineScope)) {
NestedScrollMeState(coroutineScope)
}
class NestedScrollMeState(private val coroutineScope: CoroutineScope, offsetSave: Float = 0f) {
private val _offset = Animatable(offsetSave)
}
/**
* 保存滚动进度
*/
class NestedScrollMeStateSaver(private val coroutineScope: CoroutineScope) : Saver<NestedScrollMeState, Float> {
override fun restore(value: Float): NestedScrollMeState {
return NestedScrollMeState(coroutineScope, value)
}
override fun SaverScope.save(value: NestedScrollMeState): Float {
return value.offset
}
}
共享元素
官方文档 导航间的共享元素动画
用SharedTransitionLayout
包裹NavHost,用CompostitionLocalProvider
将SharedTransitionScope
以及AnimatedVisibilityScope
向下传递
SharedTransitionLayout {
CompositionLocalProvider(
LocalNavHostSharedTransitionScope provides this
) {
AppNavHost()
}
}
fun NavGraphBuilder.composableWithCompositionLocal(
route: String,
arguments: List<NamedNavArgument> = emptyList(),
content: @Composable AnimatedContentScope.(NavBackStackEntry) -> Unit
) {
composable(route = route, arguments = arguments) {
CompositionLocalProvider(
LocalAnimatedVisibilityScope provides this@composable
) {
content(it)
}
}
}
主题&状态栏颜色
@Composable
fun RedBookTheme(themeType: AppThemeType = AppThemeType.Light, content: @Composable () -> Unit) {
val colors =
if (AppThemeType.isDark(themeType = themeType)) darkLorenColors else lightLorenColors
CompositionLocalProvider(
LocalCustomColors provides colors,
LocalTextStyles provides RedBookTheme.textStyle
) {
MaterialTheme(content = content)
}
}
object RedBookTheme {
val colors: LorenColors
@Composable
get() = LocalCustomColors.current
val textStyle: LorenTextStyle
@Composable
get() = LocalTextStyles.current
}
我的页面状态栏图标颜色亮色,其他页面状态栏图标是暗色,使用EdgeToEdge
控制
// statusBar图标颜色模式
// isDark=true,状态栏为浅色图标
val isDark = if (appState.iconIsLight && appState.currentDestination?.route == MAIN_ROUTE) true else AppThemeType.isDark(
themeType = lorenTheme
)
DisposableEffect(lorenTheme, isDark) {
enableEdgeToEdge(
SystemBarStyle.auto(Color.TRANSPARENT, Color.TRANSPARENT) { isDark },
SystemBarStyle.auto(Color.WHITE, Color.BLACK) { isDark },
)
onDispose { }
}
项目完整代码地址
🎉 完整项目代码地址
