Nuxt3-SEO利剑之 一键生成网站图片的结构化数据

知了清语
159 阅读4分钟

背景： 在Nuxt3等具备SSR的 框架，做web站点的场景下， 我们如果做网站的 SEO优化, 就需要生成去生成网站的结构化数据，让搜索引擎更好的了解我们的网站。

但是这个过程，又比较繁琐。

网站结构化数据，大概长这样

<script type='application/ld+json'>
[
    {
        "@context": "https://schema.org",
        "@type": "ImageObject",
        "url": "https://storyblok-cdn.photoroom.com/f/191576/480x270/cc402e6795/batch_mode.webp",
        "width": 480,
        "height": 270,
        "encodingFormat": "image/webp"
    }
]
</script>

一个网站大概会有 几十上百个图片， 挨个去写，非常的费劲。还有可能写错。

面临的困扰

  • 工作量大 - 重复性多
  • 结构化数据容易出错-出错，爬虫就不认识
  • 图片在开发环境和生成环境，不一定一致； 开发环境可能是一个 Http请求， 生产环境，可能是 base64;

简单写了一个脚本，可以一键生成图片的结构化数据

开发环境

pnpm init .

pnpm add cheerio image-size mime -S

node: 20+
  • cheerio 解析HTML
  • image-size 解析图片大小
  • mime 根据图片的 type 生成标准的 MIME 类型， 不要自己手动拼接，不标准

实现思路

  1. 拿到我们某一个页面的HTML 字符串 ,注意，是字符串，不是 chrome里面已经给你解析好的DOM树
  2. 从一堆字符串中解析我们要的内容； 根据图片的存在形式，进行逐一分析
  3. 拿到图片的url 地址
  4. 遍历，拿到的这一堆 url 地址， 拿到 文件流信息， url本身是字符串，图片的宽高是存在文件信息中的， 我们使用 fetch 请求， 使用 axios等其他也都可以
  5. 拿到文件流以后，使用 image-size 去解析并返回文件的宽度，高度，类型
  6. 这里的类型只有 webp, svg， png 等， 需要使用 mime 这个包，将这种解析为 'image/png', 'image/webp' 等标准的格式
  7. 将json 拼接为 符合 schema org 格式的 结构化数据
  8. 结束。

代码

import * as cheerio from 'cheerio'
import imageSize from 'image-size'
import mime from 'mime'

import fs from 'node:fs'

let host = 'https://www.photoroom.com/'

const getHTMLText = async () => {
  try {
    let res = await fetch(host)

    let text = await res.text()

    return text
  } catch (error) {
    console.error('获取网页内容失败', error)
  }
}

/**
 * 获取外部链接的css的 图片地址
 */
const getCssLinksImages = ($) => {
  let images = []

  // 拿到所有的 style 标签
  $('style').each((index, element) => {
    const styleContent = $(element).html()
    const matches = styleContent.match(/background(?:-image)?:\s*url\(['"]?(.*?)['"]?\)/g)
    if (matches) {
      matches.forEach((match) => {
        const urlMatch = match.match(/url\(['"]?(.*?)['"]?\)/)
        if (urlMatch && urlMatch[1] && !urlMatch[1].startsWith('data:image')) {
          images.push(urlMatch[1])
        }
      })
    }
  })

  return images
}

/**
 * 获取 <img src=''> 这种的图片地址
 * @returns
 */
const getImageTagImages = ($) => {
  let images = []

  // 提取 img 标签中的图片链接
  $('img').each((index, element) => {
    // 当然，这里可能会存在有 懒加载的情况， 具体网站，具体分析，只要是懒加载，一般是解析 data-src= 地址
    const src = $(element).attr('src')
    if (src && src.indexOf('data:image') === -1) {
      images.push(src)
    }
  })

  return images
}

/**
 * 获取行内样式中的背景图片链接
 */
const getInlineStyleTagImages = ($) => {
  let images = []

  // 提取行内样式中的背景图片链接
  $('[style]').each((index, element) => {
    const style = $(element).attr('style')
    const match = style.match(/background(?:-image)?:\s*url\(['"]?(.*?)['"]?\)/g)
    if (match && match[1]) {
      const imageUrl = match[1]
      if (!imageUrl.startsWith('data:image')) {
        images.push(imageUrl)
      }
    }
  })

  return images
}

/**
 * 获取 style 标签内的 图片资源
 */
const getStyleTagsImages = ($) => {
  let images = []

  // 提取style 标签内的 图片资源
  $('style').each((index, element) => {
    const styleContent = $(element).html()
    const matches = styleContent.match(/background(?:-image)?:\s*url\(['"]?(.*?)['"]?\)/g)
    if (matches) {
      matches.forEach((match) => {
        const urlMatch = match.match(/url\(['"]?(.*?)['"]?\)/)
        if (urlMatch && urlMatch[1] && !urlMatch[1].startsWith('data:image')) {
          images.push(urlMatch[1])
        }
      })
    }
  })

  return images
}

/**
 * 解析网站所有的图片资源
 */
const resolveImage = (text) => {
  let $ = cheerio.load(text)

  let imageTags = getImageTagImages($)

  let inlineImages = getInlineStyleTagImages($)

  let styleTagImages = getStyleTagsImages($)

  // 提取外部css链接中的图片资源
  let cssLinksImages = getCssLinksImages($, text)

  return imageTags.concat(inlineImages, styleTagImages, cssLinksImages)
}

const resolveImageSize = async (list) => {
  let count = 0

  let allImagePromise = list.map((p) => {
    return fetch(p, {
      headers: { responseType: 'arraybuffer' }
    }).then(async (response) => {
      count++

      console.log('图片信息解析成功：', count)
      const buffer = await response.arrayBuffer()
      const uint8Array = new Uint8Array(buffer)

      let item = await imageSize(uint8Array)

      return {
        src: p,
        width: item.width,
        height: item.height,
        // 图片类型
        type: mime.getType(item.type)
      }
    })
  })

  try {
    let result = await Promise.all(allImagePromise)

    // 过滤掉 svg这样小的图片， 一般不会作为结构化数据
    return result.filter(p => p.type !== 'image/svg+xml')
  } catch (error) {
    console.log('图片宽高解析失败')
    console.log(error)
  }
}

/**
 * 包装成 application/ld+json 结构化数据
 * @param {*} list
 * @returns
 */
const wrapJsonLd = (list) => {
  return list.map((item) => {
    return {
      '@context': 'https://schema.org',
      '@type': 'ImageObject',
      url: item.src,
      width: item.width,
      height: item.height,
      encodingFormat: `${item.type}`
    }
  })
}

const start = async () => {
  let text = await getHTMLText()

  if (!text) {
    console.log('网站的内容没有解析到')
    return
  }

  let imageList = resolveImage(text)

  // 需要去补全 域名
  imageList = imageList.map((item) => {
    return item.startsWith('http') ? item : host + item
  })

  // 解析图片的宽高
  let imageSizeList = await resolveImageSize(imageList)

  // 包装 application/ld+json 结构化数据
  let jsonLd = wrapJsonLd(imageSizeList)

  fs.writeFile('./web-application.json', JSON.stringify(jsonLd, null, 2), (err) => {
    if (err) {
      console.log('结构化数据写入失败')
      console.log(err)
      return
    }

    console.log('结构化数据写入成功')
  })
}

start()

结果

[
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/480x270/cc402e6795/batch_mode.webp",
    "width": 480,
    "height": 270,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/1599x900/a67bb8b540/process_hundreds_of_product_images_using_the_photoroom_api_m_.webp",
    "width": 1599,
    "height": 900,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://www.photoroom.com//_next/image?url=%2Fimg%2Fhome%2Fobject-box.webp&w=640&q=75",
    "width": 513,
    "height": 574,
    "encodingFormat": "image/png"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://www.photoroom.com//_next/image?url=%2Fimg%2Fhome%2Flaptop.webp&w=1080&q=75",
    "width": 992,
    "height": 1280,
    "encodingFormat": "image/png"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://www.photoroom.com//_next/image?url=%2Fimg%2Fhome%2Flaptop.webp&w=1080&q=75",
    "width": 992,
    "height": 1280,
    "encodingFormat": "image/png"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/280x158/87fe0b04a9/shopify.webp",
    "width": 280,
    "height": 158,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/280x158/b5863f3ad6/netflix.webp",
    "width": 280,
    "height": 158,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/280x158/00ec587061/warner-bros.webp",
    "width": 280,
    "height": 158,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/280x158/2f44770ec6/bulgari.webp",
    "width": 280,
    "height": 158,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/280x158/dfa9052663/wolt.webp",
    "width": 280,
    "height": 158,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/420x237/8b250b18ca/daiso.webp",
    "width": 420,
    "height": 237,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/420x237/4ddbfa3ef8/hennessy.webp",
    "width": 420,
    "height": 237,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/280x158/834e23c71b/klarna.webp",
    "width": 224,
    "height": 122,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/1048x764/424f986791/instant_backgrounds_examples.webp",
    "width": 1048,
    "height": 764,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/2096x1572/3240e37ea7/ai_expand.webp",
    "width": 2096,
    "height": 1572,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/1048x786/fdcad8feb6/ebay_2.webp",
    "width": 1048,
    "height": 786,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/96x96/e422e0c6b2/logo_free.webp",
    "width": 96,
    "height": 96,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/96x96/e422e0c6b2/logo_free.webp",
    "width": 96,
    "height": 96,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/96x96/18116b9633/logo_enterprise.webp",
    "width": 96,
    "height": 96,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/80x80/7c73842d7b/sebastian-pilch.webp",
    "width": 80,
    "height": 80,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/80x80/cd03d1c011/sue-darte.webp",
    "width": 80,
    "height": 80,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/80x80/82f8c1c75b/jacob-p.webp",
    "width": 80,
    "height": 80,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://www.photoroom.com//_next/image?url=%2F_next%2Fstatic%2Fmedia%2Fphone-static.ff9096fe.webp&w=3840&q=75",
    "width": 440,
    "height": 802,
    "encodingFormat": "image/png"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://www.photoroom.com//_next/image?url=%2F_next%2Fstatic%2Fmedia%2Flaptop.ffe2a6e2.webp&w=3840&q=75",
    "width": 496,
    "height": 640,
    "encodingFormat": "image/png"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/1200x800/4e54b928ef/remove_background.webp",
    "width": 1200,
    "height": 800,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/1200x800/85085e1807/ai_backgrounds_after_.webp",
    "width": 1200,
    "height": 800,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/1200x800/1fb223a626/blur_background_after_.webp",
    "width": 1200,
    "height": 800,
    "encodingFormat": "image/webp"
  },
  {
    "@context": "https://schema.org",
    "@type": "ImageObject",
    "url": "https://storyblok-cdn.photoroom.com/f/191576/1200x800/88361a19c7/retouch_before_.webp",
    "width": 1200,
    "height": 800,
    "encodingFormat": "image/webp"
  }
]

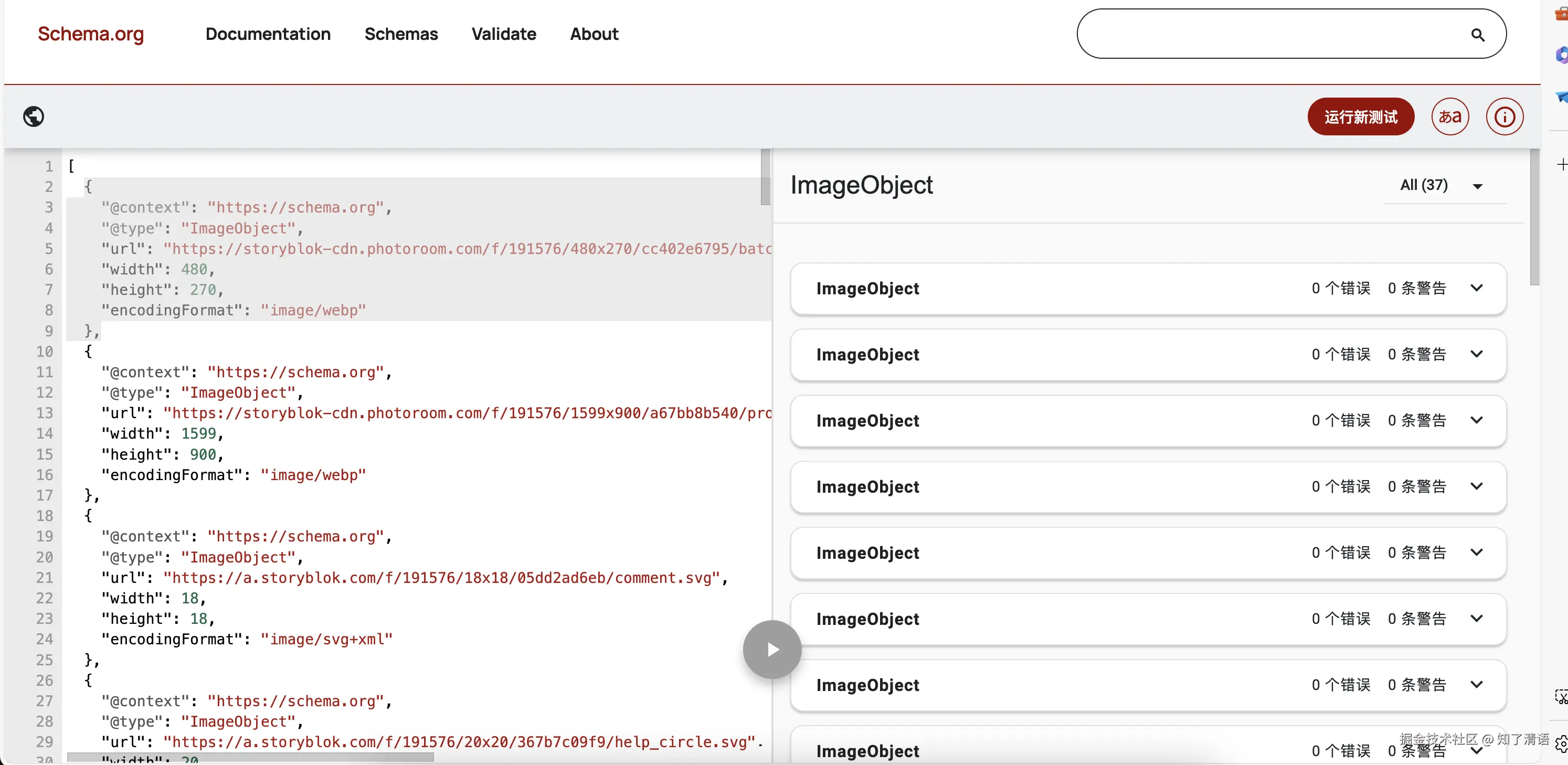

生成的结果，直接可以放在 validator.schema.org/ 上进行验证；


✿✿ヽ(°▽°)ノ✿ 全部验证通过。😊😊😊
