前言

定时任务框架Quartz提供了完备的分布式环境下的定时任务执行能力，本文将基于Quartz框架实现分布式定时任务Starter，以提供在Springboot框架下的开箱即用的分布式定时任务功能。

Github源码地址：honey-scheduler

正文

一. Starter实现

1. 思路概述

因为Quartz框架的核心就是调度器Scheduler，定时任务JobDetail和触发器Trigger，所以分布式定时任务Starter的核心功能就是在应用启动时，自动创建Scheduler，然后加载用户配置的JobDetail和Trigger并注册到Scheduler中。

自动创建Scheduler可以基于SchedulerFactoryBean来实现，这是Spring专门为Quartz提供的用于创建Scheduler的FactoryBean。

加载用户配置的JobDetail和Trigger可以借助ImportBeanDefinitionRegistrar来将用户配置的JobDetail和Trigger全部放到Spring容器中，然后在创建SchedulerFactoryBean时将所有JobDetail和Trigger设置进去。

2. 工程准备

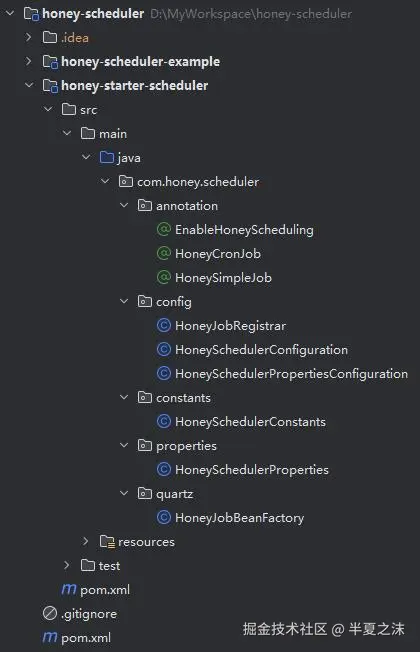

工程目录结构如下所示。

工程目录结构图

使用到的常量类如下所示。

public class HoneySchedulerConstants {

    public static final String HONEY_QUARTZ_PROPERTIES_FILE_PATH = "classpath:honey-quartz.properties";
    public static final String HONEY_QUARTZ_PROPERTIES_PREFIX = "org.quartz.";
    public static final String HONEY_QUARTZ_PROPERTIES_INSTANCE_NAME = "org.quartz.scheduler.instanceName";

    public static final String HONEY_QUARTZ_DATE_FORMAT = "yyyy-MM-dd HH:mm:ss";

    public static final String HONEY_DEFAULT_SCHEDULER_INSTANCE_NAME = "honey-default-instance";

    public static final String HONEY_JOB_JOB_GROUP = "jobGroup";
    public static final String HONEY_JOB_JOB_NAME = "jobName";
    public static final String HONEY_JOB_TRIGGER_GROUP = "triggerGroup";
    public static final String HONEY_JOB_TRIGGER_NAME = "triggerName";
    public static final String HONEY_JOB_START = "start";
    public static final String HONEY_JOB_END = "end";
    public static final String HONEY_JOB_MISFIRE = "misfire";

    public static final String HONEY_SIMPLE_JOB_REPEAT_INTERVAL = "repeatInterval";
    public static final String HONEY_SIMPLE_JOB_REPEAT_COUNT = "repeatCount";

    public static final String HONEY_CRON_JOB_CRON = "cron";

}

父工程pom文件如下所示。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <packaging>pom</packaging>
    <modules>
        <module>honey-starter-scheduler</module>
        <module>honey-scheduler-example</module>
    </modules>

    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.6</version>
    </parent>

    <groupId>com.honey</groupId>
    <artifactId>honey-scheduler</artifactId>
    <version>1.0-SNAPSHOT</version>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.quartz-scheduler</groupId>
                <artifactId>quartz</artifactId>
                <version>2.3.2</version>
            </dependency>
            <dependency>
                <groupId>mysql</groupId>
                <artifactId>mysql-connector-java</artifactId>
                <version>8.0.31</version>
            </dependency>
            <dependency>
                <groupId>org.apache.commons</groupId>
                <artifactId>commons-lang3</artifactId>
                <version>3.12.0</version>
            </dependency>
        </dependencies>
    </dependencyManagement>

</project>

honey-starter-scheduler工程的pom文件如下所示。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>honey-scheduler</artifactId>
        <groupId>com.honey</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>honey-starter-scheduler</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-configuration-processor</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context-support</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-tx</artifactId>
        </dependency>

        <dependency>
            <groupId>org.quartz-scheduler</groupId>
            <artifactId>quartz</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
        </dependency>
        <dependency>
            <groupId>org.apache.commons</groupId>
            <artifactId>commons-lang3</artifactId>
        </dependency>
    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-source-plugin</artifactId>
                <executions>
                    <execution>
                        <id>attach-sources</id>
                        <goals>
                            <goal>jar</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>

3. 配置加载

我们定义如下注解。

/**
 * 定时任务开启注解。<br/>
 * 在启动类上添加该注解以启动定时任务。
 */
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import({HoneySchedulerPropertiesConfiguration.class})
public @interface EnableHoneyScheduling {
}

上述注解作为整个分布式定时任务模块的开关，如果要开启分布式定时任务，需要在启动类上添加@EnableHoneyScheduling注解。

注意到通过@EnableHoneyScheduling注解导入了HoneySchedulerPropertiesConfiguration，该类用于配置加载，下面看一下其实现。

/**
 * 主要作用是将application.yml文件配置的属性与honey-quartz.properties
 * 文件配置的属性进行组合。<br/>
 * application.yml文件配置优先级大于honey-quartz.properties。
 */
@Configuration
@EnableConfigurationProperties({HoneySchedulerProperties.class})
public class HoneySchedulerPropertiesConfiguration {

    @Bean
    public Properties schedulerProperties(HoneySchedulerProperties honeySchedulerProperties) {
        ResourcePatternResolver resourcePatternResolver = new PathMatchingResourcePatternResolver(
                HoneySchedulerPropertiesConfiguration.class.getClassLoader());

        // 去classpath下加载honey-quartz.properties配置文件的属性
        Properties honeyQuartzProperties = new Properties();
        try {
            honeyQuartzProperties.load(resourcePatternResolver.getResource(HONEY_QUARTZ_PROPERTIES_FILE_PATH)
                    .getInputStream());
        } catch (Exception e) {
            // ignore
        }

        // 将application.yml文件配置的属性转换成Properties
        Properties ymlQuartzProperties = new Properties();
        Map<String, String> quartzProperties = honeySchedulerProperties.getQuartz();
        if (null != quartzProperties && !quartzProperties.isEmpty()) {
            for (Map.Entry<String, String> entry : quartzProperties.entrySet()) {
                ymlQuartzProperties.put(HONEY_QUARTZ_PROPERTIES_PREFIX + entry.getKey(), entry.getValue());
            }
        }

        // 组合application.yml配置文件属性与honey-quartz.properties配置文件属性
        // 注意application.yml文件配置优先级大于honey-quartz.properties
        CollectionUtils.mergePropertiesIntoMap(ymlQuartzProperties, honeyQuartzProperties);

        return honeyQuartzProperties;
    }

}

用户自定义的配置使用HoneySchedulerProperties来表示，如下所示。

/**
 * Quartz定时任务框架的配置属性。<br/>
 * 配置的字段与原生Quartz的配置字段保持一致。
 */
@ConfigurationProperties(prefix = "org")
public class HoneySchedulerProperties {

    private Map<String, String> quartz = new HashMap<>();

    public Map<String, String> getQuartz() {
        return quartz;
    }

    public void setQuartz(Map<String, String> quartz) {
        this.quartz = quartz;
    }

}

honey-quartz.properties是框架提供的默认兜底配置，如下所示。

org.quartz.scheduler.instanceName=DefaultHoneySchedulerInstance
org.quartz.scheduler.instanceId=AUTO
org.quartz.jobStore.class=org.quartz.impl.jdbcjobstore.JobStoreTX
org.quartz.jobStore.driverDelegateClass=org.quartz.impl.jdbcjobstore.StdJDBCDelegate
org.quartz.jobStore.tablePrefix=QRTZ_
org.quartz.jobStore.isClustered=true
org.quartz.jobStore.misfireThreshold=60000
org.quartz.jobStore.acquireTriggersWithinLock=true
org.quartz.threadPool.threadCount=5
org.quartz.threadPool.threadPriority=5
org.quartz.threadPool.threadsInheritContextClassLoaderOfInitializingThread=true
org.quartz.scheduler.jmx.export=true

4. Trigger和JobDetail加载

针对Simple执行的任务，定义如下注解。

@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Component
@Import(HoneyJobRegistrar.class)
public @interface HoneySimpleJob {

    /**
     * 任务的group。
     */
    String jobGroup();

    /**
     * 任务的name。
     */
    String jobName();

    /**
     * 任务触发器的group。<br/>
     * 不配置时取jobGroup的值。
     */
    String triggerGroup() default StringUtils.EMPTY;

    /**
     * 任务触发器的name。<br/>
     * 不配置时取jobName的值。
     */
    String triggerName() default StringUtils.EMPTY;

    /**
     * Trigger的重复触发间隔。<br/>
     * 单位是毫秒。
     */
    String repeatInterval();

    /**
     * Trigger的重复触发次数。<br/>
     * 配置成-1表示一直执行。
     */
    String repeatCount();

    /**
     * 开始时间点。<br/>
     * 格式为yyyy-MM-dd HH:mm:ss。<br/>
     * 不配置时取当前时间。
     */
    String start() default StringUtils.EMPTY;

    /**
     * 结束时间点。<br/>
     * 格式为yyyy-MM-dd HH:mm:ss。
     */
    String end() default StringUtils.EMPTY;

    /**
     * Misfire策略。<br/>
     * 策略取值见{@link SimpleTrigger}。
     */
    int misfire() default 0;

}

针对Cron执行的任务，定义如下注解。

@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Component
@Import(HoneyJobRegistrar.class)
public @interface HoneyCronJob {

    /**
     * 任务的group。
     */
    String jobGroup();

    /**
     * 任务的name。
     */
    String jobName();

    /**
     * 任务触发器的group。<br/>
     * 不配置时取jobGroup的值。
     */
    String triggerGroup() default StringUtils.EMPTY;

    /**
     * 任务触发器的name。<br/>
     * 不配置时取jobName的值。
     */
    String triggerName() default StringUtils.EMPTY;

    /**
     * 定时任务的Cron表达式。
     */
    String cron();

    /**
     * 开始时间点。<br/>
     * 格式为yyyy-MM-dd HH:mm:ss。<br/>
     * 不配置时取当前时间。
     */
    String start() default StringUtils.EMPTY;

    /**
     * 结束时间点。<br/>
     * 格式为yyyy-MM-dd HH:mm:ss。
     */
    String end() default StringUtils.EMPTY;

    /**
     * Misfire策略。<br/>
     * 策略取值见{@link CronTrigger}。
     */
    int misfire() default 0;

}

@HoneySimpleJob和@HoneyCronJob注解均复合了@Import注解并导入了HoneyJobRegistrar，并且HoneyJobRegistrar实现了ImportBeanDefinitionRegistrar接口，所以每有一个任务类由@HoneySimpleJob和@HoneyCronJob注解修饰，那么我们就可以在HoneyJobRegistrar中读取被修饰的类的信息然后注册Trigger和JobDetail到Spring容器中，HoneyJobRegistrar实现如下。

/**
 * 将由{@link HoneySimpleJob}和{@link HoneyCronJob}注解修饰的任务注册为
 * Spring容器的bean。<br/>
 * 注解中的配置内容支持配置解析。
 */
public class HoneyJobRegistrar implements EnvironmentAware, ImportBeanDefinitionRegistrar {

    private Environment environment;

    @Override
    public void setEnvironment(Environment environment) {
        this.environment = environment;
    }

    @Override
    public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
        if (importingClassMetadata.hasAnnotation(HoneySimpleJob.class.getName())) {
            processSimpleJob(importingClassMetadata, registry);
        } else if (importingClassMetadata.hasAnnotation(HoneyCronJob.class.getName())) {
            processCronJob(importingClassMetadata, registry);
        }
    }

    private void processSimpleJob(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
        AnnotationAttributes annotationAttributes = AnnotationAttributes
                .fromMap(importingClassMetadata.getAnnotationAttributes(HoneySimpleJob.class.getName()));

        if (null == annotationAttributes) {
            return;
        }

        // 得到任务的Class对象
        Class<?> clazz;
        String className = importingClassMetadata.getClassName();
        try {
            clazz = ClassUtils.forName(className,
                    Thread.currentThread().getContextClassLoader());
        } catch (Exception e) {
            throw new IllegalStateException();
        }

        // 任务类必须是QuartzJobBean类型
        if (!QuartzJobBean.class.isAssignableFrom(clazz)) {
            throw new IllegalStateException();
        }

        String jobGroup = resolvePlaceholder(annotationAttributes.getString(HONEY_JOB_JOB_GROUP), true);
        String jobName = resolvePlaceholder(annotationAttributes.getString(HONEY_JOB_JOB_NAME), true);
        String triggerGroup = resolvePlaceholder(annotationAttributes.getString(HONEY_JOB_TRIGGER_GROUP), true);
        String triggerName = resolvePlaceholder(annotationAttributes.getString(HONEY_JOB_TRIGGER_NAME), true);
        Date startTime = parseDateStr(resolvePlaceholder(annotationAttributes.getString(HONEY_JOB_START), false), true);
        Date endTime = parseDateStr(resolvePlaceholder(annotationAttributes.getString(HONEY_JOB_END), false), false);
        String interval = resolvePlaceholder(annotationAttributes.getString(HONEY_SIMPLE_JOB_REPEAT_INTERVAL), false);
        long repeatInterval = StringUtils.isEmpty(interval) ? 0 : Long.parseLong(interval);
        String repeat = resolvePlaceholder(annotationAttributes.getString(HONEY_SIMPLE_JOB_REPEAT_COUNT), false);
        int repeatCount = StringUtils.isEmpty(repeat) ? SimpleTrigger.REPEAT_INDEFINITELY : Integer.parseInt(repeat);
        int misfire = annotationAttributes.getNumber(HONEY_JOB_MISFIRE);

        BeanDefinition jobDetailBeanDefinition = BeanDefinitionBuilder
                .genericBeanDefinition(JobDetailFactoryBean.class)
                .addPropertyValue("group", jobGroup)
                .addPropertyValue("name", jobName)
                .addPropertyValue("jobClass", clazz)
                .addPropertyValue("durability", true)
                .addPropertyValue("requestsRecovery", true)
                .setScope(BeanDefinition.SCOPE_SINGLETON)
                .getBeanDefinition();
        registry.registerBeanDefinition(className, jobDetailBeanDefinition);

        if (registry instanceof BeanFactory) {
            JobDetail jobDetail = ((BeanFactory) registry).getBean(className, JobDetail.class);
            BeanDefinition triggerBeanDefinition = BeanDefinitionBuilder
                    .genericBeanDefinition(SimpleTriggerImpl.class)
                    .addPropertyValue("group", StringUtils.isEmpty(triggerGroup) ? jobGroup : triggerGroup)
                    .addPropertyValue("name", StringUtils.isEmpty(triggerName) ? jobName : triggerName)
                    .addPropertyValue("jobKey", jobDetail.getKey())
                    .addPropertyValue("startTime", startTime)
                    .addPropertyValue("endTime", endTime)
                    .addPropertyValue("repeatInterval", repeatInterval)
                    .addPropertyValue("repeatCount", repeatCount)
                    .addPropertyValue("misfireInstruction", misfire)
                    .setScope(BeanDefinition.SCOPE_SINGLETON)
                    .getBeanDefinition();
            registry.registerBeanDefinition(assembleTriggerBeanName(className), triggerBeanDefinition);
        }
    }

    private void processCronJob(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
        AnnotationAttributes annotationAttributes = AnnotationAttributes
                .fromMap(importingClassMetadata.getAnnotationAttributes(HoneyCronJob.class.getName()));

        if (null == annotationAttributes) {
            return;
        }

        // 得到任务的Class对象
        Class<?> clazz;
        String className = importingClassMetadata.getClassName();
        try {
            clazz = ClassUtils.forName(className,
                    Thread.currentThread().getContextClassLoader());
        } catch (Exception e) {
            throw new IllegalStateException();
        }

        // 任务类必须是QuartzJobBean类型
        if (!QuartzJobBean.class.isAssignableFrom(clazz)) {
            throw new IllegalStateException();
        }

        String jobGroup = resolvePlaceholder(annotationAttributes.getString(HONEY_JOB_JOB_GROUP), true);
        String jobName = resolvePlaceholder(annotationAttributes.getString(HONEY_JOB_JOB_NAME), true);
        String triggerGroup = resolvePlaceholder(annotationAttributes.getString(HONEY_JOB_TRIGGER_GROUP), true);
        String triggerName = resolvePlaceholder(annotationAttributes.getString(HONEY_JOB_TRIGGER_NAME), true);
        String cron = resolvePlaceholder(annotationAttributes.getString(HONEY_CRON_JOB_CRON), true);
        Date startTime = parseDateStr(resolvePlaceholder(annotationAttributes.getString(HONEY_JOB_START), false), true);
        Date endTime = parseDateStr(resolvePlaceholder(annotationAttributes.getString(HONEY_JOB_END), false), false);
        int misfire = annotationAttributes.getNumber(HONEY_JOB_MISFIRE);

        BeanDefinition jobDetailBeanDefinition = BeanDefinitionBuilder
                .genericBeanDefinition(JobDetailFactoryBean.class)
                .addPropertyValue("group", jobGroup)
                .addPropertyValue("name", jobName)
                .addPropertyValue("jobClass", clazz)
                .addPropertyValue("durability", true)
                .addPropertyValue("requestsRecovery", true)
                .setScope(BeanDefinition.SCOPE_SINGLETON)
                .getBeanDefinition();
        registry.registerBeanDefinition(className, jobDetailBeanDefinition);

        if (registry instanceof BeanFactory) {
            JobDetail jobDetail = ((BeanFactory) registry).getBean(className, JobDetail.class);
            BeanDefinition triggerBeanDefinition = BeanDefinitionBuilder
                    .genericBeanDefinition(CronTriggerImpl.class)
                    .addPropertyValue("group", StringUtils.isEmpty(triggerGroup) ? jobGroup : triggerGroup)
                    .addPropertyValue("name", StringUtils.isEmpty(triggerName) ? jobName : triggerName)
                    .addPropertyValue("jobKey", jobDetail.getKey())
                    .addPropertyValue("startTime", startTime)
                    .addPropertyValue("endTime", endTime)
                    .addPropertyValue("cronExpression", cron)
                    .addPropertyValue("misfireInstruction", misfire)
                    .setScope(BeanDefinition.SCOPE_SINGLETON)
                    .getBeanDefinition();
            registry.registerBeanDefinition(assembleTriggerBeanName(className), triggerBeanDefinition);
        }
    }

    private String resolvePlaceholder(String text, boolean notAllowEmpty) {
        String resultText = text;
        if (StringUtils.isNotEmpty(resultText)) {
            resultText = this.environment.resolvePlaceholders(resultText);
        }
        if (notAllowEmpty && StringUtils.isEmpty(resultText)) {
            throw new IllegalStateException();
        }
        return resultText;
    }

    private Date parseDateStr(String dateStr, boolean nowWhenEmpty) {
        if (StringUtils.isEmpty(dateStr)) {
            return nowWhenEmpty ? new Date() : null;
        }
        SimpleDateFormat sdf = new SimpleDateFormat(HoneySchedulerConstants.HONEY_QUARTZ_DATE_FORMAT);
        sdf.setLenient(false);
        try {
            return new Date(sdf.parse(dateStr).getTime());
        } catch (Exception e) {
            throw new IllegalStateException();
        }
    }

    private String assembleTriggerBeanName(String jobClassName) {
        return jobClassName + ".trigger";
    }

}

代码稍微有点长，概括下来就是。

  1. 得到任务的Class对象；
  2. 解析@HoneySimpleJob和@HoneyCronJob注解的属性。其中@HoneySimpleJob和@HoneyCronJob注解支持占位符；
  3. 注册JobDetail；
  4. 为JobDetail注册对应的Trigger。

5. Scheduler创建

修改@EnableHoneyScheduling注解如下所示。

/**
 * 定时任务开启注解。<br/>
 * 在启动类上添加该注解以启动定时任务。
 */
@Target({ElementType.TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
@Import({HoneySchedulerPropertiesConfiguration.class, HoneySchedulerConfiguration.class})
public @interface EnableHoneyScheduling {
}

多引入的HoneySchedulerConfiguration用于创建Scheduler，如下所示。

/**
 * 构建{@link Scheduler}调度器。
 */
@Configuration
public class HoneySchedulerConfiguration {

    @Bean
    @ConditionalOnMissingBean(SchedulerFactoryBean.class)
    public SchedulerFactoryBean SchedulerFactoryBean(List<JobDetail> jobDetails, List<Trigger> triggers,
                                                     Properties schedulerProperties) {
        SchedulerFactoryBean schedulerFactoryBean = new SchedulerFactoryBean();

        // 设置实例名
        schedulerFactoryBean.setSchedulerName(schedulerProperties.getProperty(
                HONEY_QUARTZ_PROPERTIES_INSTANCE_NAME, HONEY_DEFAULT_SCHEDULER_INSTANCE_NAME));
        // 设置JobFactory
        schedulerFactoryBean.setJobFactory(honeyJobBeanFactory());
        // 注册JobDetail
        if (null != jobDetails && !jobDetails.isEmpty()) {
            schedulerFactoryBean.setJobDetails(jobDetails.toArray(new JobDetail[0]));
        }
        // 注册Trigger
        if (null != triggers && !triggers.isEmpty()) {
            schedulerFactoryBean.setTriggers(triggers.toArray(new Trigger[0]));
        }
        // 默认覆盖已经存在的定时任务
        schedulerFactoryBean.setOverwriteExistingJobs(true);
        // 将配置设置给调度器
        schedulerFactoryBean.setQuartzProperties(schedulerProperties);

        return schedulerFactoryBean;
    }

    @Bean
    public HoneyJobBeanFactory honeyJobBeanFactory() {
        return new HoneyJobBeanFactory();
    }

}

创建Scheduler是基于SchedulerFactoryBean来完成，和使用Quartz原生的api一样，我们需要将所有创建出来的Trigger和JobDetail，以及加载到的配置属性全部设置给Scheduler。注意到上述实现中额外设置了一个JobFactory，这个的作用是什么呢，下面先看一下其实现。

/**
 * 将任务对象注册为容器中的bean。<br/>
 * {@link SpringBeanJobFactory}能够将{@link JobDetail}注册为容器中的bean，
 * 但是依赖注入是构造函数的方式，在{@link HoneyJobBeanFactory}中主要是设置
 * 能够支持注解方式的依赖注入。
 */
public class HoneyJobBeanFactory extends SpringBeanJobFactory implements ApplicationContextAware {

    private AutowireCapableBeanFactory autowireCapableBeanFactory;

    @Override
    public void setApplicationContext(ApplicationContext applicationContext) {
        this.autowireCapableBeanFactory = applicationContext.getAutowireCapableBeanFactory();
    }

    @Override
    protected Object createJobInstance(TriggerFiredBundle bundle) throws Exception {
        Object jobInstance = super.createJobInstance(bundle);
        autowireCapableBeanFactory.autowireBean(jobInstance);
        return jobInstance;
    }

}

首先说明一下SpringBeanJobFactory，SpringBeanJobFactory会将每一个被执行的JobDetail注册为容器中的bean，此时我们的JobDetail是可以通过构造函数的方式来依赖注入其它bean，然后HoneyJobBeanFactory继承于SpringBeanJobFactory，让JobDetail能够额外的通过注解的方式来依赖注入其它bean。

二. 功能演示

现在来搭建一个示例demo。

首先honey-scheduler-example的pom文件如下所示。

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <artifactId>honey-scheduler</artifactId>
        <groupId>com.honey</groupId>
        <version>1.0-SNAPSHOT</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <artifactId>honey-scheduler-example</artifactId>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>

        <dependency>
            <groupId>com.honey</groupId>
            <artifactId>honey-starter-scheduler</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>

</project>

创建两个任务类，一个由@HoneySimpleJob注解修饰，一个由@HoneyCronJob注解修饰，如下所示。

@HoneySimpleJob(jobGroup = "testSimpleJobGroup", jobName = "testSimpleJobName" ,
        triggerGroup = "testSimpleTriggerGroup", triggerName = "testSimpleTriggerName",
        repeatInterval = "${test.simple.job.repeat-interval}",
        repeatCount = "${test.simple.job.repeat-count}")
public class TestSimpleJob extends QuartzJobBean {

    @Override
    protected void executeInternal(JobExecutionContext context)
            throws JobExecutionException {
        System.out.println(LocalDateTime.now().toString() + " Simple-Hello");
    }

}

@HoneyCronJob(jobGroup = "testCronJobGroup", jobName = "testCronJobName" ,
        triggerGroup = "testCronTriggerGroup", triggerName = "testCronTriggerName",
        cron = "*/10 * * * * ?")
public class TestCronJob extends QuartzJobBean {

    @Override
    protected void executeInternal(JobExecutionContext context)
            throws JobExecutionException {
        System.out.println(LocalDateTime.now().toString() + " Cron-Hello");
    }

}

启动类添加@EnableHoneyScheduling注解。

@EnableHoneyScheduling
@SpringBootApplication
public class Application {

    public static void main(String[] args) {
        SpringApplication.run(Application.class, args);
    }

}

最后是配置文件，如下所示。

org:
  quartz:
    jobStore:
      dataSource: qzDS
    dataSource:
      qzDS:
        driver: com.mysql.cj.jdbc.Driver
        URL: jdbc:mysql://localhost:3307/test
        user: root
        password: root
    scheduler:
      instanceName: local-demo

test:
  simple:
    job:
      repeat-interval: 10000
      repeat-count: -1

运行程序，打印如下。

2024-06-26T15:26:08.005 Simple-Hello
2024-06-26T15:26:10.010 Cron-Hello
2024-06-26T15:26:16.859 Simple-Hello
2024-06-26T15:26:20.007 Cron-Hello
2024-06-26T15:26:26.859 Simple-Hello
2024-06-26T15:26:30.008 Cron-Hello
2024-06-26T15:26:36.857 Simple-Hello
2024-06-26T15:26:40.008 Cron-Hello

定时任务是正常执行的。

总结

Starter的核心实现思路就是将Quartz框架需要的配置，Scheduler，Trigger和JobDetail全部加载出来并完成设置，剩下的就完全由Quartz框架来提供功能。

大家好，我是半夏之沫 😁😁 一名金融科技领域的JAVA系统研发😊😊
我希望将自己工作和学习中的经验以最朴实，最严谨的方式分享给大家，共同进步👉💓👈
👉👉👉👉👉👉👉👉💓写作不易，期待大家的关注和点赞💓👈👈👈👈👈👈👈👈
👉👉👉👉👉👉👉👉💓关注微信公众号【技术探界】 💓👈👈👈👈👈👈👈👈

你的名字-002

avatar
文章
阅读
粉丝
