前言
在谈到前端技术基础设施时,对于UI组件库建设几乎是一个绕不过的话题。日常业务迭代中经常会有着重复度极高的功能模块,对所使用到通用性强的工具类方法,UI组件等,通常都会进行抽象化,然后抽离封装为npm包。本文笔者将分享一下自己在从0到1搭建React组件库这一块的实践与思考
功能点与技术栈选型
组件库技术选型:
笔者公司是以react技术栈为主,所以组件库首选是react技术栈,因为是要自己从0到1搭建组件库,所以也没有考虑用dumi,father之类的一些npm包种子类库,构建工具选型的话就是用rollup ,react , 以及对antd的二次封装(内部需求大部分是对于antd进行扩展功能和自定义样式等)
知识点
组件库的构建方案设计
使用rollup作为底层构建工具,实现可按需加载的组件库,支持umd,esm两种格式产物,借助vite-plugin-style-import实现组件样式按需加载
组件样式
采用经典的css-module组件样式方案
组件单元测试
使用@testing-library/react + vitest 搭建单元测试

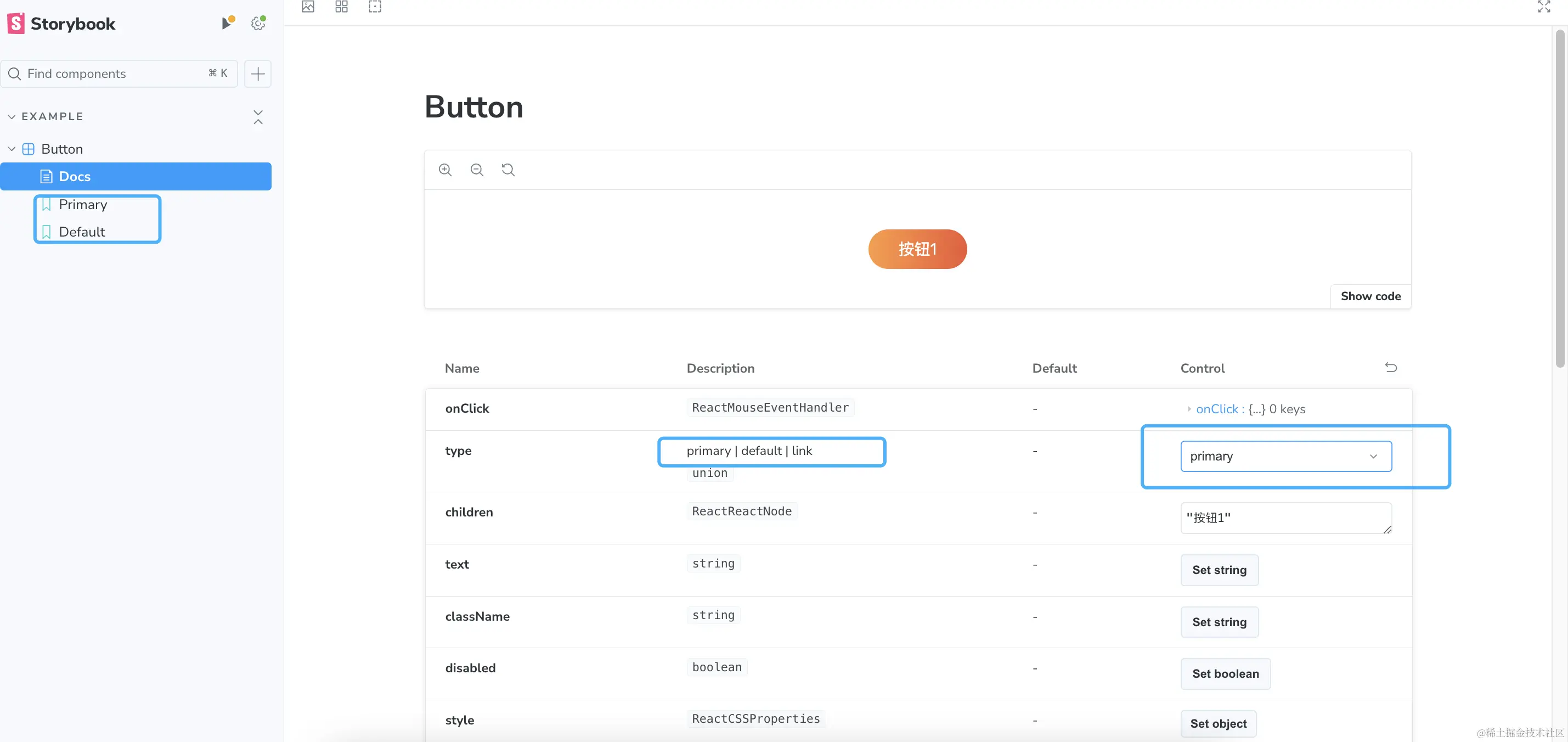

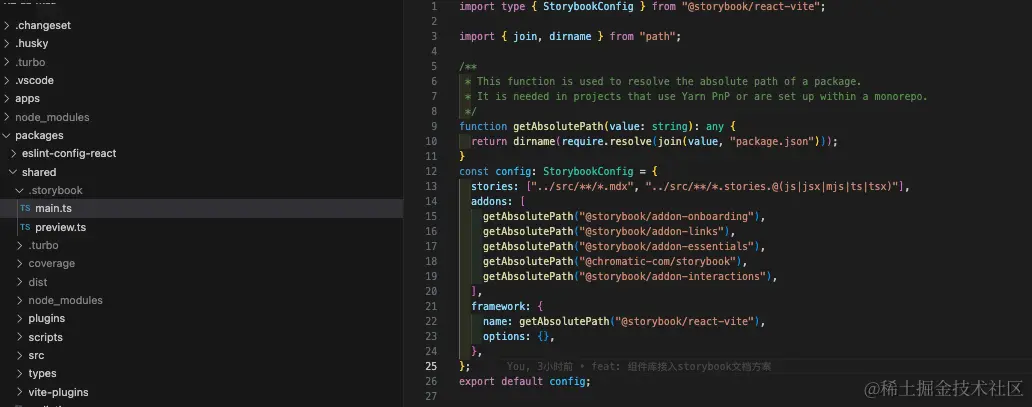

组件库文档
使用storyBook搭建组件库文档
组件库的构建方案
按需加载技术原理介绍
现在社区上一些知名的的UI组件库大部分都支持按需加载组件,比如antd。那我们这个组件库也是需要如此。所谓组件按需加载的原理也很简单,其实就是每个组件单独打包产出 各自的css,js产物,外部应用在使用时按需进行引入即可
babel-import-plugin
比如拿antd举例,antd提供了babel-import-plugin插件,对import语法进行改写,babel-import-plugin插件有一个参数配置style,配置为true时,进行自动导入组件的css
babel配置
{
"plugins": [
["import", {
"libraryName": "antd",
"libraryDirectory": "lib",
"style": true
}]
]
}
import { Button, Image } from 'antd'
import 'antd/dist/antd.css' //如果没有配置style=true,则需要手动全量引入所有组件的样式
// 通过babel-import-plugin等插件,在代码编译时,对语句进行改写为
var _button = require('antd/lib/button')
require('antd/lib/button/style/css')
var image = require('antd/lib/image')
require('antd/lib/image/style/css')
由此可见,只需要我们的组件库打包出如下格式的产物即可
- dist
button
index.js
index.css
index.d.ts
index.js //入口文件,包含所有的组件文件
tree-shaking
由于现在的构建工具,大多数都支持了tree-shaking(代码摇树),所谓摇树就是针对没有import到的变量,函数等,在打包构建时自动去除这部分未使用到的代码,但前提是该产物必须是esm的产物,有保留import关键语句,因为tree-shaking的原理是根据静态分析import语句来收集各个模块的依赖关系,而在commonjs产物中,required引入是动态的,所以cjs的产物,构建工具无法做到tree-shaking
比如对于下面的代码中,业务工程的构建工具一般来说(现代化的构建工具比如rollup,vite,webpack等都支持tree-shaking)最终的构建产物只会包含包Button和Image两个组件,但是使用这种方案,对于组件的css是没有自动导入的,因为组件的样式文件并没有打包到js文件里面,而babel-import-plugin插件提供了style的参数配置来用于支持样式按需引入,我们后面也会使用类似的工具来实现(使用vite-plugin-style-import在vite应用上实现组件样式的按需加载)
使用
import { Button, Image } from 'antd'
组件库入口文件实现
export { default as Button } from './button'
export { default as Image } from './Image'
我们接下来将开始设计组件库的构建方案,使其构建产物能够支持按需加载
构建打包方案设计
有了上面的分析,对构建产物的格式也已经确定。梳理一下思路,我们需要把src下的所有一级子目录进行收集,然后交给rollup进行单独打包,最终把每份组件的源码输出在dist目录下

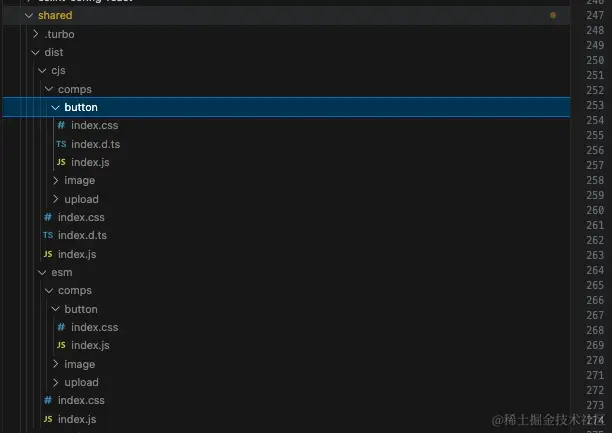

最终打包后的产物
src目录下组件入口扫描
要打包出上图的目录格式,rollup是需要多入口打包的,所以这里需要写一个通用的扫描规则,扫描规则是只对src目录下的第一级子目录进行扫描,并且只收集 index[tsx|ts|js]作为组件的入口文件,其他文件不作为打包入口,然后在生成rollup配置列表
写一个入口文件扫描函数
import fs from 'fs'
import path from 'path'
// 递归扫描目录,获取所有文件
function getAllFiles(srcpath) {
const files = []
const scanDir = dir => {
const filesInDir = fs.readdirSync(dir)
filesInDir.forEach(file => {
const filePath = path.join(dir, file)
if (fs.statSync(filePath).isDirectory()) {
scanDir(filePath)
} else {
files.push(filePath)
}
})
}
scanDir(srcpath)
return files
}
// 扫描入口文件
const getEntryConfig = (scanDir = './src', ignoreFileDir = ['business']) => {
let entryPoints = {}
getAllFiles(scanDir).forEach(filePath => {
const ext = path.extname(filePath).toLowerCase()
const [, dirName] = filePath.split('/')
if (ignoreFileDir.includes(dirName)) {
console.warn('entryPoints', entryPoints, dirName, filePath)
return
}
const basename = path.basename(filePath)
const relativePath = path.relative('./src', filePath)
if (fs.statSync(filePath).isDirectory()) {
return
} else {
const [fileName] = basename.split('.')
if (fileName === 'index' && ['.tsx', '.js', '.ts'].includes(ext)) {
const entryName = relativePath.replace(/\.(tsx|ts|js)$/, '')
entryPoints[entryName] = filePath
}
}
})
return entryPoints
}
//执行getEntryConfig函数,可以得到这个对象
const _entryPoints = {
'comps/button/index': 'src/comps/button/index.tsx',
'comps/image/index': 'src/comps/image/index.tsx',
'comps/upload/index': 'src/comps/upload/index.tsx',
}
组件库源码目录结构
这是组件库整体的目录结构,入口文件是对组件的集合导出,antdUI库入口文件只导出组件本身和组件的props,我们也跟随如此
- src
comps
button
index.tsx
index.module.scss
index.tsx
index.module.scss
index.ts
//入口文件 index.ts
export { default as Button } from './button'
export type { ButtonProps } from './button'
export { default as Image } from './image'
export type { ImageProps } from './button'
esm,cjs,dts构建产物
rollup的配置文件,如果是导出一个数组,则是多任务进行打包,有几个组件就会有几个打包任务, 编写一下esm,cjs,dts等三份产出配置生成
rollup配置文件
import typescript from '@rollup/plugin-typescript'
import postcss from 'rollup-plugin-postcss'//提取组件css文件
import fs from 'fs'
import path from 'path'
import dts from 'rollup-plugin-dts' //生成组件的index.d.ts文件
import alias from '@rollup/plugin-alias'
import image from '@rollup/plugin-image'
import { babel } from '@rollup/plugin-babel'
// import del from 'rollup-plugin-delete'
// import babel from '@rollup/plugin-babel'
// import { terser } from 'rollup-plugin-terser'
// import {babel} from '@rollup/plugin-babel'
// import scss from 'rollup-plugin-scss'
// import replace from '@rollup/plugin-replace'
// import {nodeResolve} from '@rollup/plugin-node-resolve'
// import commonjs from '@rollup/plugin-commonjs'
// 递归扫描目录,获取所有文件
function getAllFiles(srcpath) {
const files = []
const scanDir = dir => {
const filesInDir = fs.readdirSync(dir)
filesInDir.forEach(file => {
const filePath = path.join(dir, file)
if (fs.statSync(filePath).isDirectory()) {
scanDir(filePath)
} else {
files.push(filePath)
}
})
}
scanDir(srcpath)
return files
}
const getEntryConfig = (scanDir = './src', ignoreFileDir = ['business']) => {
let entryPoints = {}
getAllFiles(scanDir).forEach(filePath => {
const ext = path.extname(filePath).toLowerCase()
const [, dirName] = filePath.split('/')
if (ignoreFileDir.includes(dirName)) {
console.warn('entryPoints', entryPoints, dirName, filePath)
return
}
const basename = path.basename(filePath)
const relativePath = path.relative('./src', filePath)
if (fs.statSync(filePath).isDirectory()) {
return
} else {
const [fileName] = basename.split('.')
if (fileName === 'index' && ['.tsx', '.js', '.ts'].includes(ext)) {
const entryName = relativePath.replace(/\.(tsx|ts|js)$/, '')
entryPoints[entryName] = filePath
}
}
})
return entryPoints
}
const getCommonConfig = ({ inputKey, plugins = [], format = 'ems' }) => {
const dir = format === 'esm' ? 'esm' : 'lib'
const commonConfig = {
external: ['react', 'react-dom', 'antd'],
plugins: [
alias({
entries: [
{ find: '@', replacement: path.resolve('./src/') },
]
}),
image(),
typescript(), //编译 TypeScript
postcss({
// modules: true,
// extract: true,
extract: `${dir}/${inputKey}.css`,
}),
...plugins,
],
}
return commonConfig
}
const genlibConfig = (inputKey) => {
const commonConfig = getCommonConfig({
inputKey,
format: 'lib',
plugins: [
babel({
babelHelpers: 'runtime',
exclude: ['./node_modules/@fx/ajax/**'],
extensions: ['.ts', '.tsx', '.js', '.json', '.mjs'],
presets: [
[
'@babel/preset-env',
{
modules: false,
targets: {
browsers: ['ie >= 11', 'chrome >= 49', 'ios >= 8', 'android >= 4.1'],
node: '8',
},
},
],
],
plugins: ['@babel/plugin-transform-runtime'],
})
]
})
return {
input: entryPoints[inputKey],
output: {
format: 'umd',
name: 'ytShared',
entryFileNames: `lib/${inputKey}.js`,
globals: {
react: 'React',
'react-dom': 'ReactDOM',
},
dir: 'dist',
},
...commonConfig,
}
}
const genEsmConfig = (inputKey) => {
const commonConfig = getCommonConfig({
inputKey,
format: 'esm',
})
return {
input: entryPoints[inputKey],
output: {
format: 'esm',
entryFileNames: `esm/${inputKey}.js`,
globals: {
react: 'React',
'react-dom': 'ReactDOM',
},
dir: 'dist',
}
,
...commonConfig,
}
}
const genDtsConfig = (inputKey) => {
const config = {
input: entryPoints[inputKey],
output: [
{
format: 'es',
entryFileNames: `lib/${inputKey}.d.ts`,
dir: 'dist',
},
{
format: 'es',
entryFileNames: `esm/${inputKey}.d.ts`,
dir: 'dist',
}
],
external: ['react', 'react-dom', 'antd'], // 告诉 Rollup 将 React 视为外部依赖
plugins: [
dts(),
// image(),
alias({
entries: [
{ find: '@', replacement: path.resolve('./src/') },
]
}),
// typescript(),
// postcss({
// modules: true,
// extract: `esm/${inputKey}.css`,
// }),
],
}
return config
}
function deleteDistDirectory() {
const distPath = path.join(process.cwd(), 'dist')
if (fs.existsSync(distPath)) {
console.log('"dist" 目录开始删除')
fs.rmdirSync(distPath, { recursive: true })
console.log('"dist" 目录已删除')
} else {
console.log('当前目录下不存在 "dist" 目录')
}
}
deleteDistDirectory()
const entryPoints = getEntryConfig()
// const _entryPoints = {
// 'comps/button/index': 'src/comps/button/index.tsx',
// 'comps/image/index': 'src/comps/image/index.tsx',
// // 'comps/upload/index': 'src/comps/upload/index.tsx',
// 'index': 'src/index.ts',
// }
const outputs = Object.keys(entryPoints).flatMap((inputKey) => {
return [
genlibConfig(inputKey),
genEsmConfig(inputKey),
genDtsConfig(inputKey),
]
}).filter(Boolean)
export default outputs
这里我们指定了为每个组件都指定了三个打包任务,cjs是用于打包浏览器端umd格式的,同时为了兼容低版本浏览器,我们引入了babel对产物进行降级为es5,如果你开发的是一个底层的通用npm包,通常来说要提供三种格式产物,umd(用于支持浏览器环境) , cjs(nodejs端使用),esm产物(现代浏览器esm能力的的使用,以vite为代表的构建工具),这也是目前npm包标准化的产物格式
rollup的构建优化
package.json编写
通过main和module,browser字段指定不同产物的入口文件,由于笔者公司是用的vite,所以是使用module对应的产物
{
"name": "your-package-name",
"version": "1.0.0",
"main": "./dist/esm/index.js",
"module": "./dist/esm/index.js",
"browser": "./dist/cjs/index.js",
"scripts": {
"lint": "eslint . --ext js,ts,tsx --fix",
"build": "node --max-old-space-size=12288 node_modules/rollup/dist/bin/rollup -c",
"eslint-es5": "eslint --no-eslintrc -c .eslintrc.es5.cjs --ext .js,.ts ./dist/**/*.js"
}
}
执行npm run build,可以看到能够正常打包了
至此,整个构建方案算是完成了,接一下需要在应用层接一下样式的按需引入
使用vite-plugin-style-import进行样式按需引入
业务应用层,使用该UI库正常方式引入组件即可,引入样式有两种方案,一种是全量引入
import { Button, Image } from '@yt/fe-shared'
import '@yt/fe-shared/dist/esm/index.css'
另外一种是按需引入,按需引入需要借助vite-plugin-style-import这个插件来完成该功能,如果是webpack则可以使用babel-import-plugin,这个插件会分析匹配对应的import代码,自动帮补上所引入的组件的样式代码,下面是使用的示例
正常引入组件库代码
import { Button, Image } from '@yt/fe-shared'
vite配置文件做修改
import {
createStyleImportPlugin,
} from 'vite-plugin-style-import'
//这个函数可以由 UI库来实现并对外暴露,业务应用中引入进行使用即可
export function resolvelibStyleRule() {
//这里是有样式文件的组件列表
const comps = [
'upload',
'button',
'image',
'modal',
'drawer'
]
return {
libraryName: '@yt/fe-shared',
esModule: false,
resolveStyle: (compName) => {
if (comps.includes(compName)) {
return `@yt/fe-shared/dist/esm/comps/${compName}/index.css`
}
return ''
}
}
}
export default defineConfig(({ mode }) => {
return {
plugins: [
createStyleImportPlugin({
libs: [
resolvelibStyleRule()
]
})
]
}
})
配置后,即可实现组件的样式按需加载
react组件库单元测试
vitest安装与初始化
测试框架这一块是选用的 vitest + testing-library/react, React Testing Library这个库也是目前社区较为流行的React组件测试工具,它为React应用提供了简单且强大的单元测试解决方案,该框架以其"以用户的方式思考"的理念,让开发者能够编写更接近真实用户交互的测试代码,从而提升测试覆盖率和代码质量
在package中加入以下代码,重新执行pnpm install
"devDependencies": {
"vite": "^5.0.10",
"vitest": "1.6.0",
"@testing-library/react": "^12.1.2",
"@testing-library/react-hooks": "^8.0.1",
"@vitest/coverage-v8": "^1.6.0",
"jsdom": "^24.1.0"
},
"scripts": {
"test": "sudo vitest run --coverage",
}
然后在根目录下增加一个vite.config.ts文件,
import { defineConfig } from 'vitest/config'
import react from '@vitejs/plugin-react'
export default defineConfig({
plugins: [react()],
test: {
watch: false,
include: ['**/*.test.ts', '**/*.test.tsx'],
globals: true,
environment: 'jsdom',
coverage: {
enabled: true,
reporter: ['text', 'html'],
include: ['src/**/*.{js,ts,tsx}'],
exclude: ['src/**/*.d.ts', 'src/index.ts', 'src/comps/index.ts', 'src/hooks/index.ts'],
}
}
})

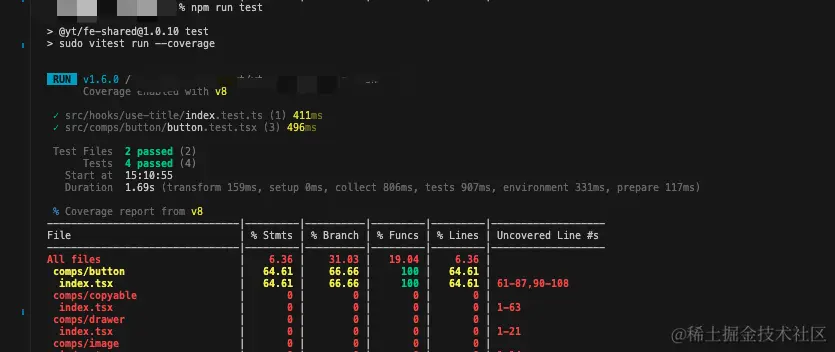

编写测试用例
在button目录下,增加一个测试用例
button.test.tsx
import { render, screen } from '@testing-library/react'
import { expect, test, vi, describe } from 'vitest'
import Button from './index'
describe('button', () => {
test('测试button组件 disabled 状态', async () => {
const handleClick = vi.fn()
const { rerender } = render(<Button disabled onClick={handleClick}>Test Button</Button>)
// 模拟点击事件
const button = screen.getByText('Test Button')
button.click()
// 断言 onClick 未被调用
expect(handleClick).not.toHaveBeenCalled()
// 重新渲染为非禁用状态
rerender(<Button onClick={handleClick}>Test2s Button1</Button>)
button.click()
// 断言 onClick 已被调用
expect(handleClick).toHaveBeenCalledTimes(1)
})
test('测试button组件渲染传入的内容是否正确', () => {
const { getByText } = render(<Button>刘德华</Button>)
const buttonText = getByText('刘德华')
expect(buttonText).toBeDefined()
})
test('测试button组件的点击防抖处理', async () => {
const handleClick = vi.fn()
const { getByText, rerender } = render(<Button useDebounceClick debounceInterval={500} onClick={handleClick} > 防抖测试按钮</Button>)
const button = getByText('防抖测试按钮')
// 模拟 debounceInterval时间内 连续点击
button.click()
button.click()
button.click()
button.click()
button.click()
// 等待一段时间,确保防抖生效
await new Promise((resolve) => setTimeout(resolve, 400))
button.click()
// 断言 onClick 只被调用了一次
expect(handleClick).toHaveBeenCalledTimes(1)
handleClick.mockClear()
rerender(<Button onClick={handleClick} useDebounceClick={false} debounceInterval={500} >防抖测试按钮</Button>)
// 模拟 debounceInterval时间内 连续点击
button.click()
button.click()
button.click()
expect(handleClick).toHaveBeenCalledTimes(3)
})
})
button组件源码
import styles from './index.module.scss'
import React from 'react'
import cn from 'classnames'
import { Button, Tooltip } from 'antd'
import type { ButtonProps as AntdBtnProps } from 'antd/es/button'
import type { TooltipProps } from 'antd/es/tooltip'
import debounce from 'lodash/debounce'
type OrgBtnProps = Omit<AntdBtnProps, 'type'>
interface ButtonProps extends OrgBtnProps {
text?: string
type?: 'primary' | 'default' | AntdBtnProps['type']
children?: React.ReactNode
className?: string
onClick?: React.MouseEventHandler<HTMLDivElement>
disabled?: boolean
style?: React.CSSProperties
useDebounceClick?: boolean //启用快速点击防抖模式
debounceInterval?: number //防抖时间间隔
tooltipText?: string
toolTipsProps?: TooltipProps
useAntdStyle?: boolean
}
const stylesMap: any = {
default: styles.default,
primary: styles.primary
}
const AntButton: React.FC<ButtonProps> = (props) => {
const { type = 'default', disabled = false, debounceInterval = 600, useAntdStyle = false, useDebounceClick = true, style } = props
const btnTypes = ['primary', 'default']
const includeType = React.useMemo(() => {
return btnTypes.includes(type)
}, [type])
const clickCallBackRef = React.useRef<any>(() => { })
clickCallBackRef.current = (evt: any) => {
if (disabled) return
if (props?.onClick) {
props?.onClick(evt)
}
}
const debounceClickFn: React.MouseEventHandler<HTMLDivElement> = React.useCallback(debounce(() => {
clickCallBackRef.current()
}, debounceInterval, {
leading: true,
trailing: false
}), [])
if (useAntdStyle) {
if (props?.tooltipText) {
return <Tooltip {...props?.toolTipsProps || {}} title={props.tooltipText}>
<Button
style={style}
type={type}
className={cn(props.className)}
onClick={useDebounceClick ? debounceClickFn : clickCallBackRef.current}
disabled={disabled}
loading={props?.loading}
>
{props.children}
</Button>
</Tooltip>
}
return <Button
style={style}
type={type}
className={cn(props.className)}
onClick={useDebounceClick ? debounceClickFn : clickCallBackRef.current}
disabled={disabled}
loading={props?.loading}
>
{props.children}
</Button>
}
if (props?.tooltipText) {
return <Tooltip {...props?.toolTipsProps || {}} title={props.tooltipText}>
<Button
style={style}
className={cn(
{
[styles.disabled]: disabled,
[styles.button]: true,
[stylesMap[type]]: includeType
},
props.className
)}
onClick={useDebounceClick ? debounceClickFn : clickCallBackRef.current}
disabled={disabled}
loading={props?.loading}
>
{props.children}
</Button>
</Tooltip>
}
return (
<Button
style={style}
className={cn(
{
[styles.disabled]: disabled,
[styles.button]: true,
[stylesMap[type]]: includeType
},
props.className
)}
onClick={useDebounceClick ? debounceClickFn : clickCallBackRef.current}
disabled={disabled}
loading={props?.loading}
>
{props.children}
</Button>
)
}
export default React.memo(AntButton)
执行npm run test,可以看到已经有对应的测试用例报告了
组件文档方案
组件库文档这一块的技术选型是使用社区内大名鼎鼎的Storybook,Storybook拥有着丰富的功能,它可以用可视化的方式呈现组件状态、也能支持在页面视图中直接修改组件props并实时预览,以及根据ts自动生成文档,组件视觉测试等等,静态站点部署功能等
初始化Storybook
在项目跟目录中执行初始化指令,执行成功后,storybook会自动在根目录生成一个.storybook在根目录,以及在package.json中自动加入了两个npm scripts指令
pnpm dlx storybook@latest init
配置文件
可以看到生成的配置文件中,有着stories字段的配置,该字段会收集src下的所有的 **.stories.**文件作为一个个故事进行收集并生成文档,我们只需要为每个组件编写对应的stories文件即可
package中也加入了两条指令,执行npm run storybook即可在6006端口看到dev组件文档库了
"storybook": "storybook dev -p 6006",
"build-storybook": "storybook build",
为组件编写stories文件
在button组件目录下新增一个Button.stories.ts文件,文件内容如下
import type { Meta, StoryObj } from '@storybook/react'
import { fn } from '@storybook/test'
import Button from './index'
//组件的元数据描述信息
// More on how to set up stories at: https://storybook.js.org/docs/writing-stories#default-export
const meta = {
title: 'Example/Button',
component: Button,
parameters: {
// Optional parameter to center the component in the Canvas. More info: https://storybook.js.org/docs/configure/story-layout
layout: 'centered',
},
// This component will have an automatically generated Autodocs entry: https://storybook.js.org/docs/writing-docs/autodocs
tags: ['autodocs'],
argTypes: { //按钮的props声明,如果这里有传递,则会为组件的props添加上
type: {
name: 'type',
type: 'string',
description: 'primary | default | link',
options: [
'primary',
'default',
'link'
],
control: 'select' //以下拉框的形式进行展示
},
useAntdStyle: {
control: 'boolean',
description: '是否使用antd 默认样式',
// defaultValue: 10,
},
},
// More on argTypes: https://storybook.js.org/docs/api/argtypes
// argTypes: {
// backgroundColor: { control: 'color' },
// },
// Use `fn` to spy on the onClick arg, which will appear in the actions panel once invoked: https://storybook.js.org/docs/essentials/actions#action-args
args: {
onClick: () => { //组件的点击事件
console.log('点击事件被触发')
fn()
}
},
} satisfies Meta<typeof Button>
export default meta
type Story = StoryObj<typeof meta>;
// More on writing stories with args: https://storybook.js.org/docs/writing-stories/args
//为该组件导出两个故事状态
export const Primary: Story = {
args: {
type: 'primary',
children: '按钮1',
},
}
export const Default: Story = {
args: {
type: 'default',
children: '按钮2',
},
}
此时可以看到6006端口的页面已经自动刷新了,组件的props 字段 描述也可以正常显示 ,然后也支持以可视化的方式切换组件props,组件可实时渲染和预览
文档静态化部署
最后在执行一下npm run build-storybook,根目录下会生成storybook-static目录,该目录就是静态页面站点,把这个站点部署到上自己的服务器,组件库文档就已经搭建完成啦,其实storybook的功能还有能多,比如组件的UI自动化测试,交互测试等,感兴趣的可以去尝试下
最后
通过以上的搭建步骤,一个基础的组件库框架已经基本成型了。但其实还遗留下了很多优化工作,比如组件构建以及发包的流程化定制,rollup的构建优化等,目前的构建方案如果组件数量过多的话会有构建时长问题,每次修改即使是一行代码,也是会走组件的全量构建,rollup目前还没有提供增量构建的方案,要做的话,只能是写个脚本通过git获取到有修改的文件l列表,筛选出对应的组件按需来进行构建。这些都是属于属于非必需的需求,等后面手头时间空闲了在回来研究
