uniapp的H5使用高德地图
目前高德地图提供的api 有HTML的 vue的 那么就可以直接用2个方式在H5中使用
第一种直接用html，使用webview渲染
高德有现成的js api直接使用
uniapp中可以直接使用web-view打开本地html文件 如 新建了一个高德的html文件，业务是可以直接写在该html中的 \hybrid\html\map.html 详细见uniapp打开hybrid的html文件
其中html的例子代码如
<!doctype html>
<html>
<head>
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge">
<meta name="viewport" content="initial-scale=1.0, user-scalable=no, width=device-width">
<title>轨迹回放</title>
<link rel="stylesheet" href="https://a.amap.com/jsapi_demos/static/demo-center/css/demo-center.css"/>
<style>
html, body, #container {
height: 100%;
width: 100%;
}
.input-card .btn{
margin-right: 1.2rem;
width: 9rem;
}
.input-card .btn:last-child{
margin-right: 0;
}
</style>
</head>
<body>
<div id="container"></div>
<div class="input-card">
<h4>轨迹回放控制</h4>
<div class="input-item">
<input type="button" class="btn" value="开始动画" id="start" onclick="startAnimation()"/>
<input type="button" class="btn" value="暂停动画" id="pause" onclick="pauseAnimation()"/>
</div>
<div class="input-item">
<input type="button" class="btn" value="继续动画" id="resume" onclick="resumeAnimation()"/>
<input type="button" class="btn" value="停止动画" id="stop" onclick="stopAnimation()"/>
</div>
</div>
<script type="text/javascript" src="https://webapi.amap.com/maps?v=2.0&key=你的高德key"></script>
<script>
// JSAPI2.0 使用覆盖物动画必须先加载动画插件
AMap.plugin('AMap.MoveAnimation', function(){
var marker, lineArr = [[116.478935,39.997761],[116.478939,39.997825],[116.478912,39.998549],[116.478912,39.998549],[116.478998,39.998555],[116.478998,39.998555],[116.479282,39.99856],[116.479658,39.998528],[116.480151,39.998453],[116.480784,39.998302],[116.480784,39.998302],[116.481149,39.998184],[116.481573,39.997997],[116.481863,39.997846],[116.482072,39.997718],[116.482362,39.997718],[116.483633,39.998935],[116.48367,39.998968],[116.484648,39.999861]];
var map = new AMap.Map("container", {
resizeEnable: true,
center: [116.397428, 39.90923],
zoom: 17
});
marker = new AMap.Marker({
map: map,
position: [116.478935,39.997761],
icon: "https://a.amap.com/jsapi_demos/static/demo-center-v2/car.png",//
offset: new AMap.Pixel(-13, -26),
});
// 绘制轨迹
var polyline = new AMap.Polyline({
map: map,
path: lineArr,
showDir:true,
strokeColor: "#28F", //线颜色
// strokeOpacity: 1, //线透明度
strokeWeight: 6, //线宽
// strokeStyle: "solid" //线样式
});
var passedPolyline = new AMap.Polyline({
map: map,
strokeColor: "#AF5", //线颜色
strokeWeight: 6, //线宽
});
marker.on('moving', function (e) {
passedPolyline.setPath(e.passedPath);
map.setCenter(e.target.getPosition(),true)
});
map.setFitView();
window.startAnimation = function startAnimation () {
marker.moveAlong(lineArr, {
// 每一段的时长
duration: 500,//可根据实际采集时间间隔设置
// JSAPI2.0 是否延道路自动设置角度在 moveAlong 里设置
autoRotation: true,
});
};
window.pauseAnimation = function () {
marker.pauseMove();
};
window.resumeAnimation = function () {
marker.resumeMove();
};
window.stopAnimation = function () {
marker.stopMove();
};
});
</script>
</body>
</html>
第二种直接在vue中使用，引入高德js sdk
高德有现成的js api 也可以在vue中使用
引入高德js npm i @amap/amap-jsapi-loader --save
其中vue的例子代码如
<!--H5 引入高德的包 npm i @amap/amap-jsapi-loader --save-->
<template>
<div>
<div id="container"></div>
<div class="input-card">
<h4>轨迹回放控制</h4>
<div class="input-item">
<button type="default" @click="startAnimation">开始动画</button>
<button type="default" @click="pauseAnimation">暂停动画</button>
</div>
<div class="input-item">
<button type="default" @click="resumeAnimation">继续动画</button>
<button type="default" @click="stopAnimation">停止动画</button>
</div>
</div>
</div>
</template>
<script>
import AMapLoader from "@amap/amap-jsapi-loader";
import {
nextTick
} from "vue";
var lineArr = [
[116.478935, 39.997761],
[116.478939, 39.997825],
[116.478912, 39.998549],
[116.478912, 39.998549],
[116.478998, 39.998555],
[116.478998, 39.998555],
[116.479282, 39.99856],
[116.479658, 39.998528],
[116.480151, 39.998453],
[116.480784, 39.998302],
[116.480784, 39.998302],
[116.481149, 39.998184],
[116.481573, 39.997997],
[116.481863, 39.997846],
[116.482072, 39.997718],
[116.482362, 39.997718],
[116.483633, 39.998935],
[116.48367, 39.998968],
[116.484648, 39.999861]
];
export default {
name: "map-view",
onLoad(options) {
this.initAMap();
},
onUnload() {
this.map?.destroy();
},
data() {
return {
map: false,
marker: false
}
},
mounted() {
},
unmounted() {
},
methods: {
initAMap() {
window._AMapSecurityConfig = {
securityJsCode: "你注册的时候的key和securityJsCode",
};
AMapLoader.load({
key: "你注册的时候的key和securityJsCode", // 申请好的Web端开发者Key，首次调用 load 时必填
version: "2.0", // 指定要加载的 JSAPI 的版本，缺省时默认为 1.4.15
plugins: ["AMap.Scale",
"AMap.MoveAnimation"
], //需要使用的的插件列表，如比例尺'AMap.Scale'，支持添加多个如：['...','...']
})
.then((AMap) => {
this.map = new AMap.Map("container", {
// 设置地图容器id
viewMode: "3D", // 是否为3D地图模式
zoom: 11, // 初始化地图级别
center: [116.397428, 39.90923], // 初始化地图中心点位置
});
this.initLineCar(this.map)
})
.catch((e) => {
console.log(e);
});
},
initLineCar(map) {
//创建一条折线覆盖物
var path = [
new AMap.LngLat("116.368904", "39.913423"),
new AMap.LngLat("116.382122", "39.901176"),
new AMap.LngLat("116.387271", "39.912501"),
new AMap.LngLat("116.398258", "39.904600"),
];
// 绘制轨迹
var polyline = new AMap.Polyline({
map: this.map,
path: lineArr,
showDir: true,
strokeColor: "#28F", //线颜色
// strokeOpacity: 1, //线透明度
strokeWeight: 6, //线宽
// strokeStyle: "solid" //线样式
});
// var polyline = new AMap.Polyline({
// path: path,
// borderWeight: 2, //线条宽度，默认为1
// strokeColor: "red", //线条颜色
// lineJoin: "round", //折线拐点连接处样式
// });
// map.add(polyline);
//创建点标记
// var marker1 = new AMap.Marker({
// position: new AMap.LngLat(117.39, 39.9), //经纬度对象
// });
//map.add(marker1);
var marker = new AMap.Marker({
map: map,
position: [116.478935, 39.997761],
icon: "https://a.amap.com/jsapi_demos/static/demo-center-v2/car.png",
offset: new AMap.Pixel(-13, -26),
});
var passedPolyline = new AMap.Polyline({
map: map,
strokeColor: "#AF5", //线颜色
strokeWeight: 6, //线宽
});
marker.on('moving', function(e) {
passedPolyline.setPath(e.passedPath);
map.setCenter(e.target.getPosition(), true)
});
//自动适配到合适视野范围
//无参数，默认包括所有覆盖物的情况
map.setFitView();
//传入覆盖物数组，仅包括 polyline 和 marker1 在地图视野范围，marker2 不在地图视野范围
//map.setFitView([polyline, marker1]); //简写
//map.setFitView([polyline, marker1], false, [60, 60, 60, 60], 12); //完整写法
this.marker = marker
this.$nextTick(() => {
this.startAnimation()
})
},
startAnimation() {
if (this.marker) {
this.marker.moveAlong(lineArr, {
// 每一段的时长
duration: 500, //可根据实际采集时间间隔设置
// JSAPI2.0 是否延道路自动设置角度在 moveAlong 里设置
autoRotation: true,
});
}
},
pauseAnimation() {
if (this.marker) {
this.marker.pauseMove();
}
},
resumeAnimation() {
if (this.marker) {
this.marker.resumeMove();
}
},
stopAnimation() {
if (this.marker) {
this.marker.stopMove();
}
},
},
};
</script>
<style lang="scss" scoped>
#container {
width: 100%;
height: 100vh;
}
.input-card {
display: flex;
position: fixed;
bottom: 0;
background-color: #fff;
width: 100%;
flex-direction: column;
z-index: 999;
.input-item {
display: flex;
width: 100%;
flex-direction: row;
}
}
</style>

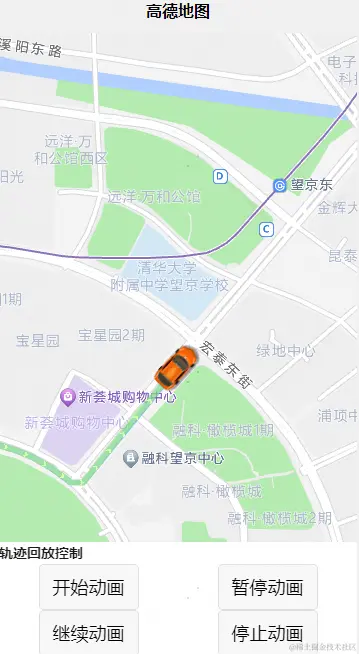

注意，提前申请高德的H5的key ，替换进代码，目前代码是完整的，2种方式均可以达到图片效果
