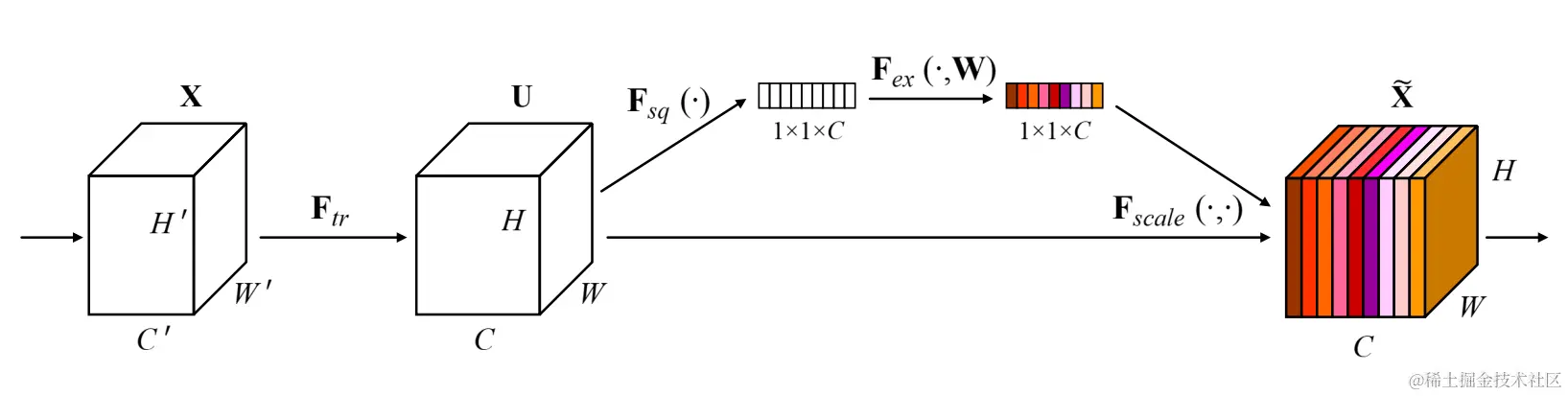

SENet (CVPR18)

class se_block(nn.Module):
    # 初始化, in_channel代表输入特征图的通道数, ratio代表第一个全连接下降通道的倍数
    def __init__(self, in_channel, ratio=4):
        super(se_block, self).__init__()

        self.avg_pool = nn.AdaptiveAvgPool2d(output_size=1)
        self.fc1 = nn.Linear(in_features=in_channel, out_features=in_channel//ratio, bias=False)
        self.relu = nn.ReLU()
        self.fc2 = nn.Linear(in_features=in_channel//ratio, out_features=in_channel, bias=False)
        self.sigmoid = nn.Sigmoid()

    def forward(self, inputs):
        b, c, h, w = inputs.shape
        # 全局平均池化 [b,c,h,w]==>[b,c,1,1]
        x = self.avg_pool(inputs)
        # 维度调整 [b,c,1,1]==>[b,c]
        x = x.view([b,c])

        x = self.fc1(x)
        x = self.relu(x)
        x = self.fc2(x)

        x = self.sigmoid(x)

        x = x.view([b,c,1,1])

        # outputs = x * inputs # 这里需要注意返回的是权重还是加权后的特征
        outputs = x
        return outputs

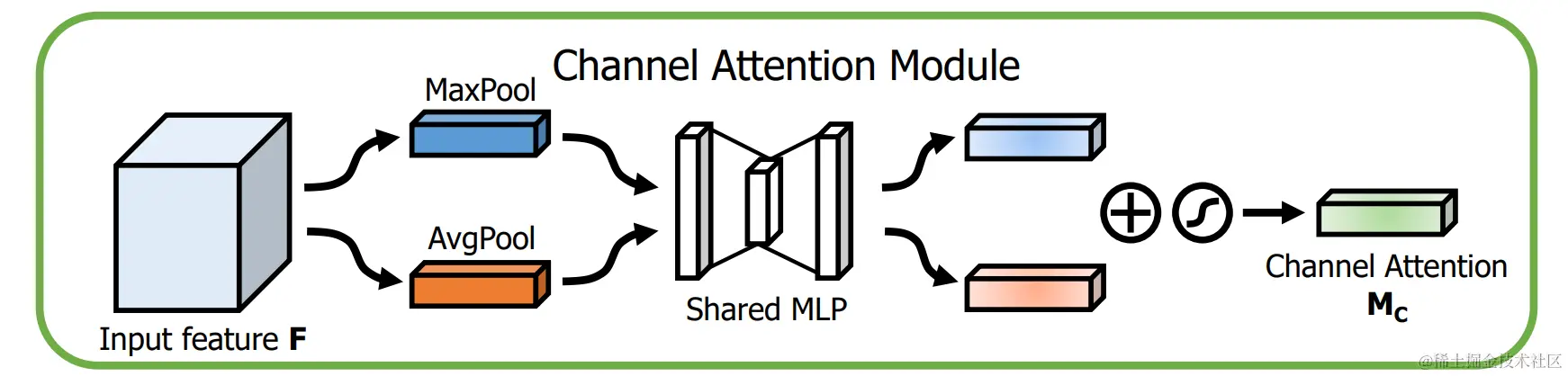

CBAM (ECCV18)

class ChannelAttention(nn.Module):
    def __init__(self, in_planes, ratio=16):
        super(ChannelAttention, self).__init__()
        self.avg_pool = nn.AdaptiveAvgPool2d(1)
        self.max_pool = nn.AdaptiveMaxPool2d(1)

        self.fc = nn.Sequential(nn.Conv2d(in_planes, in_planes // 16, 1, bias=False),
                               nn.ReLU(),
                               nn.Conv2d(in_planes // 16, in_planes, 1, bias=False))
        self.sigmoid = nn.Sigmoid()

    def forward(self, x):
        avg_out = self.fc(self.avg_pool(x))
        max_out = self.fc(self.max_pool(x))
        out = avg_out + max_out
        return self.sigmoid(out)

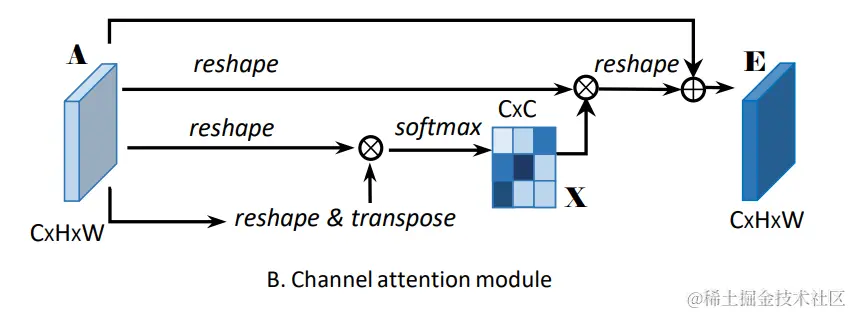

DANet (CVPR19)

class DANet_CAM_Module(nn.Module):
    """ Channel attention module"""
    def __init__(self, in_dim):
        super(DANet_CAM_Module, self).__init__()
        self.chanel_in = in_dim

        self.gamma = nn.Parameter(torch.zeros(1))
        self.softmax  = nn.Softmax(dim=-1)
    def forward(self,x):
        m_batchsize, C, height, width = x.size()
        proj_query = x.view(m_batchsize, C, -1) # BCN
        proj_key = x.view(m_batchsize, C, -1).permute(0, 2, 1) # BNC
        energy = torch.bmm(proj_query, proj_key) # BCC
        energy_new = torch.max(energy, -1, keepdim=True)[0].expand_as(energy)-energy
        attention = self.softmax(energy_new)
        proj_value = x.view(m_batchsize, C, -1)

        out = torch.bmm(attention, proj_value)
        out = out.view(m_batchsize, C, height, width)

        out = self.gamma*out + x
        # out = self.gamma*out # 没有 +x 残差连接的话，AP70 效果会很差
        return out

ECANet (CVPR20)

class eca_block(nn.Module):
    # 初始化, in_channel代表特征图的输入通道数, b和gama代表公式中的两个系数
    def __init__(self, in_channel, b=1, gama=2):
        super(eca_block, self).__init__()

        # 根据输入通道数自适应调整卷积核大小
        kernel_size = int(abs((math.log(in_channel, 2)+b)/gama))
        # 如果卷积核大小是奇数，就使用它
        if kernel_size % 2:
            kernel_size = kernel_size
        # 如果卷积核大小是偶数，就把它变成奇数
        else:
            kernel_size = kernel_size + 1

        # 卷积时，为例保证卷积前后的size不变，需要0填充的数量
        padding = kernel_size // 2

        # 全局平均池化，输出的特征图的宽高=1
        self.avg_pool = nn.AdaptiveAvgPool2d(output_size=1)
        # 1D卷积，输入和输出通道数都=1，卷积核大小是自适应的
        self.conv = nn.Conv1d(in_channels=1, out_channels=1, kernel_size=kernel_size,
                              bias=False, padding=padding)
        # sigmoid激活函数，权值归一化
        self.sigmoid = nn.Sigmoid()

    # 前向传播
    def forward(self, inputs):
        b, c, h, w = inputs.shape

        # 全局平均池化 [b,c,h,w]==>[b,c,1,1]
        x = self.avg_pool(inputs)
        # 维度调整，变成序列形式 [b,c,1,1]==>[b,1,c]
        x = x.view([b,1,c])
        # 1D卷积 [b,1,c]==>[b,1,c]
        x = self.conv(x)
        # 权值归一化
        x = self.sigmoid(x)
        # 维度调整 [b,1,c]==>[b,c,1,1]
        x = x.view([b,c,1,1])

        # 将输入特征图和通道权重相乘[b,c,h,w]*[b,c,1,1]==>[b,c,h,w]
        # outputs = x * inputs # 这里需要注意返回的是权重还是加权后的特征
        outputs = x
        return outputs

CoordAttention (CVPR21)

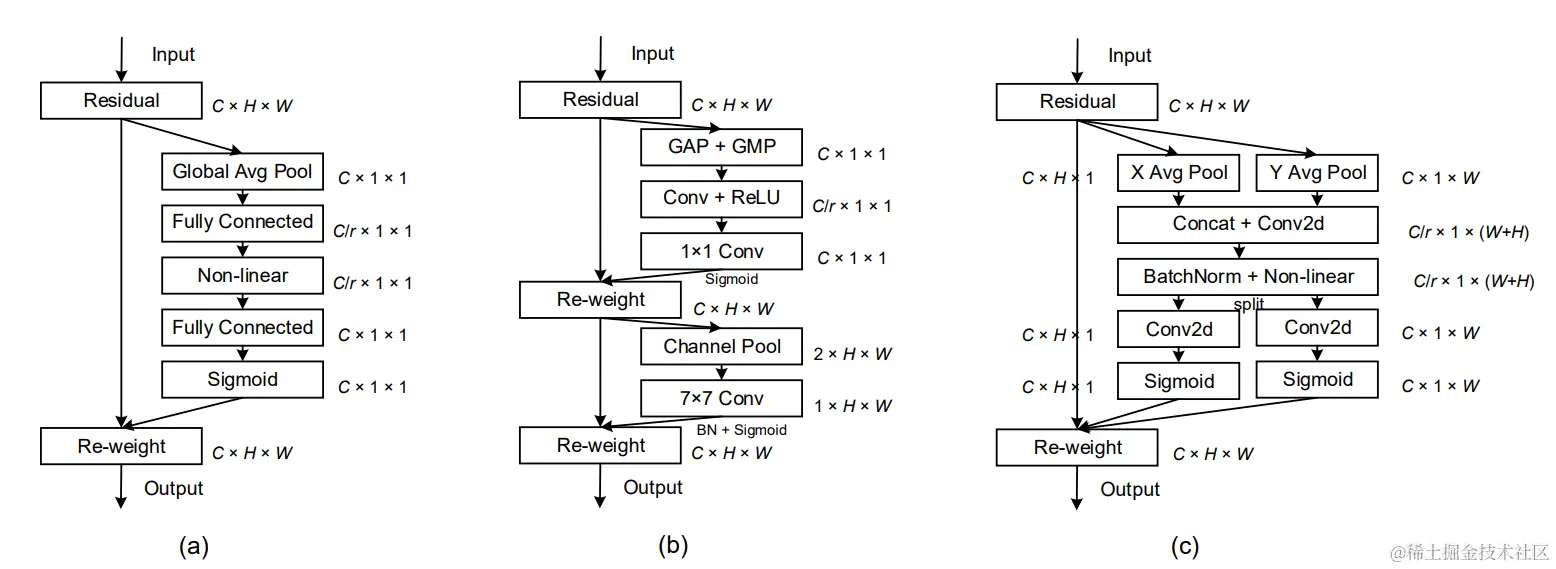

SENet、CBAM、CoordAttention 对比图：

import torch
import torch.nn as nn
import math
import torch.nn.functional as F

class h_sigmoid(nn.Module):
    def __init__(self, inplace=True):
        super(h_sigmoid, self).__init__()
        self.relu = nn.ReLU6(inplace=inplace)

    def forward(self, x):
        return self.relu(x + 3) / 6

class h_swish(nn.Module):
    def __init__(self, inplace=True):
        super(h_swish, self).__init__()
        self.sigmoid = h_sigmoid(inplace=inplace)

    def forward(self, x):
        return x * self.sigmoid(x)

class CoordAtt(nn.Module):
    def __init__(self, inp, oup, reduction=32):
        super(CoordAtt, self).__init__()
        self.pool_h = nn.AdaptiveAvgPool2d((None, 1))
        self.pool_w = nn.AdaptiveAvgPool2d((1, None))

        mip = max(8, inp // reduction)

        self.conv1 = nn.Conv2d(inp, mip, kernel_size=1, stride=1, padding=0)
        self.bn1 = nn.BatchNorm2d(mip)
        self.act = h_swish()

        self.conv_h = nn.Conv2d(mip, oup, kernel_size=1, stride=1, padding=0)
        self.conv_w = nn.Conv2d(mip, oup, kernel_size=1, stride=1, padding=0)


    def forward(self, x):
        identity = x

        n,c,h,w = x.size()
        x_h = self.pool_h(x)
        x_w = self.pool_w(x).permute(0, 1, 3, 2)

        y = torch.cat([x_h, x_w], dim=2)
        y = self.conv1(y)
        y = self.bn1(y)
        y = self.act(y)

        x_h, x_w = torch.split(y, [h, w], dim=2)
        x_w = x_w.permute(0, 1, 3, 2)

        a_h = self.conv_h(x_h).sigmoid()
        a_w = self.conv_w(x_w).sigmoid()

        out = identity * a_w * a_h

        return out
