用Pnpm+Turbo实现一个前后端共享api的Todos项目

秃了才能变得更强
1,638 阅读8分钟

简介

用pnpm、turbo搭建monorepo项目，服务端nestjs、客户端vue，通过 ts-rest 定义API合约，共享前、后端Typescript Api类型，且自动推导出api的ts类型。

技术栈

小结

起初是在youtube上看到一个关注的博主发布的学习视频，一开始没太在意主要是解决哪些问题。然后跟着敲了一遍代码以后（自己也有根据自己的开发体验进行了部分补充、完善和修改），发现这一套技术栈可以解决我遇到的开发疑惑。

因为现在大多都是基于Typescript做开发，前后端一起开发的时候总会遇到重复的定义Api类型这种问题。ts-rest这个库就正好解决了这个问题，可能它和trpc比较类似，但体验下来，感觉还是比较好集成和使用的。

在使用@tanstack/vue-query库的过程中，发现它功能确实很强大，自动缓存、检测获焦自动刷新数据、分页、占位、预加载数据等等，开发的过程中不清楚它的这些功能，导致窗口获焦、失焦的时候频繁触发获取数据接口，后来去官网看了介绍才知道有refetchOnWindowFocus这个参数设置。

1. 新建项目

# 新建文件夹
mkdir todos-monorepo

# 进入目录
cd todos-monorepo

# 初始化package.json
pnpm init

# 新建pnpm-workspace.yaml
touch pnpm-workspace.yaml

# 新建turbo.json
touch turbo.json

# 创建apps和packages文件夹，存放app和共享包
mkdir apps
mkdir packages
  • package.json配置

当执行turbo命令，比如turbo run dev，需要workspace的包内都包含该命令。比如：nestjs的开发命令为start:dev，vite项目为dev，那么就会只运行vite项目内的dev。

// todos-monorepo/package.json
{
  "name": "todos-monorepo",
  "version": "1.0.0",
  "description": "",
  "scripts": {
    "dev": "turbo run dev",
    "build": "turbo run build",
    "build:release": "turbo run build --no-cache"
  },
  "keywords": [],
  "author": "",
  "license": "ISC",
  "devDependencies": {
    "turbo": "^1.13.2"
  }
}
  • pnpm-workspace.yaml配置
# todos-monorepo/pnpm-workspace.yaml
packages:
  - 'apps/**'
  - 'packages/*'
  • turbo.json配置
// todos-monorepo/turbo.json
{
  "$schema": "https://turbo.build/schema.json",
  "pipeline": {
    "build": {
      "dependsOn": ["^build"],
      "outputs": ["dist/**"]
    },
    "dev": {
      "cache": false,
      "persistent": true
    }
  }
}

2. 依赖安装和初始化项目

切换到todos-monorepo目录

2.1 安装turbo

# todos-monorepo根目录安装
pnpm i turbo -D

2.2 初始化服务端nestjs项目和客户端ui项目

# 进入apps目录
cd apps

# 用nest-cli初始化api项目
nest new todo-api

# 用pnpm初始化基于vite的vue+ts项目
pnpm create vite

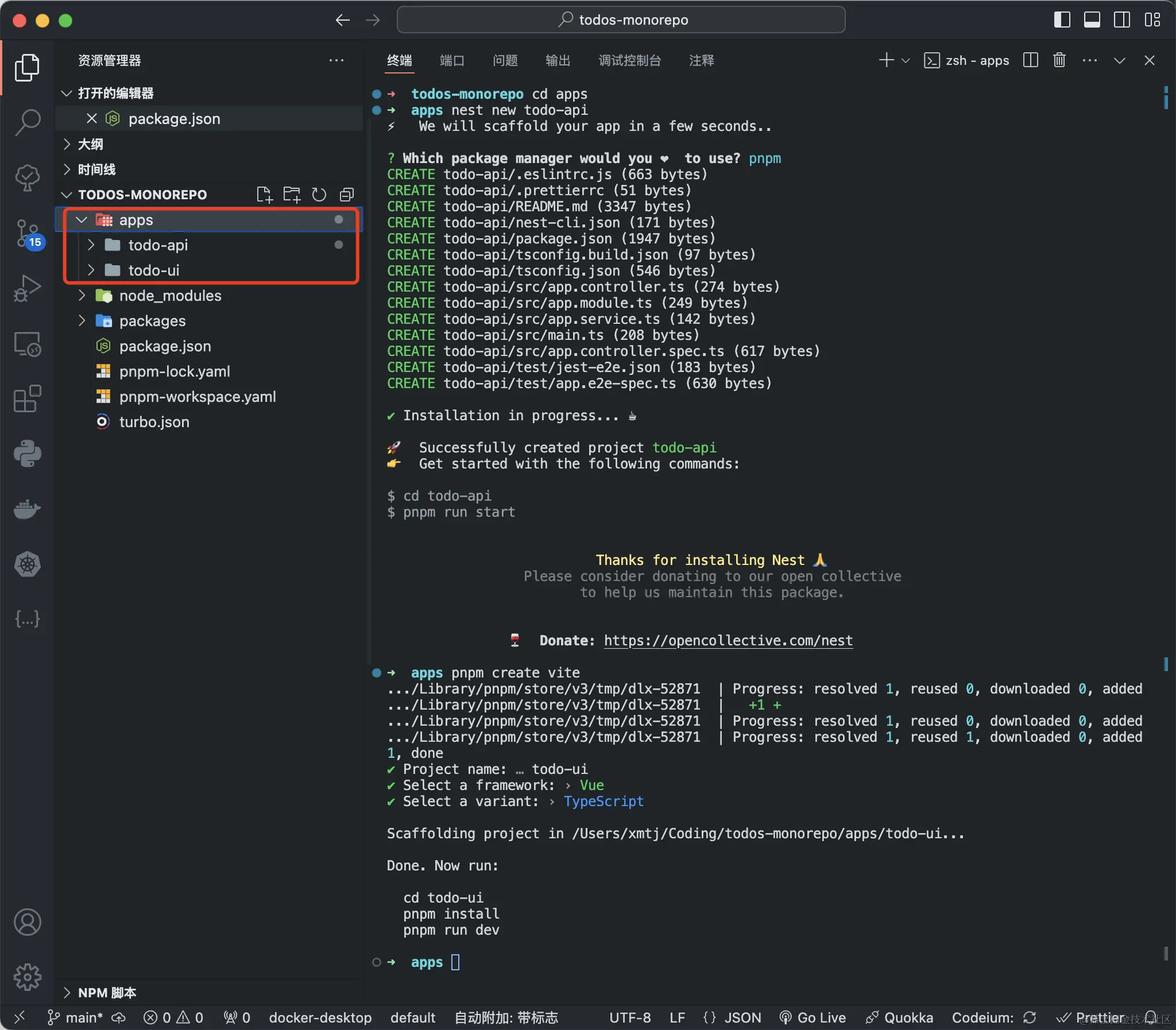

  • 此时项目结构如下图


2.3 建立packages内shared-api包并配置

# 切换到packages目录
cd packages

# 创建共享api包
mkdir shared-api

# 进入shared-api文件夹
cd shared-api

# 创建package.json文件，配置在下面
pnpm init

# 创建tsconfig.json，配置在下面
touch tsconfig.json

# 创建src内的index.ts
mkdir src && touch src/index.ts文件

# 安装shared-api的依赖
pnpm add @ts-rest/core typescript zod
  • package.json配置
// todos-monorepo/packages/shared-api/package.json
{
  "name": "shared-api",
  "version": "1.0.0",
  "description": "",
  "main": "./dist/index.js",
  "types": "./dist/index.d.ts",
  "scripts": {
    "dev": "tsc --watch",
    "build": "tsc"
  },
  "keywords": [],
  "author": "",
  "license": "ISC",
  "dependencies": {
    "@ts-rest/core": "^3.44.0",
    "typescript": "^5.4.5",
    "zod": "^3.22.4"
  }
}
  • tsconfig.json配置
// todos-monorepo/packages/shared-api/tsconfig.json
{
  "compilerOptions": {
    "esModuleInterop": true,
    "forceConsistentCasingInFileNames": true,
    "isolatedModules": true,
    "module": "CommonJS",
    "preserveWatchOutput": true,
    "skipLibCheck": true,
    "strict": true,
    "rootDir": "src",
    "outDir": "dist",
    "declaration": true
  },
  "exclude": ["node_modules", "./dist/**/*"]
}
  • shared-api/src/index.ts
// todos-monorepo/packages/shared-api/src/index.ts
import { initContract } from "@ts-rest/core";
import { z } from "zod";

const c = initContract();

export const TodoSchema = z.object({
  id: z.number(),
  title: z.string(),
  description: z.string(),
  completed: z.boolean(),
});

export type Todo = z.infer<typeof TodoSchema>;

export const contract = c.router(
  {
    todos: {
      create: {
        method: "POST",
        path: "/todos",
        body: TodoSchema.omit({ id: true }),
        responses: {
          201: TodoSchema,
        },
      },
      getAll: {
        method: "GET",
        path: "/todos",
        query: z.object({
          title: z.string().optional(),
        }),
        responses: {
          200: TodoSchema.array(),
        },
      },
      getOne: {
        method: "GET",
        path: "/todos/:id",
        pathParams: z.object({
          id: z.coerce.number(),
        }),
        responses: {
          200: TodoSchema,
          404: z.object({
            message: z.string(),
          }),
        },
      },
      update: {
        method: "PATCH",
        path: "/todos/:id",
        pathParams: z.object({
          id: z.coerce.number(),
        }),
        body: TodoSchema.omit({ id: true }).partial(),
        responses: {
          200: TodoSchema,
          404: z.object({
            message: z.string(),
          }),
        },
      },
      remove: {
        method: "DELETE",
        path: "/todos/:id",
        pathParams: z.object({
          id: z.coerce.number(),
        }),
        body: z.any(),
        responses: {
          204: z.object({}),
          404: z.object({
            message: z.string(),
          }),
        },
      },
    },
  },
  {
    pathPrefix: "/api",
    strictStatusCodes: true,
  }
);

export type Contract = typeof contract;

export type UpdateTodoDto = z.infer<Contract["todos"]["update"]["body"]>;

3. 开发todo-api

进入todos-monorepo/apps/todo-api目录，修改start:dev命令为dev，和根目录的package.json内配置的turbo run dev命令保持一致。

// todos-monorepo/apps/todo-api/package.json
"scripts": {
     // 主要修改地方
    "dev": "nest start --watch"
     // 其它部分
    "build": "nest build",
    "format": "prettier --write \"src/**/*.ts\" \"test/**/*.ts\"",
    "start": "nest start",
    "start:debug": "nest start --debug --watch",
    "start:prod": "node dist/main",
    "lint": "eslint \"{src,apps,libs,test}/**/*.ts\" --fix",
    "test": "jest",
    "test:watch": "jest --watch",
    "test:cov": "jest --coverage",
    "test:debug": "node --inspect-brk -r tsconfig-paths/register -r ts-node/register node_modules/.bin/jest --runInBand",
    "test:e2e": "jest --config ./test/jest-e2e.json"
 },

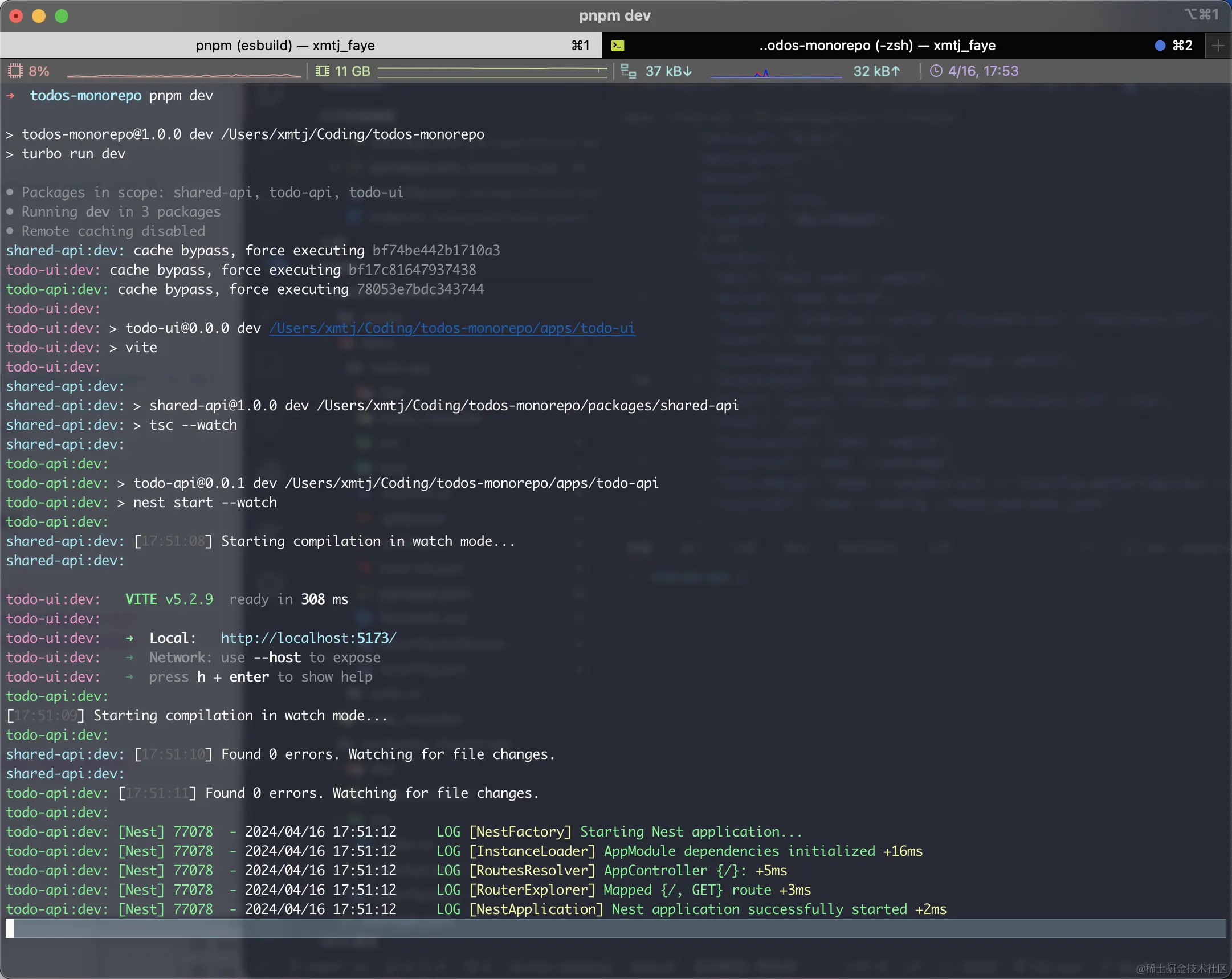

  • 此时在终端，切换到根目录执行pnpm run dev会看到下图所示，两个项目都一起运行起来了：


3.1 给todo-api安装shared-api包

# todos-monorepo目录执行
pnpm add shared-api --filter todo-api

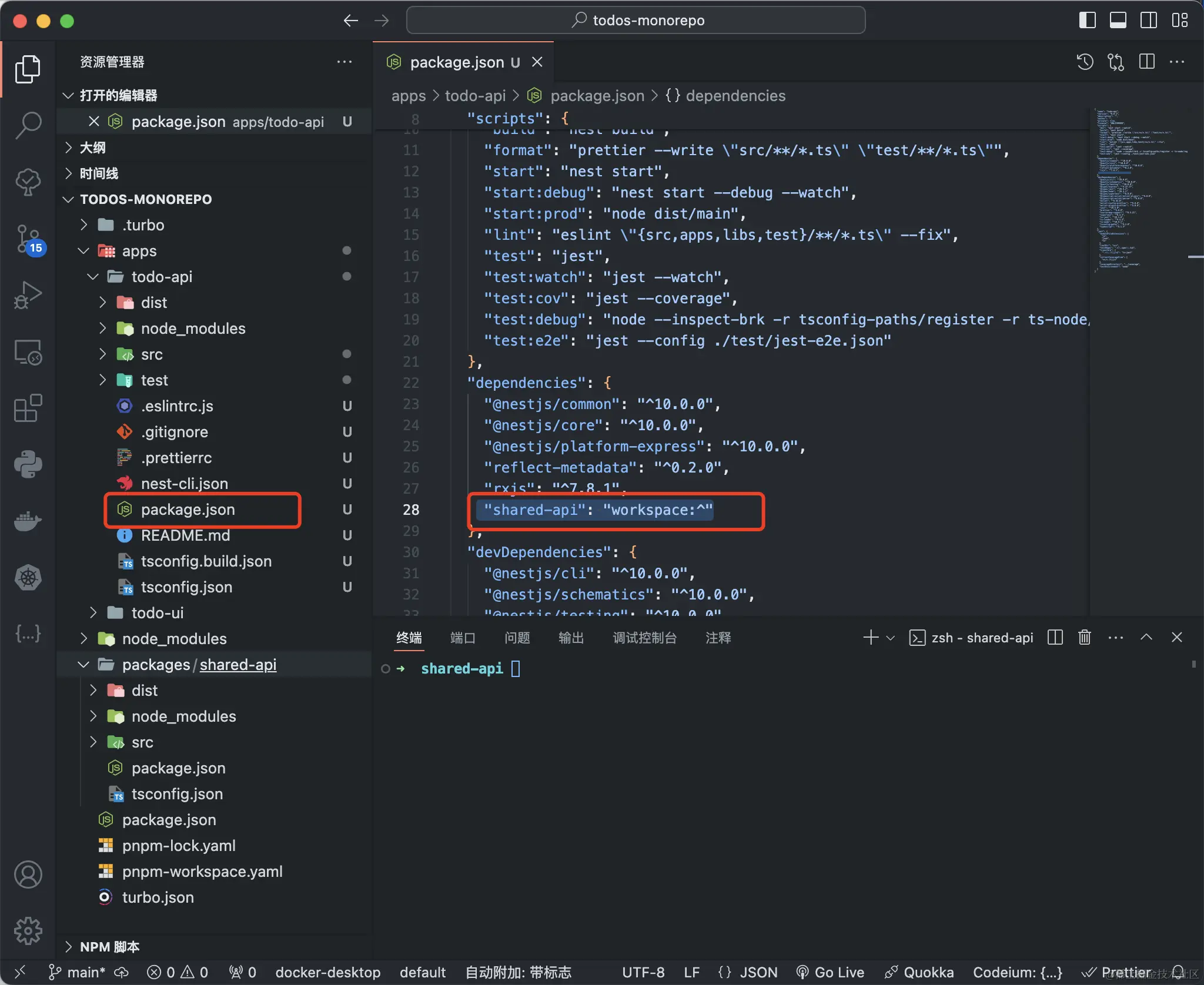

安装正常，会看到package.json内安装的shared-api依赖


3.2 用nest-cli生成todos模块

# todos-monorepo/apps/todo-api目录，生成todos模块目录
nest g res todos

# todos-monorepo/apps/todo-api目录，安装依赖包
pnpm add @ts-rest/nest @ts-rest/core @ts-rest/open-api @nestjs/swagger
  • todos.controller.ts代码
// todos-monorepo/apps/todo-api/todos/todos.controller.ts
import { Controller } from '@nestjs/common';
import { TodosService } from './todos.service';
import { TsRestHandler, tsRestHandler } from '@ts-rest/nest';
import '@ts-rest/core';
import { contract } from 'shared-api';

@Controller()
export class TodosController {
  constructor(private readonly todosService: TodosService) {}

  @TsRestHandler(contract.todos)
  async handler() {
    return tsRestHandler(contract.todos, {
      create: async ({ body }) => {
        return {
          status: 201,
          body: this.todosService.create(body),
        };
      },
      getAll: async ({ query: { title } }) => {
        return {
          status: 200,
          body: this.todosService.getAll(title),
        };
      },
      getOne: async ({ params: { id } }) => {
        const item = await this.todosService.getOne(id);
        if (!item) {
          return {
            status: 404,
            body: {
              message: '没有item',
            },
          };
        }
        return {
          status: 200,
          body: item,
        };
      },
      update: async ({ params: { id }, body }) => {
        const item = await this.todosService.update(id, body);
        if (!item) {
          return {
            status: 404,
            body: {
              message: '没有item',
            },
          };
        }
        return {
          status: 200,
          body: item,
        };
      },
      remove: async ({ params: { id } }) => {
        const item = await this.todosService.remove(id);
        if (!item) {
          return {
            status: 404,
            body: {
              message: '没有item',
            },
          };
        }
        return {
          status: 204,
          body: item,
        };
      },
    });
  }
}
  • todos.service.ts代码
// todos-monorepo/apps/todo-api/todos/todos.service.ts
import { Injectable } from '@nestjs/common';
import { Todo, UpdateTodoDto } from 'shared-api';

@Injectable()
export class TodosService {
  todos: Todo[] = [
    {
      id: 1,
      title: 'Todo 1',
      description: 'Todo 1 description',
      completed: false,
    },
    {
      id: 2,
      title: 'Todo 2',
      description: 'Todo 2 description',
      completed: false,
    },
    {
      id: 3,
      title: 'Todo 3',
      description: 'Todo 3 description',
      completed: false,
    },
  ];

  create(todo: Omit<Todo, 'id'>) {
    const newTodo = {
      ...todo,
      id: Date.now(),
    };
    this.todos.push(newTodo);
    return newTodo;
  }

  getAll(title?: string) {
    if (title) {
      return this.todos.filter((todo) =>
        todo.title.toLowerCase().includes(title.toLowerCase()),
      );
    }
    return this.todos;
  }

  getOne(id: number) {
    return this.todos.find((todo) => todo.id === id);
  }

  // update(id: number, dto: Partial<Todo>) {
  update(id: number, dto: UpdateTodoDto) {
    const index = this.todos.findIndex((todo) => todo.id === id);
    if (index === -1) {
      return null;
    }
    this.todos[index] = { ...this.todos[index], ...dto };
    return this.todos[index];
  }

  remove(id: number) {
    const index = this.todos.findIndex((todo) => todo.id === id);
    if (index === -1) {
      return null;
    }
    this.todos = this.todos.filter((todo) => todo.id !== id);
    return {};
  }
}
  • main.ts代码
import { NestFactory } from '@nestjs/core';
import { AppModule } from './app.module';

import { SwaggerModule } from '@nestjs/swagger';
import { generateOpenApi } from '@ts-rest/open-api';
import { contract } from 'shared-api';

async function bootstrap() {
  const app = await NestFactory.create(AppModule);

  const openApiDocument = generateOpenApi(contract, {
    info: {
      title: 'Todos API',
      version: '1.0.0',
    },
  });
  SwaggerModule.setup('openapi', app, openApiDocument);

  // 开启跨域
  app.enableCors();

  await app.listen(3000);

  console.log(`服务端运行在 http://localhost:3000`);
}
bootstrap();

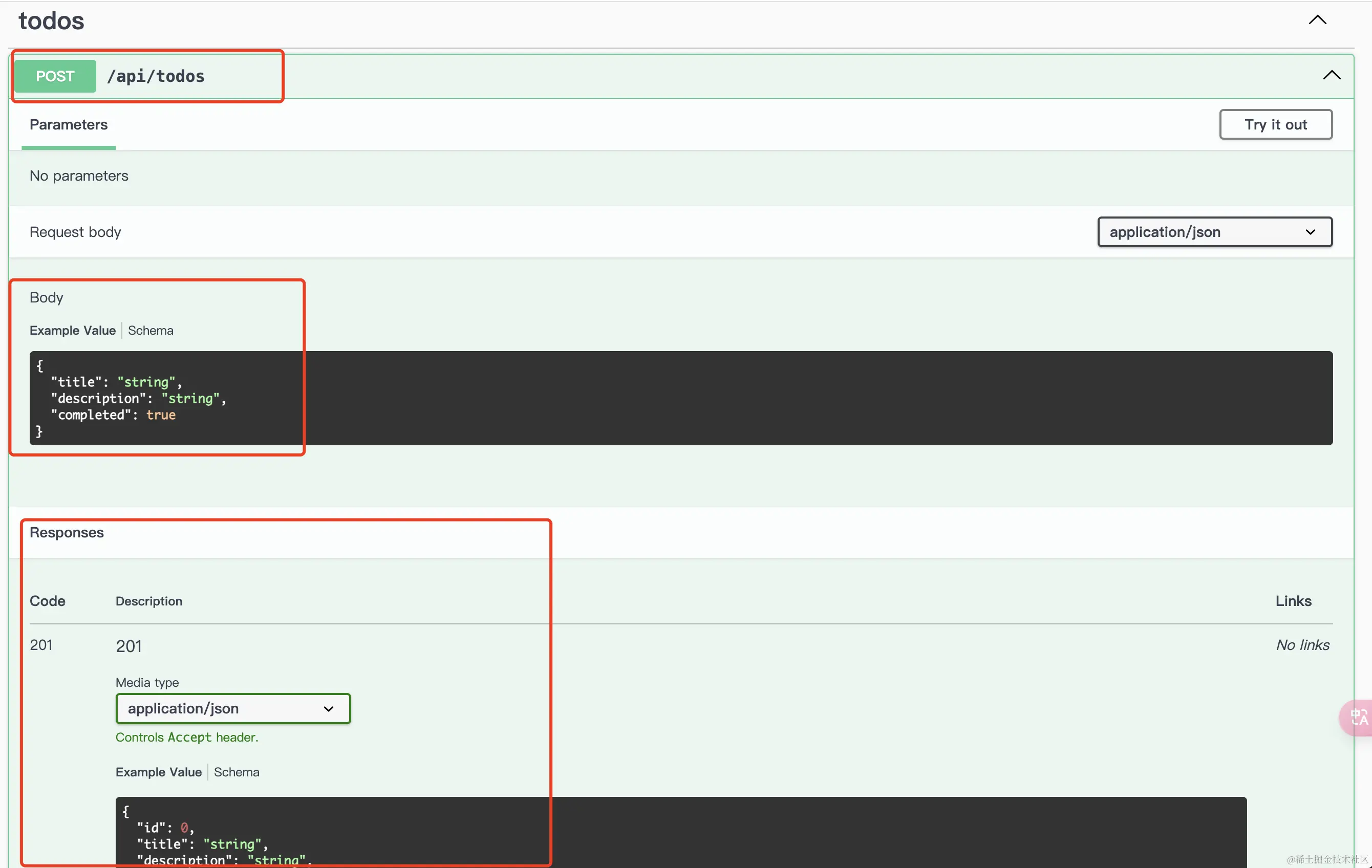

  • 此时打开http://localhost:3000/openapi地址会看到自动配置好的swagger文档

提示：这里没有用@nestjs/swagger的DocumentBuilder创建


4. 开发todo-ui

切换到todos-monorepo/apps/todo-ui目录

# 选择v4的版本，v5的版本发现会有对等依赖问题
pnpm add @ts-rest/vue-query @tanstack/vue-query@4.37.1

# 添加shared-api包
pnpm add shared-api
  • 配置main.ts
// todos-monorepo/apps/todo-ui/src/main.ts
import { createApp } from 'vue'
import './style.css'
import App from './App.vue'

import { VueQueryPlugin } from '@tanstack/vue-query';

createApp(App).use(VueQueryPlugin).mount('#app');
  • 新增api-client.ts
// todos-monorepo/apps/todo-ui/src/api-client.ts
import { initQueryClient } from "@ts-rest/vue-query";
import { contract } from "shared-api";

export const client = initQueryClient(contract, {
  baseUrl: "http://localhost:3000",
  baseHeaders: {},
});

export default client;

4.1 解决chrome提示commonjs的问题

因为上面shared-api配置导出的是给nestjs使用的commonjs，这里给客户端vue使用的时候，打开chrome console会提示does not provide an export named 'contract'。

# 安装@rollup/plugin-commonjs
pnpm add @rollup/plugin-commonjs -D
  • 修改vite.config.ts配置
// todos-monorepo/apps/todo-ui/vite.config.ts

# 配置如下：
import { defineConfig } from "vite";
import vue from "@vitejs/plugin-vue";
import commonjs from "@rollup/plugin-commonjs";

// https://vitejs.dev/config/
export default defineConfig({
  plugins: [vue()],
  build: {
    rollupOptions: {
      plugins: [commonjs()],
    },
  },
  optimizeDeps: {
    include: ['shared-api/**/*']
  }
});

4.2 新增todo-list组件

// todos-monorepo/apps/todo-ui/src/components/TodoList.vue
<script lang="ts" setup>
import { computed } from "vue";
import { client } from "../api-client";
import TodoItem from "./TodoItem.vue";

const { data } = client.todos.getAll.useQuery(["todos"], () => ({}), {
  // 设置过期时间，如果设置为Infinity则是不过期
  // staleTime: Infinity,
  // refetchOnMount: true,

  // TODO: 当窗口获焦的时候是否重新获取数据，这里暂时关闭，因为开发的时候会很频繁的触发
  // 参考链接：https://tanstack.com/query/v4/docs/framework/vue/guides/important-defaults
  refetchOnWindowFocus: false
});
const list = computed(() => data.value?.body);
</script>

<template>
  <div class="todo-list">
    <TodoItem v-for="item in list" :key="item.id" :item="item" />
  </div>
</template>

<style>
.todo-list {
  width: 100%;
  /* background: #ecedf5; */
  padding: 1em;
  display: flex;
  flex-direction: column;
  gap: 1em;
}
</style>

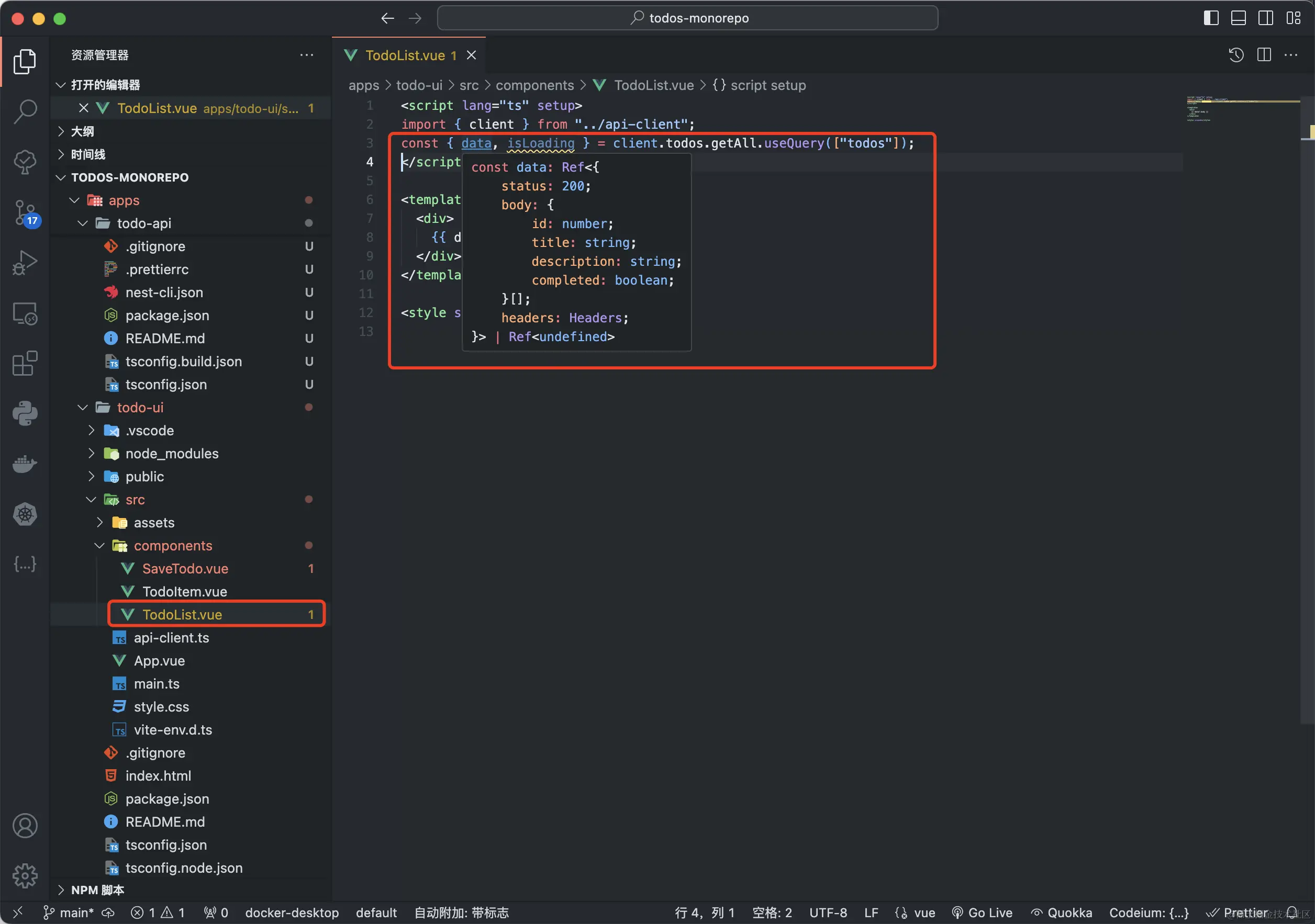

  • 可以看到ts自动推导出请求类型，如下图：


4.3 新增todo-item组件

// todos-monorepo/apps/todo-ui/src/components/TodoItem.vue
<script lang="ts" setup>
import { Todo, UpdateTodoDto } from "shared-api";
import { computed, reactive, ref, watchEffect } from "vue";
import client from "../api-client";
import { useQueryClient } from "@tanstack/vue-query";

interface Props {
  item: Todo;
}
const props = withDefaults(defineProps<Props>(), {
  item: () => ({}) as Todo,
});

const isEdit = ref(false);
const queryClient = useQueryClient();
const item = computed(() => props.item);
const updateState = reactive<UpdateTodoDto>({
  title: "",
  description: "",
  completed: undefined,
});

watchEffect(() => {
  const { title, description, completed } = item.value;
  Object.assign(updateState, { title, description, completed });
});

const { mutate: removeMutate } = client.todos.remove.useMutation({
  onSuccess: () => {
    queryClient.invalidateQueries({ queryKey: ["todos"] });
  },
});

const { mutate: updateMutate } = client.todos.update.useMutation({
  onSuccess: () => {
    queryClient.invalidateQueries({ queryKey: ["todos"] });
  },
});

// 删除
function onDelete() {
  removeMutate({
    params: {
      id: item.value.id,
    },
    body: {},
  });
}

// 更新
function onUpdate() {
  updateMutate(
    {
      params: {
        id: item.value.id,
      },
      body: updateState,
    },
    {
      onSuccess: () => {
        isEdit.value = false;
      },
    }
  );
}

// 完成
function onComplete() {
  updateState.completed = !item.value.completed;
  updateMutate({
    params: {
      id: item.value.id,
    },
    body: updateState,
  });
}
</script>

<template>
  <div
    :class="['todo-item', updateState.completed && 'todo-item--completed']"
    :key="item.id"
  >
    <div
      class="flex-col-center"
      style="margin-right: 10px"
      v-if="!isEdit"
      @click="onComplete"
    >
      <img
        v-if="updateState.completed"
        class="todo-item__icon"
        src="../assets/checked.svg"
      />
      <img
        v-if="!updateState.completed"
        class="todo-item__icon"
        src="../assets/check.svg"
      />
    </div>

    <div class="todo-item__content">
      <div class="todo-item__input">
        <span v-if="!isEdit">{{ item.title }}</span>
        <input type="text" v-model="updateState.title" v-if="isEdit" />
      </div>
      <div class="todo-item__input todo-item__desc">
        <span v-if="!isEdit">{{ item.description }}</span>
        <input type="text" v-model="updateState.description" v-if="isEdit" />
      </div>
    </div>

    <div class="todo-item__btn">
      <div v-if="!isEdit" class="flex-row-center">
        <img
          class="todo-item__icon"
          src="../assets/delete.svg"
          @click="onDelete"
        />
        <img
          class="todo-item__icon"
          src="../assets/edit.svg"
          @click="isEdit = true"
        />
      </div>

      <div class="flex-row-center" v-if="isEdit">
        <div class="submit-btn" @click="onUpdate">确定</div>
        <div class="cancel-btn" @click="isEdit = false">取消</div>
      </div>
    </div>
  </div>
</template>

<style>
.todo-item {
  background: #fff;
  border-radius: 0.3em;
  padding: 0.8em;

  display: flex;
  align-items: center;
  user-select: none;
}

.todo-item__content {
  text-align: left;
}

.todo-item__input {
  height: 25px;
}

.todo-item__btn {
  display: flex;
  margin-left: auto;
}

.todo-item input {
  width: 20dvw;
  height: 100%;
}

.todo-item__icon {
  width: 1.8em;
  height: 1.8em;
  cursor: pointer;
  padding: 5px 3px;
}

.todo-item__icon + .todo-item__icon {
  margin-left: 5px;
}

.submit-btn {
  background: #6374e7;
  color: #fff;
  font-size: 13px;
  padding: 0.3em 1em;
  border-radius: 0.3em;
  cursor: pointer;
}

.cancel-btn {
  background: #cccfde;
  color: #fff;
  font-size: 13px;
  padding: 0.3em 1em;
  border-radius: 0.3em;
  cursor: pointer;
  margin-left: 10px;
}

.flex-col-center {
  display: flex;
  flex-direction: column;
  align-items: center;
}

.flex-row-center {
  display: flex;
  align-items: center;
}

.todo-item--completed .todo-item__input {
  text-decoration: line-through;
  color: #a1a1a1;
}

.todo-item__desc {
  font-size: 14px;
  color: #555;
}
</style>

4.4 新增AddTodo组件

// todos-monorepo/apps/todo-ui/src/components/AddTodo.vue
<script lang="ts" setup>
import { ref } from "vue";
import { client } from "../api-client";
import { useQueryClient } from "@tanstack/vue-query";

const title = ref("");
const description = ref("");
const queryClient = useQueryClient();

const { mutate } = client.todos.create.useMutation({
  onSuccess: () => {
    queryClient.invalidateQueries({ queryKey: ["todos"] });
  },
});

function onAdd() {
  if (!title.value && !description.value) return;
  mutate({
    body: {
      title: title.value,
      description: description.value,
      completed: false,
    },
  });
}
</script>

<template>
  <div class="add-todo">
    <input
      class="add-todo__input"
      type="text"
      v-model="title"
      placeholder="标题"
    />
    <input
      class="add-todo__input"
      type="text"
      v-model="description"
      placeholder="描述"
    />
    <div class="add-todo__btn" @click="onAdd">添加Todo</div>
  </div>
</template>

<style>
.add-todo {
  background: #6374e7;
  padding: 1em;
  border-radius: 0.5em 0 0 0.5em;

  display: flex;
  flex-direction: column;
  height: 100%;
}

.add-todo__input {
  margin-bottom: 1em;
  padding: 0.5em 1em;
  border-radius: 0.1em;
  border: none;
  outline: none;
}

.add-todo__btn {
  background: #65657e;
  color: #fff;
  font-size: 14px;
  padding: 0.5em 1em;
  border-radius: 0.2em;
  cursor: pointer;
}
</style>

4.5 完善App.vue

// todos-monorepo/apps/todo-ui/src/App.vue
<script setup lang="ts">
import AddTodo from "./components/AddTodo.vue";
import TodoList from "./components/TodoList.vue";
</script>

<template>
  <h2>TODO LIST</h2>
  <div class="todo-wrapper">
    <div class="add-todo-layout">
      <AddTodo />
    </div>
    <div class="todo-list-layout">
      <TodoList />
    </div>
  </div>
</template>

<style>
* {
  box-sizing: border-box;
}

body {
  background: #f8f9ff;
}

h2 {
  color: #65657e;
  margin-top: 0;
}

.todo-wrapper {
  display: flex;
  width: 80dvw;
  justify-content: center;
}

.add-todo-layout {
  width: 30dvw;
  max-width: 250px;
}

.todo-list-layout {
  width: 50dvw;
  background: #ecedf5;
  border-radius: 0 0.5em 0.5em 0;
}

@media screen and (max-width: 767px) {
  .todo-wrapper {
    display: flex;
    flex-direction: column;
    align-items: center;
  }
  .add-todo-layout {
    width: 100%;
    max-width: none;
  }
  .todo-list-layout {
    width: 100%;
    margin-top: 1em;
  }
}
</style>

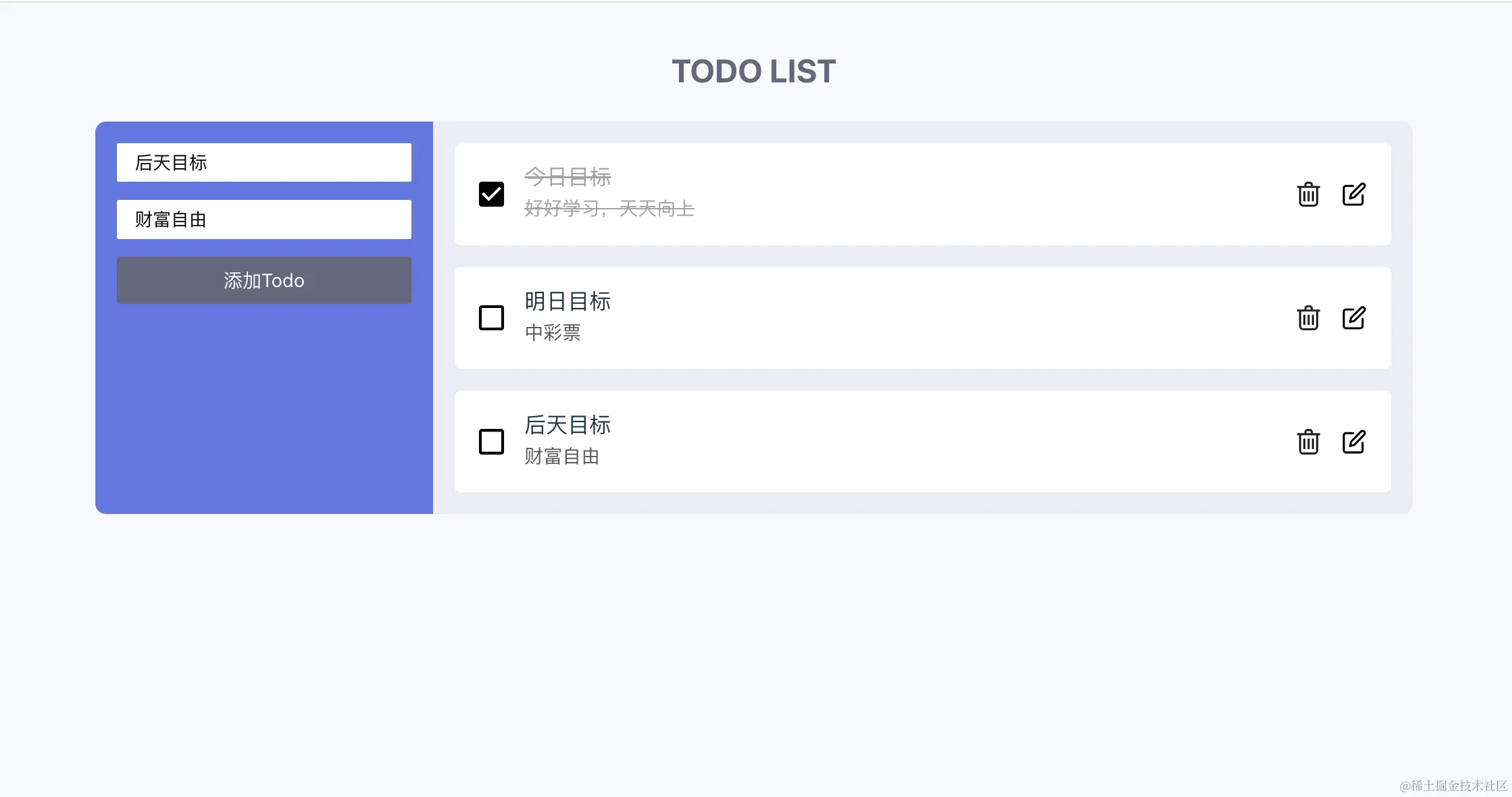

4.6 完成ui效果图


代码仓库地址

github.com/Infiee/full…

相关链接

www.youtube.com/watch?v=aEe…

turbo.build/repo/docs

pnpm.io/zh/

ts-rest.com/docs/intro

tanstack.com/query/v4/do…

avatar
文章
阅读
粉丝
