大家好，我是Peter~

今天给大家分享一篇关于聚类的建模文章，主要内容包含：

数据基本信息
原数据特征处理

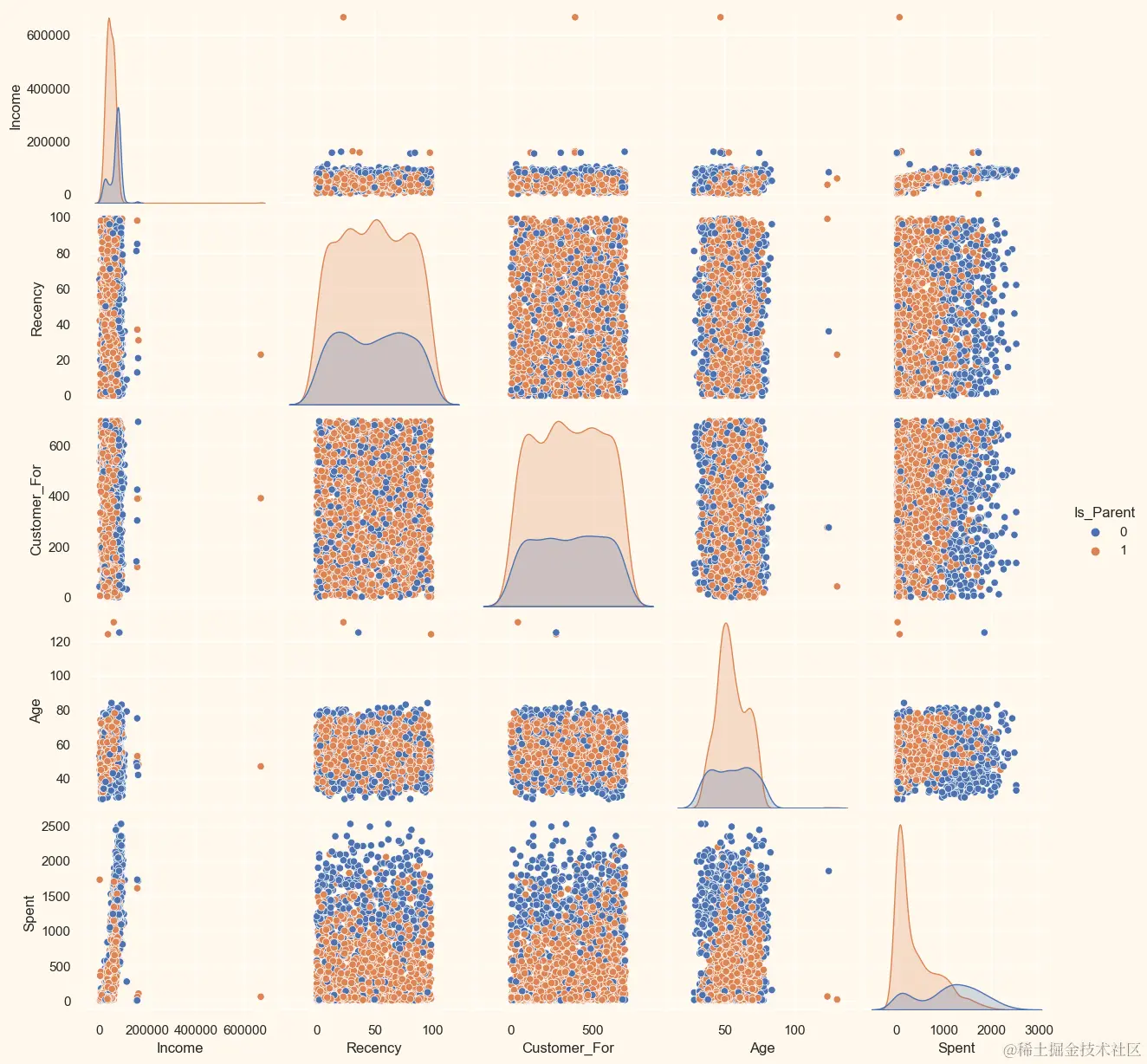

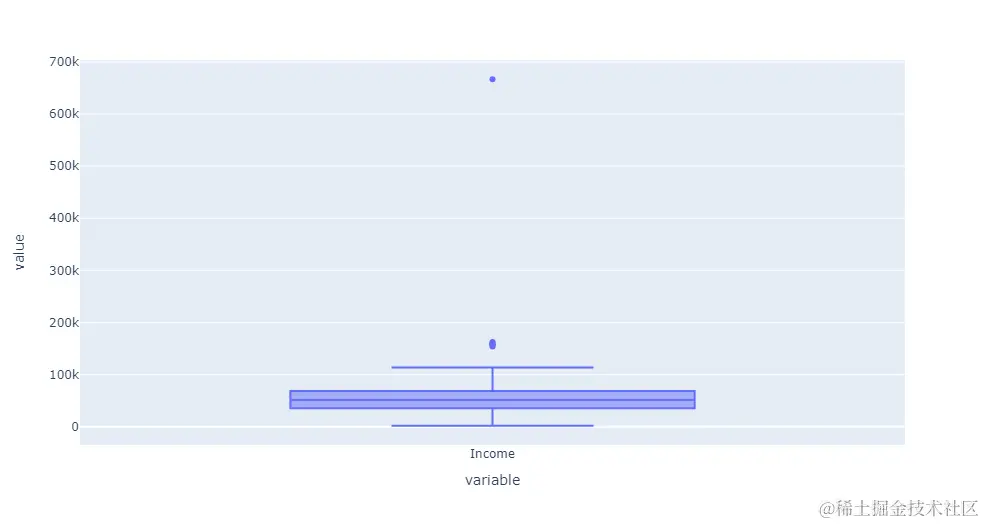

数据探索性分析EDA

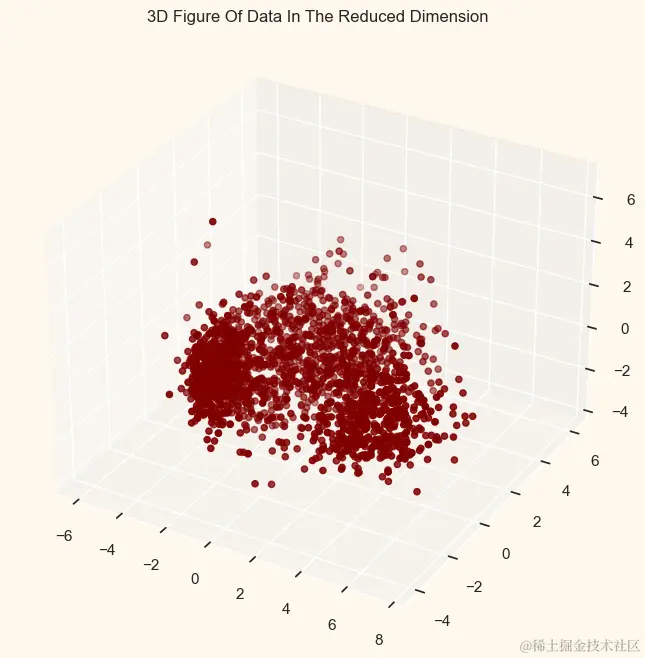

建模之数据预处理：数据编码、数据标准化、数据降维

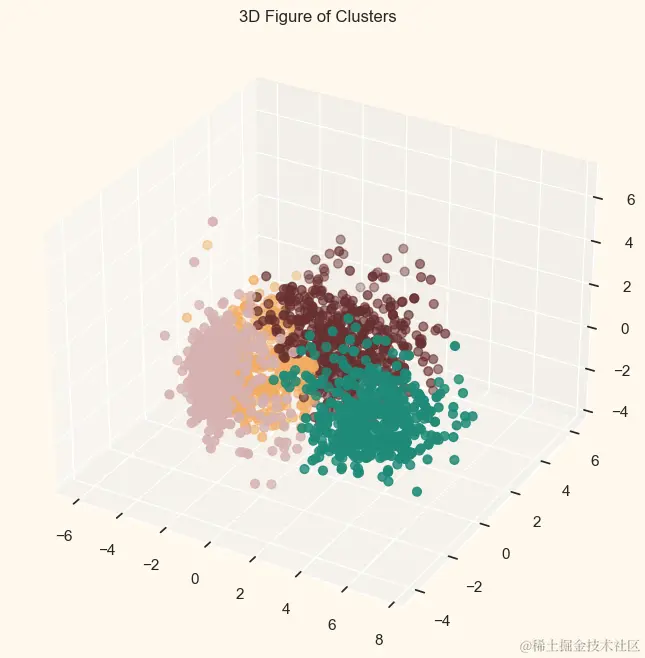

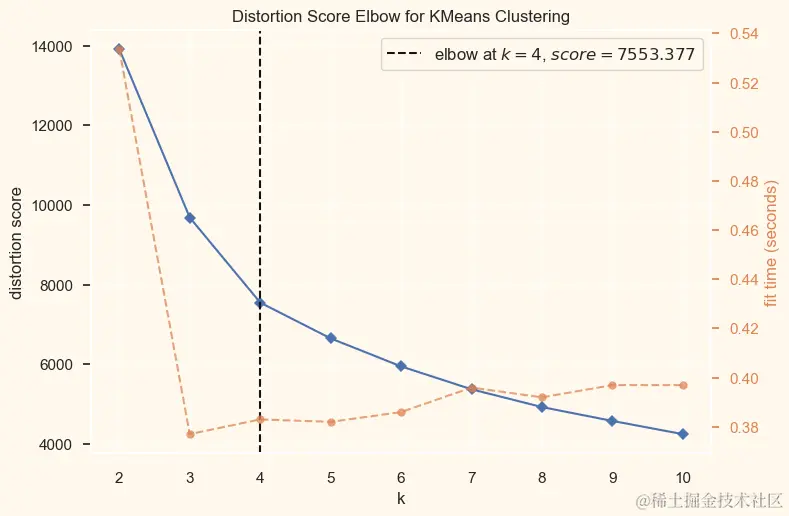

实施聚类：肘图法确定k值、实施聚类、聚类结果可视化

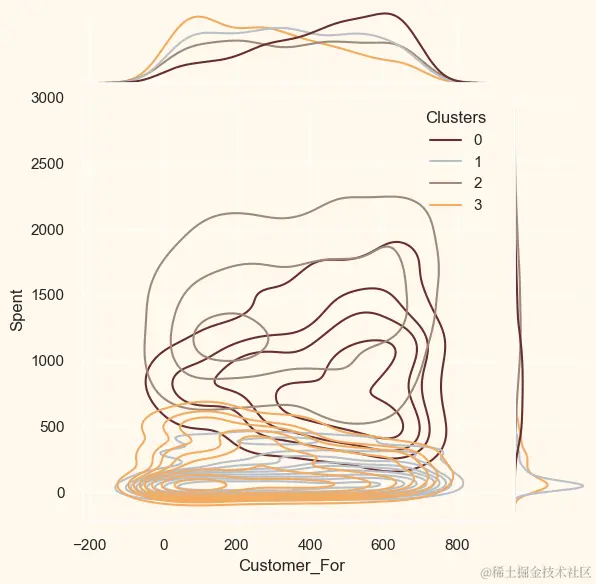

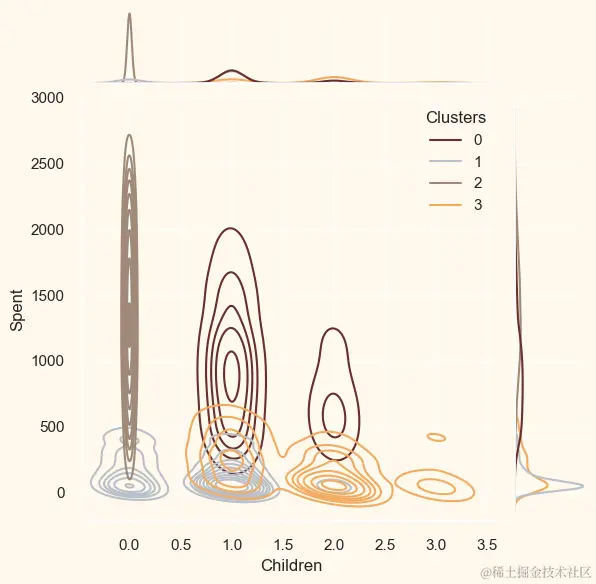

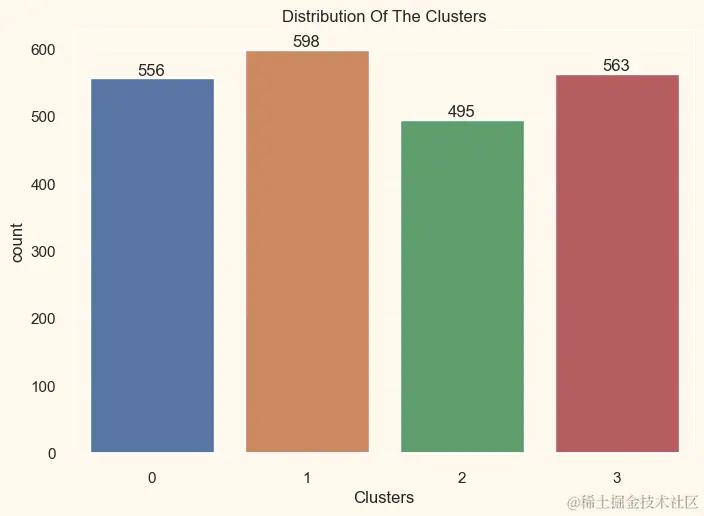

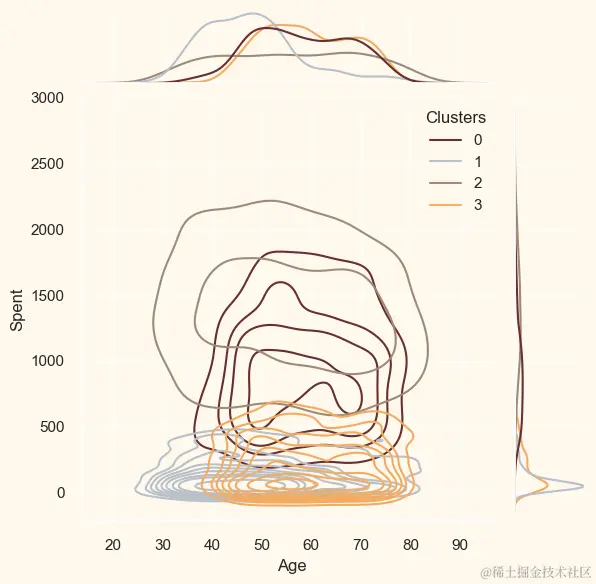

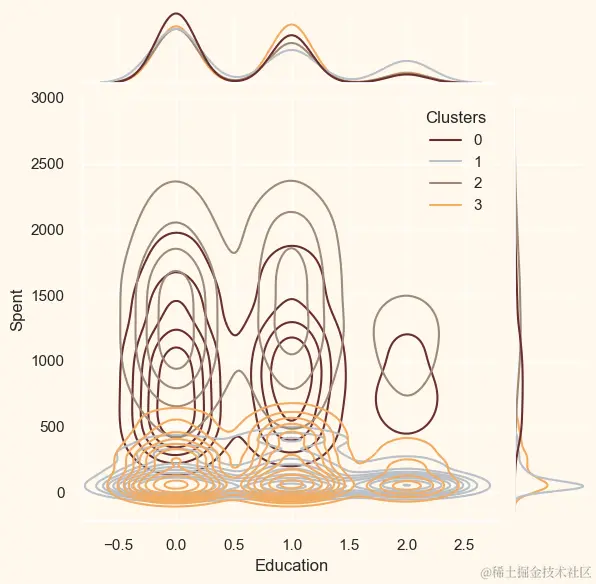

聚类效果评估：从不同角度查看不同的簇群

1 导入库

In [1]:

import numpy as np
import pandas as pd
import datetime

# 可视化
import matplotlib
import matplotlib.pyplot as plt
from matplotlib import colors
import seaborn as sns
from mpl_toolkits.mplot3d import Axes3D
from matplotlib.colors import ListedColormap
import plotly_express as px
import plotly.graph_objects as go

from sklearn.preprocessing import LabelEncoder
from sklearn.preprocessing import StandardScaler
from sklearn.decomposition import PCA
from yellowbrick.cluster import KElbowVisualizer
from sklearn.cluster import KMeans
from sklearn.cluster import AgglomerativeClustering
from sklearn import metrics

# 警告处理
import warnings
import sys
if not sys.warnoptions:
    warnings.simplefilter("ignore")
np.random.seed(42)

2 数据信息

2.1 导入数据

In [2]:

df = pd.read_csv("marketing_campaign.csv",sep="\t")
df.head()

Out[2]:

	ID	Year_Birth	Education	Marital_Status	Income	Kidhome	Teenhome	Dt_Customer	Recency	MntWines	...	NumWebVisitsMonth	Z_CostContact	Z_Revenue	Response
0	5524	1957	Graduation	Single	58138.0	0	0	04-09-2012	58	635	...	7	3	11	1
1	2174	1954	Graduation	Single	46344.0	1	1	08-03-2014	38	11	...	5	3	11	0
2	4141	1965	Graduation	Together	71613.0	0	0	21-08-2013	26	426	...	4	3	11	0
3	6182	1984	Graduation	Together	26646.0	1	0	10-02-2014	26	11	...	6	3	11	0
4	5324	1981	PhD	Married	58293.0	1	0	19-01-2014	94	173	...	5	3	11	0

5 rows × 29 columns

整体数据量：

In [3]:

df.shape

Out[3]:

(2240, 29)

In [4]:

df.columns

Out[4]:

Index(['ID', 'Year_Birth', 'Education', 'Marital_Status', 'Income', 'Kidhome',       'Teenhome', 'Dt_Customer', 'Recency', 'MntWines', 'MntFruits',       'MntMeatProducts', 'MntFishProducts', 'MntSweetProducts',       'MntGoldProds', 'NumDealsPurchases', 'NumWebPurchases',       'NumCatalogPurchases', 'NumStorePurchases', 'NumWebVisitsMonth',       'AcceptedCmp3', 'AcceptedCmp4', 'AcceptedCmp5', 'AcceptedCmp1',       'AcceptedCmp2', 'Complain', 'Z_CostContact', 'Z_Revenue', 'Response'],
      dtype='object')

In [5]:

df.dtypes  # 字段的数据类型

Out[5]:

ID                       int64
Year_Birth               int64
Education               object
Marital_Status          object
Income                 float64
Kidhome                  int64
Teenhome                 int64
Dt_Customer             object
Recency                  int64
MntWines                 int64
MntFruits                int64
MntMeatProducts          int64
MntFishProducts          int64
MntSweetProducts         int64
MntGoldProds             int64
NumDealsPurchases        int64
NumWebPurchases          int64
NumCatalogPurchases      int64
NumStorePurchases        int64
NumWebVisitsMonth        int64
AcceptedCmp3             int64
AcceptedCmp4             int64
AcceptedCmp5             int64
AcceptedCmp1             int64
AcceptedCmp2             int64
Complain                 int64
Z_CostContact            int64
Z_Revenue                int64
Response                 int64
dtype: object

In [6]:

df.info()
<class 'pandas.core.frame.DataFrame'>
RangeIndex: 2240 entries, 0 to 2239
Data columns (total 29 columns):
 #   Column               Non-Null Count  Dtype
---  ------               --------------  -----
 0   ID                   2240 non-null   int64
 1   Year_Birth           2240 non-null   int64
 2   Education            2240 non-null   object
 3   Marital_Status       2240 non-null   object
 4   Income               2216 non-null   float64
 5   Kidhome              2240 non-null   int64
 6   Teenhome             2240 non-null   int64
 7   Dt_Customer          2240 non-null   object
 8   Recency              2240 non-null   int64
 9   MntWines             2240 non-null   int64
 10  MntFruits            2240 non-null   int64
 11  MntMeatProducts      2240 non-null   int64
 12  MntFishProducts      2240 non-null   int64
 13  MntSweetProducts     2240 non-null   int64
 14  MntGoldProds         2240 non-null   int64
 15  NumDealsPurchases    2240 non-null   int64
 16  NumWebPurchases      2240 non-null   int64
 17  NumCatalogPurchases  2240 non-null   int64
 18  NumStorePurchases    2240 non-null   int64
 19  NumWebVisitsMonth    2240 non-null   int64
 20  AcceptedCmp3         2240 non-null   int64
 21  AcceptedCmp4         2240 non-null   int64
 22  AcceptedCmp5         2240 non-null   int64
 23  AcceptedCmp1         2240 non-null   int64
 24  AcceptedCmp2         2240 non-null   int64
 25  Complain             2240 non-null   int64
 26  Z_CostContact        2240 non-null   int64
 27  Z_Revenue            2240 non-null   int64
 28  Response             2240 non-null   int64
dtypes: float64(1), int64(25), object(3)
memory usage: 507.6+ KB

2.2 数据缺失值情况

In [7]:

df.isnull().sum()

Out[7]:

ID                      0
Year_Birth              0
Education               0
Marital_Status          0
Income                 24
Kidhome                 0
Teenhome                0
Dt_Customer             0
Recency                 0
MntWines                0
MntFruits               0
MntMeatProducts         0
MntFishProducts         0
MntSweetProducts        0
MntGoldProds            0
NumDealsPurchases       0
NumWebPurchases         0
NumCatalogPurchases     0
NumStorePurchases       0
NumWebVisitsMonth       0
AcceptedCmp3            0
AcceptedCmp4            0
AcceptedCmp5            0
AcceptedCmp1            0
AcceptedCmp2            0
Complain                0
Z_CostContact           0
Z_Revenue               0
Response                0
dtype: int64

字段缺失值比例：

In [8]:

df.isnull().sum() / len(df)  # 缺失值比例

Out[8]:

ID                     0.000000
Year_Birth             0.000000
Education              0.000000
Marital_Status         0.000000
Income                 0.010714
Kidhome                0.000000
Teenhome               0.000000
Dt_Customer            0.000000
Recency                0.000000
MntWines               0.000000
MntFruits              0.000000
MntMeatProducts        0.000000
MntFishProducts        0.000000
MntSweetProducts       0.000000
MntGoldProds           0.000000
NumDealsPurchases      0.000000
NumWebPurchases        0.000000
NumCatalogPurchases    0.000000
NumStorePurchases      0.000000
NumWebVisitsMonth      0.000000
AcceptedCmp3           0.000000
AcceptedCmp4           0.000000
AcceptedCmp5           0.000000
AcceptedCmp1           0.000000
AcceptedCmp2           0.000000
Complain               0.000000
Z_CostContact          0.000000
Z_Revenue              0.000000
Response               0.000000
dtype: float64

缺失值的比例非常小，我们考虑直接删除：

In [9]:

df.dropna(inplace=True)

df.isnull().sum() # 删除缺失值后的统计情况

Out[9]:

ID                     0
Year_Birth             0
Education              0
Marital_Status         0
Income                 0
Kidhome                0
Teenhome               0
Dt_Customer            0
Recency                0
MntWines               0
MntFruits              0
MntMeatProducts        0
MntFishProducts        0
MntSweetProducts       0
MntGoldProds           0
NumDealsPurchases      0
NumWebPurchases        0
NumCatalogPurchases    0
NumStorePurchases      0
NumWebVisitsMonth      0
AcceptedCmp3           0
AcceptedCmp4           0
AcceptedCmp5           0
AcceptedCmp1           0
AcceptedCmp2           0
Complain               0
Z_CostContact          0
Z_Revenue              0
Response               0
dtype: int64

3 数据特征处理

3.1 时间字段Dt_Customer

关于时间字段处理

In [10]:

df["Dt_Customer"].value_counts()

Out[10]:

Dt_Customer
31-08-2012    12
12-09-2012    11
14-02-2013    11
12-05-2014    11
20-08-2013    10
              ..
05-08-2012     1
18-11-2012     1
09-05-2014     1
26-06-2013     1
09-01-2014     1
Name: count, Length: 662, dtype: int64

In [11]:

df["Dt_Customer"] = pd.to_datetime(df["Dt_Customer"], dayfirst=True)  # 转成时间相关字段，需要给定参数dayfirst

df["Dt_Customer"]

Out[11]:

0      2012-09-04
1      2014-03-08
2      2013-08-21
3      2014-02-10
4      2014-01-19
          ...
2235   2013-06-13
2236   2014-06-10
2237   2014-01-25
2238   2014-01-24
2239   2012-10-15
Name: Dt_Customer, Length: 2216, dtype: datetime64[ns]

In [12]:

df.sort_values("Year_Birth",ascending=False)

Out[12]:

	ID	Year_Birth	Education	Marital_Status	Income	Kidhome	Teenhome	Dt_Customer	Recency	MntWines	...	NumWebVisitsMonth	AcceptedCmp3	AcceptedCmp4	AcceptedCmp5	AcceptedCmp1	AcceptedCmp2	Complain	Z_CostContact	Z_Revenue	Response
46	9909	1996	2n Cycle	Married	7500.0	0	0	2012-11-09	24	3	...	9	0	0	0	0	0	0	3	11	1
1170	193	1996	Basic	Married	14421.0	0	0	2014-02-17	81	0	...	5	1	0	0	0	0	0	3	11	0
747	10548	1995	Graduation	Single	71163.0	0	0	2014-03-09	30	283	...	1	0	0	0	0	0	0	3	11	0
2213	3661	1995	2n Cycle	Single	80617.0	0	0	2012-10-12	42	594	...	2	0	0	0	0	0	0	3	11	0
696	8315	1995	Graduation	Single	34824.0	0	0	2014-03-26	65	4	...	6	0	0	0	0	0	0	3	11	0
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
424	6932	1941	PhD	Married	93027.0	0	0	2013-04-13	77	1285	...	2	0	0	1	0	0	0	3	11	0
1950	6663	1940	PhD	Single	51141.0	0	0	2013-07-08	96	144	...	5	0	0	0	0	0	0	3	11	0
192	7829	1900	2n Cycle	Divorced	36640.0	1	0	2013-09-26	99	15	...	5	0	0	0	0	0	1	3	11	0
339	1150	1899	PhD	Together	83532.0	0	0	2013-09-26	36	755	...	1	0	0	1	0	0	0	3	11	0
239	11004	1893	2n Cycle	Single	60182.0	0	1	2014-05-17	23	8	...	4	0	0	0	0	0	0	3	11	0

2216 rows × 29 columns

时间日期中的最值：

In [13]:

dates = df["Dt_Customer"].tolist()
dates[:5]

Out[13]:

[Timestamp('2012-09-04 00:00:00'),
 Timestamp('2014-03-08 00:00:00'),
 Timestamp('2013-08-21 00:00:00'),
 Timestamp('2014-02-10 00:00:00'),
 Timestamp('2014-01-19 00:00:00')]

In [14]:

max(dates)

Out[14]:

Timestamp('2014-06-29 00:00:00')

In [15]:

min(dates)

Out[15]:

Timestamp('2012-07-30 00:00:00')

3.2 新特征Customer_For

创建一个特征（"Customer_For"），表示客户开始在商店购物的日期与最后记录日期之间相差的天数。

In [16]:

days = []

max_day = max(dates)

for i in dates:
    delta = max_day - i  # 和最近日期相差天数
    days.append(delta.days)  # 提取天信息

days[:10]

Out[16]:

[663, 113, 312, 139, 161, 293, 593, 417, 388, 108]

In [17]:

df["Customer_For"] = days

强制转成数值型数据：

In [18]:

df["Customer_For"] = pd.to_numeric(df["Customer_For"], errors="coerce")

3.3 Marital_Status & Education

In [19]:

df["Marital_Status"].value_counts()

Out[19]:

Marital_Status
Married     857
Together    573
Single      471
Divorced    232
Widow        76
Alone         3
Absurd        2
YOLO          2
Name: count, dtype: int64

In [20]:

df["Education"].value_counts()

Out[20]:

Education
Graduation    1116
PhD            481
Master         365
2n Cycle       200
Basic           54
Name: count, dtype: int64

3.4 特征衍生

In [21]:

# 年龄：用当前年 - 出生年

df["Age"] = 2024 - df["Year_Birth"]

In [22]:

df[df["Age"] == 131]

Out[22]:

	ID	Year_Birth	Education	Marital_Status	Income	Kidhome	Teenhome	Dt_Customer	Recency	MntWines	...	AcceptedCmp4	AcceptedCmp5	AcceptedCmp1	AcceptedCmp2	Complain	Z_CostContact	Z_Revenue	Response	Customer_For	Age
239	11004	1893	2n Cycle	Single	60182.0	0	1	2014-05-17	23	8	...	0	0	0	0	0	3	11	0	43	131

1 rows × 31 columns

In [23]:

# 所有的花费：将多个字段合并为一个字段Spent

df["Spent"] = df["MntWines"] + df["MntFruits"]+ df["MntMeatProducts"]+ df["MntFishProducts"]+ df["MntSweetProducts"]+ df["MntGoldProds"]

In [24]:

# 生活状态Living_with

df["Living_With"] = df["Marital_Status"].replace({"Married":"Partner",  # 共同生活
                                                  "Together":"Partner",
                                                  "Absurd":"Alone",  # 独自一人
                                                  "Widow":"Alone",
                                                  "YOLO":"Alone",
                                                  "Divorced":"Alone",
                                                  "Single":"Alone"}
                                                )

In [25]:

# 小孩个数

df["Children"] = df["Kidhome"] + df["Teenhome"]

In [26]:

# 家庭成员总数

df["Family_Size"] = df["Living_With"].replace({"Alone": 1, "Partner": 2}) + df["Children"]

In [27]:

# 是否为父母

df["Is_Parent"]  = np.where(df["Children"] > 0, 1, 0)

In [28]:

# 受教育程度

df["Education"] = df["Education"].replace({"Basic":"Undergrauate",
                                           "2n Cycle":"Undergrauate",
                                           "Graducation":"Graduate",
                                           "Master":"Postgraduate",
                                           "PhD":"Postgraduate"
                                          })

3.5 字段重命名rename

In [29]:

df = df.rename(columns={"MntWines": "Wines",
                        "MntFruits":"Fruits",
                        "MntMeatProducts":"Meat",
                        "MntFishProducts":"Fish",
                        "MntSweetProducts":"Sweets",
                        "MntGoldProds":"Gold"})

3.6 删除无效字段drop

In [30]:

to_drop = ["Marital_Status", "Dt_Customer", "Z_CostContact", "Z_Revenue", "Year_Birth", "ID"]

In [31]:

df.drop(to_drop, axis=1, inplace=True)

In [32]:

df.describe()

Out[32]:

	Income	Kidhome	Teenhome	Recency	Wines	Fruits	Meat	Fish	Sweets	Gold	...	AcceptedCmp1	AcceptedCmp2	Complain	Response	Customer_For	Age	Spent	Children	Family_Size	Is_Parent
count	2216.000000	2216.000000	2216.000000	2216.000000	2216.000000	2216.000000	2216.000000	2216.000000	2216.000000	2216.000000	...	2216.000000	2216.000000	2216.000000	2216.000000	2216.000000	2216.000000	2216.000000	2216.000000	2216.000000	2216.000000
mean	52247.251354	0.441787	0.505415	49.012635	305.091606	26.356047	166.995939	37.637635	27.028881	43.965253	...	0.064079	0.013538	0.009477	0.150271	353.521209	55.179603	607.075361	0.947202	2.592509	0.714350
std	25173.076661	0.536896	0.544181	28.948352	337.327920	39.793917	224.283273	54.752082	41.072046	51.815414	...	0.244950	0.115588	0.096907	0.357417	202.434667	11.985554	602.900476	0.749062	0.905722	0.451825
min	1730.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	0.000000	...	0.000000	0.000000	0.000000	0.000000	0.000000	28.000000	5.000000	0.000000	1.000000	0.000000
25%	35303.000000	0.000000	0.000000	24.000000	24.000000	2.000000	16.000000	3.000000	1.000000	9.000000	...	0.000000	0.000000	0.000000	0.000000	180.000000	47.000000	69.000000	0.000000	2.000000	0.000000
50%	51381.500000	0.000000	0.000000	49.000000	174.500000	8.000000	68.000000	12.000000	8.000000	24.500000	...	0.000000	0.000000	0.000000	0.000000	355.500000	54.000000	396.500000	1.000000	3.000000	1.000000
75%	68522.000000	1.000000	1.000000	74.000000	505.000000	33.000000	232.250000	50.000000	33.000000	56.000000	...	0.000000	0.000000	0.000000	0.000000	529.000000	65.000000	1048.000000	1.000000	3.000000	1.000000
max	666666.000000	2.000000	2.000000	99.000000	1493.000000	199.000000	1725.000000	259.000000	262.000000	321.000000	...	1.000000	1.000000	1.000000	1.000000	699.000000	131.000000	2525.000000	3.000000	5.000000	1.000000

8 rows × 28 columns

4 数据EDA

4.1 两两特征关系pairplot

In [33]:

sns.set(rc={"axes.facecolor": "#FFF9ED", "figure.facecolor": "#FFF9ED"})
# pallet = ["#682F2F", "#9E726F", "#D6B2B1", "#B9C0C9", "#9F8A78", "#F3AB60"]

To_Plot = [ "Income", "Recency", "Customer_For", "Age", "Spent", "Is_Parent"]

# 取消palette
# sns.pairplot(df[To_Plot], hue= "Is_Parent",palette= (["#682F2F","#F3AB60"]))
plt.figure(figsize=(10, 6))
sns.pairplot(df[To_Plot], hue= "Is_Parent")
plt.show()

可以看到在Age和Income中存在很多的异常值：

In [34]:

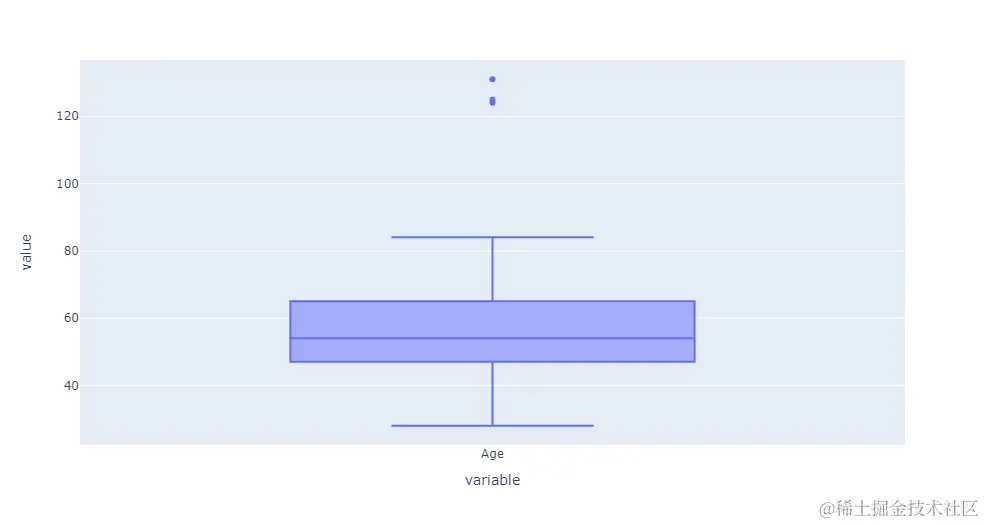

fig = px.box(df["Age"])

fig.show()

可以看到Age字段的上四分位数是：84

In [35]:

fig = px.box(df, y=["Income"], points="outliers",)

fig.show()

在收入Income字段中，我们取临界值为600000：

In [36]:

df = df[df["Age"] < 90]
df = df[df["Income"] < 600000]  # 两次数据过滤

新数据的总长度为：

In [37]:

len(df)

Out[37]:

4.2 相关系数

使用df中包含两个字符类型的字段，在新版本的pandas中需要带上参数numeric_only=True：

In [38]:

corr = df.corr(numeric_only=True)
corr.head()

Out[38]:

	Income	Kidhome	Teenhome	Recency	Wines	Fruits	Meat	Fish	Sweets	Gold	...	AcceptedCmp1	AcceptedCmp2	Complain	Response	Customer_For	Age	Spent	Children	Family_Size	Is_Parent
Income	1.000000	-0.514523	0.034565	0.007965	0.688209	0.507354	0.692279	0.520040	0.523599	0.388299	...	0.327524	0.104036	-0.027900	0.161387	-0.023760	0.199977	0.792740	-0.343529	-0.286638	-0.403132
Kidhome	-0.514523	1.000000	-0.039066	0.010623	-0.497203	-0.373258	-0.439031	-0.388643	-0.377843	-0.354922	...	-0.174261	-0.081911	0.037067	-0.077901	-0.055281	-0.237497	-0.557949	0.688081	0.583250	0.520355
Teenhome	0.034565	-0.039066	1.000000	0.014392	0.003945	-0.175905	-0.261134	-0.205235	-0.163107	-0.018579	...	-0.145198	-0.015633	0.007746	-0.154402	0.018557	0.361932	-0.137964	0.698199	0.594481	0.587993
Recency	0.007965	0.010623	0.014392	1.000000	0.015981	-0.005257	0.022914	0.000788	0.025244	0.018148	...	-0.021147	-0.001429	0.005713	-0.200114	0.025681	0.015694	0.020479	0.018062	0.014717	0.002189
Wines	0.688209	-0.497203	0.003945	0.015981	1.000000	0.385844	0.568081	0.396915	0.389583	0.391461	...	0.351610	0.206309	-0.036420	0.246320	0.167852	0.164615	0.892996	-0.353356	-0.296702	-0.341994

5 rows × 28 columns

In [39]:

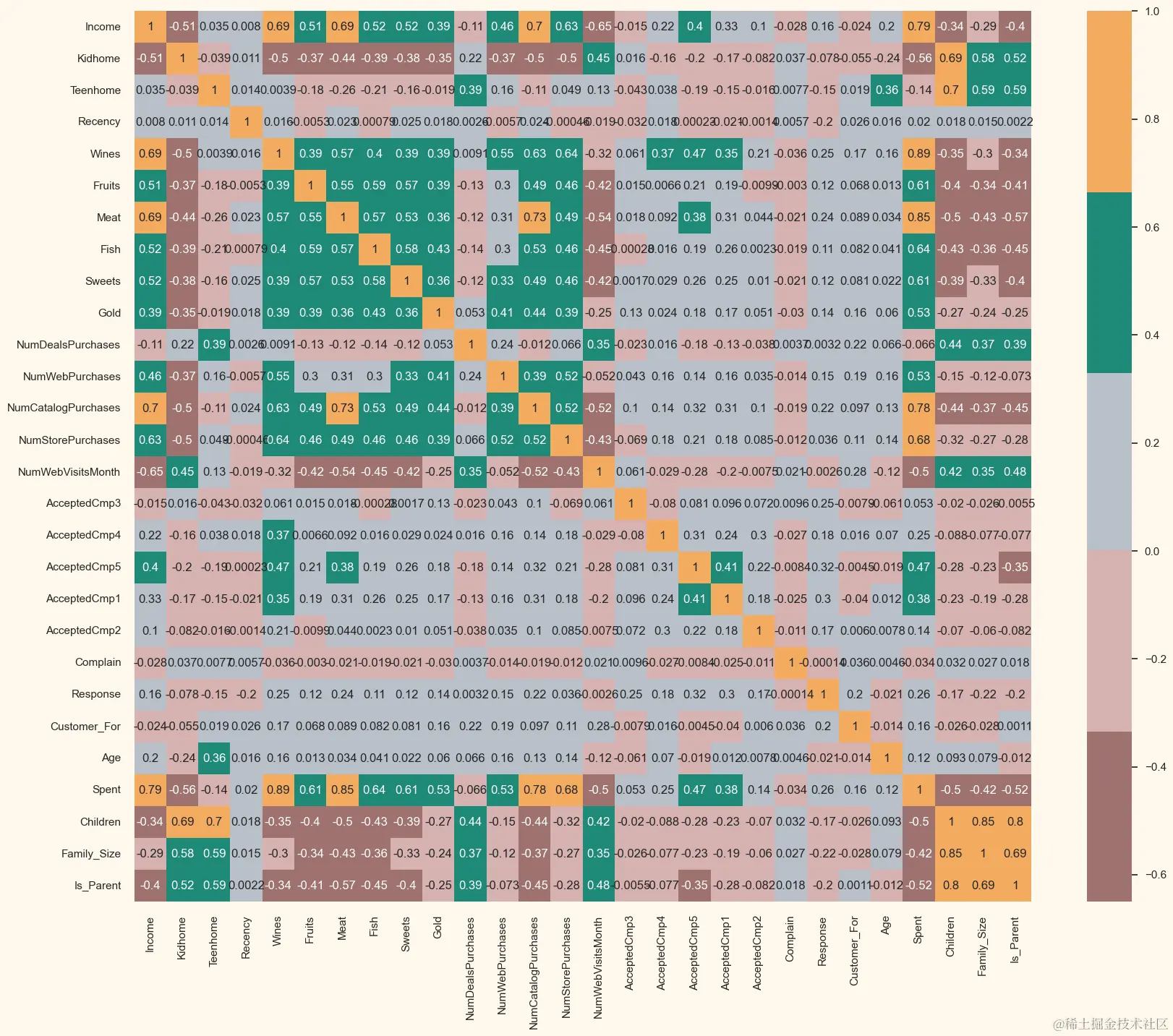

cmap = colors.ListedColormap(["#682F2F", "#9E726F", "#D6B2B1", "#B9C0C9", "#1F8A78", "#F3AB60"])

plt.figure(figsize=(20, 16))

sns.heatmap(corr, annot=True, cmap=cmap, center=0)

plt.show()

5 数据预处理

5.1 数据编码LabelEncoder

针对字符类型数据的编码处理：

In [40]:

df.columns

Out[40]:

Index(['Education', 'Income', 'Kidhome', 'Teenhome', 'Recency', 'Wines',       'Fruits', 'Meat', 'Fish', 'Sweets', 'Gold', 'NumDealsPurchases',       'NumWebPurchases', 'NumCatalogPurchases', 'NumStorePurchases',       'NumWebVisitsMonth', 'AcceptedCmp3', 'AcceptedCmp4', 'AcceptedCmp5',       'AcceptedCmp1', 'AcceptedCmp2', 'Complain', 'Response', 'Customer_For',       'Age', 'Spent', 'Living_With', 'Children', 'Family_Size', 'Is_Parent'],
      dtype='object')

确定属于object类型的字段：

In [41]:

object_columns = df.columns[df.dtypes == "object"].tolist()
object_columns

Out[41]:

['Education', 'Living_With']

In [42]:

df["Education"].value_counts()

Out[42]:

Education
Graduation      1115
Postgraduate     845
Undergrauate     252
Name: count, dtype: int64

In [43]:

df["Living_With"].value_counts()

Out[43]:

Living_With
Partner    1428
Alone       784
Name: count, dtype: int64

对上面两个字段的类型编码工作：

In [44]:

le = LabelEncoder()

for col in object_columns:
    df[col] = df[[col]].apply(le.fit_transform)

此时字段全部是数值相关的字段类型：

In [45]:

pd.value_counts(df.dtypes)

Out[45]:

int64      26
int32       3
float64     1
Name: count, dtype: int64

5.2 数据标准化StandardScaler

In [46]:

# 副本

df1 = df.copy()

In [47]:

#  待删除字段
cols_del = ['AcceptedCmp3', 'AcceptedCmp4', 'AcceptedCmp5', 'AcceptedCmp1','AcceptedCmp2', 'Complain', 'Response']

对副本的操作：

In [48]:

df1.drop(cols_del, axis=1, inplace=True)

In [49]:

ss = StandardScaler()
ss.fit(df1)

Out[49]:

StandardScaler

StandardScaler()

字段经过缩放后的数据：

In [50]:

ss_df = pd.DataFrame(ss.transform(df1), columns=df1.columns)
ss_df

Out[50]:

	Education	Income	Kidhome	Teenhome	Recency	Wines	Fruits	Meat	Fish	Sweets	...	NumCatalogPurchases	NumStorePurchases	NumWebVisitsMonth	Customer_For	Age	Spent	Living_With	Children	Family_Size	Is_Parent
0	-0.893586	0.287105	-0.822754	-0.929699	0.310353	0.977660	1.552041	1.690293	2.453472	1.483713	...	2.503607	-0.555814	0.692181	1.527721	1.018352	1.676245	-1.349603	-1.264598	-1.758359	-1.581139
1	-0.893586	-0.260882	1.040021	0.908097	-0.380813	-0.872618	-0.637461	-0.718230	-0.651004	-0.634019	...	-0.571340	-1.171160	-0.132545	-1.189011	1.274785	-0.963297	-1.349603	1.404572	0.449070	0.632456
2	-0.893586	0.913196	-0.822754	-0.929699	-0.795514	0.357935	0.570540	-0.178542	1.339513	-0.147184	...	-0.229679	1.290224	-0.544908	-0.206048	0.334530	0.280110	0.740959	-1.264598	-0.654644	-1.581139
3	-0.893586	-1.176114	1.040021	-0.929699	-0.795514	-0.872618	-0.561961	-0.655787	-0.504911	-0.585335	...	-0.913000	-0.555814	0.279818	-1.060584	-1.289547	-0.920135	0.740959	0.069987	0.449070	0.632456
4	0.571657	0.294307	1.040021	-0.929699	1.554453	-0.392257	0.419540	-0.218684	0.152508	-0.001133	...	0.111982	0.059532	-0.132545	-0.951915	-1.033114	-0.307562	0.740959	0.069987	0.449070	0.632456
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
2207	-0.893586	0.430444	-0.822754	0.908097	-0.104347	1.197084	0.419540	0.066770	0.079461	2.213965	...	0.111982	-0.555814	-0.132545	0.134778	0.163575	1.218061	0.740959	0.069987	0.449070	0.632456
2208	0.571657	0.560123	2.902796	0.908097	0.241237	0.298631	-0.662628	-0.611184	-0.687527	-0.658360	...	-0.229679	-0.248141	0.692181	-1.653326	1.958607	-0.271040	0.740959	2.739158	2.656499	0.632456
2209	-0.893586	0.233347	-0.822754	-0.929699	1.450778	1.787156	0.545373	0.222878	-0.103155	-0.366260	...	0.111982	2.213242	0.279818	-0.981552	-1.033114	1.052052	-1.349603	-1.264598	-1.758359	-1.581139
2210	0.571657	0.803172	-0.822754	0.908097	-1.417564	0.363866	0.092373	0.209498	0.773403	0.071892	...	0.795303	1.290224	-0.957271	-0.976612	1.103830	0.391336	0.740959	0.069987	0.449070	0.632456
2211	0.571657	0.042290	1.040021	0.908097	-0.311697	-0.656159	-0.587128	-0.472917	-0.651004	-0.634019	...	-0.571340	-0.555814	0.692181	1.325201	1.274785	-0.722584	0.740959	1.404572	1.552784	0.632456

2212 rows × 23 columns

5.3 数据降维PCA

5.3.1 实施降维

In [51]:

pca = PCA(n_components=3)
pca.fit(ss_df)  # 对标准化后的数据进行降维

Out[51]:

PCA

PCA(n_components=3)

经过降维后的数据：

In [52]:

PCA_ds = pd.DataFrame(pca.transform(ss_df), columns=(["col1","col2","col3"]))
PCA_ds

Out[52]:

	col1	col2	col3
0	4.986336	-0.161502	2.445704
1	-2.874168	0.022701	-1.530784
2	2.615763	-0.731408	-0.264243
3	-2.654568	-1.455875	-0.398126
4	-0.656015	0.177848	-0.141472
...	...	...	...
2207	2.322945	2.437513	0.495596
2208	-3.100999	4.014083	-1.415940
2209	2.666497	-1.893706	0.556943
2210	1.487349	1.651778	-1.760027
2211	-2.733469	1.688075	-0.212150

2212 rows × 3 columns

In [53]:

PCA_ds.describe().T

Out[53]:

	count	mean	std	min	25%	50%	75%	max
col1	2212.0	-3.212219e-17	2.878602	-5.978123	-2.539470	-0.781595	2.386380	7.452915
col2	2212.0	-1.284887e-17	1.709469	-4.194757	-1.323932	-0.173716	1.234923	6.168185
col3	2212.0	4.577411e-17	1.231685	-3.625184	-0.853556	-0.051292	0.863841	6.746845

5.3.2 降维可视化

对3个主成分的可视化：

In [54]:

x = PCA_ds["col1"]
y = PCA_ds["col2"]
z = PCA_ds["col3"]

In [55]:

fig = plt.figure(figsize=(10,8))

ax = fig.add_subplot(111, projection="3d")
ax.scatter(x,y,z, c="maroon", marker="o" )
ax.set_title("3D Figure Of Data In The Reduced Dimension")

plt.show()

6 聚类Clustering

6.1 肘图确定k值

In [56]:

Elbow_M = KElbowVisualizer(KMeans(), k=10)

Elbow_M.fit(PCA_ds)
Elbow_M.show()

可以看到在k=4时候是最好的。

6.2 实施聚类

实施凝聚层次聚类AgglomerativeClustering

In [57]:

# k=4

AC = AgglomerativeClustering(n_clusters=4)
y_pred = AC.fit_predict(PCA_ds)  # 预测值
y_pred

Out[57]:

array([2, 3, 2, ..., 2, 0, 3], dtype=int64)

给降维后的数据贴上聚类的结果y_pred：

In [58]:

PCA_ds["Clusters"] = y_pred

PCA_ds["Clusters"] = PCA_ds["Clusters"].astype("object")  # 将聚类结果字段转成字符型

给原数据也贴上聚类的结果y_pred：

In [59]:

df["Clusters"] = y_pred

df["Clusters"] = df["Clusters"].astype("object")  # 将聚类结果字段转成字符型

6.3 聚类效果可视化

In [60]:

x = PCA_ds["col1"]
y = PCA_ds["col2"]
z = PCA_ds["col3"]

In [61]:

fig = plt.figure(figsize=(10,8))

ax = fig.add_subplot(111, projection="3d")
ax.scatter(x,y,z,s=40, c=PCA_ds["Clusters"], marker="o",cmap=cmap)
ax.set_title("3D Figure of Clusters")

plt.show()

7 聚类效果评估

7.1 不同簇群统计countplot

如何显示柱子上方的数据：

In [62]:

# pal = ["#682F2F","#B9C0C9", "#9F8A78","#F3AB60"]
# pl = sns.countplot(x=df["Clusters"], palette= pal)

ax = sns.countplot(x=df["Clusters"])

# 在柱子上方显示数据
ax.bar_label(ax.containers[0])

plt.title("Distribution Of The Clusters")
plt.show()

7.2 基于簇群多指标关系分布scatterplot

In [63]:

# # pal = ["#682F2F","#B9C0C9", "#9F8A78","#F3AB60"]

# pl = sns.scatterplot(data = df,  # 数据
#                      x="Spent", # x-y轴信息
#                      y="Income",
#                      hue="Clusters",  # 分类字段
#                      #palette= pal
#                     )

# pl.set_title("Cluster's Distribution Based On Income & Spent")
# plt.legend()
# plt.show()

In [64]:

df["Clusters"] = df["Clusters"].astype("object")

In [65]:

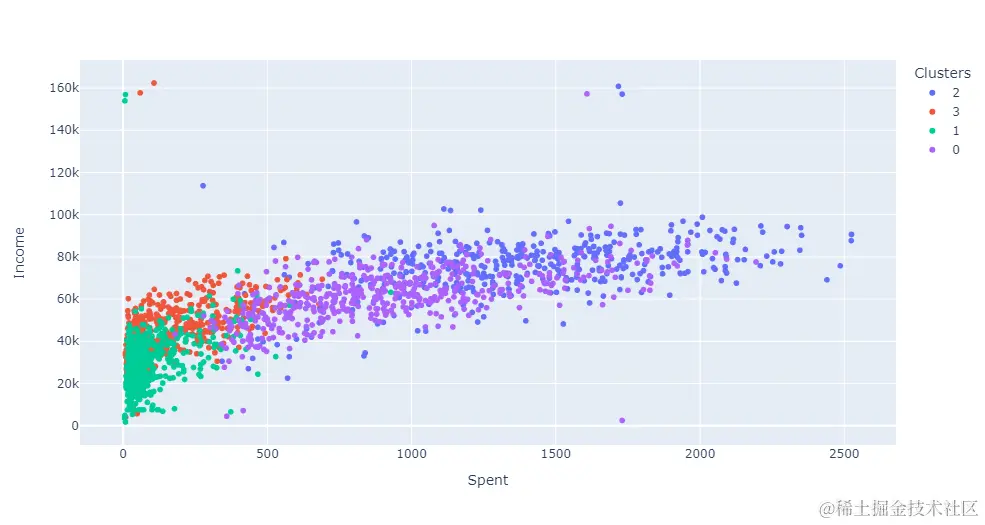

fig = px.scatter(df,x="Spent", y="Income",color="Clusters")

fig.show()

Group0：高Spent + 平均Income
Group1：低SPent + 低Income
Group2：高Spent + 高Income
Group3：低Spent + 平均Income

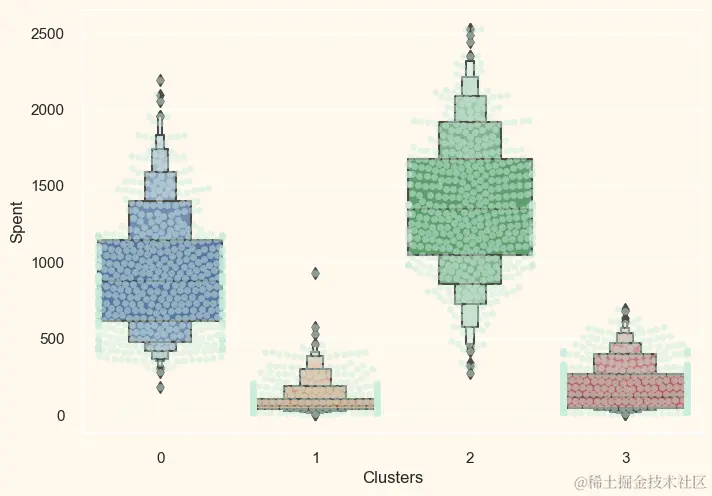

7.3 基于簇群的单个指标分布(swarmplot+boxenplot)

swarmplot()可以自己实现对数据分类的展现，也可以作为箱形图或小提琴图的一种补充，用来显示所有结果以及基本分布情况。
boxenplot是为更大的数据集绘制增强的箱型图。这种风格的绘图最初被命名为“信值图”，因为它显示了大量被定义为“置信区间”的分位数。它类似于绘制分布的非参数表示的箱形图，其中所有特征对应于实际观察的数值点。通过绘制更多分位数，它提供了有关分布形状的更多信息，特别是尾部数据的分布。

In [66]:

plt.figure()

ax = sns.swarmplot(x=df["Clusters"],y=df["Spent"],color="#CBEDDD",alpha=0.5)
ax = sns.boxenplot(x=df["Clusters"],y=df["Spent"])

plt.show()

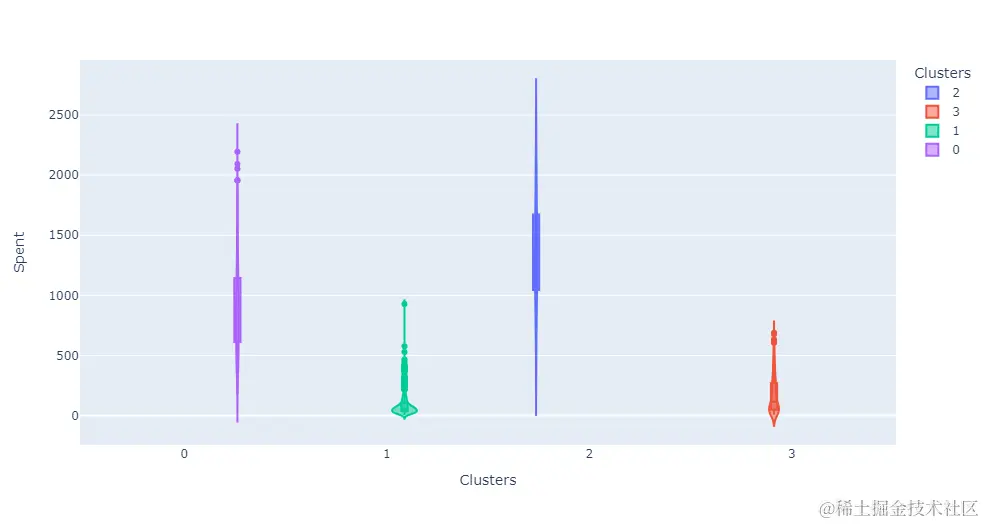

基于plotly的实现：

In [67]:

fig = px.violin(df,
                x="Clusters",
                y="Spent",
                color="Clusters",
                violinmode="group",
                box=True
               )

fig.show()

7.4 整体情况All_AcceptedCmp

整体的AcceptedCmp表现情况：

In [68]:

df["All_AcceptedCmp"] = df["AcceptedCmp1"]+ df["AcceptedCmp2"]+ df["AcceptedCmp3"]+ df["AcceptedCmp4"]+ df["AcceptedCmp5"]
df.head()

Out[68]:

	Education	Income	Kidhome	Teenhome	Recency	Wines	Fruits	Meat	Fish	Sweets	...	Response	Customer_For	Age	Spent	Living_With	Children	Family_Size	Is_Parent	Clusters
0	0	58138.0	0	0	58	635	88	546	172	88	...	1	663	67	1617	0	0	1	0	2
1	0	46344.0	1	1	38	11	1	6	2	1	...	0	113	70	27	0	2	3	1	3
2	0	71613.0	0	0	26	426	49	127	111	21	...	0	312	59	776	1	0	2	0	2
3	0	26646.0	1	0	26	11	4	20	10	3	...	0	139	40	53	1	1	3	1	1
4	1	58293.0	1	0	94	173	43	118	46	27	...	0	161	43	422	1	1	3	1	3

5 rows × 32 columns

In [69]:

df["All_AcceptedCmp"].value_counts()

Out[69]:

All_AcceptedCmp
0    1754
1     322
2      81
3      44
4      11
Name: count, dtype: int64

In [70]:

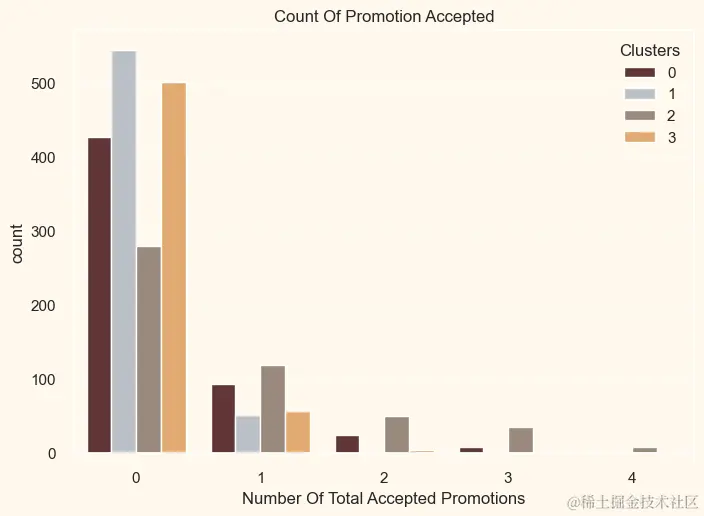

pal = ["#682F2F","#B9C0C9", "#9F8A78","#F3AB60"]

plt.figure()
# 写法1：基于df数据使用countplot统计
pl = sns.countplot(x=df["All_AcceptedCmp"], hue=df["Clusters"],  palette= pal)
pl.set_title("Count Of Promotion Accepted")
pl.set_xlabel("Number Of Total Accepted Promotions")

plt.show()

另一种写法：

In [71]:

pal = ["#682F2F","#B9C0C9", "#9F8A78","#F3AB60"]

plt.figure()
# 写法2
sns.countplot(x=df["All_AcceptedCmp"], hue=df["Clusters"],  palette= pal)
plt.title("Count Of Promotion Accepted")
plt.xlabel("Number Of Total Accepted Promotions")

plt.show()

统计不同簇群下的All_AcceptedCmp情况：

In [72]:

AcceptedCmp_by_Clusters = df.groupby(["Clusters","All_AcceptedCmp"]).size().reset_index()
AcceptedCmp_by_Clusters.head()

Out[72]:

	All_AcceptedCmp	0
0	0	427
1	1	94
2	2	25
3	3	8
4	4	2

In [73]:

AcceptedCmp_by_Clusters.columns = ["Clusters","All_AcceptedCmp","Count"]

AcceptedCmp_by_Clusters["Count"] = AcceptedCmp_by_Clusters["Count"].astype("object")
AcceptedCmp_by_Clusters

Out[73]:

	Clusters	All_AcceptedCmp	Count
0	0	0	427
1	0	1	94
2	0	2	25
3	0	3	8
4	0	4	2
5	1	0	545
6	1	1	52
7	1	2	1
8	2	0	280
9	2	1	119
10	2	2	51
11	2	3	36
12	2	4	9
13	3	0	502
14	3	1	57
15	3	2	4

7.5 促销活动NumDealsPurchases

In [74]:

plt.figure()

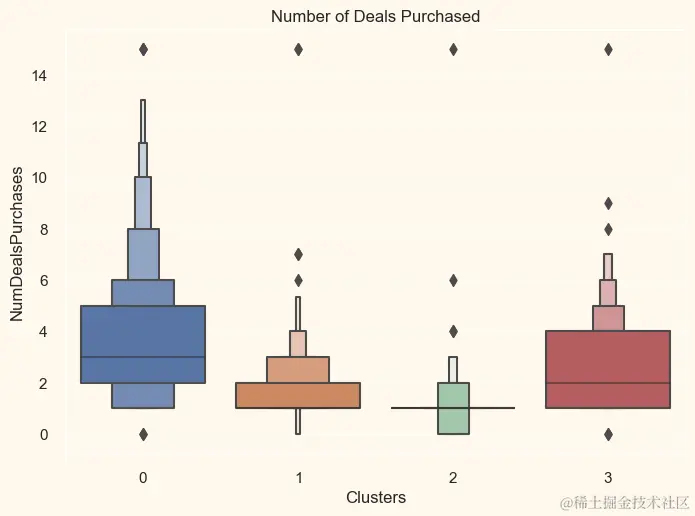

pl=sns.boxenplot(y=df["NumDealsPurchases"],x=df["Clusters"])
pl.set_title("Number of Deals Purchased")
plt.show()

另一种写法：

In [75]:

# 写法2

plt.figure()
sns.boxenplot(y=df["NumDealsPurchases"],x=df["Clusters"])
plt.title("Number of Deals Purchased")
plt.show()

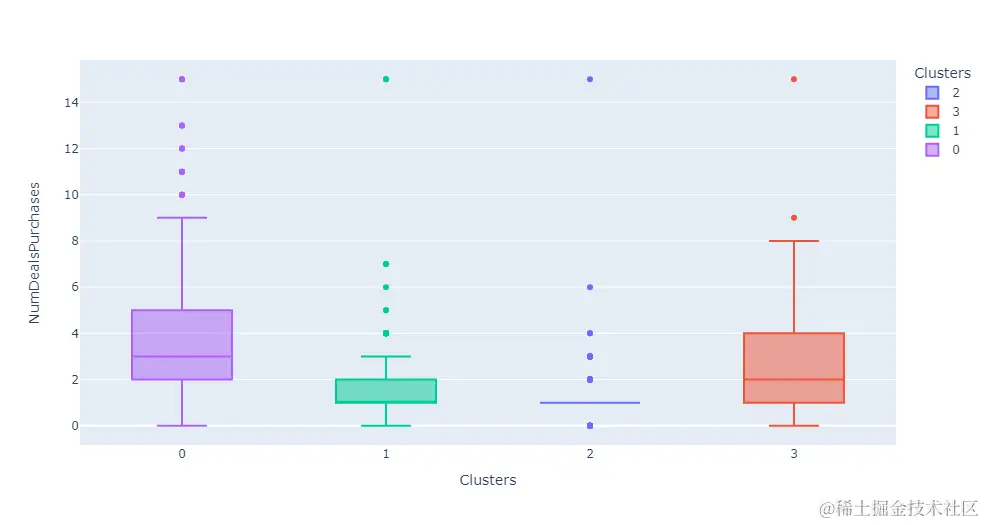

基于plotly的实现：

In [76]:

fig = px.box(df,x="Clusters",y="NumDealsPurchases",color="Clusters")

fig.show()

7.6 不同簇群下的人群特点

In [77]:

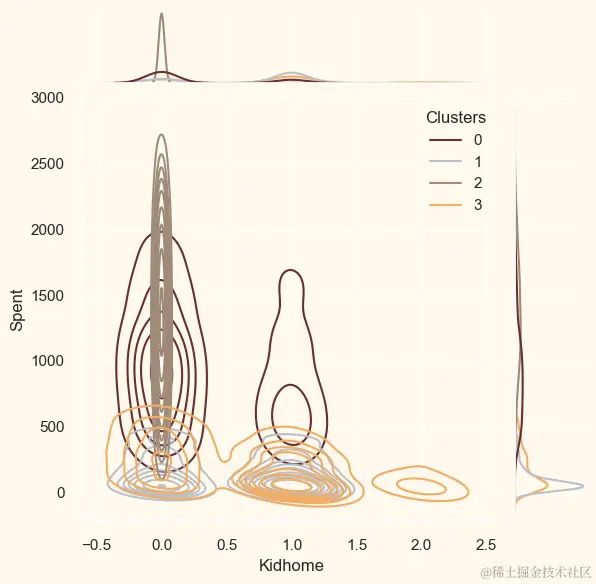

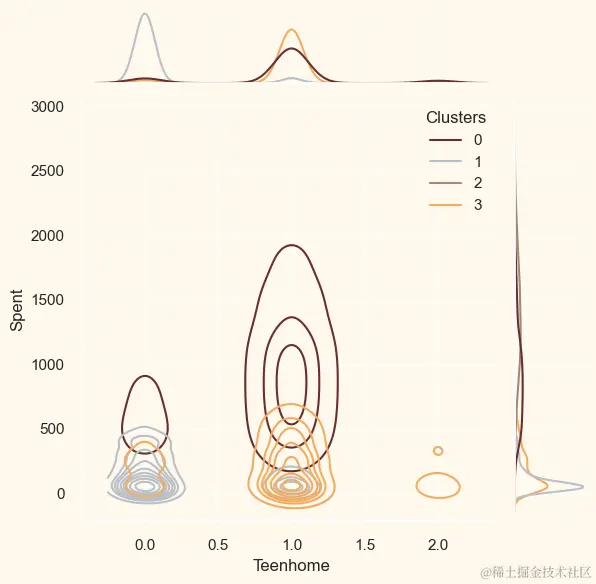

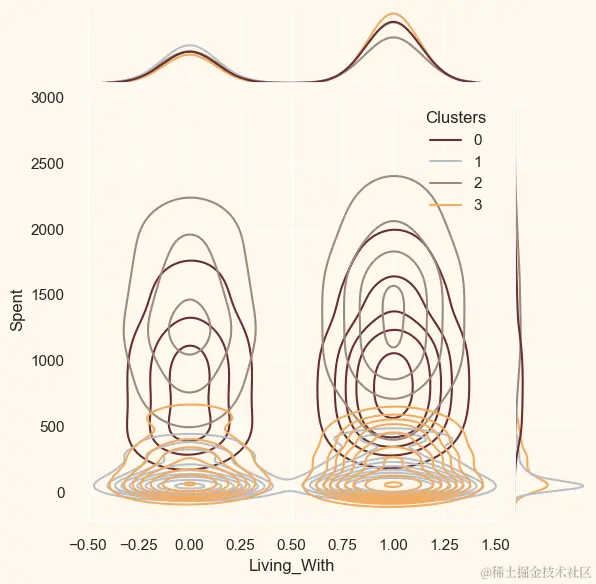

Personal = ["Kidhome","Teenhome","Customer_For", "Age", "Children", "Family_Size", "Is_Parent", "Education","Living_With"]

In [78]:

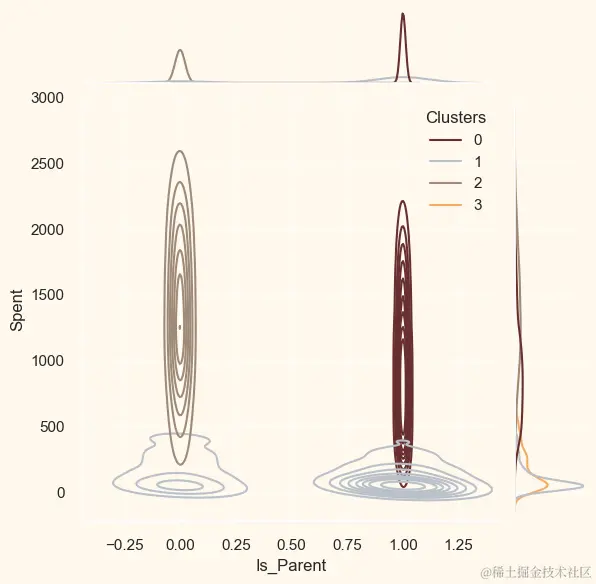

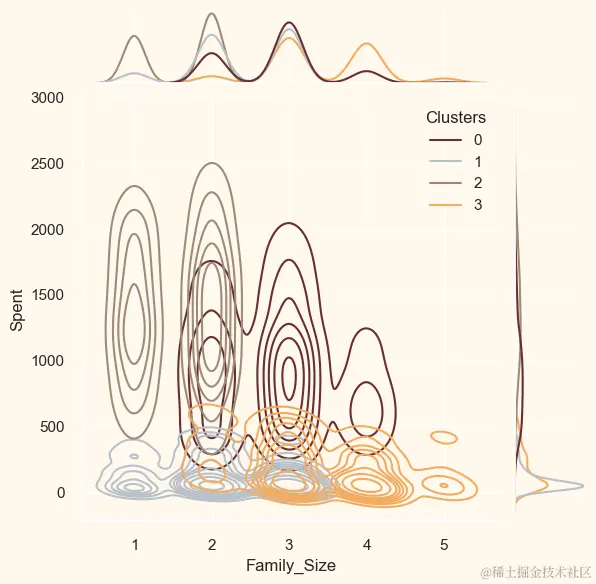

# 写法1
for col in Personal:
    plt.figure()
    sns.jointplot(x=df[col], y=df["Spent"], hue=df["Clusters"],kind="kde",palette=pal)
    plt.show()

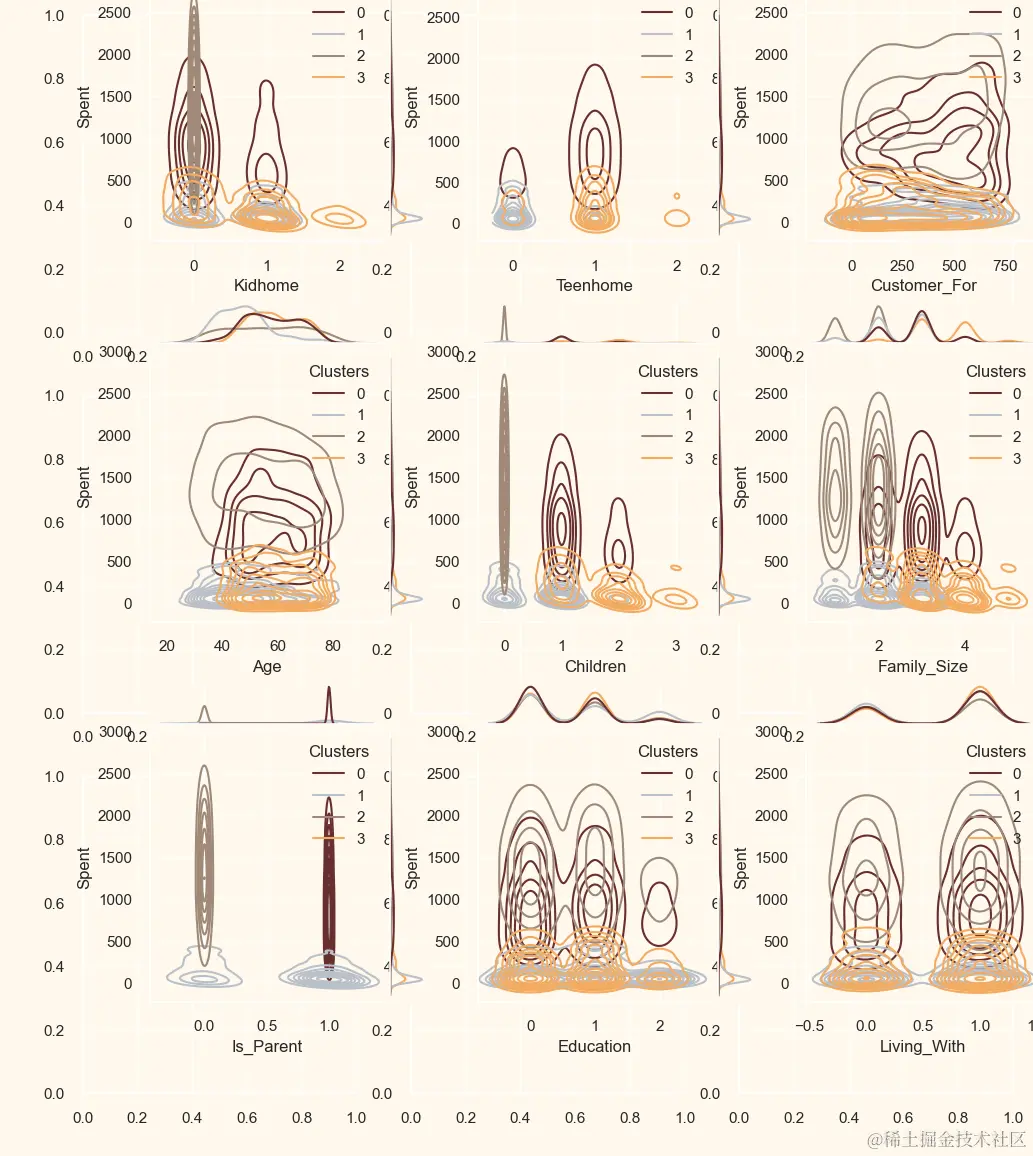

另一种写法：基于seaborn的jointplot，需要自定义

参考博文：blog.csdn.net/qq_44785318…

In [79]:

import seaborn as sns
import matplotlib.pyplot as plt
import numpy as np
from matplotlib import gridspec

class SeabornFig2Grid():
    """
    自定义类SeabornFig2Grid
    """
    def __init__(self, seaborngrid, fig,  subplot_spec):
        self.fig = fig
        self.sg = seaborngrid
        self.subplot = subplot_spec
        if isinstance(self.sg, sns.axisgrid.FacetGrid) or isinstance(self.sg, sns.axisgrid.PairGrid):
            self._movegrid()
        elif isinstance(self.sg, sns.axisgrid.JointGrid):
            self._movejointgrid()
        self._finalize()

    def _movegrid(self):
        """Move PairGrid or Facetgrid"""
        self._resize()
        n = self.sg.axes.shape[0]
        m = self.sg.axes.shape[1]
        self.subgrid = gridspec.GridSpecFromSubplotSpec(n,m, subplot_spec=self.subplot)
        for i in range(n):
            for j in range(m):
                self._moveaxes(self.sg.axes[i,j], self.subgrid[i,j])

    def _movejointgrid(self):
        """ Move Jointgrid """
        h= self.sg.ax_joint.get_position().height
        h2= self.sg.ax_marg_x.get_position().height
        r = int(np.round(h/h2))
        self._resize()
        self.subgrid = gridspec.GridSpecFromSubplotSpec(r+1,r+1, subplot_spec=self.subplot)

        self._moveaxes(self.sg.ax_joint, self.subgrid[1:, :-1])
        self._moveaxes(self.sg.ax_marg_x, self.subgrid[0, :-1])
        self._moveaxes(self.sg.ax_marg_y, self.subgrid[1:, -1])

    def _moveaxes(self, ax, gs):
        ax.remove()
        ax.figure=self.fig
        self.fig.axes.append(ax)
        self.fig.add_axes(ax)
        ax._subplotspec = gs
        ax.set_position(gs.get_position(self.fig))
        ax.set_subplotspec(gs)

    def _finalize(self):
        plt.close(self.sg.fig)
        self.fig.canvas.mpl_connect("resize_event", self._resize)
        self.fig.canvas.draw()

    def _resize(self, evt=None):
        self.sg.fig.set_size_inches(self.fig.get_size_inches())

In [80]:

fig, axes = plt.subplots(3, 3, figsize=(12,14))

g0 = sns.jointplot(ax=axes[0,0], data=df, x="Kidhome",  y="Spent", hue="Clusters",kind="kde", palette=pal)
g1 = sns.jointplot(ax=axes[0,1], data=df, x="Teenhome", y="Spent", hue="Clusters",kind="kde", palette=pal)
g2 = sns.jointplot(ax=axes[0,2], data=df, x="Customer_For",  y="Spent", hue="Clusters",kind="kde", palette=pal)
g3 = sns.jointplot(ax=axes[1,0], data=df, x="Age", y="Spent", hue="Clusters",kind="kde", palette=pal)
g4 = sns.jointplot(ax=axes[1,1], data=df, x="Children",  y="Spent", hue="Clusters",kind="kde", palette=pal)
g5 = sns.jointplot(ax=axes[1,2], data=df, x="Family_Size", y="Spent", hue="Clusters",kind="kde", palette=pal)
g6 = sns.jointplot(ax=axes[2,0], data=df, x="Is_Parent",  y="Spent", hue="Clusters",kind="kde", palette=pal)
g7 = sns.jointplot(ax=axes[2,1], data=df, x="Education",  y="Spent", hue="Clusters",kind="kde", palette=pal)
g8 = sns.jointplot(ax=axes[2,2], data=df, x="Living_With", y="Spent", hue="Clusters",kind="kde", palette=pal)

gs = gridspec.GridSpec(3,3)
mg0 = SeabornFig2Grid(g0, fig, gs[0])
mg1 = SeabornFig2Grid(g1, fig, gs[1])
mg2 = SeabornFig2Grid(g2, fig, gs[2])
mg0 = SeabornFig2Grid(g3, fig, gs[3])
mg1 = SeabornFig2Grid(g4, fig, gs[4])
mg2 = SeabornFig2Grid(g5, fig, gs[5])
mg0 = SeabornFig2Grid(g6, fig, gs[6])
mg1 = SeabornFig2Grid(g7, fig, gs[7])
mg2 = SeabornFig2Grid(g8, fig, gs[8])

plt.show()

完整图形的显示

	Clusters	All_AcceptedCmp	Count
0	0	0	427
1	0	1	94
2	0	2	25
3	0	3	8
4	0	4	2
5	1	0	545
6	1	1	52
7	1	2	1
8	2	0	280
9	2	1	119
10	2	2	51
11	2	3	36
12	2	4	9
13	3	0	502
14	3	1	57
15	3	2	4

	Clusters	All_AcceptedCmp	Count
0	0	0	427
1	0	1	94
2	0	2	25
3	0	3	8
4	0	4	2
5	1	0	545
6	1	1	52
7	1	2	1
8	2	0	280
9	2	1	119
10	2	2	51
11	2	3	36
12	2	4	9
13	3	0	502
14	3	1	57
15	3	2	4

	Clusters	All_AcceptedCmp	Count
0	0	0	427
1	0	1	94
2	0	2	25
3	0	3	8
4	0	4	2
5	1	0	545
6	1	1	52
7	1	2	1
8	2	0	280
9	2	1	119
10	2	2	51
11	2	3	36
12	2	4	9
13	3	0	502
14	3	1	57
15	3	2	4
