项目简介

本项目灵感来源于 yihong0618 大佬的 python 版本,项目地址:yihong0618/2023,用一句中国古诗词作为 prompt,通过 Bing DALL-E-3 生成 AI 图片,通过 Bot 每天发布在 Telegram 频道。

我用 Node.js 实现了一遍,用 GitHub Action 每天自动运行,通过 Astro 构建网站,GitHub 地址是:liruifengv/daily-poetry-image,这里是 线上围观地址

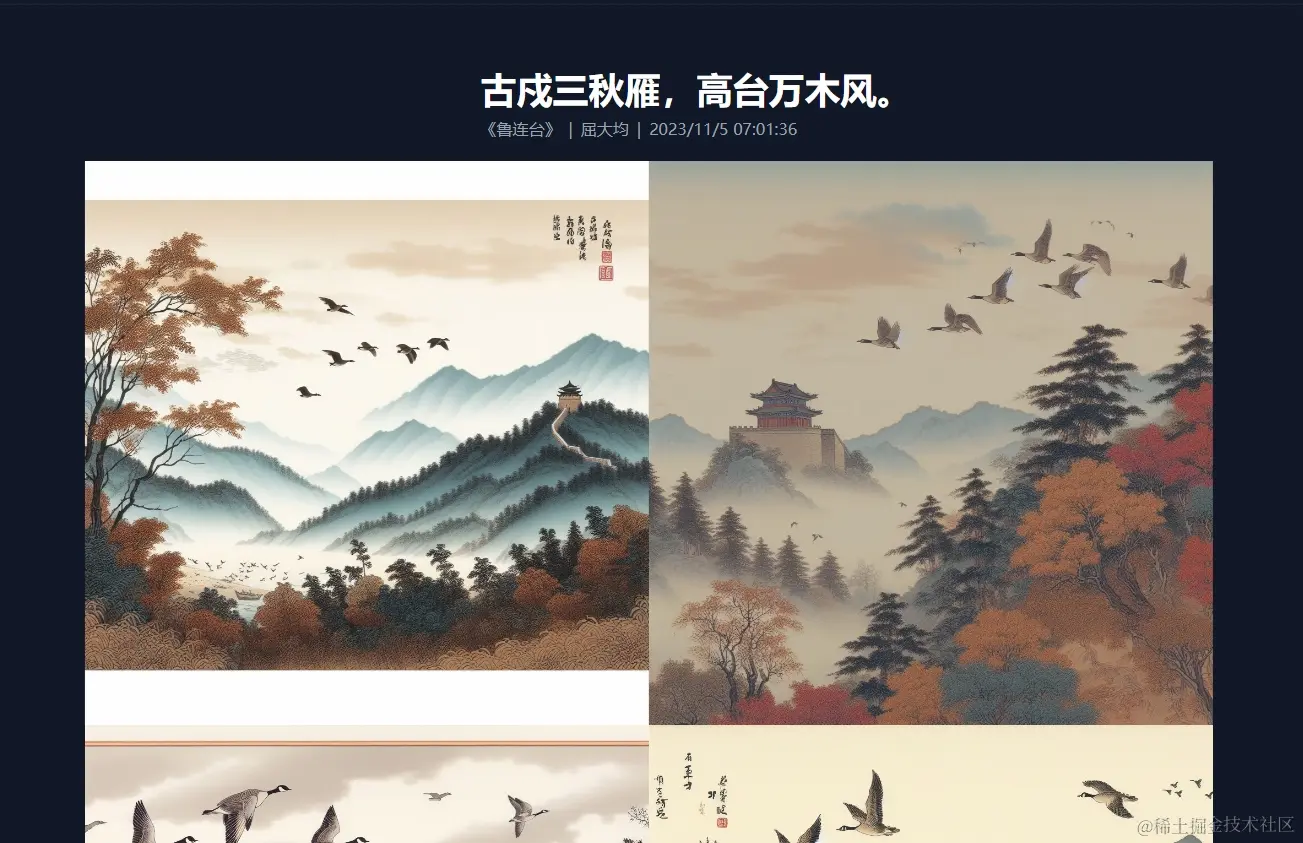

截图

本篇文章主要介绍项目的实现过程。

所用技术

  • Bing Image DALL-E-3,使用 Bing 的画图 AI,生成图片。
  • Node.js 代码实现。
  • GitHub Action 每天自动触发。
  • 诗词由 今日诗词 提供 API。
  • 网站使用 Astro 构建。

项目实现

BingImageCreator

核心部分是通过 Bing DALL-E-3 生成图片,这里我用 Node.js 封装了一个类,方便使用。

export class BingImageCreator {
    protected _cookie: string;
    constructor({ cookie }: { cookie: string }) {
        this._cookie = cookie;
        // bing cookie 是必传项。
        if (!this._cookie) {
            throw new Error("Bing cookie is required");
        }
    }
    // 创建图片方法
    async createImage(prompt: string) {
        // 对传进来的 prompt 进行 url 编码
        const encodedPrompt = encodeURIComponent(prompt);
        let formData = new FormData();
        formData.append("q", encodedPrompt);
        formData.append("qa", "ds");
        console.log("Sending request...");
        // 调用的 bing 画图的接口。
        const url = `${BING_URL}/images/create?q=${encodedPrompt}&rt=3&FORM=GENCRE`;
        try {
            // 注意这个接口请求成功之后返回的不是 200,而是重定向。
            // 我们需要拿到重定向的 url,然后再次请求。
            const { redirect_url, request_id } = await this.fetchRedirectUrl(url, formData);
            // 通过重定向的 url,再次请求,获取图片。
            return this.fetchResult(encodedPrompt, redirect_url, request_id);
        } catch (e) {
            // 如果失败,重试一次。
            console.log("retry 1 time");
            return this.fetchRedirectUrl(url, formData)
                .then((res) => {
                    return this.fetchResult(encodedPrompt, res.redirect_url, res.request_id);
                })
                .catch((e) => {
                    throw new Error(`${e.message}`);
                });
        }
    }
}

fetchRedirectUrl: 通过 Bing 画图的接口,获取重定向的 url 和 request_id。

// 获取重定向的 url
    async fetchRedirectUrl(url: string, formData: FormData) {
        const response = await fetch(url, {
            method: "POST",
            mode: "cors",
            credentials: "include",
            headers: {
                cookie: this._cookie,
                ...HEADERS,
            },
            body: formData,
            redirect: "manual", // 把 fetch 的 redirect 设置为 manual 来阻止重定向
        });
        if (response.ok) {
            // 返回200,说明请求失败了。
            throw new Error("Request failed");
        } else {
            // 302 则是成功。拿到重定向的 redirect_url 和 request_id 返回
            const redirect_url = response.headers.get("location").replace("&nfy=1", "");
            const request_id = redirect_url.split("id=")[1];
            return {
                redirect_url,
                request_id,
            };
        }
    }

fetchResult 通过 redirect_url 和 request_id 来获取图片。

    async fetchResult(encodedPrompt: string, redirect_url: string, request_id: string) {
        const cookie = this._cookie;
        try {
            await fetch(`${BING_URL}${redirect_url}`, {
                method: "GET",
                mode: "cors",
                credentials: "include",
                headers: {
                    cookie,
                    ...HEADERS,
                },
            });
        } catch (e) {
            throw new Error(`Request redirect_url failed" ${e.message}`);
        }
        // 先请求了一下 redirect_url,然后再轮询请求获取结果接口
        const getResultUrl = `${BING_URL}/images/create/async/results/${request_id}?q=${encodedPrompt}`;
        const start_wait = Date.now();
        let result = "";
        while (true) {
            console.log("Waiting for result...");
            if (Date.now() - start_wait > 200000) {
                throw new Error("Timeout");
            }

            await sleep(1000);
            result = await this.getResults(getResultUrl);
            if (result) {
                break;
            }
        }
        // 调用 parseResult 方法,解析结果
        return this.parseResult(result);
    }

parseResult 方法解析结果,拿到图片

    parseResult(result: string) {
        // 通过正则匹配 src=""
        const regex = /src="([^"]*)"/g;
        const matches = [...result.matchAll(regex)].map((match) => match[1]);
        // 下面是移除一些不合法的图片链接
        // # Remove size limit
        const normal_image_links = matches.map((link) => {
            return link.split("?w=")[0];
        });
        // Remove Bad Images(https://r.bing.com/rp/xxx)
        const safe_image_links = normal_image_links.filter((link) => !/r.bing.com\/rp/i.test(link));
        safe_image_links.length !== normal_image_links.length && console.log("Detected & Removed bad images");
        // Remove duplicates
        const unique_image_links = [...new Set(safe_image_links)];
        // No images
        if (unique_image_links.length === 0) {
            throw new Error("error_no_images");
        }
        return unique_image_links;
    }

BingImageCreator 整体代码如上,使用起来也很简单。

const bingImageCreator = new BingImageCreator({
    cookie: process.env.BING_COOKIE,
});
try {
  const images = await bingImageCreator.createImage(prompt);
} catch (e) {
  console.log(e.message);
}

这块的代码是通用化的,可以拿去实现其他的功能。

get-up.ts

这个文件是用来获取诗词的,然后把诗词当作 prompt,调用 BingImageCreator 生成图片。

import { SENTENCE_API } from "./const";
import { BingImageCreator } from "./bing-image-creator";
import type { SentenceResponse, Response } from "./types";
// 调用诗句的 api
async function getSentence(): Promise<SentenceResponse> {
    try {
        const res = await fetch(SENTENCE_API);
        const data: SentenceResponse = await res.json();
        return data;
    } catch (e) {
        throw new Error("Request Sentence failed: ", e);
    }
}
// 调用 BingImageCreator 生成图片
async function getImageBySentence(cookie: string): Promise<Response> {
    const bingImageCreator = new BingImageCreator({
        cookie: cookie,
    });

    const res = await getSentence();
    // 在 prompt 后面加上 textless,让 AI 生成的图片没有文字
    const prompt = `${res.content}, textless`;
    try {
        const images = await bingImageCreator.createImage(prompt);
        // 返回图片链接,诗词内容,诗词作者,诗词出处,诗词分类
        return {
            images,
            content: res.content,
            origin: res.origin,
            author: res.author,
            category: res.category,
        };
    } catch (error) {
        throw new Error(`Bing Image create failed: ${error.message}`);
    }
}

bin/cli.ts

这个文件,我们写了一个简单的 cli,可以通过命令行来调用,目的是为了给 GitHub Action 使用。

async function init() {
    const cwd = process.cwd();
    const argv = require("minimist")(process.argv.slice(2));
    // 获取 --cookie 参数,如果没有,抛出错误
    if (argv.cookie) {
        try {
            // 调用 getImageBySentence 方法,获取图片
            const res = await getImageBySentence(argv.cookie);
            // 这时候我们已经生成了图片,接下来我们要保存图片到 website 中
            const outputPath = path.join(cwd, "website/public");
            const imagesPath = path.join(outputPath, "images");
            if (!fs.existsSync(imagesPath)) {
                fs.mkdirSync(imagesPath);
            }
            // 在 images 目录下,创建一个以时间戳命名的文件夹,将图片放入其中
            const imagesFolderName = Date.now().toString();
            const imagesFolderPath = path.join(imagesPath, imagesFolderName);
            if (!fs.existsSync(imagesFolderPath)) {
                fs.mkdirSync(imagesFolderPath);
            }
            // 将图片放入 images 目录下的文件夹中
            res.images.forEach((image, index) => {
                // images 中是网络url,请求图片,将图片文件保存到 images 目录下的文件夹中
                const imageFileName = `${index}.jpg`;
                const imageFilePath = path.join(imagesFolderPath, imageFileName);
                // 下载图片
                fetch(image).then((res) => {
                    if (!res.ok) throw new Error(`unexpected response ${res.statusText}`);
                    pipeline(res.body, fs.createWriteStream(imageFilePath)).catch((e) => {
                        console.error("Something went wrong while saving the image", e);
                    });
                });
            });
            const options = { timeZone: "Asia/Shanghai", hour12: false };
            const outputData = {
                ...res,
                date: new Date().toLocaleString("zh-CN", options),
                localImagesPath: imagesFolderName,
            };
            // 接下来把图片保存到 website/src/content/images 目录下,使用 Astro 的 内容集合 Content Collection 来管理图片
            const contentPath = path.join(cwd, "website/src/content/images");
            // 把图片的信息保存到 json 文件中
            const contentFile = path.join(contentPath, `${imagesFolderName}.json`);
            fs.writeFileSync(contentFile, JSON.stringify(outputData));
            setTimeout(() => {
                // 为了让图片下载完毕,再退出进程
                process.exit(0);
            }, 5000);
        } catch (e) {
            console.error(e);
            process.exit(1);
        }
    } else {
        throw new Error("Please provide a cookie using the --cookie argument");
    }
}

init().catch((e) => {
    console.error(e);
});

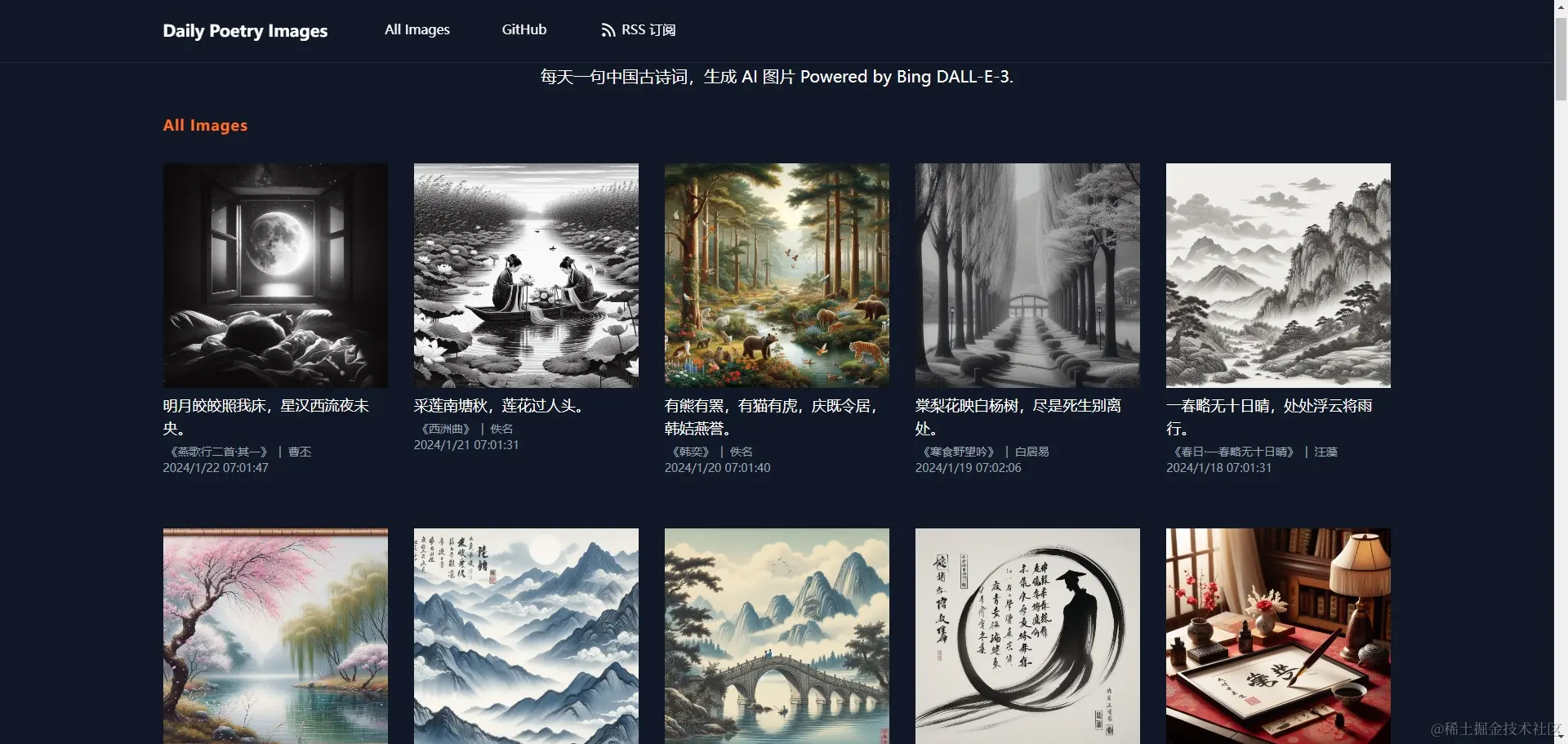

Astro website

使用 Astro 做了个网站,用来展示每天生成的诗词图片,使用 Vercel 部署。具体就不聊了,这块也可以使用其他的 web 技术栈。

GitHub Action

GitHub Action 是 GitHub 提供的 CI/CD 工具,可以通过配置文件,来实现自动化的构建、测试、部署等等。

这里我们使用 GitHub Action 来每天自动运行我们的代码,创建 .github/workflows/get_up.yml 文件:

name: ci
on:
    schedule:
        # 中国时间早上7点执行
        - cron: "0 23 * * *"
jobs:
    CreateImage:
        runs-on: ubuntu-latest
        permissions:
            contents: write
        strategy:
            matrix:
                node-version: [18]
        steps:
            - name: Checkout 🛎️
              uses: actions/checkout@v3
              with:
                  persist-credentials: false

            - name: Install PNPM
              uses: pnpm/action-setup@v2
              with:
                  version: ^7.0

            - name: Install Deps
              run: pnpm install --no-frozen-lockfile

            - name: Build
              run: pnpm run build

            - name: Create Image
              run: pnpm run start --cookie "${{ secrets.BING_COOKIE }}"

            - name: Push New Pic
              run: |
                  git config --local user.email "liruifeng1024@gmail.com"
                  git config --local user.name "${{ github.actor }}"
                  git remote set-url origin https://${{ github.actor }}:${{ secrets.GITHUB_TOKEN }}@github.com/${{ github.repository }}
                  git add .
                  git commit -m "generated today pic" || echo "no need to commit "
                  git pull origin main --rebase
                  git push -f || echo "no file change"

解释一下以上的配置文件:

  • "0 23 * * *":定时任务,每天早上7点执行。
  • permissions: contents: write:允许 GitHub Action 写入文件。
  • 然后执行了安装依赖和打包的命令。
  • 执行 npm run start,传入了 cookie,这里的 cookie 是通过 GitHub Action 的 secrets 传入的,这样就不会暴露在代码中了。
  • 这时候生成的图片是在 CI 环境中的,我们配置用户和 GITHUB_TOKEN 等,提交到 GitHub 仓库中。

配置 GitHub secrets

首先,我们打开 Bing 画图,登录自己的账号,然后打开开发者工具,找到 cookie,复制下来。

bing-cookie

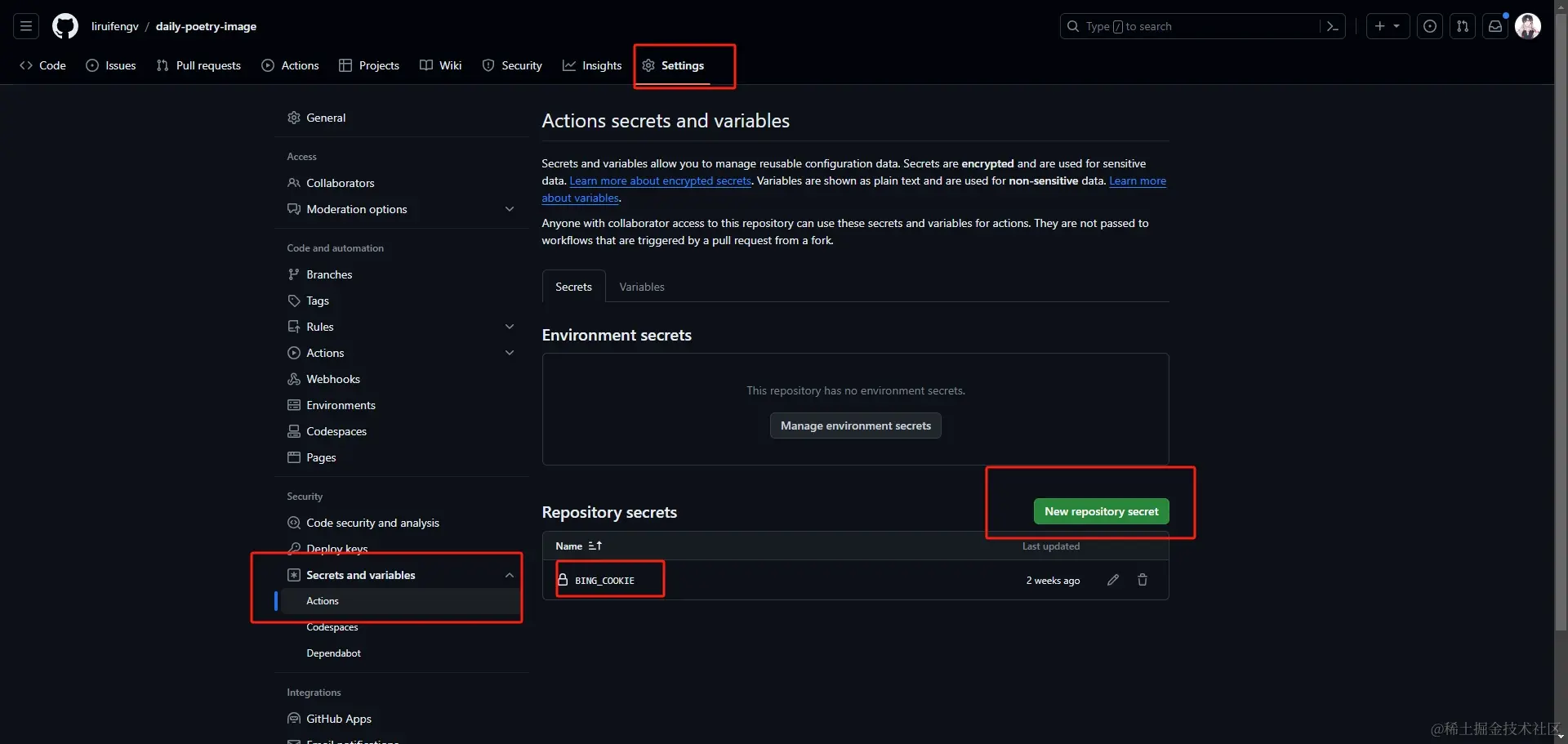

把这一大坨 cookie 复制到 GitHub 仓库的 secrets 中,名字叫 BING_COOKIE

github-secret

到此就大功告成啦,每天早上7点,就会自动运行,生成图片,然后提交到 GitHub 仓库中。GitHub 的提交又会触发 Vercel 的自动部署,网站也就自动更新啦。

总结

这个项目已经稳定运行3个月啦,每天也有一点日活,欢迎大家围观。全部代码请看我的 GitHub,也可以自己 fork 一份,改成自己喜欢的样子。或者也可以修改成例如 OpenAI 的画图接口;或者玩一些其他的花样。

注意事项:

  • 由于这不是 Bing 公开的 OpenAPI,而是从网站中提取的,可能有风险。
  • Bing 会时不时的更新风控策略,导致生成失败,失败之后可以查看 yihong 大佬的原仓库或者我的仓库进行更新。
  • Bing 的 cookie 大概一个月时间过期。
