【源码阅读】yocto-queue —— 一个微型的链表实现的队列库

33 阅读3分钟

链表

链表是一种常见的基础数据结构,是一种线性表,但是并不会按线性的顺序存储数据,而是在每一个节点里存到下一个节点的指针(Pointer)。

链表有一个数据域和一个指针域。

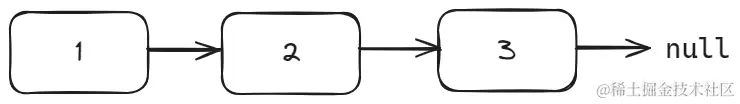

在 JavaScript 中,下面的 Node 的实例对象就可以用来表示一个链表节点:

function Node(value) {
    this.value = value;
    this.next = null;
}
const head = new Node(1);
head.next = new Node(2);
head.next.next = new Node(3);


队列

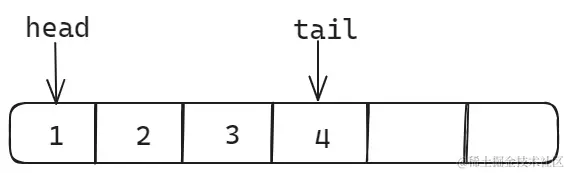

队列是一种先进先出的数据结构,队列在尾部添加新元素,并从顶部移除元素。


队列在 JavaScript 中也可以用数组来表示:

const queue = [];
queue.push(1);
queue.push(2);
queue.shift(); // 1

但是,数组并不适合用来表示队列,因为数组的 shift 操作的时间复杂度为 O(n)。

yocto-queue 库

yocto-queue 的介绍如下:

You should use this package instead of an array if you do a lot of Array#push() and Array#shift() on large arrays, since Array#shift() has linear time complexity O(n) while Queue#dequeue() has constant time complexity O(1). That makes a huge difference for large arrays.

可以看到,不论是 入队 还是 出队yocto-queue 的复杂度都是 O(1),性能是非常好的。

API

queue = new Queue()

  • .enqueue(value): 入队,时间复杂度: O(1)
  • .dequeue(): 出队,时间复杂度: O(1)
  • .clear(): 清空队列
  • .size: 队列的大小

源码实现

下面就是 yocto-queue 的所有代码,只有 50 行左右,整体来看代码非常简洁,也没什么好解读的,加些注释即可。

class Node {
	value;
	next;
	constructor(value) {
		this.value = value;
	}
}

/**
 * 链表实现的队列
 * 私有属性: #head, #tail, #size
 */
class Queue {
	// 指向队列的头部
	#head;
	// 指向队列的尾部
	#tail;
	#size;
	constructor() {
		this.clear();
	}
	enqueue(value) {
		const node = new Node(value);
		if (this.#head) {
			this.#tail.next = node;
			this.#tail = node;
		} else {
			this.#head = node;
			this.#tail = node;
		}
		this.#size++;
	}
	dequeue() {
		const current = this.#head;
		if (!current) {
			return;
		}
		this.#head = this.#head.next;
		this.#size--;
		return current.value;
	}
	clear() {
		this.#head = undefined;
		this.#tail = undefined;
		this.#size = 0;
	}
	get size() {
		return this.#size;
	}
	// 实现了迭代器属性,意味着实例对象是可迭代的,同时也是一个生成器
	// usage:
	// case 1: `...` spreading symbol
	// case 2: `for ... of`
	* [Symbol.iterator]() {
		let current = this.#head;
		while (current) {
			yield current.value;
			current = current.next;
		}
	}
}

使用 typeScript 重写一下

class Node<T> {
	value: T;
	next: Node<T> | null = null;
	constructor(value: T) {
		this.value = value;
	}
}

export class Queue<T> {
	#head: Node<T> | null = null;
	#tail: Node<T> | null = null;
	#size: number = 0;
	constructor() {
		this.clear();
	}
	enqueue(value: T) {
		const node = new Node<T>(value);
		if (this.#head) {
			this.#tail!.next = node;
			this.#tail = node;
		} else {
			this.#head = node;
			this.#tail = node;
		}
		this.#size++;
	}
	dequeue() {
		const current = this.#head;
		if (!current) {
			return;
		}
		this.#head = current.next;
		this.#size--;
		return current.value;
	}
	clear() {
		this.#head = null;
		this.#tail = null;
		this.#size = 0;
	}
	get size() {
		return this.#size;
	}
	* [Symbol.iterator]() {
		let current = this.#head;
		while (current) {
			yield current.value;
			current = current.next;
		}
	}
}

vitest 单元测试

这里可以直接借用 ChatGPT 帮我们生成对应的单元测试代码,然后在修改一下对应的数据即可,奈斯。

🐮🐴 打工人的一天啊。

describe('Queue', () => {
  const queue = new Queue<string>();

  test('should create a new queue', () => {
    expect(queue).toBeInstanceOf(Queue);
  });

  test('should enqueue a value', () => {
    queue.enqueue('🐮🐴');
    queue.enqueue('🐮🐴');
    expect(queue.size).toBe(2);
  });

  test('should dequeue a value', () => {
    queue.clear();
    queue.enqueue('🐮🐴');
    queue.enqueue('🐮🐴');
    queue.enqueue('🐮🐴');
    expect(queue.dequeue()).toBe('🐮🐴');
    expect(queue.size).toBe(2);
  });

  test('should clear the queue', () => {
    queue.enqueue('🐮🐴');
    queue.enqueue('🐮🐴');
    queue.enqueue('🐮🐴');
    queue.clear();
    expect(queue.size).toBe(0);
  });

  test('should iterate over the values in the queue', () => {
    queue.enqueue('🐮🐴');
    queue.enqueue('🐮🐴');
    queue.enqueue('🐮🐴');
    const values = [...queue];
    expect(values).toEqual(['🐮🐴', '🐮🐴', '🐮🐴']);
  });
});

总结

总的来说,yocto-queue 代码实现是非常简单的,代码量很少,但是我们也可以从这个npm包中学到不少东西。同时可以延伸一下,比如使用 typescript 重写该实现,然后使用 vitest 进行单元测试。
