In Part I of this book, we discussed aspects of data systems that apply when data is stored on a single machine. Now, in Part II, we move up a level and ask: what happens if multiple machines are involved in storage and retrieval of data?

There are various reasons why you might want to distribute a database across multi‐ ple machines:

Scalability

If your data volume, read load, or write load grows bigger than a single machine can handle, you can potentially spread the load across multiple machines.

Fault tolerance/high availability

If your application needs to continue working even if one machine (or several machines, or the network, or an entire datacenter) goes down, you can use multiple machines to give you redundancy. When one fails, another one can take over.

Latency

If you have users around the world, you might want to have servers at various locations worldwide so that each user can be served from a datacenter that is geographically close to them. That avoids the users having to wait for network pack‐ ets to travel halfway around the world.

There are two common ways data is distributed across multiple nodes:

Replication

Keeping a copy of the same data on several different nodes, potentially in differ‐ ent locations. Replication provides redundancy: if some nodes are unavailable, the data can still be served from the remaining nodes. Replication can also help improve performance.

Partitioning

Splitting a big database into smaller subsets called partitions so that different par‐ titions can be assigned to different nodes (also known as sharding).

CHAPTER 5 Replication

there are several reasons why you might want to replicate data:

1. To keep data geographically close to your users (and thus reduce latency)
2. To allow the system to continue working even if some of its parts have failed (and thus increase availability)
3. To scale out the number of machines that can serve read queries (and thus increase read throughput)

Leaders and Followers

Each node that stores a copy of the database is called a replica. Every write to the database needs to be processed by every replica; otherwise, the replicas would no longer contain the same data. The most common solution for this is called leader-based replication (also known as active/passive or master–slave replication)

An important detail of a replicated system is whether the replication happens synchronously or asynchronously.

The advantage of synchronous replication is that the follower is guaranteed to have an up-to-date copy of the data that is consistent with the leader. If the leader sud‐ denly fails, we can be sure that the data is still available on the follower. The disad‐ vantage is that if the synchronous follower doesn’t respond (because it has crashed, or there is a network fault, or for any other reason), the write cannot be processed. The leader must block all writes and wait until the synchronous replica is available again.

Setting Up New Followers

1. Take a consistent snapshot of the leader’s database at some point in time—if pos‐ sible, without taking a lock on the entire database. Most databases have this fea‐ ture, as it is also required for backups. In some cases, third-party tools are needed, such as innobackupex for MySQL
2. Copy the snapshot to the new follower node.
3. The follower connects to the leader and requests all the data changes that have happened since the snapshot was taken. This requires that the snapshot is associated with an exact position in the leader’s replication log. That position has various names: for example, PostgreSQL calls it the log sequence number, and MySQL calls it the binlog coordinates.
4. When the follower has processed the backlog of data changes since the snapshot, we say it has caught up. It can now continue to process data changes from the leader as they happen.

Handling Node Outages

Follower failure: Catch-up recovery

Leader failure: Failover

Handling a failure of the leader is trickier: one of the followers needs to be promoted to be the new leader, clients need to be reconfigured to send their writes to the new leader, and the other followers need to start consuming data changes from the new leader. This process is called failover.

Implementation of Replication Logs

Statement-based replication

In the simplest case, the leader logs every write request (statement) that it executes and sends that statement log to its followers.

Write-ahead log (WAL) shipping

log is an append-only sequence of bytes containing all writes to the database. We can use the exact same log to build a replica on another node

Logical (row-based) log replication

A logical log for a relational database is usually a sequence of records describing writes to database tables at the granularity of a row

Reading Your Own Writes

read-after-write consistency, also known as read-your-writes consistency. This is a guarantee that if the user reloads the page, they will always see any updates they submitted themselves.

There are various possible techniques.

1. When reading something that the user may have modified, read it from the leader; otherwise, read it from a follower.
2. The client can remember the timestamp of its most recent write—then the sys‐ tem can ensure that the replica serving any reads for that user reflects updates at least until that timestamp. The timestamp could be a logical timestamp (something that indicates ordering of writes, such as the log sequence number)

Monotonic Reads

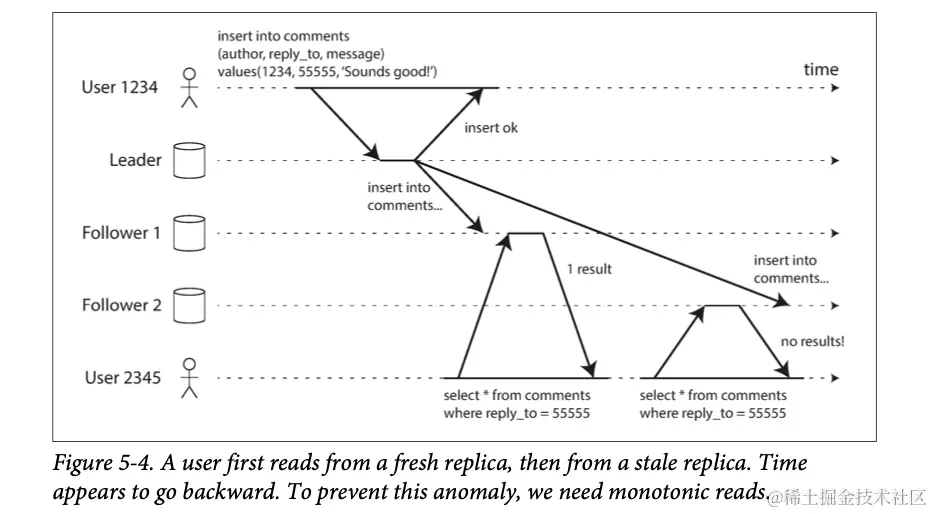

an anomaly that can occur when reading from asynchronous followers is that it’s possible for a user to see things moving backward in time.

One way of achieving monotonic reads is to make sure that each user always makes their reads from the same replica (different users can read from different replicas). For example, the replica can be chosen based on a hash of the user ID, rather than randomly. However, if that replica fails, the user’s queries will need to be rerouted to another replica.

Consistent Prefix Reads

Our third example of replication lag anomalies concerns violation of causality.

One solution is to make sure that any writes that are causally related to each other are written to the same partition—but in some applications that cannot be done efficiently. There are also algorithms that explicitly keep track of causal dependencies

Multi-Leader Replication

Leader-based replication has one major downside: there is only one leader, and all writes must go through it.iv If you can’t connect to the leader for any reason, for example due to a network interruption between you and the leader, you can’t write to the database.

multi-leader configuration (also known as master–master or active/active replication). In this setup, each leader simultaneously acts as a follower to the other leaders.

It rarely makes sense to use a multi-leader setup within a single datacenter, because the benefits rarely outweigh the added complexity.

Use cases

Multi-datacenter operation

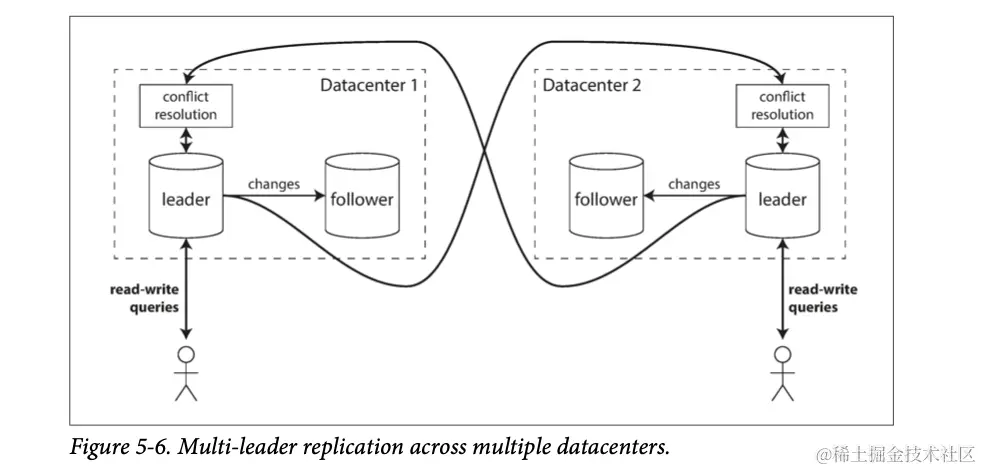

In a multi-leader configuration, you can have a leader in each datacenter

Clients with offline operation

Another situation in which multi-leader replication is appropriate is if you have an application that needs to continue to work while it is disconnected from the internet.

In this case, every device has a local database that acts as a leader (it accepts write requests), and there is an asynchronous multi-leader replication process (sync) between the replicas of your calendar on all of your devices.

Collaborative editing

Real-time collaborative editing applications allow several people to edit a document simultaneously.

for faster collaboration, you may want to make the unit of change very small (e.g., a single keystroke) and avoid locking. This approach allows multiple users to edit simultaneously, but it also brings all the challenges of multi-leader replication, including requiring conflict resolution

Handling Write Conflicts

The biggest problem with multi-leader replication is that write conflicts can occur, which means that conflict resolution is required.

Conflict avoidance

The simplest strategy for dealing with conflicts is to avoid them: if the application can ensure that all writes for a particular record go through the same leader, then con‐ flicts cannot occur. Since many implementations of multi-leader replication handle conflicts quite poorly, avoiding conflicts is a frequently recommended approach

Converging toward a consistent state

There are various ways of achieving convergent conflict resolution:

1. Give each write a unique ID (e.g., a timestamp, a long random number, a UUID, or a hash of the key and value), pick the write with the highest ID as the winner, and throw away the other writes.
2. Give each replica a unique ID, and let writes that originated at a higher- numbered replica always take precedence over writes that originated at a lower- numbered replica.
3. Record the conflict in an explicit data structure that preserves all information, and write application code that resolves the conflict at some later time (perhaps by prompting the user)......-> confluence page editing

Custom conflict resolution logic

As the most appropriate way of resolving a conflict may depend on the application, most multi-leader replication tools let you write conflict resolution logic using appli‐ cation code.

Leaderless Replication

Some data storage systems take a different approach, abandoning the concept of a leader and allowing any replica to directly accept writes from clients.

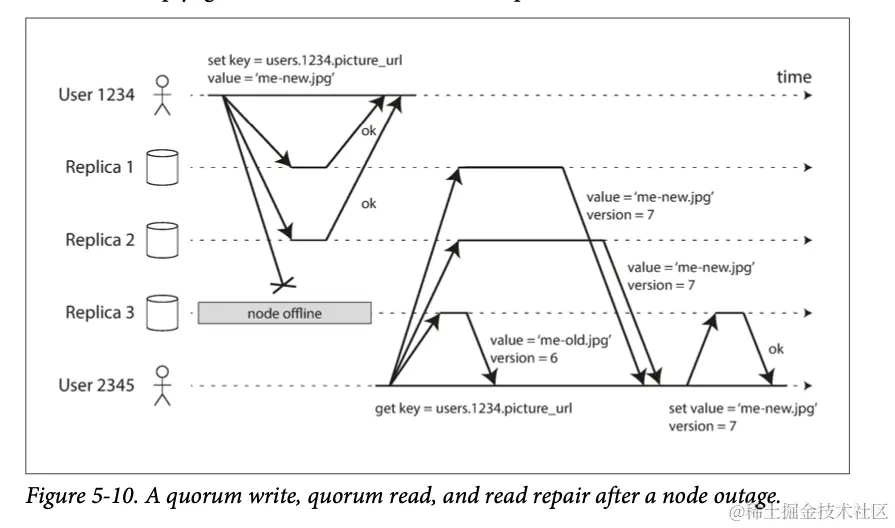

when a client reads from the database, it doesn’t just send its request to one replica: read requests are also sent to several nodes in parallel. The client may get different responses from different nodes; i.e., the up-to-date value from one node and a stale value from another. Version numbers are used to determine which value is newer

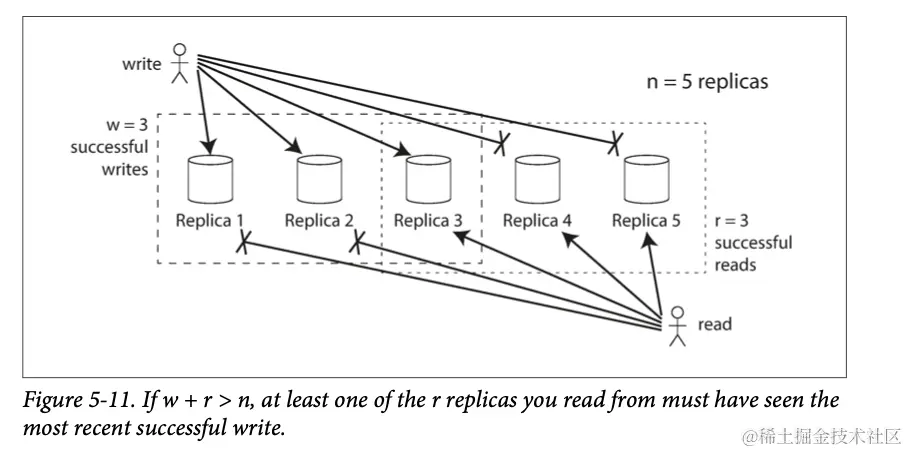

Clients send each write to several nodes, and read from several nodes in parallel in order to detect and correct nodes with stale data.

Version vectors

The collection of version numbers from all the replicas is called a version vector
