通过 docker 搭建 harbor以 2.7.4 版本为例(默认已安装 docker): 下载安装 tar 包下载

以 2.7.4 版本为例(默认已安装 docker):

下载安装 tar 包

curl -L https://github.com/goharbor/harbor/releases/download/v2.7.4/harbor-offline-installer-v2.7.4.tgz -o harbor.tar.gz

下载完成后会生成一个 harbor.tar.gz 文件。

解压 tar 文件
```
tar -xvf harbor.tar.gz
```
解压完成后会生成一个 harbor 文件夹。

修改 yml 文件

上一步生成的 harbor 文件夹内包含了一个 harbor.yml.tmpl 文件，拷贝该文件为 harbor.yml:

cp harbor.yml.tmpl harbor.yml

修改 yml，hostname 修改为本机 IP，port 修改为自己想要的端口，去掉 https 的内容:

# The IP address or hostname to access admin UI and registry service.
# DO NOT use localhost or 127.0.0.1, because Harbor needs to be accessed by external clients.
# 需要注意的是 key、value 之间是有空格的
hostname: 192.168.30.11

# http related config
http:
  # port for http, default is 80. If https enabled, this port will redirect to https port
  port: 18082
# https related config
# https:
#   # https port for harbor, default is 443
#   port: 443
#   # The path of cert and key files for nginx
#   certificate: /your/certificate/path
#   private_key: /your/private/key/path

安装 harbor

在 harbor 目录执行:

bash install.sh

安装成功后，会出现:

✔ Network harbor_harbor        Created                                                                                                                                       0.1s
✔ Container harbor-log         Started                                                                                                                                       1.7s
✔ Container redis              Started                                                                                                                                       1.9s
✔ Container registryctl        Started                                                                                                                                       2.3s
✔ Container registry           Started                                                                                                                                       2.3s
✔ Container harbor-db          Started                                                                                                                                       1.9s
✔ Container harbor-portal      Started                                                                                                                                       2.3s
✔ Container harbor-core        Started                                                                                                                                       2.6s
✔ Container harbor-jobservice  Started                                                                                                                                       3.6s
✔ Container nginx              Started                                                                                                                                       3.7s
✔ ----Harbor has been installed and started successfully.----

这个时候安装就成功了。可以通过以下命令管理 docker:

# 查看
docker-compose ps

# 启动
docker-compose up -d

# 停止
docker-compose down

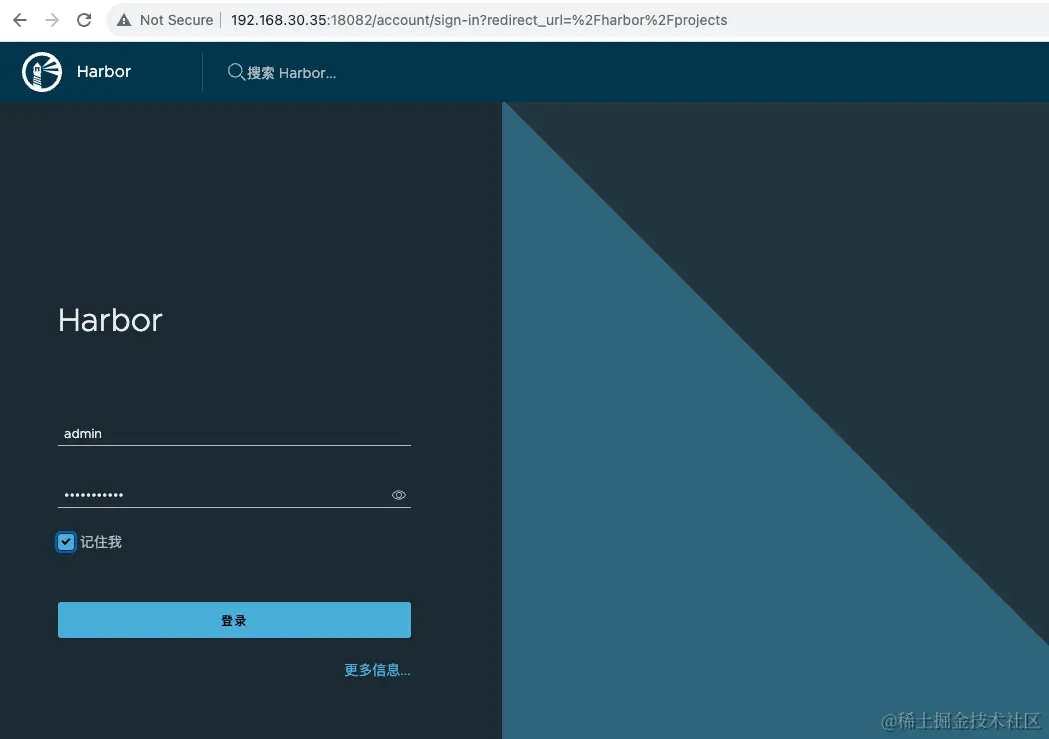

访问 harbor

安装成功后就可以访问 harbor 了，访问地址为 yml 配置地址，我们这里是http://192.168.30.11:18082/，默认的账号密码为 admin/Harbor12345(yml 文件配置)。
配置镜像源

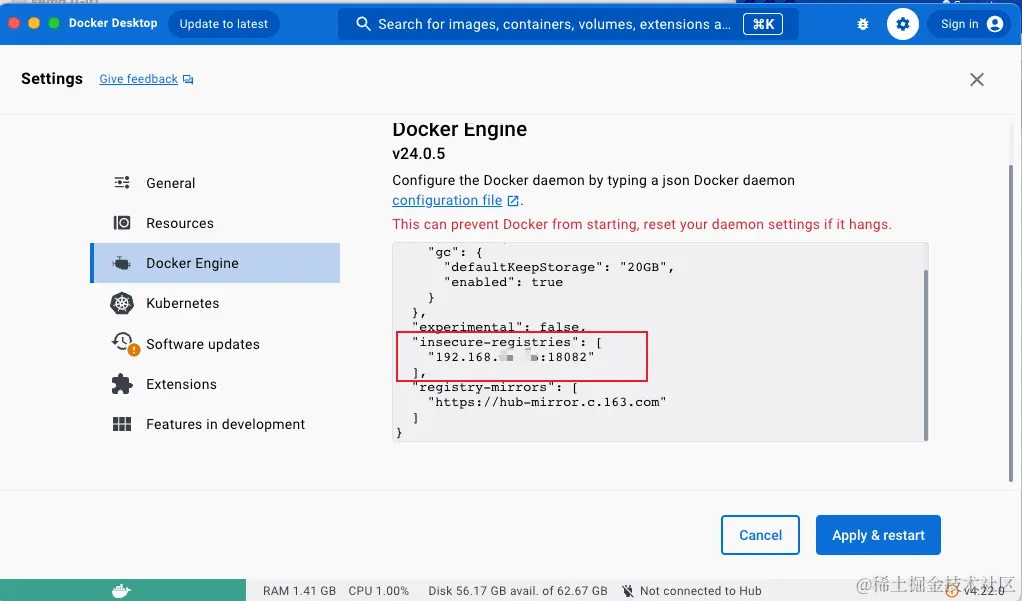

我们通过 http 访问需要配置 insecure-registries。 mac 上可以通过界面 setting=>Docker Engine 设置镜像源:
```
{
  "insecure-registries": ["192.168.30.11:18082"]
}
```
修改完后点击 Apply。

在 linux 上一般为/etc/docker/daemon.json文件，修改完后重启 docker:
```
systemctl daemon-reload
systemctl restart docker
```

//登录某个用户
docker login 192.168.30.11:18082 -u admin

tag

将本地已经生成好的某个 image(如 xhm-nginx:0.0.1) 打标签:

//docker tag local-image:tag your-registry-url/your-repository:tag
docker tag xhm-nginx:0.0.1 192.168.30.11:18082/library/xhm-nginx:0.0.1

推送镜像

//docker push your-registry-url/your-repository:tag
docker push 192.168.30.11:18082/library/xhm-nginx:0.0.1

自此，就可以推送镜像到私有部署的地址了。
