超图系列 - 绘制自定义点位

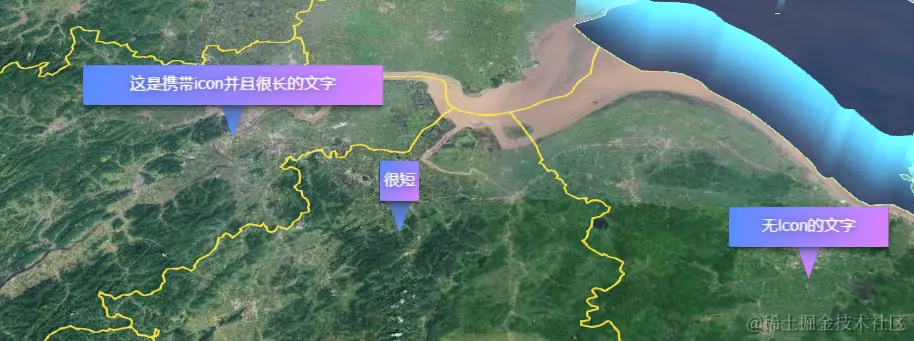

效果

使用

const points = [
    { name: '这是携带icon并且很长的文字', theme: 'icon', center: [120.153576, 30.287459] },
    { name: '很短', theme: 'icon', center: [120.582112, 29.997117] },
    { name: '无Icon的文字', theme: 'normal', center: [121.549792, 29.868388] },
];
new LayerBoxOperations('LevelOne', points, { show: true });

封装方法

// SuperMap3D实例或Cesium实例
import SuperMap3DLayer from '@/pages/screen/SuperMap3DLayer';

interface Theme {
    bg: string[];
    arrow: string[];
    icon?: string;
}

interface Themes {
    normal: Theme;
    icon: Theme;
}
interface Options {
    show: boolean;
    theme?: 'normal' | 'town' | 'village' | 'province' | 'country';
}
export default class LayerBoxOperations {
    points: any;

    private entities: any;

    private options: any;

    private themes: Themes;

    private layerName: string;

    constructor(layerName: string, points: any[], options) {
        this.layerName = layerName;
        this.points = [
            { name: '这是携带icon并且很长的文字', theme: 'icon', center: [120.153576, 30.287459] },
            { name: '很短', theme: 'icon', center: [120.582112, 29.997117] },
            { name: '无Icon的文字', theme: 'normal', center: [121.549792, 29.868388] },
        ];
        this.options = options;
        this.themes = {
            normal: {
                bg: ['#558DFF', '#DF82FF'],
                arrow: ['rgba(85,141,255,0)', '#DF82FF'],
            },
            icon: {
                bg: ['#558DFF', '#DF82FF'],
                arrow: ['rgba(38,55,95,0)', '#6699FF'],
                icon: 'bg_g.png',
            },
        };

        this.entities = [];
        this.renderPoints();
    }

    createGradientTextImage(text) {
        return new Promise((resolve) => {
            // 创建一个 canvas 元素
            const canvas = document.createElement('canvas');
            const context = canvas.getContext('2d');

            const option = this.themes[theme];
            const hasIcon = theme === 'ICON';
            const baseText = 20;
            // 根据文字长度不同 设置 canvas 的大小
            canvas.width = baseText * text.length;
            if (hasIcon) {
                canvas.width += 30;
            }
            canvas.height = 86;
            // 画出左下角的三角形
            context.beginPath();
            context.moveTo(canvas.width / 2 - 15, 30);
            context.lineTo(canvas.width / 2 + 15, 30);
            context.lineTo(canvas.width / 2, 72);
            context.closePath();

            const gradient2 = context.createLinearGradient(15, 0, 15, 72);
            gradient2.addColorStop(0, option.arrow[0]);
            gradient2.addColorStop(1, option.arrow[1]);
            // 使用相同的渐变来填充三角形
            context.fillStyle = gradient2;
            context.fill();

            // 创建一个渐变
            const gradient = context.createLinearGradient(0, 0, canvas.width, 40);
            gradient.addColorStop(0, option.bg[0]);
            gradient.addColorStop(1, option.bg[1]);

            // 设置 context 的属性
            context.fillStyle = gradient;
            context.font = '16px Arial';
            context.textAlign = 'center';
            context.textBaseline = 'middle';
            context.shadowColor = 'rgba(0, 0, 0, 0.5)'; // 阴影颜色
            context.shadowBlur = 8; // 阴影模糊度
            context.shadowOffsetY = 1; // 阴影在Y轴的偏移量
            // 画出渐变背景
            context.fillRect(0, 0, canvas.width, 40);

            // 设置文字的颜色和内容
            context.fillStyle = 'white';
            if (hasIcon) {
                context.fillText(text, canvas.width / 2 + 15, 20);
                // 绘制图标
                const img = new Image();
                img.onload = function () {
                    context.drawImage(img, 8, 3, 34, 34); // 参数是图像，x位置，y位置，宽度，高度
                    resolve(canvas.toDataURL());
                };
                img.src = `/static/screen/${option.icon}`;
            } else {
                context.fillText(text, canvas.width / 2, 20);
                resolve(canvas.toDataURL());
            }
        });
    }

    renderPoints() {
        for (let i = 0; i < this.points.length; i++) {
            const point = this.points[i];
            if (!point.center) break;
            // 渲染点的名称
            this.createGradientTextImage(point.name).then((imageUrl) => {
                const entitie = {
                    show: this.options.show || false,
                    position: SuperMap3D.Cartesian3.fromDegrees(point.center[0], point.center[1]),
                    dataset: point,
                    billboard: {
                    image: imageUrl,
                    disableDepthTestDistance: Number.POSITIVE_INFINITY,
                    },
                    name: this.layerName,
                };
                this.entities.push(entitie);
                SuperMap3DLayer.viewer.entities.add(entitie);
            });
        }
    }
}
