Vue3源码解析之 render（二）前言上一篇我们分析了 render 函数是如何将虚拟 DOM 渲染为真实 D

本文为原创文章，未获授权禁止转载，侵权必究！

本篇是 Vue3 源码解析系列第 9 篇，关注专栏

前言

上一篇我们分析了 render 函数是如何将 虚拟 DOM 渲染为 真实 DOM 的过程，本篇我们就来看下 render 函数是如何实现 DOM 更新和删除的。

案例

首先引入 h 、 render 两个函数，通过 render 函数先渲染 vnode1 对象，两秒后更新渲染 vnode2 对象。

<!DOCTYPE html>
<html lang="en">
  <head>
    <meta charset="UTF-8" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>Document</title>
    <script src="../../../dist/vue.global.js"></script>
    <style>
        .active {
            color: red;
        }
    </style>
  </head>
  <body>
    <div id="app"></div>
    <script>
      const { h, render } = Vue

      const vnode1 = h(
        'div',
        {
          class: 'test'
        },
        'hello render'
      )

      render(vnode1, document.querySelector('#app'))

      setTimeout(() => {
            const vnode2 = h(
                'div',
                {
                    class: 'active'
                },
                'update'
            )

            render(vnode2, document.querySelector('#app'))
        }, 2000)
    </script>
  </body>
</html>

render 更新

上篇 Vue3源码解析之 render（一）中我们了解到，render 函数渲染完毕，最后会挂载旧节点 _vnode。所以根据案例，首次渲染完后，当前旧节点 _vnode 为 vnode1 对象，两秒后重新执行 render 函数：

const render: RootRenderFunction = (vnode, container, isSVG) => {
    if (vnode == null) {
      if (container._vnode) {
        unmount(container._vnode, null, null, true)
      }
    } else {
      patch(container._vnode || null, vnode, container, null, null, null, isSVG)
    }
    flushPostFlushCbs()
    container._vnode = vnode
  }

此时 vnode 参数为 vnode2 对象，由于 vnode 存在，执行 patch 方法：

const patch: PatchFn = (
    n1, // 旧节点
    n2, // 新节点
    container, // 容器
    anchor = null, // 锚点
    parentComponent = null,
    parentSuspense = null,
    isSVG = false,
    slotScopeIds = null,
    optimized = __DEV__ && isHmrUpdating ? false : !!n2.dynamicChildren
  ) => {
    // 新旧节点是否相同
    if (n1 === n2) {
      return
    }

    // patching & not same type, unmount old tree
    // 存在旧节点 且 新旧节点类型是否相同
    if (n1 && !isSameVNodeType(n1, n2)) {
      anchor = getNextHostNode(n1)
      unmount(n1, parentComponent, parentSuspense, true)
      n1 = null
    }

    if (n2.patchFlag === PatchFlags.BAIL) {
      optimized = false
      n2.dynamicChildren = null
    }

    const { type, ref, shapeFlag } = n2
    // 根据 新节点类型 判断
    switch (type) {
      case Text:
        processText(n1, n2, container, anchor)
        break
      case Comment:
        processCommentNode(n1, n2, container, anchor)
        break
      case Static:
        if (n1 == null) {
          mountStaticNode(n2, container, anchor, isSVG)
        } else if (__DEV__) {
          patchStaticNode(n1, n2, container, isSVG)
        }
        break
      case Fragment:
        processFragment(
          n1,
          n2,
          container,
          anchor,
          parentComponent,
          parentSuspense,
          isSVG,
          slotScopeIds,
          optimized
        )
        break
      default:
        if (shapeFlag & ShapeFlags.ELEMENT) {
          processElement(
            n1,
            n2,
            container,
            anchor,
            parentComponent,
            parentSuspense,
            isSVG,
            slotScopeIds,
            optimized
          )
        } else if (shapeFlag & ShapeFlags.COMPONENT) {
          processComponent(
            n1,
            n2,
            container,
            anchor,
            parentComponent,
            parentSuspense,
            isSVG,
            slotScopeIds,
            optimized
          )
        } else if (shapeFlag & ShapeFlags.TELEPORT) {
          ;(type as typeof TeleportImpl).process(
            n1 as TeleportVNode,
            n2 as TeleportVNode,
            container,
            anchor,
            parentComponent,
            parentSuspense,
            isSVG,
            slotScopeIds,
            optimized,
            internals
          )
        } else if (__FEATURE_SUSPENSE__ && shapeFlag & ShapeFlags.SUSPENSE) {
          ;(type as typeof SuspenseImpl).process(
            n1,
            n2,
            container,
            anchor,
            parentComponent,
            parentSuspense,
            isSVG,
            slotScopeIds,
            optimized,
            internals
          )
        } else if (__DEV__) {
          warn('Invalid VNode type:', type, `(${typeof type})`)
        }
    }

    // set ref
    if (ref != null && parentComponent) {
      setRef(ref, n1 && n1.ref, parentSuspense, n2 || n1, !n2)
    }
  }

因为新旧节点 类型相同且值不同 ，所以逻辑同上篇相同。当前新节点 type 类型为 div，执行 default 逻辑中 processElement 方法：

 const processElement = (
    n1: VNode | null,
    n2: VNode,
    container: RendererElement,
    anchor: RendererNode | null,
    parentComponent: ComponentInternalInstance | null,
    parentSuspense: SuspenseBoundary | null,
    isSVG: boolean,
    slotScopeIds: string[] | null,
    optimized: boolean
  ) => {
    isSVG = isSVG || (n2.type as string) === 'svg'
    // 旧节点不存在 进行 挂载
    if (n1 == null) {
      mountElement(
        n2,
        container,
        anchor,
        parentComponent,
        parentSuspense,
        isSVG,
        slotScopeIds,
        optimized
      )
    } else {
      patchElement(
        n1,
        n2,
        parentComponent,
        parentSuspense,
        isSVG,
        slotScopeIds,
        optimized
      )
    }
  }

这里需要注意的是，当前存在 旧节点，所以直接执行 patchElement 方法：

 const patchElement = (
    n1: VNode,
    n2: VNode,
    parentComponent: ComponentInternalInstance | null,
    parentSuspense: SuspenseBoundary | null,
    isSVG: boolean,
    slotScopeIds: string[] | null,
    optimized: boolean
  ) => {

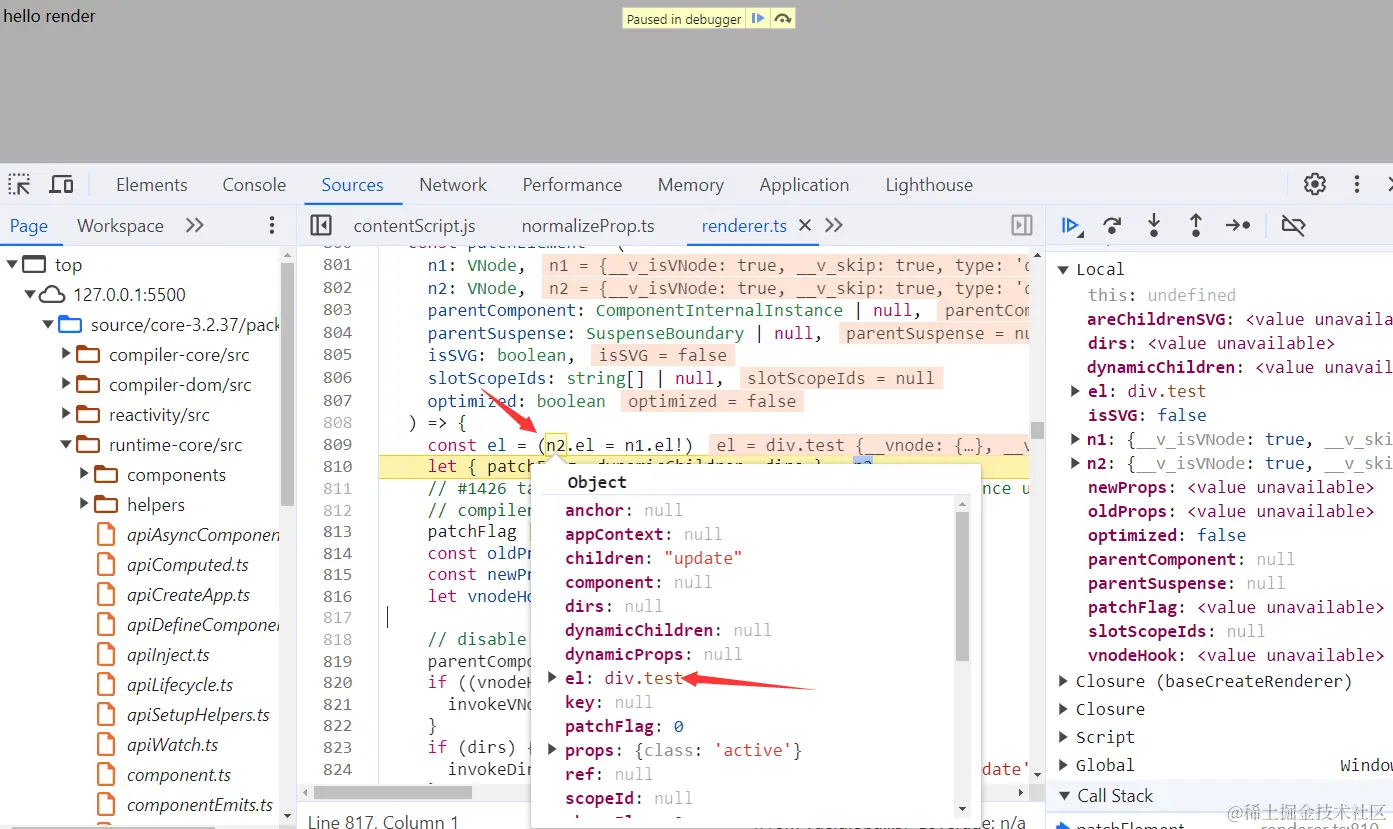

    const el = (n2.el = n1.el!) // 将 旧节点的 el 赋值给 n2.el 和 el
    let { patchFlag, dynamicChildren, dirs } = n2
    // #1426 take the old vnode's patch flag into account since user may clone a
    // compiler-generated vnode, which de-opts to FULL_PROPS
    patchFlag |= n1.patchFlag & PatchFlags.FULL_PROPS
    const oldProps = n1.props || EMPTY_OBJ // 旧节点 props
    const newProps = n2.props || EMPTY_OBJ // 新节点 props
    let vnodeHook: VNodeHook | undefined | null

    // disable recurse in beforeUpdate hooks
    parentComponent && toggleRecurse(parentComponent, false)
    if ((vnodeHook = newProps.onVnodeBeforeUpdate)) {
      invokeVNodeHook(vnodeHook, parentComponent, n2, n1)
    }
    if (dirs) {
      invokeDirectiveHook(n2, n1, parentComponent, 'beforeUpdate')
    }
    parentComponent && toggleRecurse(parentComponent, true)

    if (__DEV__ && isHmrUpdating) {
      // HMR updated, force full diff
      patchFlag = 0
      optimized = false
      dynamicChildren = null
    }

    const areChildrenSVG = isSVG && n2.type !== 'foreignObject'
    if (dynamicChildren) {
      // 省略
    } else if (!optimized) {
      // full diff
      patchChildren(
        n1,
        n2,
        el,
        null,
        parentComponent,
        parentSuspense,
        areChildrenSVG,
        slotScopeIds,
        false
      )
    }

    if (patchFlag > 0) {
      // the presence of a patchFlag means this element's render code was
      // generated by the compiler and can take the fast path.
      // in this path old node and new node are guaranteed to have the same shape
      // (i.e. at the exact same position in the source template)
      if (patchFlag & PatchFlags.FULL_PROPS) {
        // element props contain dynamic keys, full diff needed
        patchProps(
          el,
          n2,
          oldProps,
          newProps,
          parentComponent,
          parentSuspense,
          isSVG
        )
      } else {
        // 省略
      }

      // text
      // This flag is matched when the element has only dynamic text children.
      if (patchFlag & PatchFlags.TEXT) {
        if (n1.children !== n2.children) {
          hostSetElementText(el, n2.children as string)
        }
      }
    } else if (!optimized && dynamicChildren == null) {
      // unoptimized, full diff
      patchProps(
        el,
        n2,
        oldProps,
        newProps,
        parentComponent,
        parentSuspense,
        isSVG
      )
    }

    if ((vnodeHook = newProps.onVnodeUpdated) || dirs) {
      queuePostRenderEffect(() => {
        vnodeHook && invokeVNodeHook(vnodeHook, parentComponent, n2, n1)
        dirs && invokeDirectiveHook(n2, n1, parentComponent, 'updated')
      }, parentSuspense)
    }
  }

const el = (n2.el = n1.el!) 将旧节点的 el 赋值给新节点的 el：

之后赋值新旧节点的 props，接着执行 patchChildren 方法来更新子节点：

const patchChildren: PatchChildrenFn = (
    n1,
    n2,
    container,
    anchor,
    parentComponent,
    parentSuspense,
    isSVG,
    slotScopeIds,
    optimized = false
  ) => {
    const c1 = n1 && n1.children // 旧节点子节点
    const prevShapeFlag = n1 ? n1.shapeFlag : 0
    const c2 = n2.children // 新节点子节点

    const { patchFlag, shapeFlag } = n2
    // fast path
    if (patchFlag > 0) {
      if (patchFlag & PatchFlags.KEYED_FRAGMENT) {
        // this could be either fully-keyed or mixed (some keyed some not)
        // presence of patchFlag means children are guaranteed to be arrays
        patchKeyedChildren(
          c1 as VNode[],
          c2 as VNodeArrayChildren,
          container,
          anchor,
          parentComponent,
          parentSuspense,
          isSVG,
          slotScopeIds,
          optimized
        )
        return
      } else if (patchFlag & PatchFlags.UNKEYED_FRAGMENT) {
        // unkeyed
        patchUnkeyedChildren(
          c1 as VNode[],
          c2 as VNodeArrayChildren,
          container,
          anchor,
          parentComponent,
          parentSuspense,
          isSVG,
          slotScopeIds,
          optimized
        )
        return
      }
    }

    // children has 3 possibilities: text, array or no children.
    // 新子节点为 text 节点
    if (shapeFlag & ShapeFlags.TEXT_CHILDREN) {
      // text children fast path
      // 旧子节点为 array 节点
      if (prevShapeFlag & ShapeFlags.ARRAY_CHILDREN) {
        unmountChildren(c1 as VNode[], parentComponent, parentSuspense)
      }
      if (c2 !== c1) {
        hostSetElementText(container, c2 as string)
      }
    } else {
      // 旧子节点为 array 节点
      if (prevShapeFlag & ShapeFlags.ARRAY_CHILDREN) {
        // prev children was array
        // 新子节点为 array 节点
        if (shapeFlag & ShapeFlags.ARRAY_CHILDREN) {
          // two arrays, cannot assume anything, do full diff
          patchKeyedChildren(
            c1 as VNode[],
            c2 as VNodeArrayChildren,
            container,
            anchor,
            parentComponent,
            parentSuspense,
            isSVG,
            slotScopeIds,
            optimized
          )
        } else {
          // no new children, just unmount old
          unmountChildren(c1 as VNode[], parentComponent, parentSuspense, true)
        }
      } else {
        // prev children was text OR null
        // new children is array OR null
        // 旧子节点为 text 节点
        if (prevShapeFlag & ShapeFlags.TEXT_CHILDREN) {
          hostSetElementText(container, '')
        }
        // mount new if array
        // 新子节点为 array 节点
        if (shapeFlag & ShapeFlags.ARRAY_CHILDREN) {
          mountChildren(
            c2 as VNodeArrayChildren,
            container,
            anchor,
            parentComponent,
            parentSuspense,
            isSVG,
            slotScopeIds,
            optimized
          )
        }
      }
    }
  }

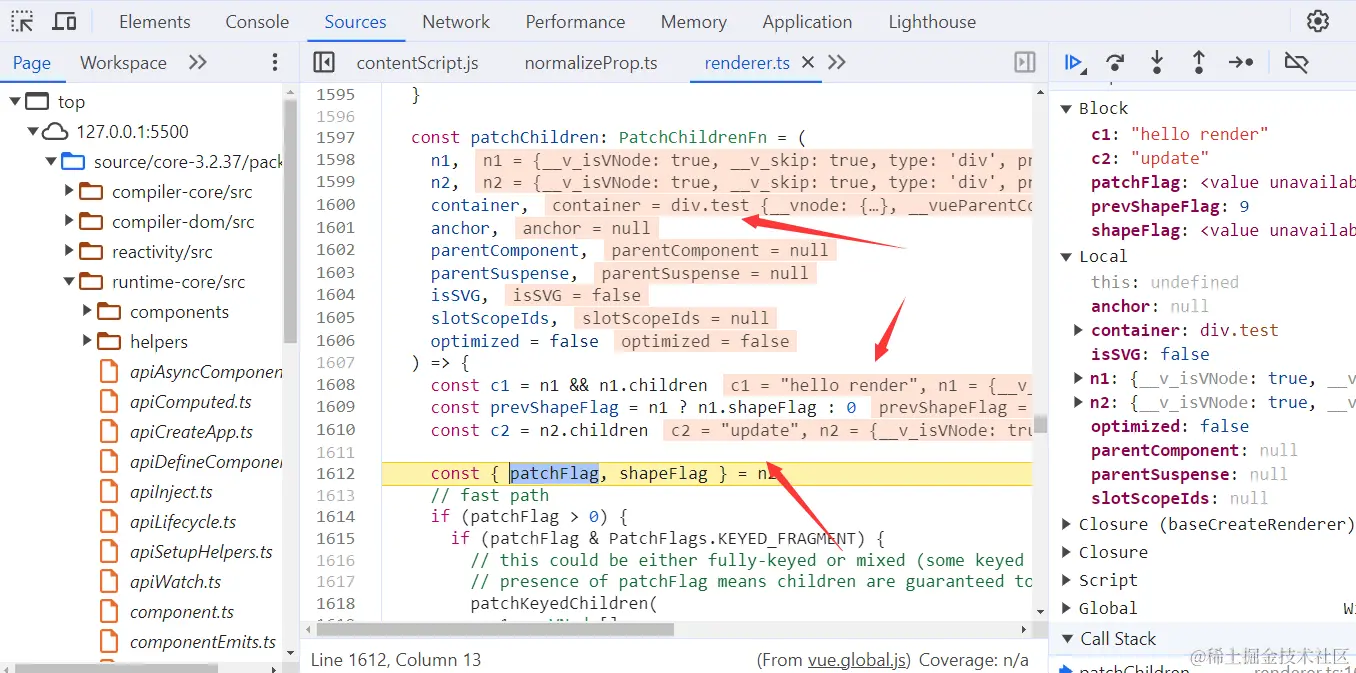

我们主要关注前四个参数，n1 旧节点，n2 新节点，container 为旧节点的 el，anchor 锚点，之后将新旧子节点赋值给 c1、 c2 ：

由于新子节点为 text 类型，旧子节点不为数组类型，且新旧子节点值不同，所以执行 hostSetElementText(container, c2 as string)。我们知道 hostSetElementText 方法实际执行的是 setElementText：

setElementText: (el, text) => {
    el.textContent = text
  },

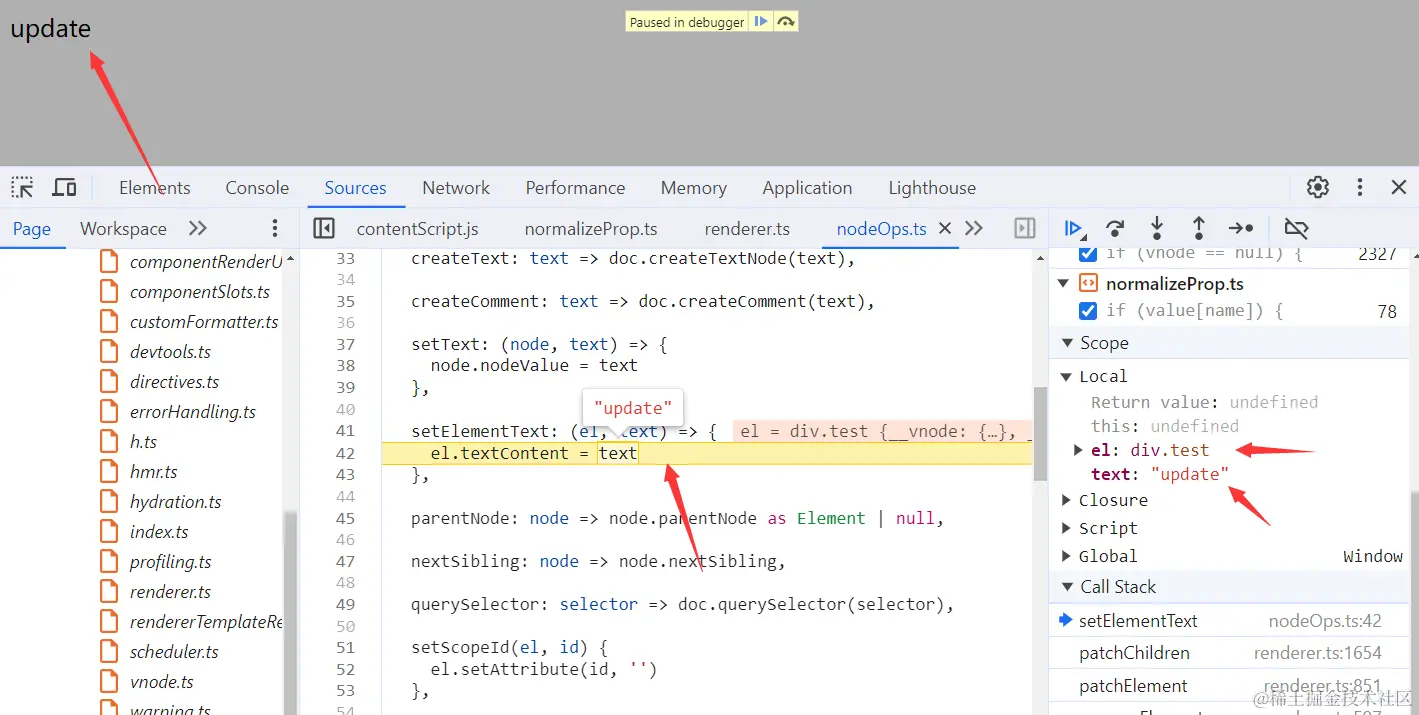

当前 el 为旧节点 el，c2 为新子节点值，重新赋值后页面呈现：

此时新旧子节点更新完毕，之后更新 props，执行 patchProps 方法：

const patchProps = (
    el: RendererElement,
    vnode: VNode,
    oldProps: Data,
    newProps: Data,
    parentComponent: ComponentInternalInstance | null,
    parentSuspense: SuspenseBoundary | null,
    isSVG: boolean
  ) => {
    // 新旧 props 不同
    if (oldProps !== newProps) {
      for (const key in newProps) {
        // empty string is not valid prop
        if (isReservedProp(key)) continue
        const next = newProps[key] // 新
        const prev = oldProps[key] // 旧
        // defer patching value
        if (next !== prev && key !== 'value') {
          // runtime-dom/src/patchProp.ts 中 patchProp 方法
          hostPatchProp(
            el,
            key,
            prev,
            next,
            isSVG,
            vnode.children as VNode[],
            parentComponent,
            parentSuspense,
            unmountChildren
          )
        }
      }
      // 场景 旧节点存在 props 新节点不存在时，则遍历删除
      if (oldProps !== EMPTY_OBJ) {
        for (const key in oldProps) {
          if (!isReservedProp(key) && !(key in newProps)) {
            hostPatchProp(
              el,
              key,
              oldProps[key],
              null,
              isSVG,
              vnode.children as VNode[],
              parentComponent,
              parentSuspense,
              unmountChildren
            )
          }
        }
      }
      if ('value' in newProps) {
        hostPatchProp(el, 'value', oldProps.value, newProps.value)
      }
    }
  }

当前新旧 props 不同，遍历执行 hostPatchProp 方法来更新，该方法实际执行的是 patchProp，定义在 packages/runtime-dom/src/patchProp.ts 中。上篇我们也已分析过，这里就不再展开描述。主要是通过 key 类型不同执行不同逻辑，当前 key 为 class，执行 patchClass 方法：

export function patchClass(el: Element, value: string | null, isSVG: boolean) {
  // directly setting className should be faster than setAttribute in theory
  // if this is an element during a transition, take the temporary transition
  // classes into account.
  const transitionClasses = (el as ElementWithTransition)._vtc
  if (transitionClasses) {
    value = (
      value ? [value, ...transitionClasses] : [...transitionClasses]
    ).join(' ')
  }
  if (value == null) {
    el.removeAttribute('class')
  } else if (isSVG) {
    el.setAttribute('class', value)
  } else {
    el.className = value
  }
}

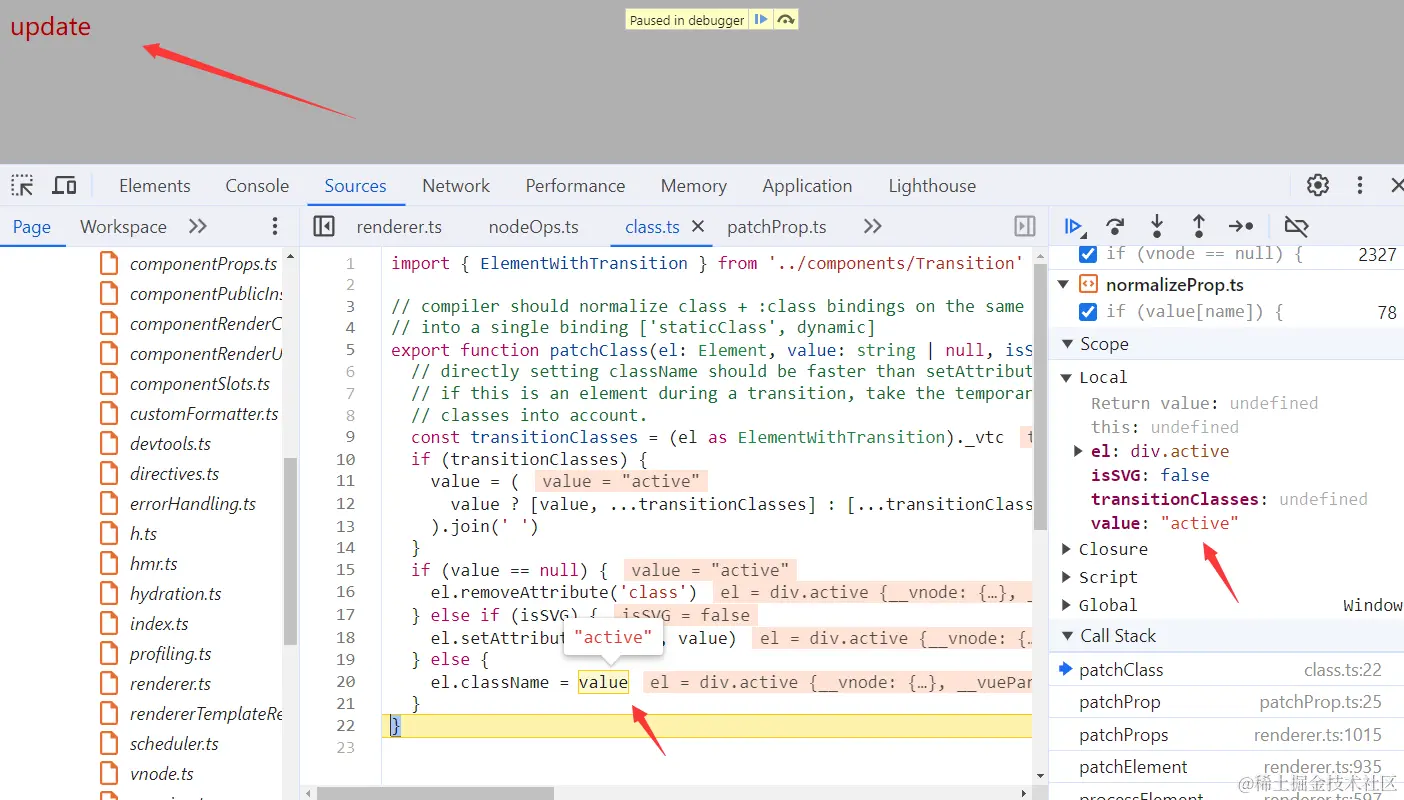

此时旧节点的 class 更新为新节点值 active，页面呈现：

另外还需注意这段判断逻辑 oldProps !== EMPTY_OBJ，是为了处理新节点不存在 props 属性且旧节点 props 不为空，则遍历删除的情况。

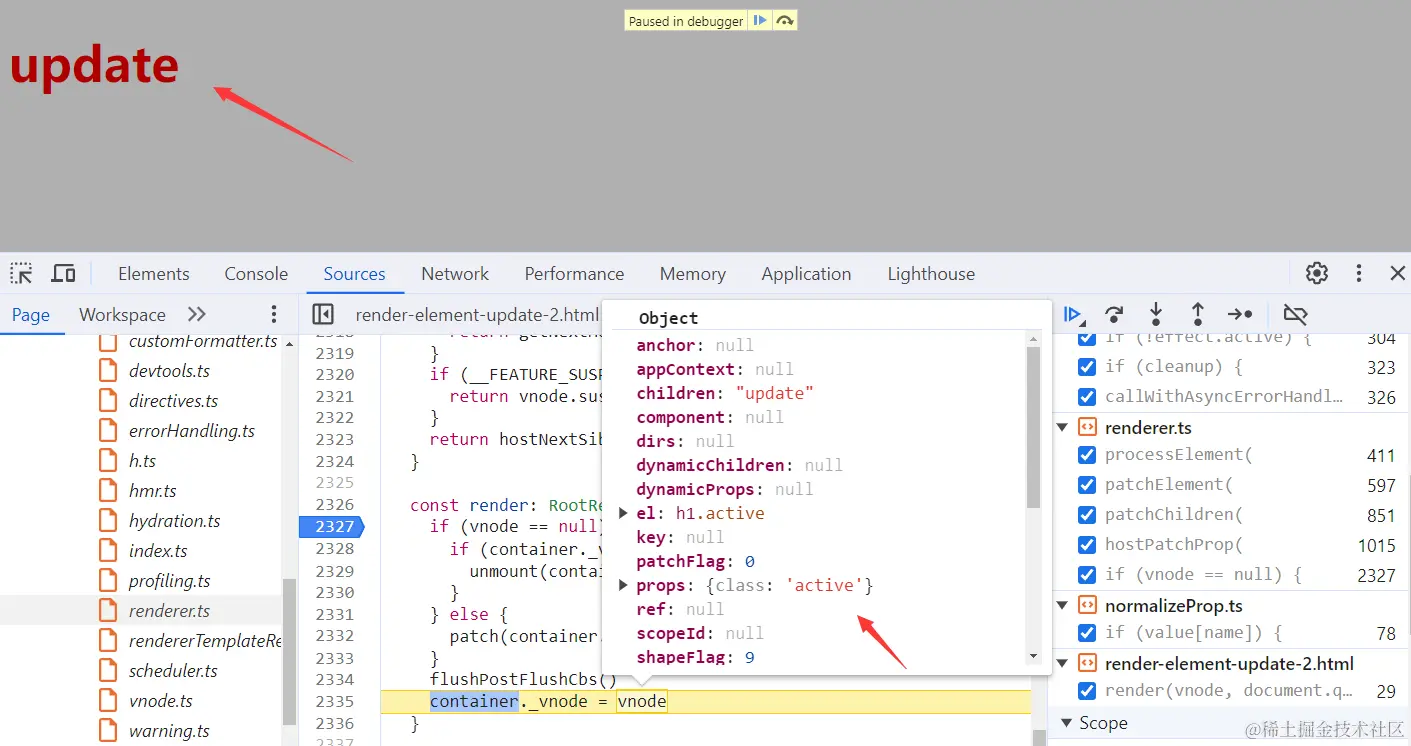

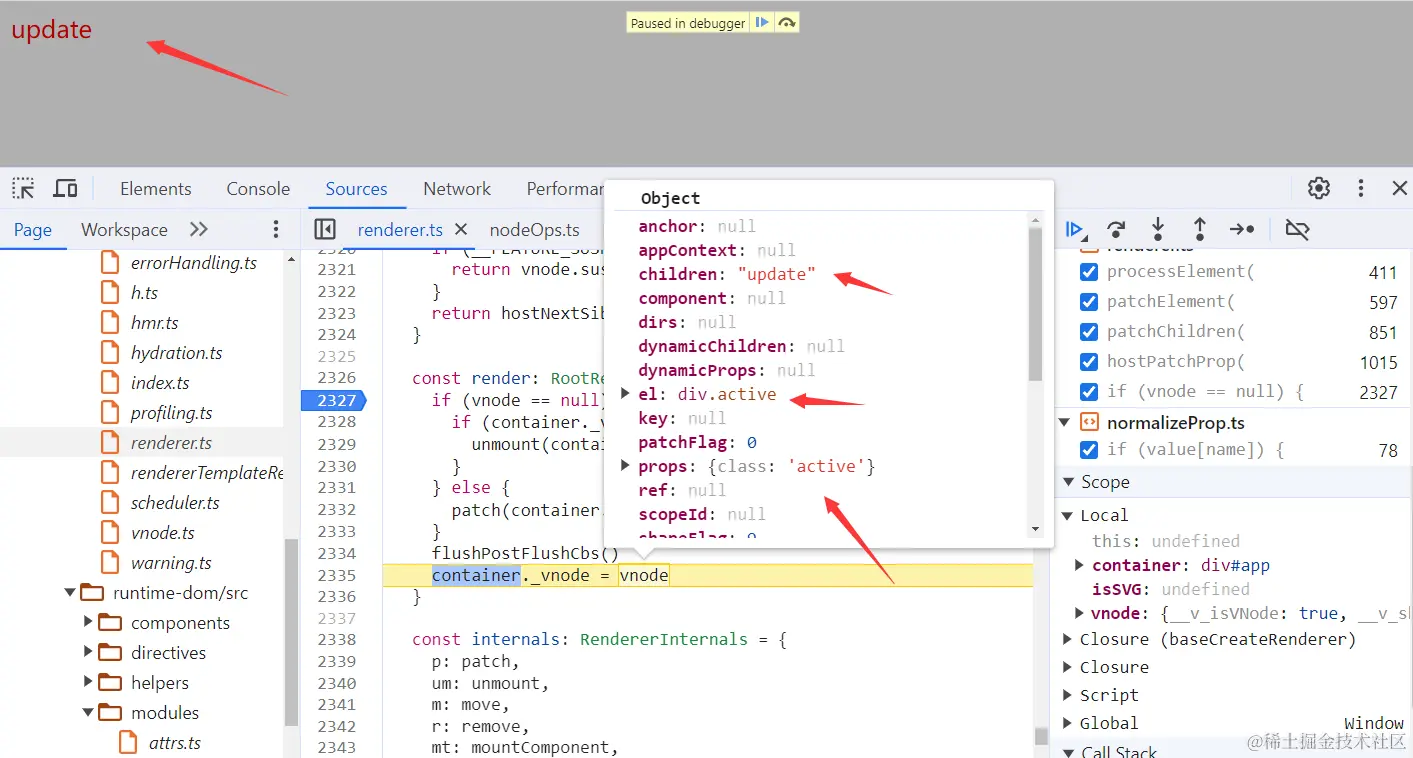

最后 render 函数再将新节点 vnode2 赋值给旧节点 _vnode，新旧节点更新完毕：

render 更新不同类型

如果我们把案例中 vnode2 类型修改为 h1，那 render 函数是如何实现更新的呢？

setTimeout(() => {
    const vnode2 = h(
        'h1',
        {
            class: 'active'
        },
        'update'
    )

    render(vnode2, document.querySelector('#app'))
}, 2000)

render 函数执行 patch 方法中有这么一段代码：

const patch: PatchFn = (
    n1, // 旧节点
    n2, // 新节点
    container, // 容器
    anchor = null, // 锚点
    parentComponent = null,
    parentSuspense = null,
    isSVG = false,
    slotScopeIds = null,
    optimized = __DEV__ && isHmrUpdating ? false : !!n2.dynamicChildren
  ) => {
    // 省略

    // patching & not same type, unmount old tree
    // 存在旧节点 且 新旧节点类型是否相同
    if (n1 && !isSameVNodeType(n1, n2)) {
      anchor = getNextHostNode(n1)
      unmount(n1, parentComponent, parentSuspense, true)
      n1 = null
    }

    // 省略
  }

新旧节点类型不同，会执行 unmount 方法：

const unmount: UnmountFn = (
    vnode,
    parentComponent,
    parentSuspense,
    doRemove = false,
    optimized = false
  ) => {
    const {
      type,
      props,
      ref,
      children,
      dynamicChildren,
      shapeFlag,
      patchFlag,
      dirs
    } = vnode
    // unset ref
    if (ref != null) {
      setRef(ref, null, parentSuspense, vnode, true)
    }

    if (shapeFlag & ShapeFlags.COMPONENT_SHOULD_KEEP_ALIVE) {
      ;(parentComponent!.ctx as KeepAliveContext).deactivate(vnode)
      return
    }

    const shouldInvokeDirs = shapeFlag & ShapeFlags.ELEMENT && dirs
    const shouldInvokeVnodeHook = !isAsyncWrapper(vnode)

    let vnodeHook: VNodeHook | undefined | null
    if (
      shouldInvokeVnodeHook &&
      (vnodeHook = props && props.onVnodeBeforeUnmount)
    ) {
      invokeVNodeHook(vnodeHook, parentComponent, vnode)
    }

    if (shapeFlag & ShapeFlags.COMPONENT) {
      unmountComponent(vnode.component!, parentSuspense, doRemove)
    } else {
      if (__FEATURE_SUSPENSE__ && shapeFlag & ShapeFlags.SUSPENSE) {
        vnode.suspense!.unmount(parentSuspense, doRemove)
        return
      }

      if (shouldInvokeDirs) {
        invokeDirectiveHook(vnode, null, parentComponent, 'beforeUnmount')
      }

      if (shapeFlag & ShapeFlags.TELEPORT) {
        ;(vnode.type as typeof TeleportImpl).remove(
          vnode,
          parentComponent,
          parentSuspense,
          optimized,
          internals,
          doRemove
        )
      } else if (
        dynamicChildren &&
        // #1153: fast path should not be taken for non-stable (v-for) fragments
        (type !== Fragment ||
          (patchFlag > 0 && patchFlag & PatchFlags.STABLE_FRAGMENT))
      ) {
        // fast path for block nodes: only need to unmount dynamic children.
        unmountChildren(
          dynamicChildren,
          parentComponent,
          parentSuspense,
          false,
          true
        )
      } else if (
        (type === Fragment &&
          patchFlag &
            (PatchFlags.KEYED_FRAGMENT | PatchFlags.UNKEYED_FRAGMENT)) ||
        (!optimized && shapeFlag & ShapeFlags.ARRAY_CHILDREN)
      ) {
        unmountChildren(children as VNode[], parentComponent, parentSuspense)
      }

      if (doRemove) {
        remove(vnode)
      }
    }

    if (
      (shouldInvokeVnodeHook &&
        (vnodeHook = props && props.onVnodeUnmounted)) ||
      shouldInvokeDirs
    ) {
      queuePostRenderEffect(() => {
        vnodeHook && invokeVNodeHook(vnodeHook, parentComponent, vnode)
        shouldInvokeDirs &&
          invokeDirectiveHook(vnode, null, parentComponent, 'unmounted')
      }, parentSuspense)
    }
  }

根据类型不同，最终执行 remove 方法：

const remove: RemoveFn = vnode => {
    const { type, el, anchor, transition } = vnode
    if (type === Fragment) {
      if (
        __DEV__ &&
        vnode.patchFlag > 0 &&
        vnode.patchFlag & PatchFlags.DEV_ROOT_FRAGMENT &&
        transition &&
        !transition.persisted
      ) {
        ;(vnode.children as VNode[]).forEach(child => {
          if (child.type === Comment) {
            hostRemove(child.el!)
          } else {
            remove(child)
          }
        })
      } else {
        removeFragment(el!, anchor!)
      }
      return
    }

    if (type === Static) {
      removeStaticNode(vnode)
      return
    }

    const performRemove = () => {
      hostRemove(el!)
      if (transition && !transition.persisted && transition.afterLeave) {
        transition.afterLeave()
      }
    }

    if (
      vnode.shapeFlag & ShapeFlags.ELEMENT &&
      transition &&
      !transition.persisted
    ) {
      const { leave, delayLeave } = transition
      const performLeave = () => leave(el!, performRemove)
      if (delayLeave) {
        delayLeave(vnode.el!, performRemove, performLeave)
      } else {
        performLeave()
      }
    } else {
      performRemove()
    }
  }

再根据判断逻辑执行 performRemove 方法：

const performRemove = () => {
  hostRemove(el!)
  if (transition && !transition.persisted && transition.afterLeave) {
    transition.afterLeave()
  }
}

之后执行 hostRemove 方法，我们知道 host 开头都是浏览器相关操作，被定义在 packages/runtime-dom/src/nodeOps.ts 文件中，实际执行的是 remove 方法：

remove: child => {
    const parent = child.parentNode
    if (parent) {
      parent.removeChild(child)
    }
  },

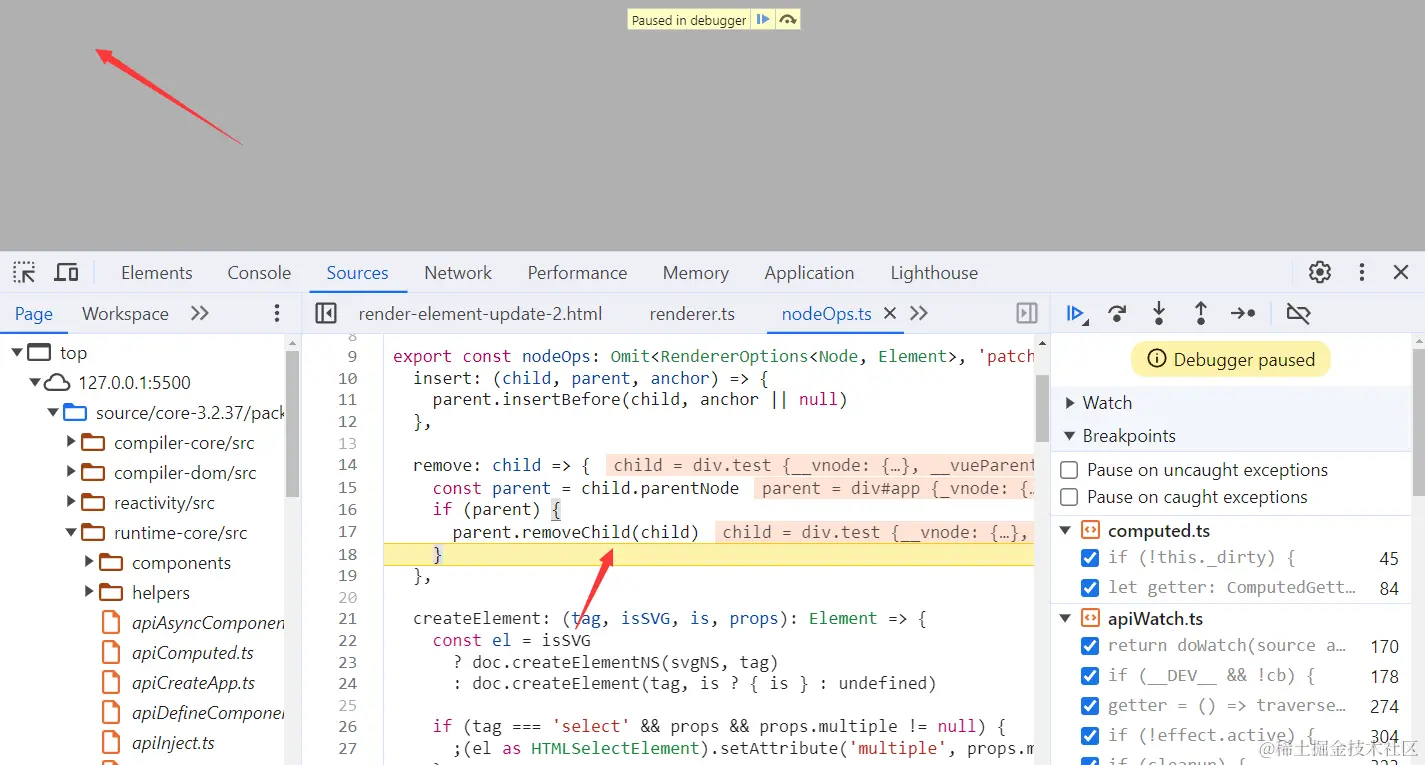

可以看出，该逻辑先获取到当前节点的父节点，之后再将该节点删除：

所以新旧节点类型不同，会直接先删除旧节点，再将旧节点清空 n1 = null，之后执行 processElement 方法。由于旧节点为空，再执行 mountElement 挂载逻辑，后续逻辑可直接查看上篇，最终页面呈现：

render 删除

我们再修改下案例，将第一个参数传入空值：

setTimeout(() => {
    render(null, document.querySelector('#app'))
}, 2000)

render 函数有这么一段逻辑：

const render: RootRenderFunction = (vnode, container, isSVG) => {
    // 节点为空
    if (vnode == null) {
      // 存在旧节点
      if (container._vnode) {
        // 卸载
        unmount(container._vnode, null, null, true)
      }
    } else {
      patch(container._vnode || null, vnode, container, null, null, null, isSVG)
    }
    flushPostFlushCbs()
    container._vnode = vnode
}

当传入的 vnode 为空时且存在旧节点，执行 unmount 卸载方法。上面我们已经讲过，该方法会执行 parent.removeChild(child) 删除节点，之后再将 null 赋值给旧节点 _vnode，render 函数执行完毕。

总结

render 函数更新节点主要通过 patchElement 方法来实现。
patchElement 方法主要做了 patchChildren 更新子节点和 patchProps 更新属性两件事。
更新新旧节点如果类型不同，Vue 中会先删除旧节点，再重新挂载新节点。
节点的删除实际调用的是 unmount 方法。

Vue3 源码实现

vue-next-mini
