openkruise-rollout如何实现灰度发布——图文并茂源码讲解

试用rollout-可以跳过

前提：准备一个k8s集群，准备对应的yaml文件，yaml文件示例如下

echoserver.yaml

包含了deployment、service、ingress的创建

apiVersion: apps/v1
kind: Deployment
metadata:
  name: echoserver
  labels:
    app: echoserver
spec:
  replicas: 6
  selector:
    matchLabels:
      app: echoserver
  template:
    metadata:
      labels:
        app: echoserver
    spec:
      containers:
      - name: echoserver
         # Mac M1 should choics image can support arm64,such as image e2eteam/echoserver:2.2-linux-arm64
        image: openkruise-registry.cn-shanghai.cr.aliyuncs.com/openkruise/demo:1.10.2
        imagePullPolicy: IfNotPresent
        ports:
        - containerPort: 8080
        env:
        - name: NODE_NAME
          value: version1
        - name: PORT
          value: '8080'
        - name: POD_NAME
          valueFrom:
            fieldRef:
              fieldPath: metadata.name
        - name: POD_NAMESPACE
          valueFrom:
            fieldRef:
              fieldPath: metadata.namespace
        - name: POD_IP
          valueFrom:
            fieldRef:
              fieldPath: status.podIP
---
apiVersion: v1
kind: Service
metadata:
  name: echoserver
  labels:
    app: echoserver
spec:
  ports:
  - port: 80
    targetPort: 8080
    protocol: TCP
    name: http
  selector:
    app: echoserver
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: echoserver
  annotations:
    kubernetes.io/ingress.class: nginx
spec:
  rules:
  - http:
      paths:
      - backend:
          service:
            name: echoserver
            port:
              number: 80
        path: /apis/echo
        pathType: Exact

rollout.yaml

# 将如下内容存储到文件rollout.yaml。
apiVersion: rollouts.kruise.io/v1alpha1
kind: Rollout
metadata:
  name: rollouts-demo
  annotations:
    rollouts.kruise.io/rolling-style: partition
spec:
  objectRef:
    workloadRef:
      apiVersion: apps/v1
      kind: Deployment
      # Deployment Name
      name: echoserver
  strategy:
    canary:
      steps:
        # 此批次灰度的流量比例30%。
      - weight: 20
        replicas: 20%
        # 暂停60s自动进入下一批次，如果需要手动决定，请配置为：pause: {}。
        pause: {duration: 60}
      - weight: 50
        replicas: 50%
        # 暂停60s自动进入下一批次，如果需要手动决定，请配置为：pause: {}。
        pause: {duration: 120}
      - weight: 100
        replicas: 100%
        pause: {duration: 300}
      trafficRoutings:
        # Service Name
      - service: echoserver
        ingress:
        # Ingress Name
          name: echoserver

部署上面的yaml

先执行echoserver.yaml，在执行rollout.yaml，会自动创建出来对应的CR

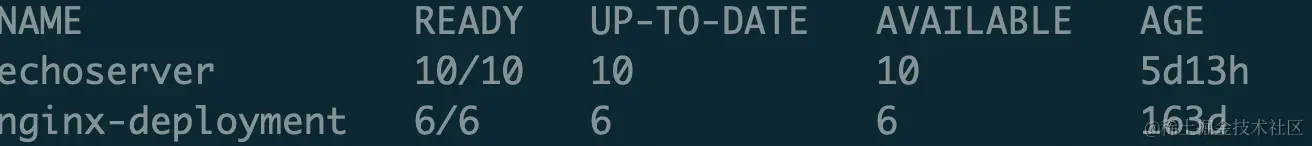

deployment

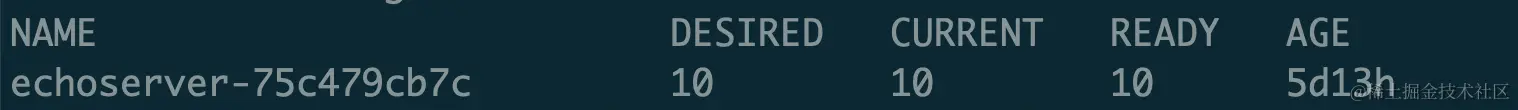

replicaSet

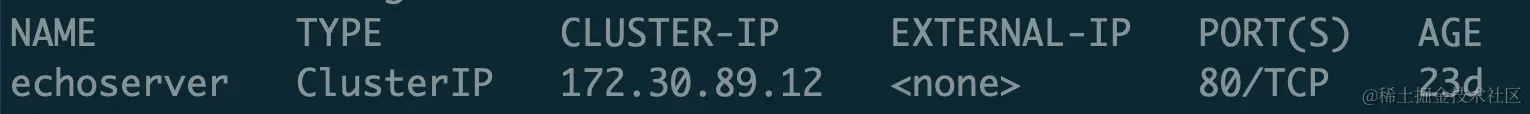

service

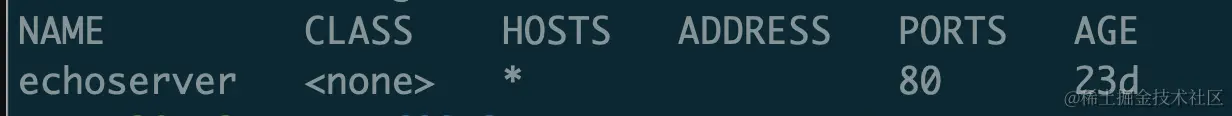

ingress

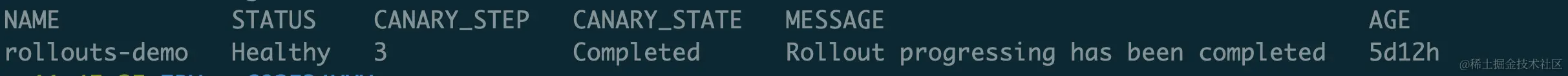

rollout

更新deployment

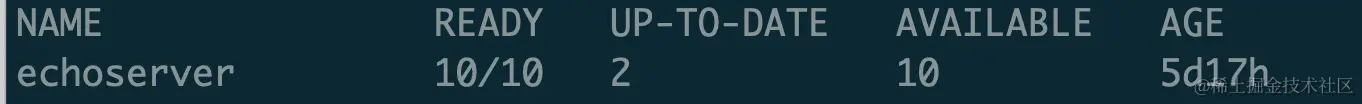

deployment

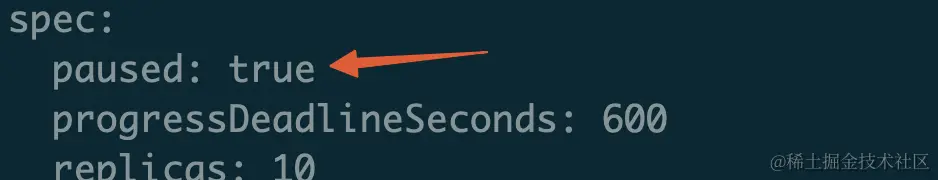

更新后可以看到deployment中的内容被修改了，添加了paused:true 这个修改对很重要

能看到有显著变化的CR如下

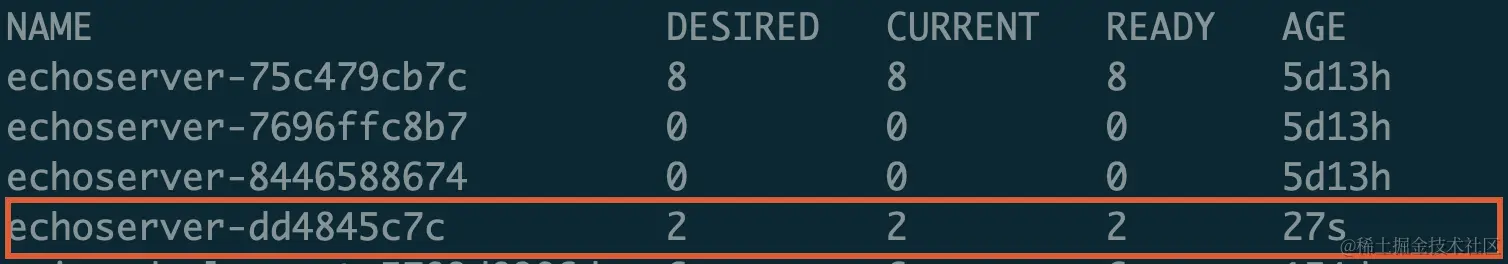

replicaSet

多个了一个版本

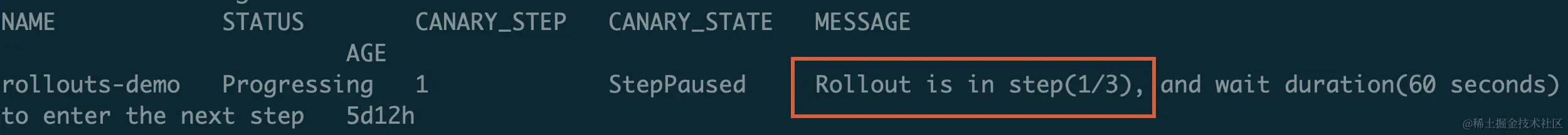

rollout

开始生效

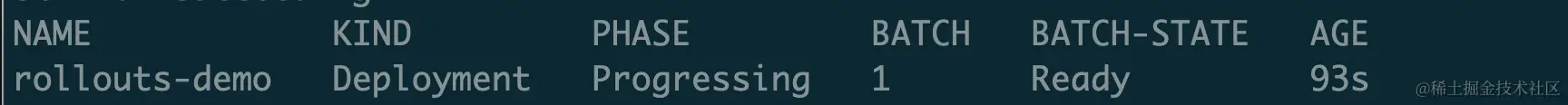

batchRelease

rollout创建出来的一个CR

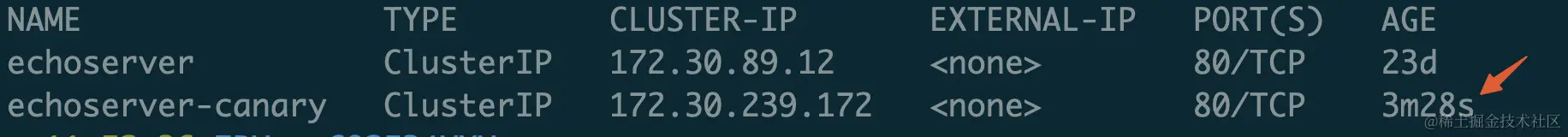

service

rollout自动创建了一个灰度的service，里面增加了selector，具体如下：

echoserver-canary.yaml

apiVersion: v1
kind: Service
metadata:
  creationTimestamp: "2023-11-16T03:55:25Z"
  name: echoserver-canary
  namespace: real-name
  ownerReferences:
  - apiVersion: rollouts.kruise.io/v1alpha1
    blockOwnerDeletion: true
    controller: true
    kind: Rollout
    name: rollouts-demo
    uid: e7a61b26-f640-4f15-80a3-402012fbe3a5
  resourceVersion: "121090625"
  uid: 9de0a780-201d-4b84-b271-8de656dcd898
spec:
  clusterIP: 1.1.1.1
  clusterIPs:
  - 1.1.1.1
  internalTrafficPolicy: Cluster
  ipFamilies:
  - IPv4
  ipFamilyPolicy: SingleStack
  ports:
  - name: http
    port: 80
    protocol: TCP
    targetPort: 8080
  selector:
    app: echoserver
    # 此配置版本为pod新版本中的hash, 在新增加的rs中也pod-template-hash是一样的值
    pod-template-hash: dd4845c7c
  sessionAffinity: None
  type: ClusterIP
status:
  loadBalancer: {}

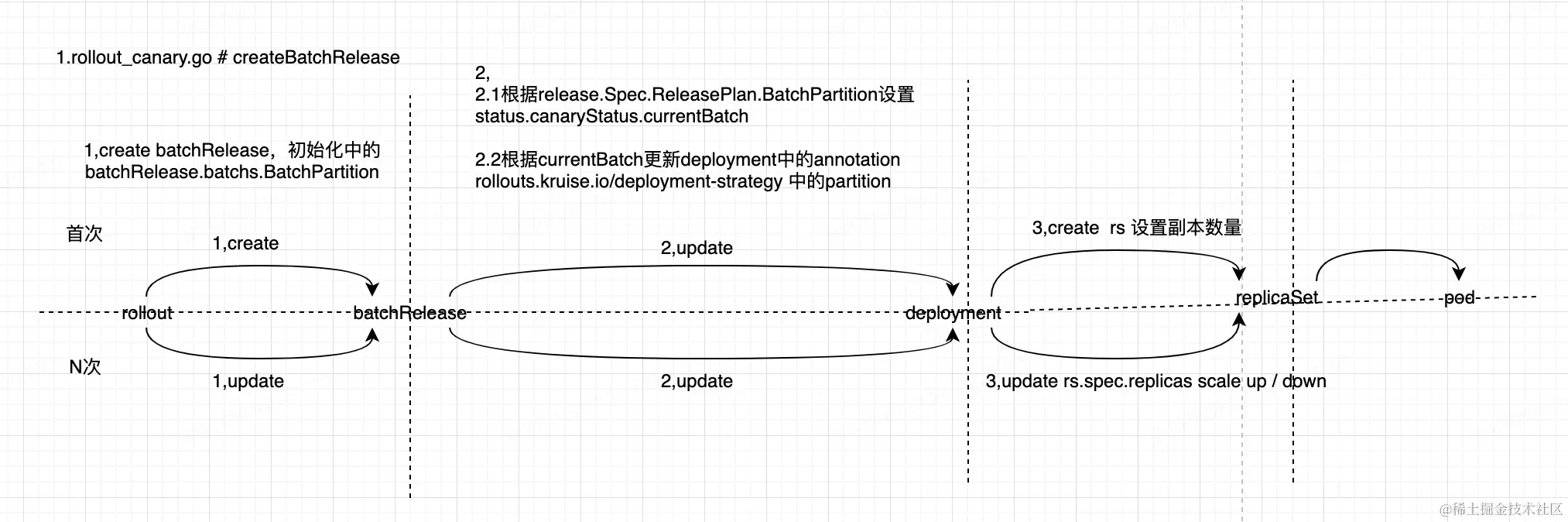

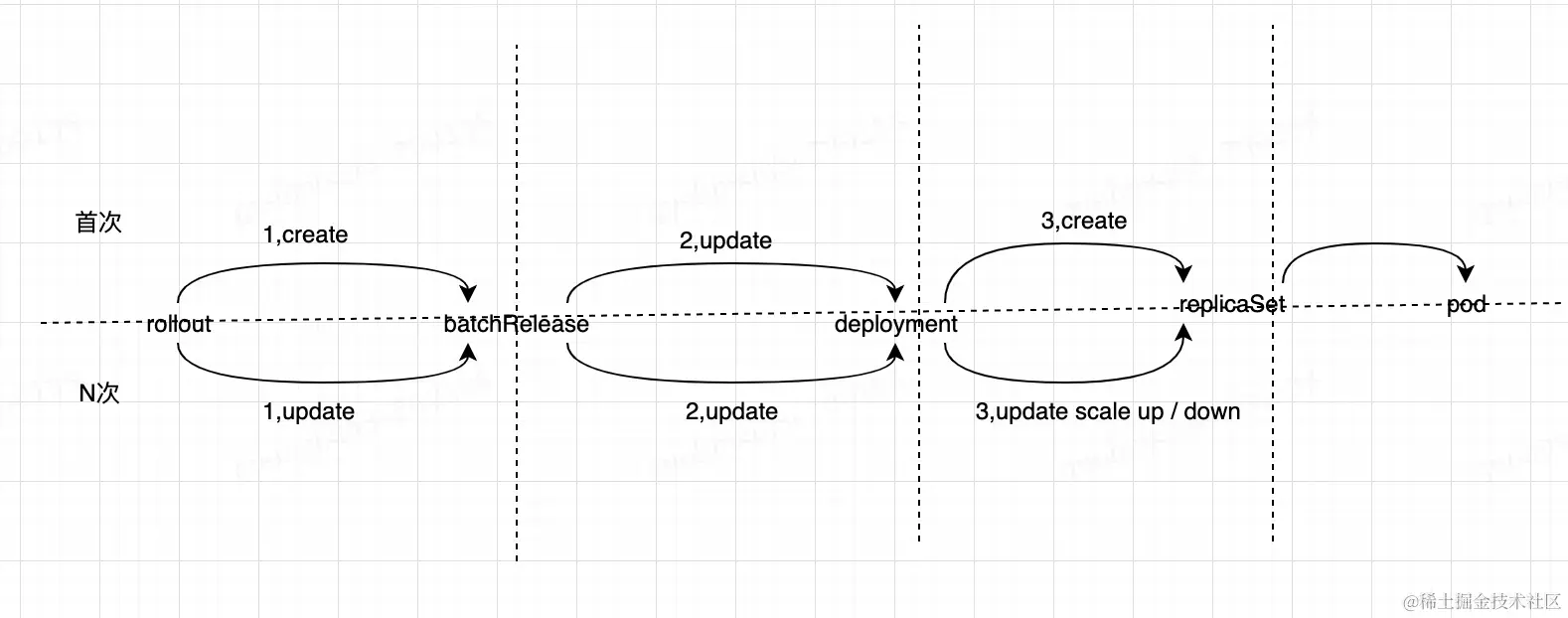

关键CR状态更新大概流程

上面的图被竖线分为了四部分，前三部分均是rollout模块进行控制的，将在源码讲解中进行详细的说明；第四部分为k8s原生的能力，因不进行讲解。

源码详解

rollout支持多种workload(k8s原生：Deployment、ReplicaSet、StatefulSet；Kruise CRD: CloneSet、DaemonSet、StatefulSet)，下面的源码讲解均是基于最熟悉的deployment进行；

在正式讲解前三部分前，需要先从rollout模块中的webhook进行入口，这是rollout能实现灰度的关键点；

deployment的webhook逻辑

openkruise/rollouts/pkg/webhook/workload/mutating/workload_update_handler.go # Handle()中的逻辑进行对deployment的 update操作进行了拦截处理:

• 用于判断此deployment的更新是否需要rollout进行控制；
• 如果需要会自动给deployment添加对应的注解rollouts.kruise.io/in-progressing rollouts.kruise.io/deployment-strategy描述逻辑以及添加pause: true的配置，这样k8s就不会对此deployment进行操作;

// Handle handles admission requests.
func (h *WorkloadHandler) Handle(ctx context.Context, req admission.Request) admission.Response {
	...

	// Because kruise Rollout is a bypassed approach, needs to be determined in the webhook if the workload meet to enter the rollout progressing:
	// 1. Traffic Routing, all the following conditions must be met
	//   a. PodTemplateSpec is changed
	//   b. Workload must only contain one version of Pods
	// 2. No Traffic Routing, Only Release in batches
	//   a. No RolloutId
	//    - PodTemplateSpec is changed
	//   b. Configure RolloutId
	//    - RolloutId and PodTemplateSpec change, enter the rollout progressing.
	//    - RolloutId changes and PodTemplateSpec no change, enter the rollout progressing
	//    - RolloutId no change and PodTemplateSpec change, do not enter the rollout progressing

	switch req.Kind.Group {
	// kruise cloneSet
	case kruiseappsv1alpha1.GroupVersion.Group:
		switch req.Kind.Kind {
		case util.ControllerKruiseKindCS.Kind:
			// check cloneset
       ...
		case util.ControllerKruiseKindDS.Kind:
			// check daemonset
	    ...
	// native k8s deloyment
	case apps.SchemeGroupVersion.Group:
		switch req.Kind.Kind {
		case util.ControllerKindDep.Kind:
			// check deployment
			...
      // 处理deployment
			changed, err := h.handleDeployment(newObjClone, oldObj)
			if err != nil {
				return admission.Errored(http.StatusBadRequest, err)
			}
			...
      // 打个补丁，添加对应handleDeployment中设置的注解以及pause
			return admission.PatchResponseFromRaw(original, marshalled)
		}
	}

rollouts.kruise.io/deployment-strategy 此注解在后续会deployment计算每个rs副本数量时会被用到

func (h *WorkloadHandler) handleDeployment(newObj, oldObj *apps.Deployment) (bool, error) {
  	// in rollout progressing
	if newObj.Annotations[util.InRolloutProgressingAnnotation] != "" {
		modified := false
		if !newObj.Spec.Paused {
			modified = true
			newObj.Spec.Paused = true
		}
    //
		strategy := util.GetDeploymentStrategy(newObj)
		switch strings.ToLower(string(strategy.RollingStyle)) {
		case strings.ToLower(string(appsv1alpha1.PartitionRollingStyle)):
			// Make sure it is always Recreate to disable native controller
			if newObj.Spec.Strategy.Type == apps.RollingUpdateDeploymentStrategyType {
				modified = true
				newObj.Spec.Strategy.Type = apps.RecreateDeploymentStrategyType
			}
			if newObj.Spec.Strategy.RollingUpdate != nil {
				modified = true
				// Allow to modify RollingUpdate config during rolling
				strategy.RollingUpdate = newObj.Spec.Strategy.RollingUpdate
				newObj.Spec.Strategy.RollingUpdate = nil
			}
			if isEffectiveDeploymentRevisionChange(oldObj, newObj) {
				modified = true
				strategy.Paused = true
			}
			setDeploymentStrategyAnnotation(strategy, newObj)
		default:
			// Do not allow to modify strategy as Recreate during rolling
			if newObj.Spec.Strategy.Type == apps.RecreateDeploymentStrategyType {
				modified = true
				newObj.Spec.Strategy = oldObj.Spec.Strategy
				klog.Warningf("")
			}
		}
		return modified, nil
	}

  ...
  // isEffectiveDeploymentRevisionChange此方法如果返回false，则此次deployment更新是不走rollout控制的
  // 具体逻辑见下文
	if !isEffectiveDeploymentRevisionChange(oldObj, newObj) {
		return false, nil
	}

  // 如果rollout list中的worklowdRef没有和此workload相关的 则直接返回 说明此deployment则不会rollout
  rollout, err := h.fetchMatchedRollout(newObj)
	if err != nil {
		return false, err
	} else if rollout == nil || rollout.Spec.Strategy.Canary == nil {
		return false, nil
	}
  ....

	// need set workload paused = true ------ 重要的点 让deployment阻塞更新的配置
	newObj.Spec.Paused = true
	state := &util.RolloutState{RolloutName: rollout.Name}
	by, _ := json.Marshal(state)
	if newObj.Annotations == nil {
		newObj.Annotations = map[string]string{}
	}
  // 添加注解, 此注解表明目前deployment是被那个rollout在操作
	newObj.Annotations[util.InRolloutProgressingAnnotation] = string(by)
	klog.Infof("Deployment(%s/%s) will be released incrementally based on Rollout(%s)", newObj.Namespace, newObj.Name, rollout.Name)
	return true, nil
}

因此在更新deployment时，webhook会拦截住此操作进行前置的逻辑处理 此处是把deployment的paused设置为true，因此deployment的更新就会暂停, 就会进入rollout的处理逻辑

func isEffectiveDeploymentRevisionChange(oldObj, newObj *apps.Deployment) bool {
	if newObj.Annotations[appsv1alpha1.RolloutIDLabel] != "" &&
		oldObj.Annotations[appsv1alpha1.RolloutIDLabel] == newObj.Annotations[appsv1alpha1.RolloutIDLabel] {
		return false
	} else if newObj.Annotations[appsv1alpha1.RolloutIDLabel] == "" &&
		util.EqualIgnoreHash(&oldObj.Spec.Template, &newObj.Spec.Template) {
      // 如果只修改deployment的replicas 则返回false,因为replicas并不在template中
		return false
	}
	return true
}

// 设置策略的注解
func setDeploymentStrategyAnnotation(strategy appsv1alpha1.DeploymentStrategy, d *apps.Deployment) {
	strategyAnno, _ := json.Marshal(&strategy)
	d.Annotations[appsv1alpha1.DeploymentStrategyAnnotation] = string(strategyAnno)
}

总结

含有一个版本pod的deployment，进行的修改：

注解：rollouts.kruise.io/stable-revision

spec: Paused = true

如果含有两个版本pod的deployment，进行的修改

注解：rollouts.kruise.io/stable-revision rollouts.kruise.io/in-progressing

spec: Paused = true

deployment已经在受rollout的控制含有rollouts.kruise.io/in-progressing,此时进行的修改：

注解：rollouts.kruise.io/deployment-strategy

spec:

• Paused = true
• Strategy.Type = RollingUpdate

rollout 如何更新batchRelease

先对rollout.status中的内容进行以下说明，rollout Reconcile的处理逻辑均是对status中不同状态的流转的处理，此处仅对当Status.Phase=Progressing cond.type=Progressing && cond.Reason=InRolling时的一个逻辑处理，因为在这个状态下是对batchRelease有对应的更新操作，使得整个灰度发布继续发布的核心所在；

注意：本文将避开流量相关内容，流量相关将在后续文章单独进行讲解

apiVersion: rollouts.kruise.io/v1alpha1
kind: Rollout
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"rollouts.kruise.io/v1alpha1","kind":"Rollout","metadata":{"annotations":{"rollouts.kruise.io/rolling-style":"partition"},"name":"rollouts-demo","namespace":"test"},"spec":{"objectRef":{"workloadRef":{"apiVersion":"apps/v1","kind":"Deployment","name":"echoserver"}},"strategy":{"canary":{"steps":[{"pause":{"duration":600},"replicas":"50%","weight":50},{"pause":{"duration":600},"replicas":"100%","weight":100}],"trafficRoutings":[{"ingress":{"name":"echoserver"},"service":"echoserver"}]}}}}
    rollouts.kruise.io/hash: 4d5dx25f76vbb498v9w9w9b6z6f9fw9w4z54bvxdfw664wbfd96dxzb7zxvf4zd8
    rollouts.kruise.io/rolling-style: partition
  creationTimestamp: "2023-10-24T03:13:19Z"
  finalizers:
  - rollouts.kruise.io/rollout
  generation: 1
  name: rollouts-demo
  namespace: test
  resourceVersion: "104658052"
  uid: 2eb27368-22a2-4b9a-a3da-68d0eeffd5d0
spec:
  objectRef:
    workloadRef:
      apiVersion: apps/v1
      kind: Deployment
      name: echoserver
  strategy:
    canary:
      steps:
      - pause:
          duration: 600
        replicas: 50%
        weight: 50
      - pause:
          duration: 600
        replicas: 100%
        weight: 100
      trafficRoutings:
      - ingress:
          name: echoserver
        service: echoserver
status:
  # 针对spec.strategy.canary分批步骤的执行的记录
  canaryStatus:
    canaryReadyReplicas: 3
    canaryReplicas: 3
    canaryRevision: 645754b49f # 要灰度的版本 与新的podTemplateHash一致
    currentStepIndex: 1 # 当前执行的批次
    currentStepState: StepPaused # 批次的状态（StepUpgrade、StepTrafficRouting、StepMetricsAnalysis、StepPaused、StepReady、Completed）
    lastUpdateTime: "2023-10-24T03:44:45Z"
    message: BatchRelease is at state Ready, rollout-id , step 1
    observedWorkloadGeneration: 10
    podTemplateHash: 645754b49f
    rolloutHash: 4d5dx25f76vbb498v9w9w9b6z6f9fw9w4z54bvxdfw664wbfd96dxzb7zxvf4zd8
    stableRevision: 54455bd6bd # 稳定版本  与老的podTemplateHash一致
  conditions:
  - lastTransitionTime: "2023-10-24T03:44:31Z"
    lastUpdateTime: "2023-10-24T03:44:31Z"
    message: Rollout is in Progressing
    reason: InRolling # 取值（Initializing、InRolling、Finalising、Completed、Cancelling、Paused）
    status: "True"
    type: Progressing
  message: Rollout is in step(1/2), and wait duration(600 seconds) to enter the next
    step
  observedGeneration: 1
  phase: Progressing # rollout的阶段状态（Initial、Healthy、Progressing、Terminating、Disabled、Disabling）

核心代码流转流程

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_controller.go # Reconcile （对rollout进行调和入口） ->

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_progressing.go # reconcileRolloutProgressing （当status.conditon.type=Progressing时,cond.Reason的流转） ->

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_progressing.go # doProgressingInRolling ->

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_progressing.go # handleNormalRolling ->

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_canary.go # runCanary（核心是对status.canaryStatus.CurrentStepState状态流转）->

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_canary.go # doCanaryUpgrade ->

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_canary.go # runBatchRelease

核心片段讲解

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_canary.go # doCanaryUpgrade

func (m *canaryReleaseManager) doCanaryUpgrade(c *RolloutContext) (bool, error) {
	// verify whether batchRelease configuration is the latest
	steps := len(c.Rollout.Spec.Strategy.Canary.Steps)
	canaryStatus := c.NewStatus.CanaryStatus
	cond := util.GetRolloutCondition(*c.NewStatus, v1alpha1.RolloutConditionProgressing)
	cond.Message = fmt.Sprintf("Rollout is in step(%d/%d), and upgrade workload to new version", canaryStatus.CurrentStepIndex, steps)
	c.NewStatus.Message = cond.Message
	// run batch release to upgrade the workloads
  // canaryStatus.CurrentStepIndex 首次参数是在reconcileRolloutProgressing中进行设置，初始化为1
  // canaryStatus.CurrentStepIndex 在后续更新中是在runCanary方法中对canaryStatus.CurrentStepState=StepReady中再次进行赋值，如果状态流转到StepUpgrade，则canaryStatus.CurrentStepIndex++；如果状态流转到Completed则不再更新
	done, br, err := m.runBatchRelease(c.Rollout, getRolloutID(c.Workload), canaryStatus.CurrentStepIndex, c.Workload.IsInRollback)
	if err != nil {
		return false, err
	} else if !done {
		return false, nil
	}
	...
}

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_canary.go # runBatchRelease

func (m *canaryReleaseManager) runBatchRelease(rollout *v1alpha1.Rollout, rolloutId string, batch int32, isRollback bool) (bool, *v1alpha1.BatchRelease, error) {
	batch = batch - 1
	br, err := m.fetchBatchRelease(rollout.Namespace, rollout.Name)
	if errors.IsNotFound(err) {
		// create new BatchRelease Crd
		br = createBatchRelease(rollout, rolloutId, batch, isRollback)
		if err = m.Create(context.TODO(), br); err != nil && !errors.IsAlreadyExists(err) {
			klog.Errorf("rollout(%s/%s) create BatchRelease failed: %s", rollout.Namespace, rollout.Name, err.Error())
			return false, nil, err
		}
		klog.Infof("rollout(%s/%s) create BatchRelease(%s) success", rollout.Namespace, rollout.Name, util.DumpJSON(br))
		return false, br, nil
	} else if err != nil {
		klog.Errorf("rollout(%s/%s) fetch BatchRelease failed: %s", rollout.Namespace, rollout.Name, err.Error())
		return false, nil, err
	}

	// check whether batchRelease configuration is the latest
	newBr := createBatchRelease(rollout, rolloutId, batch, isRollback)
	if reflect.DeepEqual(br.Spec, newBr.Spec) && reflect.DeepEqual(br.Annotations, newBr.Annotations) {
		klog.Infof("rollout(%s/%s) do batchRelease batch(%d) success", rollout.Namespace, rollout.Name, batch+1)
		return true, br, nil
	}

	// update batchRelease to the latest version
	if err = retry.RetryOnConflict(retry.DefaultBackoff, func() error {
		if err = m.Get(context.TODO(), client.ObjectKey{Namespace: newBr.Namespace, Name: newBr.Name}, br); err != nil {
			klog.Errorf("error getting BatchRelease(%s/%s) from client", newBr.Namespace, newBr.Name)
			return err
		}
		br.Spec = newBr.Spec
		br.Annotations = newBr.Annotations
    // update batchRelease，更新后batchRelease Reconcile通过watch机制后可以监控到br的变更然后进行逻辑处理
		return m.Client.Update(context.TODO(), br)
	}); err != nil {
		klog.Errorf("rollout(%s/%s) update batchRelease failed: %s", rollout.Namespace, rollout.Name, err.Error())
		return false, nil, err
	}
	klog.Infof("rollout(%s/%s) update batchRelease(%s) configuration to latest", rollout.Namespace, rollout.Name, util.DumpJSON(br))
	return false, br, nil
}

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_canary.go # createBatchRelease

// 生成br描述文件
func createBatchRelease(rollout *v1alpha1.Rollout, rolloutID string, batch int32, isRollback bool) *v1alpha1.BatchRelease {
	var batches []v1alpha1.ReleaseBatch
  // 根据steps设置batchRelease中的batches
	for _, step := range rollout.Spec.Strategy.Canary.Steps {
		if step.Replicas == nil {
			batches = append(batches, v1alpha1.ReleaseBatch{CanaryReplicas: intstr.FromString(strconv.Itoa(int(*step.Weight)) + "%")})
		} else {
			batches = append(batches, v1alpha1.ReleaseBatch{CanaryReplicas: *step.Replicas})
		}
	}
	br := &v1alpha1.BatchRelease{
		ObjectMeta: metav1.ObjectMeta{
			Namespace:       rollout.Namespace,
			Name:            rollout.Name,
			OwnerReferences: []metav1.OwnerReference{*metav1.NewControllerRef(rollout, rolloutControllerKind)},
		},
		Spec: v1alpha1.BatchReleaseSpec{
			TargetRef: v1alpha1.ObjectRef{
				WorkloadRef: &v1alpha1.WorkloadRef{
					APIVersion: rollout.Spec.ObjectRef.WorkloadRef.APIVersion,
					Kind:       rollout.Spec.ObjectRef.WorkloadRef.Kind,
					Name:       rollout.Spec.ObjectRef.WorkloadRef.Name,
				},
			},
			ReleasePlan: v1alpha1.ReleasePlan{
				Batches:                  batches,
				RolloutID:                rolloutID,
        // 设置当前要执行的batch,此字段后续batchRelease在进行计算stats中的currentBatch的时候会用到此字段
				BatchPartition:           utilpointer.Int32Ptr(batch),
				FailureThreshold:         rollout.Spec.Strategy.Canary.FailureThreshold,
				PatchPodTemplateMetadata: rollout.Spec.Strategy.Canary.PatchPodTemplateMetadata,
			},
		},
	}
	annotations := map[string]string{}
	if isRollback {
		annotations[v1alpha1.RollbackInBatchAnnotation] = rollout.Annotations[v1alpha1.RollbackInBatchAnnotation]
	}
	if style, ok := rollout.Annotations[v1alpha1.RolloutStyleAnnotation]; ok {
		annotations[v1alpha1.RolloutStyleAnnotation] = style
	}
	if len(annotations) > 0 {
		br.Annotations = annotations
	}
	return br
}

总结：做的几件事情

• rollout自身生命周期管理
• 对batchRelease进行管理和更新
• 对流量的控制（本文没有涉及）

batchRelease如何更新deployment

apiVersion: rollouts.kruise.io/v1alpha1
kind: BatchRelease
metadata:
  annotations:
    rollouts.kruise.io/rolling-style: partition
  creationTimestamp: "2023-10-25T09:19:16Z"
  finalizers:
  - rollouts.kruise.io/batch-release-finalizer
  generation: 1
  name: rollouts-demo
  namespace: test
  ownerReferences:
  - apiVersion: rollouts.kruise.io/v1alpha1
    blockOwnerDeletion: true
    controller: true
    kind: Rollout
    name: rollouts-demo
    uid: 6745a9a7-52c6-4ce8-a090-1d26977a12d3
  resourceVersion: "105406988"
  uid: f01ed932-1473-4499-af39-be8594e29093
# spec中的内容均是在rollout中的进行的初始化
spec:
  releasePlan:
    # 要进行的批次
    batchPartition: 0
    batches:
    # 根据rollout中的批次进行的初始化
    - canaryReplicas: 50%
    - canaryReplicas: 100%
  targetReference:
    workloadRef:
      apiVersion: apps/v1
      kind: Deployment
      name: echoserver
status:
  canaryStatus:
    batchReadyTime: "2023-10-25T09:19:20Z"
    batchState: Ready #  状态流转Upgrading -> Verifying -> Ready
    currentBatch: 0 # 此字段根据spec.releasePlan.batchPartiton
    updatedReadyReplicas: 3
    updatedReplicas: 3
  observedGeneration: 1
  observedReleasePlanHash: 41ed02abe4a3a620a5967efc58407ae1e1ad1bbbd70ee993363d98bdc1864fcb
  observedWorkloadReplicas: 6
  phase: Progressing # 状态流转 Preparing -> Progressing-> Finalizing -> Completed
  stableRevision: 54455bd6bd # 老得版本
  updateRevision: 645754b49f # 需要更新的podTemplateHash

核心代码流转流程

github.com/openkruise/rollouts/pkg/controller/batchrelease/batchrelease_controller.go # Reconcile - >

github.com/openkruise/rollouts/pkg/controller/batchrelease/batchrelease_executor.go # Do (两件事情1，通过此方法syncStatusBeforeExecuting初始化status中的信息 以及 判断更新是否暂停；2，executeBatchReleasePlan执行更新) ->

github.com/openkruise/rollouts/pkg/controller/batchrelease/batchrelease_executor.go # executeBatchReleasePlan (newStatus.Phase进行流转) ->

github.com/openkruise/rollouts/pkg/controller/batchrelease/batchrelease_executor.go # progressBatches （newStatus.CanaryStatus.CurrentBatchState状态流转）->

github.com/openkruise/rollouts/pkg/controller/batchrelease/control/partitionstyle/control_plane.go # UpgradeBatch (使用CalculateBatchContext进行一些更新br.status的相关信息) ->

github.com/openkruise/rollouts/pkg/controller/batchrelease/control/partitionstyle/deployment/control.go # UpgradeBatch (更新deployment注解rollouts.kruise.io/deployment-strategy，把对应批次的更新百分比进行更新)

核心片段

github.com/openkruise/rollouts/pkg/controller/batchrelease/batchrelease_status.go # signalRecalculate

func signalRecalculate(release *v1alpha1.BatchRelease, newStatus *v1alpha1.BatchReleaseStatus) {
  ...
	if release.Spec.ReleasePlan.BatchPartition != nil && release.Spec.ReleasePlan.RolloutID == observedRolloutID {
		// 根据batchPartition初始化status中的currentBatch
		currentBatch = integer.Int32Min(*release.Spec.ReleasePlan.BatchPartition, int32(len(release.Spec.ReleasePlan.Batches)-1))
	}

	klog.Infof("BatchRelease(%v) canary batch changed from %v to %v when the release plan changed, observed-rollout-id: %s, current-rollout-id: %s",
		client.ObjectKeyFromObject(release), newStatus.CanaryStatus.CurrentBatch, currentBatch, observedRolloutID, release.Spec.ReleasePlan.RolloutID)
	newStatus.CanaryStatus.BatchReadyTime = nil
	newStatus.CanaryStatus.CurrentBatch = currentBatch
	newStatus.ObservedRolloutID = release.Spec.ReleasePlan.RolloutID
	newStatus.CanaryStatus.CurrentBatchState = v1alpha1.UpgradingBatchState
	newStatus.ObservedReleasePlanHash = util.HashReleasePlanBatches(&release.Spec.ReleasePlan)
}

github.com/openkruise/rollouts/pkg/controller/batchrelease/control/partitionstyle/deployment/control.go # CalculateBatchContext

func (rc *realController) CalculateBatchContext(release *v1alpha1.BatchRelease) (*batchcontext.BatchContext, error) {
	rolloutID := release.Spec.ReleasePlan.RolloutID
	if rolloutID != "" {
		// if rollout-id is set, the pod will be patched batch label,
		// so we have to list pod here.
		if _, err := rc.ListOwnedPods(); err != nil {
			return nil, err
		}
	}


	currentBatch := release.Status.CanaryStatus.CurrentBatch
  // 获取下个批次要更新百分比
	desiredPartition := release.Spec.ReleasePlan.Batches[currentBatch].CanaryReplicas
	PlannedUpdatedReplicas := deploymentutil.NewRSReplicasLimit(desiredPartition, rc.object)

	return &batchcontext.BatchContext{
		Pods:             rc.pods,
		RolloutID:        rolloutID,
		CurrentBatch:     currentBatch,
		UpdateRevision:   release.Status.UpdateRevision,
		DesiredPartition: desiredPartition,
		FailureThreshold: release.Spec.ReleasePlan.FailureThreshold,

		Replicas:               rc.Replicas,
		UpdatedReplicas:        rc.Status.UpdatedReplicas,
		UpdatedReadyReplicas:   rc.Status.UpdatedReadyReplicas,
		PlannedUpdatedReplicas: PlannedUpdatedReplicas,
		DesiredUpdatedReplicas: PlannedUpdatedReplicas,
	}, nil
}

github.com/openkruise/rollouts/pkg/controller/batchrelease/control/partitionstyle/deployment/control.go # UpgradeBatch

func (rc *realController) UpgradeBatch(ctx *batchcontext.BatchContext) error {
  ...
	strategy := util.GetDeploymentStrategy(rc.object)
	if control.IsCurrentMoreThanOrEqualToDesired(strategy.Partition, ctx.DesiredPartition) {
		return nil // Satisfied, no need patch again.
	}

	d := rc.object.DeepCopy()
  // 在CalculateBatchContext中设置了DesiredPartition信息
	strategy.Partition = ctx.DesiredPartition
	patchData := patch.NewDeploymentPatch()
  // v1alpha1.DeploymentStrategyAnnotation=rollouts.kruise.io/deployment-strategy
	patchData.InsertAnnotation(v1alpha1.DeploymentStrategyAnnotation, util.DumpJSON(&strategy))
  // 对deployment进行patch操作
	return rc.client.Patch(context.TODO(), d, patchData)
}

总结：做的几件事情

• batchRelease生命周期管理
• 对deployment 注解的更新

deployment如何更新replicaSet

deployment的rollingStyle更新有两种方式

• Partition：不会创创建新的deployment
• Canary：以金丝雀方式滚动，并且会创建一个canary deployment

此文章是以Partition的方式为例进行说明。

apiVersion: apps/v1
kind: Deployment
metadata:
  annotations:
    batchrelease.rollouts.kruise.io/control-info: '{"apiVersion":"rollouts.kruise.io/v1alpha1","kind":"BatchRelease","name":"rollouts-demo","uid":"2cf90da0-bb70-4aca-abef-9a0632377147","controller":true,"blockOwnerDeletion":true}'
    deployment.kubernetes.io/revision: "4"
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"apps/v1","kind":"Deployment","metadata":{"annotations":{},"labels":{"app":"echoserver"},"name":"echoserver","namespace":"ghx-test"},"spec":{"replicas":6,"selector":{"matchLabels":{"app":"echoserver"}},"template":{"metadata":{"labels":{"app":"echoserver"}},"spec":{"containers":[{"env":[{"name":"NODE_NAME","value":"version1"},{"name":"PORT","value":"8080"},{"name":"POD_NAME","valueFrom":{"fieldRef":{"fieldPath":"metadata.name"}}},{"name":"POD_NAMESPACE","valueFrom":{"fieldRef":{"fieldPath":"metadata.namespace"}}},{"name":"POD_IP","valueFrom":{"fieldRef":{"fieldPath":"status.podIP"}}}],"image":"openkruise-registry.cn-shanghai.cr.aliyuncs.com/openkruise/demo:1.10.2","imagePullPolicy":"IfNotPresent","name":"echoserver","ports":[{"containerPort":8080}]}]}}}}
    rollouts.kruise.io/deployment-extra-status: '{"updatedReadyReplicas":3,"expectedUpdatedReplicas":3}'
    # batchRelease会把需要更新批次的partition进行更新,同时标记有滚动的方式
    rollouts.kruise.io/deployment-strategy: '{"rollingStyle":"Partition","rollingUpdate":{"maxUnavailable":"25%","maxSurge":"25%"},"partition":"20%"}'
    rollouts.kruise.io/in-progressing: '{"rolloutName":"rollouts-demo"}'
  creationTimestamp: "2023-10-24T02:27:30Z"
  generation: 25
  labels:
    app: echoserver
    rollouts.kruise.io/controlled-by-advanced-deployment-controller: "true"
    rollouts.kruise.io/stable-revision: 645754b49f
  name: echoserver
  namespace: ghx-test
  resourceVersion: "104752031"
  uid: 2328acab-51c4-4bc2-87c1-501bd65838b8
spec:
  # 在webhook的时候设置了此字段
  paused: true
  ...

在 deployment的webhook逻辑 一节讲解了，会把deployment中的pause=true，因此k8s不会对deployment进行任何的操作；因此rollout模块单独实现了deployment Reconcile

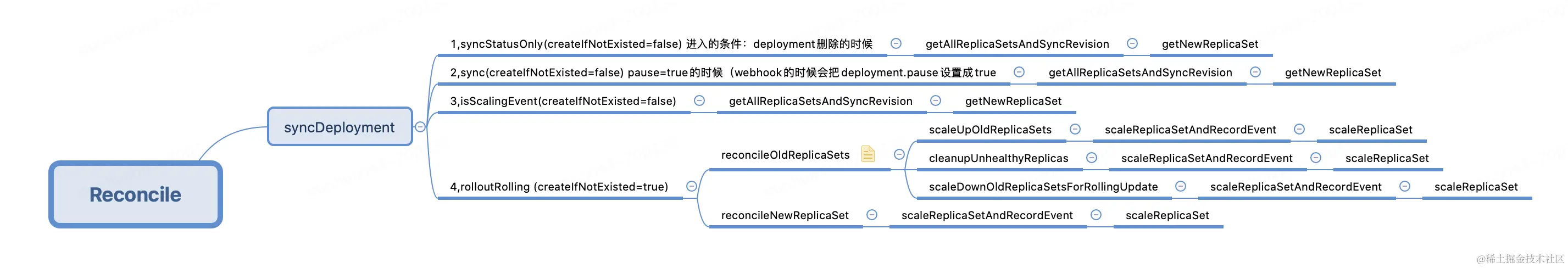

核心代码流程

github.com/openkruise/rollouts/pkg/controller/deployment/controller.go # Reconcile - >

github.com/openkruise/rollouts/pkg/controller/deployment/deployment_controller.go # syncDeployment ->

github.com/openkruise/rollouts/pkg/controller/deployment/rolling.go # rolloutRolling ->

github.com/openkruise/rollouts/pkg/controller/deployment/rolling.go # reconcileNewReplicaSet（计算新版本的副本数量） ->

github.com/openkruise/rollouts/pkg/controller/deployment/sync.go # scaleReplicaSetAndRecordEvent->

github.com/openkruise/rollouts/pkg/controller/deployment/sync.go # scaleReplicaSet

核心片段

// 根据deployment注解rollouts.kruise.io/deployment-strategy中的partition计算新版本的副本数量
func NewRSReplicasLimit(partition intstrutil.IntOrString, deployment *apps.Deployment) int32 {
	replicas := int(*deployment.Spec.Replicas)
	replicaLimit, _ := intstrutil.GetScaledValueFromIntOrPercent(&partition, replicas, true)
	replicaLimit = integer.IntMax(integer.IntMin(replicaLimit, replicas), 0)
	if replicas > 1 && partition.Type == intstrutil.String && partition.String() != "100%" {
		replicaLimit = integer.IntMin(replicaLimit, replicas-1)
	}
	return int32(replicaLimit)
}

github.com/openkruise/rollouts/pkg/controller/deployment/sync.go # scaleReplicaSet

// 更新rs副本数量
func (dc *DeploymentController) scaleReplicaSet(ctx context.Context, rs *apps.ReplicaSet, newScale int32, deployment *apps.Deployment, scalingOperation string) (bool, *apps.ReplicaSet, error) {

	sizeNeedsUpdate := *(rs.Spec.Replicas) != newScale

	annotationsNeedUpdate := deploymentutil.ReplicasAnnotationsNeedUpdate(rs, *(deployment.Spec.Replicas), *(deployment.Spec.Replicas)+deploymentutil.MaxSurge(deployment, &dc.strategy))

	scaled := false
	var err error
	if sizeNeedsUpdate || annotationsNeedUpdate {
		oldScale := *(rs.Spec.Replicas)
		rsCopy := rs.DeepCopy()
		*(rsCopy.Spec.Replicas) = newScale
		deploymentutil.SetReplicasAnnotations(rsCopy, *(deployment.Spec.Replicas), *(deployment.Spec.Replicas)+deploymentutil.MaxSurge(deployment, &dc.strategy))
		rs, err = dc.client.AppsV1().ReplicaSets(rsCopy.Namespace).Update(ctx, rsCopy, metav1.UpdateOptions{})
		if err == nil && sizeNeedsUpdate {
			scaled = true
			dc.eventRecorder.Eventf(deployment, v1.EventTypeNormal, "ScalingReplicaSet", "Scaled %s replica set %s to %d from %d", scalingOperation, rs.Name, newScale, oldScale)
		}
	}
	return scaled, rs, err
}

github.com/openkruise/rollouts/pkg/controller/deployment/sync.go # getNewReplicaSet

// 如果没有新版本的rs则创建后返回，如果有则进行进行更新
func (dc *DeploymentController) getNewReplicaSet(ctx context.Context, d *apps.Deployment, rsList, oldRSs []*apps.ReplicaSet, createIfNotExisted bool) (*apps.ReplicaSet, error) {
  // 根据template返回最新的RS
	existingNewRS := deploymentutil.FindNewReplicaSet(d, rsList)

	// Calculate the max revision number among all old RSes
	maxOldRevision := deploymentutil.MaxRevision(oldRSs)
	// Calculate revision number for this new replica set
	newRevision := strconv.FormatInt(maxOldRevision+1, 10)

	// Latest replica set exists. We need to sync its annotations (includes copying all but
	// annotationsToSkip from the parent deployment, and update revision, desiredReplicas,
	// and maxReplicas) and also update the revision annotation in the deployment with the
	// latest revision.
	if existingNewRS != nil {
		rsCopy := existingNewRS.DeepCopy()

		// Set existing new replica set's annotation
		annotationsUpdated := deploymentutil.SetNewReplicaSetAnnotations(d, rsCopy, &dc.strategy, newRevision, true, maxRevHistoryLengthInChars)
		minReadySecondsNeedsUpdate := rsCopy.Spec.MinReadySeconds != d.Spec.MinReadySeconds
		if annotationsUpdated || minReadySecondsNeedsUpdate {
			rsCopy.Spec.MinReadySeconds = d.Spec.MinReadySeconds
			return dc.client.AppsV1().ReplicaSets(rsCopy.ObjectMeta.Namespace).Update(ctx, rsCopy, metav1.UpdateOptions{})
		}

		// Should use the revision in existingNewRS's annotation, since it set by before
		needsUpdate := deploymentutil.SetDeploymentRevision(d, rsCopy.Annotations[deploymentutil.RevisionAnnotation])
		// If no other Progressing condition has been recorded and we need to estimate the progress
		// of this deployment then it is likely that old users started caring about progress. In that
		// case we need to take into account the first time we noticed their new replica set.
		cond := deploymentutil.GetDeploymentCondition(d.Status, apps.DeploymentProgressing)
		if deploymentutil.HasProgressDeadline(d) && cond == nil {
			msg := fmt.Sprintf("Found new replica set %q", rsCopy.Name)
			condition := deploymentutil.NewDeploymentCondition(apps.DeploymentProgressing, v1.ConditionTrue, deploymentutil.FoundNewRSReason, msg)
			deploymentutil.SetDeploymentCondition(&d.Status, *condition)
			needsUpdate = true
		}
	...
		return rsCopy, nil
	}

	// new ReplicaSet does not exist, create one.
	newRSTemplate := *d.Spec.Template.DeepCopy()
	podTemplateSpecHash := util.ComputeHash(&newRSTemplate, d.Status.CollisionCount)
	newRSTemplate.Labels = labelsutil.CloneAndAddLabel(d.Spec.Template.Labels, apps.DefaultDeploymentUniqueLabelKey, podTemplateSpecHash)
	// Add podTemplateHash label to selector.
	newRSSelector := labelsutil.CloneSelectorAndAddLabel(d.Spec.Selector, apps.DefaultDeploymentUniqueLabelKey, podTemplateSpecHash)

	// Create new ReplicaSet
	newRS := apps.ReplicaSet{
		ObjectMeta: metav1.ObjectMeta{
			// Make the name deterministic, to ensure idempotence
			Name:            d.Name + "-" + podTemplateSpecHash,
			Namespace:       d.Namespace,
			OwnerReferences: []metav1.OwnerReference{*metav1.NewControllerRef(d, controllerKind)},
			Labels:          newRSTemplate.Labels,
		},
		Spec: apps.ReplicaSetSpec{
			Replicas:        new(int32),
			MinReadySeconds: d.Spec.MinReadySeconds,
			Selector:        newRSSelector,
			Template:        newRSTemplate,
		},
	}
	allRSs := append(oldRSs, &newRS)
	newReplicasCount, err := deploymentutil.NewRSNewReplicas(d, allRSs, &newRS, &dc.strategy)
	if err != nil {
		return nil, err
	}

	// We ensure that newReplicasLowerBound is greater than 0 unless deployment is 0,
	// this is because if we set new replicas as 0, the native deployment controller
	// will flight with ours.
	newReplicasLowerBound := deploymentutil.NewRSReplicasLowerBound(d, &dc.strategy)

	*(newRS.Spec.Replicas) = integer.Int32Max(newReplicasCount, newReplicasLowerBound)
	// Set new replica set's annotation
	deploymentutil.SetNewReplicaSetAnnotations(d, &newRS, &dc.strategy, newRevision, false, maxRevHistoryLengthInChars)
	// Create the new ReplicaSet. If it already exists, then we need to check for possible
	// hash collisions. If there is any other error, we need to report it in the status of
	// the Deployment.
	alreadyExists := false
	createdRS, err := dc.client.AppsV1().ReplicaSets(d.Namespace).Create(ctx, &newRS, metav1.CreateOptions{})
	switch {
	// We may end up hitting this due to a slow cache or a fast resync of the Deployment.
	case errors.IsAlreadyExists(err):
		alreadyExists = true

		// Fetch a copy of the ReplicaSet.
		rs, rsErr := dc.rsLister.ReplicaSets(newRS.Namespace).Get(newRS.Name)
		if rsErr != nil {
			return nil, rsErr
		}

		// If the Deployment owns the ReplicaSet and the ReplicaSet's PodTemplateSpec is semantically
		// deep equal to the PodTemplateSpec of the Deployment, it's the Deployment's new ReplicaSet.
		// Otherwise, this is a hash collision and we need to increment the collisionCount field in
		// the status of the Deployment and requeue to try the creation in the next sync.
		controllerRef := metav1.GetControllerOf(rs)
		if controllerRef != nil && controllerRef.UID == d.UID && deploymentutil.EqualIgnoreHash(&d.Spec.Template, &rs.Spec.Template) {
			createdRS = rs
			err = nil
			break
		}

		// Matching ReplicaSet is not equal - increment the collisionCount in the DeploymentStatus
		// and requeue the Deployment.
		if d.Status.CollisionCount == nil {
			d.Status.CollisionCount = new(int32)
		}
		preCollisionCount := *d.Status.CollisionCount
		*d.Status.CollisionCount++
		// Update the collisionCount for the Deployment and let it requeue by returning the original
		// error.
		_, dErr := dc.client.AppsV1().Deployments(d.Namespace).UpdateStatus(ctx, d, metav1.UpdateOptions{})
		if dErr == nil {
			klog.V(2).Infof("Found a hash collision for deployment %q - bumping collisionCount (%d->%d) to resolve it", d.Name, preCollisionCount, *d.Status.CollisionCount)
		}
		return nil, err
	case errors.HasStatusCause(err, v1.NamespaceTerminatingCause):
		// if the namespace is terminating, all subsequent creates will fail and we can safely do nothing
		return nil, err
	case err != nil:
		msg := fmt.Sprintf("Failed to create new replica set %q: %v", newRS.Name, err)
		if deploymentutil.HasProgressDeadline(d) {
			cond := deploymentutil.NewDeploymentCondition(apps.DeploymentProgressing, v1.ConditionFalse, deploymentutil.FailedRSCreateReason, msg)
			deploymentutil.SetDeploymentCondition(&d.Status, *cond)
			// We don't really care about this error at this point, since we have a bigger issue to report.
			// TODO: Identify which errors are permanent and switch DeploymentIsFailed to take into account
			// these reasons as well. Related issue: https://github.com/kubernetes/kubernetes/issues/18568
			_, _ = dc.client.AppsV1().Deployments(d.Namespace).UpdateStatus(ctx, d, metav1.UpdateOptions{})
		}
		dc.eventRecorder.Eventf(d, v1.EventTypeWarning, deploymentutil.FailedRSCreateReason, msg)
		return nil, err
	}
	if !alreadyExists && newReplicasCount > 0 {
		dc.eventRecorder.Eventf(d, v1.EventTypeNormal, "ScalingReplicaSet", "Scaled up replica set %s to %d", createdRS.Name, newReplicasCount)
	}

	needsUpdate := deploymentutil.SetDeploymentRevision(d, newRevision)
	if !alreadyExists && deploymentutil.HasProgressDeadline(d) {
		msg := fmt.Sprintf("Created new replica set %q", createdRS.Name)
		condition := deploymentutil.NewDeploymentCondition(apps.DeploymentProgressing, v1.ConditionTrue, deploymentutil.NewReplicaSetReason, msg)
		deploymentutil.SetDeploymentCondition(&d.Status, *condition)
		needsUpdate = true
	}
	if needsUpdate {
		_, err = dc.client.AppsV1().Deployments(d.Namespace).UpdateStatus(ctx, d, metav1.UpdateOptions{})
	}
	return createdRS, err
}

总结：做的几件事情

• 对rs创建、更新、管理

总结

通过以上源码的分析，可以清楚的看到每个CRD只专注于做自己的事情，同时进行对有关联CR的一个更新；逻辑清晰，通过对上面的汇总可以看到对应的每个小节的核心步骤如下：

彩蛋

当deployment有变更时，rollout Reconcile如何获取后进行工作

EventHandler（事件处理程序）

在Kubernetes（K8s）中，EventHandler（事件处理程序）是一个接口，用于处理和响应Kubernetes集群中发生的事件。EventHandler定义了一组方法，用于处理不同类型的事件，包括对象的创建、更新和删除等。

EventHandler接口通常由Kubernetes中的控制器（Controller）实现。控制器是一种用于管理和协调Kubernetes资源的组件，它监视集群中的对象状态，并根据需要采取相应的操作。

以下是EventHandler接口的几个常见方法：

1. Create(event.CreateEvent, workqueue.RateLimitingInterface)：当一个新对象被添加到集群中时调用。参数obj是被添加的对象。
2. Update(event.UpdateEvent, workqueue.RateLimitingInterface)：当一个已有对象的状态被更新时调用。参数oldObj是更新前的对象，newObj是更新后的对象。
3. Delete(event.DeleteEvent, workqueue.RateLimitingInterface)：当一个对象被从集群中删除时调用。参数obj是被删除的对象。

控制器实现EventHandler接口时，可以根据需要对不同类型的事件进行处理。例如，当一个新的Pod对象被添加到集群中时，控制器可以在OnAdd方法中执行一些操作，如启动相关的容器。

通过实现EventHandler接口，控制器可以对Kubernetes集群中发生的事件做出响应，并根据需要执行相应的操作，以确保集群中的对象状态与期望一致。

实现逻辑

github.com/openkruise/rollouts/main.go # main ->

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_controller.go # SetupWithManager ->

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_event_handler.go # enqueueRequestForWorkload

核心代码

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_controller.go # SetupWithManager

// SetupWithManager sets up the controller with the Manager.
func (r *RolloutReconciler) SetupWithManager(mgr ctrl.Manager) error {
	// Create a new controller
	c, err := controller.New("rollout-controller", mgr, controller.Options{
		Reconciler: r, MaxConcurrentReconciles: concurrentReconciles})
	if err != nil {
		return err
	}
	// Watch for changes to rollout
	if err = c.Watch(&source.Kind{Type: &v1alpha1.Rollout{}}, &handler.EnqueueRequestForObject{}); err != nil {
		return err
	}
	// Watch for changes to batchRelease
	if err = c.Watch(&source.Kind{Type: &v1alpha1.BatchRelease{}}, &enqueueRequestForBatchRelease{reader: mgr.GetCache()}); err != nil {
		return err
	}
	runtimeController = c
  // workload时间的监听
	workloadHandler = &enqueueRequestForWorkload{reader: mgr.GetCache(), scheme: r.Scheme}
	if err = util.AddWorkloadWatcher(c, workloadHandler); err != nil {
		return err
	}
	r.finder = util.NewControllerFinder(mgr.GetClient())
	r.trafficRoutingManager = trafficrouting.NewTrafficRoutingManager(mgr.GetClient())
	r.canaryManager = &canaryReleaseManager{
		Client:                mgr.GetClient(),
		trafficRoutingManager: r.trafficRoutingManager,
		recorder:              r.Recorder,
	}
	return nil
}

github.com/openkruise/rollouts/pkg/controller/rollout/rollout_event_handler.go # handleEvent

// 针对workload时间进行监听处理
var _ handler.EventHandler = &enqueueRequestForWorkload{}
func (w *enqueueRequestForWorkload) Create(evt event.CreateEvent, q workqueue.RateLimitingInterface) {
	w.handleEvent(q, evt.Object)
}

func (w *enqueueRequestForWorkload) Delete(evt event.DeleteEvent, q workqueue.RateLimitingInterface) {
	w.handleEvent(q, evt.Object)
}

func (w *enqueueRequestForWorkload) Update(evt event.UpdateEvent, q workqueue.RateLimitingInterface) {
	w.handleEvent(q, evt.ObjectNew)
}


func (w *enqueueRequestForWorkload) handleEvent(q workqueue.RateLimitingInterface, obj client.Object) {
	key := types.NamespacedName{
		Namespace: obj.GetNamespace(),
		Name:      obj.GetName(),
	}
	kinds, _, err := w.scheme.ObjectKinds(obj)
	if err != nil {
		klog.Errorf("scheme ObjectKinds key(%s) failed: %s", key.String(), err.Error())
		return
	}
	gvk := kinds[0]
	rollout, err := w.getRolloutForWorkload(key, gvk)
	if err != nil {
		klog.Errorf("unable to get Rollout related with %s (%s/%s), err: %v", gvk.Kind, key.Namespace, key.Name, err)
		return
	}
	if rollout != nil {
		klog.Infof("workload(%s/%s) and reconcile Rollout (%s/%s)", key.Namespace, key.Name, rollout.Namespace, rollout.Name)
		nsn := types.NamespacedName{Namespace: rollout.GetNamespace(), Name: rollout.GetName()}
    // 把rollout
		q.Add(reconcile.Request{NamespacedName: nsn})
	}
}

ctrl.Result{RequeueAfter: time.Until(recheckTime)} 与 ctrl.Result{}的区别

ctrl.Result{RequeueAfter: time.Until(*recheckTime)}表示控制器希望在一定时间后重新调度进行下一次的Reconcile操作。这里使用了RequeueAfter字段来指定重新调度的时间间隔，它的值是一个time.Duration类型的值，表示从当前时间开始，需要等待的时间。具体的等待时间由recheckTime变量决定。

使用RequeueAfter字段可以实现控制器在一段时间后再次处理自定义资源，这在某些情况下非常有用。例如，当自定义资源的状态发生变化，但还需要等待一段时间才能执行下一步操作时，可以使用RequeueAfter来延迟下一次的调度。

需要注意的是，Reconcile函数的返回值除了ctrl.Result对象外，还可以返回一个错误对象。如果返回一个非空的错误对象，控制器将会记录错误并终止当前的Reconcile操作。在这种情况下，RequeueAfter字段将被忽略。

总结来说，ctrl.Result{RequeueAfter: time.Until(*recheckTime)}表示控制器希望在一定时间后重新调度进行下一次的Reconcile操作，以继续处理自定义资源。
