嵌入式学习之Linux驱动（第三期_并发与竞争）

嵌入式学习之Linux驱动（第三期_并发与竞争）

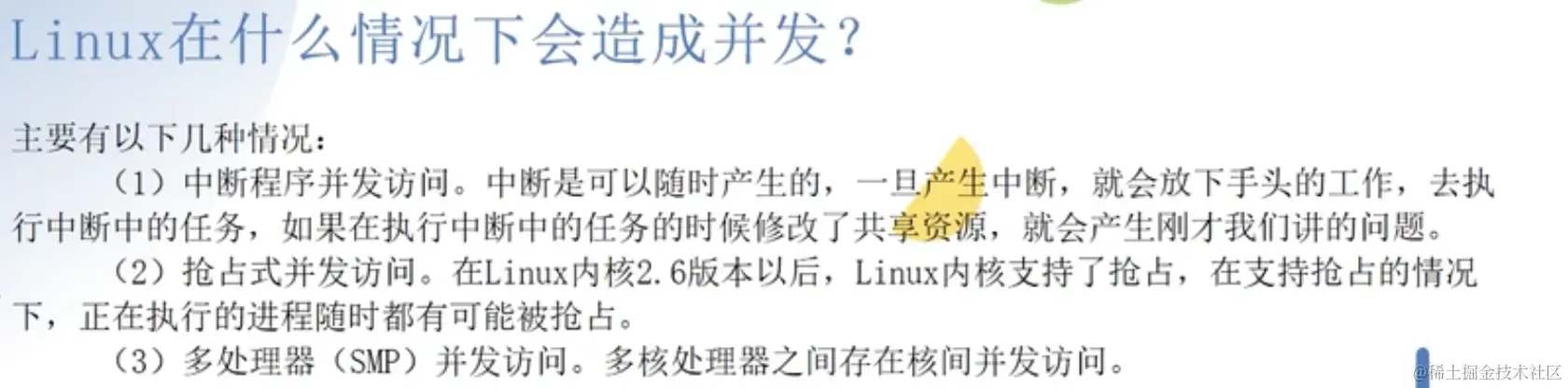

理论知识

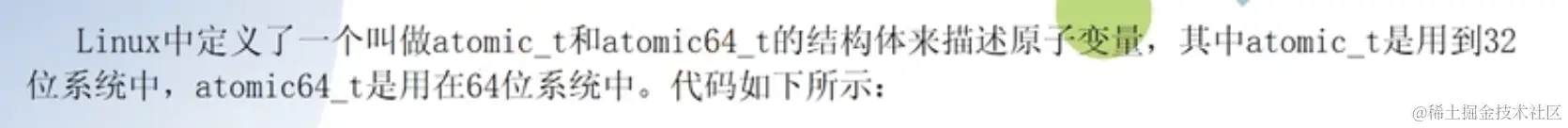

原子操作

整型原子操作API(32位)

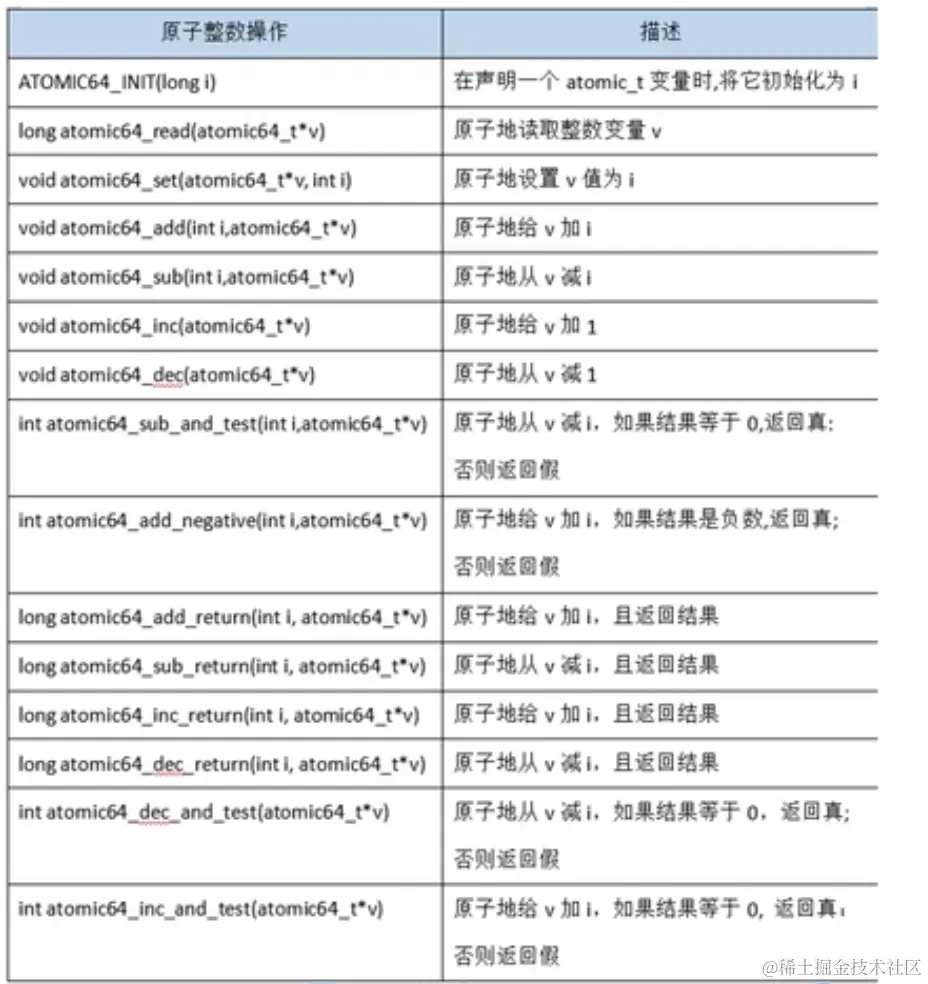

整型原子操作API(64位)

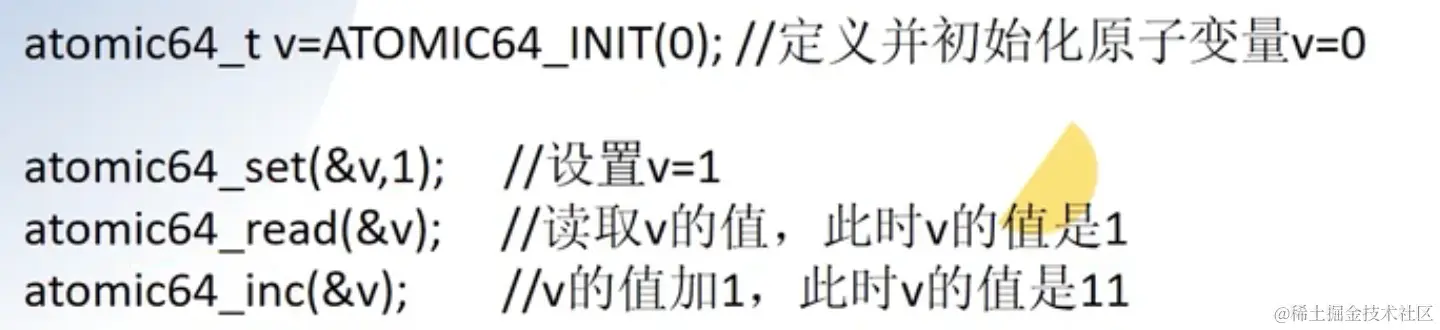

示例:

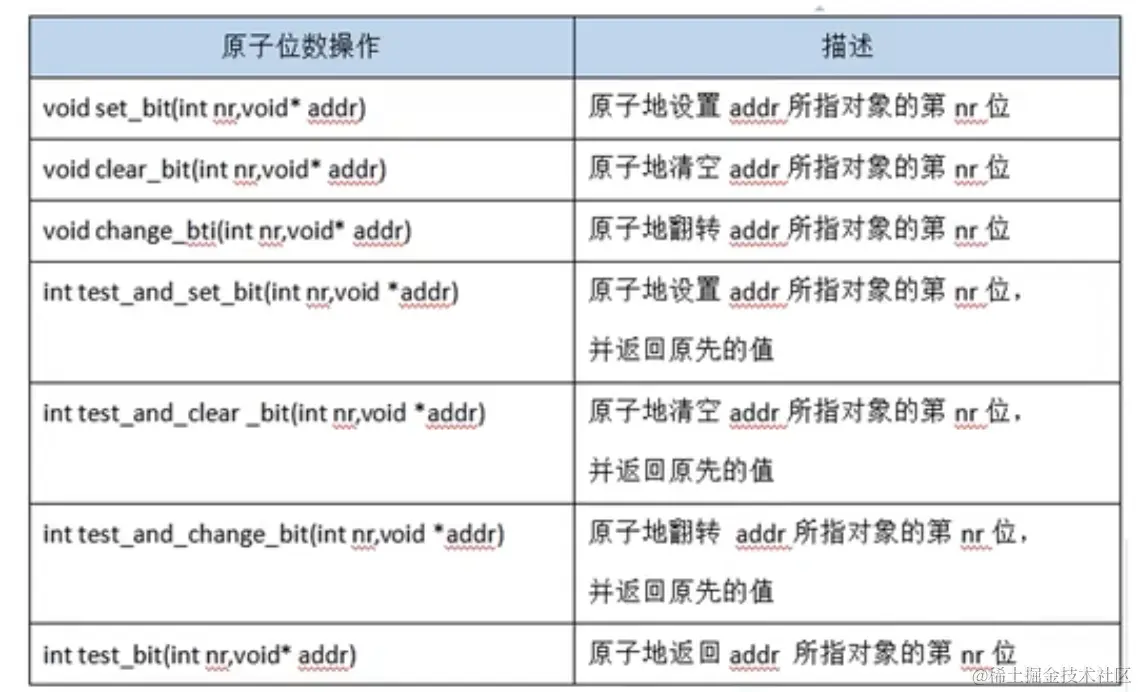

原子位操作

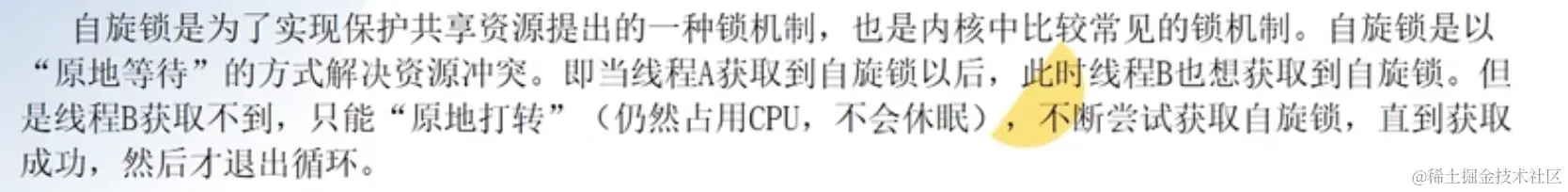

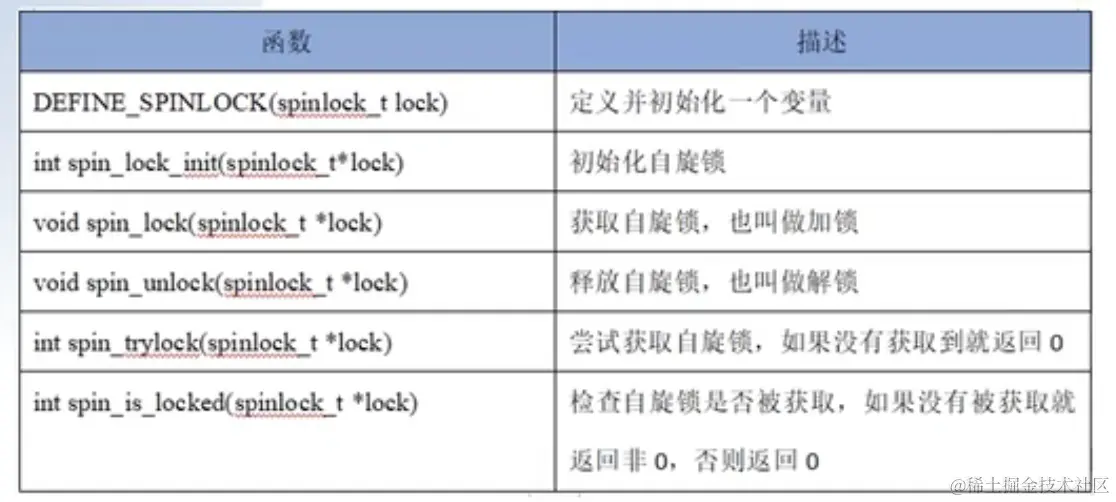

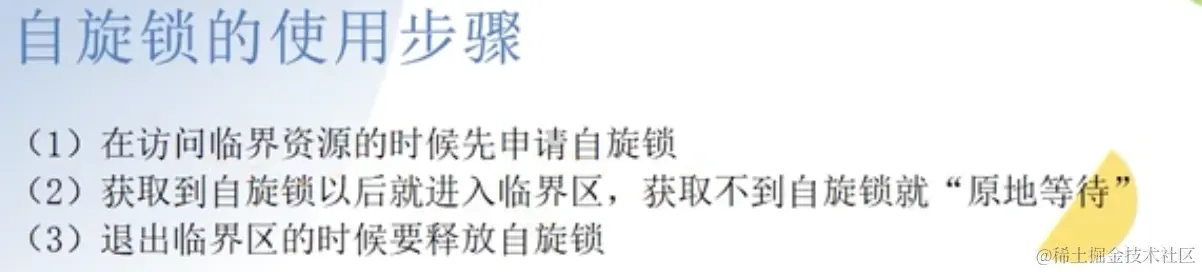

自旋锁

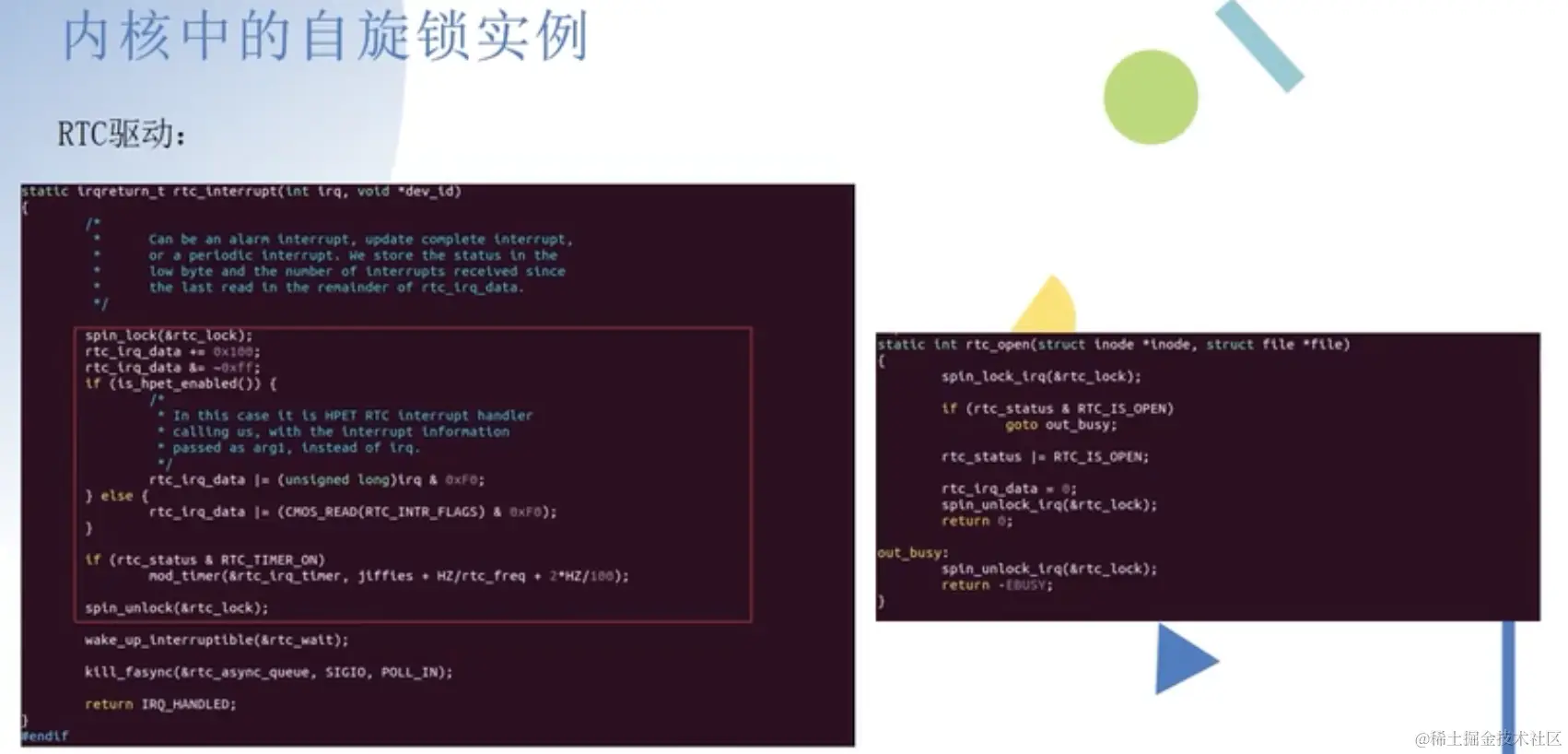

自旋锁案例

#include <linux/init.h>
#include <linux/module.h>
#include <linux/fs.h>
#include <linux/kdev_t.h>
#include <linux/cdev.h>
#include <linux/device.h>
#include <linux/uaccess.h>
#include <linux/atomic.h>

dev_t dev_num;
struct cdev cdev_test;
struct class *class;
struct device *device;
static spinlock_t spinlock;
static flag = 1;

static int cdev_test_open(struct inode *, struct file *)
{
    spin_lock(&spinlock);
    // 临界区
    // ... 访问或修改临界资源
    flag = 0;
    spin_unlock(&spinlock);

    printk("cdev_test_open");
    return 0;
}

static int cdev_test_release(struct inode *, struct file *)
{
    spin_lock(&spinlock);
    flag = 1;
    spin_unlock(&spinlock);
    printk("cdev_test_release");
    return 0;
}

struct file_operations ops = {
    .owner = THIS_MODULE,
    .open = cdev_test_open,
    .release = cdev_test_release};

static int dev_init(void)
{
    int ret = alloc_chrdev_region(&dev_num, 0, 1, "morning-dev");
    if (ret < 0)
        printk("alloc_chrdev_region is error");
    unsigned int maj = MAJOR(dev_num);
    unsigned int min = MINOR(dev_num);
    printk("maj=%d\n", maj);
    printk("min=%d\n", min);
    cdev_test.owner = THIS_MODULE;
    cdev_init(&cdev_test, &ops);
    cdev_add(&cdev_test, dev_num, 1);

    class = class_create(THIS_MODULE, "morning-device-class");
    device = device_create(class, NULL, dev_num, NULL, "morning-device");
    printk("hello init");
    return 0;
}

static void dev_exit(void)
{
    unregister_chrdev_region(dev_num, 1);
    cdev_del(&cdev_test);
    device_destroy(class, dev_num);
    class_destroy(class);
    printk("hello bye");
}

module_init(dev_init);
module_exit(dev_exit);
MODULE_LICENSE("GPL");
MODULE_AUTHOR("MCC");
MODULE_VERSION("V1.0");

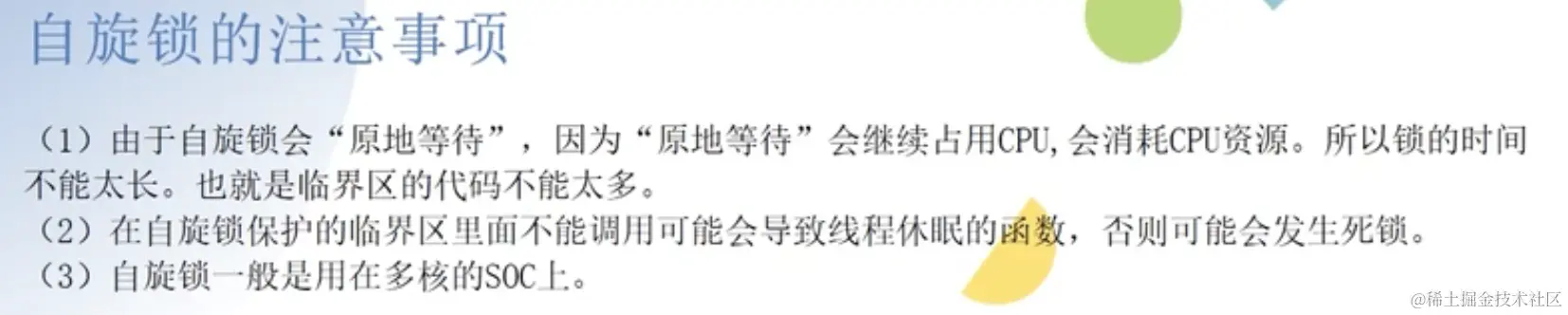

注意事项

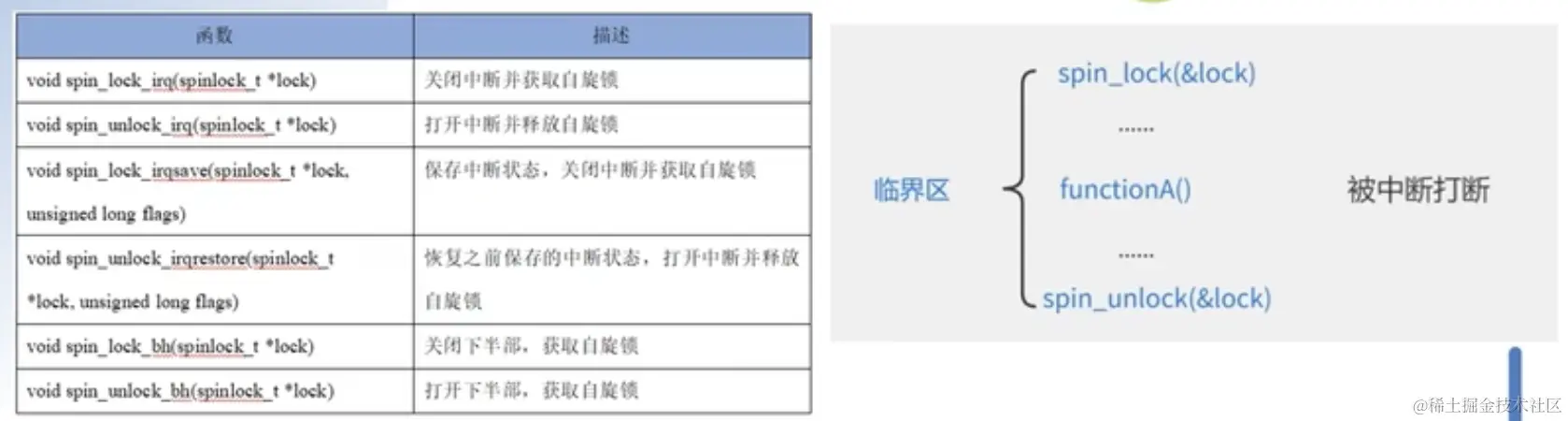

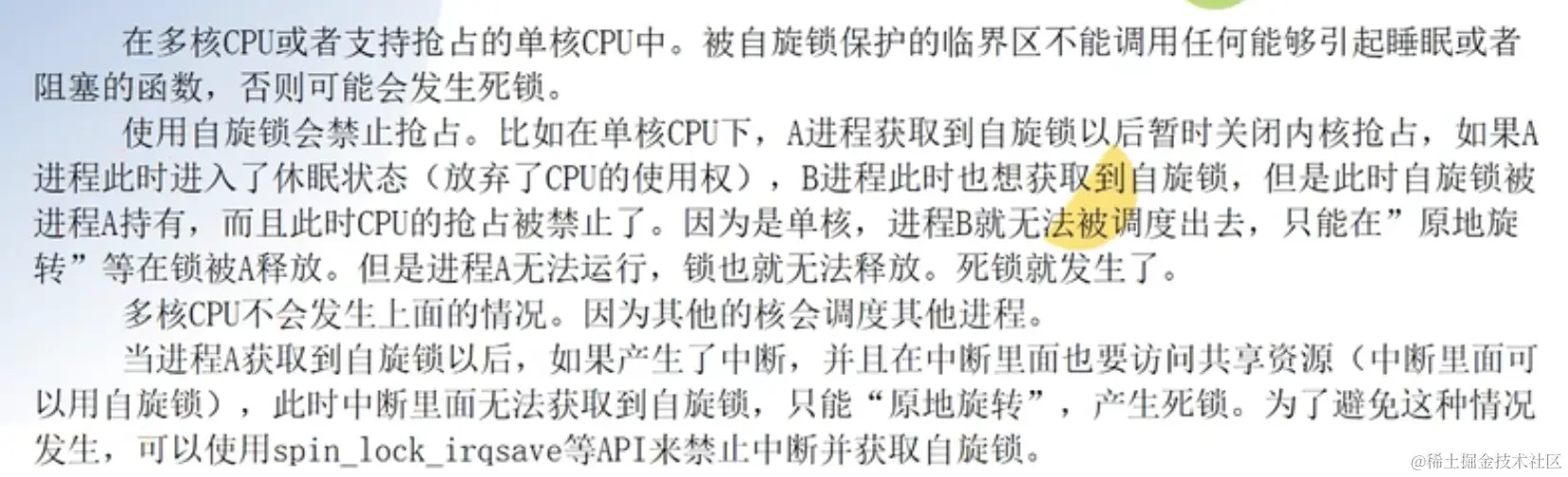

自旋锁的死锁

ubuntu 当前系统内核

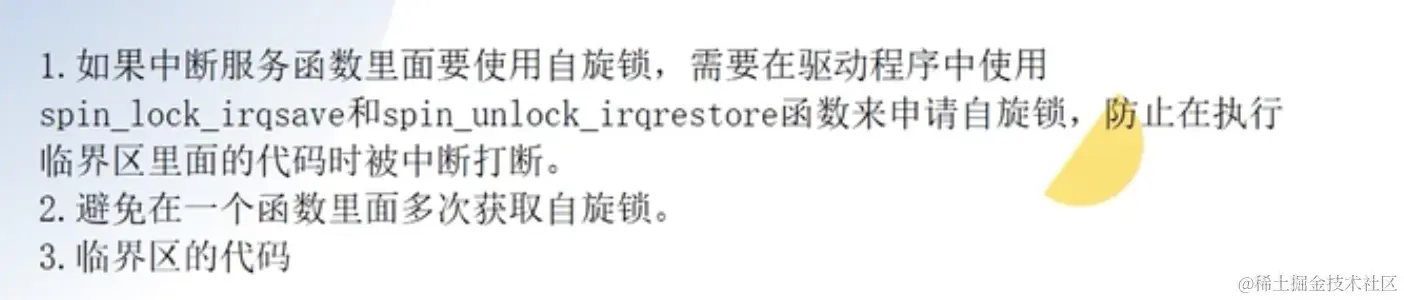

如何避免死锁

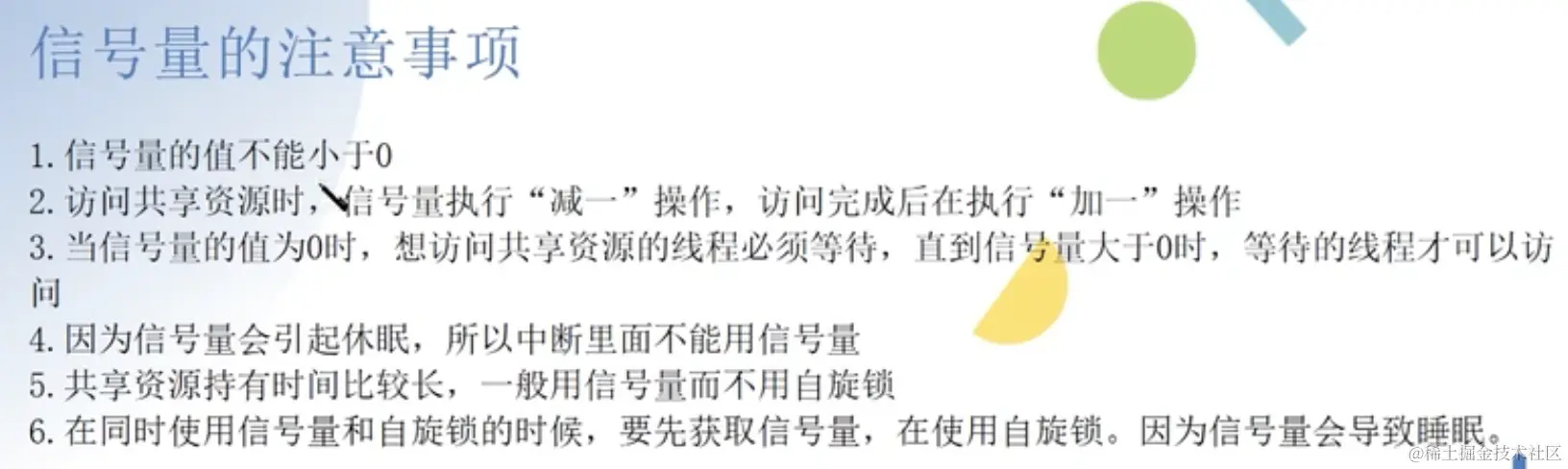

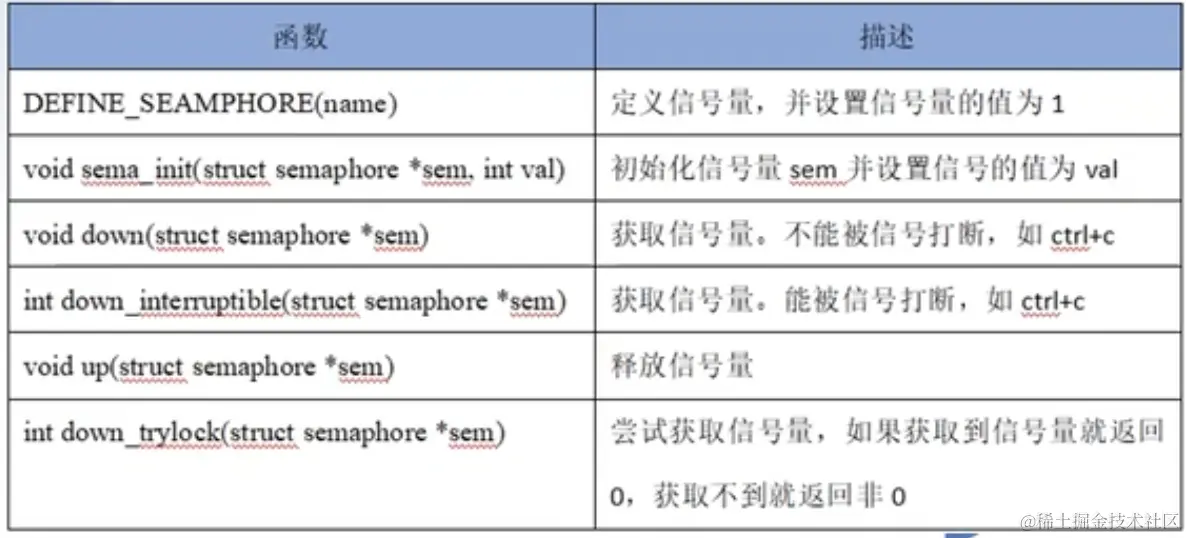

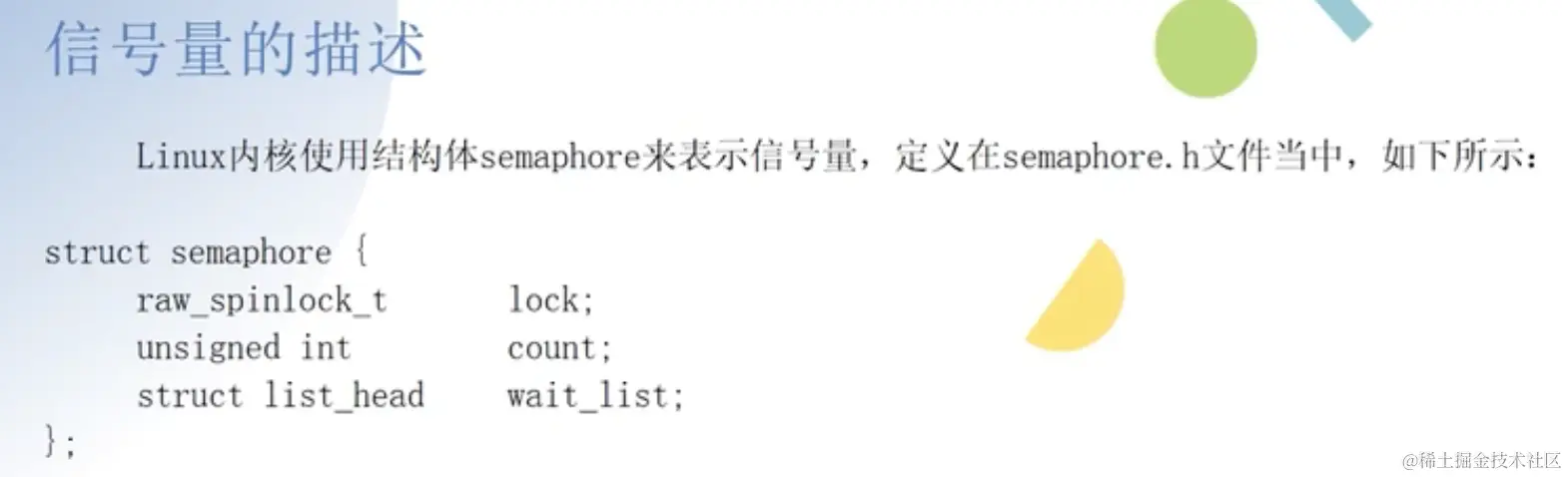

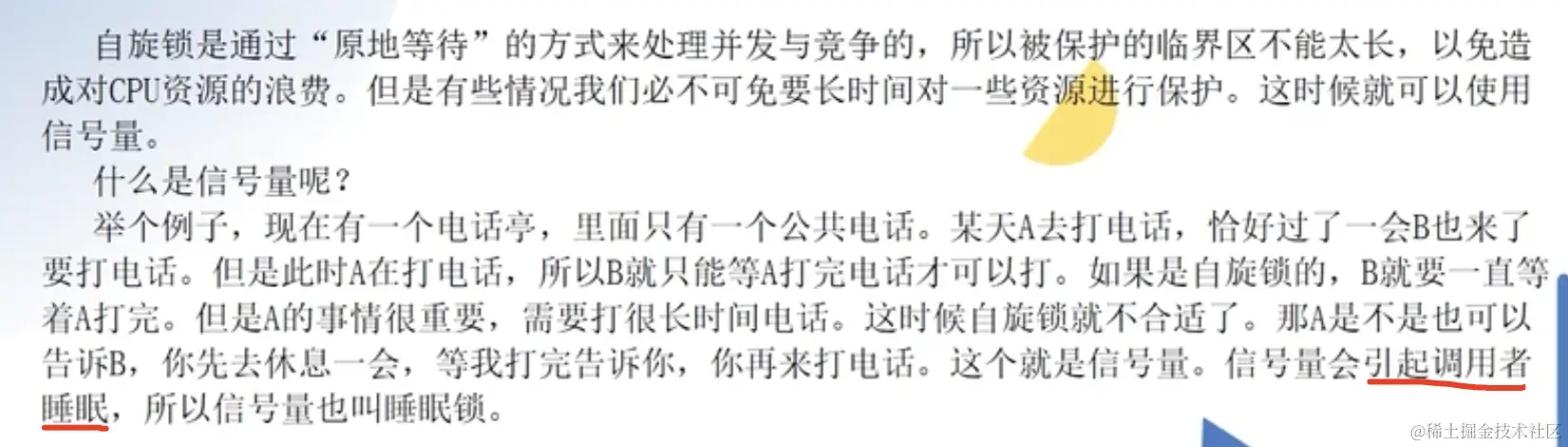

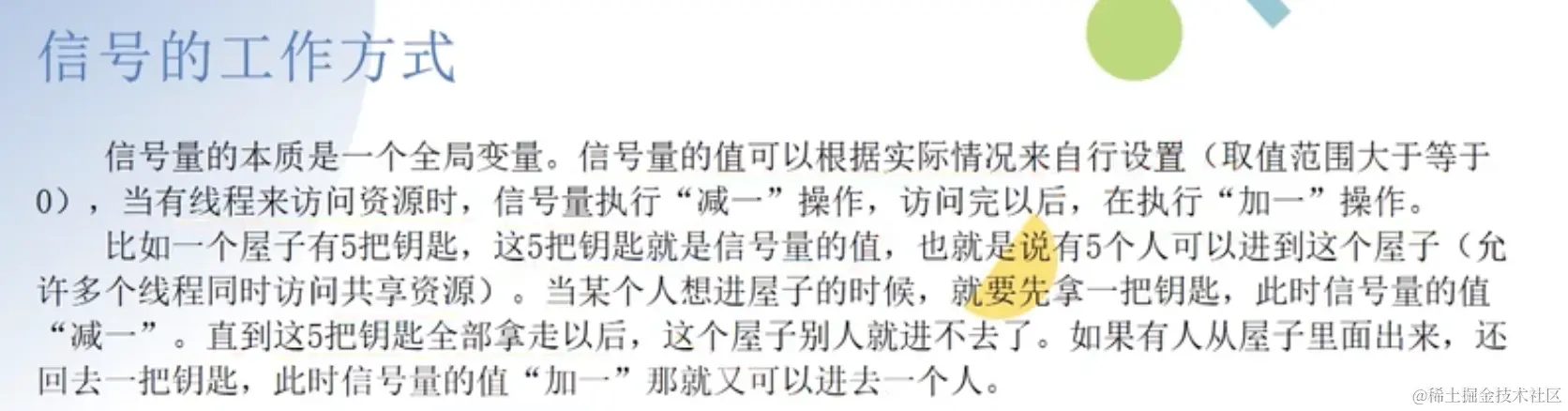

信号量

#include <linux/init.h>
#include <linux/module.h>
#include <linux/fs.h>
#include <linux/kdev_t.h>
#include <linux/cdev.h>
#include <linux/device.h>
#include <linux/uaccess.h>
#include <linux/errno.h>
#include <linux/semaphore.h>

dev_t dev_num;
struct cdev cdev_test;
struct class *class;
struct device *device;
static struct semaphore sem_lock;

static int cdev_test_open(struct inode *, struct file *)
{
    // down(&sem_lock);
    if (down_interruptible(&sem_lock))
    {
        return -EINTR;
    }
    printk("cdev_test_open");
    return 0;
}

static int cdev_test_release(struct inode *, struct file *)
{
    up(&sem_lock);
    printk("cdev_test_release");
    return 0;
}

struct file_operations ops = {
    .owner = THIS_MODULE,
    .open = cdev_test_open,
    .release = cdev_test_release};

static int dev_init(void)
{
    sema_init(&sem_lock, 1);
    int ret = alloc_chrdev_region(&dev_num, 0, 1, "morning-dev");
    if (ret < 0)
        printk("alloc_chrdev_region is error");
    unsigned int maj = MAJOR(dev_num);
    unsigned int min = MINOR(dev_num);
    printk("maj=%d\n", maj);
    printk("min=%d\n", min);
    cdev_test.owner = THIS_MODULE;
    cdev_init(&cdev_test, &ops);
    cdev_add(&cdev_test, dev_num, 1);

    class = class_create(THIS_MODULE, "morning-device-class");
    device = device_create(class, NULL, dev_num, NULL, "morning-device");
    printk("hello init");
    return 0;
}

static void dev_exit(void)
{
    unregister_chrdev_region(dev_num, 1);
    cdev_del(&cdev_test);
    device_destroy(class, dev_num);
    class_destroy(class);
    printk("hello bye");
}

module_init(dev_init);
module_exit(dev_exit);
MODULE_LICENSE("GPL");
MODULE_AUTHOR("MCC");
MODULE_VERSION("V1.0");

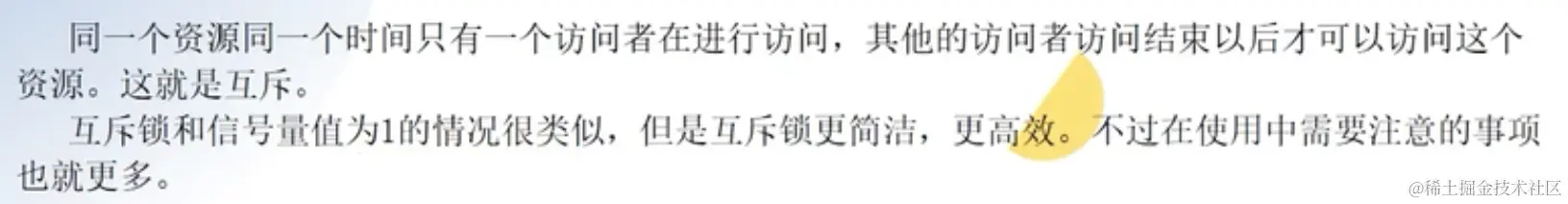

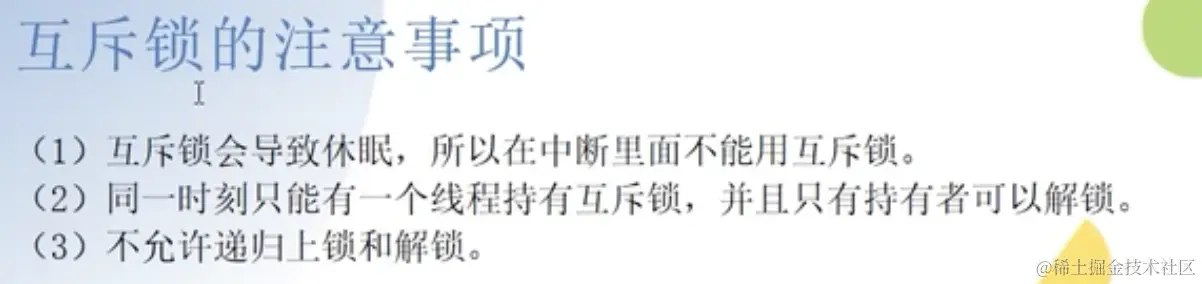

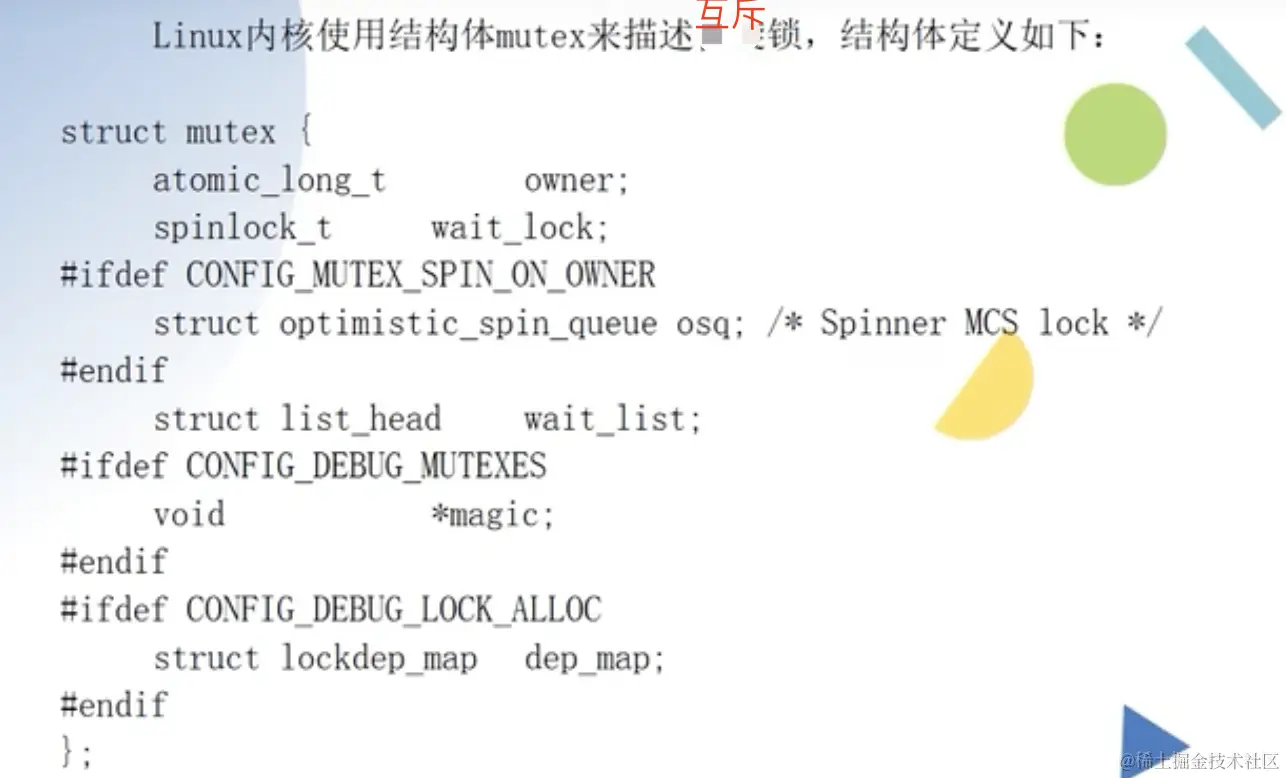

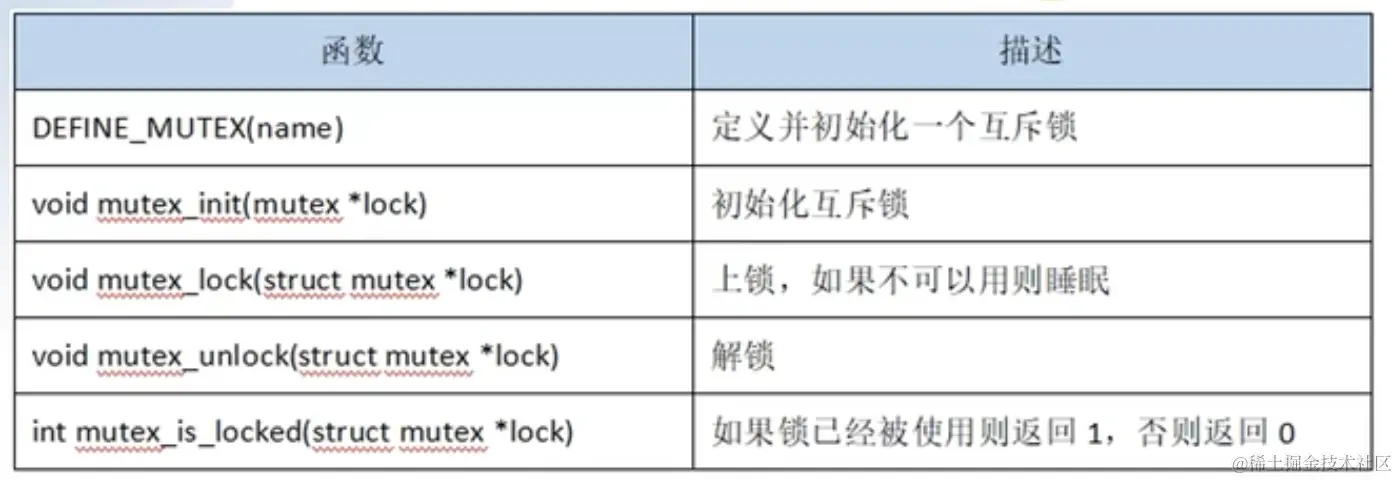

互斥锁

#include <linux/init.h>
#include <linux/module.h>
#include <linux/fs.h>
#include <linux/kdev_t.h>
#include <linux/cdev.h>
#include <linux/device.h>
#include <linux/uaccess.h>
#include <linux/errno.h>
#include <linux/mutex.h>

dev_t dev_num;
struct cdev cdev_test;
struct class *class;
struct device *device;
static struct mutex mutex_lock;

static int cdev_test_open(struct inode *, struct file *)
{
    mutex_lock(&mutex_lock);
    // 临界区
    mutex_unlock(&mutex_lock);

    printk("cdev_test_open");
    return 0;
}

static int cdev_test_release(struct inode *, struct file *)
{
    printk("cdev_test_release");
    return 0;
}

struct file_operations ops = {
    .owner = THIS_MODULE,
    .open = cdev_test_open,
    .release = cdev_test_release};

static int dev_init(void)
{
    mutex_init(&mutex_lock);
    int ret = alloc_chrdev_region(&dev_num, 0, 1, "morning-dev");
    if (ret < 0)
        printk("alloc_chrdev_region is error");
    unsigned int maj = MAJOR(dev_num);
    unsigned int min = MINOR(dev_num);
    printk("maj=%d\n", maj);
    printk("min=%d\n", min);
    cdev_test.owner = THIS_MODULE;
    cdev_init(&cdev_test, &ops);
    cdev_add(&cdev_test, dev_num, 1);

    class = class_create(THIS_MODULE, "morning-device-class");
    device = device_create(class, NULL, dev_num, NULL, "morning-device");
    printk("hello init");
    return 0;
}

static void dev_exit(void)
{
    unregister_chrdev_region(dev_num, 1);
    cdev_del(&cdev_test);
    device_destroy(class, dev_num);
    class_destroy(class);
    printk("hello bye");
}

module_init(dev_init);
module_exit(dev_exit);
MODULE_LICENSE("GPL");
MODULE_AUTHOR("MCC");
MODULE_VERSION("V1.0");

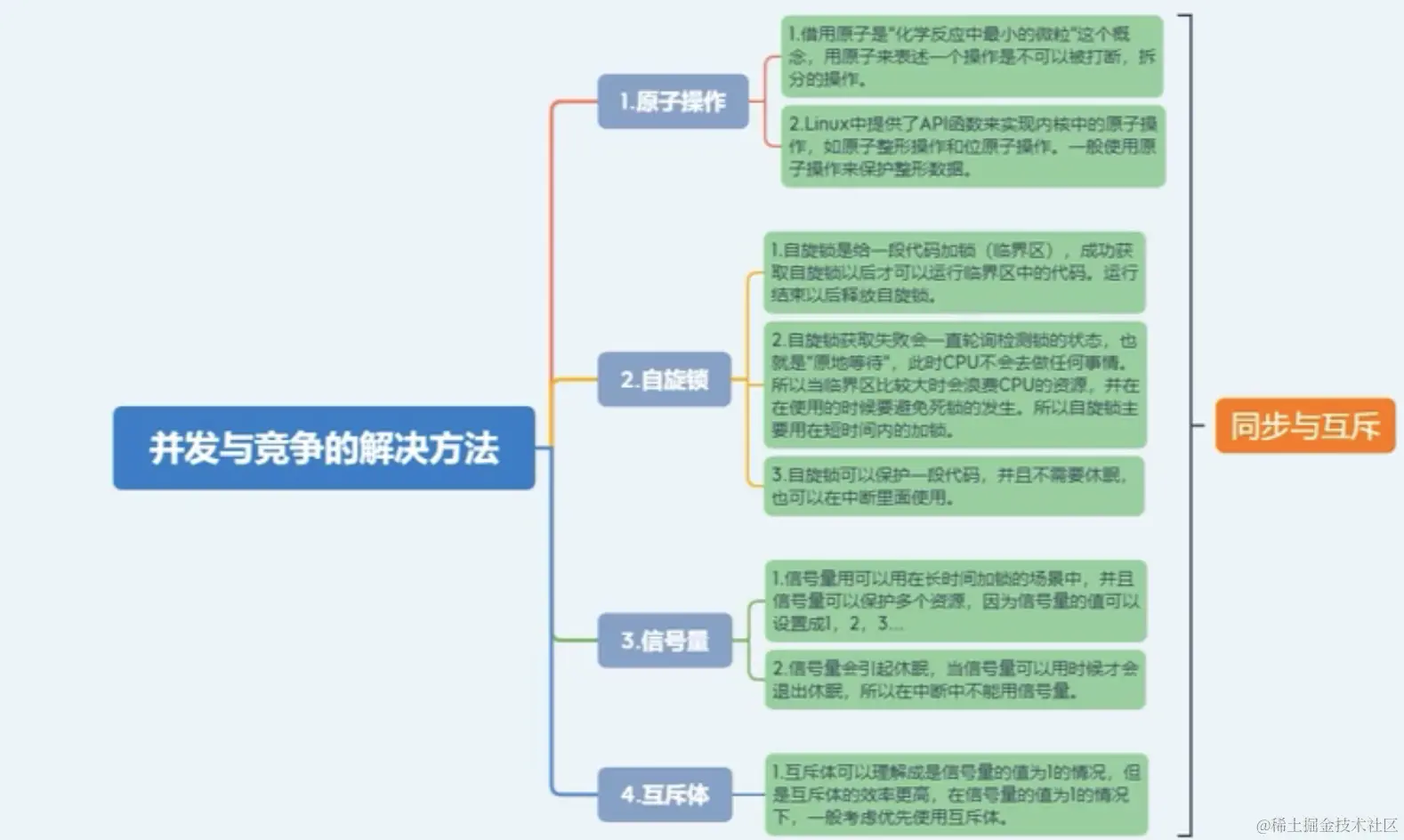

总结
