我们通过一个系列文章跟大家详细展示一个 go-zero 微服务实例，整个系列分十三篇文章，目录结构如下：

  1. go-zero 实战 - 服务划分与项目创建
  2. go-zero 实战 - User API Gateway
  3. go-zero 实战 - User Login
  4. go-zero 实战 - User Register
  5. go-zero 实战 - User Userinfo
  6. go-zero 实战 - Food API Gateway
  7. go-zero 实战 - Food Search
  8. go-zero 实战 - Food AddFood
  9. go-zero 实战 - Food DeleteFood
  10. go-zero 实战 - Food Foodlist
  11. go-zero 实战进阶 - rpc 服务
  12. go-zero 实战进阶 - 用户管理 rpc 服务
  13. go-zero 实战进阶 - 食材管理 rpc 服务

期望通过本系列文章带你在本地利用 go-zero 快速开发一个《食谱指南》系统，让你快速上手微服务。

本篇我们将讲解如何创建 食材搜索 接口。同样的，你将在本篇学习到以下内容：

  1. 创建 food 表，并定义数据库表结构，以便保存食材信息；
  2. 利用 goctl model 命令，生成 mysql CRUD 代码；
  3. 完善搜索接口逻辑内容。

创建 food 表，并定义数据库表结构

在本机 mysql 中的 foodguides 数据库中，执行如下 SQL 语句新建 food 表：

CREATE TABLE `food` (
                        `id` bigint NOT NULL AUTO_INCREMENT COMMENT '食物Id',
                        `name` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL DEFAULT '' COMMENT '食物名称',
                        `protein` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL DEFAULT '' COMMENT '食物蛋白质含量',
                        `fat` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL DEFAULT '' COMMENT '食物脂肪含量',
                        `carbohydrate` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL DEFAULT '' COMMENT '食物碳水化合物含量',
                        `calorie` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL DEFAULT '' COMMENT '食物卡路里',
                        `minerals` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL DEFAULT '' COMMENT '食物矿物质含量',
                        `calcium` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL DEFAULT '' COMMENT '食物钙含量',
                        `phosphorus` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL DEFAULT '' COMMENT '食物磷含量',
                        `iron` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL DEFAULT '' COMMENT '食物铁含量',
                        `purine` varchar(255) CHARACTER SET utf8mb4 COLLATE utf8mb4_general_ci NOT NULL DEFAULT '' COMMENT '食物嘌呤含量',
                        `create_time` timestamp NULL DEFAULT CURRENT_TIMESTAMP,
                        `update_time` timestamp NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
                        PRIMARY KEY (`id`),
                        UNIQUE KEY `name_index` (`name`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4 COLLATE=utf8mb4_general_ci;

接下来，我们执行以下 SQL 语句，新增一条食材数据，为搜索结果做准备：

INSERT INTO `foodguides`.`food`(`id`, `name`, `protein`, `fat`, `carbohydrate`, `calorie`, `minerals`, `calcium`, `phosphorus`, `iron`, `purine`, `create_time`, `update_time`) VALUES (1, '鱿鱼', '60.0', '4.6', '7.8', '1323', '100', '87', '392', '4.1', '100', '2021-01-26 23:30:43', '2021-01-26 23:33:38');

执行 goctl model 命令，生成 mysql CRUD 代码

在 foodmanage/model 目录下新建 food.sql 文件，并将上述创建 food 数据库表的 SQL 语句复制到该文件中。

cd 到 foodmanage/model 目录下，执行 goctl model 命令生成 mysql CRUD 代码:

$ goctl model mysql ddl -src food.sql -dir .
Done.

查看 model 目录结构

➜  model:
$ tree
.
├── food.sql
├── foodmodel.go
├── foodmodel_gen.go
└── vars.go

修改 food.yaml 配置文件

$ vim foodmanage/api/food/etc/food.yaml

Name: food-api
Host: 0.0.0.0
Port: 8889

Mysql:
  DataSource: root:123456@tcp(127.0.0.1:9528)/foodguides?charset=utf8mb4&parseTime=True&loc=Local

Auth:
  AccessSecret: ad879037-d3fd-tghj-112d-6bfc35d54b7d
  AccessExpire: 86400

添加服务配置

$ vim foodmanage/api/internal/config/config.go

package config

import "github.com/zeromicro/go-zero/rest"

type Config struct {
    rest.RestConf
    Mysql struct {
       DataSource string
    }
    Auth struct {
       AccessSecret string
       AccessExpire int64
    }
}

注册服务上下文的依赖

$ vim foodmanage/api/internal/svc/serviceContext.go

package svc

import (
    "FoodGuides/service/foodmanage/api/internal/config"
    "FoodGuides/service/foodmanage/model"
    "github.com/zeromicro/go-zero/core/stores/sqlx"
)

type ServiceContext struct {
    Config config.Config
    FoodModel model.FoodModel
}

func NewServiceContext(c config.Config) *ServiceContext {
    return &ServiceContext{
       Config: c,
       FoodModel: model.NewFoodModel(sqlx.NewMysql(c.Mysql.DataSource)),
    }
}

添加搜索接口逻辑

$ vim foodmanage/api/internal/logic/searchlogic.go

package logic

import (
    "context"
    "strconv"

    "FoodGuides/service/foodmanage/api/internal/svc"
    "FoodGuides/service/foodmanage/api/internal/types"

    "github.com/zeromicro/go-zero/core/logx"
)

type SearchLogic struct {
    logx.Logger
    ctx    context.Context
    svcCtx *svc.ServiceContext
}

func NewSearchLogic(ctx context.Context, svcCtx *svc.ServiceContext) *SearchLogic {
    return &SearchLogic{
       Logger: logx.WithContext(ctx),
       ctx:    ctx,
       svcCtx: svcCtx,
    }
}

func (l *SearchLogic) Search(req *types.SearchRequest) (*types.SearchResponse, error) {
    searchKey := req.Key
    food, err := l.svcCtx.FoodModel.FindOneByName(l.ctx, searchKey)

    if err != nil {
       return nil, err
    }

    foodReply := types.FoodReply{
       Id:           strconv.FormatInt(food.Id, 10),
       Name:         food.Name,
       Protein:      food.Protein,
       Fat:          food.Fat,
       Carbohydrate: food.Carbohydrate,
       Calorie:      food.Calorie,
       Minerals:     food.Minerals,
       Calcium:      food.Calcium,
       Phosphorus:   food.Phosphorus,
       Iron:         food.Iron,
       Purine:       food.Purine,
    }
    return &types.SearchResponse{FoodReply: foodReply}, nil
}

修改 Response 返回格式

$ vim foodmanage/api/internal/handler/searchhandler.go

package handler

import (
    "FoodGuides/common/responsex"
    "net/http"

    "FoodGuides/service/foodmanage/api/internal/logic"
    "FoodGuides/service/foodmanage/api/internal/svc"
    "FoodGuides/service/foodmanage/api/internal/types"
    "github.com/zeromicro/go-zero/rest/httpx"
)

func SearchHandler(svcCtx *svc.ServiceContext) http.HandlerFunc {
    return func(w http.ResponseWriter, r *http.Request) {
       var req types.SearchRequest
       if err := httpx.Parse(r, &req); err != nil {
          httpx.OkJson(w, responsex.FailureResponse(nil, err.Error(), 1000))
          return
       }

       l := logic.NewSearchLogic(r.Context(), svcCtx)
       resp, err := l.Search(&req)
       if err != nil {
          httpx.OkJson(w, responsex.FailureResponse(nil, err.Error(), 1000))
       } else {
          httpx.OkJson(w, responsex.SuccessResponse(resp, "搜索成功"))
       }
    }
}

启动服务

启动 food api 服务, 运行成功后，food api 则运行在本机的 8889 端口

➜  service:
$ go run foodmanage/api/food.go -f foodmanage/api/etc/food-api.yaml
Starting server at 0.0.0.0:8889...

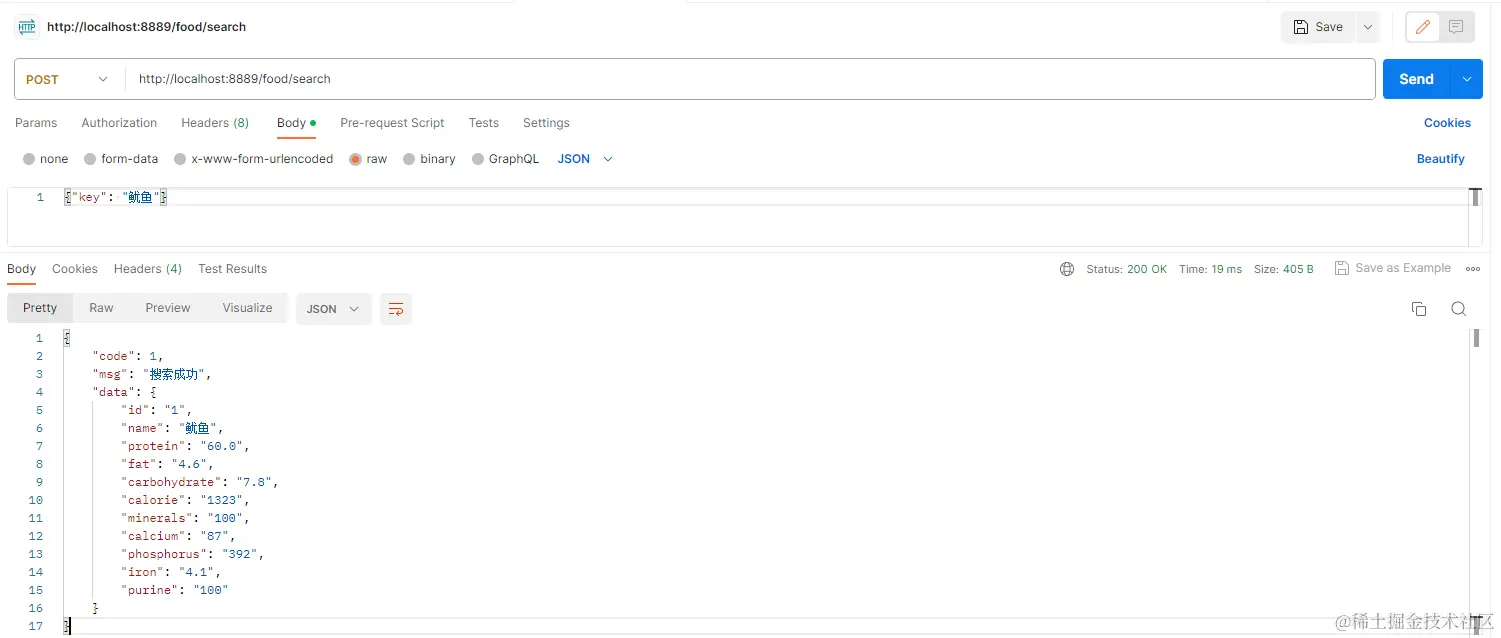

我们用 Postman 尝试请求搜索接口，有如下截图的响应说明搜索服务运行正常。


至此，Food Search Api 就开发完了。下一篇将介绍如何搭建添加食材的接口。

上一篇《go-zero 实战 - Food API Gateway》

下一篇《go-zero 实战 - Food AddFood》
