openlayers关于clusters介绍

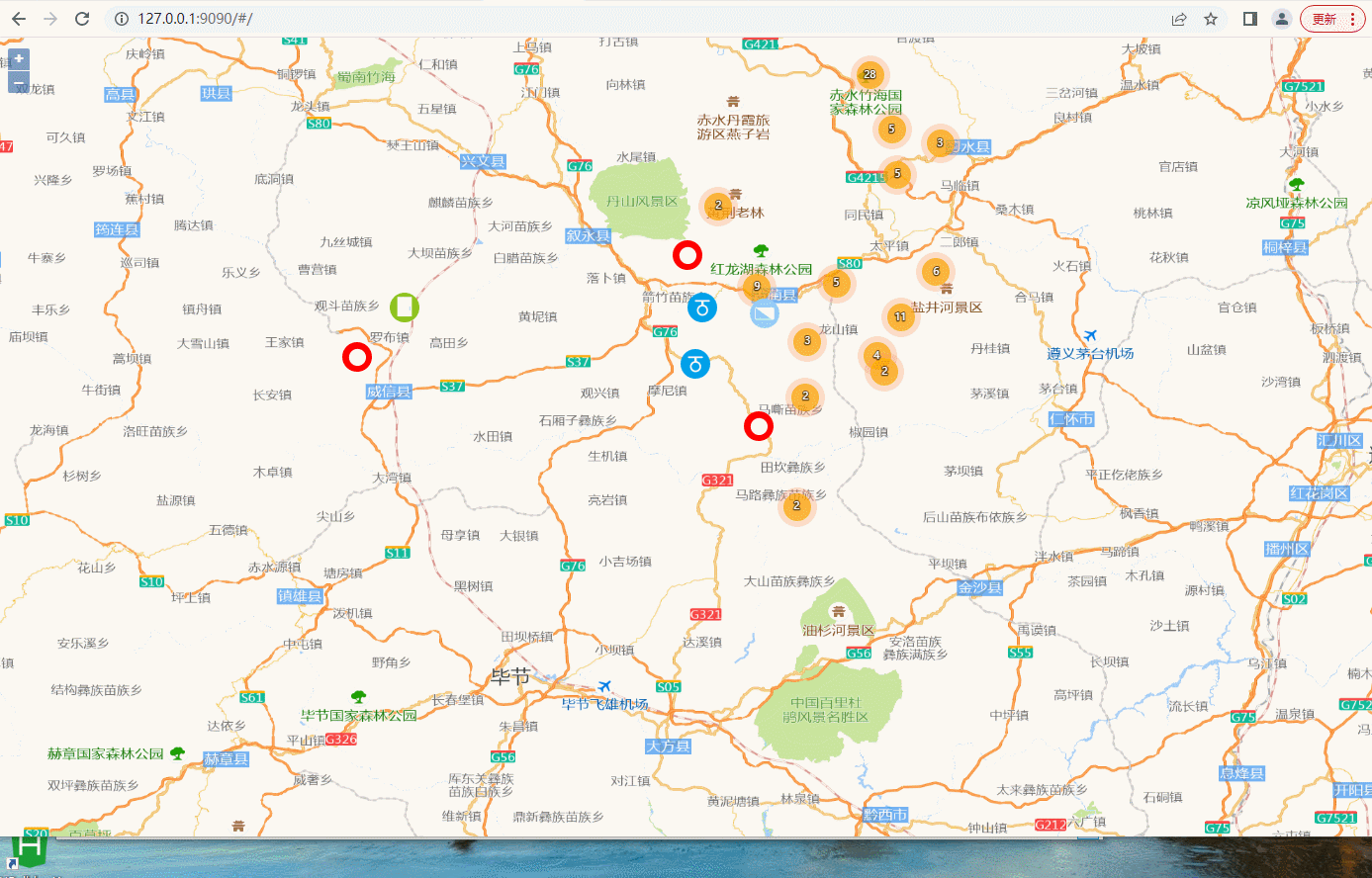

效果展示

初始化地图

<template>
  <div id="map" class="map"></div>
</template>

<script>
import Map from "ol/Map.js";
import View from "ol/View.js";
import { centerPoint } from "@/utils/showPage.js";
import { gaodeMapLayer } from "@/utils/MapLayer.js";
import { clusters, clusterCircleStyle, clusterCircles } from "@/utils/cluster";
import { createEmpty, extend, getHeight, getWidth } from "ol/extent.js";
export default {
  name: "cluster",
  data() {
    return {
      map: null
    };
  },
  mounted() {
    const map = new Map({
      layers: [gaodeMapLayer, clusters, clusterCircles],
      target: "map",
      view: new View({
        center: centerPoint,
        zoom: 11,
        minZoom: 2,
        maxZoom: 30,
        projection: "EPSG:4326",
        rotation: 0,
      }),
    });
  },
};
</script>

<style scoped>
.map {
  width: 100%;
  height: 900px;
}
</style>

图层详解

• 公共方法和样式


   function gasPointType() {
     let customPoint = config.CUSTOM_POINT.val,
       GAS_POINT_TYPE = config.GAS_POINT_TYPE.children;
     GAS_POINT_TYPE.forEach((item) => {
       item.type = item.val.typeId.value;
     });
     return [
       ...GAS_POINT_TYPE,
       { type: customPoint.typeId.value, val: customPoint },
     ];
   }
   function getICon(properties) {
     let typeId = properties.typeId || "1",
       allPoint = gasPointType();
     return allPoint.find((i) => i.type == typeId).val;
   }
   function clusterMemberStyle(clusterMember) {
     let properties = clusterMember.getProperties();
     let item = getICon(properties);
     return new Style({
       geometry: clusterMember.getGeometry(),
       image: new Icon({
         rotation: 0,
         src: item.iconUrl.value,
         anchorXUnits: "fraction",
         imgSize: [item.width.value, item.height.value],
       }),
     });
   }
   function generatePointsCircle(count, clusterCenter, resolution) {
     const circumference =
       circleDistanceMultiplier * circleFootSeparation * (2 + count);
     let legLength = circumference / (Math.PI * 2);
     const angleStep = (Math.PI * 2) / count;
     const res = [];
     let angle;
     legLength = Math.max(legLength, 35) * resolution;
     for (let i = 0; i < count; ++i) {

       angle = circleStartAngle + i * angleStep;
       res.push([
         clusterCenter[0] + legLength * Math.cos(angle),
         clusterCenter[1] + legLength * Math.sin(angle),
       ]);
     }

     return res;
   }


• clusters图层


    const vectorSource = new VectorSource({
      features: new GeoJSON().readFeatures({
        type: devList.type,
        features: _devList,
      }),
    });

    const clusterSource = new Cluster({
      distance: 35,
      source: vectorSource,
    });
    }
    function clusterStyle(feature) {
      const size = feature.get("features").length;
      if (size > 1) {
        return [
          new Style({
            image: outerCircle,
          }),
          new Style({
            image: innerCircle,
            text: new Text({
              text: size.toString(),
              fill: textFill,
              stroke: textStroke,
            }),
          }),
        ];
      }
      const originalFeature = feature.get("features")[0];
      return clusterMemberStyle(originalFeature);
    }

    const clusters = new VectorLayer({
      source: clusterSource,
      style: clusterStyle,
    });





• clusterCircles图层

     const clusterCircles = new VectorLayer({
       source: clusterSource,
       style: clusterCircleStyle,
     });

     function clusterCircleStyle(
       cluster,
       resolution,
       clickFeature,
       clickResolution
     ) {
       if (cluster !== clickFeature || resolution !== clickResolution) {
         return null;
       }
       const clusterMembers = cluster.get("features");
       const centerCoordinates = cluster.getGeometry().getCoordinates();
       return generatePointsCircle(
         clusterMembers.length,
         cluster.getGeometry().getCoordinates(),
         resolution
       ).reduce((styles, coordinates, i) => {
         const point = new Point(coordinates);
         const line = new LineString([centerCoordinates, coordinates]);
         styles.unshift(
           new Style({
             geometry: line,
             stroke: convexHullStroke,
           })
         );
         styles.push(
           clusterMemberStyle(
             new Feature({
               ...clusterMembers[i].getProperties(),
               geometry: point,
             })
           )
         );
         return styles;
       }, []);
     }


地图pointermove和click

  map.on("pointermove", (event) => {
      clusters.getFeatures(event.pixel).then((features) => {
        map.getTargetElement().style.cursor =
          features[0] && features[0].get("features").length > 1
            ? "pointer"
            : "";
      });
    });

    map.on("click", (event) => {
      clusters.getFeatures(event.pixel).then((features) => {
        if (features.length > 0) {
          const clusterMembers = features[0].get("features");
          if (clusterMembers.length > 1) {
            // Calculate the extent of the cluster members.
            const extent = createEmpty();
            clusterMembers.forEach((feature) =>
              extend(extent, feature.getGeometry().getExtent())
            );
            const view = map.getView();
            const resolution = map.getView().getResolution();
            if (
              view.getZoom() === view.getMaxZoom() ||
              (getWidth(extent) < resolution && getHeight(extent) < resolution)
            ) {
              // Show an expanded view of the cluster members.
              let clickFeature = features[0];
              let clickResolution = resolution;
              clusterCircles.setStyle((cluster, resolution) => {
                clusterCircleStyle(
                  cluster,
                  resolution,
                  clickFeature,
                  clickResolution
                );
              });
            } else {
              // Zoom to the extent of the cluster members.
              view.fit(extent, { duration: 500, padding: [50, 50, 50, 50] });
            }
          }
        }
      });
    });
