💡简介

Swagger 是一个开源的框架,用于设计、构建、文档化和使用 RESTful 风格的 Web 服务。Spring Boot 是一个用于构建独立的、基于生产级别的 Spring 应用程序的框架。它可以集成 Swagger 来简化 RESTful API 的开发和文档生成。

通过集成 Swagger,你可以在 Spring Boot 应用程序中自动生成 API 文档,这些文档描述了你的 API 的各种端点、请求参数、响应等详细信息。Swagger 还提供了一个交互式 UI,让开发人员可以方便地浏览和测试 API。

💡实例

🌵版本依赖

JDK17

SpringBoot 2.5.4

swagger 3.0.0

knife4j-spring-boot-starter 3.0.2

🌵引入依赖

<modelVersion>4.0.0</modelVersion>
<parent>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-parent</artifactId>
    <version>2.5.4</version>
</parent>
<groupId>com.example</groupId>
<artifactId>springboot-swagger</artifactId>
<version>1.0-SNAPSHOT</version><properties>
    <java.version>17</java.version>
    <maven.compiler.source>17</maven.compiler.source>
    <maven.compiler.target>17</maven.compiler.target>
    <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
</properties><dependencies>
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter</artifactId>
    </dependency>
​
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-devtools</artifactId>
        <scope>runtime</scope>
        <optional>true</optional>
    </dependency>
​
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-test</artifactId>
        <scope>test</scope>
    </dependency>
​
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
​
    <!--引入spring web -->
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
    <!--引入swagger3 -->
    <dependency>
        <groupId>io.springfox</groupId>
        <artifactId>springfox-boot-starter</artifactId>
        <version>3.0.0</version>
    </dependency>
    <!--Knife4j-->
    <dependency>
        <groupId>com.github.xiaoymin</groupId>
        <artifactId>knife4j-spring-boot-starter</artifactId>
        <version>3.0.2</version>
    </dependency>
​
    <dependency>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-web</artifactId>
    </dependency>
​
    <dependency>
        <groupId>org.projectlombok</groupId>
        <artifactId>lombok</artifactId>
        <scope>provided</scope>
    </dependency></dependencies><build>
    <plugins>
        <plugin>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-maven-plugin</artifactId>
            <configuration>
                <mainClass>com.example.SpringbootSwaggerSampleApplication</mainClass>
            </configuration>
        </plugin>
    </plugins>
</build>

🌵SwaggerConfig

import com.github.xiaoymin.knife4j.spring.annotations.EnableKnife4j;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.http.HttpMethod;
import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.builders.ResponseBuilder;
import springfox.documentation.oas.annotations.EnableOpenApi;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.service.Response;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
​
import java.util.ArrayList;
import java.util.List;
​
/**
 * @Description: (Swagger配置)
 * @Date 2023/09/07
 */
@Configuration
@EnableOpenApi
@EnableKnife4j
public class SwaggerConfig {
​
    /**
     * swagger3的配置文件
     */
    @Bean
    public Docket createRestApi() {
        return new Docket(DocumentationType.OAS_30)
                .apiInfo(apiInfo())
                .select()
                //.apis(RequestHandlerSelectors.withMethodAnnotation(ApiOperation.class))
                .apis(RequestHandlerSelectors.basePackage("com.example.controller"))
                .paths(PathSelectors.any())
                .build()
                //.globalRequestParameters(getGlobalRequestParameters())
                .globalResponses(HttpMethod.GET, getGlobalResponseMessage())
                .globalResponses(HttpMethod.POST, getGlobalResponseMessage())
                .globalResponses(HttpMethod.DELETE, getGlobalResponseMessage())
                .globalResponses(HttpMethod.PUT, getGlobalResponseMessage());
    }
​
    /**
     * 构建 api文档的详细信息函数,注意这里的注解引用的是哪个
     */
    private ApiInfo apiInfo() {
        // 获取工程名称
        String projectName = System.getProperty("user.dir");
        return new ApiInfoBuilder()
                .title(projectName.substring(projectName.lastIndexOf("\") + 1) + " API接口文档")
                .contact(new Contact("coderJim", "https://www.example.com", "coderJim@163.com"))
                .version("1.0")
                .description("API文档")
                .build();
    }
​
    /**
     * 生成通用响应信息
     *
     * @return
     */
    private List<Response> getGlobalResponseMessage() {
        List<Response> responseList = new ArrayList<>();
        responseList.add(new ResponseBuilder().code("404").description("找不到资源").build());
        return responseList;
    }
}

🌵User

import io.swagger.annotations.ApiModel;
import io.swagger.annotations.ApiModelProperty;
import lombok.Data;
import lombok.ToString;
​
/**
 * @Description: (用一句话描述该文件做什么)
 * @date 2023/09/07
 */
@Data
@ToString
@ApiModel(value = "用户实体类", description = "用户信息描述类")
public class User {
​
    @ApiModelProperty(value = "用户id")
    private Integer id;
​
    @ApiModelProperty(value = "用户名")
    private String username;
​
    @ApiModelProperty(value = "用户密码")
    private String password;
}

🌵UserController

import com.example.entity.User;
import io.swagger.annotations.*;
import org.springframework.web.bind.annotation.*;
import springfox.documentation.annotations.ApiIgnore;
​
/**
 *
 * @Package com.example.controller
 * @Description: (用一句话描述该文件做什么)
 * @date 2023/09/07
 */
@RestController
@Api(tags = "用户数据接口") // @Api 注解标注在类上用来描述整个 Controller 信息。
public class UserController {
​
    /**
     * @ApiOperation 注解标注在方法上,用来描述一个方法的基本信息。
     */
    @ApiOperation(value = "修改用户", notes = "传入用户信息进行更新修改")
    @PutMapping("/user")
    public String updateUser(@RequestBody User user){
        return user.toString();
    }
​
    /**
     * @ApiImplicitParam 注解标注在方法上,用来描述方法的参数。其中 paramType 是指方法参数的类型,有如下可选值:
     * path:参数获取方式为 @PathVariable
     * query:参数获取方式为 @RequestParam
     * header:参数获取方式为 @RequestHeader
     * body
     * form
     */
    @ApiOperation(value ="查询用户", notes = "根据 id 查询用户")
    @ApiImplicitParam(paramType = "path", name = "id", value = "用户 id", required = true)
    @GetMapping("/user/{id}")
    public String getUserById(@PathVariable Integer id){
        return "查找的用户id是:" + id;
    }
​
    /**
     * 如果有多个参数,可以将多个参数的 @ApiImplicitParam 注解放到 @ApiImplicitParams 中
     */
    @ApiOperation(value = "新增用户", notes = "根据传入的用户名和密码添加一个新用户")
    @ApiImplicitParams({
            @ApiImplicitParam(paramType = "query", name = "username",
                    value = "用户名", required = true, defaultValue = "test"),
            @ApiImplicitParam(paramType = "query", name = "password",
                    value = "密码", required = true, defaultValue = "123")
    })
    @PostMapping("/user")
    public String addUser(@RequestParam String username, @RequestParam String password) {
        return "新增用户:" + username + " " + password;
    }
​
    /**
     * @ApiResponse 是对响应结果的描述。code 表示响应码,message 为相应的描述信息。如果有多个 @ApiResponse,则放在一个 @ApiResponses 中
     */
    @ApiOperation(value = "删除用户", notes = "根据 id 删除用户")
    @ApiResponses({
            @ApiResponse(code = 200, message = "删除成功!"),
            @ApiResponse(code = 500, message = "删除失败!")
    })
    @DeleteMapping("/user/{id}")
    public Integer deleteUserById(@PathVariable Integer id) {
        return id;
    }
​
    /**
     * @ApiIgnore 注解表示不对某个接口生成文档。
     */
    @ApiIgnore
    @GetMapping("/user/test")
    public String test() {
        return "这是一个测试接口,不需要在api文档中显示。";
    }
}

🌵测试结果

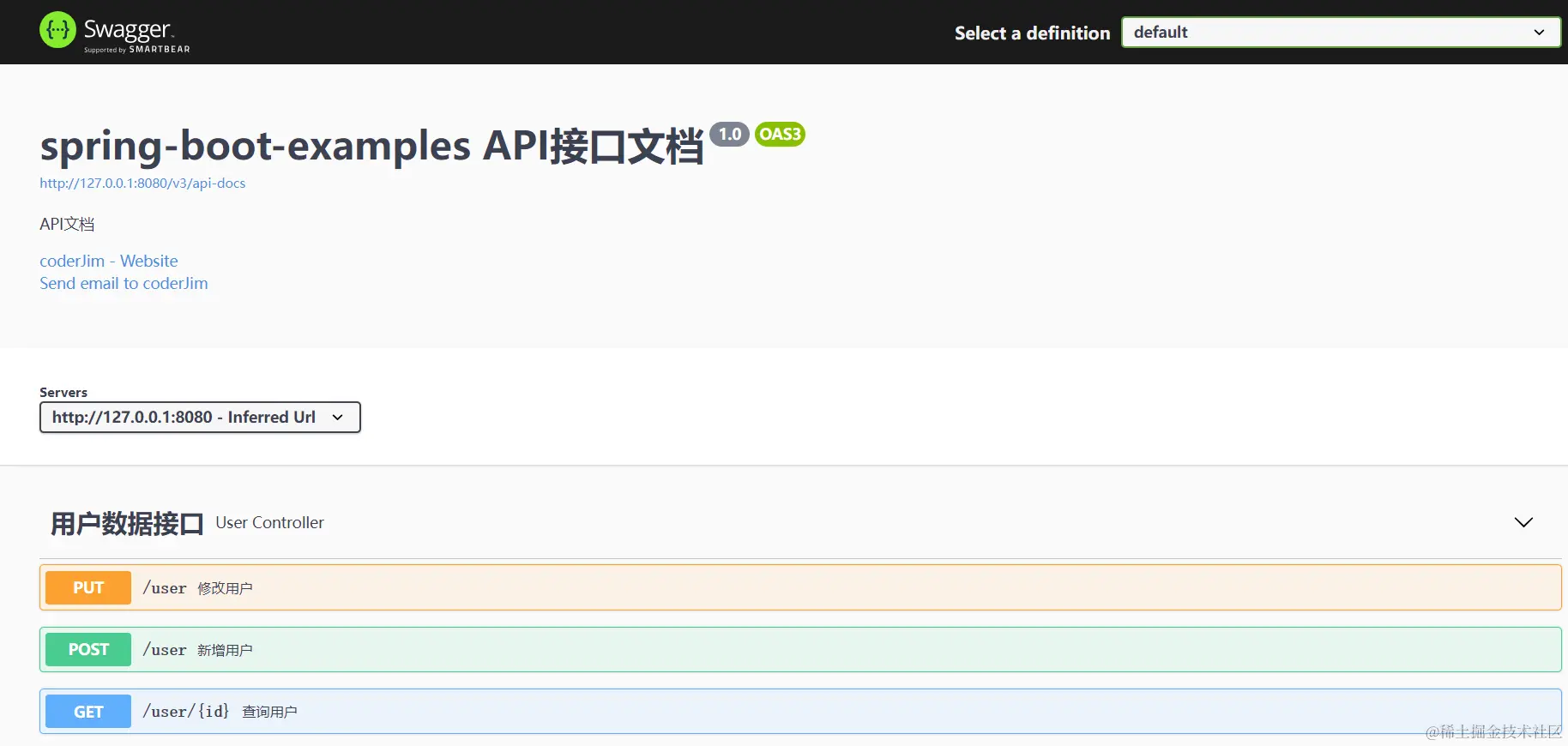

启动打开链接:http://127.0.0.1:8080/swagger-ui/index.html

image-20230908094138931

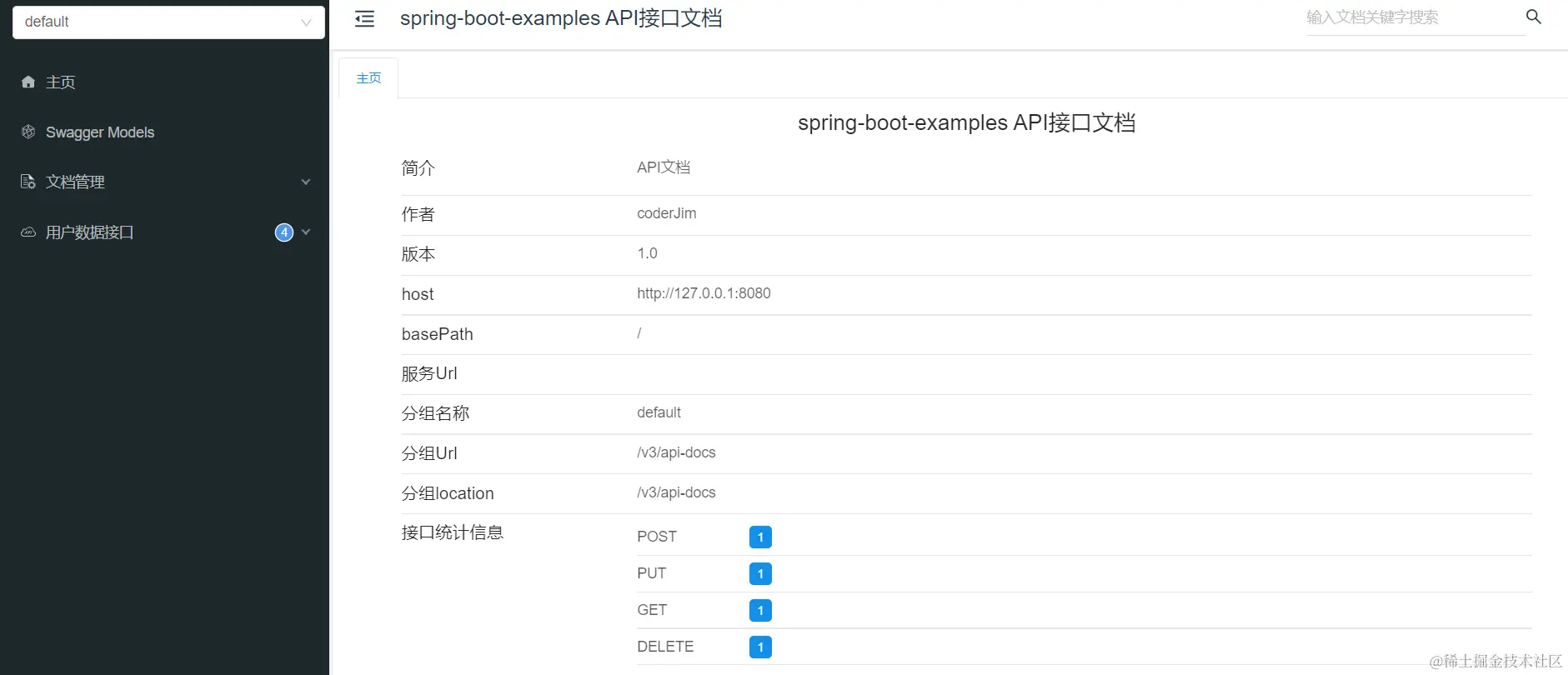

打开链接:http://127.0.0.1:8080/doc.html

image-20230908094833014
