df布局

55 阅读5分钟

`

<!DOCTYPE html>
<html lang="zh">

<head>
    <meta charset="UTF-8" />
    <link rel="icon" href="/favicon.ico" />
    <meta name="viewport" content="width=device-width, initial-scale=1.0" />
    <title>flex applet-base-api-t.itheima.net</title>
</head>

<body>

    http://c.biancheng.net/css3/flex.html

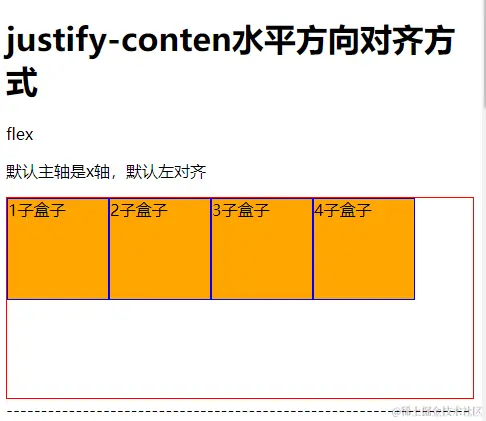

    <h1>justify-conten水平方向对齐方式</h1>

    <div id="">
        <p>flex</p></p>默认主轴是x轴,默认左对齐</p>
        <div id="mk1">
            <div>1子盒子</div>
            <div>2子盒子</div>
            <div>3子盒子</div>
            <div>4子盒子</div>
        </div>
    </div>
    <style>
        #mk1 {
            border: solid 1px red;
            display: flex;
             height: 200px;
        }

        #mk1 div {
            border: solid 1px blue;
            background-color: orange;
            width: 100px;
            height: 100px;
        }
    </style>



    <div id="">

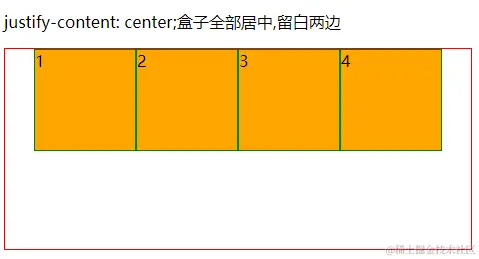

        <p>justify-content: center;盒子全部居中,留白两边</p>
        <div id="mk2">
            <div>1</div>
            <div>2</div>
            <div>3</div>
            <div>4</div>
        </div>
    </div>
    <style>
        #mk2 {
            border: solid 1px red;
            display: flex;
            justify-content: center;

             height: 200px;
        }

        #mk2 div {
            border: solid 1px green;
            background-color: orange;
            width: 100px;
            height: 100px;
        }
    </style>


--------------------------------------------------------------------------------------------


    <div id="">

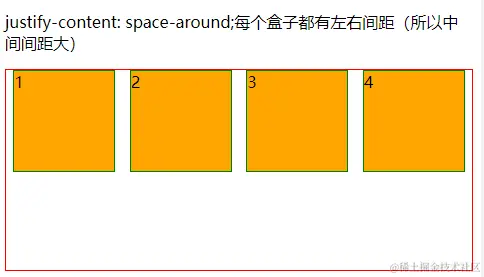

        <p>justify-content: space-around;每个盒子都有左右间距(所以中间间距大)</p>
        <div id="mk3">
            <div>1</div>
            <div>2</div>
            <div>3</div>
            <div>4</div>
        </div>
    </div>
    <style>
        #mk3 {
            border: solid 1px red;
            display: flex;
            justify-content: space-around;
             height: 200px;
        }

        #mk3 div {
            border: solid 1px green;
            background-color: orange;
            width: 100px;
            height: 100px;
        }
    </style>



    --------------------------------------------------------------------------------------------

    <div id="">

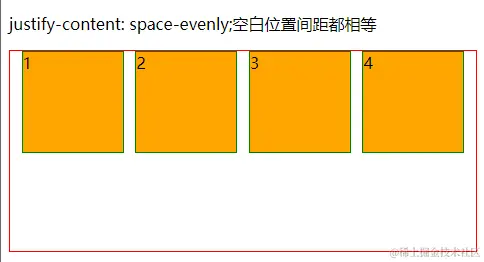

        <p>justify-content: space-evenly;空白位置间距都相等</p>
        <div id="mk4">
            <div>1</div>
            <div>2</div>
            <div>3</div>
            <div>4</div>
        </div>
    </div>
    <style>
        #mk4 {
            border: solid 1px red;
            display: flex;
            justify-content: space-evenly;
             height: 200px;
        }

        #mk4 div {
            border: solid 1px green;
            background-color: orange;
            width: 100px;
            height: 100px;
        }
    </style>


    --------------------------------------------------------------------------------------------

    <div id="">

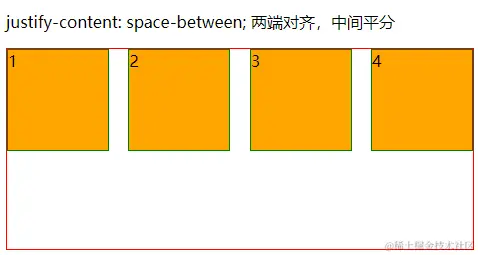

        <p>justify-content: space-between; 两端对齐,中间平分</p>
        <div id="mk5">
            <div>1</div>
            <div>2</div>
            <div>3</div>
            <div>4</div>
        </div>
    </div>
    <style>
        #mk5 {
            border: solid 1px red;
            display: flex;
            justify-content: space-between;
             height: 200px;
        }

        #mk5 div {
            border: solid 1px green;
            background-color: orange;
            width: 100px;
            height: 100px;
        }
    </style>





    --------------------------------------------------------------------------------------------

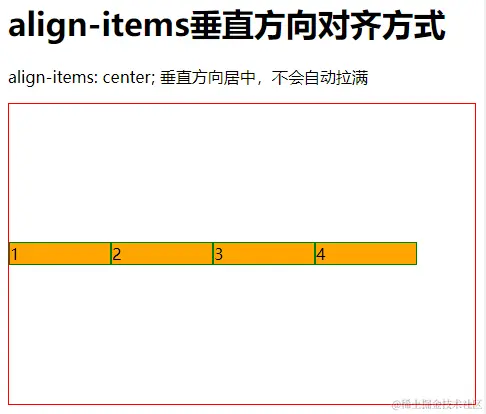

    <h1>align-items垂直方向对齐方式</h1>
    <div id="">
        <p>align-items: center; 垂直方向居中,不会自动拉满</p>
        <div id="mk6">
            <div>1</div>
            <div>2</div>
            <div>3</div>
            <div>4</div>
        </div>
    </div>
    <style>
        #mk6 {
            border: solid 1px red;
            height: 300px;
            display: flex;
            /* justify-content: space-between; */
            align-items: center;
            /* align-items: stretch */
        }

        #mk6 div {
            border: solid 1px green;
            background-color: orange;
            width: 100px;
            /* height: 100px; */
        }
    </style>



--------------------------------------------------------------------------------------------


<div id="">

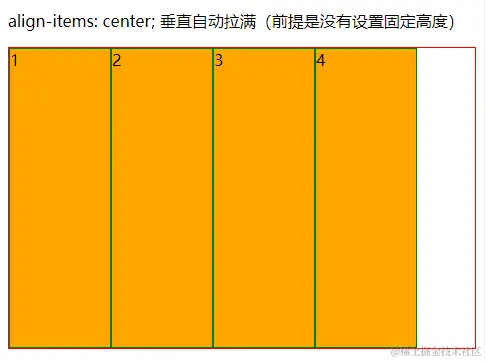

    <p>align-items: center; 垂直自动拉满(前提是没有设置固定高度)</p>
    <div id="mk7">
        <div>1</div>
        <div>2</div>
        <div>3</div>
        <div>4</div>
    </div>
</div>
<style>
    #mk7 {
        border: solid 1px red;
        height: 300px;
        display: flex;
        align-items: stretch
    }

    #mk7 div {
        border: solid 1px green;
        background-color: orange;
        width: 100px;
        /* height: 100px; */
    }
</style>

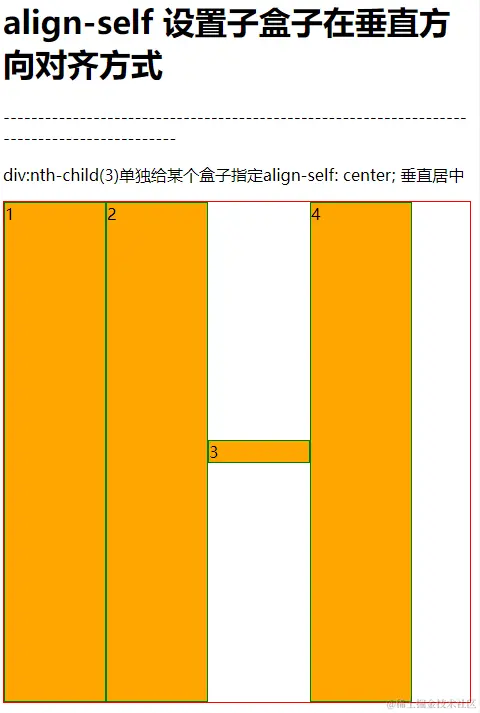

<h1>align-self 设置子盒子在垂直方向对齐方式</h1>


--------------------------------------------------------------------------------------------
<h1>div:nth-child(3)单独给某个盒子指定align-self: center; 垂直居中</h1>

<div id="">

    <div id="mk8">
        <div>1</div>
        <div>2</div>
        <div>3</div>
        <div>4</div>
    </div>
</div>
<style>
    #mk8 {
        border: solid 1px red;
        height: 500px;
        display: flex;
    }

    #mk8 div {
        border: solid 1px green;
        background-color: orange;
        width: 100px;
        /* height: 100px; */
    }
    #mk8 div:nth-child(3){
        align-self: center;
    }
</style>




--------------------------------------------------------------------------------------------

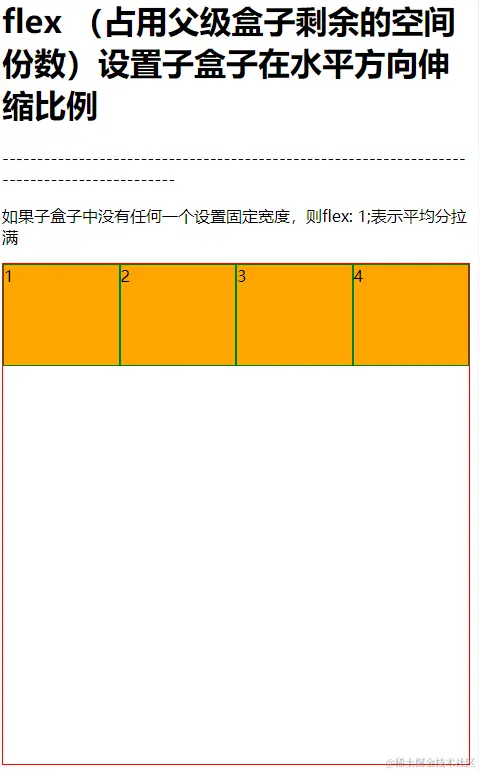

<h1>flex (占用父级盒子剩余的空间份数)设置子盒子在水平方向伸缩比例</h1>

<div id="">

    <p>如果子盒子中没有任何一个设置固定宽度,则flex: 1;表示平均分拉满</p>
    <div id="mk9">
        <div>1</div>
        <div>2</div>
        <div>3</div>
        <div>4</div>
    </div>
</div>
<style>
    #mk9 {
        border: solid 1px red;
        height: 500px;
        display: flex;
    }

    #mk9 div {
        border: solid 1px green;
        background-color: orange;
        /* width: 100px; */
        height: 100px;
        flex: 1;
    }
</style>


--------------------------------------------------------------------------------------------


<div id="">

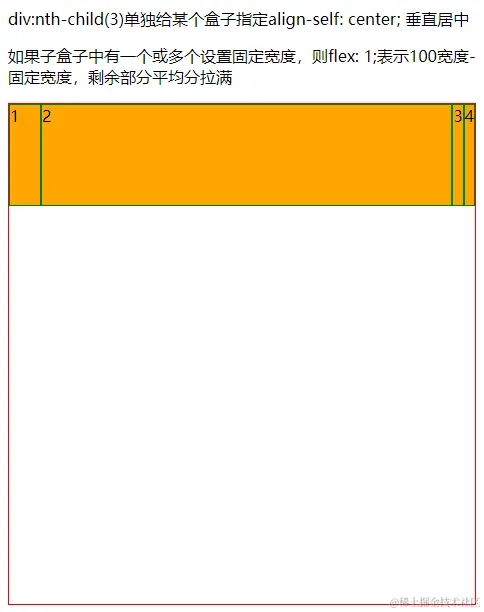

    <p>div:nth-child(3)单独给某个盒子指定align-self: center; 垂直居中</p>
    <p>如果子盒子中有一个或多个设置固定宽度,则flex: 1;表示100宽度-固定宽度,剩余部分平均分拉满</p>
    <div id="mk10">
        <div>1</div>
        <div>2</div>
        <div>3</div>
        <div>4</div>
    </div>
</div>
<style>
    #mk10 {
        border: solid 1px red;
        height: 500px;
        display: flex;
    }

    #mk10 div {
        border: solid 1px green;
        background-color: orange;
        /* width: 100px; */
        height: 100px;
        /* flex: 1; */
    }
     #mk10 div:nth-child(1) {
         width: 30px;
    }
    /* 表示总共把剩余空间分成3+2五份,他占用3份 */
     #mk10 div:nth-child(2) {
        flex: 3;
    }
     #mk10 div:nth-child(2) {
        flex: 2;
    }


</style>



--------------------------------------------------------------------------------------------

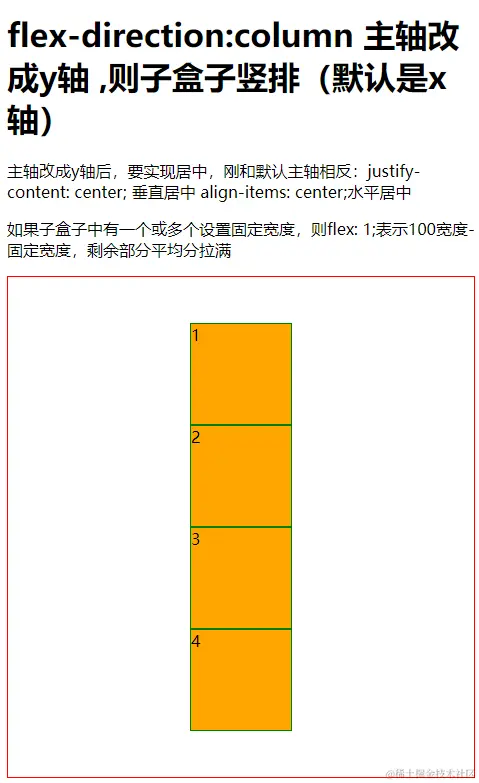

<h1>flex-direction:column  主轴改成y轴 ,则子盒子竖排(默认是x轴)</h1>

<div id="">
    <p>主轴改成y轴后,要实现居中,刚和默认主轴相反:justify-content: center; 垂直居中 align-items: center;水平居中</p>
    <p>如果子盒子中有一个或多个设置固定宽度,则flex: 1;表示100宽度-固定宽度,剩余部分平均分拉满</p>
    <div id="mk11">
        <div>1</div>
        <div>2</div>
        <div>3</div>
        <div>4</div>
    </div>
</div>
<style>
    #mk11 {
        border: solid 1px red;
        height: 500px;
        display: flex;
        flex-direction:column;
        justify-content: center;
        align-items: center;
    }

    #mk11 div {
        border: solid 1px green;
        background-color: orange;
        width: 100px;
        height: 100px;
    }
</style>








--------------------------------------------------------------------------------------------

<h1>flex-wrap 设置子盒子是否换行</h1>
<div class="">
    nowrap 默认值,表示项目不会换行
    wrap 表示项目会在需要时换行
    wrap-reverse 表示项目会在需要时换行,但会以相反的顺序
    initial 将此属性设置为属性的默认值
    inherit 从父元素继承属性的值
</div>
<div id="">
    <div id="mk12">
        <div>1</div>
        <div>2</div>
        <div>3</div>
        <div>4</div>
        <div>4</div>
        <div>5</div>
        <div>6</div>
    </div>
</div>
<style>
    #mk12 {
        border: solid 1px red;
        height: 500px;
        display: flex;
        flex-wrap: wrap;
    }

    #mk12 div {
        border: solid 1px green;
        background-color: orange;
        width: 100px;
        height: 100px;
    }
</style>


--------------------------------------------------------------------------------------------

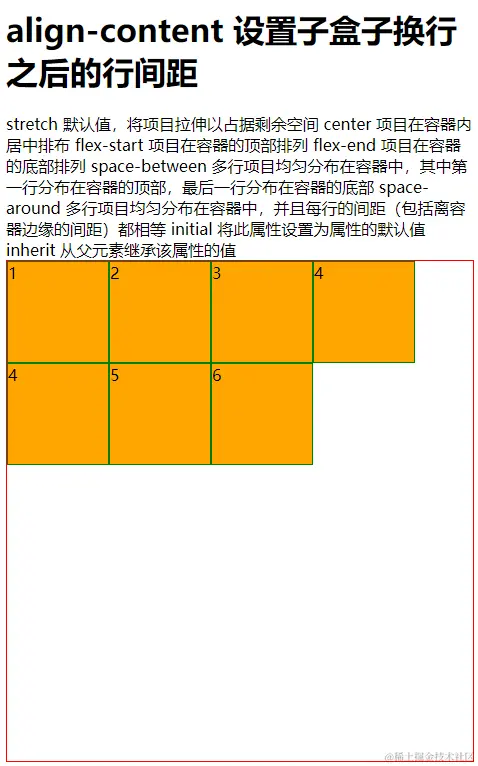

<h1>align-content 设置子盒子换行之后的行间距</h1>
<div class="">
    stretch 默认值,将项目拉伸以占据剩余空间
    center 项目在容器内居中排布
    flex-start 项目在容器的顶部排列
    flex-end 项目在容器的底部排列
    space-between 多行项目均匀分布在容器中,其中第一行分布在容器的顶部,最后一行分布在容器的底部
    space-around 多行项目均匀分布在容器中,并且每行的间距(包括离容器边缘的间距)都相等
    initial 将此属性设置为属性的默认值
    inherit 从父元素继承该属性的值
</div>
<div id="">
    <div id="mk13">
        <div>1</div>
        <div>2</div>
        <div>3</div>
        <div>4</div>
        <div>4</div>
        <div>5</div>
        <div>6</div>
    </div>
</div>
<style>
    #mk13 {
        border: solid 1px red;
        height: 500px;
        display: flex;
        flex-wrap: wrap;
        align-content: start;
    }

    #mk13 div {
        border: solid 1px green;
        background-color: orange;
        width: 100px;
        height: 100px;
    }
</style>
</body>

</html>


flex 布局怎么分配多余的空间(flex-grow)

  • flex 布局中,flex 设置单、双、三值的时候分别有什么意义。
  • flex 布局怎么压缩负空间(flex-shrink)
  • flex 布局怎么分配多余的空间(flex-grow)
  • flex-basis 和 flex-grow 怎么配合分配空间

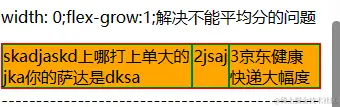

解决后效果:




<div id="">

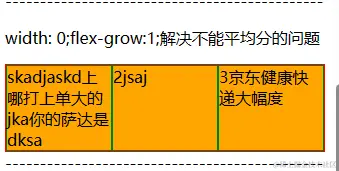

    <p>width: 0;flex-grow:1;解决不能平均分的问题</p>
    <div id="mk14">
        <div>skadjaskd上哪打上单大的jka你的萨达是dksa </div>
        <div>2jsaj</div>
        <div>3京东健康快递大幅度</div>
    </div>
</div>
<style>
    #mk14 {
        border: solid 1px red;
        display: flex;
        justify-content: center;
    }

    #mk14 div {
        display: flex;
        border: solid 1px green;
        background-color: orange;
        width: 0;
        flex-grow:1;
    }
</style>
