Trino on k8s 编排部署进阶篇

1,995 阅读7分钟

一、概述

Trino on Kubernetes(Trino在Kubernetes上的部署)是将Trino查询引擎与Kubernetes容器编排平台相结合,以实现在Kubernetes集群上部署、管理和运行Trino的解决方案。

Trino(之前称为Presto SQL)是一个高性能的分布式SQL查询引擎,旨在处理大规模数据集和复杂查询。Kubernetes是一个流行的开源容器编排平台,用于自动化容器的部署、扩展和管理。

将Trino部署在Kubernetes上可以带来一些优势:

  • 弹性扩展:Kubernetes提供了自动化的容器扩展功能,可以根据工作负载的需求自动增加或减少Trino的实例数。这样,可以根据查询负载的变化进行弹性伸缩,提高性能和资源利用率。

  • 高可用性:Kubernetes具有容错和故障恢复的能力。通过在Kubernetes集群中部署多个Trino实例,可以实现高可用性架构,当其中一个实例失败时,其他实例可以接管工作,保证系统的可用性。

  • 资源管理:Kubernetes提供了资源调度和管理的功能,可以控制Trino实例使用的计算资源、存储资源和网络资源。通过适当配置资源限制和请求,可以有效地管理Trino查询的资源消耗,防止资源冲突和争用。

  • 简化部署和管理:Kubernetes提供了声明性的配置和自动化的部署机制,可以简化Trino的部署和管理过程。通过使用Kubernetes的标准工具和API,可以轻松地进行Trino实例的创建、配置和监控。

  • 生态系统整合:Kubernetes具有丰富的生态系统和集成能力,可以与其他工具和平台进行无缝集成。例如,可以与存储系统(如Hadoop HDFS、Amazon S3)和其他数据处理工具(如Apache Spark)集成,实现数据的无缝访问和处理。

需要注意的是,将Trino部署在Kubernetes上需要适当的配置和调优,以确保性能和可靠性。此外,对于大规模和复杂的查询场景,可能需要考虑数据分片、数据划分和数据本地性等方面的优化。

总之,Trino on Kubernetes提供了一种灵活、可扩展和高效的方式来部署和管理Trino查询引擎,使其能够更好地适应大数据环境中的查询需求。

这里只是讲解部署过程,想了解更多的trino的内容,可参考我以下几篇文章:

如果想单机容器部署,可以参考我这篇文章:【大数据】通过 docker-compose 快速部署 Presto(Trino)保姆级教程

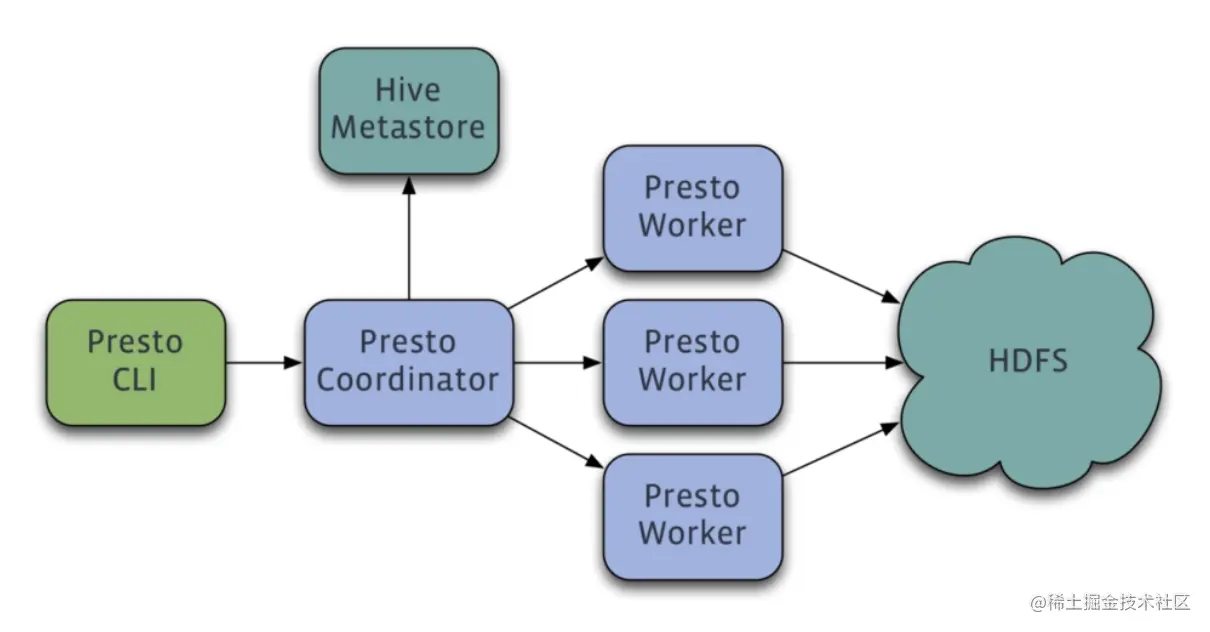

在这里插入图片描述

二、k8s 部署部署

k8s 环境部署这里不重复讲解了,重点是 Hadoop on k8s,不知道怎么部署k8s环境的可以参考我以下几篇文章:

三、开始编排部署 Trino

1)构建镜像 Dockerfile

FROM registry.cn-hangzhou.aliyuncs.com/bigdata_cloudnative/centos:7.7.1908

RUN rm -f /etc/localtime && ln -sv /usr/share/zoneinfo/Asia/Shanghai /etc/localtime && echo "Asia/Shanghai" > /etc/timezone

RUN export LANG=zh_CN.UTF-8

# 创建用户和用户组,跟yaml编排里的user: 10000:10000
RUN groupadd --system --gid=10000 hadoop && useradd --system --home-dir /home/hadoop --uid=10000 --gid=hadoop hadoop -m

# 安装sudo
RUN yum -y install sudo ; chmod 640 /etc/sudoers

# 给hadoop添加sudo权限
RUN echo "hadoop ALL=(ALL) NOPASSWD: ALL" >> /etc/sudoers

RUN yum -y install install net-tools telnet wget nc

RUN mkdir /opt/apache/

# 添加配置 JDK
ADD zulu20.30.11-ca-jdk20.0.1-linux_x64.tar.gz /opt/apache/
ENV JAVA_HOME /opt/apache/zulu20.30.11-ca-jdk20.0.1-linux_x64
ENV PATH $JAVA_HOME/bin:$PATH

# 添加配置 trino server
ENV TRINO_VERSION 416
ADD trino-server-${TRINO_VERSION}.tar.gz /opt/apache/
ENV TRINO_HOME /opt/apache/trino
RUN ln -s /opt/apache/trino-server-${TRINO_VERSION} $TRINO_HOME

# 创建配置目录和数据源catalog目录
RUN mkdir -p ${TRINO_HOME}/etc/catalog

# 添加配置 trino cli
COPY trino-cli-416-executable.jar $TRINO_HOME/bin/trino-cli

# copy bootstrap.sh
COPY bootstrap.sh /opt/apache/
RUN chmod +x /opt/apache/bootstrap.sh ${TRINO_HOME}/bin/trino-cli

RUN chown -R hadoop:hadoop /opt/apache

WORKDIR $TRINO_HOME

bootstrap.sh 脚本内容

#!/usr/bin/env sh

wait_for() {
    if [ -n "$1" -a  -z -n "$2" ];then
       echo Waiting for $1 to listen on $2...
       while ! nc -z $1 $2; do echo waiting...; sleep 1s; done
    fi
}

start_trino() {

   wait_for $1 $2

   ${TRINO_HOME}/bin/launcher run --verbose

}

case $1 in
        trino-coordinator)
                start_trino coordinator $@
                ;;
        trino-worker)
                start_trino worker $@
                ;;
        *)
                echo "请输入正确的服务启动命令~"
        ;;
esac

构建镜像:

docker build -t registry.cn-hangzhou.aliyuncs.com/bigdata_cloudnative/trino-k8s:416 . --no-cache

### 参数解释
# -t:指定镜像名称
# . :当前目录Dockerfile
# -f:指定Dockerfile路径
#  --no-cache:不缓存

2)values.yaml 文件配置

# Default values for trino.
# This is a YAML-formatted file.
# Declare variables to be passed into your templates.

image:
  repository: registry.cn-hangzhou.aliyuncs.com/bigdata_cloudnative/trino-k8s
  pullPolicy: IfNotPresent
  # Overrides the image tag whose default is the chart version.
  tag: 416

imagePullSecrets:
  - name: registry-credentials

server:
  workers: 1
  node:
    environment: production
    dataDir: /opt/apache/trino/data
    pluginDir: /opt/apache/trino/plugin
  log:
    trino:
      level: INFO
  config:
    path: /opt/apache/trino/etc
    http:
      port: 8080
    https:
      enabled: false
      port: 8443
      keystore:
        path: ""
    # Trino supports multiple authentication types: PASSWORD, CERTIFICATE, OAUTH2, JWT, KERBEROS
    # For more info: https://trino.io/docs/current/security/authentication-types.html
    authenticationType: ""
    query:
      maxMemory: "1GB"
      maxMemoryPerNode: "512MB"
    memory:
      heapHeadroomPerNode: "512MB"
  exchangeManager:
    name: "filesystem"
    baseDir: "/tmp/trino-local-file-system-exchange-manager"
  workerExtraConfig: ""
  coordinatorExtraConfig: ""
  autoscaling:
    enabled: false
    maxReplicas: 5
    targetCPUUtilizationPercentage: 50

accessControl: {}
  # type: configmap
  # refreshPeriod: 60s
  # # Rules file is mounted to /etc/trino/access-control
  # configFile: "rules.json"
  # rules:
  #   rules.json: |-
  #     {
  #       "catalogs": [
  #         {
  #           "user": "admin",
  #           "catalog": "(mysql|system)",
  #           "allow": "all"
  #         },
  #         {
  #           "group": "finance|human_resources",
  #           "catalog": "postgres",
  #           "allow": true
  #         },
  #         {
  #           "catalog": "hive",
  #           "allow": "all"
  #         },
  #         {
  #           "user": "alice",
  #           "catalog": "postgresql",
  #           "allow": "read-only"
  #         },
  #         {
  #           "catalog": "system",
  #           "allow": "none"
  #         }
  #       ],
  #       "schemas": [
  #         {
  #           "user": "admin",
  #           "schema": ".*",
  #           "owner": true
  #         },
  #         {
  #           "user": "guest",
  #           "owner": false
  #         },
  #         {
  #           "catalog": "default",
  #           "schema": "default",
  #           "owner": true
  #         }
  #       ]
  #     }

additionalNodeProperties: {}

additionalConfigProperties: {}

additionalLogProperties: {}

additionalExchangeManagerProperties: {}

eventListenerProperties: {}

#additionalCatalogs: {}

additionalCatalogs:
  mysql: |-
    connector.name=mysql
    connection-url=jdbc:mysql://mysql-primary.mysql:3306
    connection-user=root
    connection-password=WyfORdvwVm
  hive: |-
    connector.name=hive
    hive.metastore.uri=thrift://hadoop-hadoop-hive-metastore.hadoop:9083
    hive.allow-drop-table=true
    hive.allow-rename-table=true
    #hive.config.resources=/tmp/core-site.xml,/tmp/hdfs-site.xml


# Array of EnvVar (https://v1-18.docs.kubernetes.io/docs/reference/generated/kubernetes-api/v1.18/#envvar-v1-core)
env: []

initContainers: {}
  # coordinator:
  #   - name: init-coordinator
  #     image: busybox:1.28
  #     imagePullPolicy: IfNotPresent
  #     command: ['sh', '-c', "until nslookup myservice.$(cat /var/run/secrets/kubernetes.io/serviceaccount/namespace).svc.cluster.local; do echo waiting for myservice; sleep 2; done"]
  # worker:
  #   - name: init-worker
  #     image: busybox:1.28
  #     command: ['sh', '-c', 'echo The worker is running! && sleep 3600']

securityContext:
  runAsUser: 10000
  runAsGroup: 10000

service:
  #type: ClusterIP
  type: NodePort
  port: 8080
  nodePort: 31880

nodeSelector: {}

tolerations: []

affinity: {}

auth: {}
  # Set username and password
  # https://trino.io/docs/current/security/password-file.html#file-format
  # passwordAuth: "username:encrypted-password-with-htpasswd"

serviceAccount:
  # Specifies whether a service account should be created
  create: false
  # The name of the service account to use.
  # If not set and create is true, a name is generated using the fullname template
  name: ""
  # Annotations to add to the service account
  annotations: {}

secretMounts: []

coordinator:
  jvm:
    maxHeapSize: "2G"
    gcMethod:
      type: "UseG1GC"
      g1:
        heapRegionSize: "32M"

  additionalJVMConfig: {}

  resources: {}
    # We usually recommend not to specify default resources and to leave this as a conscious
    # choice for the user. This also increases chances charts run on environments with little
    # resources, such as Minikube. If you do want to specify resources, uncomment the following
    # lines, adjust them as necessary, and remove the curly braces after 'resources:'.
    # limits:
    #   cpu: 100m
    #   memory: 128Mi
    # requests:
    #   cpu: 100m
    #   memory: 128Mi

worker:
  jvm:
    maxHeapSize: "2G"
    gcMethod:
      type: "UseG1GC"
      g1:
        heapRegionSize: "32M"

  additionalJVMConfig: {}

  resources: {}
    # We usually recommend not to specify default resources and to leave this as a conscious
    # choice for the user. This also increases chances charts run on environments with little
    # resources, such as Minikube. If you do want to specify resources, uncomment the following
    # lines, adjust them as necessary, and remove the curly braces after 'resources:'.
    # limits:
    #   cpu: 100m
    #   memory: 128Mi
    # requests:
    #   cpu: 100m
    #   memory: 128Mi

3)trino catalog configmap yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: {{ template "trino.catalog" . }}
  labels:
    app: {{ template "trino.name" . }}
    chart: {{ template "trino.chart" . }}
    release: {{ .Release.Name }}
    heritage: {{ .Release.Service }}
    role: catalogs
data:
  tpch.properties: |
    connector.name=tpch
    tpch.splits-per-node=4
  tpcds.properties: |
    connector.name=tpcds
    tpcds.splits-per-node=4
{{- range $catalogName, $catalogProperties := .Values.additionalCatalogs }}
  {{ $catalogName }}.properties: |
    {{- $catalogProperties | nindent 4 }}
{{- end }}

这里只是列举出核心部署配置,最下面会提供git下载地址,有任何疑问欢迎留言或私信~

4)开始安装

cd trino-on-kubernetes

# 安装
helm install trino ./ -n trino --create-namespace

# 更新
# helm upgrade trino ./ -n trino

# 卸载
# helm uninstall trino -n trino

# 查看

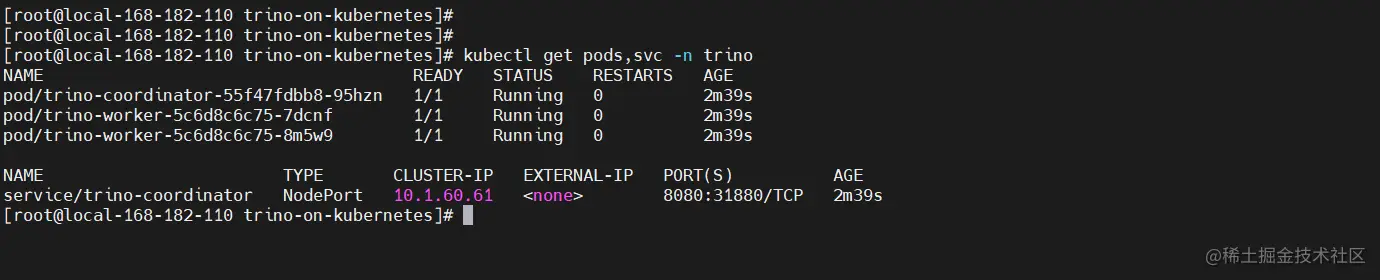

kubectl get pods,svc -n trino

在这里插入图片描述

5)测试验证

coordinator_name=`kubectl get pods -n trino|grep coordinator|awk '{print $1}'`

# 登录
kubectl exec -it $coordinator_name -n trino -- /opt/apache/trino/bin/trino-cli --server http://trino-coordinator:8080 --catalog=hive --schema=default --user=hadoop

# 查看数据源
show catalogs;
select * from system.runtime.nodes;

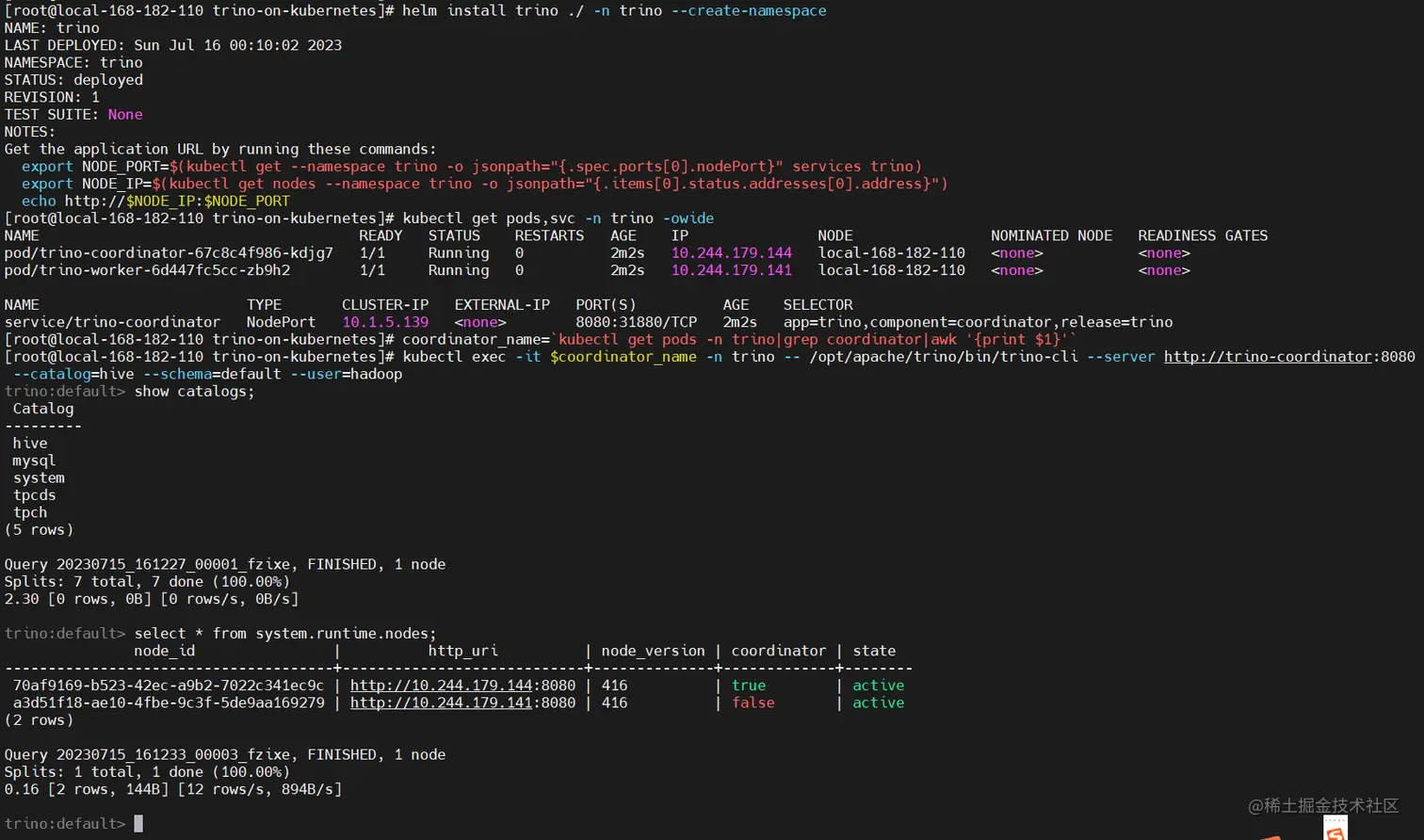

在这里插入图片描述

四、配置 k8s hive 数据源

hive on k8s 可以参考我这篇文章:Hadoop on k8s 快速部署进阶精简篇

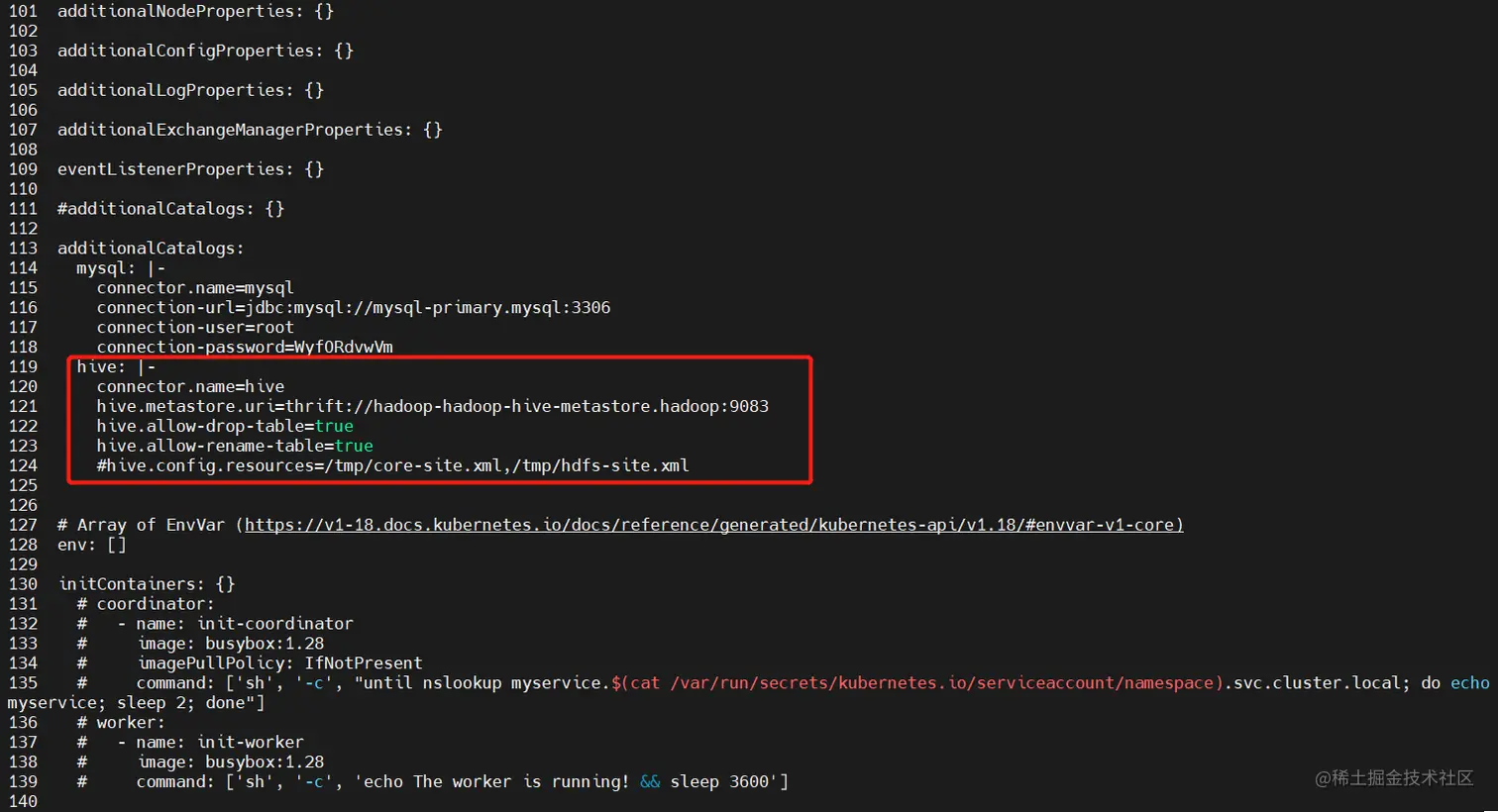

trino-on-kubernetes/values.yaml 文件中添加数据源 在这里插入图片描述

重新更新配置并重启 trino节点

helm upgrade trino ./ -n trino

# 重启,因为修改configmap是不会动态刷新的,得重启才生效
kubectl delete pod -n trino `kubectl get pods -n trino|awk 'NR!=1{print $1}'`

coordinator_name=`kubectl get pods -n hadoop|grep coordinator|awk '{print $1}'`

# 登录
kubectl exec -it $coordinator_name -n trino -- ${TRINO_HOME}/bin/trino-cli --server http://trino-coordinator:8080 --catalog=hive --schema=default --user=hadoop

# 查看数据源
show catalogs;
# 查看mysql库
show schemas from hive;
# 查看表
show tables from hive.default;

create schema hive.test;

# 创建表
CREATE TABLE hive.test.movies (
  movie_id bigint,
  title varchar,
  rating real, -- real类似与float类型
  genres varchar,
  release_year int
)
WITH (
  format = 'ORC',
  partitioned_by = ARRAY['release_year'] -- 注意这里的分区字段必须是上面顺序的最后一个
);

#加载数据到Hive表
INSERT INTO hive.test.movies
VALUES
(1, 'Toy Story', 8.3, 'Animation|Adventure|Comedy', 1995),
(2, 'Jumanji', 6.9, 'Action|Adventure|Family', 1995),
(3, 'Grumpier Old Men', 6.5, 'Comedy|Romance', 1995);

# 查询数据
select * from hive.test.movies;

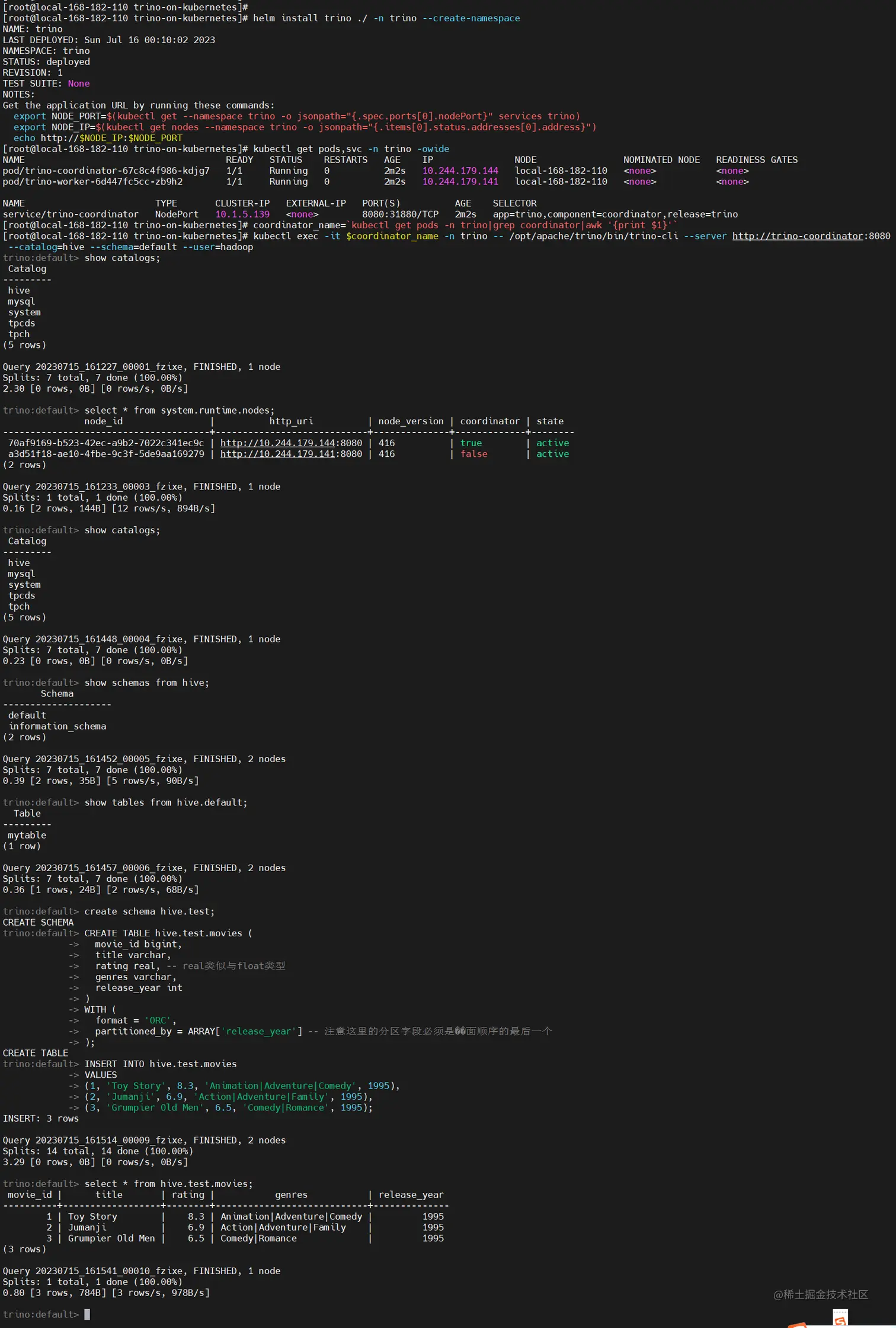

在这里插入图片描述

五、快速部署核心操作步骤(如果只关注部署,可直接跳转这里)

如果只是想快速部署,上面的内容就可以直接忽略了,直接执行下面步骤即可:

1)安装 git

# 1、安装 git
yum -y install git

2)下载trino安装包

git clone git@github.com:HBigdata/trino-on-kubernetes.git
cd trino-on-kubernetes

3)配置数据源

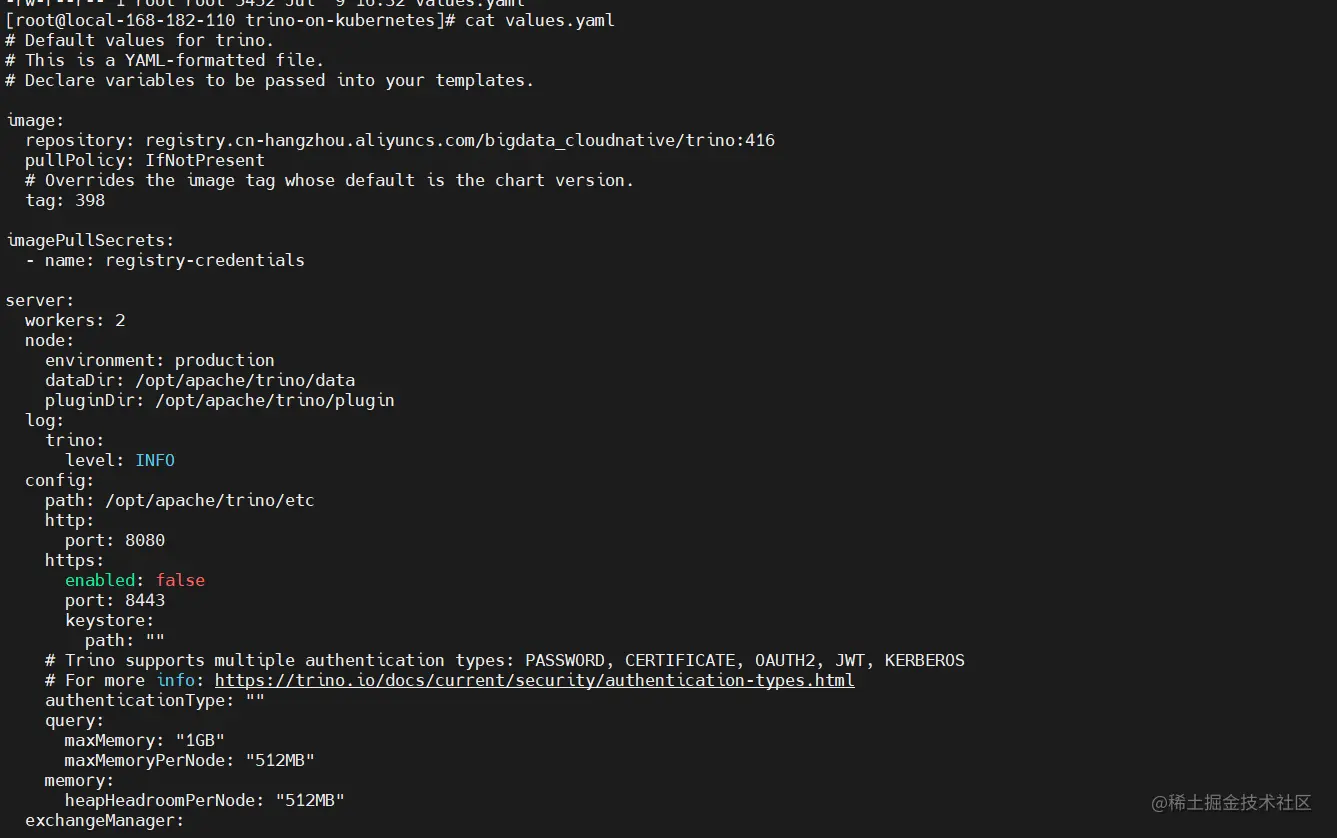

cat -n values.yaml

在这里插入图片描述

3)配置资源限制 requests 和 limits

在这里插入图片描述

4)修复 trino 配置

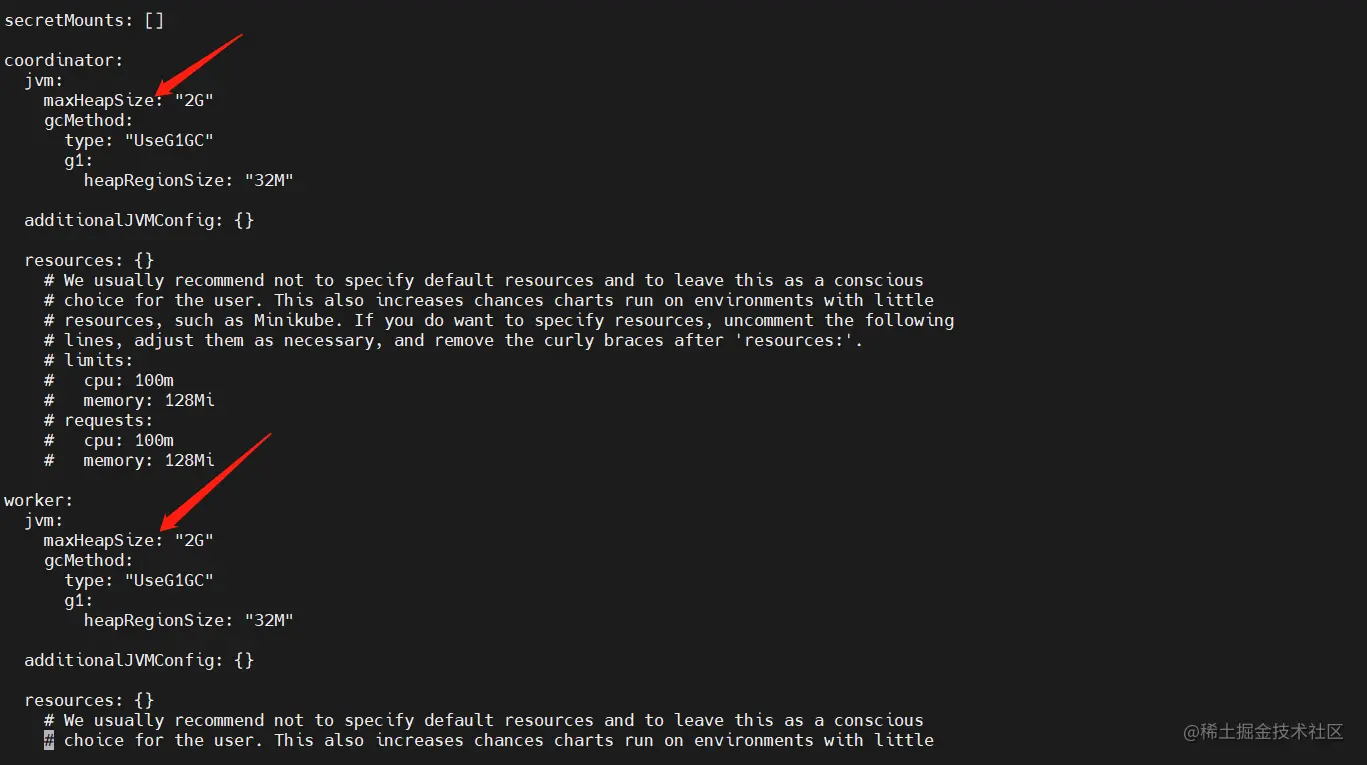

在这里插入图片描述 JVM 内存配置 在这里插入图片描述

5)开始部署

# git clone git@github.com:HBigdata/trino-on-kubernetes.git
# cd trino-on-kubernetes

# 安装
helm install trino ./ -n trino --create-namespace

# 更新
helm upgrade trino ./ -n trino

# 卸载
helm uninstall trino -n trino

6)测试验证

coordinator_name=`kubectl get pods -n trino|grep coordinator|awk '{print $1}'`

# 登录
kubectl exec -it $coordinator_name -n trino -- ${TRINO_HOME}/bin/trino-cli --server http://trino-coordinator:8080 --catalog=hive --schema=default --user=hadoop

# 查看数据源
show catalogs;
# 查看mysql库
show schemas from hive;
# 查看表
show tables from hive.default;

create schema hive.test;

# 创建表
CREATE TABLE hive.test.movies (
  movie_id bigint,
  title varchar,
  rating real, -- real类似与float类型
  genres varchar,
  release_year int
)
WITH (
  format = 'ORC',
  partitioned_by = ARRAY['release_year'] -- 注意这里的分区字段必须是上面顺序的最后一个
);

#加载数据到Hive表
INSERT INTO hive.test.movies
VALUES
(1, 'Toy Story', 8.3, 'Animation|Adventure|Comedy', 1995),
(2, 'Jumanji', 6.9, 'Action|Adventure|Family', 1995),
(3, 'Grumpier Old Men', 6.5, 'Comedy|Romance', 1995);

# 查询数据
select * from hive.test.movies;

在这里插入图片描述

到这里完成 trino on k8s 部署和可用性演示就完成了,有任何疑问请关注我公众号:大数据与云原生技术分享,加群交流或私信沟通,如本篇文章对您有所帮助,麻烦帮忙一键三连(点赞、转发、收藏)~
