RocketMQ支持3种消息发送方式：同步（sync）、异步（async）和单向（one way）。
1）同步：发送者向RocketMQ执行发送消息API时，同步等待，直到消息服务器返回发送结果。
2）异步：发送者向RocketMQ执行发送消息API时，指定消息发送成功后的回调函数，调用消息发送API后，立即返回，消息发送者线程不阻塞，直到运行结束，消息发送成功或失败的回调任务在一个新的线程中执行。
3）单向：消息发送者向RocketMQ执行发送消息API时，直接返回，不等待消息服务器的结果，也不注册回调函数。简单地说，就是只管发，不在乎消息是否成功存储在消息服务器上。
RocketMQ消息发送需要考虑以下3个问题。
1）消息队列如何进行负载？
2）消息发送如何实现高可用？
3）批量消息发送如何实现一致性？
topic路由机制
消息发送者向某一个topic发送消息时，需要查询topic的路由信息。初次发送时会根据topic的名称向NameServer集群查询topic的路由信息，然后将其存储在本地内存缓存中，并且每隔30s依次遍历缓存中的topic，向NameServer查询最新的路由信息。如果成功查询到路由信息，会将这些信息更新至本地缓存，实现topic路由信息的动态感知。RocketMQ提供了自动创建主题（topic）的机制，消息发送者向一个不存在的主题发送消息时，向NameServer查询该主题的路由信息会先返回空，如果开启了自动创建主题机制，会使用一个默认的主题名再次从NameServer查询路由信息，然后消息发送者会使用默认主题的路由信息进行负载均衡，但不会直接使用默认路由信息为新主题创建对应的路由信息。
高可用机制的实现
- 引入重试机制
RocketMQ在消息发送时如果出现失败，默认会重试两次。
- 故障规避机制
当消息第一次发送失败时，如果下一次消息还是发送到刚刚失败的Broker上，其消息发送大概率还是会失败，因此为了保证重试的可靠性，在重试时会尽量避开刚刚接收失败的Broker，而是选择其他Broker上的队列进行发送，从而提高消息发送的成功率。
消息实体类主要属性解析
public class Message implements Serializable {
private static final long serialVersionUID = 8445773977080406428L;
//主题名
private String topic;
//消息标记
private int flag;
//属性
private Map<String, String> properties;
//消息体
private byte[] body;
//事务id
private String transactionId;
}
重点：消息初始化以及发送经历的流程
- DefaultMQProducer类的send方法或者sendOneway方法，例如：
public void send(Message msg, MessageQueueSelector selector, Object arg, SendCallback sendCallback)
throws MQClientException, RemotingException, InterruptedException {
msg.setTopic(withNamespace(msg.getTopic()));
this.defaultMQProducerImpl.send(msg, selector, arg, sendCallback);
}
- DefaultMQProducerImpl类的send方法
public void send(final Message msg, final SendCallback sendCallback, final long timeout)
throws MQClientException, RemotingException, InterruptedException {
final long beginStartTime = System.currentTimeMillis();
//定义一个线程方法
Runnable runnable = new Runnable() {
@Override
public void run() {
long costTime = System.currentTimeMillis() - beginStartTime;
if (timeout > costTime) {
try {
sendDefaultImpl(msg, CommunicationMode.ASYNC, sendCallback, timeout - costTime);
} catch (Exception e) {
sendCallback.onException(e);
}
} else {
sendCallback.onException(
new RemotingTooMuchRequestException("DEFAULT ASYNC send call timeout"));
}
}
};
//执行异步发送
executeAsyncMessageSend(runnable, msg, sendCallback, timeout, beginStartTime);
}
public void executeAsyncMessageSend(Runnable runnable, final Message msg, final SendCallback sendCallback,
final long timeout, final long beginStartTime)
throws MQClientException, InterruptedException {
ExecutorService executor = this.getAsyncSenderExecutor();
boolean isEnableBackpressureForAsyncMode = this.getDefaultMQProducer().isEnableBackpressureForAsyncMode();
boolean isSemaphoreAsyncNumAquired = false;
boolean isSemaphoreAsyncSizeAquired = false;
int msgLen = msg.getBody() == null ? 1 : msg.getBody().length;
try {
if (isEnableBackpressureForAsyncMode) {
long costTime = System.currentTimeMillis() - beginStartTime;
//控制发送的速度
isSemaphoreAsyncNumAquired = timeout - costTime > 0
&& semaphoreAsyncSendNum.tryAcquire(timeout - costTime, TimeUnit.MILLISECONDS);
if (!isSemaphoreAsyncNumAquired) {
sendCallback.onException(
new RemotingTooMuchRequestException("send message tryAcquire semaphoreAsyncNum timeout"));
return;
}
costTime = System.currentTimeMillis() - beginStartTime;
isSemaphoreAsyncSizeAquired = timeout - costTime > 0
&& semaphoreAsyncSendSize.tryAcquire(msgLen, timeout - costTime, TimeUnit.MILLISECONDS);
if (!isSemaphoreAsyncSizeAquired) {
sendCallback.onException(
new RemotingTooMuchRequestException("send message tryAcquire semaphoreAsyncSize timeout"));
return;
}
}
//用线程池来执行发送
executor.submit(runnable);
}
//...省略
}
最后会来到当前类的sendDefaultImpl方法中，
private SendResult sendDefaultImpl(
Message msg,
final CommunicationMode communicationMode,
final SendCallback sendCallback,
final long timeout
) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
this.makeSureStateOK();
Validators.checkMessage(msg, this.defaultMQProducer);
final long invokeID = random.nextLong();
long beginTimestampFirst = System.currentTimeMillis();
long beginTimestampPrev = beginTimestampFirst;
long endTimestamp = beginTimestampFirst;
//查找主题等信息
TopicPublishInfo topicPublishInfo = this.tryToFindTopicPublishInfo(msg.getTopic());
if (topicPublishInfo != null && topicPublishInfo.ok()) {
boolean callTimeout = false;
MessageQueue mq = null;
Exception exception = null;
SendResult sendResult = null;
//重试次数
int timesTotal = communicationMode == CommunicationMode.SYNC ? 1 + this.defaultMQProducer.getRetryTimesWhenSendFailed() : 1;
int times = 0;
String[] brokersSent = new String[timesTotal];
for (; times < timesTotal; times++) {
String lastBrokerName = null == mq ? null : mq.getBrokerName();
//选择一个队列
MessageQueue mqSelected = this.selectOneMessageQueue(topicPublishInfo, lastBrokerName);
if (mqSelected != null) {
mq = mqSelected;
brokersSent[times] = mq.getBrokerName();
try {
beginTimestampPrev = System.currentTimeMillis();
if (times > 0) {
//Reset topic with namespace during resend.
msg.setTopic(this.defaultMQProducer.withNamespace(msg.getTopic()));
}
long costTime = beginTimestampPrev - beginTimestampFirst;
if (timeout < costTime) {
callTimeout = true;
break;
}
//消息发送
sendResult = this.sendKernelImpl(msg, mq, communicationMode, sendCallback, topicPublishInfo, timeout - costTime);
endTimestamp = System.currentTimeMillis();
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
switch (communicationMode) {
//异步模式
case ASYNC:
return null;
//单向发送
case ONEWAY:
return null;
//同步发送
case SYNC:
if (sendResult.getSendStatus() != SendStatus.SEND_OK)
//用另一个broker进行重试
if (this.defaultMQProducer.isRetryAnotherBrokerWhenNotStoreOK()) {
continue;
}
}
return sendResult;
default:
break;
}
} catch (RemotingException | MQClientException e) {
endTimestamp = System.currentTimeMillis();
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
log.warn("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq, e);
log.warn(msg.toString());
exception = e;
continue;
}
} else {
break;
}
}
if (sendResult != null) {
return sendResult;
}
}
- 从MQClientInstance类中获取一个MQClientAPIImpl的实例出来，执行发送
public MQClientAPIImpl getMQClientAPIImpl() {
return mQClientAPIImpl;
}
//发送消息
this.mQClientFactory.getMQClientAPIImpl().sendMessage(
brokerAddr,
brokerName,
tmpMessage,
requestHeader,
timeout - costTimeAsync,
communicationMode,
sendCallback,
topicPublishInfo,
this.mQClientFactory,
this.defaultMQProducer.getRetryTimesWhenSendAsyncFailed(),
context,
this);
- MQClientAPIImpl执行发送
public SendResult sendMessage(
final String addr,
final String brokerName,
final Message msg,
final SendMessageRequestHeader requestHeader,
final long timeoutMillis,
final CommunicationMode communicationMode,
final SendCallback sendCallback,
final TopicPublishInfo topicPublishInfo,
final MQClientInstance instance,
final int retryTimesWhenSendFailed,
final SendMessageContext context,
final DefaultMQProducerImpl producer
) throws RemotingException, MQBrokerException, InterruptedException {
long beginStartTime = System.currentTimeMillis();
RemotingCommand request = null;
String msgType = msg.getProperty(MessageConst.PROPERTY_MESSAGE_TYPE);
boolean isReply = msgType != null && msgType.equals(MixAll.REPLY_MESSAGE_FLAG);
if (isReply) {
if (sendSmartMsg) {
SendMessageRequestHeaderV2 requestHeaderV2 = SendMessageRequestHeaderV2.createSendMessageRequestHeaderV2(requestHeader);
request = RemotingCommand.createRequestCommand(RequestCode.SEND_REPLY_MESSAGE_V2, requestHeaderV2);
} else {
request = RemotingCommand.createRequestCommand(RequestCode.SEND_REPLY_MESSAGE, requestHeader);
}
} else {
if (sendSmartMsg || msg instanceof MessageBatch) {
SendMessageRequestHeaderV2 requestHeaderV2 = SendMessageRequestHeaderV2.createSendMessageRequestHeaderV2(requestHeader);
request = RemotingCommand.createRequestCommand(msg instanceof MessageBatch ? RequestCode.SEND_BATCH_MESSAGE : RequestCode.SEND_MESSAGE_V2, requestHeaderV2);
} else {
request = RemotingCommand.createRequestCommand(RequestCode.SEND_MESSAGE, requestHeader);
}
}
request.setBody(msg.getBody());
switch (communicationMode) {
case ONEWAY:
//调用Netty进行发送
this.remotingClient.invokeOneway(addr, request, timeoutMillis);
return null;
case ASYNC:
final AtomicInteger times = new AtomicInteger();
long costTimeAsync = System.currentTimeMillis() - beginStartTime;
if (timeoutMillis < costTimeAsync) {
throw new RemotingTooMuchRequestException("sendMessage call timeout");
}
this.sendMessageAsync(addr, brokerName, msg, timeoutMillis - costTimeAsync, request, sendCallback, topicPublishInfo, instance,
retryTimesWhenSendFailed, times, context, producer);
return null;
case SYNC:
long costTimeSync = System.currentTimeMillis() - beginStartTime;
if (timeoutMillis < costTimeSync) {
throw new RemotingTooMuchRequestException("sendMessage call timeout");
}
return this.sendMessageSync(addr, brokerName, msg, timeoutMillis - costTimeSync, request);
default:
assert false;
break;
}
return null;
}
- NettyRemotingClient执行最终的发送操作
public RemotingCommand invokeSync(String addr, final RemotingCommand request, long timeoutMillis)
throws InterruptedException, RemotingConnectException, RemotingSendRequestException, RemotingTimeoutException {
long beginStartTime = System.currentTimeMillis();
final Channel channel = this.getAndCreateChannel(addr);
if (channel != null && channel.isActive()) {
try {
doBeforeRpcHooks(addr, request);
long costTime = System.currentTimeMillis() - beginStartTime;
if (timeoutMillis < costTime) {
throw new RemotingTimeoutException("invokeSync call the addr[" + addr + "] timeout");
}
//执行同步发送
RemotingCommand response = this.invokeSyncImpl(channel, request, timeoutMillis - costTime);
doAfterRpcHooks(RemotingHelper.parseChannelRemoteAddr(channel), request, response);
this.updateChannelLastResponseTime(addr);
return response;
} catch (RemotingSendRequestException e) {
LOGGER.warn("invokeSync: send request exception, so close the channel[{}]", addr);
this.closeChannel(addr, channel);
throw e;
} catch (RemotingTimeoutException e) {
if (nettyClientConfig.isClientCloseSocketIfTimeout()) {
this.closeChannel(addr, channel);
LOGGER.warn("invokeSync: close socket because of timeout, {}ms, {}", timeoutMillis, addr);
}
LOGGER.warn("invokeSync: wait response timeout exception, the channel[{}]", addr);
throw e;
}
} else {
this.closeChannel(addr, channel);
throw new RemotingConnectException(addr);
}
}
在上面的流程中，MQClientAPIImpl类是一个很重要的类，包括了创建主题，查找删除等主题，发送消息等方法都是在这个类中进行实现。MQClientInstance类在整个Jvm中只会存在一个，MQClientInstance封装了RocketMQ的网络处理API，是消息生产者、消息消费者与NameServer、Broker打交道的网络通道。
MQ消息发送流程细节源码分析（重点）
public static void main(String[] args) throws MQClientException, InterruptedException {
DefaultMQProducer producer = new DefaultMQProducer(PRODUCER_GROUP);
// Uncomment the following line while debugging, namesrvAddr should be set to your local address
producer.setNamesrvAddr(DEFAULT_NAMESRVADDR);
producer.start();
for (int i = 0; i < 128; i++) {
try {
Message msg = new Message(TOPIC, TAG, "OrderID188", "Hello world".getBytes(StandardCharsets.UTF_8));
SendResult sendResult = producer.send(msg);
System.out.printf("%s%n", sendResult);
} catch (Exception e) {
e.printStackTrace();
}
}
producer.shutdown();
}
public SendResult send(
Message msg) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
msg.setTopic(withNamespace(msg.getTopic()));
//调用DefaultProducerImpl类进行发送
return this.defaultMQProducerImpl.send(msg);
}
public SendResult send(
Message msg) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
//调用重载方法
return send(msg, this.defaultMQProducer.getSendMsgTimeout());
}
public SendResult send(Message msg,
long timeout) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
//调用默认实现方法
return this.sendDefaultImpl(msg, CommunicationMode.SYNC, null, timeout);
}
tryToFindTopicPublishInfo方法获取到的主题和broker信息如下：
private SendResult sendDefaultImpl(
Message msg,
final CommunicationMode communicationMode,
final SendCallback sendCallback,
final long timeout
) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
//检查当前ServiceState的状态值，必须为RUNNING
this.makeSureStateOK();
//验证消息的大小不能超过4M，消息不能为空，校验主题
Validators.checkMessage(msg, this.defaultMQProducer);
final long invokeID = random.nextLong();
long beginTimestampFirst = System.currentTimeMillis();
long beginTimestampPrev = beginTimestampFirst;
long endTimestamp = beginTimestampFirst;
//从topicPublishInfoTable中查找对应的主题信息，如果不存在，则调用MQClientInstance的
//updateTopicRouteInfoFromNameServer方法远程更新主题信息
TopicPublishInfo topicPublishInfo = this.tryToFindTopicPublishInfo(msg.getTopic());
if (topicPublishInfo != null && topicPublishInfo.ok()) {
boolean callTimeout = false;
MessageQueue mq = null;
Exception exception = null;
SendResult sendResult = null;
//同步发送默认为3次
int timesTotal = communicationMode == CommunicationMode.SYNC ? 1 + this.defaultMQProducer.getRetryTimesWhenSendFailed() : 1;
int times = 0;
String[] brokersSent = new String[timesTotal];
for (; times < timesTotal; times++) {
String lastBrokerName = null == mq ? null : mq.getBrokerName();
//选择其中一个队列进行发送，就是搞个随机数出来%队列的长度得到对应的下标获取队列
MessageQueue mqSelected = this.selectOneMessageQueue(topicPublishInfo, lastBrokerName);
if (mqSelected != null) {
mq = mqSelected;
//设置第times次发送的broker的名字
brokersSent[times] = mq.getBrokerName();
try {
beginTimestampPrev = System.currentTimeMillis();
if (times > 0) {
//Reset topic with namespace during resend.
msg.setTopic(this.defaultMQProducer.withNamespace(msg.getTopic()));
}
long costTime = beginTimestampPrev - beginTimestampFirst;
//发送超时
if (timeout < costTime) {
callTimeout = true;
break;
}
sendResult = this.sendKernelImpl(msg, mq, communicationMode, sendCallback, topicPublishInfo, timeout - costTime);
endTimestamp = System.currentTimeMillis();
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
switch (communicationMode) {
case ASYNC:
return null;
case ONEWAY:
return null;
case SYNC:
if (sendResult.getSendStatus() != SendStatus.SEND_OK) {
if (this.defaultMQProducer.isRetryAnotherBrokerWhenNotStoreOK()) {
continue;
}
}
return sendResult;
default:
break;
}
} catch (RemotingException | MQClientException e) {
endTimestamp = System.currentTimeMillis();
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
log.warn("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq, e);
log.warn(msg.toString());
exception = e;
continue;
} catch (MQBrokerException e) {
endTimestamp = System.currentTimeMillis();
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, true);
log.warn("sendKernelImpl exception, resend at once, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq, e);
log.warn(msg.toString());
exception = e;
if (this.defaultMQProducer.getRetryResponseCodes().contains(e.getResponseCode())) {
continue;
} else {
if (sendResult != null) {
return sendResult;
}
throw e;
}
} catch (InterruptedException e) {
endTimestamp = System.currentTimeMillis();
this.updateFaultItem(mq.getBrokerName(), endTimestamp - beginTimestampPrev, false);
log.warn("sendKernelImpl exception, throw exception, InvokeID: %s, RT: %sms, Broker: %s", invokeID, endTimestamp - beginTimestampPrev, mq, e);
log.warn(msg.toString());
throw e;
}
} else {
break;
}
}
if (sendResult != null) {
return sendResult;
}
String info = String.format("Send [%d] times, still failed, cost [%d]ms, Topic: %s, BrokersSent: %s",
times,
System.currentTimeMillis() - beginTimestampFirst,
msg.getTopic(),
Arrays.toString(brokersSent));
info += FAQUrl.suggestTodo(FAQUrl.SEND_MSG_FAILED);
MQClientException mqClientException = new MQClientException(info, exception);
if (callTimeout) {
throw new RemotingTooMuchRequestException("sendDefaultImpl call timeout");
}
if (exception instanceof MQBrokerException) {
mqClientException.setResponseCode(((MQBrokerException) exception).getResponseCode());
} else if (exception instanceof RemotingConnectException) {
mqClientException.setResponseCode(ClientErrorCode.CONNECT_BROKER_EXCEPTION);
} else if (exception instanceof RemotingTimeoutException) {
mqClientException.setResponseCode(ClientErrorCode.ACCESS_BROKER_TIMEOUT);
} else if (exception instanceof MQClientException) {
mqClientException.setResponseCode(ClientErrorCode.BROKER_NOT_EXIST_EXCEPTION);
}
throw mqClientException;
}
validateNameServerSetting();
throw new MQClientException("No route info of this topic: " + msg.getTopic() + FAQUrl.suggestTodo(FAQUrl.NO_TOPIC_ROUTE_INFO),
null).setResponseCode(ClientErrorCode.NOT_FOUND_TOPIC_EXCEPTION);
}
private SendResult sendKernelImpl(final Message msg,
final MessageQueue mq,
final CommunicationMode communicationMode,
final SendCallback sendCallback,
final TopicPublishInfo topicPublishInfo,
final long timeout) throws MQClientException, RemotingException, MQBrokerException, InterruptedException {
long beginStartTime = System.currentTimeMillis();
//设置broker的名称和地址
String brokerName = this.mQClientFactory.getBrokerNameFromMessageQueue(mq);
String brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(brokerName);
if (null == brokerAddr) {
//本地查找
tryToFindTopicPublishInfo(mq.getTopic());
brokerName = this.mQClientFactory.getBrokerNameFromMessageQueue(mq);
brokerAddr = this.mQClientFactory.findBrokerAddressInPublish(brokerName);
}
SendMessageContext context = null;
if (brokerAddr != null) {
//判断是否vip通道
brokerAddr = MixAll.brokerVIPChannel(this.defaultMQProducer.isSendMessageWithVIPChannel(), brokerAddr);
byte[] prevBody = msg.getBody();
try {
//for MessageBatch,ID has been set in the generating process
//非批量发送
if (!(msg instanceof MessageBatch)) {
MessageClientIDSetter.setUniqID(msg);
}
boolean topicWithNamespace = false;
if (null != this.mQClientFactory.getClientConfig().getNamespace()) {
msg.setInstanceId(this.mQClientFactory.getClientConfig().getNamespace());
topicWithNamespace = true;
}
int sysFlag = 0;
boolean msgBodyCompressed = false;
//尝试压缩消息，没超过对应的大小不会压缩
//压缩算法：Lz4Compressor，ZlibCompressor，ZstdCompressor
//默认使用Zlib，我们也可以自己设置对应的参数rocketmq.message.compressType
if (this.tryToCompressMessage(msg)) {
sysFlag |= MessageSysFlag.COMPRESSED_FLAG;
sysFlag |= compressType.getCompressionFlag();
msgBodyCompressed = true;
}
final String tranMsg = msg.getProperty(MessageConst.PROPERTY_TRANSACTION_PREPARED);
if (Boolean.parseBoolean(tranMsg)) {
sysFlag |= MessageSysFlag.TRANSACTION_PREPARED_TYPE;
}
if (hasCheckForbiddenHook()) {
CheckForbiddenContext checkForbiddenContext = new CheckForbiddenContext();
checkForbiddenContext.setNameSrvAddr(this.defaultMQProducer.getNamesrvAddr());
checkForbiddenContext.setGroup(this.defaultMQProducer.getProducerGroup());
checkForbiddenContext.setCommunicationMode(communicationMode);
checkForbiddenContext.setBrokerAddr(brokerAddr);
checkForbiddenContext.setMessage(msg);
checkForbiddenContext.setMq(mq);
checkForbiddenContext.setUnitMode(this.isUnitMode());
this.executeCheckForbiddenHook(checkForbiddenContext);
}
if (this.hasSendMessageHook()) {
context = new SendMessageContext();
context.setProducer(this);
context.setProducerGroup(this.defaultMQProducer.getProducerGroup());
context.setCommunicationMode(communicationMode);
context.setBornHost(this.defaultMQProducer.getClientIP());
context.setBrokerAddr(brokerAddr);
context.setMessage(msg);
context.setMq(mq);
context.setNamespace(this.defaultMQProducer.getNamespace());
String isTrans = msg.getProperty(MessageConst.PROPERTY_TRANSACTION_PREPARED);
if (isTrans != null && isTrans.equals("true")) {
context.setMsgType(MessageType.Trans_Msg_Half);
}
if (msg.getProperty("__STARTDELIVERTIME") != null || msg.getProperty(MessageConst.PROPERTY_DELAY_TIME_LEVEL) != null) {
context.setMsgType(MessageType.Delay_Msg);
}
this.executeSendMessageHookBefore(context);
}
SendMessageRequestHeader requestHeader = new SendMessageRequestHeader();
requestHeader.setProducerGroup(this.defaultMQProducer.getProducerGroup());
requestHeader.setTopic(msg.getTopic());
requestHeader.setDefaultTopic(this.defaultMQProducer.getCreateTopicKey());
requestHeader.setDefaultTopicQueueNums(this.defaultMQProducer.getDefaultTopicQueueNums());
requestHeader.setQueueId(mq.getQueueId());
requestHeader.setSysFlag(sysFlag);
requestHeader.setBornTimestamp(System.currentTimeMillis());
requestHeader.setFlag(msg.getFlag());
requestHeader.setProperties(MessageDecoder.messageProperties2String(msg.getProperties()));
requestHeader.setReconsumeTimes(0);
requestHeader.setUnitMode(this.isUnitMode());
requestHeader.setBatch(msg instanceof MessageBatch);
requestHeader.setBname(brokerName);
if (requestHeader.getTopic().startsWith(MixAll.RETRY_GROUP_TOPIC_PREFIX)) {
String reconsumeTimes = MessageAccessor.getReconsumeTime(msg);
if (reconsumeTimes != null) {
requestHeader.setReconsumeTimes(Integer.valueOf(reconsumeTimes));
MessageAccessor.clearProperty(msg, MessageConst.PROPERTY_RECONSUME_TIME);
}
String maxReconsumeTimes = MessageAccessor.getMaxReconsumeTimes(msg);
if (maxReconsumeTimes != null) {
requestHeader.setMaxReconsumeTimes(Integer.valueOf(maxReconsumeTimes));
MessageAccessor.clearProperty(msg, MessageConst.PROPERTY_MAX_RECONSUME_TIMES);
}
}
SendResult sendResult = null;
switch (communicationMode) {
case ASYNC:
Message tmpMessage = msg;
boolean messageCloned = false;
if (msgBodyCompressed) {
//If msg body was compressed, msgbody should be reset using prevBody.
//Clone new message using commpressed message body and recover origin massage.
//Fix bug:https://github.com/apache/rocketmq-externals/issues/66
tmpMessage = MessageAccessor.cloneMessage(msg);
messageCloned = true;
msg.setBody(prevBody);
}
if (topicWithNamespace) {
if (!messageCloned) {
tmpMessage = MessageAccessor.cloneMessage(msg);
messageCloned = true;
}
msg.setTopic(NamespaceUtil.withoutNamespace(msg.getTopic(), this.defaultMQProducer.getNamespace()));
}
long costTimeAsync = System.currentTimeMillis() - beginStartTime;
if (timeout < costTimeAsync) {
throw new RemotingTooMuchRequestException("sendKernelImpl call timeout");
}
sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(
brokerAddr,
brokerName,
tmpMessage,
requestHeader,
timeout - costTimeAsync,
communicationMode,
sendCallback,
topicPublishInfo,
this.mQClientFactory,
this.defaultMQProducer.getRetryTimesWhenSendAsyncFailed(),
context,
this);
break;
case ONEWAY:
case SYNC:
long costTimeSync = System.currentTimeMillis() - beginStartTime;
if (timeout < costTimeSync) {
throw new RemotingTooMuchRequestException("sendKernelImpl call timeout");
}
sendResult = this.mQClientFactory.getMQClientAPIImpl().sendMessage(
brokerAddr,
brokerName,
msg,
requestHeader,
timeout - costTimeSync,
communicationMode,
context,
this);
break;
default:
assert false;
break;
}
if (this.hasSendMessageHook()) {
context.setSendResult(sendResult);
this.executeSendMessageHookAfter(context);
}
return sendResult;
} catch (RemotingException | InterruptedException | MQBrokerException e) {
if (this.hasSendMessageHook()) {
context.setException(e);
this.executeSendMessageHookAfter(context);
}
throw e;
} finally {
msg.setBody(prevBody);
msg.setTopic(NamespaceUtil.withoutNamespace(msg.getTopic(), this.defaultMQProducer.getNamespace()));
}
}
throw new MQClientException("The broker[" + brokerName + "] not exist", null);
}

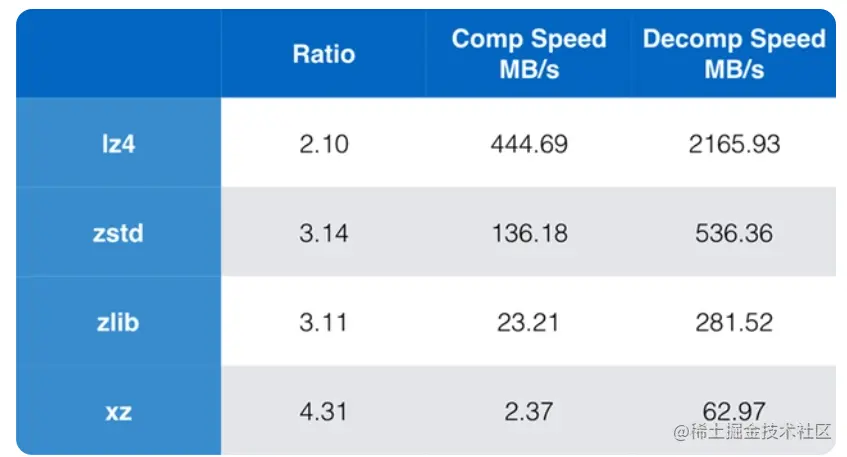

上面用到的压缩算法的一些对比
