rocketmq代码拉取

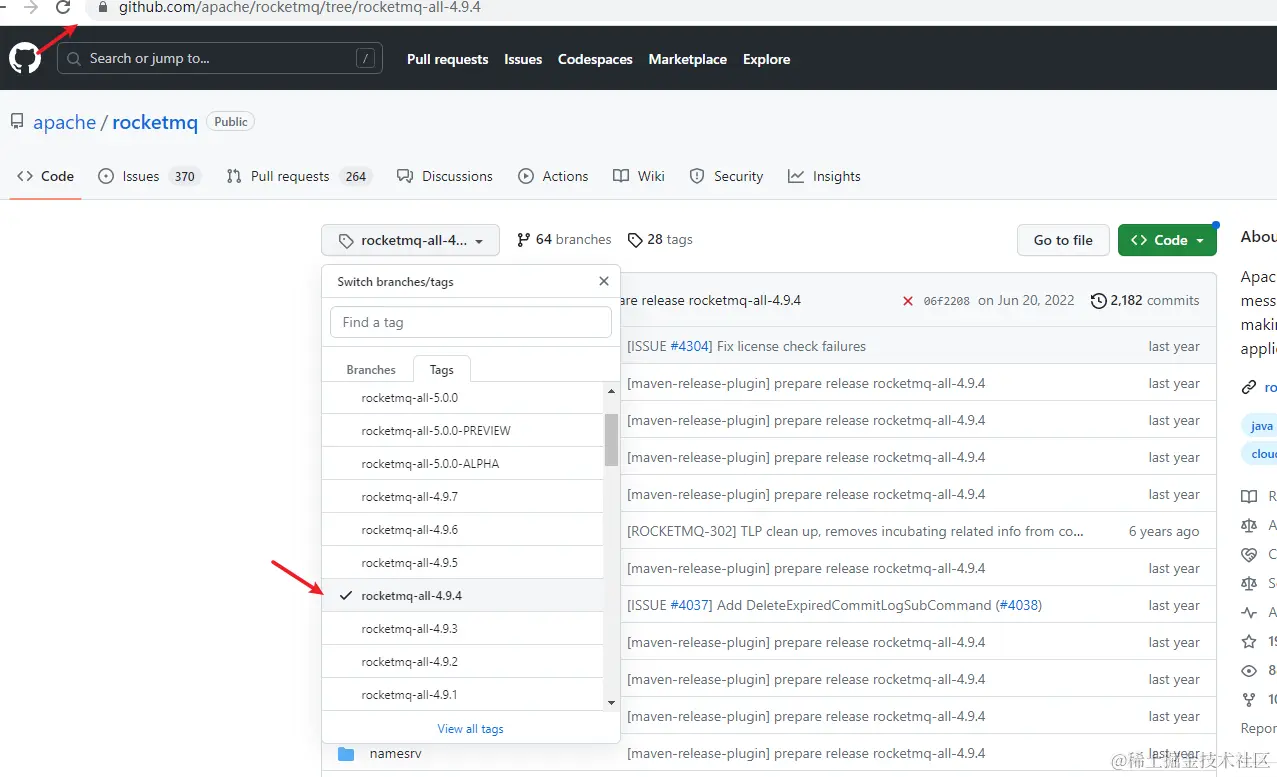

我们使用rocketmq-all-4.9.4的tag版本进行讲解

运行Namesrv

创建文件夹D:\rocketmqx、D:\rocketmqx\conf、D:\rocketmqx\store

将distribution/conf/broker.conf、distribution/conf/logback_broker.xml、distribution/conf/logback_namesrv.xml复制到D:\rocketmqx\conf目录下

在distribution/conf/broker.conf文件后增加

namesrvAddr = 127.0.0.1:9876
storePathRootDir = D:\rocketmqx\store
storePathCommitLog = D:\rocketmqx\store\commitlog
storePathConsumeQueue = D:\rocketmqx\store\consumequeue
storePathIndex = D:\rocketmqx\store\index
storeCheckpoint = D:\rocketmqx\store\checkpoint

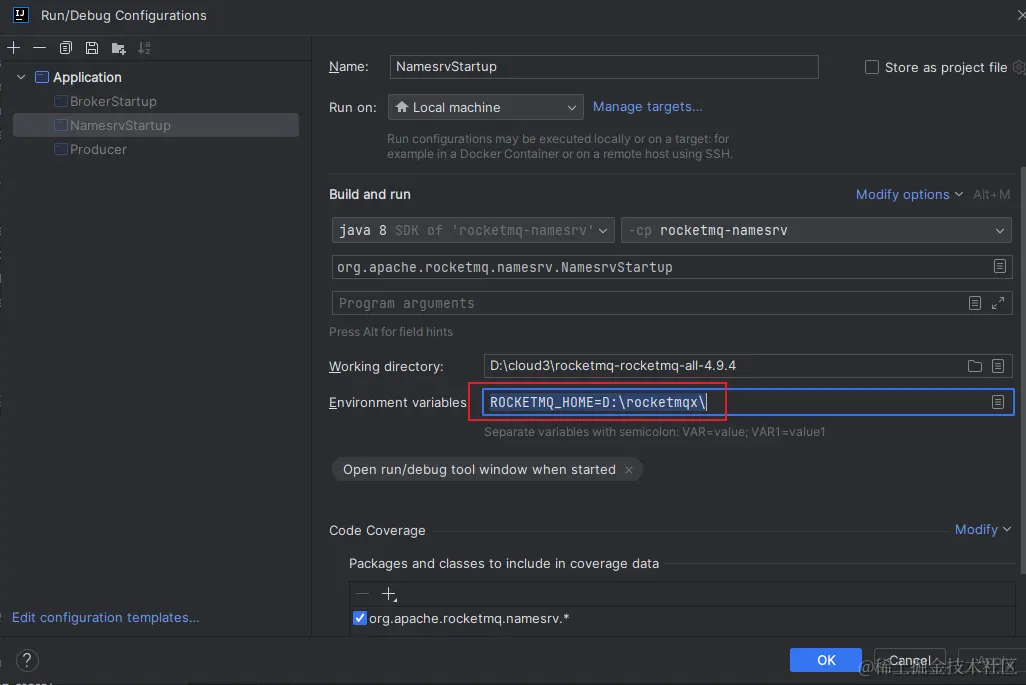

配置Environment variables为ROCKETMQ_HOME=D:\rocketmqx

执行NamesrvStartup的main方法(org.apache.rocketmq.namesrv.NamesrvStartup#main)

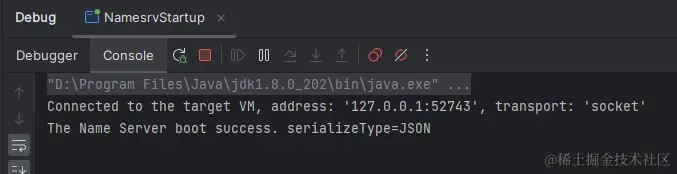

显示以下日志表示启动成功

The Name Server boot success. serializeType=JSON

运行Broker

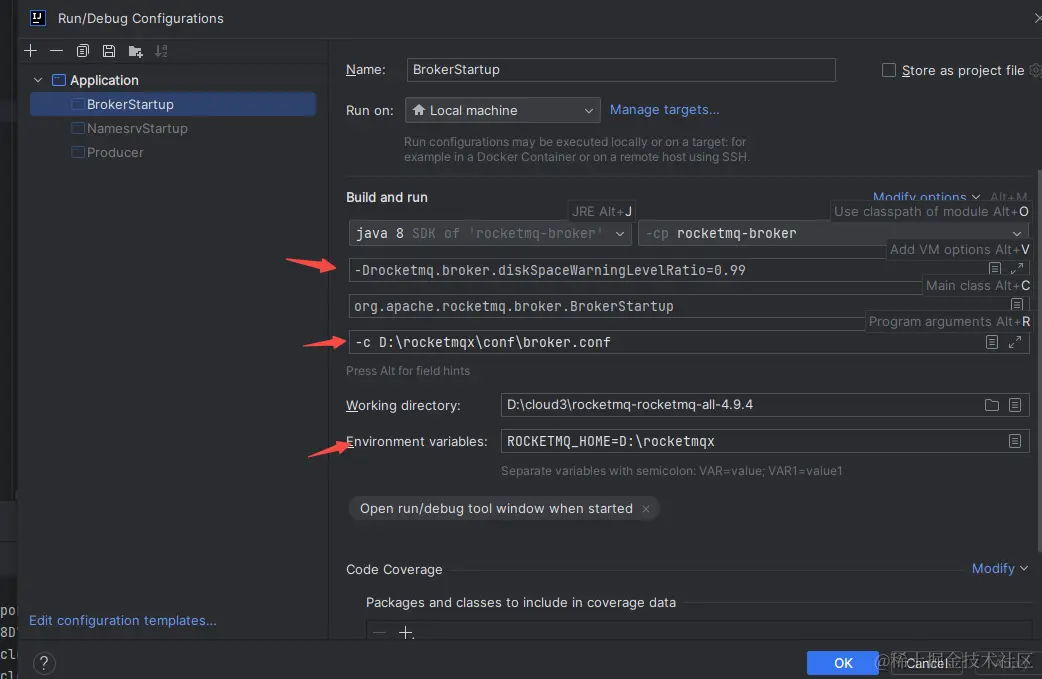

添加VM options配置 -Drocketmq.broker.diskSpaceWarningLevelRatio=0.99

将Program arguments配置为-c D:\rocketmqx\conf\broker.conf

配置Environment variables为ROCKETMQ_HOME=D:\rocketmqx

运行BrokerStartup的main方法（org.apache.rocketmq.broker.BrokerStartup#main）

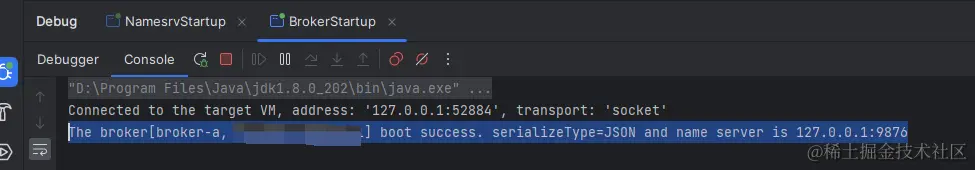

显示以下日志表示启动成功

The broker[broker-a, 10.57.7.86:10911] boot success. serializeType=JSON and name server is 127.0.0.1:9876

启动rocketmq-dashboard

下载rocketmq-dashboard代码github.com/apache/rock…

直接启动，然后浏览器访问127.0.0.1:8080

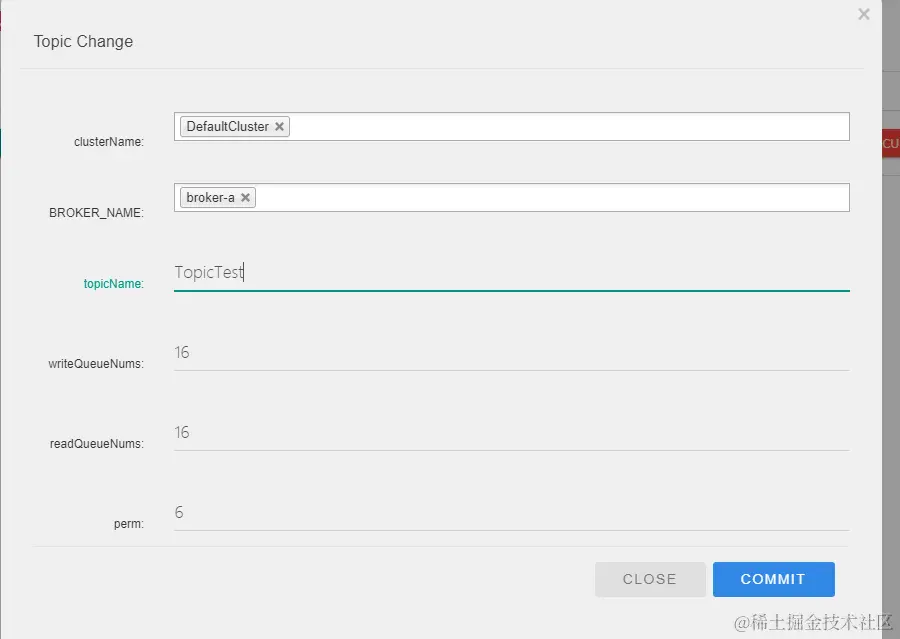

添加主题名TopicTest

启动Producer

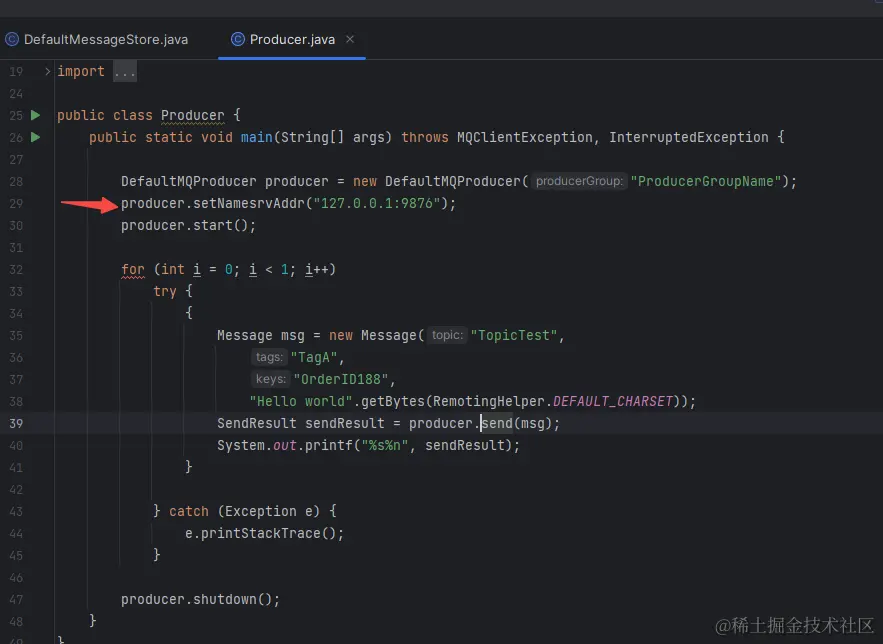

在org.apache.rocketmq.example.simple.Producer#main 增加一行代码

指定当前使用的Namesrv的ip和port

DefaultMQProducer producer = new DefaultMQProducer("ProducerGroupName");
// 新增的代码
producer.setNamesrvAddr("127.0.0.1:9876");
producer.start();

然后运行org.apache.rocketmq.example.simple.Producer#main

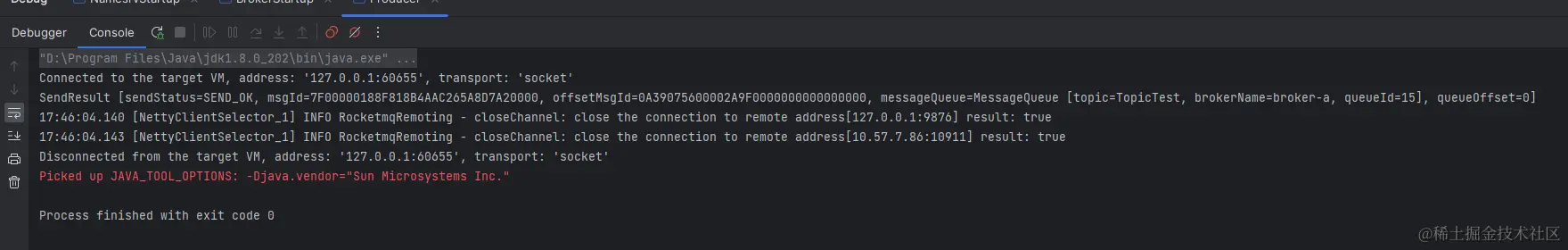

发现运行成功

查看消息

进入RocketMQ-dashboard查看消息
