前言
日常都在使用，但是对于xxl-job是怎么实现调度的，了解的又有多少呢？
本文通过对xxl-job源码进行分享，帮助大家了解下这一广泛使用的调度任务，到底是怎么实现的。
系统组成
- 调度模块（调度中心）：
负责管理调度信息，按照调度配置发出调度请求，自身不承担业务代码。调度系统与任务解耦，提高了系统可用性和稳定性，同时调度系统性能不再受限于任务模块；
支持可视化、简单且动态的管理调度信息，包括任务新建，更新，删除，GLUE开发和任务报警等，所有上述操作都会实时生效，同时支持监控调度结果以及执行日志，支持执行器Failover。
- 执行模块（执行器）：
负责接收调度请求并执行任务逻辑。任务模块专注于任务的执行等操作，开发和维护更加简单和高效；
接收调度中心的执行请求、终止请求和日志请求等。
一次完整的任务调度流程
调度中心向执行器发送http调度请求:执行器中接收请求的服务，实际上是一台内嵌Server，默认端口9999;执行器执行任务逻辑；执行器http回调调度中心调度结果:调度中心中接收回调的服务，是针对执行器开放一套API服务;
任务注册，任务自带发现
AppName：每个执行器机器集群的唯一标示, 任务注册以执行器为最小粒度进行注册; 每个任务通过其绑定的执行器可感知对应的执行器机器列表;注册表: 见xxl_job_registry"表, "执行器" 在进行任务注册时将会周期性维护一条注册记录，即机器地址和AppName的绑定关系; "调度中心" 从而可以动态感知每个AppName在线的机器列表;执行器注册: 任务注册Beat周期默认30s; 执行器以一倍Beat进行执行器注册, 调度中心以一倍Beat进行动态任务发现; 注册信息的失效时间为三倍Beat;执行器注册摘除：执行器销毁时，将会主动上报调度中心并摘除对应的执行器机器信息，提高心跳注册的实时性；
源码
业务方执行流程

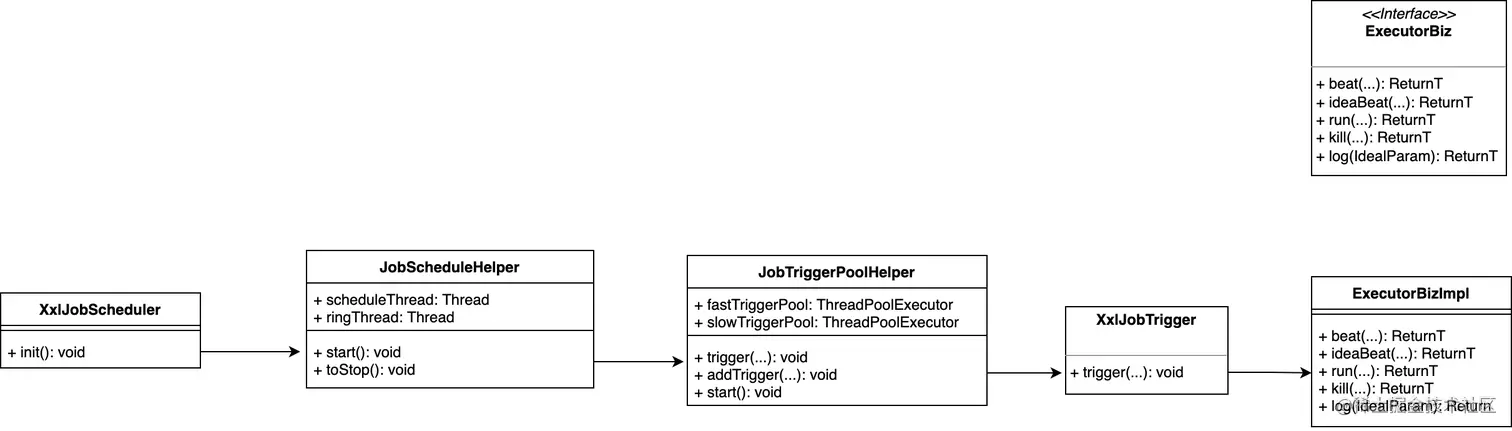

类图
核心类EmbedServer
1.start 开启netty连接
2.addLast(new EmbedHttpServerHandler() ....) 执行业务方法 , 用的httpserver服务
3.EmbedHttpServerHandler channelRead0(...) 订阅netty，执行方法
4.EmbedServer开启守护线程，接收xxljob任务消息信号
5.startRegistry进行xxl注册，通过http请求调度中心
public class EmbedServer {
private static final Logger logger = LoggerFactory.getLogger(EmbedServer.class);
private ExecutorBiz executorBiz;
private Thread thread;
public void start(final String address, final int port, final String appname, final String accessToken) {
executorBiz = new ExecutorBizImpl();
thread = new Thread(new Runnable() {
@Override
public void run() {
// param
EventLoopGroup bossGroup = new NioEventLoopGroup(); //负责连接
EventLoopGroup workerGroup = new NioEventLoopGroup(); //处理handle
ThreadPoolExecutor bizThreadPool = new ThreadPoolExecutor(
0,
200,
60L,
TimeUnit.SECONDS,
new LinkedBlockingQueue<Runnable>(2000),
new ThreadFactory() {
@Override
public Thread newThread(Runnable r) {
return new Thread(r, "xxl-job, EmbedServer bizThreadPool-" + r.hashCode());
}
},
new RejectedExecutionHandler() {
@Override
public void rejectedExecution(Runnable r, ThreadPoolExecutor executor) {
throw new RuntimeException("xxl-job, EmbedServer bizThreadPool is EXHAUSTED!");
}
});
try {
// start server
ServerBootstrap bootstrap = new ServerBootstrap();
bootstrap.group(bossGroup, workerGroup)
.channel(NioServerSocketChannel.class)
.childHandler(new ChannelInitializer<SocketChannel>() {
@Override
public void initChannel(SocketChannel channel) throws Exception {
channel.pipeline()
.addLast(new IdleStateHandler(0, 0, 30 * 3, TimeUnit.SECONDS)) // beat 3N, close if idle
.addLast(new HttpServerCodec())
.addLast(new HttpObjectAggregator(5 * 1024 * 1024)) // merge request & reponse to FULL
.addLast(new EmbedHttpServerHandler(executorBiz, accessToken, bizThreadPool));
}
})
.childOption(ChannelOption.SO_KEEPALIVE, true);
// bind
ChannelFuture future = bootstrap.bind(port).sync();
logger.info(">>>>>>>>>>> xxl-job remoting server start success, nettype = {}, port = {}", EmbedServer.class, port);
// start registry
startRegistry(appname, address);
// wait util stop
future.channel().closeFuture().sync();
} catch (InterruptedException e) {
logger.info(">>>>>>>>>>> xxl-job remoting server stop.");
} catch (Exception e) {
logger.error(">>>>>>>>>>> xxl-job remoting server error.", e);
} finally {
// stop
try {
workerGroup.shutdownGracefully();
bossGroup.shutdownGracefully();
} catch (Exception e) {
logger.error(e.getMessage(), e);
}
}
}
});
thread.setDaemon(true); // daemon, service jvm, user thread leave >>> daemon leave >>> jvm leave
thread.start();
}
public void stop() throws Exception {
// destroy server thread
if (thread != null && thread.isAlive()) {
thread.interrupt();
}
// stop registry
stopRegistry();
logger.info(">>>>>>>>>>> xxl-job remoting server destroy success.");
}
// ---------------------- registry ----------------------
/**
* netty_http
* <p>
* Copy from : https://github.com/xuxueli/xxl-rpc
*
* @author xuxueli 2015-11-24 22:25:15
*/
public static class EmbedHttpServerHandler extends SimpleChannelInboundHandler<FullHttpRequest> {
private static final Logger logger = LoggerFactory.getLogger(EmbedHttpServerHandler.class);
private ExecutorBiz executorBiz;
private String accessToken;
private ThreadPoolExecutor bizThreadPool;
public EmbedHttpServerHandler(ExecutorBiz executorBiz, String accessToken, ThreadPoolExecutor bizThreadPool) {
this.executorBiz = executorBiz;
this.accessToken = accessToken;
this.bizThreadPool = bizThreadPool;
}
@Override
protected void channelRead0(final ChannelHandlerContext ctx, FullHttpRequest msg) throws Exception {
// request parse
//final byte[] requestBytes = ByteBufUtil.getBytes(msg.content()); // byteBuf.toString(io.netty.util.CharsetUtil.UTF_8);
String requestData = msg.content().toString(CharsetUtil.UTF_8);
String uri = msg.uri();
HttpMethod httpMethod = msg.method();
boolean keepAlive = HttpUtil.isKeepAlive(msg);
String accessTokenReq = msg.headers().get(XxlJobRemotingUtil.XXL_JOB_ACCESS_TOKEN);
// invoke
bizThreadPool.execute(new Runnable() {
@Override
public void run() {
// do invoke
Object responseObj = process(httpMethod, uri, requestData, accessTokenReq);
// to json
String responseJson = GsonTool.toJson(responseObj);
// write response
writeResponse(ctx, keepAlive, responseJson);
}
});
}
private Object process(HttpMethod httpMethod, String uri, String requestData, String accessTokenReq) {
// valid
if (HttpMethod.POST != httpMethod) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "invalid request, HttpMethod not support.");
}
if (uri == null || uri.trim().length() == 0) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "invalid request, uri-mapping empty.");
}
if (accessToken != null
&& accessToken.trim().length() > 0
&& !accessToken.equals(accessTokenReq)) {
return new ReturnT<String>(ReturnT.FAIL_CODE, "The access token is wrong.");
}
// services mapping
try {
switch (uri) {
case "/beat":
return executorBiz.beat();
case "/idleBeat":
IdleBeatParam idleBeatParam = GsonTool.fromJson(requestData, IdleBeatParam.class);
return executorBiz.idleBeat(idleBeatParam);
case "/run":
TriggerParam triggerParam = GsonTool.fromJson(requestData, TriggerParam.class);
return executorBiz.run(triggerParam);
case "/kill":
KillParam killParam = GsonTool.fromJson(requestData, KillParam.class);
return executorBiz.kill(killParam);
case "/log":
LogParam logParam = GsonTool.fromJson(requestData, LogParam.class);
return executorBiz.log(logParam);
default:
return new ReturnT<String>(ReturnT.FAIL_CODE, "invalid request, uri-mapping(" + uri + ") not found.");
}
} catch (Exception e) {
logger.error(e.getMessage(), e);
return new ReturnT<String>(ReturnT.FAIL_CODE, "request error:" + ThrowableUtil.toString(e));
}
}
/**
* write response
*/
private void writeResponse(ChannelHandlerContext ctx, boolean keepAlive, String responseJson) {
// write response
FullHttpResponse response = new DefaultFullHttpResponse(HttpVersion.HTTP_1_1, HttpResponseStatus.OK, Unpooled.copiedBuffer(responseJson, CharsetUtil.UTF_8)); // Unpooled.wrappedBuffer(responseJson)
response.headers().set(HttpHeaderNames.CONTENT_TYPE, "text/html;charset=UTF-8"); // HttpHeaderValues.TEXT_PLAIN.toString()
response.headers().set(HttpHeaderNames.CONTENT_LENGTH, response.content().readableBytes());
if (keepAlive) {
response.headers().set(HttpHeaderNames.CONNECTION, HttpHeaderValues.KEEP_ALIVE);
}
ctx.writeAndFlush(response);
}
@Override
public void channelReadComplete(ChannelHandlerContext ctx) throws Exception {
ctx.flush();
}
@Override
public void exceptionCaught(ChannelHandlerContext ctx, Throwable cause) {
logger.error(">>>>>>>>>>> xxl-job provider netty_http server caught exception", cause);
ctx.close();
}
@Override
public void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception {
if (evt instanceof IdleStateEvent) {
ctx.channel().close(); // beat 3N, close if idle
logger.debug(">>>>>>>>>>> xxl-job provider netty_http server close an idle channel.");
} else {
super.userEventTriggered(ctx, evt);
}
}
}
// ---------------------- registry ----------------------
public void startRegistry(final String appname, final String address) {
// start registry
ExecutorRegistryThread.getInstance().start(appname, address);
}
public void stopRegistry() {
// stop registry
ExecutorRegistryThread.getInstance().toStop();
}
}
JobThread
1.从策略队列里面去除要执行的任务
2.执行对应的handler方法
public class JobThread extends Thread{
private static Logger logger = LoggerFactory.getLogger(JobThread.class);
private int jobId;
private IJobHandler handler;
private LinkedBlockingQueue<TriggerParam> triggerQueue;
private Set<Long> triggerLogIdSet; // avoid repeat trigger for the same TRIGGER_LOG_ID
private volatile boolean toStop = false;
private String stopReason;
private boolean running = false; // if running job
private int idleTimes = 0; // idel times
public JobThread(int jobId, IJobHandler handler) {
this.jobId = jobId;
this.handler = handler;
this.triggerQueue = new LinkedBlockingQueue<TriggerParam>();
this.triggerLogIdSet = Collections.synchronizedSet(new HashSet<Long>());
// assign job thread name
this.setName("xxl-job, JobThread-"+jobId+"-"+System.currentTimeMillis());
}
public IJobHandler getHandler() {
return handler;
}
/**
* new trigger to queue
*
* @param triggerParam
* @return
*/
public ReturnT<String> pushTriggerQueue(TriggerParam triggerParam) {
// avoid repeat
if (triggerLogIdSet.contains(triggerParam.getLogId())) {
logger.info(">>>>>>>>>>> repeate trigger job, logId:{}", triggerParam.getLogId());
return new ReturnT<String>(ReturnT.FAIL_CODE, "repeate trigger job, logId:" + triggerParam.getLogId());
}
triggerLogIdSet.add(triggerParam.getLogId());
triggerQueue.add(triggerParam);
return ReturnT.SUCCESS;
}
/**
* kill job thread
*
* @param stopReason
*/
public void toStop(String stopReason) {
/**
* Thread.interrupt只支持终止线程的阻塞状态(wait、join、sleep)，
* 在阻塞出抛出InterruptedException异常,但是并不会终止运行的线程本身；
* 所以需要注意，此处彻底销毁本线程，需要通过共享变量方式；
*/
this.toStop = true;
this.stopReason = stopReason;
}
/**
* is running job
* @return
*/
public boolean isRunningOrHasQueue() {
return running || triggerQueue.size()>0;
}
@Override
public void run() {
// init
try {
handler.init();
} catch (Throwable e) {
logger.error(e.getMessage(), e);
}
// execute
while(!toStop){
running = false;
idleTimes++;
TriggerParam triggerParam = null;
try {
// to check toStop signal, we need cycle, so wo cannot use queue.take(), instand of poll(timeout)
triggerParam = triggerQueue.poll(3L, TimeUnit.SECONDS);
if (triggerParam!=null) {
running = true;
idleTimes = 0;
triggerLogIdSet.remove(triggerParam.getLogId());
// log filename, like "logPath/yyyy-MM-dd/9999.log"
String logFileName = XxlJobFileAppender.makeLogFileName(new Date(triggerParam.getLogDateTime()), triggerParam.getLogId());
XxlJobContext xxlJobContext = new XxlJobContext(
triggerParam.getJobId(),
triggerParam.getExecutorParams(),
logFileName,
triggerParam.getBroadcastIndex(),
triggerParam.getBroadcastTotal());
// init job context
XxlJobContext.setXxlJobContext(xxlJobContext);
// execute
XxlJobHelper.log("<br>----------- xxl-job job execute start -----------<br>----------- Param:" + xxlJobContext.getJobParam());
if (triggerParam.getExecutorTimeout() > 0) {
// limit timeout
Thread futureThread = null;
try {
FutureTask<Boolean> futureTask = new FutureTask<Boolean>(new Callable<Boolean>() {
@Override
public Boolean call() throws Exception {
// init job context
XxlJobContext.setXxlJobContext(xxlJobContext);
handler.execute();
return true;
}
});
futureThread = new Thread(futureTask);
futureThread.start();
Boolean tempResult = futureTask.get(triggerParam.getExecutorTimeout(), TimeUnit.SECONDS);
} catch (TimeoutException e) {
XxlJobHelper.log("<br>----------- xxl-job job execute timeout");
XxlJobHelper.log(e);
// handle result
XxlJobHelper.handleTimeout("job execute timeout ");
} finally {
futureThread.interrupt();
}
} else {
// just execute
handler.execute();
}
// valid execute handle data
if (XxlJobContext.getXxlJobContext().getHandleCode() <= 0) {
XxlJobHelper.handleFail("job handle result lost.");
} else {
String tempHandleMsg = XxlJobContext.getXxlJobContext().getHandleMsg();
tempHandleMsg = (tempHandleMsg!=null&&tempHandleMsg.length()>50000)
?tempHandleMsg.substring(0, 50000).concat("...")
:tempHandleMsg;
XxlJobContext.getXxlJobContext().setHandleMsg(tempHandleMsg);
}
XxlJobHelper.log("<br>----------- xxl-job job execute end(finish) -----------<br>----------- Result: handleCode="
+ XxlJobContext.getXxlJobContext().getHandleCode()
+ ", handleMsg = "
+ XxlJobContext.getXxlJobContext().getHandleMsg()
);
} else {
if (idleTimes > 30) {
if(triggerQueue.size() == 0) { // avoid concurrent trigger causes jobId-lost
XxlJobExecutor.removeJobThread(jobId, "excutor idel times over limit.");
}
}
}
} catch (Throwable e) {
if (toStop) {
XxlJobHelper.log("<br>----------- JobThread toStop, stopReason:" + stopReason);
}
// handle result
StringWriter stringWriter = new StringWriter();
e.printStackTrace(new PrintWriter(stringWriter));
String errorMsg = stringWriter.toString();
XxlJobHelper.handleFail(errorMsg);
XxlJobHelper.log("<br>----------- JobThread Exception:" + errorMsg + "<br>----------- xxl-job job execute end(error) -----------");
} finally {
if(triggerParam != null) {
// callback handler info
if (!toStop) {
// commonm
TriggerCallbackThread.pushCallBack(new HandleCallbackParam(
triggerParam.getLogId(),
triggerParam.getLogDateTime(),
XxlJobContext.getXxlJobContext().getHandleCode(),
XxlJobContext.getXxlJobContext().getHandleMsg() )
);
} else {
// is killed
TriggerCallbackThread.pushCallBack(new HandleCallbackParam(
triggerParam.getLogId(),
triggerParam.getLogDateTime(),
XxlJobContext.HANDLE_CODE_FAIL,
stopReason + " [job running, killed]" )
);
}
}
}
}
// callback trigger request in queue
while(triggerQueue !=null && triggerQueue.size()>0){
TriggerParam triggerParam = triggerQueue.poll();
if (triggerParam!=null) {
// is killed
TriggerCallbackThread.pushCallBack(new HandleCallbackParam(
triggerParam.getLogId(),
triggerParam.getLogDateTime(),
XxlJobContext.HANDLE_CODE_FAIL,
stopReason + " [job not executed, in the job queue, killed.]")
);
}
}
// destroy
try {
handler.destroy();
} catch (Throwable e) {
logger.error(e.getMessage(), e);
}
logger.info(">>>>>>>>>>> xxl-job JobThread stoped, hashCode:{}", Thread.currentThread());
}
}
ExecutorBiz
业务执行类
public interface ExecutorBiz {
/**
* beat
* @return
*/
public ReturnT<String> beat();
/**
* idle beat
*
* @param idleBeatParam
* @return
*/
public ReturnT<String> idleBeat(IdleBeatParam idleBeatParam);
/**
* run
* @param triggerParam
* @return
*/
public ReturnT<String> run(TriggerParam triggerParam);
/**
* kill
* @param killParam
* @return
*/
public ReturnT<String> kill(KillParam killParam);
/**
* log
* @param logParam
* @return
*/
public ReturnT<LogResult> log(LogParam logParam);
}
调度方执行流程
类图
核心类XxlJobScheduler
1.JobScheduleHelper.getInstance().start(); 初始化调度任务
public class XxlJobScheduler {
private static final Logger logger = LoggerFactory.getLogger(XxlJobScheduler.class);
public void init() throws Exception {
// init i18n
initI18n();
// admin trigger pool start
JobTriggerPoolHelper.toStart();
// admin registry monitor run
JobRegistryHelper.getInstance().start();
// admin fail-monitor run
JobFailMonitorHelper.getInstance().start();
// admin lose-monitor run ( depend on JobTriggerPoolHelper )
JobCompleteHelper.getInstance().start();
// admin log report start
JobLogReportHelper.getInstance().start();
// start-schedule ( depend on JobTriggerPoolHelper )
JobScheduleHelper.getInstance().start();
logger.info(">>>>>>>>> init xxl-job admin success.");
}
public void destroy() throws Exception {
// stop-schedule
JobScheduleHelper.getInstance().toStop();
// admin log report stop
JobLogReportHelper.getInstance().toStop();
// admin lose-monitor stop
JobCompleteHelper.getInstance().toStop();
// admin fail-monitor stop
JobFailMonitorHelper.getInstance().toStop();
// admin registry stop
JobRegistryHelper.getInstance().toStop();
// admin trigger pool stop
JobTriggerPoolHelper.toStop();
}
// ---------------------- I18n ----------------------
private void initI18n(){
for (ExecutorBlockStrategyEnum item:ExecutorBlockStrategyEnum.values()) {
item.setTitle(I18nUtil.getString("jobconf_block_".concat(item.name())));
}
}
// ---------------------- executor-client ----------------------
private static ConcurrentMap<String, ExecutorBiz> executorBizRepository = new ConcurrentHashMap<String, ExecutorBiz>();
public static ExecutorBiz getExecutorBiz(String address) throws Exception {
// valid
if (address==null || address.trim().length()==0) {
return null;
}
// load-cache
address = address.trim();
ExecutorBiz executorBiz = executorBizRepository.get(address);
if (executorBiz != null) {
return executorBiz;
}
// set-cache
executorBiz = new ExecutorBizClient(address, XxlJobAdminConfig.getAdminConfig().getAccessToken());
executorBizRepository.put(address, executorBiz);
return executorBiz;
}
}
任务触发器JobTriggerPoolHelper
private ThreadPoolExecutor fastTriggerPool = null;
private ThreadPoolExecutor slowTriggerPool = null;
1.JobTriggerPoolHelper.addTrigger() 先使用fastTriggerPool 执行任务，如果fastTriggerPool 没有线程再使用slowTriggerPool
2.XxlJobTrigger.trigger() 触发任务
public class JobTriggerPoolHelper {
private static Logger logger = LoggerFactory.getLogger(JobTriggerPoolHelper.class);
// ---------------------- trigger pool ----------------------
// fast/slow thread pool
private ThreadPoolExecutor fastTriggerPool = null;
private ThreadPoolExecutor slowTriggerPool = null;
public void start(){
fastTriggerPool = new ThreadPoolExecutor(
10,
XxlJobAdminConfig.getAdminConfig().getTriggerPoolFastMax(),
60L,
TimeUnit.SECONDS,
new LinkedBlockingQueue<Runnable>(1000),
new ThreadFactory() {
@Override
public Thread newThread(Runnable r) {
return new Thread(r, "xxl-job, admin JobTriggerPoolHelper-fastTriggerPool-" + r.hashCode());
}
});
slowTriggerPool = new ThreadPoolExecutor(
10,
XxlJobAdminConfig.getAdminConfig().getTriggerPoolSlowMax(),
60L,
TimeUnit.SECONDS,
new LinkedBlockingQueue<Runnable>(2000),
new ThreadFactory() {
@Override
public Thread newThread(Runnable r) {
return new Thread(r, "xxl-job, admin JobTriggerPoolHelper-slowTriggerPool-" + r.hashCode());
}
});
}
public void stop() {
//triggerPool.shutdown();
fastTriggerPool.shutdownNow();
slowTriggerPool.shutdownNow();
logger.info(">>>>>>>>> xxl-job trigger thread pool shutdown success.");
}
// job timeout count
private volatile long minTim = System.currentTimeMillis()/60000; // ms > min
private volatile ConcurrentMap<Integer, AtomicInteger> jobTimeoutCountMap = new ConcurrentHashMap<>();
/**
* add trigger
*/
public void addTrigger(final int jobId,
final TriggerTypeEnum triggerType,
final int failRetryCount,
final String executorShardingParam,
final String executorParam,
final String addressList) {
// choose thread pool
ThreadPoolExecutor triggerPool_ = fastTriggerPool;
AtomicInteger jobTimeoutCount = jobTimeoutCountMap.get(jobId);
if (jobTimeoutCount!=null && jobTimeoutCount.get() > 10) { // job-timeout 10 times in 1 min
triggerPool_ = slowTriggerPool;
}
// trigger
triggerPool_.execute(new Runnable() {
@Override
public void run() {
long start = System.currentTimeMillis();
try {
// do trigger
XxlJobTrigger.trigger(jobId, triggerType, failRetryCount, executorShardingParam, executorParam, addressList);
} catch (Exception e) {
logger.error(e.getMessage(), e);
} finally {
// check timeout-count-map
long minTim_now = System.currentTimeMillis()/60000;
if (minTim != minTim_now) {
minTim = minTim_now;
jobTimeoutCountMap.clear();
}
// incr timeout-count-map
long cost = System.currentTimeMillis()-start;
if (cost > 500) { // ob-timeout threshold 500ms
AtomicInteger timeoutCount = jobTimeoutCountMap.putIfAbsent(jobId, new AtomicInteger(1));
if (timeoutCount != null) {
timeoutCount.incrementAndGet();
}
}
}
}
});
}
// ---------------------- helper ----------------------
private static JobTriggerPoolHelper helper = new JobTriggerPoolHelper();
public static void toStart() {
helper.start();
}
public static void toStop() {
helper.stop();
}
/**
* @param jobId
* @param triggerType
* @param failRetryCount
* >=0: use this param
* <0: use param from job info config
* @param executorShardingParam
* @param executorParam
* null: use job param
* not null: cover job param
*/
public static void trigger(int jobId, TriggerTypeEnum triggerType, int failRetryCount, String executorShardingParam, String executorParam, String addressList) {
helper.addTrigger(jobId, triggerType, failRetryCount, executorShardingParam, executorParam, addressList);
}
}
