cesium场景控制(三)：场景出图

将场景导出为图片进行使用，Cesium可以通过canvas的方式将场景导出为图片文件。

1、图片导出方法实现

//场景出图
const exportImage = (option) => {
    let opt = option || {};
    //是否下载图片，默认为true
    opt.download = Cesium.defaultValue(opt.download, true);
    //指定图片类型，默认为image/jpeg
    opt.type = Cesium.defaultValue(opt.type, "image/jpeg");
    let width, height;
    //回调，用于场景图片查看
    let callback = opt.callback;
    //渲染场景，不加会出现导出是一张黑乎乎的图片
    viewer.render();
    //生成图片base64编码,type：图片格式，encoderOptions：图片质量，取值[0,1]，默认值0.92
    let imageData = viewer.canvas.toDataURL(opt.type, opt.encoderOptions)
    if(Cesium.defined(opt.width) || Cesium.defined(opt.height)){
        //指定宽度或者高度后对图片进行压缩处理
        let image = new Image();
        image.onload = _ => {
            if(Cesium.defined(opt.width)) {
                width = opt.width; height = opt.height || Math.round(width * viewer.canvas.height / viewer.canvas.width)
            }else{
                height = opt.height; width = Math.round(height * viewer.canvas.width / viewer.canvas.height) ;
            }
            let canvas, ctx;
            canvas = document.createElement('canvas');
            canvas.width = width;
            canvas.height = height;
            ctx = canvas.getContext('2d');
            ctx.drawImage(image, 0, 0, width, height);
            let imageDataNew = canvas.toDataURL(opt.type, opt.encoderOptions);
            if(!opt.fileName){
                opt.fileName = `场景出图_${width}x${height}`
            }
            if(opt.download){
                downloadBase64Image(opt.fileName, imageDataNew);
            }
            if(callback){
                callback(imageDataNew, {
                    width: width,
                    height: height
                })
            }
       }
       image.src = imageData;
   }else{
       //高清原图
       width = viewer.canvas.width;
       height = viewer.canvas.height;
       if(!opt.fileName){
           opt.fileName = `场景出图_${width}x${height}`
       }
       if(opt.download){
           downloadBase64Image(opt.fileName, imageData);
       }
       if(callback){
           callback(imageDataNew, {
               width: width, height: height
           })
       }
  }
}
// base64转Blob对象
const base64ToBlob = (code) => {
    let parts = code.split(";base64,");
    let contentType = parts[0].split(":")[1];
    let raw = window.atob(parts[1]);
    let rawLength = raw.length;
    let uint8Array = new Uint8Array(rawLength);
    for (let i = 0; i < rawLength; i++) {
        uint8Array[i] = raw.charCodeAt(i);
    }
    return new Blob([uint8Array],{type: contentType});
}
//文件下载
const download = (fileName, blob) => {
    //创建a标签
    const a = document.createElement('a');
    //设置下载文件名
    a.download = fileName;
    // 将 Blob 对象的 URL 赋值给 a 标签的 href 属性
    a.href = URL.createObjectURL(blob);
    // 将a标签暂时添加到 body 中，触发下载
    document.body.appendChild(a);
    a.click();
    // 下载完成后，将 a 标签从 body 中移除
    document.body.removeChild(a);
}
//base64编码图片下载
const downloadBase64Image = (fileName, imageData) => {
    //创建blob对象
    const blob = base64ToBlob(imageData);
    //下载图片
    download(fileName + '.png', blob);
}

2、使用

1）查看场景出图

dialogVisible.value = true; //显示dialog对话框
exportImage({
    download: false,
    callback: (base64:any) => {
        dialogImage.value = base64; //绑定dialog对话框图片src
    }
});

2）下载场景出图

exportImage({});

3）查看场景缩略图

exportImage({
    download: true,
    height: 300,//指定宽度或者高度，对应自动缩放
});

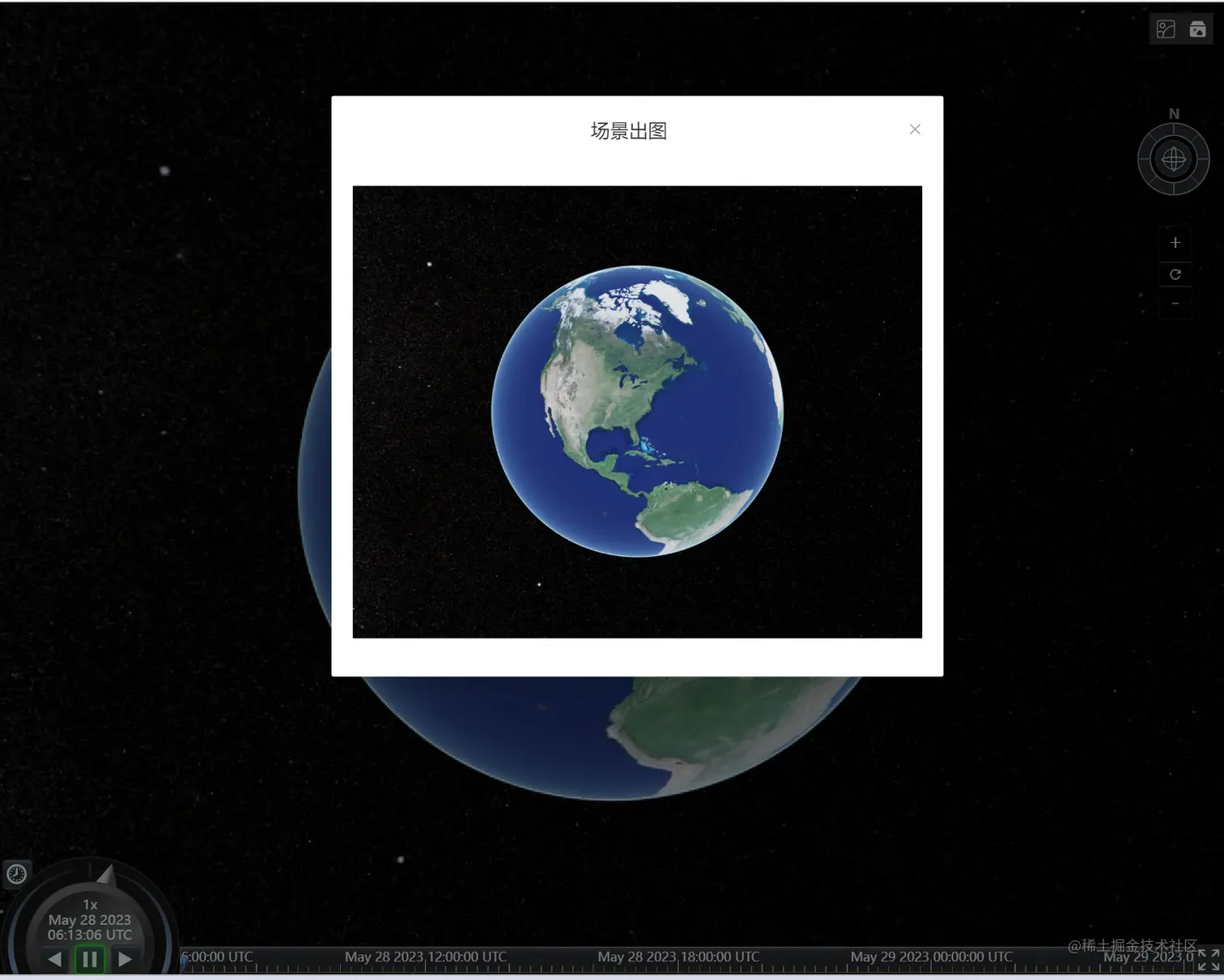

3、查看场景出图实现效果

项目地址:github.com/DLFouge/vue…

欢迎指正与star
