环境准备

• RabbitMQ 3.8.17
• Erlang 23.3

什么是RabbitMQ

• 一款基于AMQP（Advanced Message Queuing Protocol）用于软件之间通信的中间件，实现了服务之间的高度解耦
• 多用在分布式系统中储存转发的消息，在易用性，拓展性，高可用性等方面表现很好

为什么要使用RabbitMQ

待补充

RabbitMQ的使用场景

待补充

RabbitMQ主要由什么组成？

• 生产者
• 交换机
• 消息队列
• 消费者

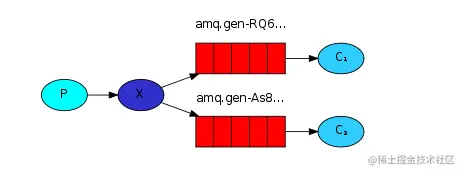

图示：

RabbitMQ JAVA客户端连接并使用

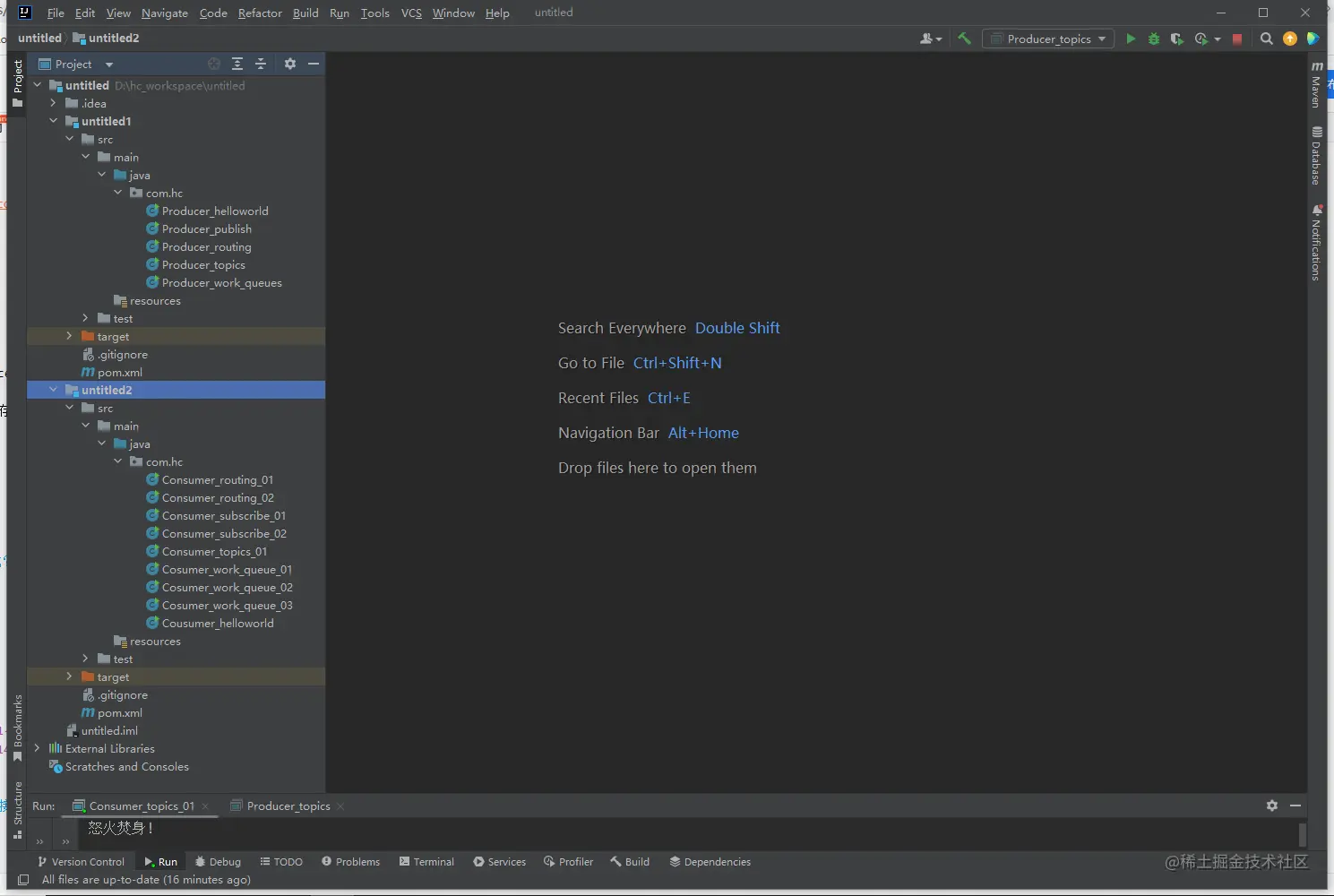

工程结构

导入依赖

<parent>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-parent</artifactId>
<version>2.7.12</version>
</parent>

<dependencies>
<dependency>
<groupId>com.rabbitmq</groupId>
<artifactId>amqp-client</artifactId>
<version>4.0.3</version>
</dependency>
<!-- https://mvnrepository.com/artifact/org.slf4j/slf4j-api -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-logging</artifactId>
</dependency>
</dependencies>

由于amqp-client 内部依赖日志文件， 所以导入了日志的依赖包

HELLOWORLD

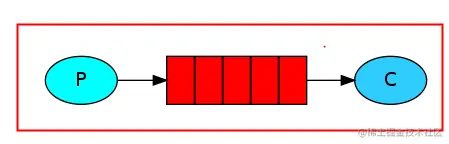

图示模型

生产者将消息发送到消息队列中， 消费者直接从消息队列取出

生产者代码

public class Producer_helloworld {
private static final String QUEUE_NAME="hello";
public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory connectionFactory = new ConnectionFactory();
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
String message="放下过往，他只会遮蔽未来";
channel.basicPublish("",QUEUE_NAME,null,message.getBytes());
channel.close();
connection.close();
}
}

        > 变量解析
        > ConnectionFactory connectionFactory = new ConnectionFactory(); 创建连接工厂

        > Connection connection = connectionFactory.newConnection(); 通过工厂创建连接对象

        > Channel channel = connection.createChannel();   创建通道这个通道指的是整体，可以理解为通道将生产者，消息队列，消费者给连起来， 通道里面包含所有的内容
        >
        > String message="放下过往，他只会遮蔽未来"; 定义要发送的信息

        > channel.basicPublish("",QUEUE\_NAME,null,message.getBytes()); 将消息发送出去
        > 参数分析，第一个参数为”“ 代表交换机，我们这里是P发送给队列，C从队列中拿 所以不需要交换机 这里填空值

        >第二个参数为QUEUE_NAME，这里代表要将这个消息发送到哪个消息队列里面

        > 第三个参数为null， 这里代表发送消息的属性

        > 第四个参数代表要发送的内容

        关闭通道，关闭连接

被红圈圈起来的这个整体代表chanel

消费者代码

public class Cousumer_helloworld {
private final static String QUEUE_NAME="hello";
public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory connectionFactory = new ConnectionFactory();  //创建连接
connectionFactory.setHost("127.0.0.1");   //我们要接受哪个主机发送的消息？
Connection connection = connectionFactory.newConnection();   //建立连接
Channel channel = connection.createChannel();   //创建通道，要注意通道包含P 消息队列 C
channel.queueDeclare(QUEUE_NAME,false,false,false,null);     //声明队列
DefaultConsumer defaultConsumer=new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
      String message=new String(body,"UTF-8"); //内容
      System.out.println(message);
           }
      };
     channel.basicConsume(QUEUE_NAME,true,defaultConsumer);
   }
}

代码解析

    channel.queueDeclare(QUEUE_NAME,false,false,false,null);
    这句是为了 声明一个队列，也可以理解为创建一个队列， 这个队列名字叫做QUEUE_NAME="HELLO"， 我们连接的主机是127.0.0.1 上面主机发送出来了一条消息，发送给了 名字叫hello 的队列， 我们这里声明了一个hello 的队列， 这样就可以收到主机发送出来的消息了，后面的三个false分别代表，队列是否持久化，队列是否独占，队列不使用的时候是否要自动删除，最后一个null代表 队列参数为空

Work Queues

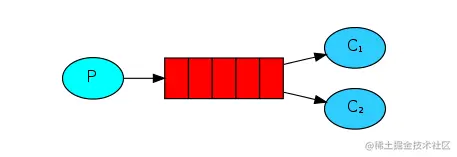

原理图示

生产者代码

public class Producer_work_queues {
private final static String QUEUE_WORKQUEUES_NAME="workqueues";   //定义队列名，为发送消息做准备

public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory connectionFactory = new ConnectionFactory();   //创建连接工厂
Connection connection = connectionFactory.newConnection();   //创建工厂
Channel channel = connection.createChannel();   //创建通道
String message="HELLO WORKQUEUES";   //定义消息
channel.basicPublish("",QUEUE_WORKQUEUES_NAME,null,message.getBytes());  //将消息发送到空交换机，上面准备好的队列名的哪个队列， 数据参数为空， 数据信息
channel.close();
connection.close();
}
}

1号消费者代码

public class Cosumer_work_queue_01 {
private final static String QUEUE_WORKQUEUES_NAME="workqueues";

public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory connectionFactory = new ConnectionFactory();   //创建连接工厂
connectionFactory.setHost("127.0.0.1");   //连接到哪个主机？
Connection connection = connectionFactory.newConnection();  //建立连接
Channel channel = connection.createChannel();   //创建通道
channel.queueDeclare(QUEUE_WORKQUEUES_NAME,false,false,false,null); //声明一个队列，
channel.basicQos(1);   //我是第一个拿的
DefaultConsumer defaultConsumer=new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println(new String(body,"UTF-8"));
}
};
channel.basicConsume(QUEUE_WORKQUEUES_NAME,true,defaultConsumer);  //监听这个队列，有新消息接收的时候调用defaultconsumer中的方法 打印输出
}
}

2号消费者代码

public class Cosumer_work_queue_02 {
private final static String QUEUE_WORKQUEUES_NAME="workqueues";

public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory connectionFactory = new ConnectionFactory();
connectionFactory.setHost("127.0.0.1");
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.queueDeclare(QUEUE_WORKQUEUES_NAME,false,false,false,null);
channel.basicQos(2);    //注意这里
DefaultConsumer defaultConsumer=new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println(new String(body,"UTF-8"));
}
};
channel.basicConsume(QUEUE_WORKQUEUES_NAME,true,defaultConsumer);
}
}

总结 我们会发现 1号消费者和2号消费者代码几乎一摸一样， 只是中间由两条 不一样 , channel.basicQos(1); channel.basicQos(2); 现在是两个消费者都接受一条队列的消息， 当生产者发送消息的时候， 第一次会被一号消费者先接收到，二号消费者接收不到， 当生产者再次发送消息的时候， 一号消费者接收不到，二号消费者可以接收到， 就是两个消费者轮流接受生产者发送的信息，此时的chanel 代表什么呢？

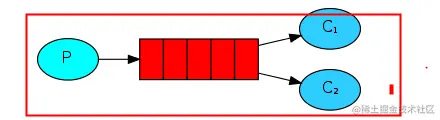

chanel 代表这个整体！

Publish

生产者

public class Producer_publish {
private final static String EXCHANGE_NAME="exchange";
public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory connectionFactory = new ConnectionFactory();
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(EXCHANGE_NAME,"fanout");
String message="hello exchange";
channel.basicPublish(EXCHANGE_NAME,"",null,message.getBytes());
channel.close();
connection.close();
}
}

消费者01

public class Consumer_subscribe_01 {
private final static String EXCHANGE_NAME="exchange";
private final static String QUEUE_NAME_01="exchange_queue_01";

public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory connectionFactory = new ConnectionFactory();
connectionFactory.setHost("127.0.0.1");
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(EXCHANGE_NAME,"fanout");
channel.queueDeclare(QUEUE_NAME_01,false,false,false,null);
channel.queueBind(QUEUE_NAME_01,EXCHANGE_NAME,"");
DefaultConsumer defaultConsumer=new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println(new String(body,"UTF-8"));
}
};
channel.basicConsume(QUEUE_NAME_01,true,defaultConsumer);
}
}

消费者02

public class Consumer_subscribe_02 {
private final static String EXCHANGE_NAME="exchange";
private final static String QUEUE_NAME_02="exchange_queue_02";

public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory connectionFactory = new ConnectionFactory();
connectionFactory.setHost("127.0.0.1");
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(EXCHANGE_NAME,"fanout");
channel.queueDeclare(QUEUE_NAME_02,false,false,false,null);
channel.queueBind(QUEUE_NAME_02,EXCHANGE_NAME,"");
DefaultConsumer defaultConsumer=new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println(new String(body,"UTF-8"));
}
};
channel.basicConsume(QUEUE_NAME_02,true,defaultConsumer);
}
}

路由模式

生产者

public class Producer_routing {
private final static String EXCHANGE_NAME="routing_exchange";
private final static String QUEUE_NAME_01="routing_queue_01";
private final static String QUEUE_NAME_02="routing_queue_02";
private final static String ROUTING_KEY_NAME_01="red";
private final static String ROUTING_KEY_NAME_02="blue";
public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory connectionFactory = new ConnectionFactory();
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT); //声明交换机
/* channel.queueDeclare(QUEUE_NAME_01,false,false,false,null); //声明消息队列
channel.queueDeclare(QUEUE_NAME_02,false,false,false,null); //声明消息队列
channel.queueBind(QUEUE_NAME_02,EXCHANGE_NAME,ROUTING_KEY_NAME_02); //绑定消息队列，
channel.queueBind(QUEUE_NAME_01,EXCHANGE_NAME,ROUTING_KEY_NAME_01); //绑定消息队列*/
String message="hello routing";
// 推送消息， 交换机名称 路由key 名称 消息属性 ， 消息内容
channel.basicPublish(EXCHANGE_NAME,ROUTING_KEY_NAME_01,null,message.getBytes());
channel.basicPublish(EXCHANGE_NAME,ROUTING_KEY_NAME_02,null,message.getBytes());
channel.close();
connection.close();
}
}

消费者01

public class Consumer_routing_01 {
private final static String EXCHANGE_NAME="routing_exchange";
private final static String ROUTING_KEY_NAME_01="red"; //路由键名 red
private final static String QUEUE_NAME_01="routing_queue_01"; //队列名 01

public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory connectionFactory = new ConnectionFactory();
connectionFactory.setHost("127.0.0.1");
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel(); //创建通道
channel.queueDeclare(QUEUE_NAME_01,false,false,false,null); //声明队列
channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT); //声明交换机
channel.queueBind(QUEUE_NAME_01,EXCHANGE_NAME,ROUTING_KEY_NAME_01); //队列和交换机 绑定 队列名， 交换机名， 路由名
DefaultConsumer defaultConsumer=new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println(new String(body,"UTF-8"));
}
};
channel.basicConsume(QUEUE_NAME_01,true,defaultConsumer); //监听队列 01 的信息
}
}

消费者02

public class Consumer_routing_02 {
private final static String EXCHANGE_NAME="routing_exchange";
private final static String ROUTING_KEY_NAME_02="blue";
private final static String QUEUE_NAME_02="routing_queue_01";

public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory connectionFactory = new ConnectionFactory();
connectionFactory.setHost("127.0.0.1");
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.queueDeclare(QUEUE_NAME_02,false,false,false,null);
channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.DIRECT);
channel.queueBind(QUEUE_NAME_02,EXCHANGE_NAME,ROUTING_KEY_NAME_02);
DefaultConsumer defaultConsumer=new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println(new String(body,"UTF-8"));
}
};
channel.basicConsume(QUEUE_NAME_02,true,defaultConsumer);
}
}

Topic模式

生产者

public class Producer_topics {
private final static String EXCHANGE_NAME="topic_exchange";
private final static String ROUNTING_KEY_01="J.kkk";
private final static String ROUNTING_KEY_02="G.";

public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory connectionFactory = new ConnectionFactory();
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.TOPIC);
String message1="怒火焚身!";
String message2="混元寒冰，朔风凛冽";
channel.basicPublish(EXCHANGE_NAME,ROUNTING_KEY_01,null,message1.getBytes());
channel.basicPublish(EXCHANGE_NAME,ROUNTING_KEY_02,null,message2.getBytes());
channel.close();
connection.close();
}
}

消费者

public class Consumer_topics_01 {
private final static String EXCHANGE_NAME="topic_exchange"; //交换机名字
private final static String QUEUE_NAME="jicanghai"; // 队列名字
private final static String ROUTING_KEY="J.#"; // 路由KEy

public static void main(String[] args) throws IOException, TimeoutException {
ConnectionFactory connectionFactory = new ConnectionFactory();
connectionFactory.setHost("127.0.0.1");
Connection connection = connectionFactory.newConnection();
Channel channel = connection.createChannel();
channel.exchangeDeclare(EXCHANGE_NAME, BuiltinExchangeType.TOPIC);
channel.queueDeclare(QUEUE_NAME,false,false,false,null);
channel.queueBind(QUEUE_NAME,EXCHANGE_NAME,ROUTING_KEY); //队列和交换机 通过路由key 绑定
DefaultConsumer defaultConsumer=new DefaultConsumer(channel){
@Override
public void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {
System.out.println(new String(body,"UTF-8"));
}
};
channel.basicConsume(QUEUE_NAME,true,defaultConsumer); //监听队列 01 的信息
}
}

SpringBoot 整合RabbitMQ

导入依赖

<dependencies>
<dependency>
<groupId>com.rabbitmq</groupId>
<artifactId>amqp-client</artifactId>
<version>4.0.3</version><!--此版本与spring boot 1.5.9版本匹配-->
</dependency>
<!-- https://mvnrepository.com/artifact/org.slf4j/slf4j-api -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-logging</artifactId>
</dependency>
</dependencies>

路由模式测试

编写生产者配置类

@Configuration
public class RabbitMQConfiguration {
public final static String EXCHANGE_NAME_Routing="exchange_routing";

@Bean
public Exchange getExchange(){
return ExchangeBuilder.topicExchange(EXCHANGE_NAME_Routing).build();
}
}

生产者测试类

@SpringBootTest
@RunWith(SpringRunner.class)
public class ProducerTest {
@Autowired
private AmqpTemplate amqpTemplate;

@Value("${mq.message.routing_key}")

private String ROUTING_KEY;

@Test
public void testSending(){
amqpTemplate.convertAndSend(RabbitMQConfiguration.EXCHANGE_NAME_Routing,ROUTING_KEY,"怒火焚身！");
}
}

消费者配置类

@Configuration
public class RabbitMQConfiguration {
public final static String EXCHANGE_NAME_Routing="exchange_routing";


@Value("${mq.consumer.queue.name}")
private String queueName;

@Value("${mq.message.routing_key}")
private String routing_key;

@Bean
public Exchange getExchange(){
return ExchangeBuilder.topicExchange(EXCHANGE_NAME_Routing).build();
}
@Bean
public Queue getQueue(){
return new Queue(queueName,false,false,false);
}
@Bean
public Binding bindingQueueExchange(Queue queue,Exchange exchange){
return BindingBuilder.bind(queue).to(exchange).with(routing_key).noargs();
}
}

消费者处理接受内容类

@Component
public class ReceiveMsg {
@RabbitListener(queues = "routing_queue")
public void doneMsg(String msg){
System.out.println(msg);
}
}

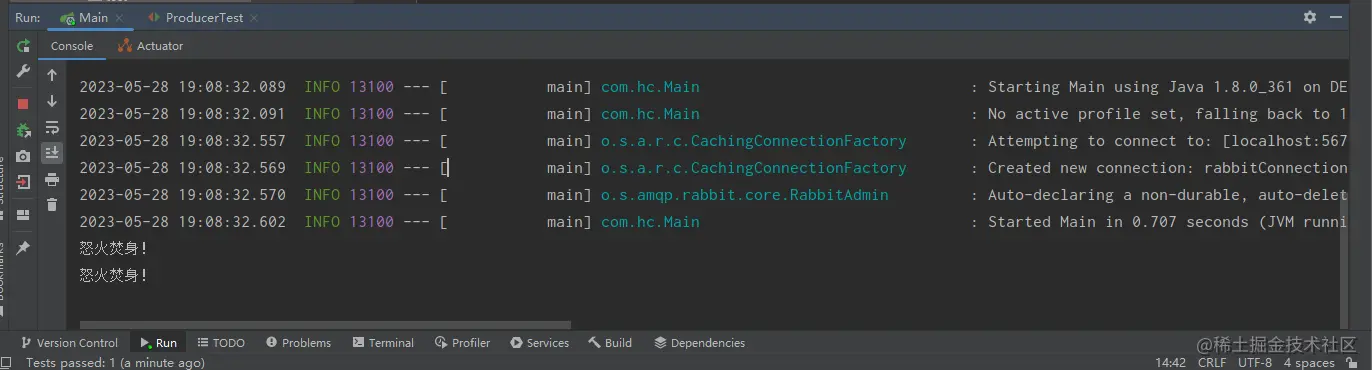

测试结果
