回顾
回顾一下: 1.第一个启动的就是init进程，它解析了init.rc文件，启动各种service:zygote,surfaceflinger,service_manager。
2.接着就讲了Zygote，Zygote就是一个孵化器，它开启了system_server以及开启了ZygoteServer用来接收客户端的请求，当客户端请求来了之后就会fork出来子进程，并且初始化binder 和进程信息，为了加速Zygote还会预加载一些class和Drawable、color等系统资源。
3.接下来讲了system_server，它是系统启动管理service的入口，比如AMS、PMS、WMS等等，它加载了framework-res.apk,接着调用startBootstrapService,startCoreService,startOtherService开启非常多的服务，还开启了WatchDog，来监控service。
4.接着讲了service_manager，他是一个独立的进程，它存储了系统各种服务的Binder，我们经常通过ServiceMananger来获取，其中还详细说了Binder机制，C/S架构，大家要记住客户端、Binder、Server三端的工作流程。
5.之后讲了Launcher，它由system_server启动，通过LauncherModel进行Binder通信 通过PMS来查询所有的应用信息，然后绑定到RecyclerView中，它的点击事件是通过ItemClickHandler来处理。
6.接着讲了AMS是如何开启应用进程的,首先我们从Launcher的点击开始，调用到Activity的startActivity函数，通过Instrumentation的execStartActivity经过两次IPC(1.通过ServiceManager获取到ATMS 2.调用ATMS的startActivity) 调用到AMS端在AMS端进行了一系列的信息处理，会判断进程是否存在，没有存在的话就会开启进程(通过Socket，给ZygoteServer发送信息),传入entryPoint为ActivityThread,通过Zygote来fork出来子进程（应用进程）调用ActivityThread.main，应用进程创建之后会调用到AMS，由AMS来attachApplication存储进程信息,然后告诉客户端，让客户端来创建Application，并在客户端创建成功之后 继续执行开启Activity的流程。客户端接收到AMS的数据之后会创建loadedApk,Instrumentation 以及Application调用attach(attachBaseContext)，调用Instrumentation的callApplicationOncreate执行Application的Oncreate周期.
7.应用执行完Application的OnCreate之后 回到ATMS的attachApplication 接着调用 realStartActivityLocked 创建了ClientTransaction，设置callBack为LaunchActivityItem添加了stateRequest 为ResumeActivityItem，然后通过IApplicationThread 回到客户端执行这两个事务,调用了ActivityThread的scheduleTransaction 函数，调用executeCallBack 执行了LaunchActivityItem的execute 他会调用ActivityThread的 handleLaunchActivity，会创建Activity Context，通过Instrumentation.newActivity 反射创建Activity 并调用attach 绑定window 再通过Instrumentation的callActivityOnCreate执行Activity的onCreate，在Activity的onCreate中分发监听给ActivityLifecycleCallbacks。最后设置ActivityClientRecord的state为ON_CREATE。 接着执行executeLifecycleState，调用了cycleToPath，之前设置了state为ON_CREATE，所以会返回一个Int数组{2} 调用performLifecycleSequence会执行到ActivityThread的handleStartActivity分发ActivityLifecycleCallbacks，并且分发给Fragments，调用Instrumentation的callActivityOnStart 执行Activity的onStart并设置state为ON_START，接着执行ResumeActivityItem的execute，会调用到ActivityThread的handleResumeActivity，调用performResume 分发resume事件给ActivityLifecycleCallbacks，分发Fragments，调用Instrumentation的callActivityOnResume 执行Activity的onResume。 最后会调用ActivityClientRecord.activity.makeVisible 通过WindowManager 添加当前View 和 WMS(IPC) 通信 绘制UI，接着postResume 会执行 ATMS的activityresume 设置 AMS的Activity的状态。
8.接着讲了Service，介绍了Service是如何开启的，生命周期是怎么执行的，ANR 是如何弹出的。Service的启动分两种:startService和bindService。先回忆下startService:startService会调用到ContextImpl的startService，它会直接调用AMS的startService。在AMS这里会先检查Service是否可以执行(常驻内存、蓝牙、电源白名单允许直接启动服务)，接着调用bringUpServiceLocked 判断是否需要隔离进程如果非隔离 就看是否已经启动进程 执行realStartServiceLocked，否则是隔离进程 直接开启新进程。开启成功之后会将ServiceRecord添加到mPendingServices中去。进程创建之后，会调用AMS的attachApplication 接着处理service(ActiveService)，之前创建之后会添加到mPendingServices中，现在继续处理调用realStartServiceLocked来开启Service，在开启的过程中会埋入一个炸弹(给Handler发送一个SERVICE_TIMEOUT_MSG) 如果超时未处理会弹出ANR，然后调用app.thread.scheduleCreateService通知客户端创建反射Service、Context 调用onCreate 把Service存入到mService中，调用AMS的serviceDoneExecuting进行炸弹的拆除。 然后再埋炸弹 调用app.thread.scheduleServiceArgs 调用service.onStartCommand再通知AMS 拆除炸弹。 这样Service就运行起来了。
9.再回忆下bindService:首先ServiceConnection是无法跨进程通信的，所以在LoadedApk.java中帮我们封装了InnerConnection 它继承自Stub，也就是native层的JavaBBinder,然后通过bindIsolatedService将sd(InnerConnection)写入到Parcel中，调用AMS(BinderProxy)的transact进行IPC 通信，把InnerConnection存入到客户端的nodes中,以及给AMS的refs_by_node和refs_by_desc挂上InnerConnection 接着唤醒AMS,唤醒之后调用onTransact读取到传过来的sd并且包装成BpBinder(BinderProxy)返回,这样AMS就在bindIsolatedService的时候拿到了InnerConnection的BpBinder，接着AMS 通过pkms通过intent查找到服务端进程,创建AppBindRecord和ConnectionRecord,接着调用bringUpServiceLocked 看是否开启进程 如果没有开启就先开启进程，开启了进程之后 调用realStartServiceLocked 也埋了炸弹 接着调用 app.thread.scheduleCreateService通知客户端创建反射Service、Context 调用onCreate 把Service存入到mService中,调用serviceDoneExecutingLocked把炸弹拆除，再调用requestServiceBindingsLocked 去执行r.app.thread.scheduleBindService 执行服务端的onBind函数拿到了返回的Binder再调用AMS的publishService把服务发布到AMS（在服务端的进程创建binder_proc(server) 在AMS的refs_by_node 和refs_by_desc 挂上server）,AMS的onTransact 中读取到服务端返回的server(Binder)包装成BpBinder，然后调用c.conn.connected(从refs_by_desc 和 refs_by_node 找到InnerConnection)调用connect 所以到了客户端进程会把server的BpBinder 挂在refs_by_desc和refs_by_node上边。再调用Servcie.onServiceConnected 之后拆除炸弹。
10.获取ContentProvider 调用者进程调用到AMS中，如果ContentProvider已经发布了 通过canRunHere判断ContentProvider是否可以运行在调用者的进程中，如果允许 不会把已经发布的ContentProvider返回，而是返回新的ContentProviderHoder 但是会把provider设置成null。 如果不允许 设置OOMAdj 和 更新进程LRU 最终调用cpr.newHolder(conn)。如果没有发布还是会检查是否可以在调用者进程来创建，接下来看ContentProvider的进程是否创建，如果没有创建调用startProcessLocked启动进程。如果已经创建进程 调用ContentProvider进程的proc.thread.scheduleInstallProvider。 两种情况都会把ContentProvider添加到mLaunchingProviders和mProviderMap中。然后等待ContentProvider安装完成 唤醒。唤醒之后返回ContentProviderHolder。
11.安装ContentProvider 遍历AMS传递过来的providers调用installProvider反射创建ContentProvider调用attachInfo 执行onCreate 创建ProviderClientRecord(持有provider和ContentProviderInfo 以及ContentProviderHolder) 存入mLocalProviders和mLocalProvidersByName 返回ContentProviderHolder.然后调用AMS的publishContentProviders进行发布:存入mProviderMap中 一个是以ComponentName为key 一个是以authority为key(authority可以是多个;分割 但是dst是同一个)。然后唤醒 之前的getContentProviderImpl返回ContentProviderHolder， ，通过provider(IContentProvider BinderProxy) 再去进行ipc通信。 当然也可以在本进程创建。
具体的细节可以参考之前写的文章和视频：
【Android FrameWork】第一个启动的程序--init
【Android FrameWork】SystemServer
【Android FrameWork】ServiceManager(一)
【Android FrameWork】ServiceManager(二)
【Android Framework】ActivityManagerService(一)
【Android Framework】ActivityManagerService(二)
【Android Framework】# Broadcast
【Android Framework】# ContentProvider
介绍
InputManagerService是一个系统服务，主要处理Input事件的传递，包括键盘、鼠标、触摸屏等等，它和WMS密切相关。
正文
1.InputManagerService的启动
IMS是由system_server启动的。
private void startOtherServices() {
//创建InputManagerService
inputManager = new InputManagerService(context);
//创建WindowManagerService 传入IMS 进行绑定
wm = WindowManagerService.main(context, inputManager, !mFirstBoot, mOnlyCore,
new PhoneWindowManager(), mActivityManagerService.mActivityTaskManager);
//添加WindowManagerService
ServiceManager.addService(Context.WINDOW_SERVICE, wm, /* allowIsolated= */ false,
DUMP_FLAG_PRIORITY_CRITICAL | DUMP_FLAG_PROTO);
//添加InputManagerService
ServiceManager.addService(Context.INPUT_SERVICE, inputManager,
/* allowIsolated= */ false, DUMP_FLAG_PRIORITY_CRITICAL);
//设置WindowManagerCallbacks
inputManager.setWindowManagerCallbacks(wm.getInputManagerCallback());
//开启InputManagerService
inputManager.start();
}
文件目录:/frameworks/base/services/core/java/com/android/server/input/InputManagerService.java
我们先看看构造函数:
public InputManagerService(Context context) {
this.mContext = context;
//创建handler
this.mHandler = new InputManagerHandler(DisplayThread.get().getLooper());
//调用nativeInit创建Native层的InputManagerService 传入了MessageQueue
mPtr = nativeInit(this, mContext, mHandler.getLooper().getQueue());
//添加到本地的服务集合中
LocalServices.addService(InputManagerInternal.class, new LocalService());
}
private static native long nativeInit(InputManagerService service,
Context context, MessageQueue messageQueue);
到Native层看看
文件目录:/frameworks/base/services/core/jni/com_android_server_input_InputManagerService.cpp
static jlong nativeInit(JNIEnv* env, jclass /* clazz */,
jobject serviceObj, jobject contextObj, jobject messageQueueObj) {
//获取到Native层的MessageQueue
sp<MessageQueue> messageQueue = android_os_MessageQueue_getMessageQueue(env, messageQueueObj);
//创建 NativeInputManager 传入了java层的引用 以及Looper
//创建了InputMananger 内部包含了InputDispather和InputCalssifier 然后创建了InputReader 包含了readerPolicy和mClassifier也就是NativeInputManager的this
NativeInputManager* im = new NativeInputManager(contextObj, serviceObj,
messageQueue->getLooper());
//强引用+1
im->incStrong(0);
return reinterpret_cast<jlong>(im);
}
//构造函数
NativeInputManager::NativeInputManager(jobject contextObj,
jobject serviceObj, const sp<Looper>& looper) :
mLooper(looper), mInteractive(true) {
JNIEnv* env = jniEnv();
//获取到Java层的InputManagerService
mServiceObj = env->NewGlobalRef(serviceObj);
mInteractive = true;
//创建InputManager
mInputManager = new InputManager(this, this);
//将InputManager添加到ServiceManager 命名为inputflinger
defaultServiceManager()->addService(String16("inputflinger"),
mInputManager, false);
}
//readerPolicy dispatcherPolicy都是NativeInputManager
InputManager::InputManager(
const sp<InputReaderPolicyInterface>& readerPolicy,
const sp<InputDispatcherPolicyInterface>& dispatcherPolicy) {
//创建InputDispatcher对象 分发器
mDispatcher = new InputDispatcher(dispatcherPolicy);
//创建InputClassifier对象 分类器
mClassifier = new InputClassifier(mDispatcher);
//创建InputReader
mReader = createInputReader(readerPolicy, mClassifier);
//创建InputReaderThread 和 InputDispatcherThread
initialize();
}
//创建InputReader
sp<InputReaderInterface> createInputReader(
const sp<InputReaderPolicyInterface>& policy,
const sp<InputListenerInterface>& listener) {
//创建EventHub 返回创建的InputReader
return new InputReader(new EventHub(), policy, listener);
}
//创建EventHub 创建管道 (一个读 一个写 当写端 写入数据的时候会唤醒读端)
EventHub::EventHub(void) :
mBuiltInKeyboardId(NO_BUILT_IN_KEYBOARD), mNextDeviceId(1), mControllerNumbers(),
mOpeningDevices(nullptr), mClosingDevices(nullptr),
mNeedToSendFinishedDeviceScan(false),
mNeedToReopenDevices(false), mNeedToScanDevices(true),
mPendingEventCount(0), mPendingEventIndex(0), mPendingINotify(false) {
acquire_wake_lock(PARTIAL_WAKE_LOCK, WAKE_LOCK_ID);
//创建Epoll 监听设备节点
mEpollFd = epoll_create1(EPOLL_CLOEXEC);
//初始化inotify
mINotifyFd = inotify_init();
//添加监听 设备节点的 /dev/input 目录的创建和删除
mInputWd = inotify_add_watch(mINotifyFd, DEVICE_PATH, IN_DELETE | IN_CREATE);
struct epoll_event eventItem;
memset(&eventItem, 0, sizeof(eventItem));
//监听inotify 可读事件
eventItem.events = EPOLLIN;
eventItem.data.fd = mINotifyFd;
//把mInotifyFd添加到epoll 注册缓冲区非空事件 ，当有数据流入的时候会唤醒
int result = epoll_ctl(mEpollFd, EPOLL_CTL_ADD, mINotifyFd, &eventItem);
int wakeFds[2];
//创建管道 一个读 一个写
result = pipe(wakeFds);
mWakeReadPipeFd = wakeFds[0];
mWakeWritePipeFd = wakeFds[1];
//设置为非阻塞
result = fcntl(mWakeReadPipeFd, F_SETFL, O_NONBLOCK);
result = fcntl(mWakeWritePipeFd, F_SETFL, O_NONBLOCK);
eventItem.data.fd = mWakeReadPipeFd;//如果给写管道写入数据 会唤醒读端来处理
//把管道的读端加入到epoll中，当管道缓冲区数据可读的时候会提醒我们进行数据的读取。为什么要创建管道呢，因为InputReader在执行getEvents的时候会因为没有事件而阻塞在epoll_wait，有时候希望可以立刻唤醒InputReader处理一些请求，这个时候只需要向mWakeWritePipeFd 写入任意数据，此时读端就有数据可以读了，就可以唤醒InputReader了
result = epoll_ctl(mEpollFd, EPOLL_CTL_ADD, mWakeReadPipeFd, &eventItem);
}
//创建InputReader
InputReader::InputReader(const sp<EventHubInterface>& eventHub,
const sp<InputReaderPolicyInterface>& policy,
const sp<InputListenerInterface>& listener) :
mContext(this), mEventHub(eventHub), mPolicy(policy),
mNextSequenceNum(1), mGlobalMetaState(0), mGeneration(1),
mDisableVirtualKeysTimeout(LLONG_MIN), mNextTimeout(LLONG_MAX),
mConfigurationChangesToRefresh(0) {
//创建InputListenerQueue 把事件分发给InputClassifier进行分类分发
mQueuedListener = new QueuedInputListener(listener);
{
//刷新配置
refreshConfigurationLocked(0);
//更新InputReader::GlobalMetaState 和键盘输入设备的meta按键相关
updateGlobalMetaStateLocked();
}
}
void InputReader::refreshConfigurationLocked(uint32_t changes) {
//获取mPolicy
mPolicy->getReaderConfiguration(&mConfig);
//过滤设备
mEventHub->setExcludedDevices(mConfig.excludedDeviceNames);
if (changes) {//传递的是0 不执行
}
}
void InputReader::updateGlobalMetaStateLocked() {
mGlobalMetaState = 0;
for (size_t i = 0; i < mDevices.size(); i++) {
InputDevice* device = mDevices.valueAt(i);
mGlobalMetaState |= device->getMetaState();
}
}
void InputManager::initialize() {
mReaderThread = new InputReaderThread(mReader);
mDispatcherThread = new InputDispatcherThread(mDispatcher);
}
IMS创建完成，在Native层创建了NativeInputManager(InputManager 包含了MInputDispatcher和 mReader),还创建了管道，一个读一个写，当给管道写输入数据的时候会唤醒读端来处理。 并且创建了两个Thread InputReaderThread 和 InputDispatcherThread
构造函数看完之后我们看看WMS的main函数是怎么处理的inputManager：
文件目录:/frameworks/base/services/core/java/com/android/server/wm/WindowManagerService.java
public static WindowManagerService main(final Context context, final InputManagerService im,
final boolean showBootMsgs, final boolean onlyCore, WindowManagerPolicy policy,
ActivityTaskManagerService atm) {
return main(context, im, showBootMsgs, onlyCore, policy, atm,
SurfaceControl.Transaction::new);
}
public static WindowManagerService main(final Context context, final InputManagerService im,
final boolean showBootMsgs, final boolean onlyCore, WindowManagerPolicy policy,
ActivityTaskManagerService atm, TransactionFactory transactionFactory) {
DisplayThread.getHandler().runWithScissors(() ->
sInstance = new WindowManagerService(context, im, showBootMsgs, onlyCore, policy,
atm, transactionFactory), 0);
return sInstance;
}
private WindowManagerService(Context context, InputManagerService inputManager,
boolean showBootMsgs, boolean onlyCore, WindowManagerPolicy policy,
ActivityTaskManagerService atm, TransactionFactory transactionFactory) {
//....
//把创建好的ims赋值给mInputManager
mInputManager = inputManager;
//....
mTaskPositioningController = new TaskPositioningController(
this, mInputManager, mActivityTaskManager, mH.getLooper());
//....
}
WMS的构造函数中并没有做复杂的处理。看看setWindowManagerCallbacks
public void setWindowManagerCallbacks(WindowManagerCallbacks callbacks) {
mWindowManagerCallbacks = callbacks;
}
//回调接口
public interface WindowManagerCallbacks {
public void notifyConfigurationChanged();
//...
}
这里传递的callbacks是InputManagerCallback
文件目录:/frameworks/base/services/core/java/com/android/server/wm/InputManagerCallback.java
//构造函数
public InputManagerCallback(WindowManagerService service) {
mService = service;
}
接着调用了inputManager.start()
public void start() {
//调用native的start
nativeStart(mPtr);
//添加到看门狗监听
Watchdog.getInstance().addMonitor(this);
//动态注册广播
mContext.registerReceiver(new BroadcastReceiver() {
@Override
public void onReceive(Context context, Intent intent) {
updatePointerSpeedFromSettings();
updateShowTouchesFromSettings();
updateAccessibilityLargePointerFromSettings();
}
}, new IntentFilter(Intent.ACTION_USER_SWITCHED), null, mHandler);
}
static void nativeStart(JNIEnv* env, jclass /* clazz */, jlong ptr) {
NativeInputManager* im = reinterpret_cast<NativeInputManager*>(ptr);
//调用InputManager.start
status_t result = im->getInputManager()->start();
}
status_t InputManager::start() {
//执行mDispatcherThread的run函数 由于它继承自Thread 这个我们之前就已经讲过了Thread的执行流程 所以会执行到threadLoop函数 （具体在Launcher章节）
status_t result = mDispatcherThread->run("InputDispatcher", PRIORITY_URGENT_DISPLAY);
//执行mReaderThread的run函数
result = mReaderThread->run("InputReader", PRIORITY_URGENT_DISPLAY);
return OK;
}
//执行dispatchOnce
bool InputDispatcherThread::threadLoop() {
mDispatcher->dispatchOnce();
return true;
}
//执行loopOnce
bool InputReaderThread::threadLoop() {
mReader->loopOnce();
return true;
}
1.事件的获取
我们看看loopOnce是如何获取事件的
void InputReader::loopOnce() {
int32_t oldGeneration;
int32_t timeoutMillis;
bool inputDevicesChanged = false;
std::vector<InputDeviceInfo> inputDevices;
{
//从EventHub读取原始事件
size_t count = mEventHub->getEvents(timeoutMillis, mEventBuffer, EVENT_BUFFER_SIZE);
{
if (count) {
//处理事件
processEventsLocked(mEventBuffer, count);
}
}
//分发事件
mQueuedListener->flush();
}
//处理事件
void InputReader::processEventsLocked(const RawEvent* rawEvents, size_t count) {
for (const RawEvent* rawEvent = rawEvents; count;) {
int32_t type = rawEvent->type;
size_t batchSize = 1;
if (type < EventHubInterface::FIRST_SYNTHETIC_EVENT) {//不是增加 删除 扫描 设备
int32_t deviceId = rawEvent->deviceId;
//调用processEventsForDeviceLocked 让对应的设备处理事件
processEventsForDeviceLocked(deviceId, rawEvent, batchSize);
} else {
switch (rawEvent->type) {
case EventHubInterface::DEVICE_ADDED://新增设备
break;
case EventHubInterface::DEVICE_REMOVED://移除设备
break;
case EventHubInterface::FINISHED_DEVICE_SCAN://扫描设备
break;
}
}
count -= batchSize;
rawEvent += batchSize;
}
}
//根据deviceId 交给设备来处理事件
void InputReader::processEventsForDeviceLocked(int32_t deviceId,
const RawEvent* rawEvents, size_t count) {
ssize_t deviceIndex = mDevices.indexOfKey(deviceId);
InputDevice* device = mDevices.valueAt(deviceIndex);
device->process(rawEvents, count);
}
//设备处理事件
void InputDevice::process(const RawEvent* rawEvents, size_t count) {
for (const RawEvent* rawEvent = rawEvents; count != 0; rawEvent++) {
if (mDropUntilNextSync) {//mDropUntilNextSync 为false
} else if (rawEvent->type == EV_SYN && rawEvent->code == SYN_DROPPED) {
} else {
//InputMapper用来将原始的输入事件转换为处理过的输入数据 一个输入设备可能对应多个InputMapper,他会有多个子类 我们主要分析TouchInputMapper
for (InputMapper* mapper : mMappers) {
mapper->process(rawEvent);
}
}
--count;
}
}
//处理Touch事件
void TouchInputMapper::process(const RawEvent* rawEvent) {
//处理鼠标和触摸键盘 按键事件
mCursorButtonAccumulator.process(rawEvent);
//处理鼠标滑动
mCursorScrollAccumulator.process(rawEvent);
//处理手写笔之类的
mTouchButtonAccumulator.process(rawEvent);
if (rawEvent->type == EV_SYN && rawEvent->code == SYN_REPORT) {
reportEventForStatistics(rawEvent->when);
//调用sync进行事件的同步
sync(rawEvent->when);
}
}
//同步touch
void TouchInputMapper::sync(nsecs_t when) {
const RawState* last = mRawStatesPending.empty() ?
&mCurrentRawState : &mRawStatesPending.back();
// 同步touch
syncTouch(when, next);
//处理原始事件
processRawTouches(false /*timeout*/);
}
//单点触摸同步
void SingleTouchInputMapper::syncTouch(nsecs_t when, RawState* outState) {
if (mTouchButtonAccumulator.isToolActive()) {
outState->rawPointerData.pointerCount = 1;
outState->rawPointerData.idToIndex[0] = 0;
//是否悬停
bool isHovering = mTouchButtonAccumulator.getToolType() != AMOTION_EVENT_TOOL_TYPE_MOUSE
&& (mTouchButtonAccumulator.isHovering()
|| (mRawPointerAxes.pressure.valid
&& mSingleTouchMotionAccumulator.getAbsolutePressure() <= 0));
outState->rawPointerData.markIdBit(0, isHovering);
RawPointerData::Pointer& outPointer = outState->rawPointerData.pointers[0];
outPointer.id = 0;
//记录x y 坐标
outPointer.x = mSingleTouchMotionAccumulator.getAbsoluteX();
outPointer.y = mSingleTouchMotionAccumulator.getAbsoluteY();
outPointer.pressure = mSingleTouchMotionAccumulator.getAbsolutePressure();
outPointer.touchMajor = 0;
outPointer.touchMinor = 0;
outPointer.toolMajor = mSingleTouchMotionAccumulator.getAbsoluteToolWidth();
outPointer.toolMinor = mSingleTouchMotionAccumulator.getAbsoluteToolWidth();
outPointer.orientation = 0;
outPointer.distance = mSingleTouchMotionAccumulator.getAbsoluteDistance();
outPointer.tiltX = mSingleTouchMotionAccumulator.getAbsoluteTiltX();
outPointer.tiltY = mSingleTouchMotionAccumulator.getAbsoluteTiltY();
outPointer.toolType = mTouchButtonAccumulator.getToolType();
if (outPointer.toolType == AMOTION_EVENT_TOOL_TYPE_UNKNOWN) {
outPointer.toolType = AMOTION_EVENT_TOOL_TYPE_FINGER;
}
outPointer.isHovering = isHovering;
}
}
//处理原始触摸
void TouchInputMapper::processRawTouches(bool timeout) {
const size_t N = mRawStatesPending.size();
size_t count;
for(count = 0; count < N; count++) {//遍历所有原始事件
const RawState& next = mRawStatesPending[count];
//调用cookAndDispatch 进行分发
cookAndDispatch(mCurrentRawState.when);
}
}
//分发
void TouchInputMapper::cookAndDispatch(nsecs_t when) {
//.....
if (!mCurrentMotionAborted) {
dispatchButtonRelease(when, policyFlags);
dispatchHoverExit(when, policyFlags);
//分发touches
dispatchTouches(when, policyFlags);
dispatchHoverEnterAndMove(when, policyFlags);
dispatchButtonPress(when, policyFlags);
}
//...
}
//调用dispatchMotion 进行分发 motion
void TouchInputMapper::dispatchTouches(nsecs_t when, uint32_t policyFlags) {
//....
dispatchMotion(when, policyFlags, mSource,
AMOTION_EVENT_ACTION_MOVE, 0, 0, metaState, buttonState,
AMOTION_EVENT_EDGE_FLAG_NONE,
mCurrentCookedState.deviceTimestamp,
mCurrentCookedState.cookedPointerData.pointerProperties,
mCurrentCookedState.cookedPointerData.pointerCoords,
mCurrentCookedState.cookedPointerData.idToIndex,
currentIdBits, -1,
mOrientedXPrecision, mOrientedYPrecision, mDownTime);
}
void TouchInputMapper::dispatchMotion(nsecs_t when, uint32_t policyFlags, uint32_t source,
int32_t action, int32_t actionButton, int32_t flags,
int32_t metaState, int32_t buttonState, int32_t edgeFlags, uint32_t deviceTimestamp,
const PointerProperties* properties, const PointerCoords* coords,
const uint32_t* idToIndex, BitSet32 idBits, int32_t changedId,
float xPrecision, float yPrecision, nsecs_t downTime) {
PointerCoords pointerCoords[MAX_POINTERS];
PointerProperties pointerProperties[MAX_POINTERS];
uint32_t pointerCount = 0;
//....
//创建NotifyMotionArgs
NotifyMotionArgs args(mContext->getNextSequenceNum(), when, deviceId,
source, displayId, policyFlags,
action, actionButton, flags, metaState, buttonState, MotionClassification::NONE,
edgeFlags, deviceTimestamp, pointerCount, pointerProperties, pointerCoords,
xPrecision, yPrecision, downTime, std::move(frames));
//通知listener,看看Listener是谁(QueuedInputListener)
getListener()->notifyMotion(&args);
}
InputListenerInterface* InputReader::ContextImpl::getListener() {
//获取到inputReader的mQueuedListener 返回(InputClassifier)
return mReader->mQueuedListener.get();
}
//把args存入mArgsQueue
void QueuedInputListener::notifyMotion(const NotifyMotionArgs* args) {
mArgsQueue.push_back(new NotifyMotionArgs(*args));
}
//调用flush 分发
void QueuedInputListener::flush() {
size_t count = mArgsQueue.size();
for (size_t i = 0; i < count; i++) {
NotifyArgs* args = mArgsQueue[i];
//调用对应args的notify 我们这里关注的是NotifyMotionArgs
args->notify(mInnerListener);
delete args;
}
mArgsQueue.clear();
}
void NotifyMotionArgs::notify(const sp<InputListenerInterface>& listener) const {
//调用mInnerListener的notifyMotion 也就是InputClassifier
listener->notifyMotion(this);
}
//调用notifyMotion 更新motion 也就是调用到dispatcher的notifyMotion
void InputClassifier::notifyMotion(const NotifyMotionArgs* args) {
NotifyMotionArgs newArgs(*args);
newArgs.classification = mMotionClassifier->classify(newArgs);
mListener->notifyMotion(&newArgs);
}
void InputDispatcher::notifyMotion(const NotifyMotionArgs* args) {
//安全性校验
if (!validateMotionEvent(args->action, args->actionButton,
args->pointerCount, args->pointerProperties)) {
return;
}
uint32_t policyFlags = args->policyFlags;
policyFlags |= POLICY_FLAG_TRUSTED;
android::base::Timer t;
//预处理(NativeInputManager最终会交给PhoneWindowManager 由PhoneWindow来决定是否要拦截)
mPolicy->interceptMotionBeforeQueueing(args->displayId, args->eventTime, /*byref*/ policyFlags);
bool needWake;
{
//创建MotionEntry
MotionEntry* newEntry = new MotionEntry(args->sequenceNum, args->eventTime,
args->deviceId, args->source, args->displayId, policyFlags,
args->action, args->actionButton, args->flags,
args->metaState, args->buttonState, args->classification,
args->edgeFlags, args->xPrecision, args->yPrecision, args->downTime,
args->pointerCount, args->pointerProperties, args->pointerCoords, 0, 0);
//入队 后边dispatch会取出来
needWake = enqueueInboundEventLocked(newEntry);
mLock.unlock();
}
if (needWake) {//唤醒分发线程
mLooper->wake();
}
}
bool InputDispatcher::enqueueInboundEventLocked(EventEntry* entry) {
bool needWake = mInboundQueue.isEmpty();
mInboundQueue.enqueueAtTail(entry);
traceInboundQueueLengthLocked();
switch (entry->type) {
case EventEntry::TYPE_KEY: {//key事件
KeyEntry* keyEntry = static_cast<KeyEntry*>(entry);
if (isAppSwitchKeyEvent(keyEntry)) {
if (keyEntry->action == AKEY_EVENT_ACTION_DOWN) {
mAppSwitchSawKeyDown = true;
} else if (keyEntry->action == AKEY_EVENT_ACTION_UP) {
if (mAppSwitchSawKeyDown) {
mAppSwitchDueTime = keyEntry->eventTime + APP_SWITCH_TIMEOUT;
mAppSwitchSawKeyDown = false;
needWake = true;
}
}
}
break;
}
case EventEntry::TYPE_MOTION: {//motion事件
MotionEntry* motionEntry = static_cast<MotionEntry*>(entry);
if (motionEntry->action == AMOTION_EVENT_ACTION_DOWN
&& (motionEntry->source & AINPUT_SOURCE_CLASS_POINTER)
&& mInputTargetWaitCause == INPUT_TARGET_WAIT_CAUSE_APPLICATION_NOT_READY
&& mInputTargetWaitApplicationToken != nullptr) {
int32_t displayId = motionEntry->displayId;
int32_t x = int32_t(motionEntry->pointerCoords[0].
getAxisValue(AMOTION_EVENT_AXIS_X));
int32_t y = int32_t(motionEntry->pointerCoords[0].
getAxisValue(AMOTION_EVENT_AXIS_Y));
//查找到windowHandle
sp<InputWindowHandle> touchedWindowHandle = findTouchedWindowAtLocked(displayId, x, y);
if (touchedWindowHandle != nullptr
&& touchedWindowHandle->getApplicationToken()
!= mInputTargetWaitApplicationToken) {
mNextUnblockedEvent = motionEntry;
needWake = true;
}
}
break;
}
}
return needWake;
}
//获取事件
size_t EventHub::getEvents(int timeoutMillis, RawEvent* buffer, size_t bufferSize) {
AutoMutex _l(mLock);
//创建事件读取的buffer 结构体
struct input_event readBuffer[bufferSize];
RawEvent* event = buffer;
//bufferSize = 256
size_t capacity = bufferSize;
bool awoken = false;
for (;;) {
nsecs_t now = systemTime(SYSTEM_TIME_MONOTONIC);
//重新打开输入设备 mNeedToReopenDevices 默认为false
if (mNeedToReopenDevices) {
mNeedToReopenDevices = false;
closeAllDevicesLocked();
mNeedToScanDevices = true;
break;
}
while (mClosingDevices) {//mClosingDevices 默认是0 所以也不会进来
Device* device = mClosingDevices;
mClosingDevices = device->next;
event->when = now;
event->deviceId = (device->id == mBuiltInKeyboardId) ?
ReservedInputDeviceId::BUILT_IN_KEYBOARD_ID : device->id;
event->type = DEVICE_REMOVED;//把事件的类型设置为移除设备
event += 1;
delete device;
mNeedToSendFinishedDeviceScan = true;
if (--capacity == 0) {
break;
}
}
if (mNeedToScanDevices) {//在构造函数中设置为true 所以需要对加载的设备进行扫描
mNeedToScanDevices = false;
scanDevicesLocked();//根据/dev/input来找到设备
mNeedToSendFinishedDeviceScan = true;
}
while (mOpeningDevices != nullptr) {//上边扫描完成之后会给mOpeningDevices赋值 所以这里不为null，存储一些设备的信息
Device* device = mOpeningDevices;
mOpeningDevices = device->next;
event->when = now;
event->deviceId = device->id == mBuiltInKeyboardId ? 0 : device->id;
event->type = DEVICE_ADDED;
event += 1;
mNeedToSendFinishedDeviceScan = true;
if (--capacity == 0) {
break;
}
}
if (mNeedToSendFinishedDeviceScan) {//上边会修改为true 所以这里会执行 设置设备的时间和类型
mNeedToSendFinishedDeviceScan = false;
event->when = now;
event->type = FINISHED_DEVICE_SCAN;
event += 1;
if (--capacity == 0) {
break;
}
}
bool deviceChanged = false;
while (mPendingEventIndex < mPendingEventCount) {
const struct epoll_event& eventItem = mPendingEventItems[mPendingEventIndex++];
if (eventItem.data.fd == mINotifyFd) {
if (eventItem.events & EPOLLIN) {
mPendingINotify = true;
} else {
}
continue;
}
if (eventItem.data.fd == mWakeReadPipeFd) {//读管道 唤醒
if (eventItem.events & EPOLLIN) {
awoken = true;
char buffer[16];
ssize_t nRead;
do {
//从管道中读取
nRead = read(mWakeReadPipeFd, buffer, sizeof(buffer));
} while ((nRead == -1 && errno == EINTR) || nRead == sizeof(buffer));
} else {
}
continue;
}
//根据fd获取到设备
Device* device = getDeviceByFdLocked(eventItem.data.fd);
if (!device) {
continue;
}
if (eventItem.events & EPOLLIN) {
//开始读取原始事件
int32_t readSize = read(device->fd, readBuffer,
sizeof(struct input_event) * capacity);
if (readSize == 0 || (readSize < 0 && errno == ENODEV)) {
deviceChanged = true;
closeDeviceLocked(device);
} else {
int32_t deviceId = device->id == mBuiltInKeyboardId ? 0 : device->id;
size_t count = size_t(readSize) / sizeof(struct input_event);
//保存读取的信息
for (size_t i = 0; i < count; i++) {
struct input_event& iev = readBuffer[i];
event->when = processEventTimestamp(iev);
event->deviceId = deviceId;
event->type = iev.type;
event->code = iev.code;
event->value = iev.value;
event += 1;
capacity -= 1;
}
if (capacity == 0) {
mPendingEventIndex -= 1;
break;
}
}
} else if (eventItem.events & EPOLLHUP) {
deviceChanged = true;
closeDeviceLocked(device);
} else {
}
}
//mPendingINotify = true 并且所有数据都读取完成
if (mPendingINotify && mPendingEventIndex >= mPendingEventCount) {
mPendingINotify = false;
//看看readNotifyLocked都做了什么(读取存储在mInotifyFd中的Notify事件，打开和关闭设备)
readNotifyLocked();
deviceChanged = true;
}
mPendingEventIndex = 0;
//等待mEpollFd写数据的事件的发生，如果有变化 会登记设备节点到mPendingEventItems 否则阻塞等待
int pollResult = epoll_wait(mEpollFd, mPendingEventItems, EPOLL_MAX_EVENTS, timeoutMillis);
}
// 返回读取的事件
return event - buffer;
}
status_t EventHub::readNotifyLocked() {
int res;
char event_buf[512];
int event_size;
int event_pos = 0;
struct inotify_event *event;
//读取存储在mInotifyFd中的Notify事件 如果input目录新增或删除 都会到这里来
res = read(mINotifyFd, event_buf, sizeof(event_buf));
if(res < (int)sizeof(*event)) {
if(errno == EINTR)
return 0;
return -1;
}
while(res >= (int)sizeof(*event)) {
event = (struct inotify_event *)(event_buf + event_pos);
if(event->len) {
if (event->wd == mInputWd) {
std::string filename = StringPrintf("%s/%s", DEVICE_PATH, event->name);
if(event->mask & IN_CREATE) {//打开设备
openDeviceLocked(filename.c_str());
} else {//关闭设备
closeDeviceByPathLocked(filename.c_str());
}
}
else if (event->wd == mVideoWd) {
if (isV4lTouchNode(event->name)) {
std::string filename = StringPrintf("%s/%s", VIDEO_DEVICE_PATH, event->name);
if (event->mask & IN_CREATE) {
openVideoDeviceLocked(filename);
} else {
closeVideoDeviceByPathLocked(filename);
}
}
}
}
event_size = sizeof(*event) + event->len;
res -= event_size;
event_pos += event_size;
}
return 0;
}
总结下：InputReader通过EventHub.getEvents读取原始事件的RawEvent，接着调用processEventsLocked将原始事件转换为NotifyArgs，然后存储到InputReader的QueueInputListener的mQueuedListener内部的mArgsQueue中进行等待分发。 InputReader接着调用QueuedInputListener的flush把存储的事件发送到InputDispatcher 最终封装成EventEntry类型 添加到了InputDispatcher的mInBoundQueue中，并且唤醒了InputDispatcher线程.
2.事件的分发
我们看看dispatchOnce 是如何分发事件的
void InputDispatcher::dispatchOnce() {
nsecs_t nextWakeupTime = LONG_LONG_MAX;
{
//判断是否有指令需要执行 如果没有调用 dispatchOnceInnerLocked 处理输入事件
if (!haveCommandsLocked()) {
dispatchOnceInnerLocked(&nextWakeupTime);
}
//处理事件，设置nextWakeupTime为LONG_LONG_MIN,立刻唤醒线程处理输入事件
if (runCommandsLockedInterruptible()) {
nextWakeupTime = LONG_LONG_MIN;
}
}
// 等待唤醒
nsecs_t currentTime = now();
int timeoutMillis = toMillisecondTimeoutDelay(currentTime, nextWakeupTime);
//调用pollOnce把当前线程挂起，后续InputReader读取线程会把新的事件发送给InputDispatcher 会把事件发送给InputEventReceiver
mLooper->pollOnce(timeoutMillis);
}
void InputDispatcher::dispatchOnceInnerLocked(nsecs_t* nextWakeupTime) {
//调度器被冻结 不需要处理超时或者任何事件 直接return
if (mDispatchFrozen) {
return;
}
//准备获取一个新的事件
if (! mPendingEvent) {
if (mInboundQueue.isEmpty()) {//如果队列为空
if (!mPendingEvent) {
return;
}
} else {
//从mInboundQueue中获取等处理的输入事件 (InputReader线程通过enqueueInBoundEventLocked 加入需要处理的事件)
mPendingEvent = mInboundQueue.dequeueAtHead();
traceInboundQueueLengthLocked();
}
//ANR
resetANRTimeoutsLocked();
}
//.....
switch (mPendingEvent->type) {
case EventEntry::TYPE_KEY: {//处理按键
done = dispatchKeyLocked(currentTime, typedEntry, &dropReason, nextWakeupTime);
break;
}
case EventEntry::TYPE_MOTION: {//处理touch
MotionEntry* typedEntry = static_cast<MotionEntry*>(mPendingEvent);
//调用dispatchMotionLocked 进行分发
done = dispatchMotionLocked(currentTime, typedEntry,
&dropReason, nextWakeupTime);
break;
}
}
}
bool InputDispatcher::dispatchMotionLocked(
nsecs_t currentTime, MotionEntry* entry, DropReason* dropReason, nsecs_t* nextWakeupTime) {
// 预处理
if (! entry->dispatchInProgress) {
entry->dispatchInProgress = true;
logOutboundMotionDetails("dispatchMotion - ", entry);
}
bool isPointerEvent = entry->source & AINPUT_SOURCE_CLASS_POINTER;
//事件源 会把所有可以接收当前输入事件的窗口加入到inputTarget中
std::vector<InputTarget> inputTargets;
bool conflictingPointerActions = false;
int32_t injectionResult;
if (isPointerEvent) {
// 触摸屏幕 调用findTouchedWindowTargetsLocked 查找当前的window 分发window 往inputTargets中填充数据
injectionResult = findTouchedWindowTargetsLocked(currentTime,
entry, inputTargets, nextWakeupTime, &conflictingPointerActions);
} else {
// 光标
injectionResult = findFocusedWindowTargetsLocked(currentTime,
entry, inputTargets, nextWakeupTime);
}
if (injectionResult == INPUT_EVENT_INJECTION_PENDING) {
return false;
}
//.....
//分发事件 给inputTargets
dispatchEventLocked(currentTime, entry, inputTargets);
return true;
}
//看看是如何定位window,填充数据的
int32_t InputDispatcher::findTouchedWindowTargetsLocked(nsecs_t currentTime,
const MotionEntry* entry, std::vector<InputTarget>& inputTargets, nsecs_t* nextWakeupTime,
bool* outConflictingPointerActions) {
enum InjectionPermission {
INJECTION_PERMISSION_UNKNOWN,
INJECTION_PERMISSION_GRANTED,
INJECTION_PERMISSION_DENIED
};
//获取到当前entry的displayId
int32_t displayId = entry->displayId;
//拿到action
int32_t action = entry->action;
//标记action
int32_t maskedAction = action & AMOTION_EVENT_ACTION_MASK;
//TouchState是一个设备可以接受Motion事件的窗口合集，他有一个窗口队列windows用来保存当前display中所有可以接收Motion事件的窗口,把相关窗口的信息都收集到mTempTouchState种，最后会把结果给inputTargets
const TouchState* oldState = nullptr;
ssize_t oldStateIndex = mTouchStatesByDisplay.indexOfKey(displayId);
if (oldStateIndex >= 0) {//寻找Motion窗口之前 先获取上一次的结果 拷贝到mTempTouchState，因为当我们down的时候遍历了所有的窗口，找到了接收当前输入事件的窗口，那么在后续move 或者up的事件 就不需要再遍历窗口了。
oldState = &mTouchStatesByDisplay.valueAt(oldStateIndex);
mTempTouchState.copyFrom(*oldState);
}
bool isSplit = mTempTouchState.split;
bool switchedDevice = mTempTouchState.deviceId >= 0 && mTempTouchState.displayId >= 0
&& (mTempTouchState.deviceId != entry->deviceId
|| mTempTouchState.source != entry->source
|| mTempTouchState.displayId != displayId);
//鼠标相关
bool isHoverAction = (maskedAction == AMOTION_EVENT_ACTION_HOVER_MOVE
|| maskedAction == AMOTION_EVENT_ACTION_HOVER_ENTER
|| maskedAction == AMOTION_EVENT_ACTION_HOVER_EXIT);
bool newGesture = (maskedAction == AMOTION_EVENT_ACTION_DOWN
|| maskedAction == AMOTION_EVENT_ACTION_SCROLL
|| isHoverAction);
bool wrongDevice = false;
if (newGesture) {//如果是新的事件
bool down = maskedAction == AMOTION_EVENT_ACTION_DOWN;
if (switchedDevice && mTempTouchState.down && !down && !isHoverAction) {
goto Failed;
}
//重置mTempTouchState，不使用上一次的结果 并且清除之前的状态
mTempTouchState.reset();
mTempTouchState.down = down;
mTempTouchState.deviceId = entry->deviceId;
mTempTouchState.source = entry->source;
mTempTouchState.displayId = displayId;
isSplit = false;
} else if (switchedDevice && maskedAction == AMOTION_EVENT_ACTION_MOVE) {
goto Failed;
}
if (newGesture || (isSplit && maskedAction == AMOTION_EVENT_ACTION_POINTER_DOWN)) {//手指按下
int32_t pointerIndex = getMotionEventActionPointerIndex(action);
int32_t x = int32_t(entry->pointerCoords[pointerIndex].
getAxisValue(AMOTION_EVENT_AXIS_X));
int32_t y = int32_t(entry->pointerCoords[pointerIndex].
getAxisValue(AMOTION_EVENT_AXIS_Y));
bool isDown = maskedAction == AMOTION_EVENT_ACTION_DOWN;
//通过findTouchedWindowAtLocked寻找接收触摸事件的窗口,当前窗口必须可见 以及不能包含NOT_TOUCHABLE 事件的x,y在窗口内（代码分析在下方）
sp<InputWindowHandle> newTouchedWindowHandle = findTouchedWindowAtLocked(
displayId, x, y, isDown /*addOutsideTargets*/, true /*addPortalWindows*/);
std::vector<TouchedMonitor> newGestureMonitors = isDown
? findTouchedGestureMonitorsLocked(displayId, mTempTouchState.portalWindows)
: std::vector<TouchedMonitor>{};
if (newTouchedWindowHandle == nullptr) {
//没有找到窗口，获取当前第一个窗口
newTouchedWindowHandle = mTempTouchState.getFirstForegroundWindowHandle();
}
//合法性校验
if (newTouchedWindowHandle == nullptr && newGestureMonitors.empty()) {
injectionResult = INPUT_EVENT_INJECTION_FAILED;
goto Failed;
}
//找到窗口
if (newTouchedWindowHandle != nullptr) {
//设置flag FLAG_FOREGROUND 和 FLAG_DISPATCH_AS_IS 设置为前台窗口并且不会被过滤
int32_t targetFlags = InputTarget::FLAG_FOREGROUND | InputTarget::FLAG_DISPATCH_AS_IS;
if (isSplit) {
targetFlags |= InputTarget::FLAG_SPLIT;
}
if (isWindowObscuredAtPointLocked(newTouchedWindowHandle, x, y)) {
targetFlags |= InputTarget::FLAG_WINDOW_IS_OBSCURED;
} else if (isWindowObscuredLocked(newTouchedWindowHandle)) {
targetFlags |= InputTarget::FLAG_WINDOW_IS_PARTIALLY_OBSCURED;
}
//更新状态
if (isHoverAction) {
newHoverWindowHandle = newTouchedWindowHandle;
} else if (maskedAction == AMOTION_EVENT_ACTION_SCROLL) {
newHoverWindowHandle = mLastHoverWindowHandle;
}
BitSet32 pointerIds;
if (isSplit) {
uint32_t pointerId = entry->pointerProperties[pointerIndex].id;
pointerIds.markBit(pointerId);
}
//把flag添加到 mTempTouchState (创建TouchedWindow push到当前的windows中)
mTempTouchState.addOrUpdateWindow(newTouchedWindowHandle, targetFlags, pointerIds);
}
mTempTouchState.addGestureMonitors(newGestureMonitors);
} else {//手指移动
if (! mTempTouchState.down) {//手指没有按下忽略事件
goto Failed;
}
//检查触摸是否超出屏幕 并且当前是move事件 单点触摸 并且没有设置SLIPPERY这个flag
if (maskedAction == AMOTION_EVENT_ACTION_MOVE
&& entry->pointerCount == 1
&& mTempTouchState.isSlippery()) {
int32_t x = int32_t(entry->pointerCoords[0].getAxisValue(AMOTION_EVENT_AXIS_X));
int32_t y = int32_t(entry->pointerCoords[0].getAxisValue(AMOTION_EVENT_AXIS_Y));
sp<InputWindowHandle> oldTouchedWindowHandle =
mTempTouchState.getFirstForegroundWindowHandle();
//重新寻找一个可以接收当前输入事件的窗口
sp<InputWindowHandle> newTouchedWindowHandle =
findTouchedWindowAtLocked(displayId, x, y);
//如果找到不同的窗口(其他函数可能会通过addOrUpdateWindow向windows中添加窗口)，移除旧窗口
if (oldTouchedWindowHandle != newTouchedWindowHandle
&& oldTouchedWindowHandle != nullptr
&& newTouchedWindowHandle != nullptr) {
//添加FLAG_DISPATCH_AS_SLIPPERY_EXIT 移除旧窗口
mTempTouchState.addOrUpdateWindow(oldTouchedWindowHandle,
InputTarget::FLAG_DISPATCH_AS_SLIPPERY_EXIT, BitSet32(0));
if (newTouchedWindowHandle->getInfo()->supportsSplitTouch()) {
isSplit = true;
}
//和之前的flag不同FLAG_DISPATCH_AS_IS->FLAG_DISPATCH_AS_SLIPPERY_ENTER 表示作为新的起点往下传送（因为我们是在move的情况下找的的新窗口，为了能让窗口接收到完整的Motion事件，所以要转换成down）
int32_t targetFlags = InputTarget::FLAG_FOREGROUND
| InputTarget::FLAG_DISPATCH_AS_SLIPPERY_ENTER;
if (isSplit) {
targetFlags |= InputTarget::FLAG_SPLIT;
}
if (isWindowObscuredAtPointLocked(newTouchedWindowHandle, x, y)) {
targetFlags |= InputTarget::FLAG_WINDOW_IS_OBSCURED;
}
BitSet32 pointerIds;
if (isSplit) {
pointerIds.markBit(entry->pointerProperties[0].id);
}
//添加新窗口
mTempTouchState.addOrUpdateWindow(newTouchedWindowHandle, targetFlags, pointerIds);
}
}
}
if (newHoverWindowHandle != mLastHoverWindowHandle) {
// 上一个窗口处理
if (mLastHoverWindowHandle != nullptr) {
mTempTouchState.addOrUpdateWindow(mLastHoverWindowHandle,
InputTarget::FLAG_DISPATCH_AS_HOVER_EXIT, BitSet32(0));
}
// 处理新窗口
if (newHoverWindowHandle != nullptr) {
mTempTouchState.addOrUpdateWindow(newHoverWindowHandle,
InputTarget::FLAG_DISPATCH_AS_HOVER_ENTER, BitSet32(0));
}
}
//安全检查 至少有一个前台窗口或者gesture monitor可以接受输入事件
{
bool haveForegroundWindow = false;
for (const TouchedWindow& touchedWindow : mTempTouchState.windows) {
if (touchedWindow.targetFlags & InputTarget::FLAG_FOREGROUND) {
haveForegroundWindow = true;
if (!checkInjectionPermission(touchedWindow.windowHandle,
entry->injectionState)) {
goto Failed;
}
}
}
bool hasGestureMonitor = !mTempTouchState.gestureMonitors.empty();
if (!haveForegroundWindow && !hasGestureMonitor) {
injectionResult = INPUT_EVENT_INJECTION_FAILED;
goto Failed;
}
injectionPermission = INJECTION_PERMISSION_GRANTED;
}
/....
for (const TouchedWindow& touchedWindow : mTempTouchState.windows) {
//把结果传递给inputTargets(代码如下，会包装inputChannel)
addWindowTargetLocked(touchedWindow.windowHandle, touchedWindow.targetFlags,
touchedWindow.pointerIds, inputTargets);
}
for (const TouchedMonitor& touchedMonitor : mTempTouchState.gestureMonitors) {
//把结果传递给inputTargets
addMonitoringTargetLocked(touchedMonitor.monitor, touchedMonitor.xOffset,
touchedMonitor.yOffset, inputTargets);
}
//mTempTouchState 保存了 所有可以接收Motion事件的窗口，所以需要进行一些处理工作(把没有FLAG_DISPATCH_AS_IS 和 FLAG_DISPATCH_AS_SLIPPERY_ENTER这两个flag的移除)
mTempTouchState.filterNonAsIsTouchWindows();
Failed:
//....
if (!wrongDevice) {
//......
//当前非滚动状态会保存操作 把mTempTouchState保存到mTouchStatesByDisplay，下一次进来这个函数的时候 直接获取上一次的结果，不需要遍历所有的窗口了
if (maskedAction != AMOTION_EVENT_ACTION_SCROLL) {
if (mTempTouchState.displayId >= 0) {
if (oldStateIndex >= 0) {
mTouchStatesByDisplay.editValueAt(oldStateIndex).copyFrom(mTempTouchState);
} else {
mTouchStatesByDisplay.add(displayId, mTempTouchState);
}
} else if (oldStateIndex >= 0) {
mTouchStatesByDisplay.removeItemsAt(oldStateIndex);
}
}
mLastHoverWindowHandle = newHoverWindowHandle;
}
return injectionResult;
}
void InputDispatcher::TouchState::filterNonAsIsTouchWindows() {
for (size_t i = 0 ; i < windows.size(); ) {
TouchedWindow& window = windows[i];
if (window.targetFlags & (InputTarget::FLAG_DISPATCH_AS_IS
| InputTarget::FLAG_DISPATCH_AS_SLIPPERY_ENTER)) {
window.targetFlags &= ~InputTarget::FLAG_DISPATCH_MASK;
window.targetFlags |= InputTarget::FLAG_DISPATCH_AS_IS;
i += 1;
} else {
//把没有FLAG_DISPATCH_AS_IS 和 FLAG_DISPATCH_AS_SLIPPERY_ENTER这两个flag的移除
windows.erase(windows.begin() + i);
}
}
}
// 从前一直遍历到最后的window 一直找到接收事件的window
sp<InputWindowHandle> InputDispatcher::findTouchedWindowAtLocked(int32_t displayId,
int32_t x, int32_t y, bool addOutsideTargets, bool addPortalWindows) {
//根据displayId 获取到所有的window信息 window信息都存储到mWindowHandlesByDisplay中
const std::vector<sp<InputWindowHandle>> windowHandles = getWindowHandlesLocked(displayId);
for (const sp<InputWindowHandle>& windowHandle : windowHandles) {
const InputWindowInfo* windowInfo = windowHandle->getInfo();
if (windowInfo->displayId == displayId) {
int32_t flags = windowInfo->layoutParamsFlags;
if (windowInfo->visible) {//窗口必须是可见的
if (!(flags & InputWindowInfo::FLAG_NOT_TOUCHABLE)) {//并且不能包含FLAG_NOT_TOUCHABLE 设置了这个window哪怕是可见的 也无法处理touch事件
//不能同时包含FLAG_NOT_FOCUSABLE 和 FLAG_NOT_TOUCH_MODAL 两个tag 如果窗口没有FLAG_NOT_TOUCH_MODAL 表示该窗口会消费所有坐标事件 无论事件是否在坐标里面
bool isTouchModal = (flags & (InputWindowInfo::FLAG_NOT_FOCUSABLE
| InputWindowInfo::FLAG_NOT_TOUCH_MODAL)) == 0;
if (isTouchModal || windowInfo->touchableRegionContainsPoint(x, y)) {
int32_t portalToDisplayId = windowInfo->portalToDisplayId;
if (portalToDisplayId != ADISPLAY_ID_NONE
&& portalToDisplayId != displayId) {
if (addPortalWindows) {
mTempTouchState.addPortalWindow(windowHandle);
}
return findTouchedWindowAtLocked(
portalToDisplayId, x, y, addOutsideTargets, addPortalWindows);
}
//返回windowHanlde
return windowHandle;
}
}
if (addOutsideTargets && (flags & InputWindowInfo::FLAG_WATCH_OUTSIDE_TOUCH)) {
mTempTouchState.addOrUpdateWindow(
windowHandle, InputTarget::FLAG_DISPATCH_AS_OUTSIDE, BitSet32(0));
}
}
}
}
return nullptr;
}
//根据displayId找到对应的窗口
std::vector<sp<InputWindowHandle>> InputDispatcher::getWindowHandlesLocked(
int32_t displayId) const {
std::unordered_map<int32_t, std::vector<sp<InputWindowHandle>>>::const_iterator it =
mWindowHandlesByDisplay.find(displayId);
if(it != mWindowHandlesByDisplay.end()) {
//返回结果
return it->second;
}
//返回空集合
return std::vector<sp<InputWindowHandle>>();
}
void InputDispatcher::TouchState::addOrUpdateWindow(const sp<InputWindowHandle>& windowHandle,
int32_t targetFlags, BitSet32 pointerIds) {
if (targetFlags & InputTarget::FLAG_SPLIT) {
split = true;
}
for (size_t i = 0; i < windows.size(); i++) {
TouchedWindow& touchedWindow = windows[i];
if (touchedWindow.windowHandle == windowHandle) {
touchedWindow.targetFlags |= targetFlags;
if (targetFlags & InputTarget::FLAG_DISPATCH_AS_SLIPPERY_EXIT) {//移除旧窗口的时候会擦除FLAG_DISPATCH_AS_IS 最后在过滤窗口的时候会过滤掉
touchedWindow.targetFlags &= ~InputTarget::FLAG_DISPATCH_AS_IS;
}
touchedWindow.pointerIds.value |= pointerIds.value;
return;
}
}
TouchedWindow touchedWindow;
touchedWindow.windowHandle = windowHandle;
touchedWindow.targetFlags = targetFlags;
touchedWindow.pointerIds = pointerIds;
windows.push_back(touchedWindow);
}
void InputDispatcher::addWindowTargetLocked(const sp<InputWindowHandle>& windowHandle,
int32_t targetFlags, BitSet32 pointerIds, std::vector<InputTarget>& inputTargets) {
//根据token获取到inputChannel(服务端)
sp<InputChannel> inputChannel = getInputChannelLocked(windowHandle->getToken());
if (inputChannel == nullptr) {
return;
}
const InputWindowInfo* windowInfo = windowHandle->getInfo();
InputTarget target;
target.inputChannel = inputChannel;
target.flags = targetFlags;
target.xOffset = - windowInfo->frameLeft;
target.yOffset = - windowInfo->frameTop;
target.globalScaleFactor = windowInfo->globalScaleFactor;
target.windowXScale = windowInfo->windowXScale;
target.windowYScale = windowInfo->windowYScale;
target.pointerIds = pointerIds;
inputTargets.push_back(target);
}
//找到窗口了，看看如何分发事件的
void InputDispatcher::dispatchEventLocked(nsecs_t currentTime,
EventEntry* eventEntry, const std::vector<InputTarget>& inputTargets) {
//遍历inputTargets
for (const InputTarget& inputTarget : inputTargets) {
ssize_t connectionIndex = getConnectionIndexLocked(inputTarget.inputChannel);
if (connectionIndex >= 0) {
//获取到Connection
sp<Connection> connection = mConnectionsByFd.valueAt(connectionIndex);
//调用prepareDispatchCycleLocked进行分发
prepareDispatchCycleLocked(currentTime, connection, eventEntry, &inputTarget);
} else {
}
}
}
void InputDispatcher::prepareDispatchCycleLocked(nsecs_t currentTime,
const sp<Connection>& connection, EventEntry* eventEntry, const InputTarget* inputTarget) {
if (connection->status != Connection::STATUS_NORMAL) {
return;
}
// 是否需要拆分输入事件
if (inputTarget->flags & InputTarget::FLAG_SPLIT) {
MotionEntry* originalMotionEntry = static_cast<MotionEntry*>(eventEntry);
if (inputTarget->pointerIds.count() != originalMotionEntry->pointerCount) {
MotionEntry* splitMotionEntry = splitMotionEvent(
originalMotionEntry, inputTarget->pointerIds);
enqueueDispatchEntriesLocked(currentTime, connection,
splitMotionEntry, inputTarget);
splitMotionEntry->release();
return;
}
}
//调用enqueueDispatchEntriesLocked
enqueueDispatchEntriesLocked(currentTime, connection, eventEntry, inputTarget);
}
void InputDispatcher::enqueueDispatchEntriesLocked(nsecs_t currentTime,
const sp<Connection>& connection, EventEntry* eventEntry, const InputTarget* inputTarget) {
bool wasEmpty = connection->outboundQueue.isEmpty();
// 如果窗口设置了FLAG_DISPATCH_AS_HOVER_EXIT 表示需要处理这种事件，封装成DispatchEntry类型 加入outBoundQueue队列
enqueueDispatchEntryLocked(connection, eventEntry, inputTarget,
InputTarget::FLAG_DISPATCH_AS_HOVER_EXIT);
enqueueDispatchEntryLocked(connection, eventEntry, inputTarget,
InputTarget::FLAG_DISPATCH_AS_OUTSIDE);
enqueueDispatchEntryLocked(connection, eventEntry, inputTarget,
InputTarget::FLAG_DISPATCH_AS_HOVER_ENTER);
enqueueDispatchEntryLocked(connection, eventEntry, inputTarget,
InputTarget::FLAG_DISPATCH_AS_IS);
enqueueDispatchEntryLocked(connection, eventEntry, inputTarget,
InputTarget::FLAG_DISPATCH_AS_SLIPPERY_EXIT);
enqueueDispatchEntryLocked(connection, eventEntry, inputTarget,
InputTarget::FLAG_DISPATCH_AS_SLIPPERY_ENTER);
if (wasEmpty && !connection->outboundQueue.isEmpty()) {
//这里会执行 开始分发
startDispatchCycleLocked(currentTime, connection);
}
}
//开始分发
void InputDispatcher::startDispatchCycleLocked(nsecs_t currentTime,
const sp<Connection>& connection) {
while (connection->status == Connection::STATUS_NORMAL
&& !connection->outboundQueue.isEmpty()) {//遍历队列
DispatchEntry* dispatchEntry = connection->outboundQueue.head;
dispatchEntry->deliveryTime = currentTime;
status_t status;
EventEntry* eventEntry = dispatchEntry->eventEntry;
switch (eventEntry->type) {
case EventEntry::TYPE_KEY: {//key事件
KeyEntry* keyEntry = static_cast<KeyEntry*>(eventEntry);
status = connection->inputPublisher.publishKeyEvent(dispatchEntry->seq,
keyEntry->deviceId, keyEntry->source, keyEntry->displayId,
dispatchEntry->resolvedAction, dispatchEntry->resolvedFlags,
keyEntry->keyCode, keyEntry->scanCode,
keyEntry->metaState, keyEntry->repeatCount, keyEntry->downTime,
keyEntry->eventTime);
break;
}
case EventEntry::TYPE_MOTION: {//motion事件
MotionEntry* motionEntry = static_cast<MotionEntry*>(eventEntry);
//publis motion事件 发送给对端 并且执行handleEvent
status = connection->inputPublisher.publishMotionEvent(dispatchEntry->seq,
motionEntry->deviceId, motionEntry->source, motionEntry->displayId,
dispatchEntry->resolvedAction, motionEntry->actionButton,
dispatchEntry->resolvedFlags, motionEntry->edgeFlags,
motionEntry->metaState, motionEntry->buttonState, motionEntry->classification,
xOffset, yOffset, motionEntry->xPrecision, motionEntry->yPrecision,
motionEntry->downTime, motionEntry->eventTime,
motionEntry->pointerCount, motionEntry->pointerProperties,
usingCoords);
break;
}
}
connection->outboundQueue.dequeue(dispatchEntry);
traceOutboundQueueLength(connection);
//加入到connection的waitQueue队列 客户端处理完成之后会从waitQueue中移除掉
connection->waitQueue.enqueueAtTail(dispatchEntry);
traceWaitQueueLength(connection);
}
}
status_t InputPublisher::publishMotionEvent(//...) {
//封装InputMessage
InputMessage msg;
//....
//调用(服务端)inputChannel 的sendMessage 给客户端发送事件 交给客户端处理
return mChannel->sendMessage(&msg);
}
status_t InputChannel::sendMessage(const InputMessage* msg) {
const size_t msgLength = msg->size();
InputMessage cleanMsg;
msg->getSanitizedCopy(&cleanMsg);
ssize_t nWrite;
do {
//通过socket的send函数把inputMessage 发送出去，那么发送给谁呢？我们看看这个mFd
nWrite = ::send(mFd, &cleanMsg, msgLength, MSG_DONTWAIT | MSG_NOSIGNAL);
} while (nWrite == -1 && errno == EINTR);
return OK;
}
//mFd在构造函数中赋值
InputChannel::InputChannel(const std::string& name, int fd) :
mName(name) {
setFd(fd);
}
让我们从native层先暂时回到Java层 看看是什么时候创建的InputChannel,回到ActivityThread的handleResumeActivity
public void handleResumeActivity(IBinder token, boolean finalStateRequest, boolean isForward,
String reason) {
//调用performResumeActivity
final ActivityClientRecord r = performResumeActivity(token, finalStateRequest, reason);
final Activity a = r.activity;
if (a.mVisibleFromClient) {
if (!a.mWindowAdded) {
a.mWindowAdded = true;
//wm.addView 调用到WindowManagerImpl的addView decor就是activity在attach的时候new的PhoneWIndow
wm.addView(decor, l);
} else {
a.onWindowAttributesChanged(l);
}
}
}
private final WindowManagerGlobal mGlobal = WindowManagerGlobal.getInstance();
public void addView(@NonNull View view, @NonNull ViewGroup.LayoutParams params) {
applyDefaultToken(params);
mGlobal.addView(view, params, mContext.getDisplay(), mParentWindow);
}
public void addView(View view, ViewGroup.LayoutParams params,
Display display, Window parentWindow) {
//....
root = new ViewRootImpl(view.getContext(), display);
try {
//调用serView
root.setView(view, wparams, panelParentView);
} catch (RuntimeException e) {
}
}
}
//调用setView
public void setView(View view, WindowManager.LayoutParams attrs, View panelParentView) {
synchronized (this) {
if (mView == null) {
mView = view;
//创建inputChannel
mInputChannel = new InputChannel();
//.... 调用addToDisplay mWindowSession = WindowManagerGlobal.getWindowSession 会调用windowManager.openSession 也就是WMS的openSession 这个session是用来和wms通信的 mWindow就是ViewRootImpl的W
res = mWindowSession.addToDisplay(mWindow, mSeq, mWindowAttributes,
getHostVisibility(), mDisplay.getDisplayId(), mTmpFrame,
mAttachInfo.mContentInsets, mAttachInfo.mStableInsets,
mAttachInfo.mOutsets, mAttachInfo.mDisplayCutout, mInputChannel,
mTempInsets);
//创建inputEventReceiver 此时的mInputChannel 就是客户端的inputChannel
mInputEventReceiver = new WindowInputEventReceiver(mInputChannel,
Looper.myLooper());
}
}
}
//创建inputEventReceiver
public InputEventReceiver(InputChannel inputChannel, Looper looper) {
//之前拿到的客户端的inputChannel
mInputChannel = inputChannel;
mMessageQueue = looper.getQueue();
//调用native层的nativeInit
mReceiverPtr = nativeInit(new WeakReference<InputEventReceiver>(this),
inputChannel, mMessageQueue);
mCloseGuard.open("dispose");
}
//native层初始化inputEventReceiver
static jlong nativeInit(JNIEnv* env, jclass clazz, jobject receiverWeak,
jobject inputChannelObj, jobject messageQueueObj) {
//拿到客户端的inputChannel
sp<InputChannel> inputChannel = android_view_InputChannel_getInputChannel(env,
inputChannelObj);
//获取到messageQueue
sp<MessageQueue> messageQueue = android_os_MessageQueue_getMessageQueue(env, messageQueueObj);
//创建receiver
sp<NativeInputEventReceiver> receiver = new NativeInputEventReceiver(env,
receiverWeak, inputChannel, messageQueue);
status_t status = receiver->initialize();
//强指针+1
receiver->incStrong(gInputEventReceiverClassInfo.clazz);
return reinterpret_cast<jlong>(receiver.get());
}
//客户端设置fdEvents
status_t NativeInputEventReceiver::initialize() {
setFdEvents(ALOOPER_EVENT_INPUT);
return OK;
}
//设置fdEvents
void NativeInputEventReceiver::setFdEvents(int events) {
if (mFdEvents != events) {
mFdEvents = events;
//调用服务端的getChannel()->getFd() 拿到客户端的fd 添加到Looper的fd中 也就是ViewRootImpl 就是客户端 当服务端写数据的时候 会调用到这里来
int fd = mInputConsumer.getChannel()->getFd();
if (events) {
mMessageQueue->getLooper()->addFd(fd, 0, events, this, NULL);
} else {
mMessageQueue->getLooper()->removeFd(fd);
}
}
}
//addFd
int Looper::addFd(int fd, int ident, int events, const sp<LooperCallback>& callback, void* data) {
{
AutoMutex _l(mLock);
Request request;
request.fd = fd;
request.ident = ident;
request.events = events;
request.seq = mNextRequestSeq++;
//设置callback
request.callback = callback;
request.data = data;
if (mNextRequestSeq == -1) mNextRequestSeq = 0;
struct epoll_event eventItem;
request.initEventItem(&eventItem);
ssize_t requestIndex = mRequests.indexOfKey(fd);
if (requestIndex < 0) {
int epollResult = epoll_ctl(mEpollFd.get(), EPOLL_CTL_ADD, fd, &eventItem);
//把request添加到mRequest中去
mRequests.add(fd, request);
} else {
int epollResult = epoll_ctl(mEpollFd.get(), EPOLL_CTL_MOD, fd, &eventItem);
if (epollResult < 0) {
if (errno == ENOENT) {
epollResult = epoll_ctl(mEpollFd.get(), EPOLL_CTL_ADD, fd, &eventItem);
scheduleEpollRebuildLocked();
} else {
return -1;
}
}
mRequests.replaceValueAt(requestIndex, request);
}
}
return 1;
}
//我们看看客户端怎么处理的 我们之前没有讲过Looper所以我们跟一下 了解下过程 之前在分发线程中调用了looper.pollOnce
文件目录:`/system/core/libutils/Looper.cpp`
int Looper::pollOnce(int timeoutMillis, int* outFd, int* outEvents, void** outData) {
for (;;) {
//调用pollInner
result = pollInner(timeoutMillis);
}
}
//调用pollInner
int Looper::pollInner(int timeoutMillis) {
int result = POLL_WAKE;
struct epoll_event eventItems[EPOLL_MAX_EVENTS];
//等待唤醒
int eventCount = epoll_wait(mEpollFd.get(), eventItems, EPOLL_MAX_EVENTS, timeoutMillis);
Done: ;
for (size_t i = 0; i < mResponses.size(); i++) {
Response& response = mResponses.editItemAt(i);
if (response.request.ident == POLL_CALLBACK) {
int fd = response.request.fd;
int events = response.events;
void* data = response.request.data;
//拿到request的callback调用handleEvent 也就是我们当初传递的this(NativeInputEventReceiver)
int callbackResult = response.request.callback->handleEvent(fd, events, data);
if (callbackResult == 0) {
removeFd(fd, response.request.seq);
}
response.request.callback.clear();
result = POLL_CALLBACK;
}
}
return result;
}
int NativeInputEventReceiver::handleEvent(int receiveFd, int events, void* data) {
//... 当前的事件 之前注册的事件传递的是ALOOPER_EVENT_INPUT
if (events & ALOOPER_EVENT_INPUT) {
JNIEnv* env = AndroidRuntime::getJNIEnv();
//调用consumeEvents 消费掉事件
status_t status = consumeEvents(env, false /*consumeBatches*/, -1, NULL);
mMessageQueue->raiseAndClearException(env, "handleReceiveCallback");
return status == OK || status == NO_MEMORY ? 1 : 0;
}
//...
}
//消费事件
status_t NativeInputEventReceiver::consumeEvents(JNIEnv* env,
bool consumeBatches, nsecs_t frameTime, bool* outConsumedBatch) {
//...
for (;;) {
uint32_t seq;
InputEvent* inputEvent;
//读取客户端inputChannel发送的事件并且转换为inputEvent(看看如何转换的)
status_t status = mInputConsumer.consume(&mInputEventFactory,
consumeBatches, frameTime, &seq, &inputEvent);
if (!skipCallbacks) {
//获取InputEventReceiver
if (!receiverObj.get()) {
receiverObj.reset(jniGetReferent(env, mReceiverWeakGlobal));
}
jobject inputEventObj;
switch (inputEvent->getType()) {
case AINPUT_EVENT_TYPE_KEY://key事件
inputEventObj = android_view_KeyEvent_fromNative(env,
static_cast<KeyEvent*>(inputEvent));
break;
case AINPUT_EVENT_TYPE_MOTION: {//motion事件
MotionEvent* motionEvent = static_cast<MotionEvent*>(inputEvent);
if ((motionEvent->getAction() & AMOTION_EVENT_ACTION_MOVE) && outConsumedBatch) {
*outConsumedBatch = true;
}
inputEventObj = android_view_MotionEvent_obtainAsCopy(env, motionEvent);
break;
}
}
if (inputEventObj) {
//调用Java层的dispatchInputEvent方法
env->CallVoidMethod(receiverObj.get(),
gInputEventReceiverClassInfo.dispatchInputEvent, seq, inputEventObj);
env->DeleteLocalRef(inputEventObj);
} else {
skipCallbacks = true;
}
}
}
}
//转换事件为InputEvent
status_t InputConsumer::consume(InputEventFactoryInterface* factory,
bool consumeBatches, nsecs_t frameTime, uint32_t* outSeq, InputEvent** outEvent) {
*outSeq = 0;
*outEvent = nullptr;
while (!*outEvent) {
//读取消息到mMsg（看看如何读取的）
status_t result = mChannel->receiveMessage(&mMsg);
switch (mMsg.header.type) {
case InputMessage::TYPE_KEY: {//key事件
KeyEvent* keyEvent = factory->createKeyEvent();
initializeKeyEvent(keyEvent, &mMsg);
*outSeq = mMsg.body.key.seq;
*outEvent = keyEvent;
break;
}
case InputMessage::TYPE_MOTION: {//motion事件
ssize_t batchIndex = findBatch(mMsg.body.motion.deviceId, mMsg.body.motion.source);
MotionEvent* motionEvent = factory->createMotionEvent();
if (! motionEvent) return NO_MEMORY;
updateTouchState(mMsg);
initializeMotionEvent(motionEvent, &mMsg);
*outSeq = mMsg.body.motion.seq;
*outEvent = motionEvent;
break;
}
}
}
return OK;
}
//读取消息
status_t InputChannel::receiveMessage(InputMessage* msg) {
ssize_t nRead;
do {
nRead = ::recv(mFd, msg, sizeof(InputMessage), MSG_DONTWAIT);
} while (nRead == -1 && errno == EINTR);
return OK;
}
//回到Java层（ViewRootImpl） 看看调用
public void dispatchInputEvent(InputEvent event) {
dispatchInputEvent(event, null);
}
public void dispatchInputEvent(InputEvent event, InputEventReceiver receiver) {
SomeArgs args = SomeArgs.obtain();
args.arg1 = event;
args.arg2 = receiver;
Message msg = mHandler.obtainMessage(MSG_DISPATCH_INPUT_EVENT, args);
//设置异步消息
msg.setAsynchronous(true);
mHandler.sendMessage(msg);
}
case MSG_DISPATCH_INPUT_EVENT: {
SomeArgs args = (SomeArgs) msg.obj;
InputEvent event = (InputEvent) args.arg1;
InputEventReceiver receiver = (InputEventReceiver) args.arg2;
//调用enqueueInputEvent
enqueueInputEvent(event, receiver, 0, true);
args.recycle();
} break;
void enqueueInputEvent(InputEvent event,
InputEventReceiver receiver, int flags, boolean processImmediately) {
//创建QueuedInputEvent对象 把event入队 mPendingInputEventHead指向队首
QueuedInputEvent q = obtainQueuedInputEvent(event, receiver, flags);
if (processImmediately) {//传递的是false
doProcessInputEvents();
} else {
//最终会调用doProcessInputEvents
scheduleProcessInputEvents();
}
}
void doProcessInputEvents() {
while (mPendingInputEventHead != null) {//遍历队列
QueuedInputEvent q = mPendingInputEventHead;
//调用deliverInputEvent 分发inputEvent
deliverInputEvent(q);
}
}
private void deliverInputEvent(QueuedInputEvent q) {
if (mInputEventConsistencyVerifier != null) {//判断属于同一系列输入事件的一致性，收集每一个检测出的错误，避免相同错误重复收集
mInputEventConsistencyVerifier.onInputEvent(q.mEvent, 0);
}
//获取InputStage(它是用来实现处理输入事件的责任链中的一个阶段的基类)
InputStage stage;
if (q.shouldSendToSynthesizer()) {//mflag是0 因此 返回false
stage = mSyntheticInputStage;
} else {
//判断是否是MotionEvent 以及输入源(触摸屏 鼠标 手写笔)返回mFirstPostImeInputStage (EarlyPostImeInputState)否则 mFirstInputStage(NativePreImeInputStage IME处理前阶段)
stage = q.shouldSkipIme() ? mFirstPostImeInputStage : mFirstInputStage;
}
if (stage != null) {
handleWindowFocusChanged();
//调用deliver
stage.deliver(q);
} else {
finishInputEvent(q);
}
}
public final void deliver(QueuedInputEvent q) {
//根据当前mFlags判断
if ((q.mFlags & QueuedInputEvent.FLAG_FINISHED) != 0) {//如果标记了调用forward 向下一个分发
forward(q);
} else if (shouldDropInputEvent(q)) {//丢弃 添加FLAG_FINISHED标记
finish(q, false);
} else {//处理
apply(q, onProcess(q));
}
}
protected int onProcess(QueuedInputEvent q) {
if (q.mEvent instanceof KeyEvent) {//处理keyEvent
return processKeyEvent(q);
} else if (q.mEvent instanceof MotionEvent) {//处理MotionEvent
return processMotionEvent(q);
}
return FORWARD;
}
//处理MotionEvent
private int processMotionEvent(QueuedInputEvent q) {
final MotionEvent event = (MotionEvent) q.mEvent;
if (event.isFromSource(InputDevice.SOURCE_CLASS_POINTER)) {
return processPointerEvent(q);
}
return FORWARD;
}
//处理PointerEvent
private int processPointerEvent(QueuedInputEvent q) {
//获取Event
final MotionEvent event = (MotionEvent)q.mEvent;
//获取action
final int action = event.getAction();
if (action == MotionEvent.ACTION_DOWN || action == MotionEvent.ACTION_SCROLL) {
ensureTouchMode(event.isFromSource(InputDevice.SOURCE_TOUCHSCREEN));
}
if (action == MotionEvent.ACTION_DOWN && mAttachInfo.mTooltipHost != null) {
//...交给下一个
return FORWARD;
}
//ViewPostImeInputStage的 因为会分发 所以会到这里来
private int processPointerEvent(QueuedInputEvent q) {
final MotionEvent event = (MotionEvent)q.mEvent;
//mView就是PhoneWindow(DecorView) 调用到View的dispatchPointerEvent 然后往下分发
boolean handled = mView.dispatchPointerEvent(event);
return handled ? FINISH_HANDLED : FORWARD;
}
public final boolean dispatchPointerEvent(MotionEvent event) {
if (event.isTouchEvent()) {
return dispatchTouchEvent(event);
} else {
return dispatchGenericMotionEvent(event);
}
}
//DecorView的dispatchTouchEvent
public boolean dispatchTouchEvent(MotionEvent ev) {
//mWindow.setCallback(this); callback在Activity的attach中设置的 设置的是this也就是Activity 调用Activity的dispatchTouchEvent
final Window.Callback cb = mWindow.getCallback();
return cb != null && !mWindow.isDestroyed() && mFeatureId < 0
? cb.dispatchTouchEvent(ev) : super.dispatchTouchEvent(ev);
}
//处理
protected void apply(QueuedInputEvent q, int result) {
if (result == FORWARD) {
forward(q);
} else if (result == FINISH_HANDLED) {
finish(q, true);
} else if (result == FINISH_NOT_HANDLED) {
finish(q, false);
} else {
throw new IllegalArgumentException("Invalid result: " + result);
}
}
//Activity分发touch
public boolean dispatchTouchEvent(MotionEvent ev) {
if (ev.getAction() == MotionEvent.ACTION_DOWN) {//Down的时候触发onUserInteraction
onUserInteraction();
}
if (getWindow().superDispatchTouchEvent(ev)) {//把事件分发给View层
return true;
}
//处理在没有任何View接收的touch 比如dialog意外的区域
return onTouchEvent(ev);
}
//PhoneWindow中分发
public boolean superDispatchTouchEvent(MotionEvent event) {
return mDecor.superDispatchTouchEvent(event);
}
//DecorView分发
public boolean superDispatchTouchEvent(MotionEvent event) {
//交给ViewGroup分发
return super.dispatchTouchEvent(event);
}
public int addToDisplay(IWindow window, int seq, WindowManager.LayoutParams attrs,
int viewVisibility, int displayId, Rect outFrame, Rect outContentInsets,
Rect outStableInsets, Rect outOutsets,
DisplayCutout.ParcelableWrapper outDisplayCutout, InputChannel outInputChannel,
InsetsState outInsetsState) {
//调用wms的addWindow 传入的window就是客户端
return mService.addWindow(this, window, seq, attrs, viewVisibility, displayId, outFrame,
outContentInsets, outStableInsets, outOutsets, outDisplayCutout, outInputChannel,
outInsetsState);
}
public int addWindow(Session session, IWindow client, int seq,
LayoutParams attrs, int viewVisibility, int displayId, Rect outFrame,
Rect outContentInsets, Rect outStableInsets, Rect outOutsets,
DisplayCutout.ParcelableWrapper outDisplayCutout, InputChannel outInputChannel,
InsetsState outInsetsState) {
//....
final boolean openInputChannels = (outInputChannel != null
&& (attrs.inputFeatures & INPUT_FEATURE_NO_INPUT_CHANNEL) == 0);
if (openInputChannels) {
//调用到WindowState的openInputChannel
win.openInputChannel(outInputChannel);
}
//...
}
void openInputChannel(InputChannel outInputChannel) {
String name = getName();
//调用InputChannel的openInputChannelPair 创建Native层的serverChannel和clientChannel
InputChannel[] inputChannels = InputChannel.openInputChannelPair(name);
mInputChannel = inputChannels[0];
mClientChannel = inputChannels[1];
mInputWindowHandle.token = mClient.asBinder();
if (outInputChannel != null) {
//调用客户端的transferTo(outInputChannel) outInputChannel就是客户端
mClientChannel.transferTo(outInputChannel);
mClientChannel.dispose();
mClientChannel = null;
} else {
mDeadWindowEventReceiver = new DeadWindowEventReceiver(mClientChannel);
}
//注册inputChannel(服务端) 并且获取mClient的Binder 也就是ViewRootImpl的W
mWmService.mInputManager.registerInputChannel(mInputChannel, mClient.asBinder());
}
public void registerInputChannel(InputChannel inputChannel, IBinder token) {
//服务端有客户端的token
inputChannel.setToken(token);
//调用native层的registerInputChannel
nativeRegisterInputChannel(mPtr, inputChannel, Display.INVALID_DISPLAY);
}
//本地的注册InputChannel
static void nativeRegisterInputChannel(JNIEnv* env, jclass /* clazz */,
jlong ptr, jobject inputChannelObj, jint displayId) {
//得到NativeInputManager
NativeInputManager* im = reinterpret_cast<NativeInputManager*>(ptr);
//拿到服务端
sp<InputChannel> inputChannel = android_view_InputChannel_getInputChannel(env,
inputChannelObj);
//调用注册
status_t status = im->registerInputChannel(env, inputChannel, displayId);
//设置客户端
android_view_InputChannel_setDisposeCallback(env, inputChannelObj,
handleInputChannelDisposed, im);
}
status_t NativeInputManager::registerInputChannel(JNIEnv* /* env */,
const sp<InputChannel>& inputChannel, int32_t displayId) {
//拿到InputDispatcher 调用registerInputChannel
return mInputManager->getDispatcher()->registerInputChannel(
inputChannel, displayId);
}
//注册InputChannel
status_t InputDispatcher::registerInputChannel(const sp<InputChannel>& inputChannel,
int32_t displayId) {
{
//创建Connection 用来管理相关的InputChannel(服务端)的分发状态
sp<Connection> connection = new Connection(inputChannel, false /*monitor*/);
//获取到服务端fd
int fd = inputChannel->getFd();
//把connection 添加到mConnectionsByFd 以inputChannel的fd为key 可以通过fd 获取到connection
mConnectionsByFd.add(fd, connection);
//把inputChannel存入mInputChannelsByToken 以token为key 可以通过token 获取到inputChannel 当looper 唤醒之后会回调到handleReceiveCallback token就是客户端的token,后边可以根据客户端的token获取到Connection
mInputChannelsByToken[inputChannel->getToken()] = inputChannel;
//把服务端的fd添加到mLooper中 感兴趣input事件 并且设置回调为handleReceiveCallback 我们看看 WMS在接收到客户端事件之后如何处理的
mLooper->addFd(fd, 0, ALOOPER_EVENT_INPUT, handleReceiveCallback, this);
}
// 唤醒looper
mLooper->wake();
return OK;
}
//WMS端收到事件之后的处理
int InputDispatcher::handleReceiveCallback(int fd, int events, void* data) {
InputDispatcher* d = static_cast<InputDispatcher*>(data);
{
std::scoped_lock _l(d->mLock);
//根据fd 拿到Connection
ssize_t connectionIndex = d->mConnectionsByFd.indexOfKey(fd);
bool notify;
sp<Connection> connection = d->mConnectionsByFd.valueAt(connectionIndex);
if (!(events & (ALOOPER_EVENT_ERROR | ALOOPER_EVENT_HANGUP))) {//走这里
nsecs_t currentTime = now();
bool gotOne = false;
status_t status;
for (;;) {
uint32_t seq;
bool handled;
//接收窗口处理完成的消息 调用到inputChannel的receiveFinishedSignal 通过channel接收信息 存储到seq和 handled中
status = connection->inputPublisher.receiveFinishedSignal(&seq, &handled);
//post一个command 其实就是调用doDispatchCycleFinishedLockedInterruptible 继续执行分发任务
d->finishDispatchCycleLocked(currentTime, connection, seq, handled);
gotOne = true;
}
if (gotOne) {
//执行command
d->runCommandsLockedInterruptible();
if (status == WOULD_BLOCK) {
return 1;
}
}
notify = status != DEAD_OBJECT || !connection->monitor;
} else {
notify = !connection->monitor;
}
d->unregisterInputChannelLocked(connection->inputChannel, notify);
return 0;
}
}
void InputDispatcher::finishDispatchCycleLocked(nsecs_t currentTime,
const sp<Connection>& connection, uint32_t seq, bool handled) {
connection->inputPublisherBlocked = false;
//调用onDispatchCycleFinishedLocked
onDispatchCycleFinishedLocked(currentTime, connection, seq, handled);
}
void InputDispatcher::onDispatchCycleFinishedLocked(
nsecs_t currentTime, const sp<Connection>& connection, uint32_t seq, bool handled) {
//post一个Command 并且设置值(添加到mCommandQueue 队列中)
CommandEntry* commandEntry = postCommandLocked(
& InputDispatcher::doDispatchCycleFinishedLockedInterruptible);
commandEntry->connection = connection;
commandEntry->eventTime = currentTime;
commandEntry->seq = seq;
commandEntry->handled = handled;
}
void InputDispatcher::doDispatchCycleFinishedLockedInterruptible(
CommandEntry* commandEntry) {
sp<Connection> connection = commandEntry->connection;
nsecs_t finishTime = commandEntry->eventTime;
uint32_t seq = commandEntry->seq;
bool handled = commandEntry->handled;
//通过connection的等待队列获取到DispatchEntry
DispatchEntry* dispatchEntry = connection->findWaitQueueEntry(seq);
if (dispatchEntry) {
if (dispatchEntry == connection->findWaitQueueEntry(seq)) {
connection->waitQueue.dequeue(dispatchEntry);//客户端(窗口)处理完成之后,出队列
if (restartEvent && connection->status == Connection::STATUS_NORMAL) {
connection->outboundQueue.enqueueAtHead(dispatchEntry);
traceOutboundQueueLength(connection);
} else {//释放资源
releaseDispatchEntry(dispatchEntry);
}
}
//...如果当前connection中的outBoundQueue还有Event开启下一轮的Dispatch
startDispatchCycleLocked(now(), connection);
}
}
static void android_view_InputChannel_nativeTransferTo(JNIEnv* env, jobject obj,
jobject otherObj) {
NativeInputChannel* nativeInputChannel =
android_view_InputChannel_getNativeInputChannel(env, obj);
//设置otherObj的mptr为nativeInputChannel
android_view_InputChannel_setNativeInputChannel(env, otherObj, nativeInputChannel);
//设置自己的mptr为NULL
android_view_InputChannel_setNativeInputChannel(env, obj, NULL);
}
public static InputChannel[] openInputChannelPair(String name) {
//调用native的函数nativeOpenInputChannelPair
return nativeOpenInputChannelPair(name);
}
//打开inputChannelPair
static jobjectArray android_view_InputChannel_nativeOpenInputChannelPair(JNIEnv* env,
jclass clazz, jstring nameObj) {
ScopedUtfChars nameChars(env, nameObj);
std::string name = nameChars.c_str();
sp<InputChannel> serverChannel;
sp<InputChannel> clientChannel;
//调用InputChannel的openInputChannelPair
status_t result = InputChannel::openInputChannelPair(name, serverChannel, clientChannel);
//创建java层数组对象
jobjectArray channelPair = env->NewObjectArray(2, gInputChannelClassInfo.clazz, NULL);
//创建java层对象
jobject serverChannelObj = android_view_InputChannel_createInputChannel(env,
std::make_unique<NativeInputChannel>(serverChannel));
if (env->ExceptionCheck()) {
return NULL;
}
jobject clientChannelObj = android_view_InputChannel_createInputChannel(env,
std::make_unique<NativeInputChannel>(clientChannel));
if (env->ExceptionCheck()) {
return NULL;
}
//设置数组的值
env->SetObjectArrayElement(channelPair, 0, serverChannelObj);
env->SetObjectArrayElement(channelPair, 1, clientChannelObj);
return channelPair;
}
//打开服务端和客户端
status_t InputChannel::openInputChannelPair(const std::string& name,
sp<InputChannel>& outServerChannel, sp<InputChannel>& outClientChannel) {
int sockets[2];
if (socketpair(AF_UNIX, SOCK_SEQPACKET, 0, sockets)) {
return result;
}
int bufferSize = SOCKET_BUFFER_SIZE;
setsockopt(sockets[0], SOL_SOCKET, SO_SNDBUF, &bufferSize, sizeof(bufferSize));
setsockopt(sockets[0], SOL_SOCKET, SO_RCVBUF, &bufferSize, sizeof(bufferSize));
setsockopt(sockets[1], SOL_SOCKET, SO_SNDBUF, &bufferSize, sizeof(bufferSize));
setsockopt(sockets[1], SOL_SOCKET, SO_RCVBUF, &bufferSize, sizeof(bufferSize));
std::string serverChannelName = name;
serverChannelName += " (server)";
outServerChannel = new InputChannel(serverChannelName, sockets[0]);
std::string clientChannelName = name;
clientChannelName += " (client)";
outClientChannel = new InputChannel(clientChannelName, sockets[1]);
return OK;
}
总结:
1.ActivityThread在创建Activity的时候: attach:通过Activity的attach 创建了PhoneWindow和activity进行了绑定并且给mWindow.setCallBack(this)也就是Activity。
handleResumeActivity:
1.服务端:通过WindowManager.addView把当前的decor传递给ViewRootImpl 调用setView(addToDisplay)和WMS进行通信,在WMS的addToDisplay中通过session.addWindow 打开了InputChannel(Native层打开了客户端和服务端)并且给服务端的IMS注册了InputChannel为刚才创建的Server端InputChannel(创建Connection 把Connection添加到mConnectionsByFd和mInputChannelsByToken中，并且在mLooper中添加感兴趣的事件为ALOOPER_EVENT_INPUT)。
2.客户端:ViewRootImpl.addView中创建WindowInputEventReceiver,Native层创建NativeInputEventReceiver，设置looper的感兴趣事件为ALOOPER_EVENT_INPUT,并且设置回调为this(并且我们分析了Looper在addFd中 会创建Request 并把他添加到mRequests中)。
2.当调用IMS的start函数之后,InputDispatcher启动之后会调用pollOnce阻塞等待唤醒，内部调用pollInner 如果被唤醒之后会获取callback也就是我们客户端传递的this 调用handleEvent进行处理,调用consumeEvents来获取消息过来的输入事件，通过InputChannel的consume把原始事件转换为InputEvent 然后回调到Java层的dispatchInputEvent(ViewRootImpl),调用到processPointerEvent 最终传递给WindowCallBack 也就是Activity的dispatchTouchEvent 通过getWindow().superDispatchTouchEvent(ev) 把事件传递给View层 然后再下发，这个我们后边再讲。

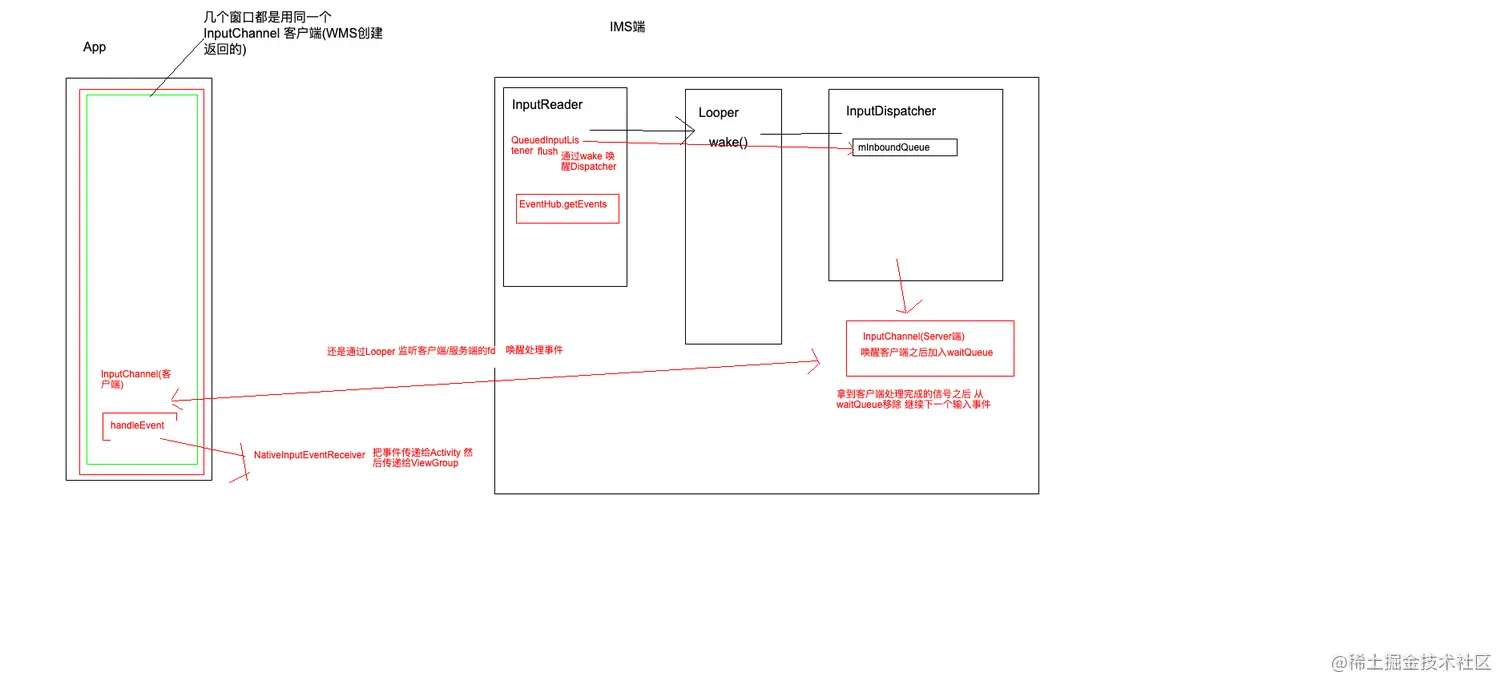

总结
1.IMS 启动流程图
2.Input事件的获取
3.Input事件的分发
4.Activity 和 WMS的一些准备
5.整体运行图
IMS的内容非常多，逻辑也不是很复杂，相信通过Demo的代码 和运行图 大家都能了解 他的工作原理了，那么我们下一次在WMS的渲染再见啦~
在线视频:
【【AndroidFrameWork】InputManagerService】 b23.tv/ceNE1Vm
