Note CURD分别提供http接口和websocket 接口
http接口：
zeppelin-server\src\main\java\org\apache\zeppelin\rest\NotebookRestApi.java
websocket接口：
zeppelin-server\src\main\java\org\apache\zeppelin\socket\NotebookServer.java
creatNote 时序图(SequenceDiagram生成):
编辑

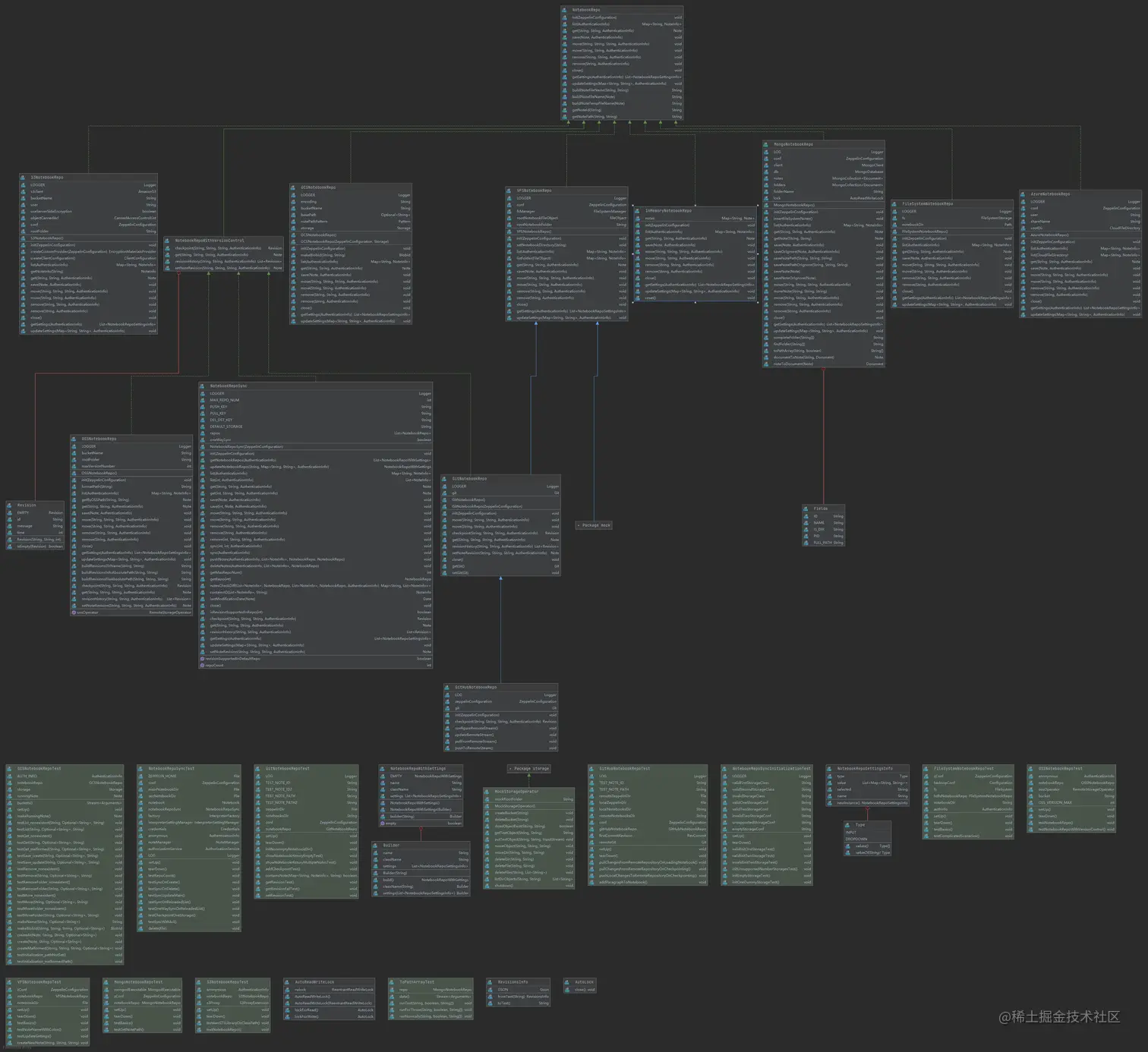

NotebookRepo类图
/**
* Notebook repository (persistence layer) abstraction.
*/
public interface NotebookRepo {
void init(ZeppelinConfiguration zConf) throws IOException;
/**
* Lists notebook information about all notebooks in storage. This method should only read
* the note file name, rather than reading all note content which usually takes long time.
*
* @param subject contains user information.
* @return Map of noteId -> NoteInfo
* @throws IOException
*/
@ZeppelinApi
Map<String, NoteInfo> list(AuthenticationInfo subject) throws IOException;
/**
* Get the notebook with the given noteId and given notePath.
*
* @param noteId is note id.
* @param notePath is note path
* @param subject contains user information.
* @return
* @throws IOException
*/
@ZeppelinApi
Note get(String noteId, String notePath, AuthenticationInfo subject) throws IOException;
/**
* Save given note in storage
*
* @param note is the note itself.
* @param subject contains user information.
* @throws IOException
*/
@ZeppelinApi
void save(Note note, AuthenticationInfo subject) throws IOException;
/**
*
* Move given note to another path
*
* @param noteId
* @param notePath
* @param newNotePath
* @throws IOException
*/
@ZeppelinApi
void move(String noteId, String notePath, String newNotePath,
AuthenticationInfo subject) throws IOException;
/**
* Move folder to another path
*
* @param folderPath
* @param newFolderPath
* @param subject
* @throws IOException
*/
void move(String folderPath, String newFolderPath,
AuthenticationInfo subject) throws IOException;
/**
* Remove note with given id and notePath
*
* @param noteId is note id.
* @param notePath is note path
* @param subject contains user information.
* @throws IOException
*/
@ZeppelinApi
void remove(String noteId, String notePath, AuthenticationInfo subject) throws IOException;
/**
* Remove folder
*
* @param folderPath
* @param subject
* @throws IOException
*/
@ZeppelinApi
void remove(String folderPath, AuthenticationInfo subject) throws IOException;
/**
* Release any underlying resources
*/
@ZeppelinApi
void close();
/**
* Get NotebookRepo settings got the given user.
*
* @param subject
* @return
*/
@ZeppelinApi
List<NotebookRepoSettingsInfo> getSettings(AuthenticationInfo subject);
/**
* update notebook repo settings.
*
* @param settings
* @param subject
*/
@ZeppelinApi
void updateSettings(Map<String, String> settings, AuthenticationInfo subject);
default String buildNoteFileName(String noteId, String notePath) throws IOException {
if (!notePath.startsWith("/")) {
throw new IOException("Invalid notePath: " + notePath);
}
return (notePath + "_" + noteId + ".zpln").substring(1);
}
default String buildNoteFileName(Note note) throws IOException {
return buildNoteFileName(note.getId(), note.getPath());
}
default String buildNoteTempFileName(Note note) {
return (note.getPath() + "_" + note.getId() + ".tmp").substring(1);
}
default String getNoteId(String noteFileName) throws IOException {
int separatorIndex = noteFileName.lastIndexOf("_");
if (separatorIndex == -1) {
throw new IOException(
"Invalid note name, no '_' in note name: " + noteFileName);
}
try {
int dotIndex = noteFileName.lastIndexOf(".");
return noteFileName.substring(separatorIndex + 1, dotIndex);
} catch (StringIndexOutOfBoundsException e) {
throw new IOException("Invalid note name: " + noteFileName);
}
}
default String getNotePath(String rootNoteFolder, String noteFileName)
throws IOException {
int index = noteFileName.lastIndexOf("_");
if (index == -1) {
throw new IOException(
"Invalid note name, no '_' in note name: " + noteFileName);
}
try {
return noteFileName.substring(rootNoteFolder.length(), index);
} catch (StringIndexOutOfBoundsException e) {
throw new IOException("Invalid note name: " + noteFileName);
}
}
}
编辑
