1. springboot项目初始化

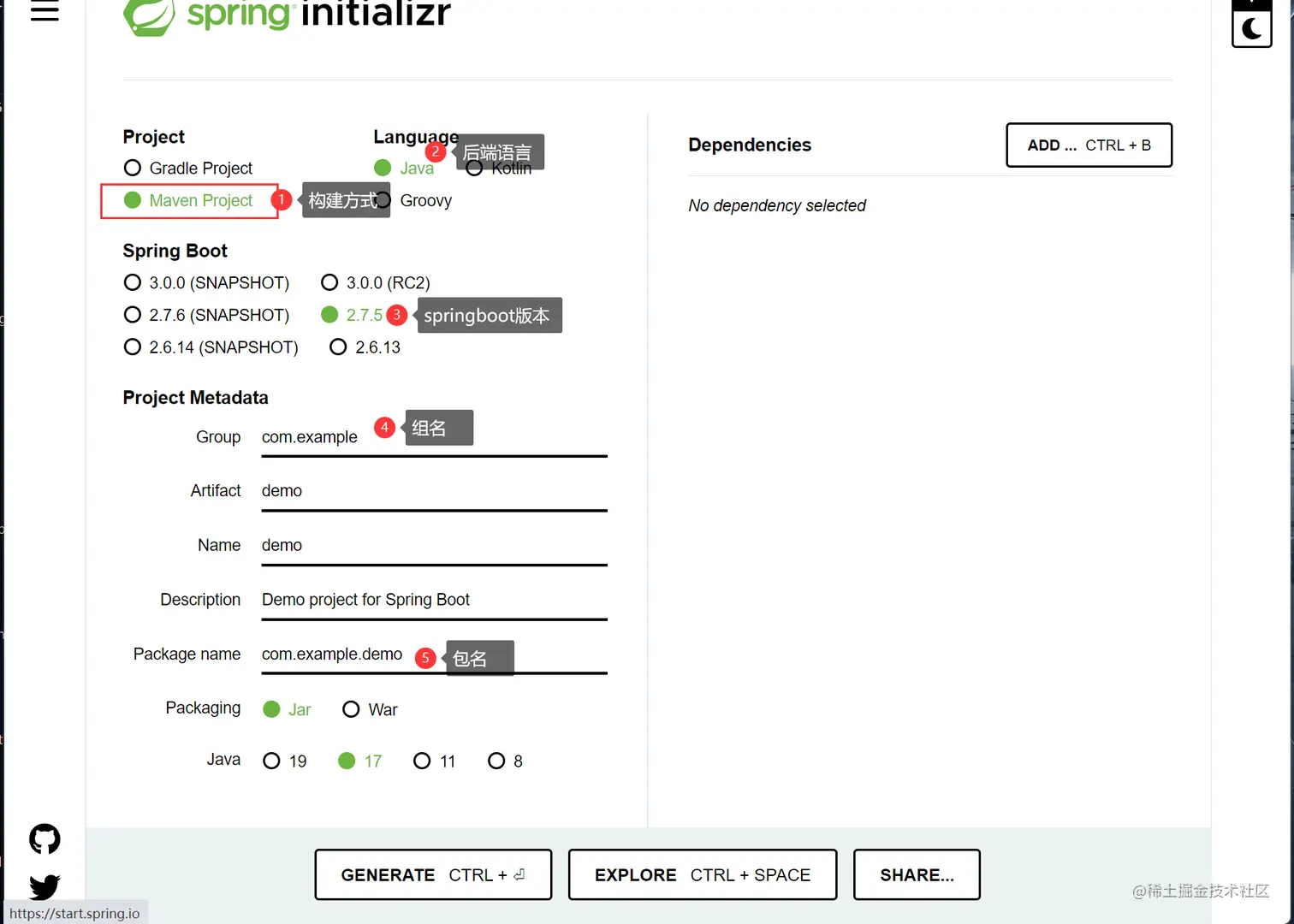

1.1 方式一：springboot官方的模板生成器

1.2 方式二：idea开发工具生成（推荐）

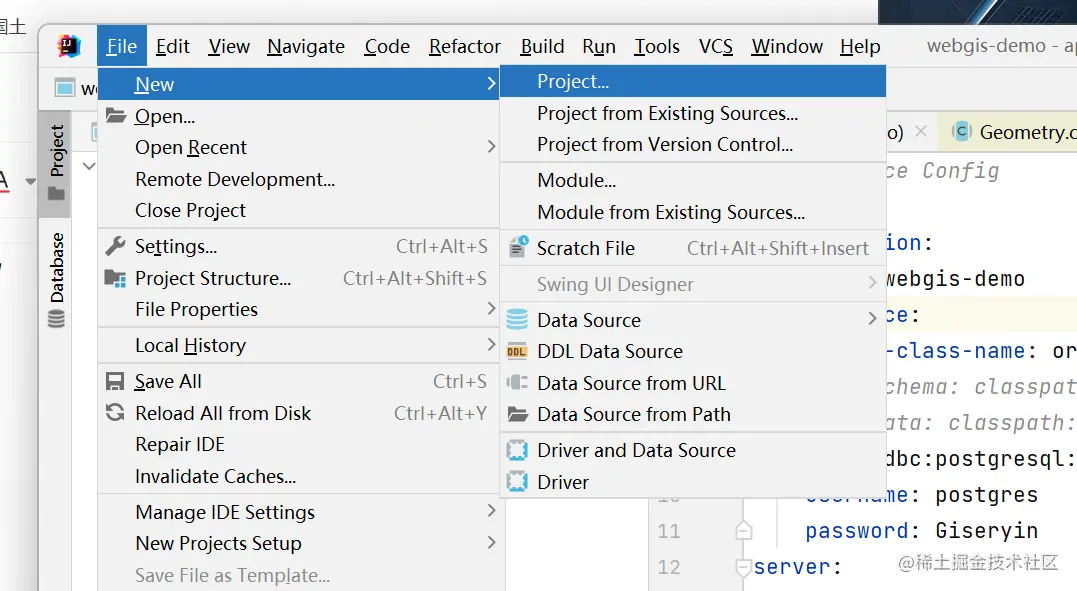

1.2.1 新建项目

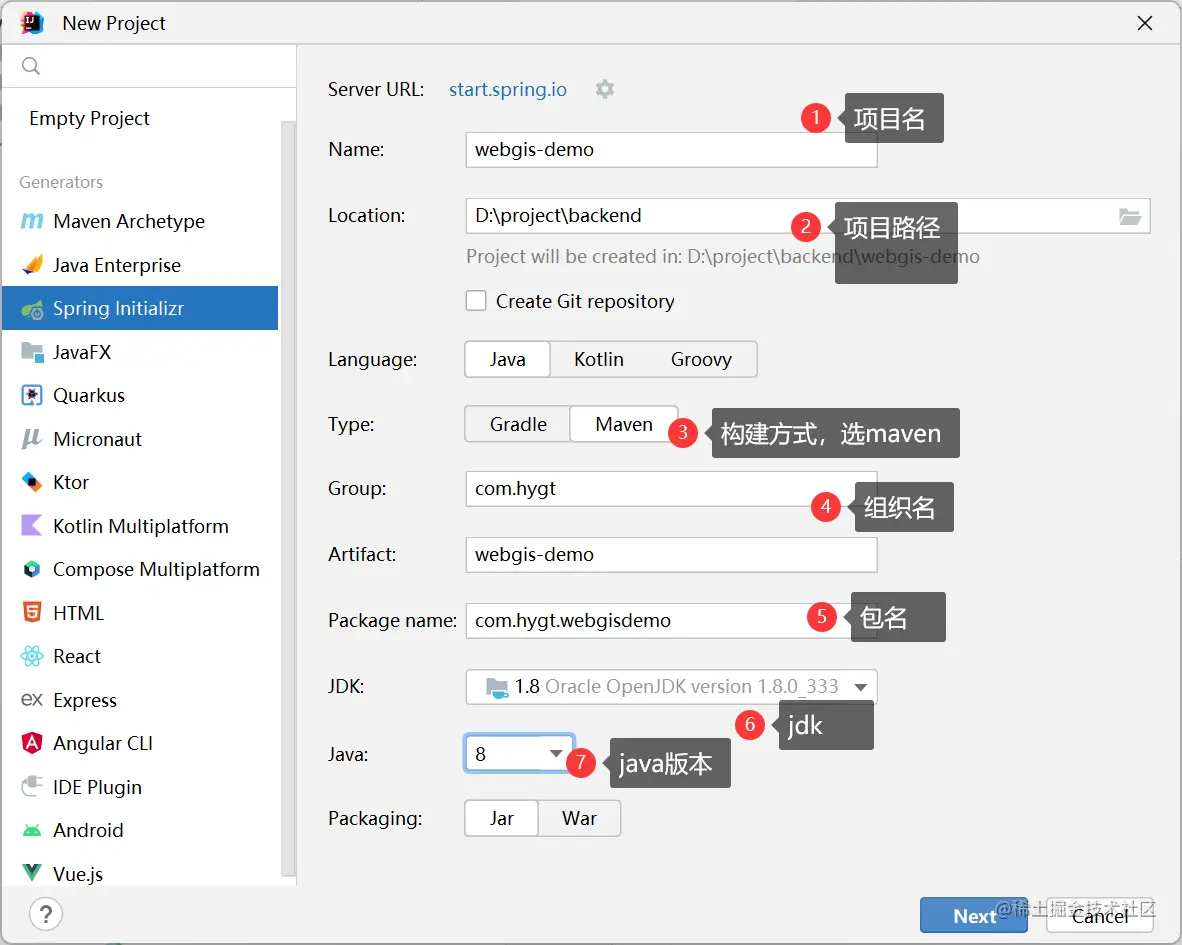

1.2.2 选择spring initializr, 修改参数

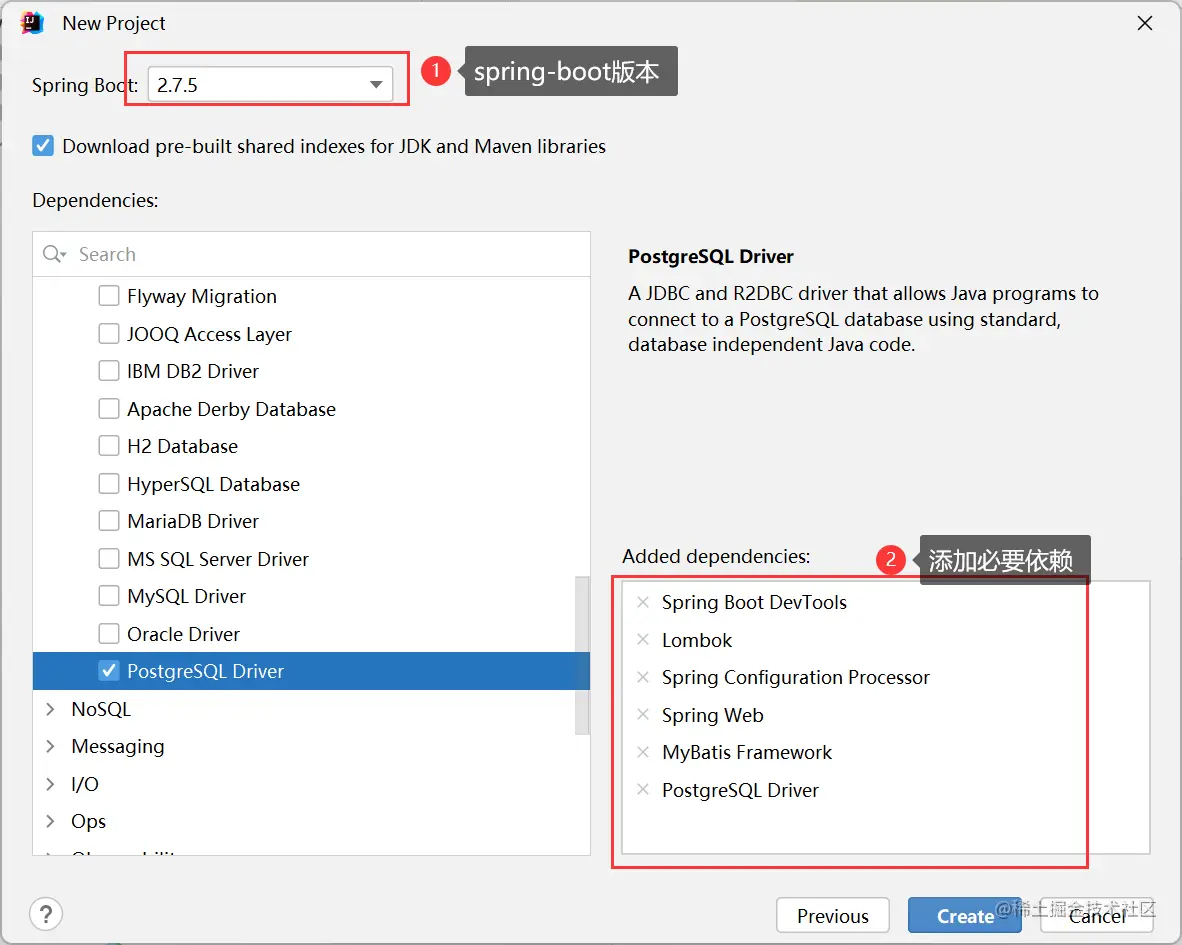

1.2.3 添加依赖

1.2.4 项目初始化成功

1.2.5 idea连接本地数据库

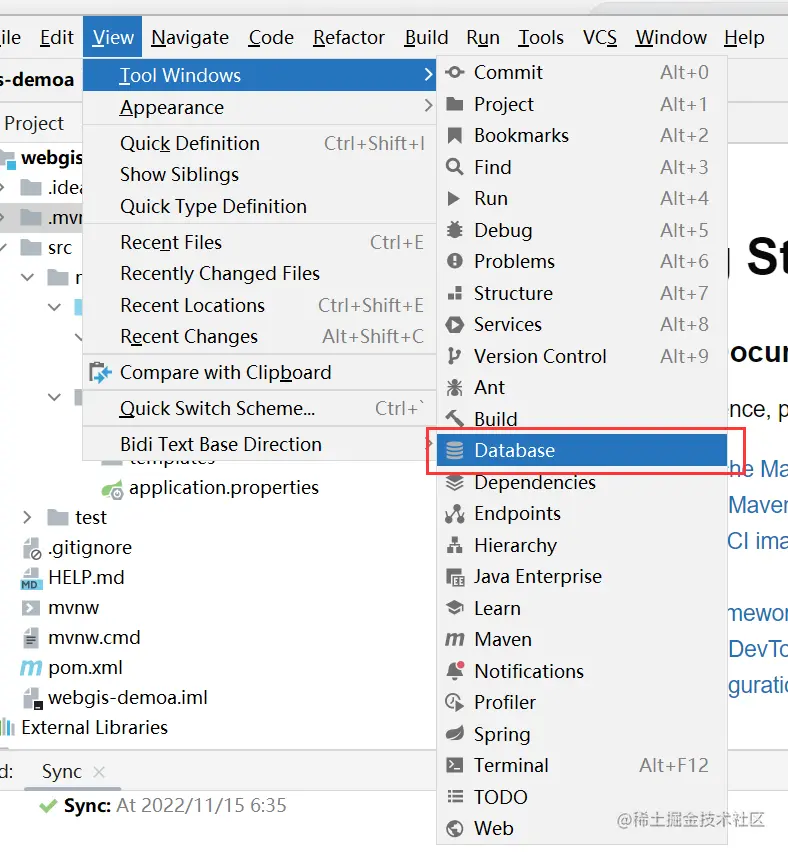

打开database工具

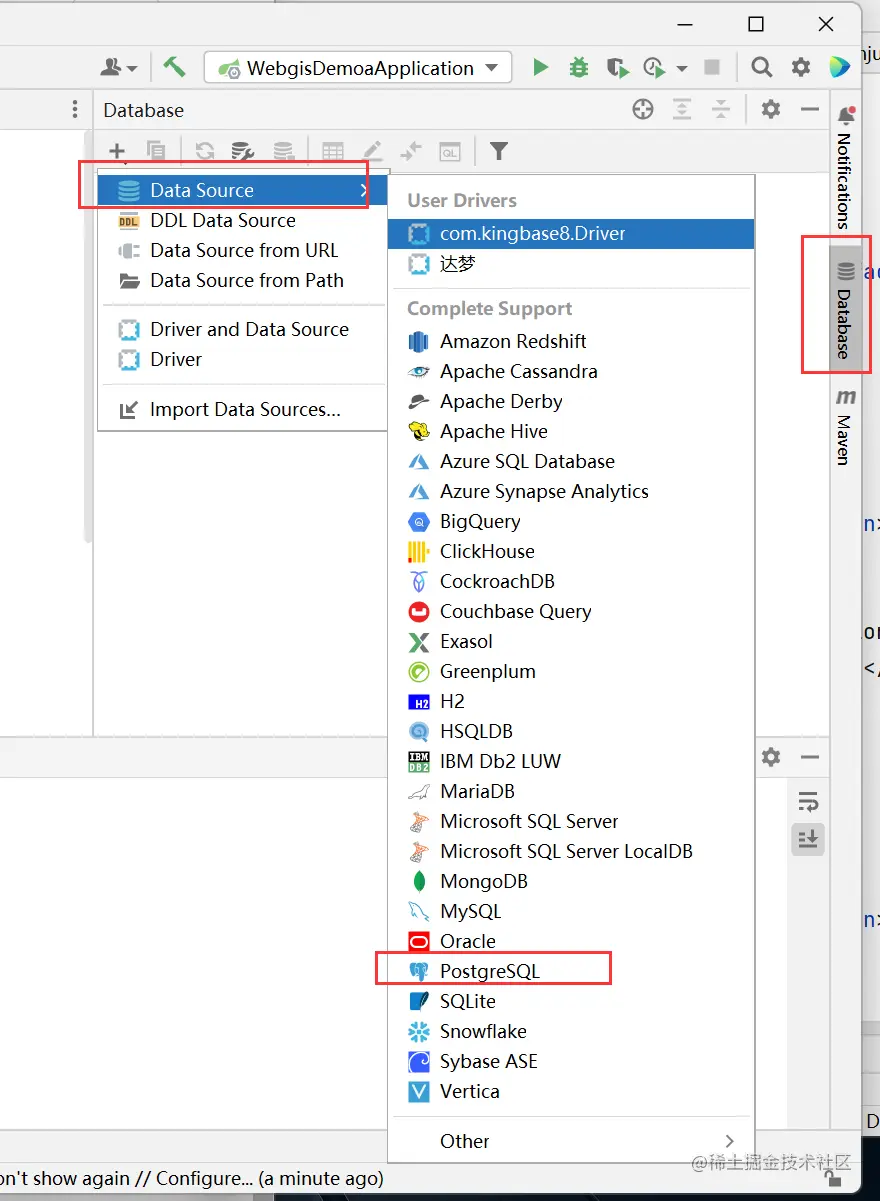

添加postgresql

测试连接，添加

2. 引入mybatis-plus

根据官网文档(baomidou.com/)引入

2.1 创建用户表

create table "user"
(
    id            bigint not null
        primary key,
    user_name     varchar(50),
    age           integer,
    email         varchar(100),
    user_account  varchar(256),
    avatar_url    varchar(1024),
    gender        integer,
    user_password varchar(512),
    user_status   integer default 0,
    phone         varchar(128),
    create_time   timestamp,
    update_time   timestamp,
    is_delete     integer default 0
);

comment on table "user" is '用户表';

comment on column "user".user_name is '用户昵称';

comment on column "user".age is '年龄';

comment on column "user".email is '邮箱';

comment on column "user".user_account is '账号';

comment on column "user".avatar_url is '头像';

comment on column "user".gender is '性别';

comment on column "user".user_password is '密码';

comment on column "user".user_status is '状态 0-正常';

comment on column "user".phone is '电话';

comment on column "user".create_time is '创建时间';

comment on column "user".update_time is '更新时间';

comment on column "user".is_delete is '是否删除';

alter table "user"
    owner to postgres;

2.2 往测试表user插入数据

DELETE FROM user;

INSERT INTO user (id, name, age, email) VALUES
(1, 'Jone', 18, 'test1@baomidou.com'),
(2, 'Jack', 20, 'test2@baomidou.com'),
(3, 'Tom', 28, 'test3@baomidou.com'),
(4, 'Sandy', 21, 'test4@baomidou.com'),
(5, 'Billie', 24, 'test5@baomidou.com');

2.3 引入依赖

2.3.1 pom.xml文件添加依赖

        <dependency>
            <groupId>com.baomidou</groupId>
            <artifactId>mybatis-plus-boot-starter</artifactId>
            <version>3.5.2</version>
        </dependency>

2.3.2 重新加载maven

2.4 修改配置文件

2.4.1 将application文件的后缀名为.yml 支持嵌套写法

2.4.2 修改内容

# DataSource Config
spring:
  application:
    name: webgis-demo
  datasource:
    driver-class-name: org.postgresql.Driver
    #    schema: classpath:db/schema-h2.sql
    #    data: classpath:db/data-h2.sql
    url: jdbc:postgresql://localhost:5432/postgis_21_sample
    username: postgres
    password: Giseryin
server:
  port: 8301
  servlet:
    #服务应用名
    context-path: /webgis-demo
    session:
      timeout: PT540M

2.5 创建实体类

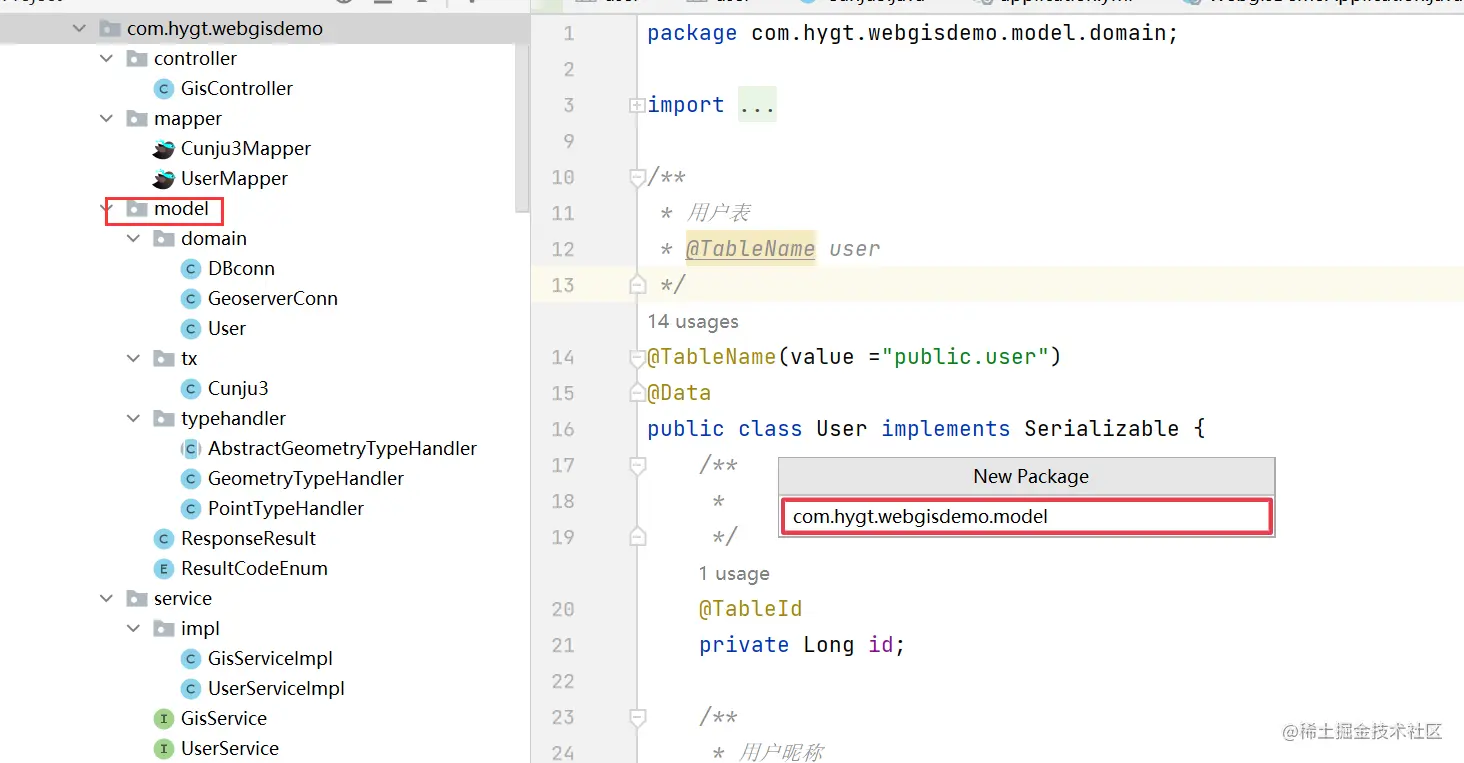

2.5.1 创建`module`包存放java对象

2.5.2 创建 user 实体类，使用lombok简化代码

/**
 * 用户表
 * @TableName user
 */
@TableName(value ="public.user")
@Data
public class User implements Serializable {
    /**
     *
     */
    @TableId
    private Long id;

    /**
     * 用户昵称
     */
    private String userName;

    /**
     * 年龄
     */
    private Integer age;

    /**
     * 邮箱
     */
    private String email;

    /**
     * 账号
     */
    private String userAccount;

    /**
     * 头像
     */
    private String avatarUrl;

    /**
     * 性别
     */
    private Integer gender;

    /**
     * 密码
     */
    private String userPassword;

    /**
     * 状态 0-正常
     */
    private Integer userStatus;

    /**
     * 电话
     */
    private String phone;

    /**
     * 创建时间
     */
    private Date createTime;

    /**
     * 更新时间
     */
    private Date updateTime;

    /**
     * 是否删除
     */
    private Integer isDelete;

    @TableField(exist = false)
    private static final long serialVersionUID = 1L;

    @Override
    public boolean equals(Object that) {
        if (this == that) {
            return true;
        }
        if (that == null) {
            return false;
        }
        if (getClass() != that.getClass()) {
            return false;
        }
        User other = (User) that;
        return (this.getId() == null ? other.getId() == null : this.getId().equals(other.getId()))
            && (this.getUserName() == null ? other.getUserName() == null : this.getUserName().equals(other.getUserName()))
            && (this.getAge() == null ? other.getAge() == null : this.getAge().equals(other.getAge()))
            && (this.getEmail() == null ? other.getEmail() == null : this.getEmail().equals(other.getEmail()))
            && (this.getUserAccount() == null ? other.getUserAccount() == null : this.getUserAccount().equals(other.getUserAccount()))
            && (this.getAvatarUrl() == null ? other.getAvatarUrl() == null : this.getAvatarUrl().equals(other.getAvatarUrl()))
            && (this.getGender() == null ? other.getGender() == null : this.getGender().equals(other.getGender()))
            && (this.getUserPassword() == null ? other.getUserPassword() == null : this.getUserPassword().equals(other.getUserPassword()))
            && (this.getUserStatus() == null ? other.getUserStatus() == null : this.getUserStatus().equals(other.getUserStatus()))
            && (this.getPhone() == null ? other.getPhone() == null : this.getPhone().equals(other.getPhone()))
            && (this.getCreateTime() == null ? other.getCreateTime() == null : this.getCreateTime().equals(other.getCreateTime()))
            && (this.getUpdateTime() == null ? other.getUpdateTime() == null : this.getUpdateTime().equals(other.getUpdateTime()))
            && (this.getIsDelete() == null ? other.getIsDelete() == null : this.getIsDelete().equals(other.getIsDelete()));
    }

    @Override
    public int hashCode() {
        final int prime = 31;
        int result = 1;
        result = prime * result + ((getId() == null) ? 0 : getId().hashCode());
        result = prime * result + ((getUserName() == null) ? 0 : getUserName().hashCode());
        result = prime * result + ((getAge() == null) ? 0 : getAge().hashCode());
        result = prime * result + ((getEmail() == null) ? 0 : getEmail().hashCode());
        result = prime * result + ((getUserAccount() == null) ? 0 : getUserAccount().hashCode());
        result = prime * result + ((getAvatarUrl() == null) ? 0 : getAvatarUrl().hashCode());
        result = prime * result + ((getGender() == null) ? 0 : getGender().hashCode());
        result = prime * result + ((getUserPassword() == null) ? 0 : getUserPassword().hashCode());
        result = prime * result + ((getUserStatus() == null) ? 0 : getUserStatus().hashCode());
        result = prime * result + ((getPhone() == null) ? 0 : getPhone().hashCode());
        result = prime * result + ((getCreateTime() == null) ? 0 : getCreateTime().hashCode());
        result = prime * result + ((getUpdateTime() == null) ? 0 : getUpdateTime().hashCode());
        result = prime * result + ((getIsDelete() == null) ? 0 : getIsDelete().hashCode());
        return result;
    }

    @Override
    public String toString() {
        StringBuilder sb = new StringBuilder();
        sb.append(getClass().getSimpleName());
        sb.append(" [");
        sb.append("Hash = ").append(hashCode());
        sb.append(", id=").append(id);
        sb.append(", userName=").append(userName);
        sb.append(", age=").append(age);
        sb.append(", email=").append(email);
        sb.append(", userAccount=").append(userAccount);
        sb.append(", avatarUrl=").append(avatarUrl);
        sb.append(", gender=").append(gender);
        sb.append(", userPassword=").append(userPassword);
        sb.append(", userStatus=").append(userStatus);
        sb.append(", phone=").append(phone);
        sb.append(", createTime=").append(createTime);
        sb.append(", updateTime=").append(updateTime);
        sb.append(", isDelete=").append(isDelete);
        sb.append(", serialVersionUID=").append(serialVersionUID);
        sb.append("]");
        return sb.toString();
    }
}

2.6 添加mapper

2.6.1 添加mapper包

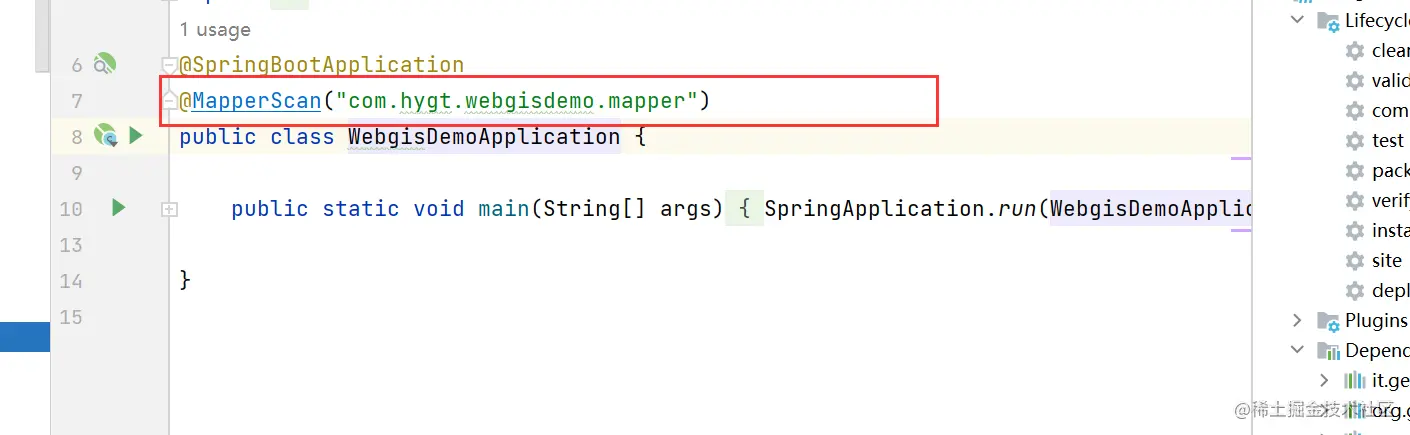

2.6.2 启动类添加注解，扫描mapper包

2.6.3 添加mapper类 UserMapper

/**
* @author Giseryin
* @description 针对表【user(用户表)】的数据库操作Mapper
* @createDate 2022-11-10 10:31:23
* @Entity generator.domain.User
*/
public interface UserMapper extends BaseMapper<User> {

}

2.7 测试

2.7.1 添加依赖引入单元测试工具Junit

<dependency>
    <groupId>junit</groupId>
    <artifactId>junit</artifactId>
    <version>4.13.2</version>
    <scope>test</scope>
</dependency>

2.7.2 编写测试类，查看测试结果

@SpringBootTest
@RunWith(SpringRunner.class)
public class SampleTest {

    @Resource
    private UserMapper userMapper;

    @Test
    public void testSelect() {
        System.out.println(("----- selectAll method test ------"));
        List<User> userList = userMapper.selectList(null);
        // Assert.assertEquals(5, userList.size());
        userList.forEach(System.out::println);
    }
}

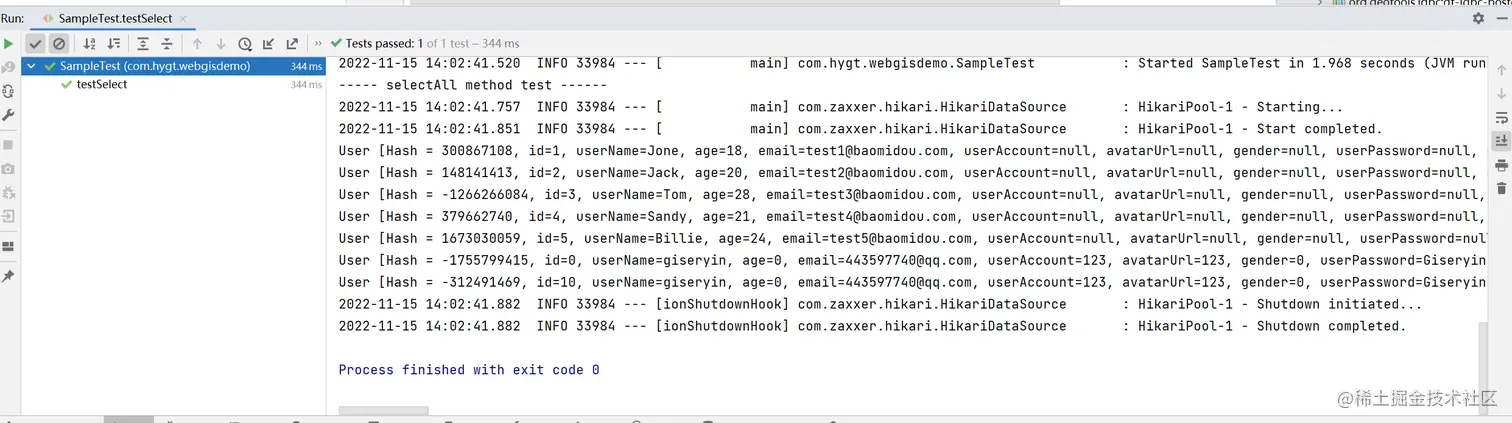

打印成功

3.gdb数据入库

3.1 pom.xml 引入Geotools、GDAL依赖

添加仓库地址

<!-- 添加仓库地址 -->
<repositories>
  <repository>
    <id>osgeo</id>
    <name>OSGeo Release Repository</name>
    <url>https://repo.osgeo.org/repository/release/</url>
    <snapshots><enabled>false</enabled></snapshots>
    <releases><enabled>true</enabled></releases>
  </repository>
</repositories>

<!--设置Geotools 版本号 -->
 		<properties>
        <geotools.version>21.0</geotools.version>
    </properties>


  <!--geoTools-->
        <dependency>
            <groupId>org.geotools</groupId>
            <artifactId>gt-jdbc</artifactId>
            <version>${geotools.version}</version>
            <exclusions>
                <exclusion>
                    <artifactId>commons-collections</artifactId>
                    <groupId>commons-collections</groupId>
                </exclusion>
            </exclusions>
        </dependency>
        <dependency>
            <groupId>org.geotools</groupId>
            <artifactId>gt-cql</artifactId>
            <version>${geotools.version}</version>
        </dependency>
        <!--操作shape文件-->
        <dependency>
            <groupId>org.geotools</groupId>
            <artifactId>gt-shapefile</artifactId>
            <version>${geotools.version}</version>
        </dependency>
        <!--坐标系-->
        <dependency>
            <groupId>org.geotools</groupId>
            <artifactId>gt-epsg-hsql</artifactId>
            <version>${geotools.version}</version>
        </dependency>
        <dependency>
            <groupId>org.geotools</groupId>
            <artifactId>gt-geojson</artifactId>
            <version>${geotools.version}</version>
        </dependency>
        <dependency>
            <groupId>org.geotools.jdbc</groupId>
            <artifactId>gt-jdbc-postgis</artifactId>
            <version>${geotools.version}</version>
        </dependency>
        <dependency>
            <groupId>org.geotools</groupId>
            <artifactId>gt-jts-wrapper</artifactId>
            <version>${geotools.version}</version>
        </dependency>
        <dependency>
            <groupId>org.geotools</groupId>
            <artifactId>gt-epsg-hsql</artifactId>
            <version>${geotools.version}</version>
        </dependency>
        <dependency>
            <groupId>org.geotools</groupId>
            <artifactId>gt-main</artifactId>
            <version>${geotools.version}</version>
        </dependency>
        <dependency>
            <groupId>org.geotools</groupId>
            <artifactId>gt-opengis</artifactId>
            <version>${geotools.version}</version>
        </dependency>


        <!-- https://mvnrepository.com/artifact/org.osgeo/proj4j 用于投影坐标转化 -->
        <dependency>
            <groupId>org.osgeo</groupId>
            <artifactId>proj4j</artifactId>
            <version>0.1.0</version>
        </dependency>
				<!-- 引入gdal -->
        <dependency>
            <groupId>org.gdal</groupId>
            <artifactId>gdal</artifactId>
            <version>3.5.0</version>
        </dependency>

3.2 GDAL环境安装

download.gisinternals.com/archive.php 下载gdal环境

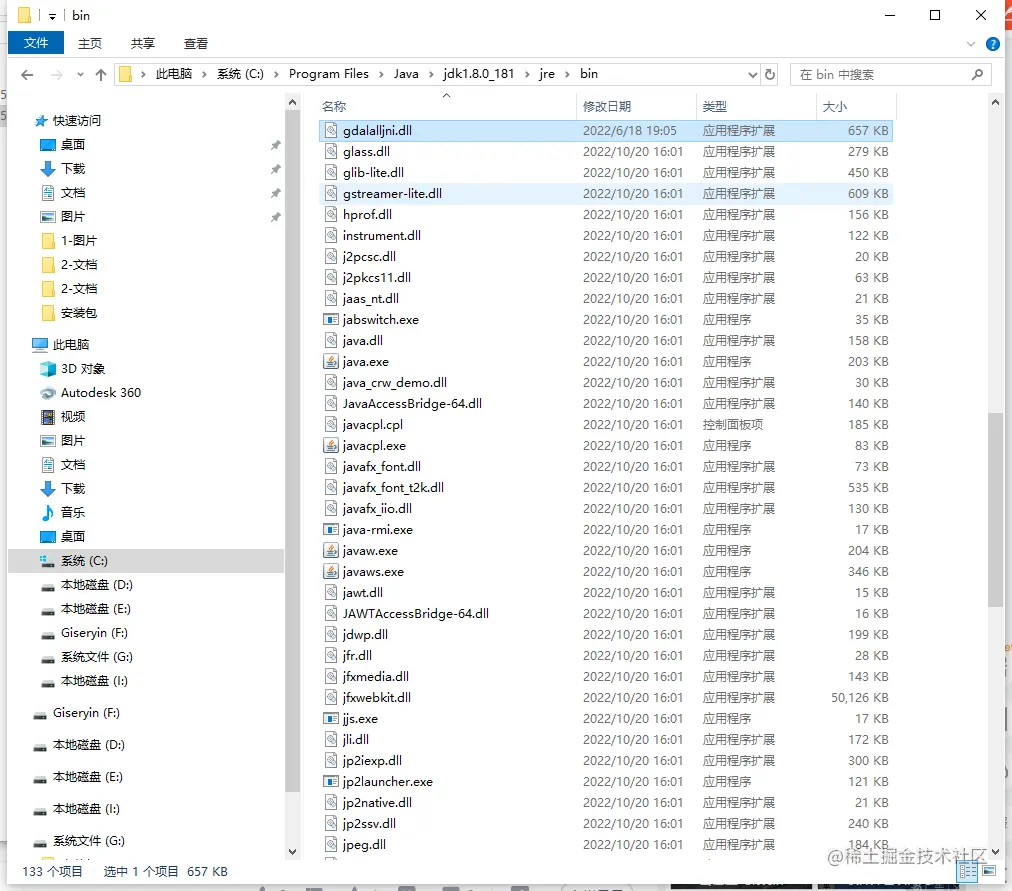

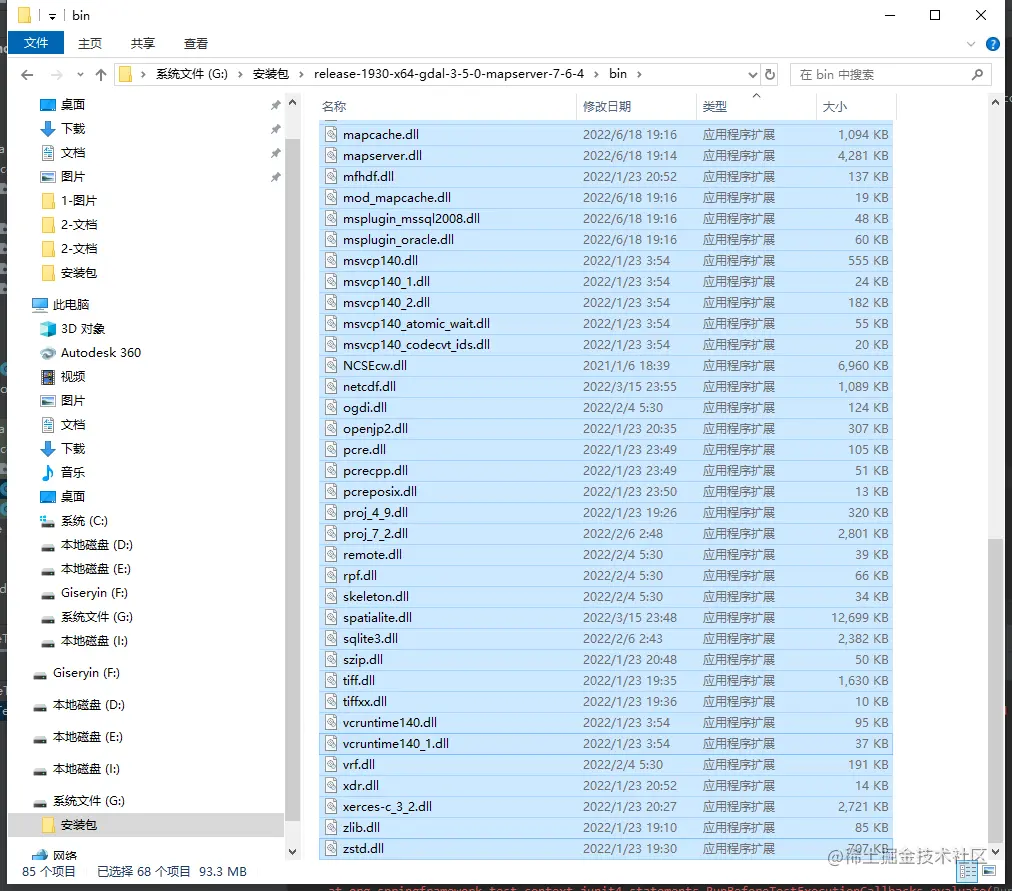

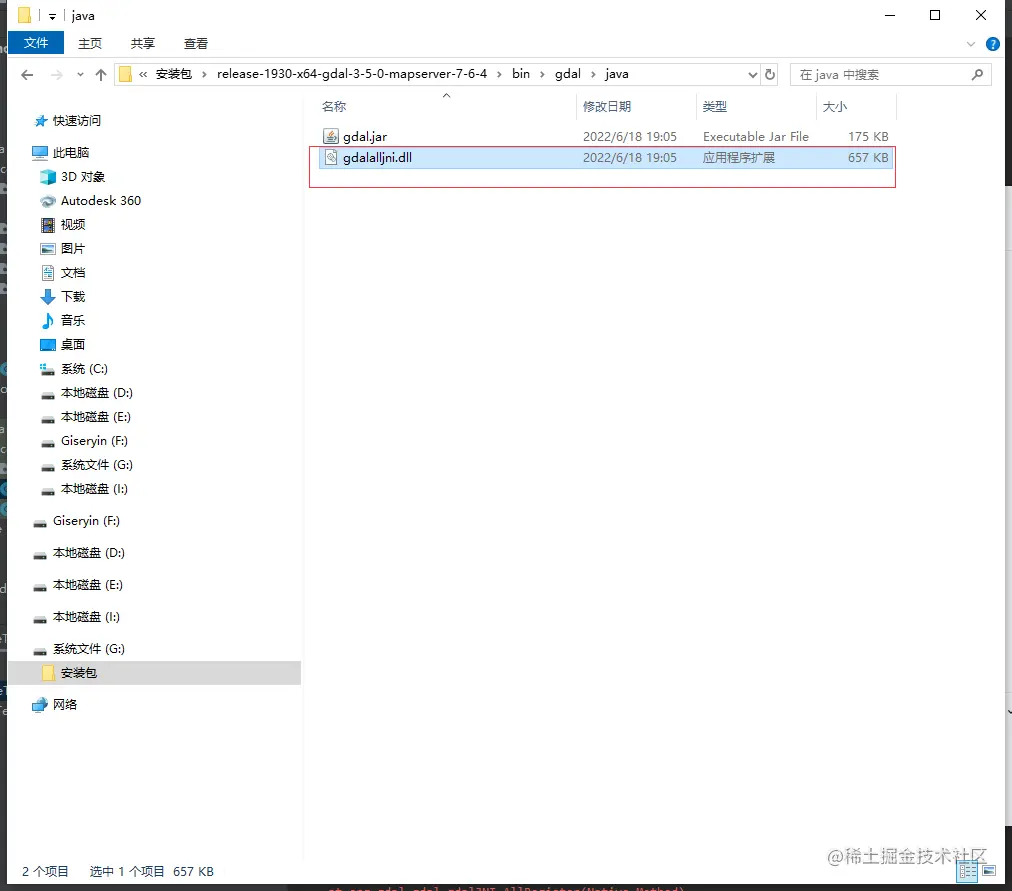

把release-xxxx/bin/目录及其子目录下的dll文件全部复制到你要使用的JDK版本%JAVA_HOME%/jre/bin/目录下

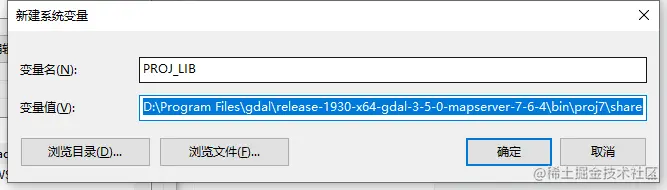

添加环境变量

注：看变量值那个路径中有没有 proj.db 这个文件，如果没有说明GDAL不完整，需要重新下载或编绎

设置好环境变量后重启电脑

3.3 创建数据库连接实体类

import lombok.Data;

import java.io.Serializable;

@Data
public class DBconn implements Serializable {

    /**
     * 数据库类型
     */
    private String dbtype;

    /**
     * ip
     */
    private String host;

    /**
     * 端口
     */
    private String port;

    /**
     * 模式
     */
    private String schema;

    /**
     * 数据库名
     */
    private String database;

    /**
     * 用户名
     */
    private String user;

    /**
     * 密码
     */
    private String passwd;

}

3.4 创建gis数据导入工具类编写导入逻辑代码

gdal注册及数据库配置

static {
        gdal.AllRegister();
        // 为了支持中文路径，请添加下面这句代码
        gdal.SetConfigOption("GDAL_FILENAME_IS_UTF8", "YES");
        // 为了使属性表字段支持中文，请添加下面这句
        gdal.SetConfigOption("SHAPE_ENCODING", "UTF-8");
    }

	//默认的geom字段
    private static String GEOM_NAME = "geom";
    //用于geotools创建数据库连接对象
	private static Map DBMAP = new HashMap<String, Object>();

    private static void setDBMAP(DBconn dBconn){
        DBMAP.put("dbtype", dBconn.getDbtype());
        DBMAP.put("host", dBconn.getHost());
        DBMAP.put("port", dBconn.getPort());
        DBMAP.put("schema", dBconn.getSchema());
        DBMAP.put("database", dBconn.getDatabase());
        DBMAP.put("user", dBconn.getUser());
        DBMAP.put("passwd", dBconn.getPasswd());
    }

获取gdal 的 gdb数据源对象，读取gdb数据

/**
     * 根据文件路径获取gdb数据源对象
     *
     * @param filePath
     * @return
     */
    public static DataSource GetDataSourceByGdbFilePath(String filePath) {
        Driver driver = ogr.GetDriverByName("OpenFileGDB");
        DataSource dataSource = driver.Open(filePath, 0);
        return dataSource;
    }

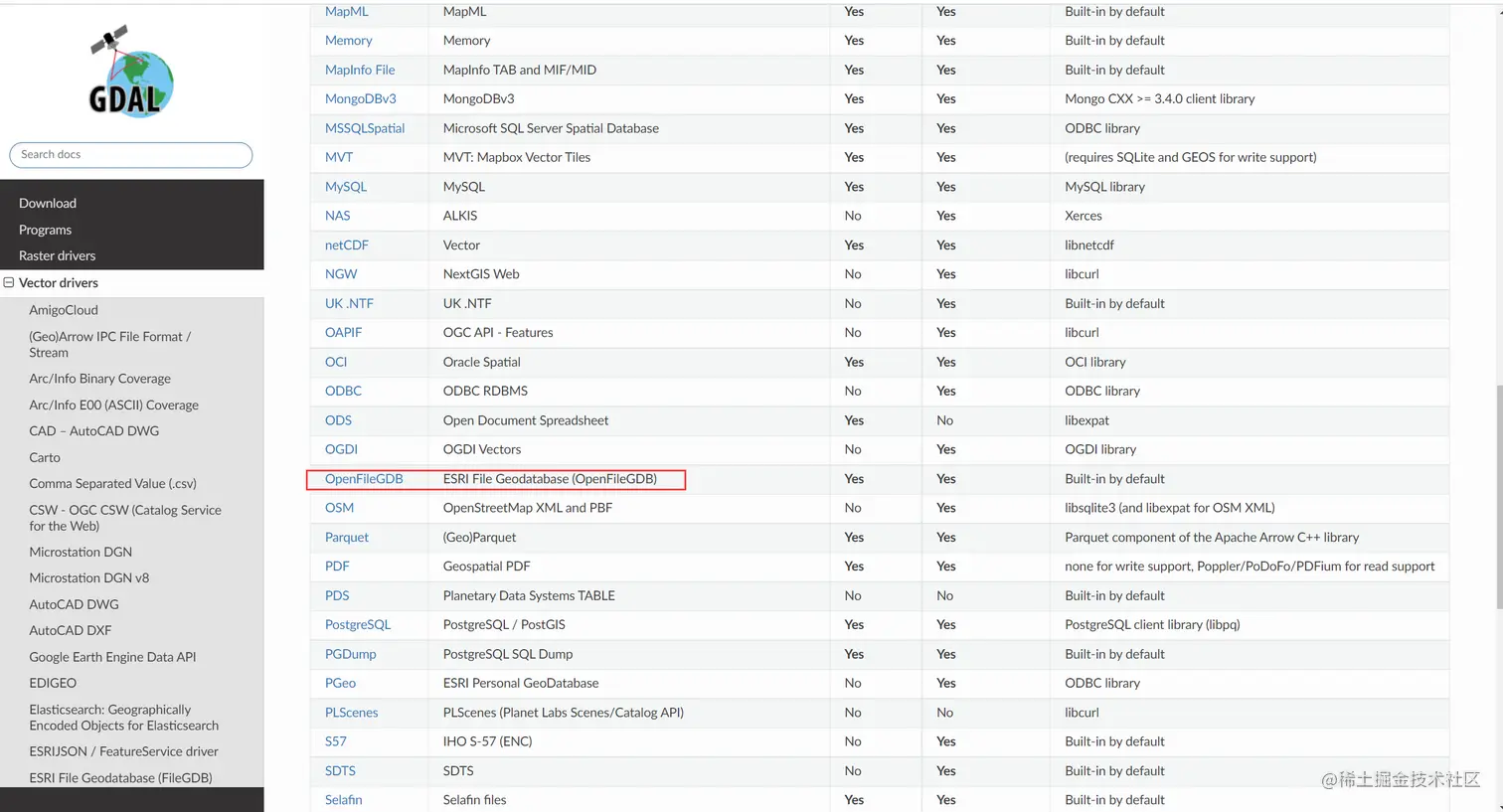

注：gdal支持读取的数据源类型，参考 gdal 官网，如下：

创建字段

 //创建字段
    public static SimpleFeatureType creatSimpleFeatureType(Feature feature, String wkt, String tableName) {
        SimpleFeatureTypeBuilder builder = new SimpleFeatureTypeBuilder();
        builder.setName(tableName);
        try {
            builder.setCRS(CRS.parseWKT(wkt));
        } catch (FactoryException e) {
            e.printStackTrace();
        }
        //添加矢量数据类型
        GeometryJSON geometryJSON = new GeometryJSON();
        try {
            Geometry read = geometryJSON.read(feature.GetGeometryRef().ExportToJson());
            Class geomClass = Class.forName("org.locationtech.jts.geom." + read.getGeometryType());
            builder.add(GEOM_NAME, geomClass);
        } catch (Exception e) {
            e.printStackTrace();
        }
        //添加属性
        for (int p = 0; p < feature.GetFieldCount(); p++) {
            FieldDefn fieldDefn = feature.GetFieldDefnRef(p);
            String name = fieldDefn.GetName().toLowerCase();
            int fieldType = fieldDefn.GetFieldType();
            String typeName = fieldDefn.GetFieldTypeName(fieldDefn.GetFieldType());
            Class<?> clazz;
            //根据GDAL的 FieldDefn 的类型，创建对应的 java数据类型
            switch (typeName) {
                case "String":
                    clazz = String.class;
                    break;
                case "Real":
                    clazz = Double.class;
                    break;
                default:
                    clazz = String.class;
                    break;
            }
            builder.add(name, clazz);
        }

        //build the type
        final SimpleFeatureType LOCATION = builder.buildFeatureType();
        return LOCATION;
    }

创建表

//创建表
public static DataStore createTable(SimpleFeatureType simpleFeatureType) {
    DataStore dataStore = null;
    try {
        dataStore = DataStoreFinder.getDataStore(DBMAP);
        System.out.println(simpleFeatureType.getTypeName() + "test");
        String[] typeNames = dataStore.getTypeNames();
        List<String> collect = Arrays.stream(typeNames).filter(item -> item.equals(simpleFeatureType.getTypeName())).collect(Collectors.toList());
        if (collect.isEmpty()) {
            dataStore.createSchema(simpleFeatureType);//创建表
        }
    } catch (IOException e) {
        e.printStackTrace();
    }
	return dataStore;
}

添加要素

/**
* 将GDBFeature 添加到 geotools 集合中
*
* @param features
* @param feature
* @param featureBuilder
*/
private static void addFeature(List<SimpleFeature> features, Feature feature, SimpleFeatureBuilder featureBuilder) {
    //添加矢量数据
    GeometryJSON geometryJSON = new GeometryJSON();
    try {
        featureBuilder.add(geometryJSON.read(feature.GetGeometryRef().ExportToJson()));
    } catch (IOException e) {
        throw new RuntimeException(e);
    }

    for (int p = 0; p < feature.GetFieldCount(); p++) {
        String data = feature.GetFieldAsString(feature.GetFieldDefnRef(p).GetName());
        featureBuilder.add(data);

    }
    SimpleFeature f = featureBuilder.buildFeature(null);
    features.add(f);
}

导入

 /**
     * 将GDB数据导入到数据库中
     * @param gdbFilePath gdb路径
     * @param dBconn    数据库连接参数
     */
    public static void importGdbToDatabase(String gdbFilePath, DBconn dBconn) {
        setDBMAP(dBconn);
        //获取gdb数据源
        DataSource dataSource = GetDataSourceByGdbFilePath(gdbFilePath);
        for (int i = 0; i < dataSource.GetLayerCount(); i++) {
            Layer layer = dataSource.GetLayer(i);
            String wkt = layer.GetSpatialRef().ExportToWkt();//坐标系信息
            String tableName = layer.GetName();//获取表名称
            SimpleFeatureType simpleFeatureType = null;
            List<SimpleFeature> features = new ArrayList<>();
            DataStore dataStore = null;
            do {//获取图层下的要素
                Feature feature = layer.GetNextFeature();
                if (null == feature) {
                    break;
                }
                //创建表数据类型
                if (simpleFeatureType == null) {
                    simpleFeatureType = creatSimpleFeatureType(feature, wkt, tableName);
                    dataStore = createTable(simpleFeatureType);
                }
                SimpleFeatureBuilder featureBuilder = new SimpleFeatureBuilder(simpleFeatureType);
                //将Feature对象添加到集合中去
                addFeature(features, feature, featureBuilder);
            } while (true);

            Transaction t = new DefaultTransaction("add");
            //将组装的数据插入数据库中
            try {
                SimpleFeatureCollection simpleFeatureCollection = DataUtilities.collection(new ListFeatureCollection(simpleFeatureType, features));
                SimpleFeatureSource featureSource = dataStore.getFeatureSource(tableName);
                if (featureSource instanceof SimpleFeatureStore) {
                    System.out.println("SimpleFeatureStore");
                    SimpleFeatureStore featureStore = (SimpleFeatureStore) dataStore.getFeatureSource(tableName);
                    featureStore.setTransaction(t);
                    featureStore.addFeatures(simpleFeatureCollection);
                    t.commit();
                } else {
                    System.out.println("not SimpleFeatureStore");
                }
            } catch (IOException e) {
                e.printStackTrace();
                try {
                    t.rollback();
                } catch (IOException ex) {
                    throw new RuntimeException(ex);
                }
            } finally {
                try {
                    if (t != null) {
                        t.close();
                    }
                } catch (IOException e) {
                    throw new RuntimeException(e);
                }
                dataStore.dispose();

            }
        }
    }

完整代码

import org.gdal.gdal.gdal;
import org.gdal.ogr.*;
import org.geotools.data.*;
import org.geotools.data.collection.ListFeatureCollection;
import org.geotools.data.simple.SimpleFeatureCollection;

import org.geotools.data.simple.SimpleFeatureSource;
import org.geotools.data.simple.SimpleFeatureStore;
import org.geotools.feature.simple.SimpleFeatureBuilder;
import org.geotools.feature.simple.SimpleFeatureTypeBuilder;
import org.geotools.geojson.geom.GeometryJSON;
import org.geotools.referencing.CRS;
import org.locationtech.jts.geom.Geometry;
import org.opengis.feature.simple.SimpleFeature;
import org.opengis.feature.simple.SimpleFeatureType;
import org.opengis.referencing.FactoryException;

import java.io.IOException;
import java.util.*;
import java.util.stream.Collectors;

public class GisUtils {

    static {
        gdal.AllRegister();
        // 为了支持中文路径，请添加下面这句代码
        gdal.SetConfigOption("GDAL_FILENAME_IS_UTF8", "YES");
        // 为了使属性表字段支持中文，请添加下面这句
        gdal.SetConfigOption("SHAPE_ENCODING", "UTF-8");
    }

    //默认的geom字段
    private static String GEOM_NAME = "geom";

    //数据库连接参数
    private static Map DBMAP = new HashMap<String, Object>() ;

    private static void setDBMAP(DBconn dBconn) {
        DBMAP.put("dbtype", dBconn.getDbtype());
        DBMAP.put("host", dBconn.getHost());
        DBMAP.put("port", dBconn.getPort());
        DBMAP.put("schema", dBconn.getSchema());
        DBMAP.put("database", dBconn.getDatabase());
        DBMAP.put("user", dBconn.getUser());
        DBMAP.put("passwd", dBconn.getPasswd());
    }



    /**
     * 根据文件路径获取gdb数据源对象
     * @param filePath
     * @return
     */
    public static DataSource GetDataSourceByGdbFilePath(String filePath) {
        Driver driver = ogr.GetDriverByName("OpenFileGDB");
        DataSource dataSource = driver.Open(filePath, 0);
        return dataSource;
    }

    /**
     * 根据文件路径获取 Shapefile数据源对象
     * @param filePath
     * @return
     */
    public static DataSource GetDataSourceByShpFilePath(String filePath) {
        Driver driver = ogr.GetDriverByName("ESRI Shapefile");
        DataSource dataSource = driver.Open(filePath, 0);
        return dataSource;
    }

    /**
     * 将GDB数据导入到数据库中，只会导入GDB中的矢量数据,保留现存的空间坐标系信息
     * @param gdbFilePath gdb路径
     * @param dBconn    数据库连接参数
     */
    public static void importGdbToDatabase(String gdbFilePath, DBconn dBconn) {
        setDBMAP(dBconn);
        DataSource dataSource = GetDataSourceByGdbFilePath(gdbFilePath);
        for (int i = 0; i < dataSource.GetLayerCount(); i++) {
            Layer layer = dataSource.GetLayer(i);
            String wkt = layer.GetSpatialRef().ExportToWkt();//坐标系信息
            String tableName = layer.GetName();//获取表名称
            SimpleFeatureType simpleFeatureType = null;
            List<SimpleFeature> features = new ArrayList<>();
            DataStore dataStore = null;
            do {//获取图层下的要素
                Feature feature = layer.GetNextFeature();
                if (null == feature) {
                    break;
                }
                //创建表数据类型
                if (simpleFeatureType == null) {
                    simpleFeatureType = creatSimpleFeatureType(feature, wkt, tableName);
                    dataStore = createTable(simpleFeatureType);
                }
                SimpleFeatureBuilder featureBuilder = new SimpleFeatureBuilder(simpleFeatureType);
                //将Feature对象添加到集合中去
                addFeature(features, feature, featureBuilder);
            } while (true);

            Transaction t = new DefaultTransaction("add");
            //将组装的数据插入数据库中
            try {
                SimpleFeatureCollection simpleFeatureCollection = DataUtilities.collection(new ListFeatureCollection(simpleFeatureType, features));
                SimpleFeatureSource featureSource = dataStore.getFeatureSource(tableName);
                if (featureSource instanceof SimpleFeatureStore) {
                    System.out.println("SimpleFeatureStore");
                    SimpleFeatureStore featureStore = (SimpleFeatureStore) dataStore.getFeatureSource(tableName);
                    featureStore.setTransaction(t);
                    featureStore.addFeatures(simpleFeatureCollection);
                    t.commit();
                } else {
                    System.out.println("not SimpleFeatureStore");
                }
            } catch (IOException e) {
                e.printStackTrace();
                try {
                    t.rollback();
                } catch (IOException ex) {
                    throw new RuntimeException(ex);
                }
            } finally {
                try {
                    if (t != null) {
                        t.close();
                    }
                } catch (IOException e) {
                    throw new RuntimeException(e);
                }
                dataStore.dispose();

            }
        }
    }


    public static void importShpToDatabase(String shpFilePath, DBconn dBconn) {
        setDBMAP(dBconn);
        DataSource dataSource = GetDataSourceByShpFilePath(shpFilePath);
        for (int i = 0; i < dataSource.GetLayerCount(); i++) {
            Layer layer = dataSource.GetLayer(i);
            String wkt = layer.GetSpatialRef().ExportToWkt();//坐标系信息
            String tableName = layer.GetName();//获取表名称
            SimpleFeatureType simpleFeatureType = null;
            List<SimpleFeature> features = new ArrayList<>();
            DataStore dataStore = null;
            do {//获取图层下的要素
                Feature feature = layer.GetNextFeature();
                if (null == feature) {
                    break;
                }
                //创建表数据类型
                if (simpleFeatureType == null) {
                    simpleFeatureType = creatSimpleFeatureType(feature, wkt, tableName);
                    dataStore = createTable(simpleFeatureType);
                }
                SimpleFeatureBuilder featureBuilder = new SimpleFeatureBuilder(simpleFeatureType);
                //将Feature对象添加到集合中去
                addFeature(features, feature, featureBuilder);
            } while (true);
            Transaction t = new DefaultTransaction("add");
            ;
            //将组装的数据插入数据库中
            try {
                SimpleFeatureCollection simpleFeatureCollection = DataUtilities.collection(new ListFeatureCollection(simpleFeatureType, features));
                SimpleFeatureSource featureSource = dataStore.getFeatureSource(tableName);
                if (featureSource instanceof SimpleFeatureStore) {
                    System.out.println("SimpleFeatureStore");
                    SimpleFeatureStore featureStore = (SimpleFeatureStore) featureSource;

                    featureStore.setTransaction(t);
                    featureStore.addFeatures(simpleFeatureCollection);
                    t.commit();
                } else {
                    System.out.println("not SimpleFeatureStore");
                }
            } catch (IOException e) {
                e.printStackTrace();
                try {
                    t.rollback();
                } catch (IOException ex) {
                    throw new RuntimeException(ex);
                }
            } finally {
                try {
                    if (t != null) t.close();
                } catch (IOException e) {
                    throw new RuntimeException(e);
                }
                dataStore.dispose();
            }
        }
    }

    /**
     * 将GDBFeature 添加到 geotools 集合中
     *
     * @param features
     * @param feature
     * @param featureBuilder
     */
    private static void addFeature(List<SimpleFeature> features, Feature feature, SimpleFeatureBuilder featureBuilder) {
        //添加矢量数据
        GeometryJSON geometryJSON = new GeometryJSON();
        try {
            featureBuilder.add(geometryJSON.read(feature.GetGeometryRef().ExportToJson()));
        } catch (IOException e) {
            throw new RuntimeException(e);
        }

        for (int p = 0; p < feature.GetFieldCount(); p++) {
            String data = feature.GetFieldAsString(feature.GetFieldDefnRef(p).GetName());
            featureBuilder.add(data);

        }
        SimpleFeature f = featureBuilder.buildFeature(null);
        features.add(f);
    }

    //创建字段
    public static SimpleFeatureType creatSimpleFeatureType(Feature feature, String wkt, String tableName) {
        SimpleFeatureTypeBuilder builder = new SimpleFeatureTypeBuilder();
        builder.setName(tableName);
        try {
            builder.setCRS(CRS.parseWKT(wkt));
        } catch (FactoryException e) {
            e.printStackTrace();
        }
        //添加矢量数据类型
        GeometryJSON geometryJSON = new GeometryJSON();
        try {
            Geometry read = geometryJSON.read(feature.GetGeometryRef().ExportToJson());
            Class geomClass = Class.forName("org.locationtech.jts.geom." + read.getGeometryType());
            builder.add(GEOM_NAME, geomClass);
        } catch (Exception e) {
            e.printStackTrace();
        }
        //添加属性
        for (int p = 0; p < feature.GetFieldCount(); p++) {
            FieldDefn fieldDefn = feature.GetFieldDefnRef(p);
            String name = fieldDefn.GetName().toLowerCase();
            int fieldType = fieldDefn.GetFieldType();
            String typeName = fieldDefn.GetFieldTypeName(fieldDefn.GetFieldType());
            Class<?> clazz;
            switch (typeName) {
                case "String":
                    clazz = String.class;
                    break;
                case "Real":
                    clazz = Double.class;
                    break;
                default:
                    clazz = String.class;
                    break;
            }
            builder.add(name, clazz);
        }

        //build the type
        final SimpleFeatureType LOCATION = builder.buildFeatureType();
        return LOCATION;
    }

    //创建表
    public static DataStore createTable(SimpleFeatureType simpleFeatureType) {
        DataStore dataStore = null;
        try {
            dataStore = DataStoreFinder.getDataStore(DBMAP);
            System.out.println(simpleFeatureType.getTypeName() + "test");
            String[] typeNames = dataStore.getTypeNames();
            List<String> collect = Arrays.stream(typeNames).filter(item -> item.equals(simpleFeatureType.getTypeName())).collect(Collectors.toList());
            if (collect.isEmpty()) {
                dataStore.createSchema(simpleFeatureType);//创建表
            }
        } catch (IOException e) {
            e.printStackTrace();
        }
        return dataStore;
    }

}

3.5 测试gdb数据入库

import org.junit.Test;

	@Test
    public void gdalTest() throws IOException {
        DBconn dBconn=new DBconn();
        dBconn.setDbtype("postgis");
        dBconn.setHost("localhost");
        dBconn.setPort("5432");
        dBconn.setSchema("sde");
        dBconn.setDatabase("postgis_21_sample");
        dBconn.setUser("postgres");
        dBconn.setPasswd("Giseryin");
        GisUtils.importGdbToDatabase("E:\hygt\5-data\1-图形\test.gdb",dBconn);
    }

4.发布样式

4.1 使用QGIS生成样式并导出

添加图层

打开图层属性

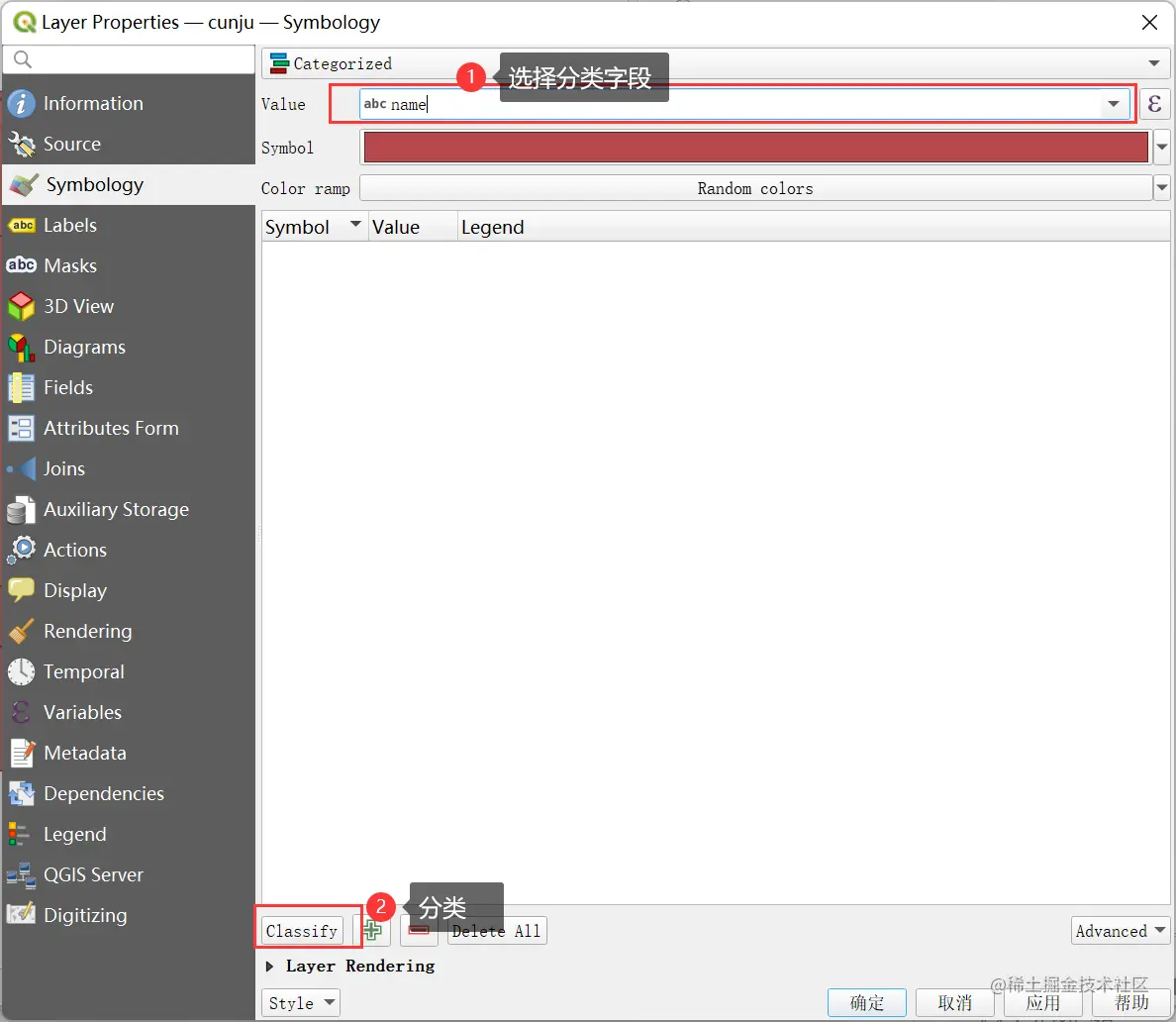

选择按名称对要素分类

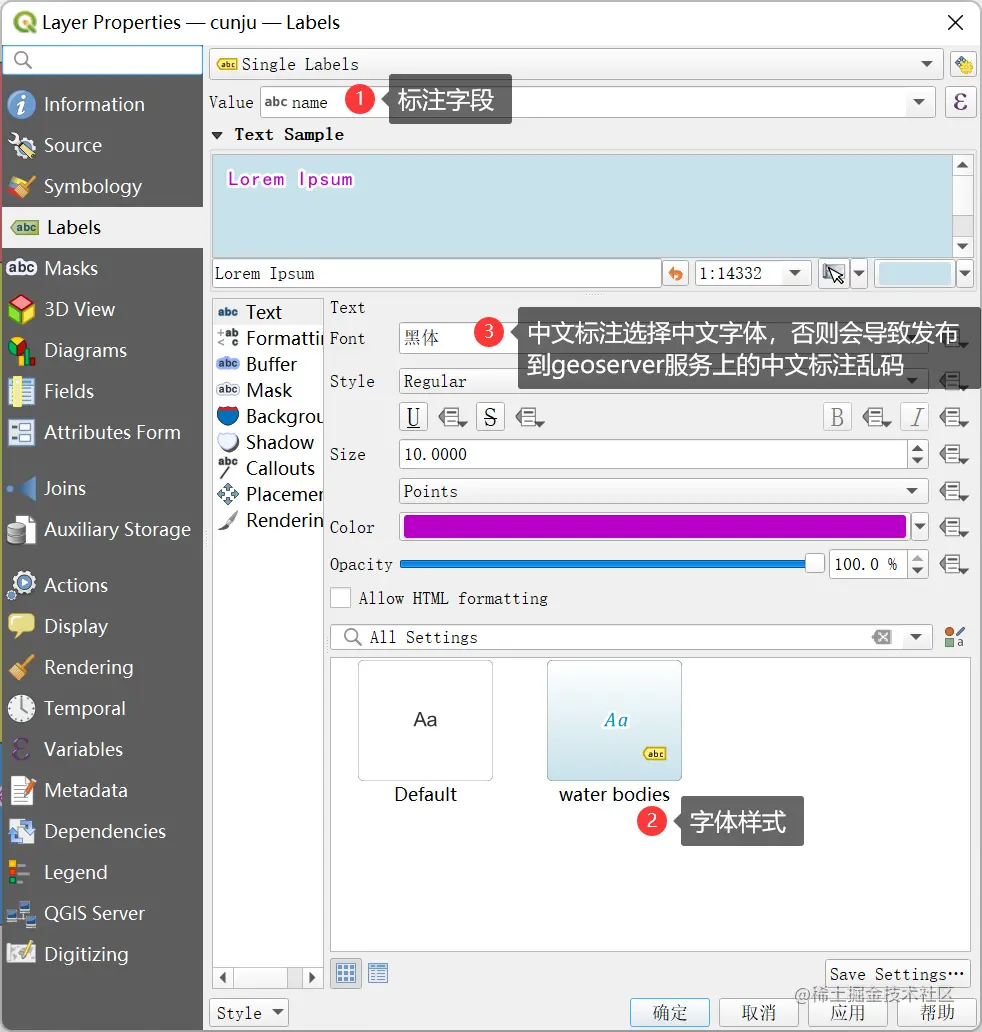

4.添加文字标注

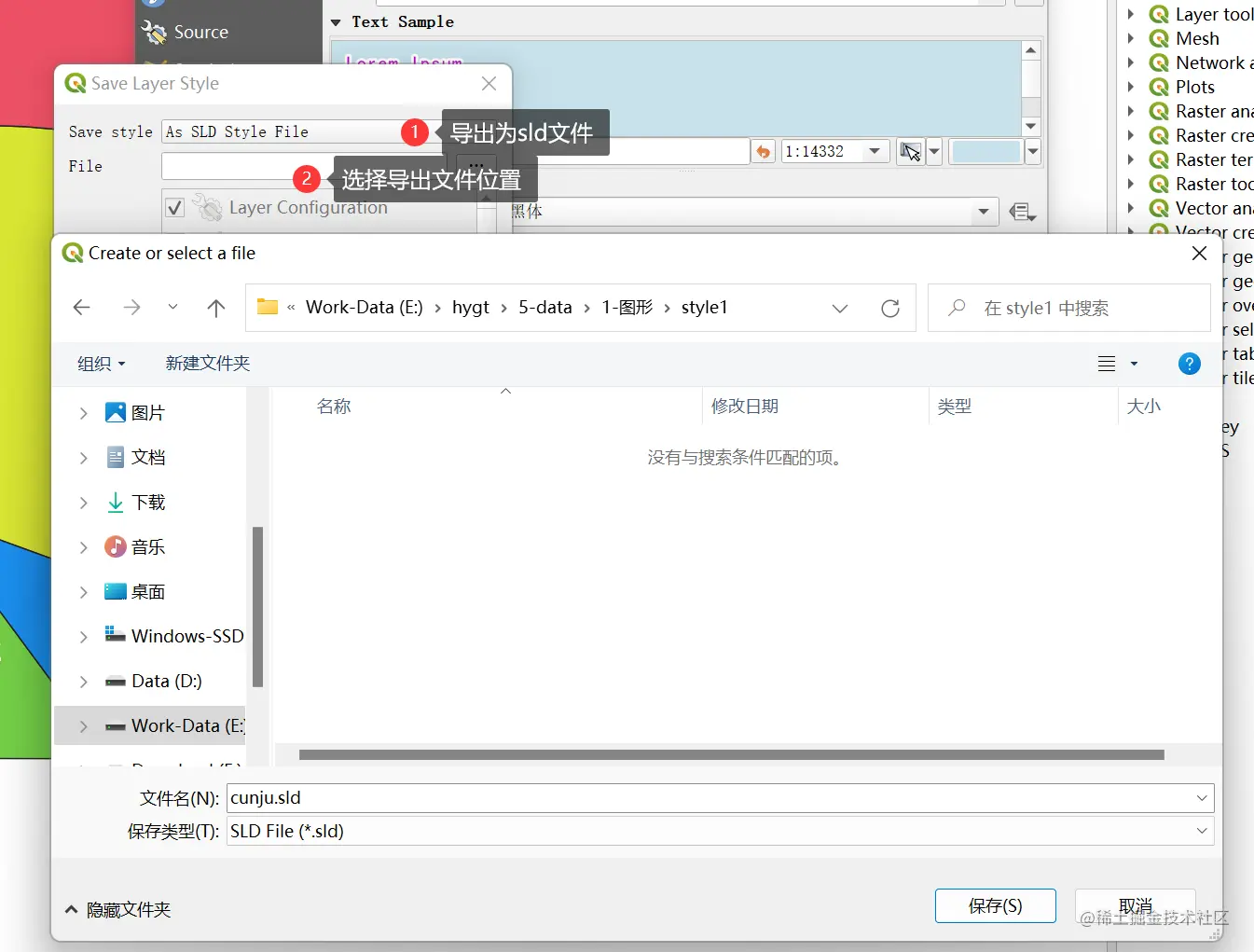

导出样式

4.2 geoserver发布样式

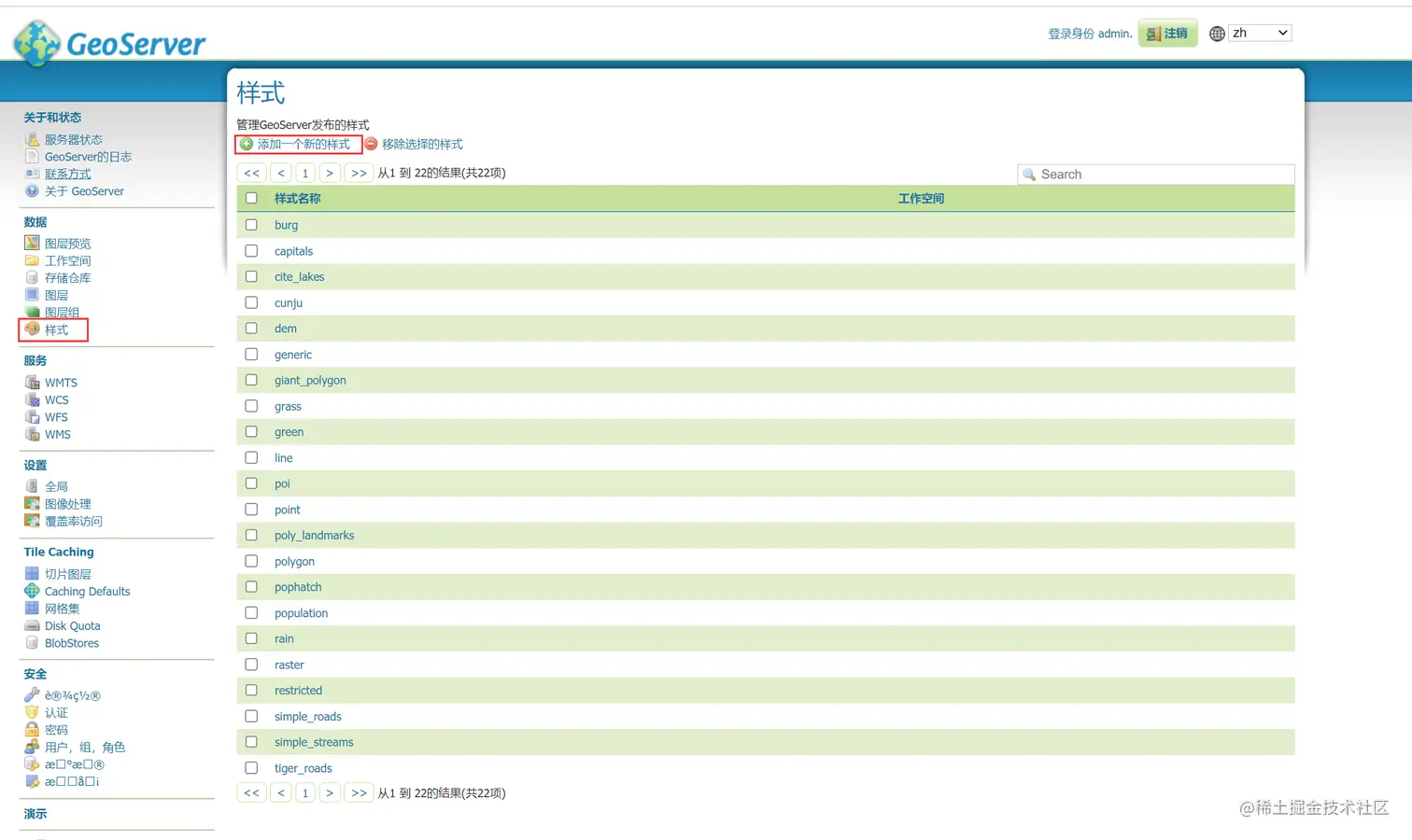

添加样式

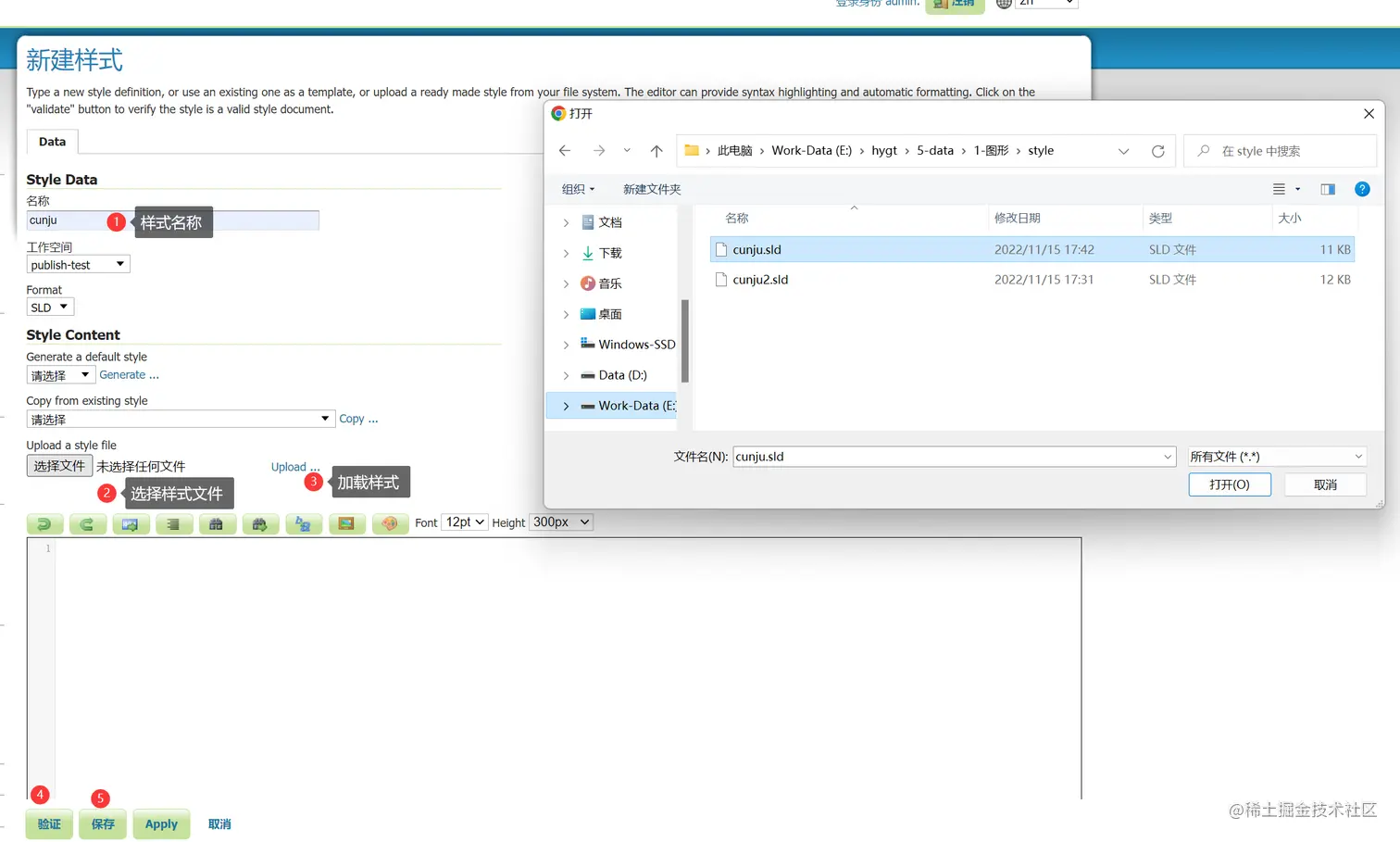

导入样式

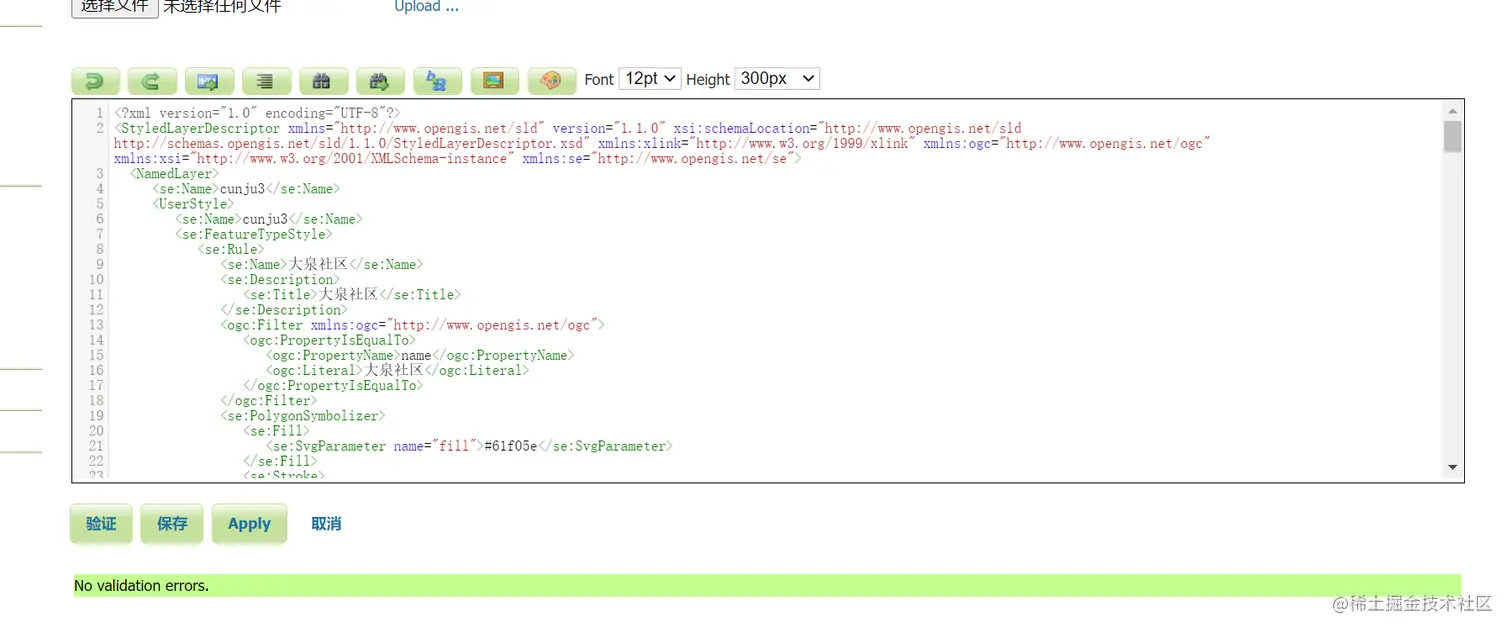

验证保存

5. 发布geoserver服务

5.1 引入所需依赖，调用geoserver接口

<!-- 添加仓库地址 -->
<repositories>
  <repository>
    <id>GeoSolutions</id>
    <url>https://maven.geo-solutions.it/</url>
  </repository>
</repositories>
<!--添加依赖  -->
<dependency>
  <groupId>it.geosolutions</groupId>
  <artifactId>geoserver-manager</artifactId>
  <version>1.7.0</version>
</dependency>

5.2 创建Geoserver 连接实体类

@Data
    public class GeoserverConn implements Serializable {
        private static final long serialVersionUID = 7143188313880619178L;

        private String url;

        private String username;

        private String password;
    }

5.3 发布postgis数据源的图层

/**
* 发布 postgis 表到 geoserver
* @param conn geoserver连接参数
* @param dBconn 数据库连接参数
* @param tableName 表名
* @param workspace 工作空间
* @param store 存储名
* @param srs 坐标系，eg： “EPSG:4490”
* @throws MalformedURLException
*/
public static void publishPostgisData(GeoserverConn conn, DBconn dBconn,String tableName,String workspace,String store,String srs) throws MalformedURLException {
    //判断工作空间是否存在，不存在则创建
    URL u=new URL(conn.getUrl());
    GeoServerRESTManager manager=new GeoServerRESTManager(u,conn.getUsername(),conn.getPassword());
    GeoServerRESTPublisher publisher=manager.getPublisher();
    List<String> workspaces=manager.getReader().getWorkspaceNames();
    if(!workspaces.contains(workspace)){
        boolean createws = publisher.createWorkspace(workspace);
        System.out.println("create ws:"+createws);
    } else {
        System.out.println("workspace 已经存在了，ws:"+workspace);
    }
    //判断数据存储（datastore）是否已经存在，不存在则创建
    RESTDataStore restStore=manager.getReader().getDatastore(workspace,store);
    if(restStore == null){
        GSPostGISDatastoreEncoder encoder = new GSPostGISDatastoreEncoder(store);
        encoder.setHost(dBconn.getHost());
        encoder.setPort(Integer.parseInt(dBconn.getPort()));
        encoder.setUser(dBconn.getUser());
        encoder.setPassword(dBconn.getPasswd());
        encoder.setDatabase(dBconn.getDatabase());
        encoder.setSchema(dBconn.getSchema());
        encoder.setConnectionTimeout(500);
        encoder.setMaxConnections(20);
        encoder.setMinConnections(1);
        encoder.setExposePrimaryKeys(true);
        boolean createStore=manager.getStoreManager().create(workspace,encoder);
        System.out.println("create store:"+createStore);
    }else {
        System.out.println("数据存储已经存在了，store："+store);
    }
    //判断图层是否已经存在，不存在则创建发布
    RESTLayer layer=manager.getReader().getLayer(workspace,tableName);
    if(layer==null){
        GSFeatureTypeEncoder pds = new GSFeatureTypeEncoder();
        pds.setTitle(tableName);
        pds.setName(tableName);
        pds.setSRS(srs);
        GSLayerEncoder layerEncoder = new GSLayerEncoder();
        //查询是否有图层同名的样式，有则设为图层的默认样式
        boolean existsStyle = manager.getStyleManager().existsStyle(tableName);
        if (existsStyle) {
            layerEncoder.setDefaultStyle(tableName);
            layerEncoder.addStyle(tableName);
        }
        boolean publish=manager.getPublisher().publishDBLayer(workspace,store,pds,layerEncoder);
        System.out.println("publish:"+publish);
    }else {
        System.out.println("表已经发布过了，table："+tableName);
    }
}

5.4 发布图层组

/**
* 发布 图层组 到 geoserver
* @param conn
* @param layerNames
* @param groupName
* @throws MalformedURLException
*/
public static void publishLayerGroups(GeoserverConn conn,List<String>layerNames,String groupName) throws MalformedURLException {
    URL u = new URL(conn.getUrl());
    GeoServerRESTManager manager = new GeoServerRESTManager(u, conn.getUsername(), conn.getPassword());
    GeoServerRESTPublisher publisher=manager.getPublisher();
    RESTLayerGroup layerGroup = manager.getReader().getLayerGroup(groupName);
    if(layerGroup ==null){
        GSLayerGroupEncoder gsLayerGroupEncoder=new GSLayerGroupEncoder();
        //添加图层
        for (int i = layerNames.size() - 1; i >= 0; i--) {
            gsLayerGroupEncoder.addLayer(layerNames.get(i));
        }
        //发布服务
        boolean create = publisher.createLayerGroup(groupName, gsLayerGroupEncoder);
    }else{
        System.out.println("图层组已存在："+groupName);
    }
}

6. gdb入库及图层组发布

6.1 GIS服务接口

public interface GisService {
    ResponseResult publishLayergroup() throws IOException;
}

6.2 接口实现类

@Service
public class GisServiceImpl implements GisService {
        @Override
        public ResponseResult publishLayergroup() throws IOException {
            //数据库连接参数
            DBconn dBconn=new DBconn();
            dBconn.setDbtype("postgis");
            dBconn.setHost("localhost");
            dBconn.setPort("5432");
            dBconn.setSchema("sde");
            dBconn.setDatabase("postgis_21_sample");
            dBconn.setUser("postgres");
            dBconn.setPasswd("Giseryin");
            //geoserver连接参数
            GeoserverConn gsConn=new GeoserverConn();
            gsConn.setUrl("http://localhost:8787/geoserver");
            gsConn.setUsername("admin");
            gsConn.setPassword("geoserver");
            //gdb路径
            GisUtils.importGdbToDatabase("E:\hygt\5-data\1-图形\test.gdb",dBconn);
            DataSource dataSource = GisUtils.GetDataSourceByGdbFilePath("E:\hygt\5-data\1-图形\test.gdb");
            //导入数据库的表名列表
            List<String> tableNames=new ArrayList<>();
            //geoserver图层名
            List<String>layerNames=new ArrayList<>();
            //geoserver 要发布的工作空间名
            String workspace="publish-test";
            //geoserver 要发布的存储名称
            String store="pgstore1";
            //geoserver 要发布的图层组名称
            String groupName= "group1";
            for (int i = 0; i < dataSource.GetLayerCount(); i++) {
                Layer layer = dataSource.GetLayer(i);
                //获得图层的空间参考
                SpatialReference spatialReference = layer.GetSpatialRef();
                //获得图层的epsg 数字编码
                String epsgCode = spatialReference.GetAttrValue("AUTHORITY", 1);
                String tableName = layer.GetName();//获取gbb图层名称
                tableNames.add(tableName);
                String gsLayerNamme=workspace+":"+tableName;
                layerNames.add(gsLayerNamme);
                String epsg="EPSG:"+epsgCode;
                //发布图层
                GeoServerUtils.publishPostgisData(gsConn,dBconn,tableName,workspace,store,epsg);
            }
            //发布图层组
            GeoServerUtils.publishLayerGroups(gsConn,layerNames,groupName);
            return ResponseResult.success();
        }
}

7. mybatis-plus处理Geometry字段类型

pom.xml 引入postgis-jdbc依赖

<!--编(解)码postgresql写入(或读取)的Geometry-->
<dependency>
  <groupId>net.postgis</groupId>
  <artifactId>postgis-jdbc</artifactId>
  <version>2.5.0</version>
</dependency>

定义 mybatis的TypeHandler，实现jts的Geometry Java类型转成能够被postgis-jdbc的Geometry JDBC类型

public abstract class AbstractGeometryTypeHandler<T extends Geometry> extends BaseTypeHandler<T> {

    /**
     * WKTReader非线程安全
     */
    private static final ThreadLocal<WKTReader> READER_POOL = ThreadLocal.withInitial(WKTReader::new);

    /**
     * WKTWriter非线程安全
     */
    private static final ThreadLocal<WKTWriter> WRITER_POOL = ThreadLocal.withInitial(WKTWriter::new);

    /**
     * 与数据库中几何列的空间坐标系保持一致，要不然写入会报错
     */
    private static final int SRID_IN_DB = 4546;

    @Override
    public void setNonNullParameter(PreparedStatement ps, int i, T parameter, JdbcType jdbcType) throws SQLException {
        PGgeometry pGgeometry = new PGgeometry(WRITER_POOL.get().write(parameter));
        org.postgis.Geometry geometry = pGgeometry.getGeometry();
        geometry.setSrid(SRID_IN_DB);
        ps.setObject(i, pGgeometry);
    }

    @SneakyThrows
    @Override
    public T getNullableResult(ResultSet rs, String columnName) {
        String string = rs.getString(columnName);
        return getResult(string);
    }

    @SneakyThrows
    @Override
    public T getNullableResult(ResultSet rs, int columnIndex) {
        String string = rs.getString(columnIndex);
        return getResult(string);
    }

    @SneakyThrows
    @Override
    public T getNullableResult(CallableStatement cs, int columnIndex) {
        String string = cs.getString(columnIndex);
        return getResult(string);
    }

    private T getResult(String string) throws SQLException {
        if(string == null){
            return null;
        }
        PGgeometry pGgeometry = new PGgeometry(string);
        String s = pGgeometry.toString();
        String target = String.format("SRID=%s;", SRID_IN_DB);
        String wkt = s.replace(target, "");
        try {
            return (T) READER_POOL.get().read(wkt);
        } catch (Exception e) {
            throw new RuntimeException("解析wkt失败：" + wkt, e);
        }
    }
}

public class GeometryTypeHandler extends AbstractGeometryTypeHandler<Geometry>{
}

实体类的几何类型，添加TableField注解，定义Java类型和JDBC类型的转换器

	@TableField(value = "geom",typeHandler = GeometryTypeHandler.class)
    private Geometry geom;

mybatis-plus 的xml配置文件定义字段的类型转换器

service实现层读取接收到的geojson转为 jts 的geometry类型直接保存

	@Override
    public ResponseResult test(Map<String, Object> geojson) throws IOException {

        System.out.println(geojson);
        Cunju cunju=new Cunju();


        GeometryJSON gJson=new GeometryJSON();
        String jsonString = JSONObject.toJSONString(geojson);
        StringReader reader=new StringReader(jsonString);
        Geometry geometry = gJson.read(reader);
        cunju.setFid(new BigInteger("1001"));
        cunju.setGeom(geometry);
        cunju.setObjectid(1200D);
        cunju.setShapeLeng(1200D);
        cunju.setName("test3");
        cunju.setShapeLe1(1200D);
        cunju.setShapeArea(1200D);


        cunjuMapper.insert(cunju);
        return ResponseResult.success(geojson);
    }

Webgis项目java 一键入库GDB及发布GeoServer服务

1. springboot项目初始化

1.1 方式一：springboot官方的模板生成器

1.2 方式二：idea开发工具生成（推荐）

1.2.1 新建项目

1.2.2 选择spring initializr, 修改参数

1.2.3 添加依赖

1.2.4 项目初始化成功

1.2.5 idea连接本地数据库

2. 引入mybatis-plus

2.1 创建用户表

2.2 往测试表user插入数据

2.3 引入依赖

2.3.1 pom.xml文件添加依赖

2.3.2 重新加载maven

2.4 修改配置文件

2.4.1 将application文件的后缀名为.yml 支持嵌套写法

2.4.2 修改内容

2.5 创建实体类

2.5.1 创建module包存放java对象

2.5.2 创建 user 实体类，使用lombok简化代码

2.6 添加mapper

2.6.1 添加mapper包

2.6.2 启动类添加注解，扫描mapper包

2.6.3 添加mapper类 UserMapper

2.7 测试

2.7.1 添加依赖引入 单元测试工具Junit

2.7.2 编写测试类，查看测试结果

3.gdb数据入库

3.1 pom.xml 引入Geotools、GDAL依赖

3.2 GDAL环境安装

3.3 创建数据库连接实体类

3.4 创建gis数据导入工具类 编写导入逻辑代码

3.5 测试gdb数据入库

4.发布样式

4.1 使用QGIS生成样式并导出

4.2 geoserver发布样式

5. 发布geoserver服务

5.1 引入所需依赖，调用geoserver接口

5.2 创建Geoserver 连接实体类

5.3 发布postgis数据源的图层

5.4 发布图层组

6. gdb入库及图层组发布

6.1 GIS服务接口

6.2 接口实现类

7. mybatis-plus处理Geometry字段类型

2.5.1 创建`module`包存放java对象

2.7.1 添加依赖引入单元测试工具Junit

3.4 创建gis数据导入工具类编写导入逻辑代码
