ant-design Button组件

606 阅读12分钟

Button组件分析

Button组件

当前为缩减版,并不实现a标签的button

API实现分析

Button组件需要支持的基本特性: 颜色type、大小size、形状shape、底色透明ghost、禁用disabled、加载中loading、space, 额外可接收的有className、children

属性说明类型默认值
className类名String-
type设置按钮类型Stringprimary | success | info | warning | danger| default
ghost幽灵属性,使按钮背景透明booleanfalse
text是否文本展示booleanfalse
size设置按钮大小large | small-
shape设置按钮形状default | circle-
disabled设置按钮失效状态booleanfalse
loading设置按钮载入状态booleanfalse
space两个纯中文的子元素,是否需要添加空格Booleanfalse
onClick点击按钮时的回调(event: MouseEvent) => void-

类型定义

以上为一些需要支持的基本属性,在组件的实现过程中需要对各属性进行一个处理。组件最开始需要进行ts的类型定义

/* ButtonHelper.ts - 定义API中的可选常量值 */
// ~ as const的使用 - 将当前创建的元素定义为常量 - 代表仅支持当前三个,不允许扩充
// 按钮的尺寸
const ButtonSizes = ['large', 'small'] as const;
export type ButtonSize = (typeof ButtonSizes)[number];

// 按钮的类型
const ButtonTypes = ['default', 'primary', 'success', 'info', 'warning', 'danger', 'link'] as const;
export type ButtonType = (typeof ButtonTypes)[number];

// 按钮的形状
const ButtonShapes = ['circle', 'round'] as const;
export type ButtonShape = (typeof ButtonShapes)[number];

/* Button.tsx - 组件实现 */
// 定义组件的类型,其中对于可选值需要使用?: 进行处理
export type ButtonProps = {
  className?: string;
  type?: ButtonType;
  ghost?: boolean;
  text?: boolean;
  size?: ButtonSize;
  shape?: ButtonShape;
  disabled?: boolean;
  loading?: boolean;
  space?: boolean;
  children: React.ReactElement; // 必填
  onClick?: React.MouseEventHandler<HTMLButtonElement>;
};

组件实现

组件的基本定义

一个组件的基本属性有: propsref, 在ts中可以通过 React.forwardRef()进行ref转发,在当前组件中需要将 html元素button转发给父级组件。

官方文档: forwardRef

/* Button.tsx */
/*
 * React.ForwardRefRenderFunction是React中的一种函数类型,用于定义具有转发引用(Forward Ref)功能的组件
 * 解析:T 表示被转发的引用的类型,通常是子组件的类型; P表示组件的props类型
 * 作用:用于定义一个接受props和ref作为参数,具有转发引用(Forward Ref)功能的组件渲染函数
 */
const InternalButton: React.ForwardRefRenderFunction<HTMLButtonElement, ButtonProps> = (props, ref) => {
  const { children } = props;
  const buttonRef = (ref as any) || React.createRef<HTMLButtonElement>();

  return (
    <button
      type="button"
      ref={buttonRef}
    >
      {children}
    </button>
  );
};

/**
 * 具体实现
 * function forwardRef<T, P = {}>(
 *   render:ForwardRefRenderFunction<T, P>
 * ): ForwardRefExoticComponent<PropsWithoutRef<P> & RefAttributes<T>>;
 * 解析:接收一个render函数,render函数接收`props`和`来自父组件的ref`。
 * 作用: 将子元素的ref转发给父元素
 */
const Button = React.forwardRef<HTMLButtonElement, ButtonProps>(InternalButton);

export default Button;

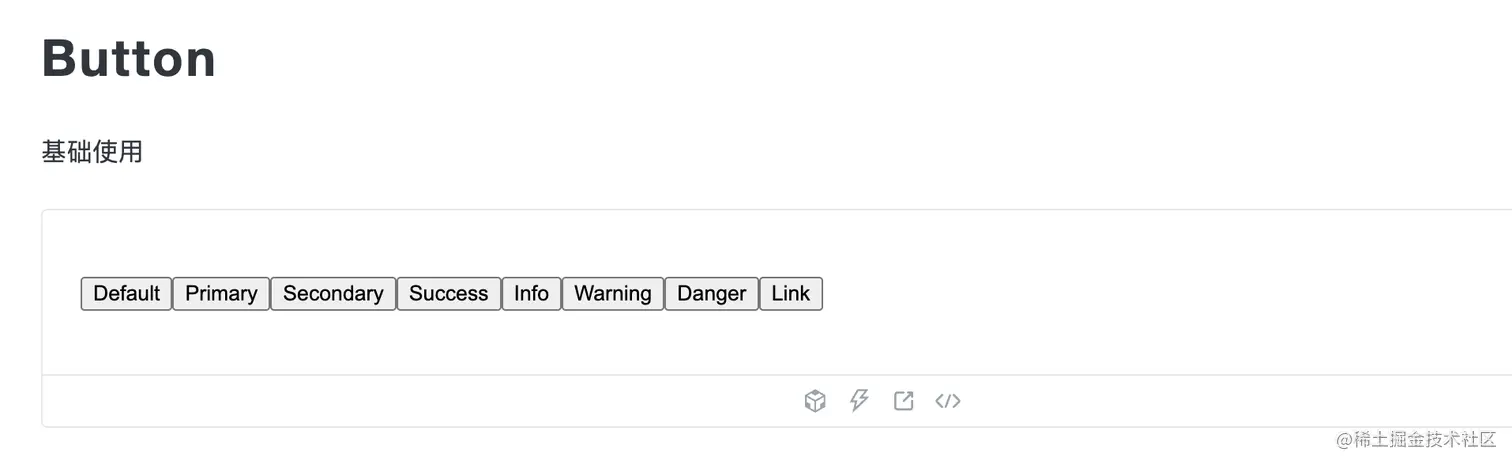

使用当前创建的Button后,实现效果如下: image.png

InternalButton的具体实现

  • 处理样式属性
    样式属性包括了: className、type、text、ghost、size、shape。样式属性的统一处理是获取到样式表包含了当前模块的处理函数,将其统一处理成className后将其添加到buttonclassName属性上。

    其中的buttonClass为一个带有button模块的样式处理函数,在整体组件库基础函数中说明

/*  Button.tsx  */
import classnames from 'classnames';
import React from 'react';
import { ButtonShape, ButtonSize, ButtonType } from './ButtonHelpers';
import buttonClass from './styles/index';

const InternalButton: React.ForwardRefRenderFunction<HTMLButtonElement, ButtonProps> = (props, ref) => {
  const { children, className, type = 'default', ghost: ghostProp = false, text = false, size, shape } = props;

  // 需要对ghost进行处理: 在设置了text纯文本的情况下,不需要设置为ghost的样式
  const ghost = ghostProp && !text;
  const classNames = classnames(
    buttonClass('_', type, ghost && 'ghost', shape, {
      large: size === 'large',
      small: size === 'small',
      text: text && 'text',
    }),
    className,
  );
  const buttonRef = (ref as any) || React.createRef<HTMLButtonElement>();

  return (
    <button
      className={classNames}
      type="button"
      ref={buttonRef}
    >
      {children}
    </button>
  );
};

  • 处理交互属性
    交互属性:disabled、loading、onClick。对以上交互的属性来说,disabled对以上的样式属性都有一定的影响,

    • disabled属性不仅需要作用于button的交互,也同时影响了button的展示。
    • loading属性在将button禁用的同时,需要实现一个loading效果, 在当前实现版本中,并没有使用loading Icon组件去实现(后期优化~)

    以下是继续对InternalButton的扩展

/* Button.tsx  */
const InternalButton: React.ForwardRefRenderFunction<HTMLButtonElement, ButtonProps> = (props, ref) => {
  const {
    children,
    className,
    type = 'default',
    ghost: ghostProp = false,
    text = false,
    size,
    shape,
    disabled = false,
    loading = false,
    // onClick作用
    ...others
  } = props;

  // 需要对ghost进行处理: 在设置了text纯文本的情况下,不需要设置为ghost的样式
  const ghost = ghostProp && !text;
  const classNames = classnames(
    buttonClass('_', shape, type, ghost && 'ghost', {
      large: size === 'large',
      small: size === 'small',
      text: text && 'text',
      disabled, // 增加disabled
    }),
    className,
  );
  const buttonRef = (ref as any) || React.createRef<HTMLButtonElement>();

  return (
    <button
      {...others}
      className={classNames}
      type="button"
      // 在disabled或loading为true的情况下按钮都应置灰
      disabled={disabled || loading}
      ref={buttonRef}
    >
      {/* 正常来说 loading效果下应展示一个loading组件 */}
      {children}
    </button>
  );
};
  • 其他属性
    其他属性: space, 当前属性仅在children为两个中文时需要处理。则需要存在一个函数去校验当前的children
/* utils/element.tsx */
export const wrapSpan = (children: React.ReactElement, space: boolean) => {
  const SPACE = ' ';
  const isTwoCNChar = (str: string) => /^[\u4e00-\u9fa5]{2}$/.test(str);
  if (!children) return children;

  if (typeof children === 'string') {
    // 检测为两个中文字符 且需要插入空格
    if (isTwoCNChar(children) && space) return <span>{(children as string).split('').join(SPACE)}</span>;

    // 非两个中文的string类型
    return <span>{children}</span>;
  }

  // 正常React Element直接进行返回
  return children;
};

/* Button.tsx */
const InternalButton: React.ForwardRefRenderFunction<HTMLButtonElement, ButtonProps> = (props, ref) => {
  const {
    className,
    type = 'default',
    ghost: ghostProp = false,
    text = false,
    size,
    shape,
    disabled = false,
    loading = false,
    space = false,
    // onClick作用
    ...others
  } = props;

// 处理children的情况 1. 两个中文名  2、字符串使用span包裹  3、loading且为icon 4、children为空
  const getChildren = () => {
    const { children } = props;
    if (!children) return children;
    const parsed = React.Children.map(wrapSpan(children, space), (item) => {
      // 为loading 状态,且为icon时  返回null
      // todo 需要配置一个Icon组件,并为其设置指定的Type用于判断
      if (loading && isValidElement(item) && item?.type) return null;

      return item;
    }).filter((v: React.ReactElement) => v !== null);

    return parsed;
  };
  // 需要对ghost进行处理: 在设置了text纯文本的情况下,不需要设置为ghost的样式
  const ghost = ghostProp && !text;
  const classNames = classnames(
    buttonClass('_', shape, type, ghost && 'ghost', {
      large: size === 'large',
      small: size === 'small',
      text: text && 'text',
      disabled, // 增加disabled
    }),
    className,
  );
  const buttonRef = (ref as any) || React.createRef<HTMLButtonElement>();

  const children = getChildren();
  return (
    <button
      {...others}
      className={classNames}
      type="button"
      // 在disabled或loading为true的情况下按钮都应置灰
      disabled={disabled || loading}
      ref={buttonRef}
    >
      {/* 正常来说 loading效果下应展示一个loading组件 */}
      {children}
    </button>
  );
};

css分析

以下为对各组件的公共处理方式,每个模块在styles文件下定义一个 index.tsx,用于统一处理组件内的属性、className。

/* utils/classnames.tsx */
type styleProps = {
  [key: string]: string;
};

/**
 * 一个高阶函数,返回一个generate function, 新增namespace, 处理css module
 * @param style - object, 当前模块的 css module - eg: button模块对应的样式集合
 * @param module - string 当前所属模块,用于添加模块名
 * @param prefix - string, 默认为 shineout,用于css前缀
 * config.prefix 为自定义的前缀 so
 */
export default (style: styleProps, module: string, prefix: string = config.prefix) =>
  (...args: any[]) => {
    // 组合所有传入的参数
    const className = classnames(...args);
    if (!className) return ''; // 没有任何参数的情况下 直接返回 空字符串

    // 前缀 + 模块的组合
    const ns = `${prefix}${module ? `-${module}` : '-'}`;

    // 整合class,若为_ 则直接使用模块级别的变量名;每个模块都有最基础的className 比如:so-button
    // 若为普通样式 则在其前插前缀+模块的组合
    let list = className.split(' ').map((c) => (c === '_' ? ns : `${ns}-${c}`));

    // 若存在cssModule, 则需要将存在于style的class 样式替换为class
    if (config.cssModule) {
      list = list.map((c) => style[c] || c);
    }

    // 重新组装
    return list.join(' ');
  };

/* styles/index.tsx */
import generate from '../../utils/classname';
import buttonLess from './button.less';

// buttonClass为一个函数,接收多个属性 - 将其整合为新的class
const buttonClass = generate(buttonLess, 'button');

export default buttonClass;

button基础样式

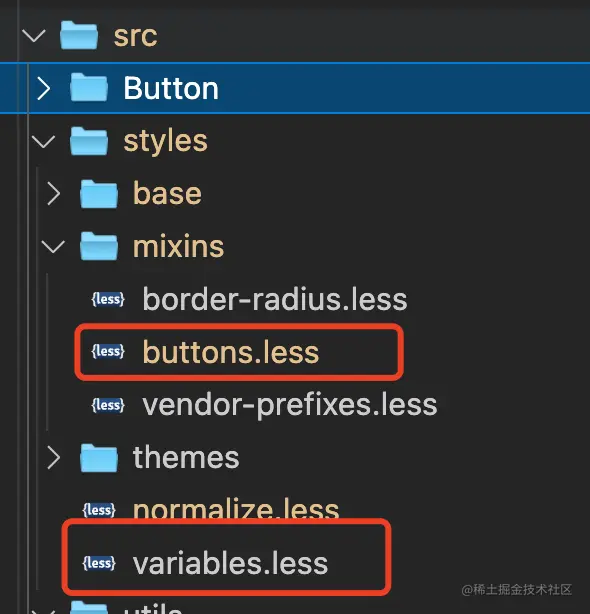

当前组件库使用为css的预处理语言less,可进行函数式处理、动态计算等操作。如果涉及到样式函数计算时,需要将当前的函数提取到公共目录styles/mixins下(便于其他模块进行使用),根据模块名进行命名,即Button组件则命名为button.less,注意需要在variable.less中进行引入


组件库中处理组件内部的样式时,首先需要对其基础样式进行处理。

  1. 处理公共的class名称 - 即prefix-模块 进行动态计算。
  2. 对组件基础样式进行处理
  3. 若存在less函数式,则需要在styles/mixins下建立对应less文件
@import '../../styles/variables.less';
@import '../../styles/themes/@{so-theme}.less';

// ~ 表示动态计算模块class
@button-prefix: ~'@{so-prefix}-button';
@button-disabled: ~'.@{button-prefix}-disabled';

.@button-prefix {
 display: inline-block;
 margin-bottom: 0;
 text-align: center;
 font-weight: @btn-font-weight;
 outline: none;
 background-image: none;
 border: 1px solid transparent;
 touch-action: manipulation;
 vertical-align: middle;
 white-space: nowrap;
 cursor: pointer;
 // 函数式的处理,因Button组件的大小、边框等受到size的影响,可进行公共抽取
 .button-size(@btn-padding-y; @btn-padding-x; @button-font-size-base; @line-height-base; @btn-border-radius-base);
}

属性样式分析

在对组件进行属性分析时,已得出了影响样式的部分属性:className、type、text、ghost、size、shape、disabled。还用genrate函数处理所有的样式,并支持对属性的处理。以下的so-button可得出的所有class有:

  • @{button-prefix}-${type}: type有多种,但处理方式一致,仅存在 字体、背景、outline、名称、border颜色不一致的情况。
  • @{button-prefix}-${size}: large/small, 直接对 .button-size函数调用处理即可
  • @{button-prefix}n-ghost: 不同的type下,当前属性需要对其border、文本、背景色进行处理,即可在各@{button-prefix}-${type}下进行扩展
  • @{button-prefix}-text: 需单独处理
  • @{button-prefix}-${shape}: shape存在circle、round
  • @{button-prefix}-disabled: 需单独处理,以上的情况 基本都需要区分是否已禁用

在对不同type的处理中,button的hoverfocusactive进行处理。以下为部分具体样式分析

/* Button下的 button.less */
.@button-prefix {
  display: inline-block;
  margin-bottom: 0;
  text-align: center;
  font-weight: @btn-font-weight;
  outline: none;
  background-image: none;
  border: 1px solid transparent;
  touch-action: manipulation;
  vertical-align: middle;
  white-space: nowrap;
  cursor: pointer;
  // 函数式的处理,因Button组件的大小、边框等受到size的影响,可进行公共抽取
  .button-size(@btn-padding-y; @btn-padding-x; @button-font-size-base; @line-height-base; @btn-border-radius-base);

  // type为primary的样式实现
  &-primary {
    // 不同类型的差异: 字体、背景、outline、名称、border作为参数,其他均基本一致
    .button-variant(@btn-primary-color; @btn-primary-bg; @btn-primary-border; 'primary');

   // 不同type下的ghost处理,也基本一致,差异点为字体颜色、背景颜色、边框颜色
    &.@{button-prefix}-ghost:not(@{button-disabled}) {
      // 背景: transparent; color: type; border:
      .button-ghost(@btn-primary-color; @btn-primary-bg; @colors-primary;);
    }
  }

  // 禁用效果,其中文字和link没有背景
  &-disabled:not(&-link):not(&-text), &-disabled:not(&-link):not(&-text):hover {
    background: @button-disabled-bg;
    color: @button-disabled-color;
    fill: @button-disabled-color;
    border-color: @button-disabled-border-color;
  }
}

/* mixins/button.less 实现上述函数 */
// * button下各类型的变体
.button-variant(@color; @background; @outline; @name; @border:transparent) {
  color: @color;
  fill: @color;
  background-color: @background;
  border-color: @border;
  transition: all .15s ease-in-out; // hover - active效果

  @keyname: ~'btn-focus-@{name}';

  // 动画增加box-shadow过渡变化: box-shadow颜色、box-shadow大小、字体颜色
  @keyframes @keyname {
    0% {
      .button-case-box-shadow(@outline, 0, 60%);
    }

    60% {
      .button-case-box-shadow(@outline, (@btn-focus-width / 2), 0%);
    }

    100% {
      .button-case-box-shadow(@outline, @btn-focus-width, 0%);
    }
  }
  // hover/focus 后 需要变化 背景、边框、颜色、border粗细
  &:focus,
  &:hover {
    .button-case-border-color(@outline);
    .button-case-background(@background);

    color: @color;
  }

  // active时动画效果
  &:active {
    background-image: none;
    color: @color;
    animation: @keyname 0.4s ease-out;
    .button-case-border-color(@outline);
    .button-case-background(@background);
  }

  // 禁用效果 下的hover等效果 不变化
  &[disabled],
  fieldset[disabled] & {
    &:hover,
    &:focus {
      border-color: @border;
      background-color: @background;
    }

    &:active {
      animation: none;
    }
  }
}

ButtonGroup组件分析

接收的参数列表

属性说明类型默认值
className类名String-
type设置按钮类型。若button和buttonGroup同时设置了,以buttonGroup为准Stringprimary | success | info | warning | danger| default
ghost幽灵属性,使按钮背景透明booleanfalse
size设置按钮大小large | small-
children由 Button 组成的 arrayReactNode必填

代码实现

/* ButtonGroup.tsx */
import classnames from 'classnames';
import React, { Children, cloneElement } from 'react';
import { ButtonSize, ButtonType } from './ButtonHelpers';
import buttonClass from './styles';

export type ButtonGroupProps = {
  size?: ButtonSize;
  type?: ButtonType;
  ghost?: boolean;
  className?: string;
  children: any;
};

const ButtonGroup: React.FC<ButtonGroupProps> = (props) => {
  const { size, type = 'default', ghost = false, children, className } = props;

  const typeSetted = type !== 'default';
  // ghost或者type: default的情况 使用透明背景
  const classNames = classnames(buttonClass('group', (ghost || !typeSetted) && 'ghost'), className);
  return (
    <div className={classNames}>
      {Children.toArray(children).map((child: any) => {
        // todo cloneElement的入参
        return cloneElement(child, { size, ghost, type: typeSetted ? type : child.props.type });
      })}
    </div>
  );
};

export default ButtonGroup;

样式处理

主要需要注意各样式之间的组合。

  • 整体样式: border的radius只存在左右两端的按钮上:特殊情况 group下仅一个按钮,则需特殊处理
  • 对于未被设置为disabled的按钮组合,需要在左侧设置一个线区分按钮,在非ghost下 border为白色,ghost下为 type颜色
  • disabled的按钮右侧的线需要全部显示
  • hover等效果:鼠标hover上需要有样式变化 - 与button一致
  • active效果:点击需要有动画效果 - box-shadow变化

ButtonGroup挂载到Button上

在一般组件库上,ButtonGroup组件并不会单独进行配置,都会以

  const ButtonGroup = Button.Group

的形式进行获取。在组件设计时,就需要将ButtonGroup以静态属性的形式挂到Button之下。以下是对Button组件的改造

/*
* 1、在Button组件上新增一个静态属性Group
* 实现方式: 定义了两个新的静态属性
*/
type CompoundedComponent = React.ForwardRefExoticComponent<ButtonProps & React.RefAttributes<HTMLElement>> & {
  // 获取ButtonGroup的类型
  Group: typeof ButtonGroup;
  /** @internal */
  __SELF_BUTTON: boolean;
};

// 2、将Button的类型定义为CompoundedComponent
const Button = React.forwardRef<HTMLButtonElement, ButtonProps>(InternalButton) as CompoundedComponent;


// 挂载Group
Button.Group = ButtonGroup;

扩展 ref篇

ref是什么?作用是什么?使用场景是啥?

  • 尽量避免使用ref直接操作DOM,这可能会导致应用的状态和视图不一致,优先考虑React的props和状态来进行数据传递和管理

  • ref是一种机制,作用是 用于访问DOM元素或者组件实例的引用

  • 使用场景:

    • 访问DOM元素,直接操作DOM
    • 访问组件实例,通过ref可以获取到组件实例的引用,从而可以访问组件的方法和属性。
  • ref对象创建方式:

    • ref=React.createRef() - 一个带有current属性的对象,组件实例挂载在current上
    • ref=useRef() - 一个带有current属性的对象,组件实例挂载在current上
  • 获取方式:

    • 字符串ref:
      <div ref="divRef">被保存在this.refs中: this.refs.divRef</div>

    • 函数形式ref:
      <div ref={(node)=> this.currentRef = node }>
        函数形式: 直接获取this.currentRef
      </div>

    • 对象形式ref: 由上面创建方式进行创建的再进行绑定
    class Children extends React.Component{
      render=()=><div>hello,world</div>
    }
    export default class Index extends React.Component{
      currentDom = React.createRef(null)
      currentComponentInstance = React.createRef(null)
      componentDidMount(){
        console.log(this.currentDom)
        console.log(this.currentComponentInstance)
      }
      render=()=> (
        <div>
          <div ref={ this.currentDom }>Ref对象模式获取元素或组件</div>
          <Children ref={ this.currentComponentInstance }  />
        </div>
      );
    }


React.forwardRef是干啥的?

官方文档: forwardRef

forwardRef的定义forwardRef lets your component expose a DOM node to parent component with a ref,即当前组件通过ref暴露一个DOM元素给父级组件。通俗讲法的作用:将子元素的ref转发给父元素

const SomeComponent = forwardRef(render); * 参数 render 是一个组件的render函数,其接收props来自父组件的ref。 * 返回值:返回一个React组件

作用:

  • Exposing a DOM node to the parent component-暴露一个DOM元素/组件实例 给父级组件
  • Forwarding a ref through multiple components - 将ref进行多级组件传递
  • Exposing an imperative handle instead of a DOM node - 返回一个DOM元素的处理句柄(useImperativeHandle)

React.RefAttributes是什么?做什么用的?

RefAttributes 内置的React属性,用于在React组件上声明ref的类型。你可以使用React.RefAttribute来声明一个接受React.Ref类型的ref的组件属性

  // 定义相关
  interface RefObject<T> {
    readonly current: T | null;
  }
  // Bivariance hack for consistent unsoundness with RefObject
  type RefCallback<T> = { bivarianceHack(instance: T | null): void }["bivarianceHack"];
  type Ref<T> = RefCallback<T> | RefObject<T> | null;
  // 定义一个ref属性
  interface RefAttributes<T> extends Attributes {
    ref?: Ref<T> | undefined;
  }

  // 使用
  React.RefAttributes<HTMLElement>

React.ForwardRefExoticComponent 是什么?做什么用的?

React.ForwardRefExoticComponent 是React中的高级接口类型,用于定义具有转发引用(Forward Ref)功能的组件, 你可以通过实现ForwardRefExoticComponent接口来创建一个可以转发ref的组件

  interface ExoticComponent<P = {}> {
    /**
     * **NOTE**: Exotic components are not callable.
     */
    (props: P): (ReactElement|null);
    readonly $$typeof: symbol;
  }
  interface NamedExoticComponent<P = {}> extends ExoticComponent<P> {
    displayName?: string | undefined;
  }
  // will show `ForwardRef(${Component.displayName || Component.name})` in devtools by default,
  // but can be given its own specific name
  interface ForwardRefExoticComponent<P> extends NamedExoticComponent<P> {
    defaultProps?: Partial<P> | undefined;
    propTypes?: WeakValidationMap<P> | undefined;
  }

React.ForwardRefRenderFunction是什么?做什么用的?

React.ForwardRefRenderFunction 是React中的一种函数类型,用于定义具有转发引用(Forward Ref)功能的组件。作用:用于定义一个接受props和ref作为参数的组件渲染函数

  type ForwardedRef<T> = ((instance: T | null) => void) | MutableRefObject<T | null> | null;

  // T 表示被转发的引用的类型,通常是子组件的类型; P表示组件的props类型
  interface ForwardRefRenderFunction<T, P = {}> {
    // 使用泛型和interface进行函数定义:接收prop和ref的参数,返回一个ReactElement
    (props: P, ref: ForwardedRef<T>): ReactElement | null;
    displayName?: string | undefined;
    // explicit rejected with `never` required due to
    // https://github.com/microsoft/TypeScript/issues/36826
    /**
     * defaultProps are not supported on render functions
     */
    defaultProps?: never | undefined;
    /**
     * propTypes are not supported on render functions
     */
    propTypes?: never | undefined;
  }

综合: 如何将ButtonGroup当初Button的属性(如displayName)直接进行设置?

使用交叉类型进行处理

  // 当前为React中对Function组件的定义,使用interface给组件进行了函数定义,并创建四个静态属性
  type FC<P = {}> = FunctionComponent<P>;
  interface FunctionComponent<P = {}> {
  // * 使用泛型和interface进行函数定义
    (props: P, context?: any): ReactElement<any, any> | null;
  // * 静态属性的定义
    propTypes?: WeakValidationMap<P> | undefined;
    contextTypes?: ValidationMap<any> | undefined;
    defaultProps?: Partial<P> | undefined;
    displayName?: string | undefined;
 }

  //  给组件新增静态属性,使用交叉类型,给函数组件新增一个静态属性
  const Button: React.FC<Props> & {
    Group: typeof ButtonGroup;
  }

  // 可理解其Props为以下格式
  interface FunctionComponent<P = {}> {
    (props: P, context?: any): ReactElement<any, any> | null;
    // * 静态属性的定义
    propTypes?: WeakValidationMap<P> | undefined;
    contextTypes?: ValidationMap<any> | undefined;
    defaultProps?: Partial<P> | undefined;
    displayName?: string | undefined;
    Group: typeof ButtonGroup;
 }
