Vue3中使用vue3-draggable-resizable实现拖动吸附画板

vue3-draggable-resizable实现拖动吸附画板，官方地址www.npmjs.com/package/vue…

通过npm进行安装，注意npm的版本要高于16，创建的项目将使用基于 Vite 的构建设置

npm install --save vue-draggable-resizable

全局注册组件，在mian.js中

import { createApp } from 'vue'
import App from './App.vue'
import Vue3DraggableResizable from 'vue3-draggable-resizable'
//default styles
import 'vue3-draggable-resizable/dist/Vue3DraggableResizable.css'

// You will have a global component named "Vue3DraggableResizable"
createApp(App)
  .use(Vue3DraggableResizable)
  .mount('#app')

// >component.js
import { defineComponent } from 'vue'
import Vue3DraggableResizable from 'vue3-draggable-resizable'
//default styles
import 'vue3-draggable-resizable/dist/Vue3DraggableResizable.css'

export default defineComponent({
  components: { Vue3DraggableResizable }
  // ...other
})

demo

<template>
  <div id="app">
    <div class="parent">
      <Vue3DraggableResizable
        :initW="110"
        :initH="120"
        v-model:x="x"
        v-model:y="y"
        v-model:w="w"
        v-model:h="h"
        v-model:active="active"
        :draggable="true"
        :resizable="true"
        @activated="print('activated')"
        @deactivated="print('deactivated')"
        @drag-start="print('drag-start')"
        @resize-start="print('resize-start')"
        @dragging="print('dragging')"
        @resizing="print('resizing')"
        @drag-end="print('drag-end')"
        @resize-end="print('resize-end')"
      >
        This is a test example
      </Vue3DraggableResizable>
    </div>
  </div>
</template>

<script>
import { defineComponent } from 'vue'
import Vue3DraggableResizable from 'vue3-draggable-resizable'
//default styles
import 'vue3-draggable-resizable/dist/Vue3DraggableResizable.css'
export default defineComponent({
  components: { Vue3DraggableResizable },
  data() {
    return {
      x: 100,
      y: 100,
      h: 100,
      w: 100,
      active: false
    }
  },
  methods: {
    print(val) {
      console.log(val)
    }
  }
})
</script>
<style>
.parent {
  width: 200px;
  height: 200px;
  position: absolute;
  top: 100px;
  left: 100px;
  border: 1px solid #000;
  user-select: none;
}
</style>

呈现效果：

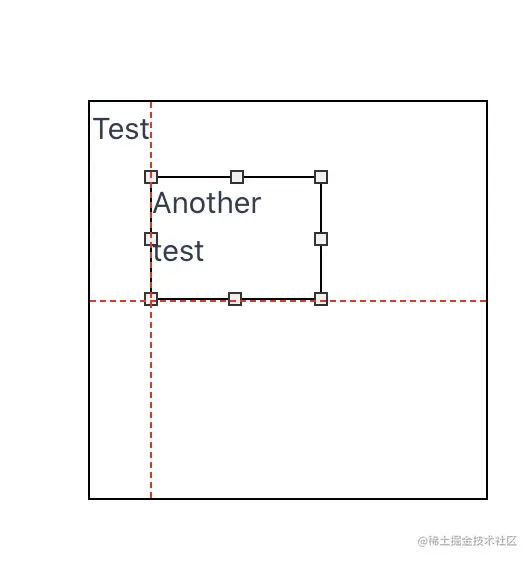

带有吸附效果截图：

注意

如果放大缩小画布，鼠标就会错位，可以参考： github.com/a7650/vue3-…
