自建CA+HTTPS配置

littlefatcat
253 阅读1分钟

自建CA + https

  1. 创建rootSSL证书
  2. 用rootSSL签署需要的域名证书

文件后缀名

格式说明
.crt
.cer		证书 certificate
.key密钥/私钥 private key
.csr证书认证签名请求 certificate signing request
.pembase64编码文本存储格式，可以单独放证书或者密钥，也可以同时放两个

一、 创建rootSSL

后续的证书都将用root自建机构去认证

  1. openssl genrsa -out rootSSL.key 2048
  2. openssl req -x509 -new -nodes -key rootSSL.key -sha256 -days 1024 -out rootSSL.pem

二、把rootssl机构导入系统中，下面以window为例

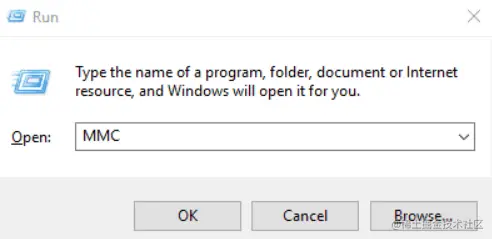

  1. win + r 执行 MMC image.png

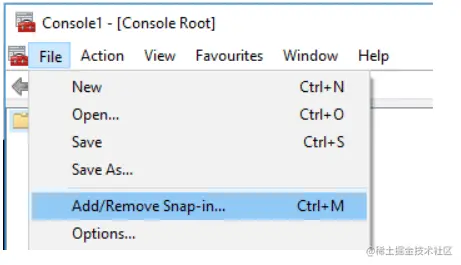

  2. File -> Add/Remove Snap-in...

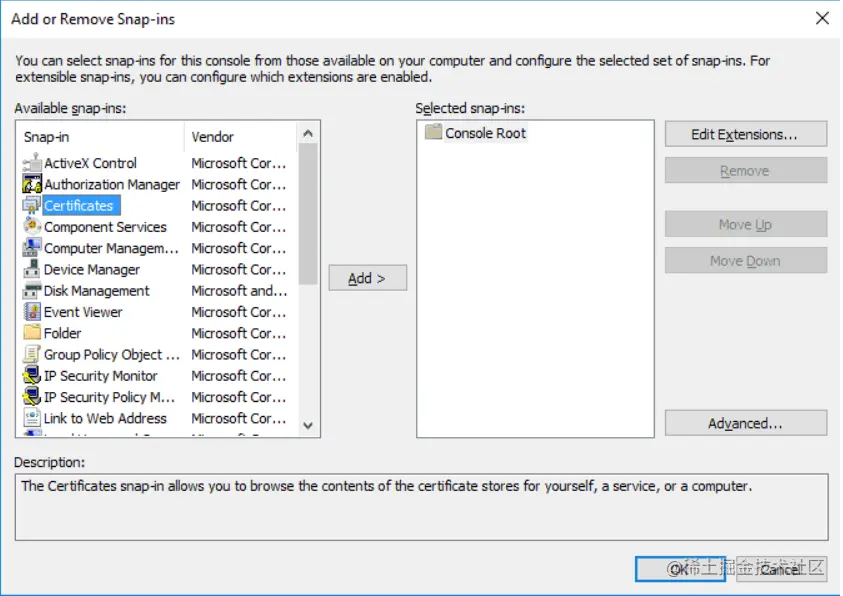

  1. Certificates and Add image.png

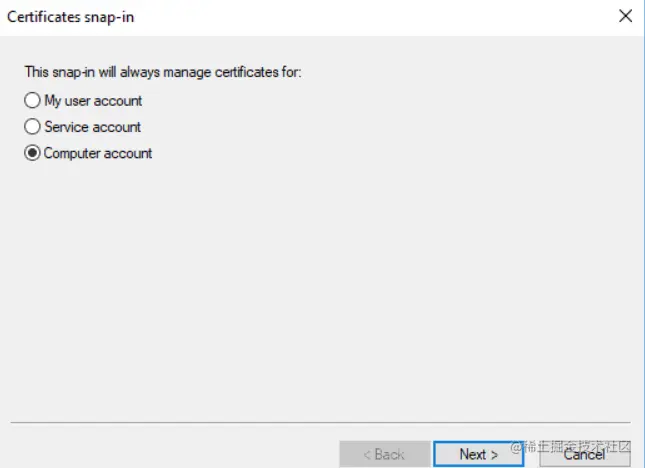

  2. Computer Accoutn and Next

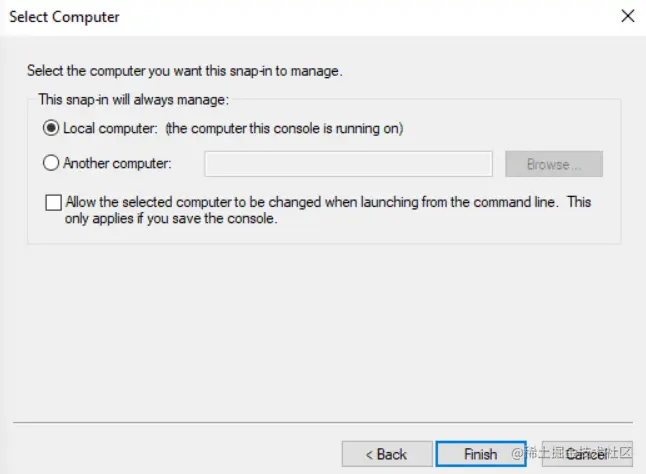

  1. Local Computer and Finish

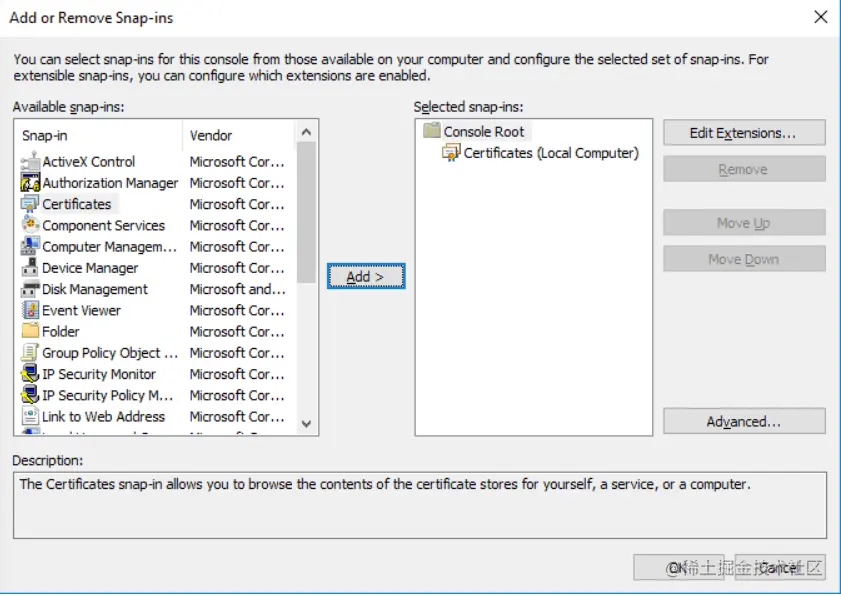

  1. Ok to go back the MMC window image.png

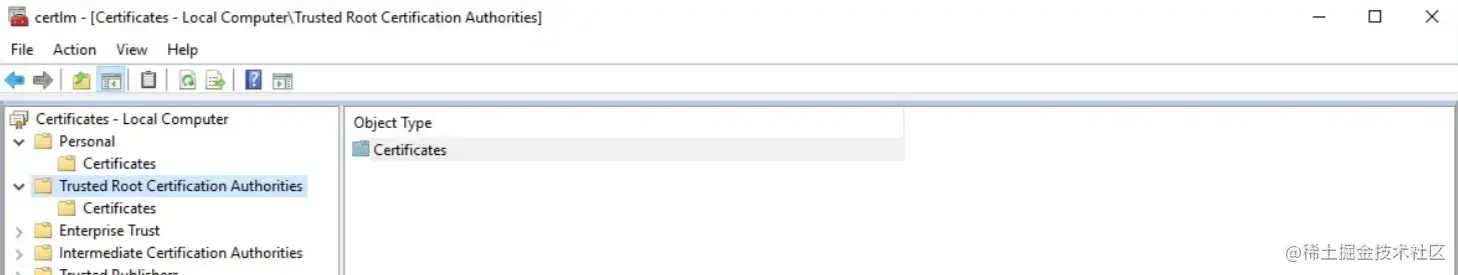

  2. Trusted Root Certfication Authorities and right-click to import image.png

  3. select rootSSL.pem then Next

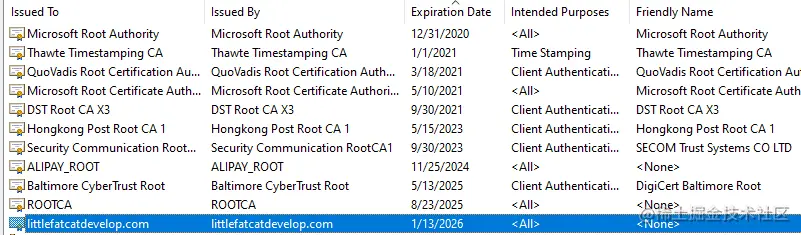

  1. 证书里面能看见rootSSL对应的origin image.png

三、给域名创建证书

  1. create private key for local.com openssl req -new -nodes -out local.com.csr -newkey rsa:2048 -keyout local.com.key
  2. create local.com.txt file, full in the following:
     authorityKeyIdentifier=keyid,issuer
 basicConstraints=CA:FALSE
 keyUsage = digitalSignature, nonRepudiation, keyEncipherment, dataEncipherment
 subjectAltName = @alt_names
 [alt_names]
 DNS.1 = dev.local.com
 DNS.2 = *.local.com
  3. create and sign cert local.comopenssl x509 -req -in local.com.csr -CA rootSSL.pem -CAkey rootSSL.key -CAcreateserial -out local.com.crt -days 1024 -sha256 -extfile local.com.ext
  4. 创建pfx准备IIS证书，需要输入密码 winpty openssl pkcs12 -inkey local.com.key -in local.com.crt -export -out local.com.pfx
  5. 类似上面步骤，将local.com.pfx导入到MMC


四、nginx添加ssl证书

 listen       443 ssl;
 server_name  dev.local.com;
 ssl_certificate      local.com.crt;
 ssl_certificate_key  local.com.key;

五、host添加域名

127.0.0.1 dev.local.com
