准备工作
搭建公众号后端服务
使用 express 进行搭建
验证微信接口配置信息
参考官方文档
const express = require('express');
const app = express();
const sha1 = require('node-sha1'); //加密模块
const config = {
token: 'hellowechat', //对应测试号接口配置信息里填的token
appid: 'wx5f58282ecb777790', //对应测试号信息里的appID
secret: '4161005346b5ae9472dc9353ffdc6066', //对应测试号信息里的appsecret
grant_type: 'client_credential' //默认
}
app.get('/', function (req, res) {
const token = config.token; //获取配置的token
const { signature, nonce, timestamp } = req.query
const str = [token, timestamp, nonce].sort().join(''); //排序token、timestamp、nonce后转换为组合字符串
const sha = sha1(str); //加密组合字符串
//如果加密组合结果等于微信的请求参数signature,验证通过
if (sha === signature) {
const { echostr } = req.query; //获取微信请求参数echostr
res.send(echostr + ''); //正常返回请求参数echostr
} else {
res.send('验证失败');
}
});

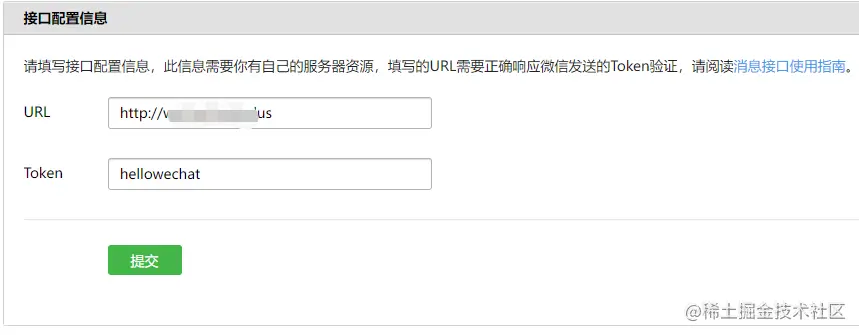

填写接口配置信息
- URL 处填写你校验服务的地址,地址必须在公网可访问,这里推荐内网穿透工具
- Token 处随便写,必须要和后端服务中的保持一致
然后提交,会提示成功或失败
- 如果配置失败,请检查服务是否按照规则返回内容
- 配置成功则继续
编写发送模板消息的方法
首先,在后台新建模板,例如:
通知内容:
{{thing01.DATA}}
可用 postman 进行测试,
access_token自行使用调试工具获取 或 直接调用/send接口,下面的获取 token 的方法都封装好了
模板参数可参考发送模板消息接口
app.get('/send', async function (req, res) {
await getAccessToken(openid);
res.send('结束,看控制台')
});
// 获取access_token
async function getAccessToken (openid) {
const appid = config.appid;
const secret = config.secret;
const grant_type = config.grant_type;
const url = `https://api.weixin.qq.com/cgi-bin/token?grant_type=${grant_type}&appid=${appid}&secret=${secret}`;
const res = await fetch(url)
if (res.status === 200) {
const { access_token } = await res.json();
sendTemplateMsg(access_token); //获取access_token成功后调用发送模板消息的方法
} else {
throw 'update access_token error';
}
}
// 发送模板消息
async function sendTemplateMsg (access_token) {
const url = `https://api.weixin.qq.com/cgi-bin/message/template/send?access_token=${access_token}`; //发送模板消息的接口
const requestData = { //发送模板消息的数据
"touser": "oMK9n6z-trWsXW25_prV3dDrMGRI",
"template_id": "cYCEP-VzHdxXDFEx8iC5VyIdh2oYTM-1Ulo7U1O-i44",
"url": "http://www.baidu.com", // url会跳转到普通的链接
"miniprogram": {
"appid": "wxb49aa4f53c9004d8",
"pagepath": "index"
}, // 如果要推送小程序链接,小程序必须关联公众号,测试号是不能推送小程序的
"client_msg_id": "MSG_000001",
"page": "index",
"data": {
"thing01": {
"value": "asdf"
}
}
};
const res = await fetch(url, {
method: 'post',
headers: {
'Content-Type': 'application/json;charset=utf-8;'
},
body: JSON.stringify(requestData) // 注意这里一定要把json转成字符串,大坑!!
})
console.log(requestData)
if (res.status === 200) {
const { errcode, errmsg } = await res.json()
if (!errcode) {
console.log('模板消息推送成功')
} else {
throw errmsg
}
}
}
关注和取关事件
const xmlparser = require('express-xml-bodyparser'); // 解析xml
const template = require('./utils/template')
app.use(xmlparser());
app.post('/', function (req, res) {
const { xml } = req.body
console.log(xml)
switch (xml.event?.[0]) {
case 'subscribe':
saveOpenId();
break;
case 'unsubscribe':
delOpenId();
break
}
res.send('')
})
function saveOpenId () {
console.log('保存用户的openid')
}
function delOpenId () {
console.log('删除用户的openid')
}
至此,公众号推送模板消息的功能开发完毕
如果需要推送小程序链接,需要参考上述的步骤 2,在参数中添加
miniprogram,示例代码中也有写到 由于测试号无法推送小程序链接,只能推送普通的 url,这里就不在展示了
使用
在小程序中,调用后端接口/send,指定模板和接收人的 openid即可,如果需要发送小程序链接,则参数带上 miniprogram(公众号和小程序必须关联)
