Elasticsearch:如何解决 Elasticsearch Geoip 处理器故障

1,292

什么是 geoip 处理器?

简而言之,一种将 IP 地址转换为地理位置数据的处理器。请参阅我之前的文章 “Elasticsearch:运用 geoip 处理器来丰富数据”。 举个例子,你有一个 IP 地址“8.8.8.8”,应该按如下方式解析:



1.  PUT _ingest/pipeline/geoip
2.  {
3.    "description" : "Add geoip info",
4.    "processors" : [
5.      {
6.        "geoip" : {
7.          "field" : "ip"
8.        }
9.      }
10.    ]
11.  }

13.  PUT my_index/_doc/my_id?pipeline=geoip
14.  {
15.    "ip": "8.8.8.8"
16.  }

18.  GET my_index/_doc/my_id


上面最后一个命令返回的结果是:



1.  {
2.    "_index" : "my_index",
3.    "_type" : "_doc",
4.    "_id" : "my_id",
5.    "_version" : 4,
6.    "_seq_no" : 5,
7.    "_primary_term" : 9,
8.    "found" : true,
9.    "_source" : {
10.      "geoip" : {
11.        "continent_name" : "North America",
12.        "country_iso_code" : "US",
13.        "location" : {
14.          "lon" : -97.822,
15.          "lat" : 37.751
16.        }
17.      },
18.      "ip" : "8.8.8.8"
19.    }
20.  }


当你期望用于图表绘制的经纬度对(Kibana 地图可视化)或者你只是想知道此请求的来源(例如本例中的美国)时,地理位置将很有用。

一个奇怪的例外

对于大多数情况,Elasticsearch 发行版应该有可用的支持 geolite2 数据库文件。 然而,有时你可能会发现你的发行版未能使用这些文件。 例外情况是这样的句子“_geoip_database_unavailable_GeoLite2-City.mmdb”。 显然缺少一个 geolite2 数据库文件。

要进一步证明 geolite2 文件是否可用,请运行以下命令:

![图片转存失败,建议将图片保存下来直接上传
        `

1.  POST _ingest/pipeline/_simulate
2.  {
3.    "pipeline": {
4.      "processors": [
5.        {
6.          "geoip": {
7.            "field": "location"
8.          }
9.        }
10.      ]
11.    },
12.    "docs": [
13.      {
14.        "_source": {
15.          "location": "8.8.8.8"
16.        }
17.      }
18.    ]
19.  }

` (https://csdnimg.cn/release/blogv2/dist/pc/img/newCodeMoreWhite.png)
]()```

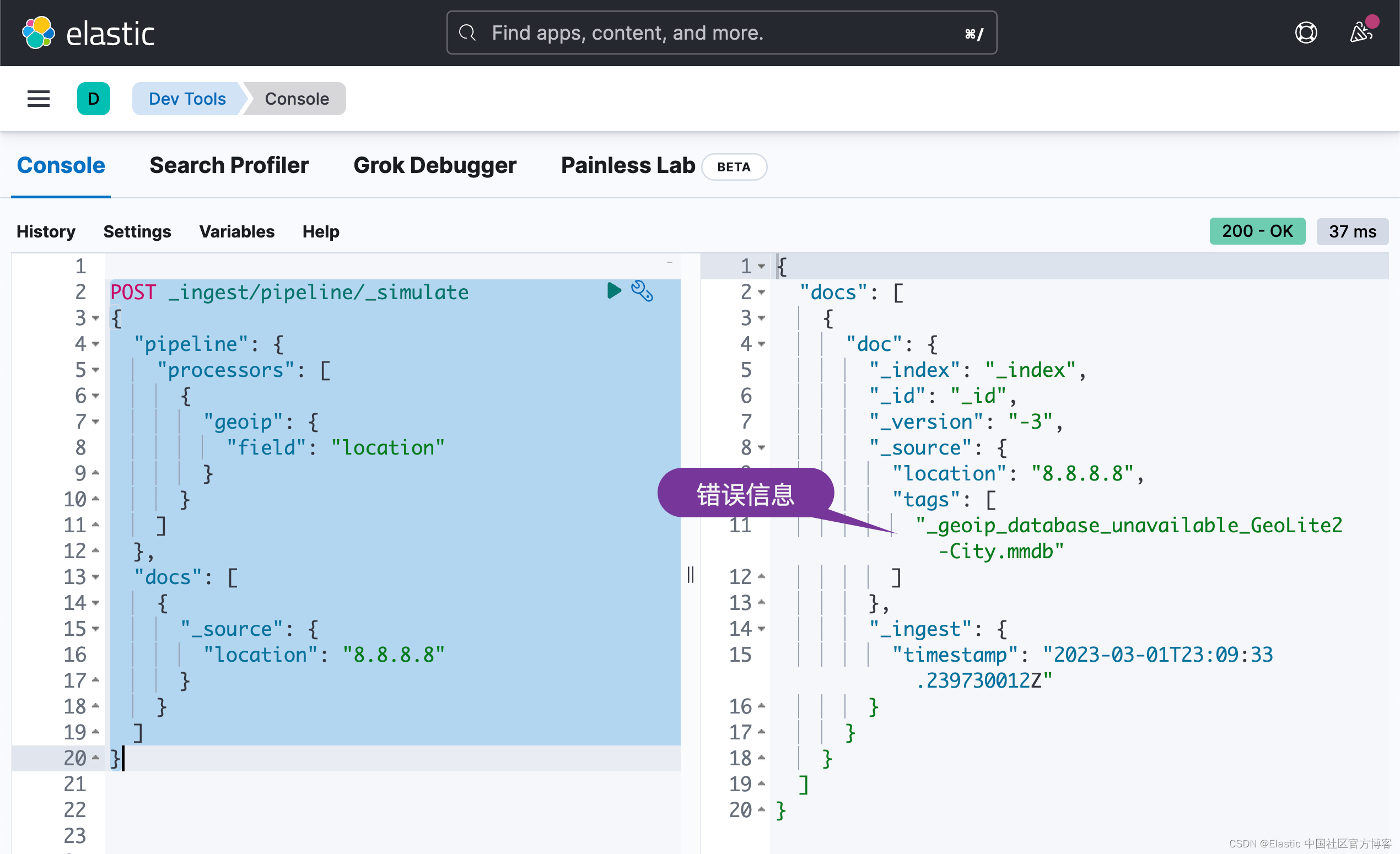

在我的电脑上显示如下的响应:

![](https://p3-juejin.byteimg.com/tos-cn-i-k3u1fbpfcp/657fe8397b2e47bc8f6796b3fd89d51a~tplv-k3u1fbpfcp-zoom-1.image)

如果你遇到 “_geoip_database_unavailable_GeoLite2-City.mmdb” 异常,恭喜……你是幸运儿。 你找对地方了 [Smile]。

解决方案
====

运行以下测试并检查数据库文件是否存在:

  1. check the database file availability

  2. GET _ingest/geoip/stats

在我的电脑上显示:

  1. {
  2. "stats": {
  3.  "successful_downloads": 0,

  4.  "failed_downloads": 1,

  5.  "total_download_time": 0,

  6.  "databases_count": 0,

  7.  "skipped_updates": 0,

  8.  "expired_databases": 3

  9. },
  10. "nodes": {}
  11. }

如果你看到结果显示一个空节点(nodes)……那么可能由于某些原因预期的文件不可用。

接下来运行以下命令以启用 Elasticsearch 以再次下载和管理数据库文件

  1. PUT _cluster/settings
  2. {
  3. "persistent": {
  4.  "ingest": {

  5.    "geoip": {

  6.      "downloader": {

  7.        "enabled": "true"

  8.      }

  9.    }

  10.  }

  11. }
  12. }

上述命令显示相应:

  1. {
  2. "acknowledged": true,
  3. "persistent": {
  4.  "ingest": {

  5.    "geoip": {

  6.      "downloader": {

  7.        "enabled": "true"

  8.      }

  9.    }

  10.  }

  11. },
  12. "transient": {}
  13. }

等过一会儿,我执行如下的命令:

  1. POST _ingest/pipeline/_simulate
  2. {
  3. "pipeline": {
  4.  "processors": [

  5.    {

  6.      "geoip": {

  7.        "field": "location"

  8.      }

  9.    }

  10.  ]

  11. },
  12. "docs": [
  13.  {

  14.    "_source": {

  15.      "location": "8.8.8.8"

  16.    }

  17.  }

  18. ]
  19. }

上面命令显示的结果是:

  1. {
  2. "docs": [
  3.  {

  4.    "doc": {

  5.      "_index": "_index",

  6.      "_id": "_id",

  7.      "_version": "-3",

  8.      "_source": {

  9.        "location": "8.8.8.8",

  10.        "geoip": {

  11.          "continent_name": "North America",

  12.          "region_iso_code": "US-CA",

  13.          "city_name": "Los Angeles",

  14.          "country_iso_code": "US",

  15.          "country_name": "United States",

  16.          "region_name": "California",

  17.          "location": {

  18.            "lon": -118.2441,

  19.            "lat": 34.0544

  20.          }

  21.        }

  22.      },

  23.      "_ingest": {

  24.        "timestamp": "2023-03-01T23:22:39.676904Z"

  25.      }

  26.    }

  27.  }

  28. ]
  29. }

如果我们再次执行如下的命令:

GET _ingest/geoip/stats


我们会发现:

  1. {
  2. "stats": {
  3.  "successful_downloads": 0,

  4.  "failed_downloads": 1,

  5.  "total_download_time": 0,

  6.  "databases_count": 0,

  7.  "skipped_updates": 0,

  8.  "expired_databases": 0

  9. },
  10. "nodes": {
  11.  "o75KS8A4ReKg36ILS1BK1A": {

  12.    "databases": [

  13.      {

  14.        "name": "GeoLite2-ASN.mmdb"

  15.      },

  16.      {

  17.        "name": "GeoLite2-Country.mmdb"

  18.      },

  19.      {

  20.        "name": "GeoLite2-City.mmdb"

  21.      }

  22.    ],

  23.    "files_in_temp": [

  24.      "GeoLite2-ASN.mmdb_elastic-geoip-database-service-agreement-LICENSE.txt",

  25.      "GeoLite2-ASN.mmdb_LICENSE.txt",

  26.      "GeoLite2-City.mmdb_LICENSE.txt",

  27.      "GeoLite2-Country.mmdb_elastic-geoip-database-service-agreement-LICENSE.txt",

  28.      "GeoLite2-ASN.mmdb",

  29.      "GeoLite2-City.mmdb_COPYRIGHT.txt",

  30.      "GeoLite2-City.mmdb",

  31.      "GeoLite2-City.mmdb_elastic-geoip-database-service-agreement-LICENSE.txt",

  32.      "GeoLite2-Country.mmdb_LICENSE.txt",

  33.      "GeoLite2-Country.mmdb",

  34.      "GeoLite2-ASN.mmdb_COPYRIGHT.txt",

  35.      "GeoLite2-Country.mmdb_COPYRIGHT.txt",

  36.      "GeoLite2-City.mmdb_README.txt"

  37.    ]

  38.  }

  39. }
  40. }

这次,我们可以看到 nodes 里的数据是有数据的。
