Android Auto

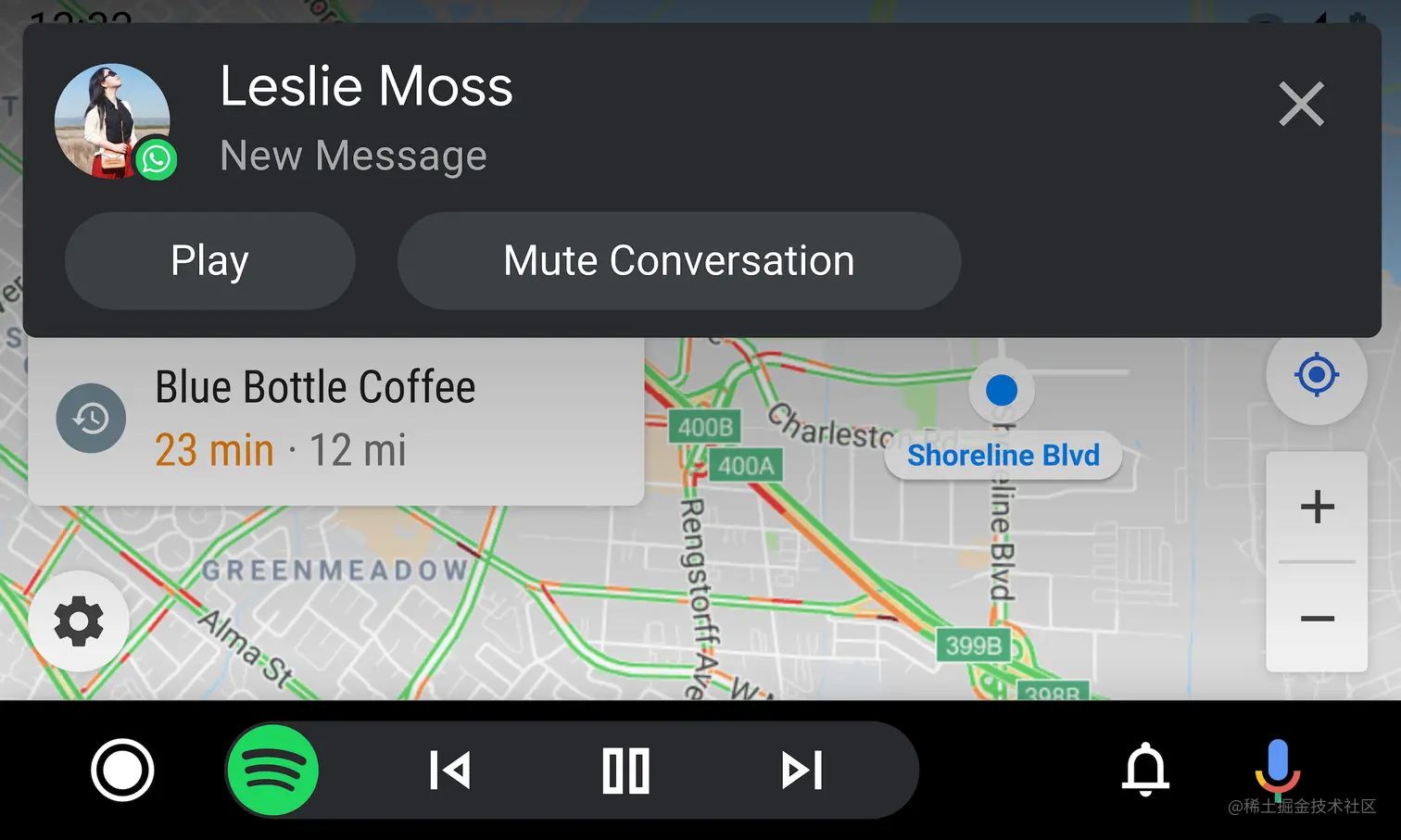

Android Auto 不是操作系统,而是一个应用或一个服务。当 Android 手机通过无线或有线方式连接到汽车时,Android 系统会将使用 Android Auto 服务的所有应用投屏到汽车上。所有的计算、渲染都是运行在 Android 手机上,汽车屏幕负责显示,同时将用户的交互动作传回给手机。

支持 Android Auto 的车型

Android Automotive OS


Android Automotive OS(AAOS)是一款基于 Android 的车载信息娱乐系统。车载系统是专为提升驾驶体验而优化的独立 Android 设备。借助 Android Automotive OS,用户可直接将您的应用安装到车载系统上,而不是手机上。

准备工作

  1. 下载最新版本的 Android Studio 并安装。

  2. 下载 Automotive 系统镜像。

    Google 官方的系统镜像暂时无法下载,需要添加其他OEM厂商的镜像,推荐 Volvo 和 Polestar。

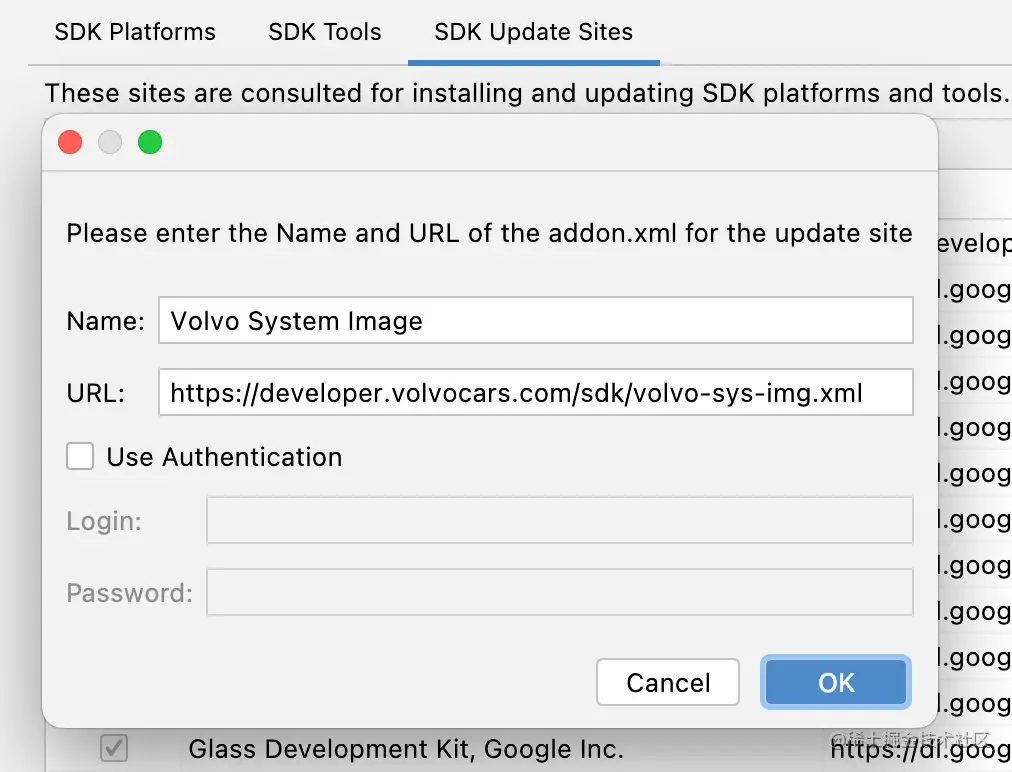

    以 Volvo 为例,打开 SDK Manager, 添加 SDK Update Site,

    sdk update site

    切换到SDK Platforms页面,选中Volvo,下载镜像。

    Volvo image

    Polestar 的镜像源URL是 developer.polestar.com/sdk/polesta…

  3. 创建 AAOS 虚拟机

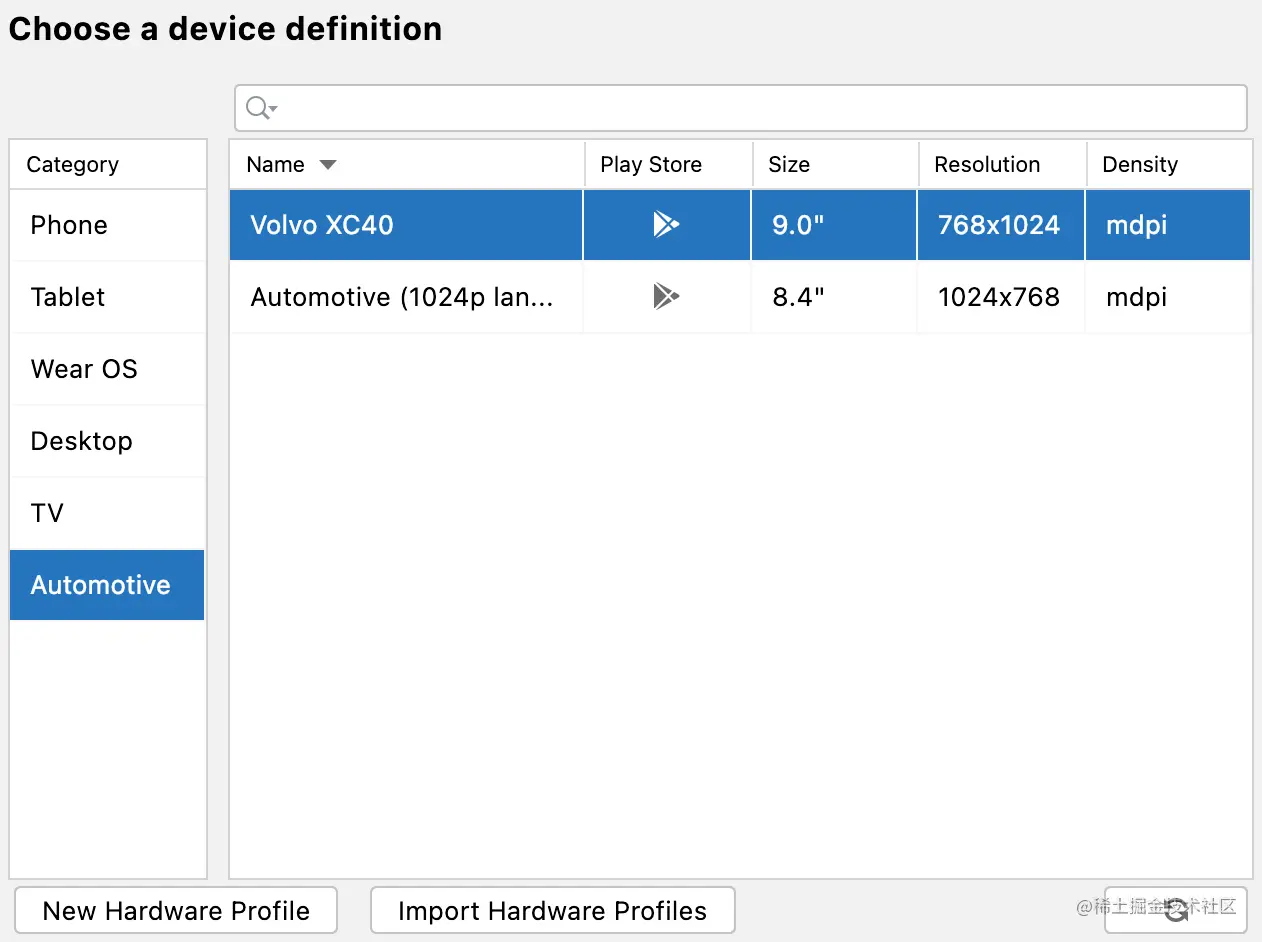

    • 选择设备类型 Automotive 下的 Volvo XC40。 device definition
    • 下一步,选择 x86 Images 下的 Android 10.0 (Volvo XC40)。 system image
    • 最后,创建虚拟机。
  4. 启动虚拟机,查看运行效果。

    automotive emulator

    可以看到系统内置地图、蓝牙、Google Assistant、Play Store、用户手册等应用,并可以设置一些硬件配置,比如座椅调节、方向盘加热、空调等。

Hello World

1. 创建项目

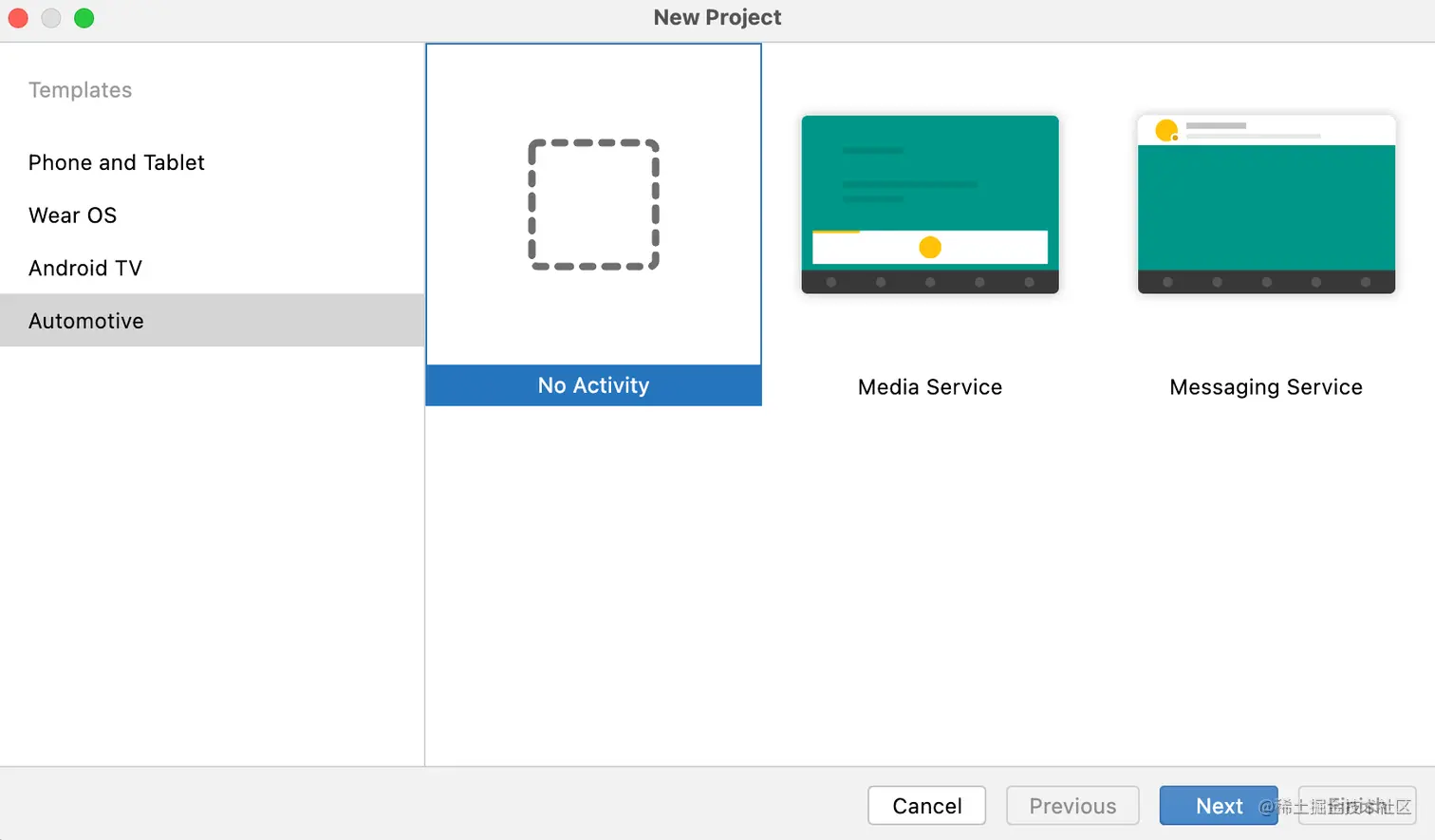

选择 Automotive/ No Activity

new project

2. 添加依赖

implementation 'androidx.car.app:app-automotive:1.4.0-alpha01'

3. CarAppService

创建 CarAppService,它是应用和主机之间通信的桥梁。

class HelloWorldService : CarAppService() {

    override fun createHostValidator(): HostValidator {
        return if (applicationInfo.flags and ApplicationInfo.FLAG_DEBUGGABLE != 0) {
            HostValidator.ALLOW_ALL_HOSTS_VALIDATOR
        } else {
            HostValidator.Builder(applicationContext)
                .addAllowedHosts(R.array.hosts_allowlist)
                .build()
        }
    }

    override fun onCreateSession(): Session {
        return HelloWorldSession()
    }
}

createHostValidator方法中返回信任的主机白名单, 在onCreateSeesion方法中返回HelloWorldSession

白名单可参考 androidx.car.app.R.array.hosts_allowlist_sample

4. Session

创建 Session,它是应用打开之后,可以返回第一个显示的页面。

class HelloWorldSession : Session() {

    override fun onCreateScreen(intent: Intent): Screen {
        return HelloWorldScreen(carContext)
    }
}

5. Screen

创建 Screen,它控制页面中显示的元素和数据。

class HelloWorldScreen(carContext: CarContext) : Screen(carContext) {

    override fun onGetTemplate(): Template {
        val row = Row.Builder()
            .setTitle("Hello Automotive OS")
            .build()

        val list = ItemList.Builder().addItem(row).build()

        return ListTemplate.Builder()
            .setSingleList(list)
            .setTitle("Hello World")
            .setHeaderAction(Action.APP_ICON)
            .build()
    }
}

以上创建包含一行文本的列表。

6. Manifest 文件

  • 标记应用为汽车应用
<application>
...
    <meta-data
        android:name="com.android.automotive"
        android:resource="@xml/automotive_app_desc" />
...
</application>

res/xml/automotive_app_desc.xml

<?xml version="1.0" encoding="utf-8"?>
<automotiveApp>
    <uses name="template"/>
</automotiveApp>
  • 标记使用的最小API版本
<application>
...
    <meta-data
        android:name="androidx.car.app.minCarApiLevel"
        android:value="1" />
...
</application>

如果主机应用的版本不支持当前的API版本,会通知更新主机应用。

  • 声明 CarAppService
<application>
...
    <service
        android:name="com.example.car.HelloWorldService"
        android:exported="true">
        <intent-filter>
            <action android:name="androidx.car.app.CarAppService" />
        </intent-filter>
    </service>
...
</application>
  • 声明使用和未使用的功能
<manifest>
...
    <uses-feature
        android:name="android.hardware.type.automotive"
        android:required="true" />
    <uses-feature
        android:name="android.software.car.templates_host"
        android:required="true" />

    <uses-feature
        android:name="android.hardware.wifi"
        android:required="false" />
    <uses-feature
        android:name="android.hardware.screen.portrait"
        android:required="false" />
    <uses-feature
        android:name="android.hardware.screen.landscape"
        android:required="false" />
    <uses-feature
        android:name="android.hardware.camera"
        android:required="false" />
...
</manifest>

和开发手机应用不同的是需要同时声明不使用的功能,否则应用可能无法在不支持这些功能的汽车中使用。

  • 声明Automotive OS中使用的Activity
<application>
...
    <activity
        android:name="androidx.car.app.activity.CarAppActivity"
        android:exported="true"
        android:label="Hello World"
        android:launchMode="singleTask"
        android:theme="@android:style/Theme.DeviceDefault.NoActionBar">

        <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
        </intent-filter>

        <meta-data
            android:name="distractionOptimized"
            android:value="true" />
    </activity>
...
</application>

其中 distractionOptimizedtrue 时表示应用可以在驾驶时使用。

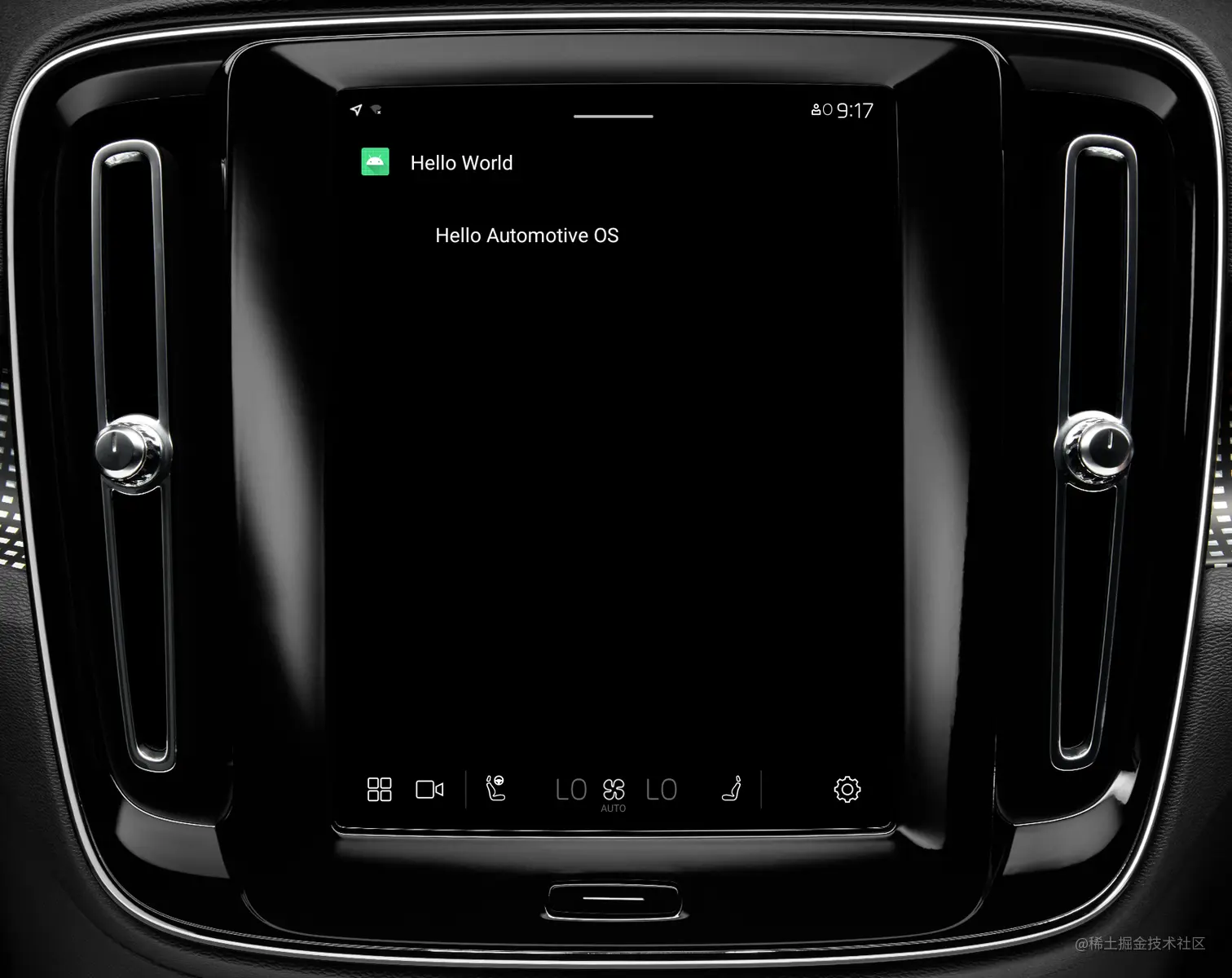

最后运行看结果


参考文档

Android for Cars

使用 Android for Cars 应用库

测试 Android 车载应用

Volvo开发者

示例工程
