简介

Pixie 是一个用于 Kubernetes 应用程序的开源可观察性工具。Pixie 使用eBPF自动捕获遥测数据，无需手动检测。开发人员可以使用 Pixie 查看其集群的高级状态（服务地图、集群资源、应用程序流量），还可以深入查看更详细的视图（pod 状态、火焰图、单独的全身应用程序请求）。

Pixie 由New Relic, Inc.于 2021 年 6 月作为沙盒项目贡献给云原生计算基金会。

亮点

• 自动遥测：Pixie 使用 eBPF 自动收集遥测数据，例如全身请求、资源和网络指标、应用程序配置文件等。
• 集群内边缘计算：Pixie在集群内收集、存储和查询所有遥测数据。Pixie 使用的集群 CPU 不到 5%，在大多数情况下不到 2%。
• Scriptability：PxL是由Pixie开发的灵活的 Pythonic 查询语言，可以跨 Pixie 的 UI、CLI 和客户端 API 使用。Pixie为常见用例提供了一组社区脚本。

架构

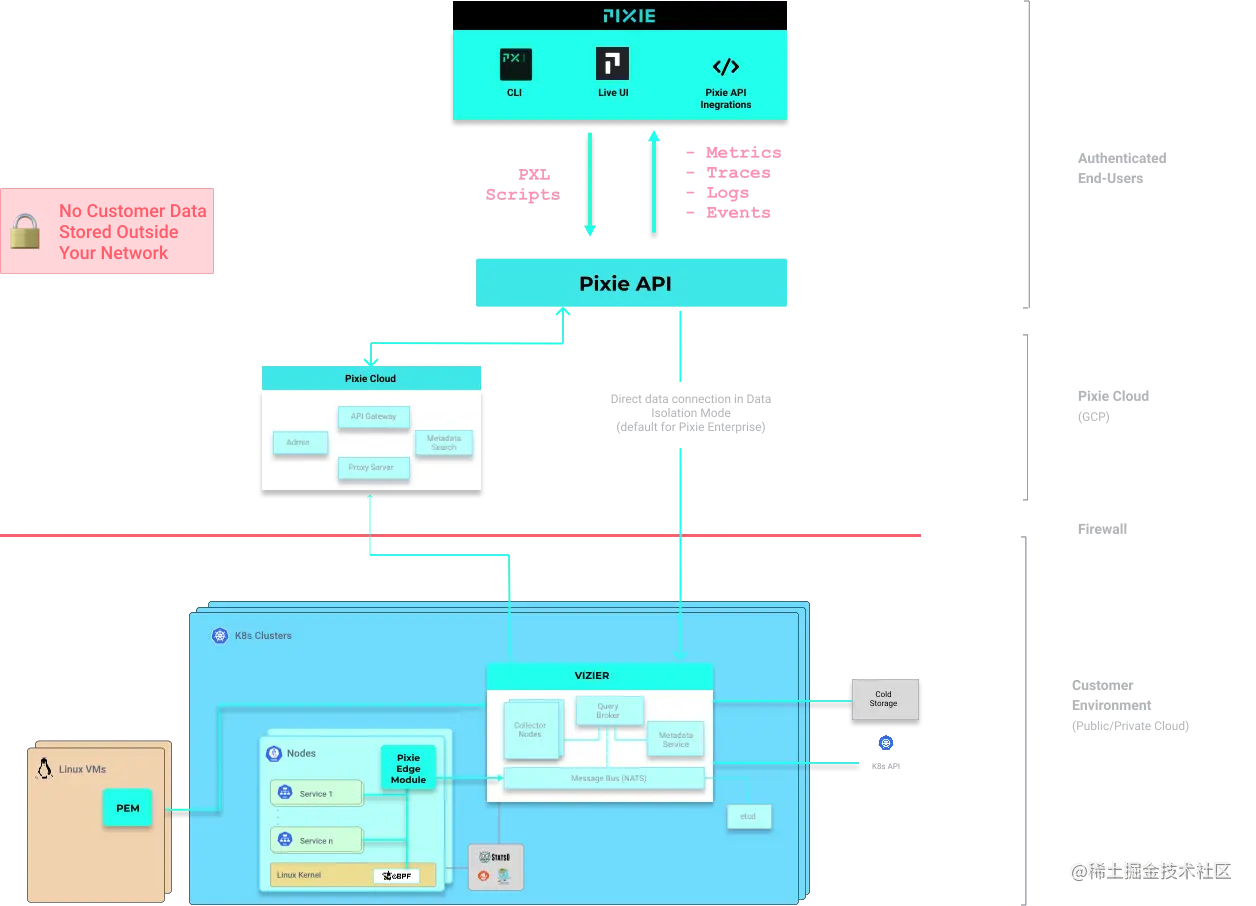

Pixie 平台由多个组件组成:

• Pixie Edge Module (PEM)：Pixie 的代理，安装在每个节点上。PEM 使用 eBPF 收集数据，这些数据存储在节点本地。
•  Vizier：Pixie 的收集器，按集群安装。负责查询执行和管理 PEM。 Pixie Cloud：用于用户管理、身份验证和数据代理。可以托管或自托管。
•  Pixie CLI：用于部署 Pixie。也可用于运行查询和管理 API 密钥等资源。
•  Pixie 客户端 API：用于以编程方式访问 Pixie（例如集成、Slackbots 和需要 Pixie 数据作为输入的自定义用户逻辑）

数据源

Pixie 自动收集以下数据：

•  协议跟踪：应用程序 pod 之间的完整消息。Tracing 当前支持以下协议。有关详细信息，请参阅请求跟踪、服务性能和数据库查询分析教程。
• 资源指标：您的 pod 的 CPU、内存和 I/O 指标。有关详细信息，请参阅Infra Health教程。
•  网络指标：网络层和连接级 RX/TX 统计数据。有关详细信息，请参阅网络监控教程。
•  JVM 指标：Java 应用程序的 JVM 内存管理指标。
•  应用程序 CPU 配置文件：来自应用程序的采样堆栈跟踪。Pixie 的连续分析器始终在运行，以帮助您在需要时识别应用程序性能瓶颈。目前支持编译语言（Go、Rust、C/C++）。有关详细信息，请参阅连续应用程序分析教程。
•  Pixie 还可以由用户配置为从 Go 应用程序代码中收集动态日志并运行自定义 BPFTrace 脚本。

支持的协议

Pixie 自动跟踪以下协议数据：

协议	支持	笔记
HTTP	支持
HTTP2	支持Golang gRPC（带和不带 TLS）。	Golang 应用程序必须有调试信息。
DNS	支持
NATS	支持	需要带有调试信息的NATS 构建。
MySQL	支持
PostgreSQL	支持
Cassandra	支持
Redis	支持
Kafka	支持
AMQP	支持

其他协议的支持也在进行中

加密库

Pixie 支持跟踪使用以下库加密的流量：

Library	Notes
OpenSSL	Version 1.1.0 or 1.1.1, dynamically linked.
Go TLS	Requires a build with debug information.

部署

环境要求

• k8s v.1.21+

• centos 7.3+ Debian 10+ Ubuntu 18.04+

• kernel v4.14+

• cpu x86-64 ARM暂时不支持

• mem 1G+(每个节点)

• Pod Security Context

• • Pixie 与 Linux 内核交互安装 BPF 程序来收集遥测数据。为了安装 BPF 程序，Pixie vizier-pem *pod 需要特权访问。

官方提供了多种环境的部署方案，本文采用self-Hosted模式+nginx-ingress访问。其他模式请参考官方文档

nginx-ingress安装

kubectl apply -f https://raw.githubusercontent.com/kubernetes/ingress-nginx/controller-v1.6.4/deploy/static/provider/baremetal/deploy.yaml

使用hostport 映射 80 443 端口供后续访问

需要安装默认网络存储，并配置默认storageclass

本文使用nfs作为provide,nfs部署不再赘述

以下为nfs-provide部署yaml,根据需求修改NFS_SERVER NFS_PATH

---
kind: Deployment
apiVersion: apps/v1
metadata:
  name: nfs-client-provisioner
  namespace: kube-system
spec:
  replicas: 1
  strategy:
    type: Recreate
  selector:
    matchLabels:
      app: nfs-client-provisioner
  template:
    metadata:
      labels:
        app: nfs-client-provisioner
    spec:
      serviceAccountName: nfs-client-provisioner
      containers:
        - name: nfs-client-provisioner
          image: gcr.io/k8s-staging-sig-storage/nfs-subdir-external-provisioner:v4.0.0
          volumeMounts:
            - name: nfs-client-root
              mountPath: /persistentvolumes
          env:
            - name: PROVISIONER_NAME
              value: mynfs
            - name: NFS_SERVER
              value: 10.0.0.1
            - name: NFS_PATH
              value: /data/nfs
      volumes:
        - name: nfs-client-root
          nfs:
            server: 10.0.0.1
            path: /data/nfs
---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: kube-system
---
kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: nfs-client-provisioner-runner
rules:
  - apiGroups: [""]
    resources: ["persistentvolumes"]
    verbs: ["get", "list", "watch", "create", "delete"]
  - apiGroups: [""]
    resources: ["persistentvolumeclaims"]
    verbs: ["get", "list", "watch", "update"]
  - apiGroups: ["storage.k8s.io"]
    resources: ["storageclasses"]
    verbs: ["get", "list", "watch"]
  - apiGroups: [""]
    resources: ["events"]
    verbs: ["create", "update", "patch"]
---
kind: ClusterRoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: run-nfs-client-provisioner
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    # replace with namespace where provisioner is deployed
    namespace: kube-system
roleRef:
  kind: ClusterRole
  name: nfs-client-provisioner-runner
  apiGroup: rbac.authorization.k8s.io
---
kind: Role
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: kube-system
rules:
  - apiGroups: [""]
    resources: ["endpoints"]
    verbs: ["get", "list", "watch", "create", "update", "patch"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: leader-locking-nfs-client-provisioner
  # replace with namespace where provisioner is deployed
  namespace: kube-system
subjects:
  - kind: ServiceAccount
    name: nfs-client-provisioner
    # replace with namespace where provisioner is deployed
    namespace: kube-system
roleRef:
  kind: Role
  name: leader-locki
ng-nfs-client-provisioner
  apiGroup: rbac.authorization.k8s.io
---
apiVersion: storage.k8s.io/v1
kind: StorageClass
metadata:
  annotations:
    storageclass.kubernetes.io/is-default-class: "true"
  name: nfs
provisioner: mynfs
reclaimPolicy: Delete
volumeBindingMode: Immediate

主机添加hosts

根据个人需求替换dev.withpixie.dev

10.0.0.1 dev.withpixie.dev
10.0.0.1 work.dev.withpixie.dev

pixie cloud self-hosted模式部署

1. Clone Pixie repo

   git clone https://github.com/pixie-io/pixie.git
   cd pixie


2. 选择pixie cloud 最后一个release版本注入环境变量

   export LATEST_CLOUD_RELEASE=$(git tag | grep 'release/cloud'  | sort -r | head -n 1 | awk -F/ '{print $NF}')


3. 切换分支

   git checkout "release/cloud/prod/${LATEST_CLOUD_RELEASE}"


4. 更新项目中kustomization文件中的镜像tag

   perl -pi -e "s|newTag: latest|newTag: \"${LATEST_CLOUD_RELEASE}\"|g" k8s/cloud/public/kustomization.yaml


5. （可选）将项目中以下文件中的dev.withpixie.dev替换为自定义域名

   k8s/cloud/public/proxy_envoy.yaml
   k8s/cloud/public/domain_config.yaml
   scripts/create_cloud_secrets.sh


6. 创建namespace

   kubectl create namespace plc


7. 创建证书文件以及secret

   点击链接下载mkcert二进制文件

   mkcert -install && ./scripts/create_cloud_secrets.sh


8. 安装[kustomize](Kustomize | SIG CLI)

9. 创建pixie cloud 依赖组件，相关pod会在plc命名空间启动，等所有组件正常后再进行下一步

   #添加storage patch
   k8s/cloud_deps/public/elastic/elastic_storage_patch.yaml

   # Master node
   - op: replace
     path: /spec/nodeSets/0/volumeClaimTemplates/0/spec/storageClassName
     value: nfs
   # Data node.
   - op: replace
     path: /spec/nodeSets/1/volumeClaimTemplates/0/spec/storageClassName
     value: nfs

    k8s/cloud_deps/public/nats/storage_patch.yaml

    在spec.volumeClaimTemplates.spec添加 storageClassName: nfs

    k8s/cloud_deps/public/postgres/postgres_persistent_volume.yaml
    在spec中添加storageClassName: nfs


   kustomize build k8s/cloud_deps/base/elastic/operator | kubectl apply -f -
   kustomize build k8s/cloud_deps/public | kubectl apply -f -


10. 部署pixie cloud

    修改k8s/cloud/public/domain_config.yaml ，将PASSTHROUGH_PROXY_PORT设为空

    PASSTHROUGH_PROXY_PORT: ""
    PL_DOMAIN_NAME: dev.withpixie.dev


    kustomize build k8s/cloud/public/ | kubectl apply -f -


11. 查看所有pod

    kubectl get po -n plc
    NAME                                       READY   STATUS    RESTARTS   AGE
    api-server-74bd7fb65b-nv7v4                1/1     Running   0          144m
    artifact-tracker-server-6cf7dc66cd-bkct9   1/1     Running   0          23h
    auth-server-6474d66b7-gxkz2                1/1     Running   0          144m
    cloud-proxy-5c458f9b99-jwkrv               2/2     Running   0          145m
    config-manager-server-6f94d96687-p6h2l     1/1     Running   0          23h
    cron-script-server-744fb79449-44784        1/1     Running   0          23h
    hydra-6496d8d76-lxlfr                      2/2     Running   0          23h
    indexer-server-5cc4685b86-vkbnn            1/1     Running   0          23h
    kratos-589bb4f659-r2qsw                    2/2     Running   0          23h
    metrics-server-76cc598bc9-7jt6x            1/1     Running   0          23h
    pl-elastic-es-data-0                       1/1     Running   0          23h
    pl-elastic-es-master-0                     1/1     Running   0          23h
    pl-elastic-es-master-1                     1/1     Running   0          23h
    pl-nats-0                                  1/1     Running   0          23h
    pl-nats-1                                  1/1     Running   0          23h
    pl-nats-2                                  1/1     Running   0          23h
    plugin-server-df75f76cf-vtnzx              1/1     Running   0          23h
    postgres-6f75677777-5jc4d                  1/1     Running   0          23h
    profile-server-bcb7bb496-2mzkl             1/1     Running   0          23h
    project-manager-server-57575ff8b7-28hzt    1/1     Running   0          23h
    scriptmgr-server-6f7f5968d4-vbnjd          1/1     Running   0          23h
    vzconn-server-7685cb68b4-jjwnk             1/1     Running   0          23h
    vzmgr-server-7bc9d5d46c-fblns              1/1     Running   0          23h


12. 创建Ingress规则

    kubectl apply -f k8s/cloud/overlays/exposed_services_nginx/cloud_ingress_grpcs.yaml
    kubectl apply -f k8s/cloud/overlays/exposed_services_nginx/cloud_ingress_https.yaml



    此处亲测有坑，需要将cloud_ingress_grpcs.yaml中除了/px.api.vizierpb.VizierService/ 这个路径相关配置以外所有的 service: cloud-proxy-service改为service: api-service 相关端口从5555改为51200 本文使用的版本为 release/cloud/prod/1676065759，若其他版本修复了这个问题，可以忽略

    ## Replace all occurrences of work.dev.withpixie.dev with the custom domain name you wish to use
    ---
    apiVersion: networking.k8s.io/v1
    kind: Ingress
    metadata:
      name: cloud-ingress-grpcs
      namespace: plc
      annotations:
        nginx.ingress.kubernetes.io/backend-protocol: "GRPCS"
    spec:
      ingressClassName: nginx
      tls:
      - hosts:
        - work.dev.withpixie.dev
        - work.work.dev.withpixie.dev
        secretName: cloud-proxy-tls-certs
      rules:
      - host: work.dev.withpixie.dev
        http:
          paths:
          - path: /pl.cloudapi.ArtifactTracker/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.services.VZConnService/
            pathType: Prefix
            backend:
              service:
                name: vzconn-service
                port:
                  number: 51600
          - path: /px.cloudapi.ArtifactTracker/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.APIKeyManager/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.AuthService/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.ConfigService/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.OrganizationService/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.PluginService/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.UserService/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.VizierClusterInfo/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.VizierDeploymentKeyManager/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.VizierImageAuthorization/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.api.vizierpb.VizierService/
            pathType: Prefix
            backend:
              service:
                name: cloud-proxy-service
                port:
                  number: 4444
      - host: work.work.dev.withpixie.dev
        http:
          paths:
          - path: /pl.cloudapi.ArtifactTracker/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.services.VZConnService/
            pathType: Prefix
            backend:
              service:
                name: vzconn-service
                port:
                  number: 51600
          - path: /px.cloudapi.ArtifactTracker/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.APIKeyManager/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.AuthService/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.ConfigService/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.OrganizationService/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.PluginService/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.UserService/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.VizierClusterInfo/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.VizierDeploymentKeyManager/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.cloudapi.VizierImageAuthorization/
            pathType: Prefix
            backend:
              service:
                name: api-service
                port:
                  number: 51200
          - path: /px.api.vizierpb.VizierService/
            pathType: Prefix
            backend:
              service:
                name: cloud-proxy-service
                port:
                  number: 4444


13. 安装pixie（集群数据采集组件）

    根据自己的域名配置

    export PL_CLOUD_ADDR=dev.withpixie.dev


安装pixie 执行脚本并按操作执行下载 登录 验证逻辑并执行后续安装操作

    # Copy and run command to install the Pixie CLI.
    bash -c "$(curl -fsSL https://work.dev.withpixie.dev/install.sh)"

其中需要打开游览器登录使用admin@default.com 作为identity 使用admin作为密码

注意登录的机器也需要配置hosts

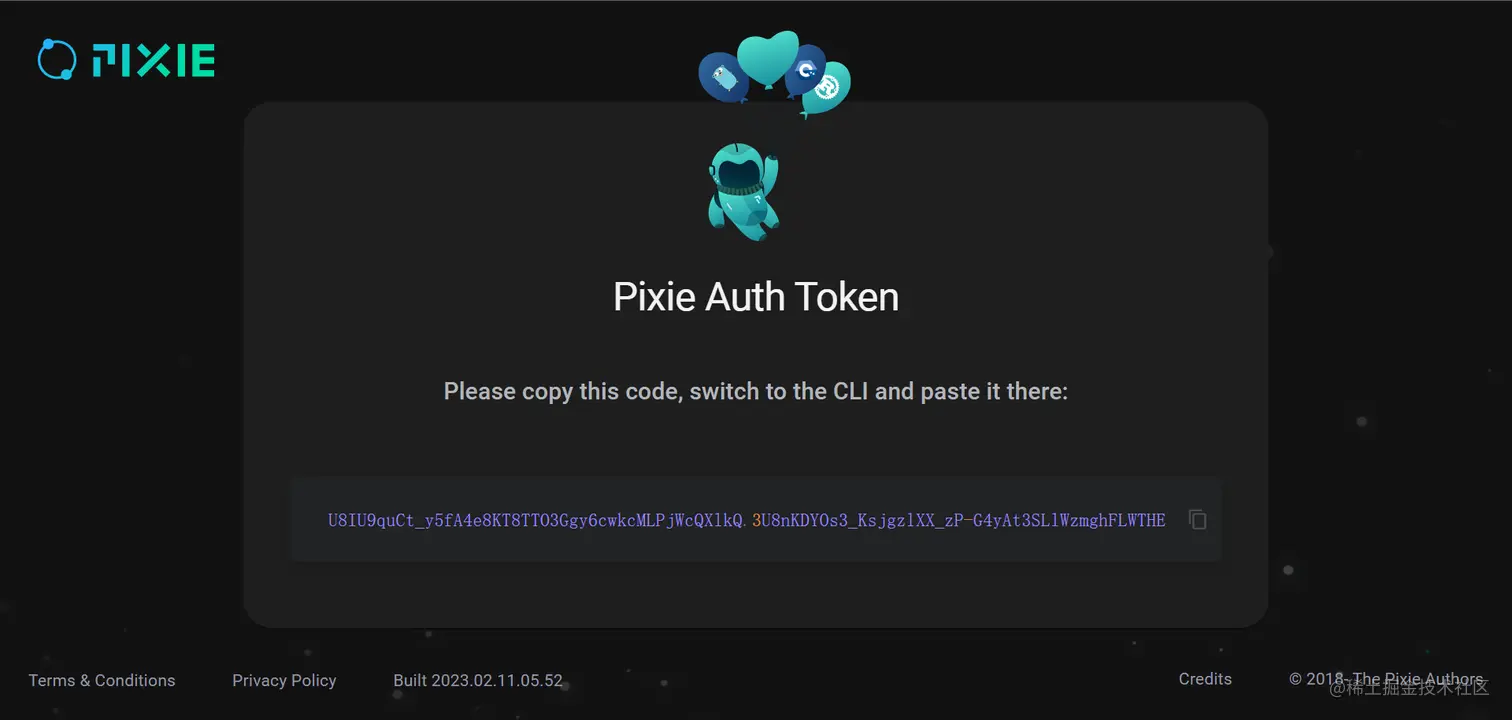

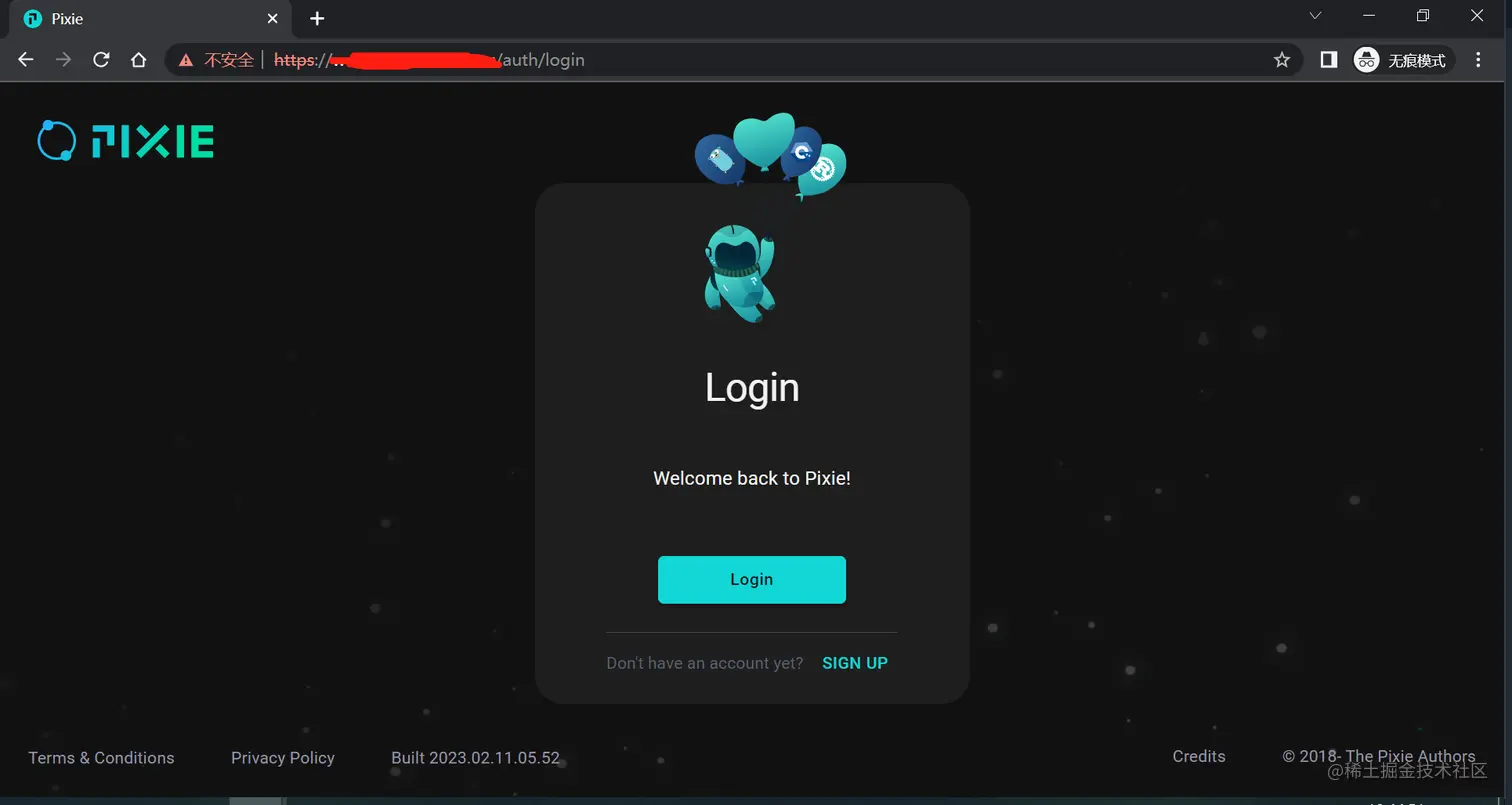

打开页面登录获取token

拷贝token填入终端

然后执行

px deploy --dev_cloud_namespace plc

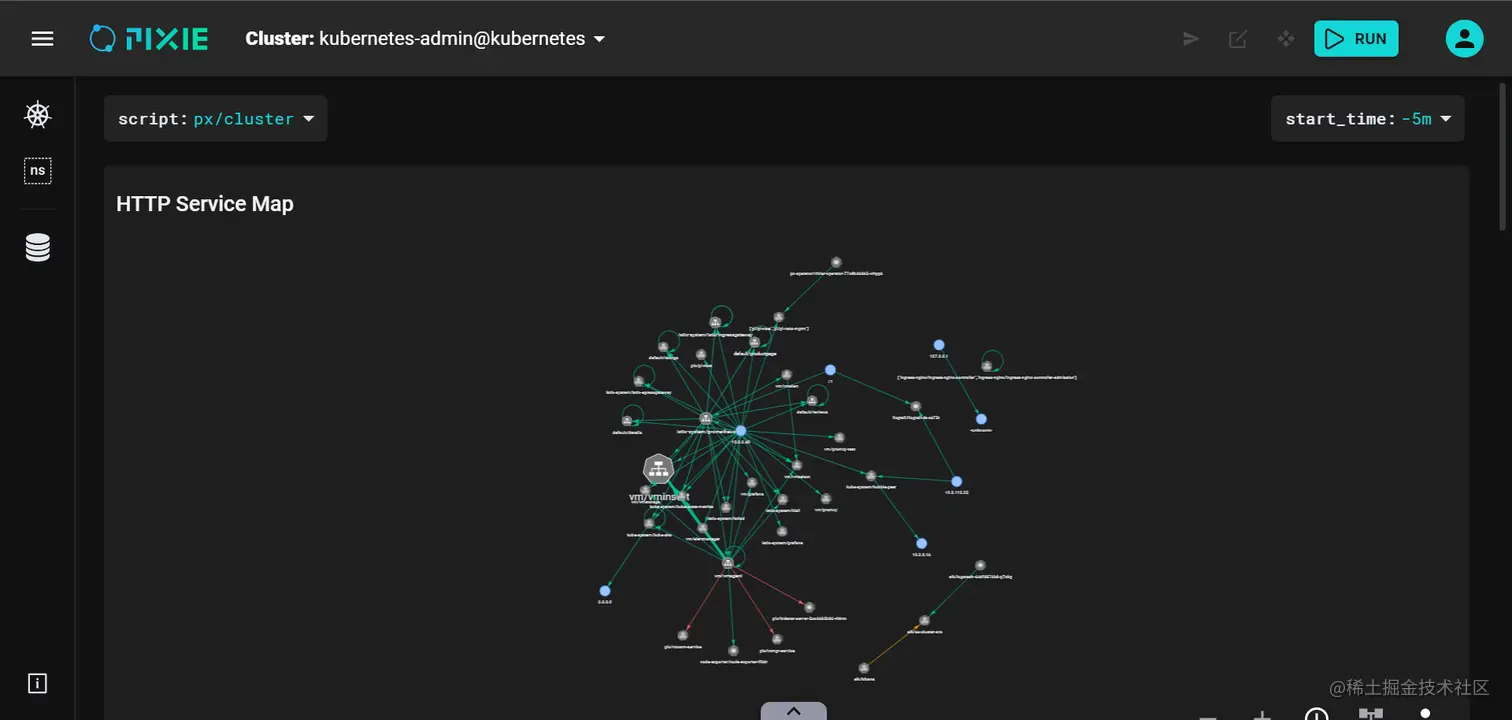

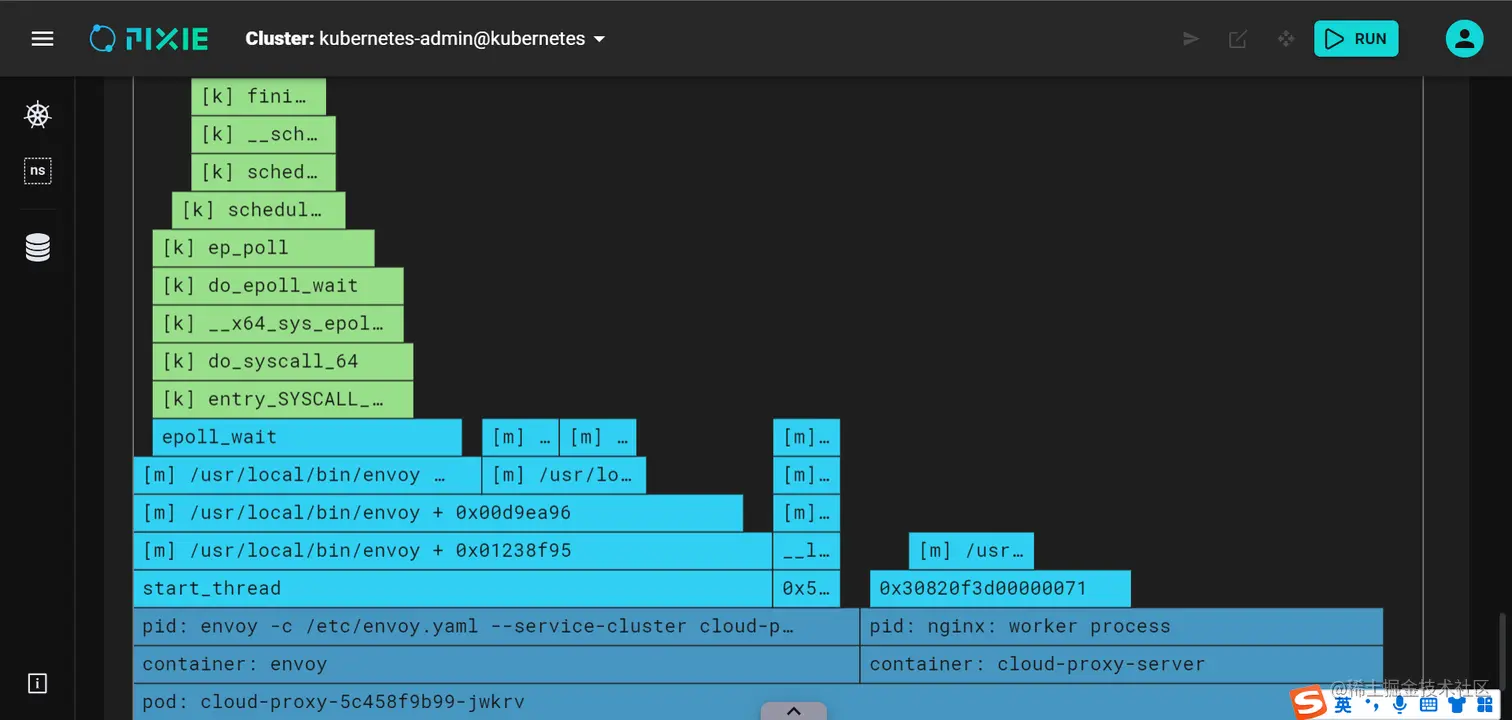

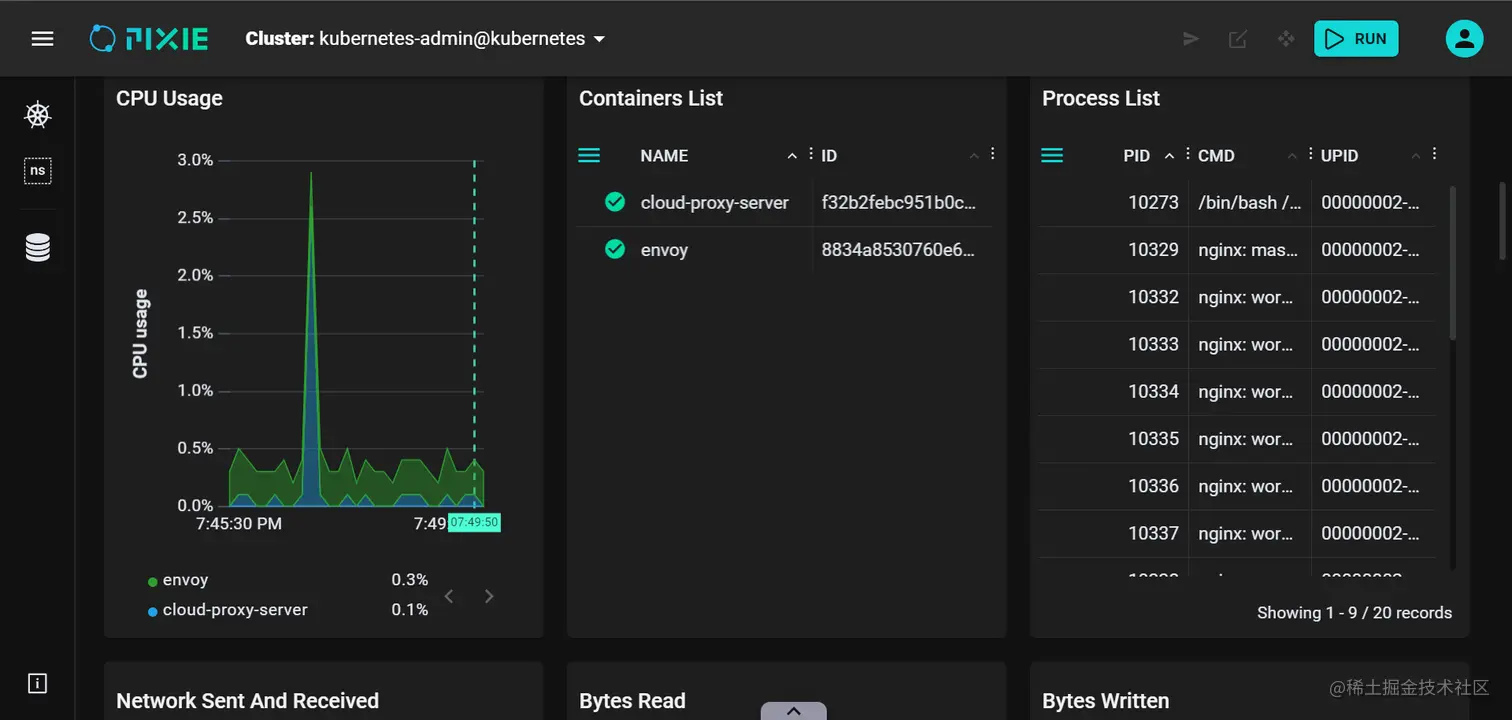

安装完成，查看页面
