序章
Echarts
实战录, 记录了个人在使用 Echarts
期间遇到的各种疑难杂症;
同时为了控制文章篇幅, 所以将其分为多篇进行发布, 后续文章还在陆续更新中, 敬请期待!
最后如果你在使用 Echarts
期间有遇到啥奇怪需求, 欢迎在评论区进行留言、讨论……
一、Tooltip 展示位置自适应
需求内容: Tooltip
位置, 相对于屏幕来说, 鼠标 底部如果能够放下就放在底部
、鼠标 右侧如果放得下就放在右侧
;
其实 echarts
tooltip
展示位置默认处理方式也类似、只是它是相对于 图表容器

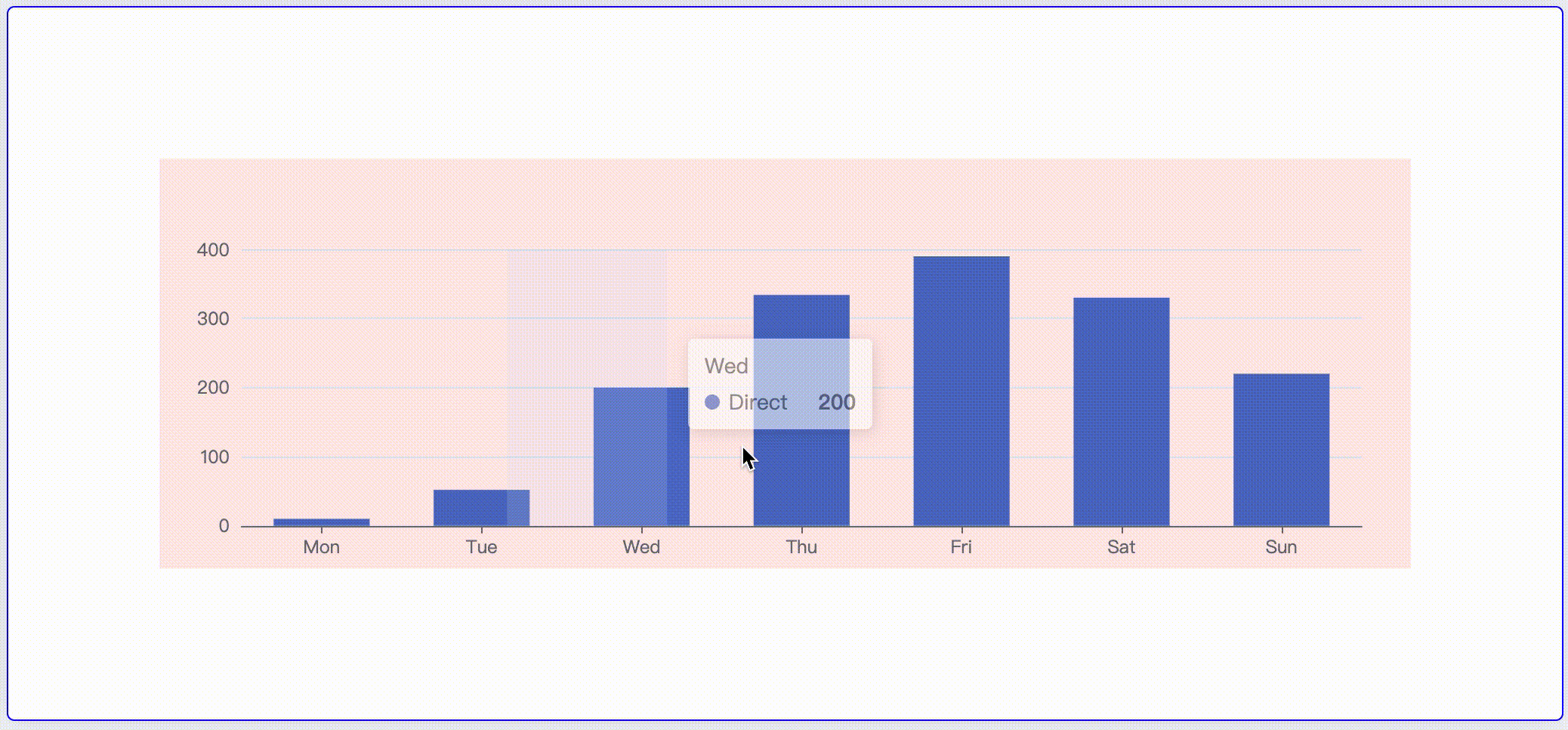

来进行计算的, 如下图所示: 红色背景区域是 图表容器
当鼠标 hover
下移, Tooltip
会跑到鼠标上面, 因为相对于 图表容器
来说, 鼠标下方已经放不下 Tooltip
了, 但实际上对于整个屏幕来说, 鼠标下方空间还很充足
解决思路: 通过修改 tooltip.position 配置, 该配置允许设置一个函数, 从函数参数中可以获取到 Tooltip
相关信息, 通过计算、返回正确的位置坐标, 完整代码如下:
const TOOLTIP_OFFSET = 8 // 提示框距离鼠标的距离
const container = document.getElementById('chart-container') // echarts 容器
// Tooltip 的位置: 底部放得下就放底部、右侧放得下就放右侧
const getTooltipPosition = (point, params, dom, rect, size) => {
// 图表距离容器「左侧」「顶部」的距离
const [offsetLeft, offsetTop] = point
// 页面视口「宽」「高」
const { clientWidth, clientHeight } = document.body
// 图表组件容器距离视图「顶部」「左侧」的距离
const { top: containerTop, left: containerLeft } = container.getBoundingClientRect()
// 当前鼠标位置距离浏览器视口「顶部」「底部」「左侧」「右侧」的距离
const top = containerTop + offsetTop
const left = containerLeft + offsetLeft
const bottom = clientHeight - top
const right = clientWidth - left
// 提示框的「宽」「高」
const [tooltipWidth, tooltipHeight] = size.contentSize
// 如果底部可以放下提示框, 则放底部、否则放在顶部
const tooltipY =
tooltipHeight + TOOLTIP_OFFSET < bottom
? offsetTop + TOOLTIP_OFFSET
: offsetTop - tooltipHeight - TOOLTIP_OFFSET
// 如果底部可以放下提示框, 就放右侧、否则放在左侧
const tooltipX =
tooltipWidth + TOOLTIP_OFFSET < right
? offsetLeft + TOOLTIP_OFFSET
: offsetLeft - tooltipWidth - TOOLTIP_OFFSET
return [tooltipX, tooltipY]
}
option = {
tooltip: {
trigger: 'axis',
position: getTooltipPosition,
},
...
}

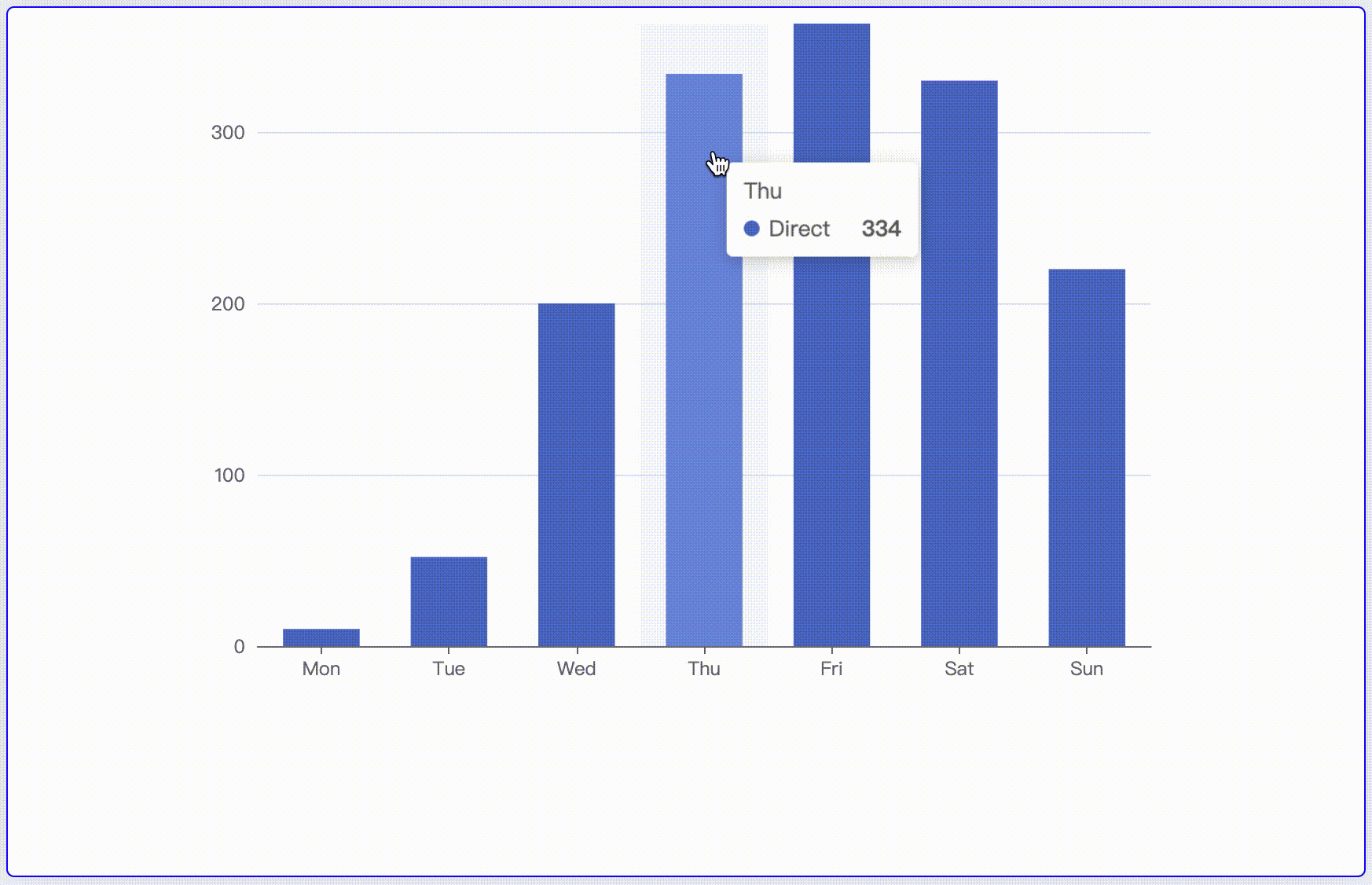

最终效果有:
二、监听 Tooltp 显示、隐藏
在实际开发过程, 我们可能需要监听到 Tooltip
显示、隐藏的状态
通过查阅官方文档, 并未找到相关文档, 但实际上目前 Echarts
是支持 showTip
hideTip
事件的, 只是文档缺失了
myChart.on('showTip', 'series.line',() => {
console.log('showTip')
})
myChart.on('hideTip','series.line', () => {
console.log('hideTip')
})
三、饼图高亮时颜色不变、只保持放大效果
Echarts
中当饼图颜色较浅(#fafafa
), 如果按照 Echarts

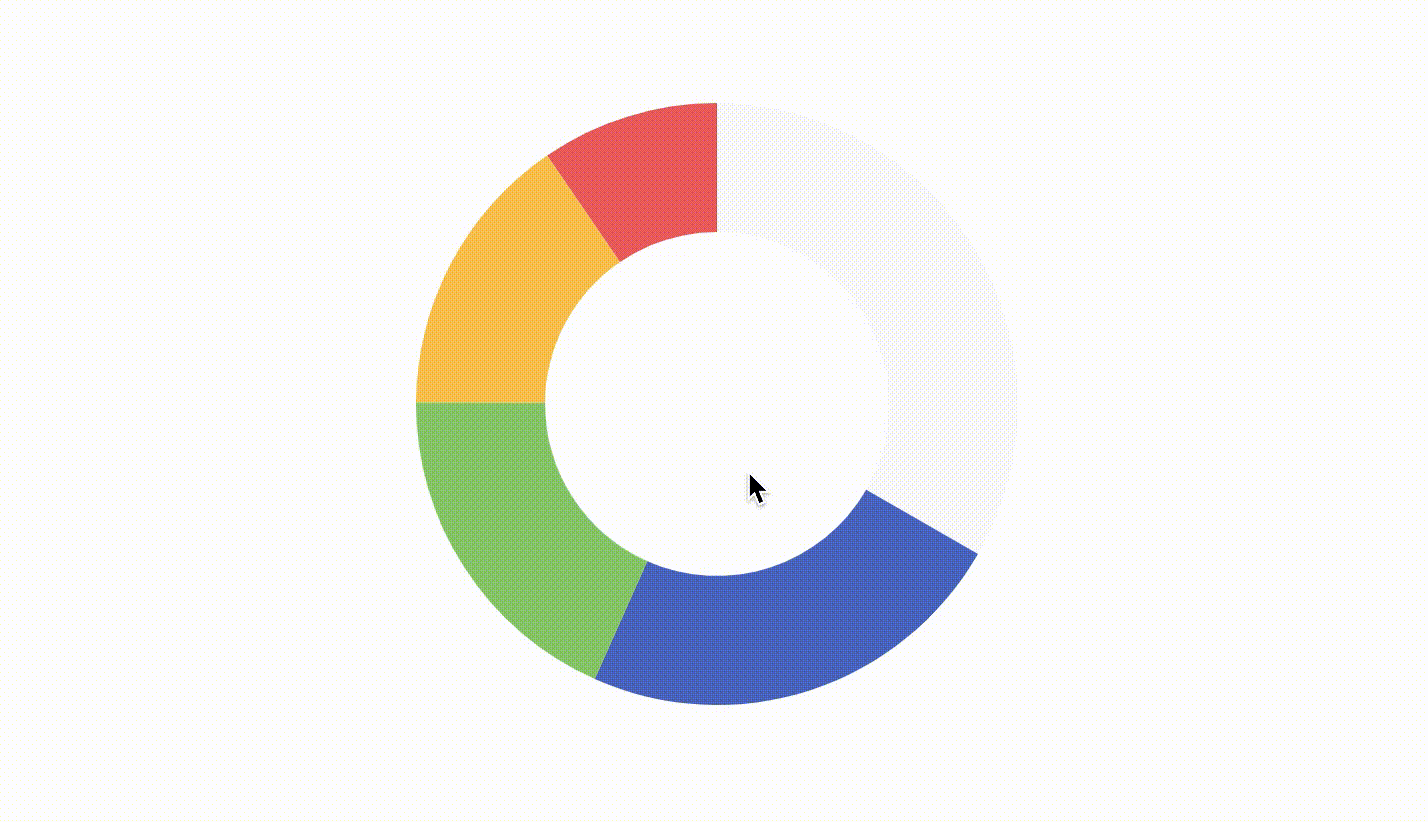

默认处理方式, 高亮后饼图颜色会变得很浅很浅, 如下图所示(图有点糊):
上图演示代码如下:
option = {
series: [
{
type: 'pie',
radius: ['40%', '70%'],
label: { show: false },
labelLine: { show: false },
data: [
{ value: 1048, itemStyle: { color: '#fafafa' } },
{ value: 735 },
{ value: 580 },
{ value: 484 },
{ value: 300 }
]
}
]
};
由于上面问题暂无法找到解决办法, 故退一步, 索性 高亮时不修改图表的颜色
, 只保留饼图的缩放, 这里给出了两个解决方案:
方案一: 饼图 data
是支持设置独立的高亮颜色, 所以可以将每个饼图的高亮颜色和默认状态的颜色保存一致
...
data: [
{
value: 75,
itemStyle: {
color: '#0B9BEE'
},
emphasis: {
itemStyle: {
color: '#0B9BEE'
}
}
},
{
value: 25,
itemStyle: {
color: '#E5F6FF'
},
emphasis: {
itemStyle: {
color: '#E5F6FF'
}
}
}
]
...
- 方案二(推荐): 饼图中高亮颜色是支持
inherit
字段的, 可直接将高亮颜色设置为inherit
来取消高亮颜色
option = {
series: [
{
type: 'pie',
radius: ['40%', '70%'],
label: { show: false },
labelLine: { show: false },
+ emphasis: {
+ itemStyle: { color: 'inherit' }
+ },
data: [
{ value: 1048, itemStyle: { color: '#fafafa' } },
{ value: 735 },
{ value: 580 },
{ value: 484 },
{ value: 300 }
]
}
]
};
四、Tooltip 隐藏时, 隐藏 DOM
Echarts
Tooltip
默认是通过设置 opacity: 0
来隐藏 DOM
元素的, 这样的话 DOM
依然会占位, 可能会导致一些隐藏 BUG
, 故而希望当 Tooltip
隐藏时能够将 DOM
display
掉
解决思路: 为 Tooltip
设置 className
并通过属性选择器, 来找到隐藏的 Tooltip
将其 display
掉
主要代码如下:
option = {
tooltip: {
trigger: 'item',
// 添加 className
className: 'echarts-tooltip'
},
...
}
// 根据 className 并通过属性选择器找到隐藏的 Tooltip
.echarts-tooltip[style$="opacity: 0;"] {
display: none !important;
}
五、堆叠展示总数

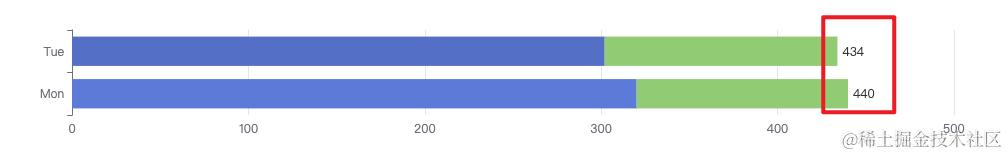

需求内容: 需要在堆叠图最后面需要展示总量
解决思路: 额外添加一条 serie
数据, 用于展示总数
主要代码如下:
const total = [440, 434]
option = {
xAxis: {
type: 'value'
},
yAxis: {
type: 'category',
data: ['Mon', 'Tue']
},
series: [
{
name: 'Direct',
type: 'bar',
stack: 'total',
data: [320, 302]
},
{
name: 'Mail Ad',
type: 'bar',
stack: 'total',
data: [120, 132]
},
// 新增的列, 用于展示总数
{
type: 'bar',
stack: 'total',
name: void 0, // name 为 undefind, 就不会在 legend 中显示
silent: true, // 取消鼠标响应
data: [0, 0], // data 所有值都设置为 0 起到隐藏柱子的效果
label: {
show: true,
position: 'right',
formatter: ({ dataIndex }) => total[dataIndex],
}
}
]
};
六、相邻堆叠图颜色相近或相等时, 会有白边
当两个堆叠图的颜色相近、或相等, 中间会有一条白线, 如下图所示:
上图演示代码:
option = {
xAxis: { type: 'value' },
yAxis: {
type: 'category',
data: ['Mon', 'Tue']
},
series: [
{
type: 'bar',
stack: 'total',
barMaxWidth : 30,
itemStyle: { color: '#69b1ff' },
data: [320, 302]
},
{
type: 'bar',
stack: 'total',
itemStyle: { color: '#69b1ff' },
data: [120, 132]
}
]
};
解决办法: 为柱状图设置投影, 通过投影来填充间隙
option = {
xAxis: { type: 'value' },
yAxis: {
type: 'category',
data: ['Mon', 'Tue']
},
series: [
{
type: 'bar',
stack: 'total',
barMaxWidth : 30,
+ itemStyle: {
+ color: '#69b1ff',
+ shadowColor: '#69b1ff', // 关键代码
+ shadowOffsetX: 1, // 关键代码
+ },
data: [320, 302]
},
{
type: 'bar',
stack: 'total',
itemStyle: { color: '#69b1ff' },
data: [120, 132]
}
]
};
七、饼图设置边框, 切换图例会变大/变小

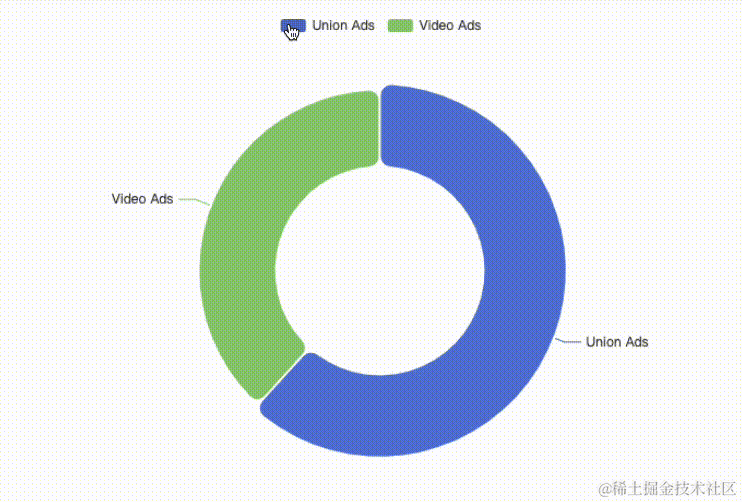

如下图, 为了给饼图添加间距, 设置了边框为白色, 这样的话在切换图例的时候, 图例会变大/变小
上图演示代码:
option = {
legend: {},
series: [
{
type: 'pie',
radius: ['40%', '70%'],
itemStyle: {
borderWidth: 2,
borderRadius: 10,
borderColor: '#fff',
},
data: [
{ value: 484, name: 'Union Ads' },
{ value: 300, name: 'Video Ads' }
]
}
]
};
解决思路: 出现跳动主要原因是, legend
继承了饼图的边框, 这里只需要设置图例 borderWidth
以及 inactiveBorderWidth
等于 0
就行, 具体代码如下:
option = {
+ legend: {
+ itemStyle: {
+ borderWidth: 0
+ },
+ inactiveBorderWidth: 0
+ },
series: [
{
type: 'pie',
radius: ['40%', '70%'],
itemStyle: {
borderWidth: 2,
borderRadius: 10,
borderColor: '#fff',
},
data: [
{ value: 484, name: 'Union Ads' },
{ value: 300, name: 'Video Ads' }
]
}
]
};
八、热力图, 非数值不渲染
在热力图中, 如果色块的值, 不是数字类型的话, 对应的色块是不会被渲染的, 也 无法触发任何事件

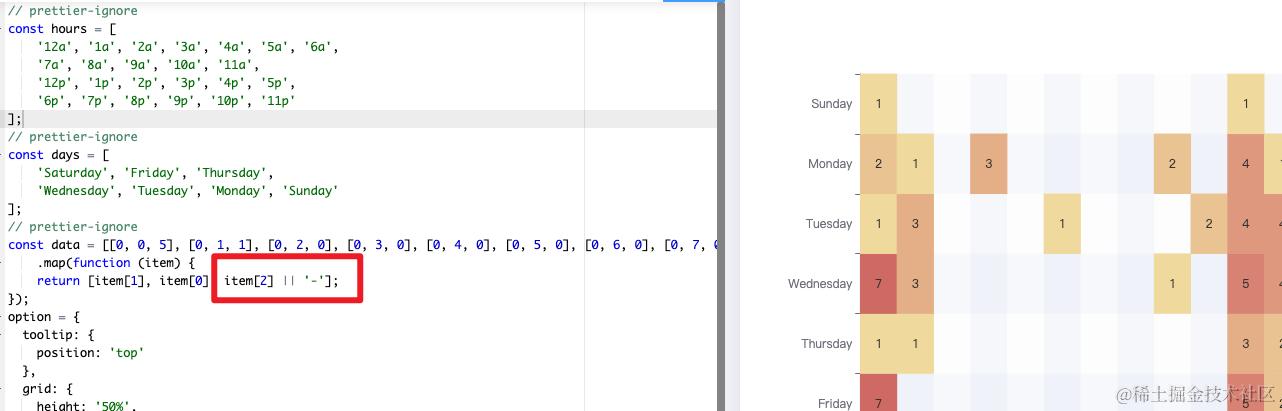

官方示例中针对空值 0
进行了处理, 如果需要渲染 0
的色块, 需要把下图中, 圈出来的那部分代码去掉
九、Y 坐标轴顺序调整

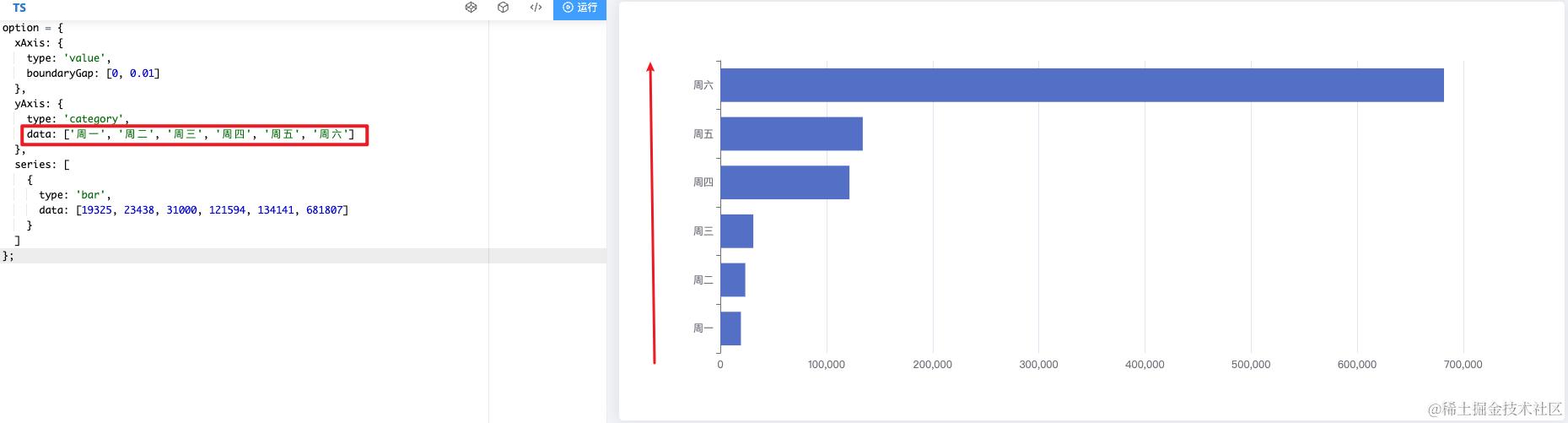

首先 Y
坐标轴, 默认顺序是 从下往上
的, 如下图所示:
但上图中, Y
坐标轴顺序改为 从上往下

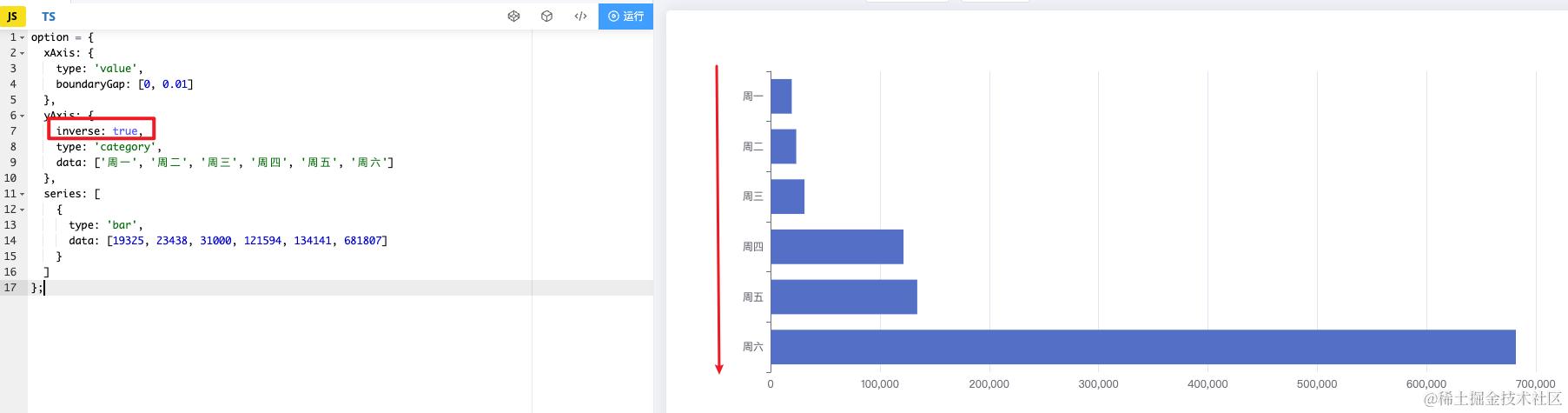

或许更符合人们的阅读习惯, 这时我们就可以通过inverse: true
配置来修改 Y
坐标轴的顺序
完整代码有:
option = {
xAxis: {
type: 'value',
boundaryGap: [0, 0.01]
},
yAxis: {
inverse: true,
type: 'category',
data: ['周一', '周二', '周三', '周四', '周五', '周六']
},
series: [
{
type: 'bar',
data: [19325, 23438, 31000, 121594, 134141, 681807]
}
]
};
十、为文本设置下划线

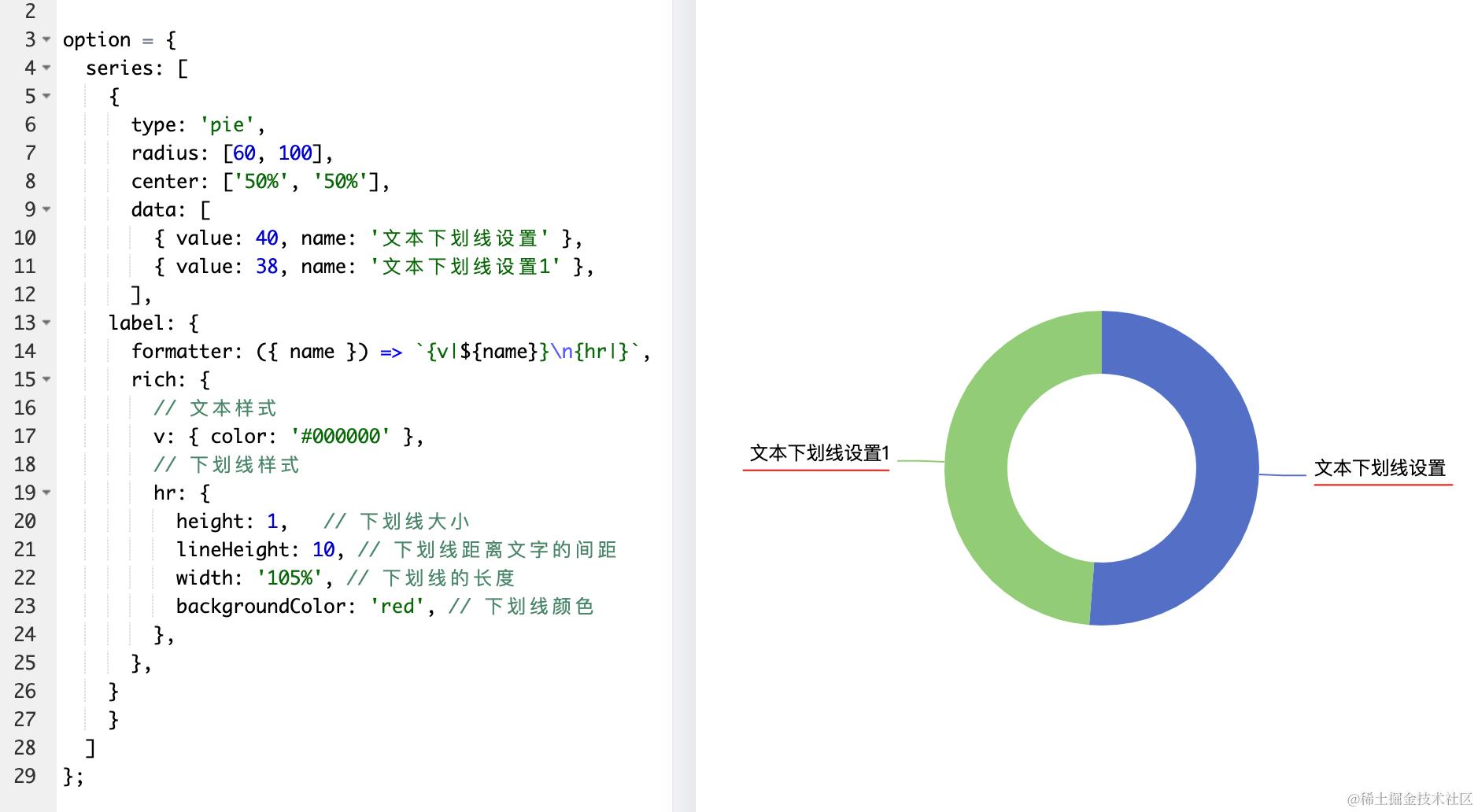

在实际使用中, 有时我们可能需要为文本设置一个下划线, 这时我们就可以通过 rich
来实现下划线功能, 如下图所示:
完整代码如下:
option = {
series: [
{
type: 'pie',
radius: [60, 100],
center: ['50%', '50%'],
data: [
{ value: 40, name: '文本下划线设置' },
{ value: 38, name: '文本下划线设置1' },
],
label: {
formatter: ({ name }) => `{v|${name}}\n{hr|}`,
rich: {
// 文本样式
v: { color: '#000000' },
// 下划线样式
hr: {
height: 1, // 下划线大小
lineHeight: 10, // 下划线距离文字的间距
width: '105%', // 下划线的长度
backgroundColor: 'red', // 下划线颜色
},
},
}
}
]
};
未完待续……
