Elasticsearch:在搜索中使用衰减函数(Gauss)

2,455 阅读4分钟

在我之前的文章 “Elasticsearch:使用 function_score 及 script_score 定制搜索结果的分数” 我有讲到 Decay 函数在搜索中的使用。在那里,我有一个例子讲述在规定的时间里,分数不进行衰减。同一的函数也可以适用于地理位置的搜索。位置搜索的范围在规定范围里可以不进行衰减,超过这个范围就会按照衰减函数进行衰减。

想象一下,你需要根据用户位置的接近程度对结果进行排序。完成此任务的方法之一是使用定位和衰减函数。 衰减函数可用于根据比例调整文档的相关性分数。

在我们的示例中,我们将注册一些餐厅,并从用户的位置返回最近的餐厅。

让我们创建我们的地图,现在我们将使用 geo_point 类型,因为我们将使用纬度和经度。



1.  PUT restaurants
2.  {
3.    "mappings": {
4.      "properties": {
5.        "title": {
6.          "type": "text"
7.        },
8.        "location": {
9.          "type": "geo_point"
10.        }
11.      }
12.    }
13.  }


现在让我们插入一些文档:



1.  POST restaurants/_bulk
2.  {"index":{}}
3.  {"title":"McDonald's 1000","location":{"lat" : -23.525920 ,"lon" : -46.650211}}
4.  {"index":{}}
5.  {"title":"McDonald's Caneca","location":{"lat" : -23.553720  ,"lon" : -46.652940}}
6.  {"index":{}}
7.  {"title":"McDonald's Paulista","location":{"lat" : -23.565920 ,"lon" : -46.650210}}
8.  {"index":{}}
9.  {"title":"McDonald's - Shopping Pátio Higienópolis","location":{"lat" : -23.582460 ,"lon" : -46.688560}}

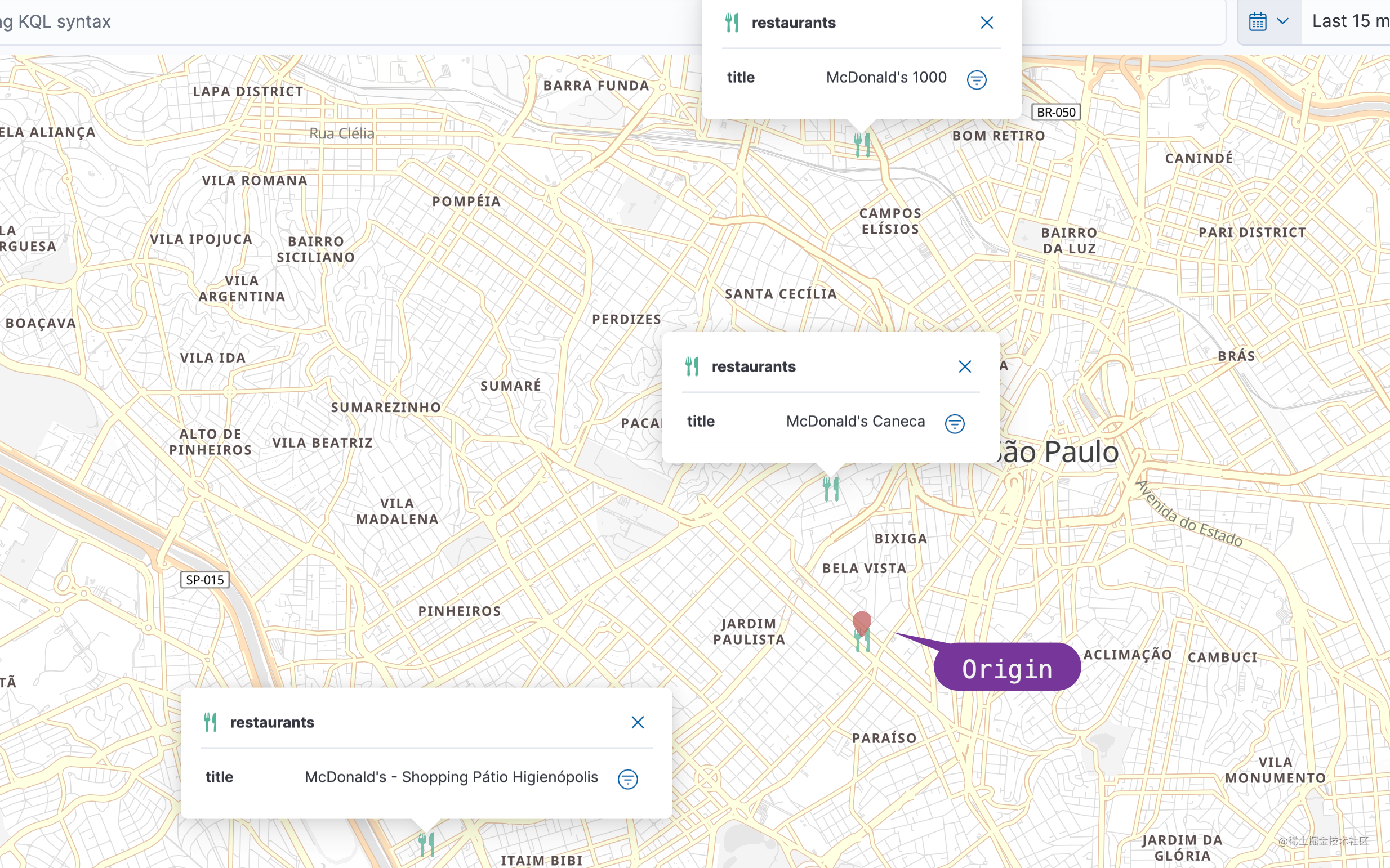

上面的命令将创建 4 个位置文档。假如我们想在位置 [-23.542719, -46.653965] 进行搜索。它们的相对位置关系如下:

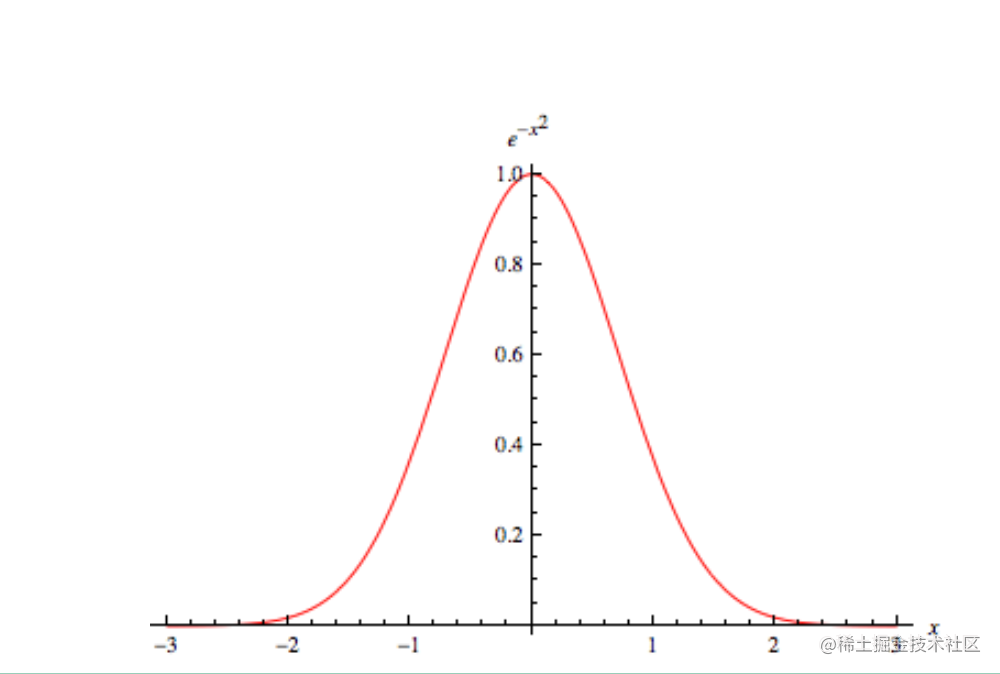

在我们的查询中,我们将使用 Function score query | Elasticsearch Guide [8.6] | Elastic 和 Gaussian 函数,我们希望距离半径 500 米的人获得最大得分(origin - offset <= value <= origin + offset)和 200m (scale) 分数将开始下降。根据 Gaussian function的曲线分布,超过一定的范围衰减非常之快,以至于很快到 0。

 在第一个测试中,我们将使用原点 -23.561581、-46.659540。 此搜索的结果将是最接近的(请注意分数如何随着离原点越远而降低):



1.  GET restaurants/_search?filter_path=**.hits
2.  {
3.    "query": {
4.      "function_score": {
5.        "query": {
6.          "match": {
7.            "title": {
8.              "query": "McDonald's"
9.            }
10.          }
11.        },
12.        "functions": [
13.          {
14.            "gauss": {
15.              "location": {
16.                "origin": {
17.                  "lat": -23.542719,
18.                  "lon": -46.653965
19.                },
20.                "offset": "500m",
21.                "scale": "200m",
22.                "decay": "0.5"
23.              }
24.            },
25.            "weight": 10
26.          }
27.        ],
28.        "boost_mode": "replace"
29.      }
30.    }
31.  }


参数说明:

项目说明
origin用于计算距离的原点。 必须以数字字段的数字、日期字段的日期和地理字段的地理点的形式给出。 地理和数字字段必填。 对于日期字段,默认值为现在。 origin 支持日期数学(例如 now-1h)。
scale所有类型都需要。 定义距离原点的距离 + 偏移量,在该距离处计算的分数将等于衰减参数。 对于地理字段:可以定义为数字+单位(1km,12m,...)。 默认单位是米。 对于日期字段:可以定义为数字+单位(“1h”、“10d”、… )。 默认单位是毫秒。 对于数字字段:任何数字。
offset如果定义了偏移量,衰减函数将只计算距离大于定义的偏移量的文档的衰减函数。 默认值为 0。
decaydecay 参数定义了如何在按比例给定的距离对文档进行评分。 如果没有定义衰减,则距离 scale 的文档将得分为 0.5。

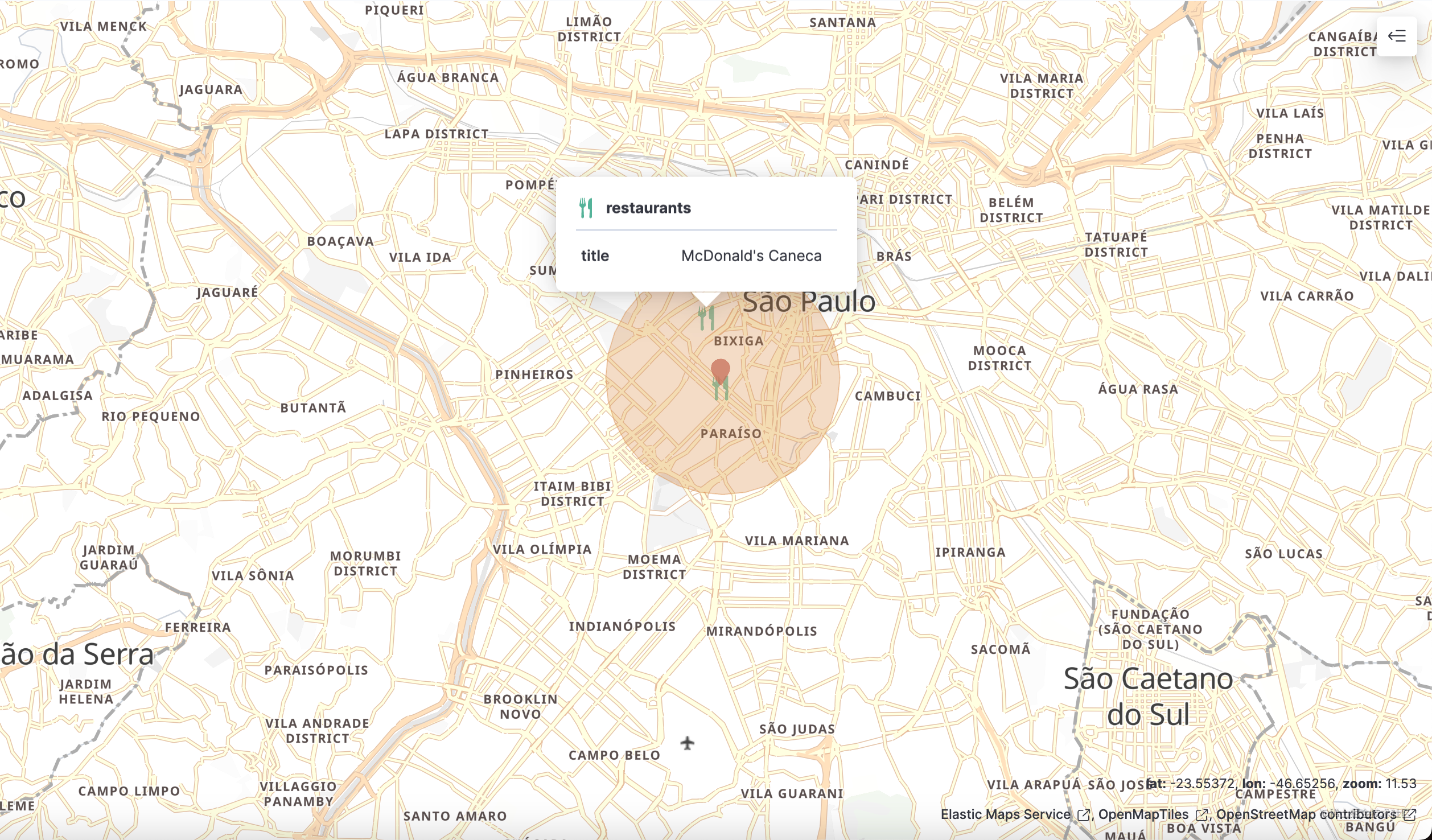

上述查询在离 origin 开始的 200m + 500m 开始进行衰减。它的衰减因子为 0.5。在这个以 200m + 500m 为圆半径的文档得分值将保持不变。

运行上面查询的结果为:



1.  {
2.    "hits": {
3.      "hits": [
4.        {
5.          "_index": "restaurants",
6.          "_id": "QxqBNYYB2XodIZsbBsV5",
7.          "_score": 0.0010342363,
8.          "_source": {
9.            "title": "McDonald's Caneca",
10.            "location": {
11.              "lat": -23.55372,
12.              "lon": -46.65294
13.            }
14.          }
15.        },
16.        {
17.          "_index": "restaurants",
18.          "_id": "QhqBNYYB2XodIZsbBsV5",
19.          "_score": 1.2783469e-14,
20.          "_source": {
21.            "title": "McDonald's 1000",
22.            "location": {
23.              "lat": -23.52592,
24.              "lon": -46.650211
25.            }
26.          }
27.        },
28.        {
29.          "_index": "restaurants",
30.          "_id": "RBqBNYYB2XodIZsbBsV5",
31.          "_score": 3.5952473e-33,
32.          "_source": {
33.            "title": "McDonald's Paulista",
34.            "location": {
35.              "lat": -23.56592,
36.              "lon": -46.65021
37.            }
38.          }
39.        },
40.        {
41.          "_index": "restaurants",
42.          "_id": "RRqBNYYB2XodIZsbBsV5",
43.          "_score": 0,
44.          "_source": {
45.            "title": "McDonald's - Shopping Pátio Higienópolis",
46.            "location": {
47.              "lat": -23.58246,
48.              "lon": -46.68856
49.            }
50.          }
51.        }
52.      ]
53.    }
54.  }


正像我们看到的那样,搜索的结果是我们所期望的。从返回的分数来看在范围里的文档的分数不受影响,但是一旦超出范围,搜索到的文档的分数会被加权并得到衰减。

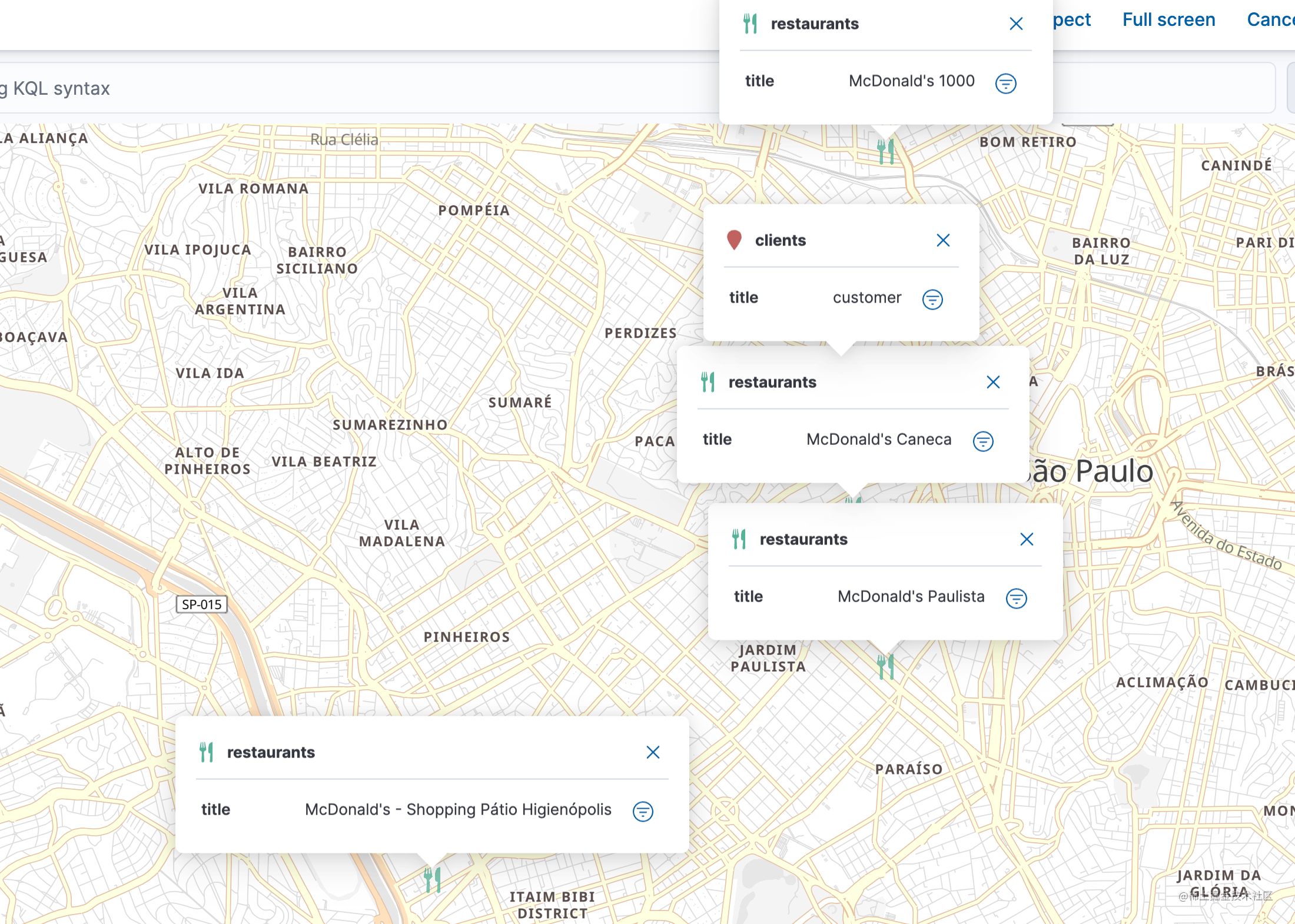

我们再次修改 origin 的位置到  -23.542719, -46.653965。它们的相对关系显示如下:

我们再次进行搜索:



1.  GET restaurants/_search?filter_path=**.hits
2.  {
3.    "query": {
4.      "function_score": {
5.        "query": {
6.          "match": {
7.            "title": {
8.              "query": "McDonald's"
9.            }
10.          }
11.        },
12.        "functions": [
13.          {
14.            "gauss": {
15.              "location": {
16.                "origin": {
17.                  "lat": -23.542719,
18.                  "lon": -46.653965
19.                },
20.                "offset": "500m",
21.                "scale": "200m",
22.                "decay": "0.5"
23.              }
24.            },
25.            "weight": 10
26.          }
27.        ],
28.        "boost_mode": "replace"
29.      }
30.    }
31.  }


 我们可以看到如下的结果:



1.  {
2.    "hits": {
3.      "hits": [
4.        {
5.          "_index": "restaurants",
6.          "_id": "QxqBNYYB2XodIZsbBsV5",
7.          "_score": 0.0010342363,
8.          "_source": {
9.            "title": "McDonald's Caneca",
10.            "location": {
11.              "lat": -23.55372,
12.              "lon": -46.65294
13.            }
14.          }
15.        },
16.        {
17.          "_index": "restaurants",
18.          "_id": "QhqBNYYB2XodIZsbBsV5",
19.          "_score": 1.2783469e-14,
20.          "_source": {
21.            "title": "McDonald's 1000",
22.            "location": {
23.              "lat": -23.52592,
24.              "lon": -46.650211
25.            }
26.          }
27.        },
28.        {
29.          "_index": "restaurants",
30.          "_id": "RBqBNYYB2XodIZsbBsV5",
31.          "_score": 3.5952473e-33,
32.          "_source": {
33.            "title": "McDonald's Paulista",
34.            "location": {
35.              "lat": -23.56592,
36.              "lon": -46.65021
37.            }
38.          }
39.        },
40.        {
41.          "_index": "restaurants",
42.          "_id": "RRqBNYYB2XodIZsbBsV5",
43.          "_score": 0,
44.          "_source": {
45.            "title": "McDonald's - Shopping Pátio Higienópolis",
46.            "location": {
47.              "lat": -23.58246,
48.              "lon": -46.68856
49.            }
50.          }
51.        }
52.      ]
53.    }
54.  }


这是介绍衰减函数的方法之一,我希望它有用。
