1. 什么是原子操作类

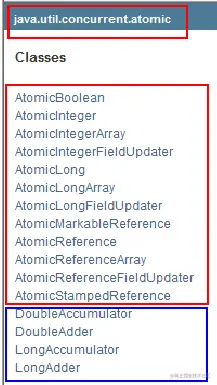

1.1 java.util.concurrent.atomic
java.util.concurrent.atomic包提供了多类用法简单、性能高效、线程安全的原子操作类。主要包含以下类型:
- 基本类型原子类
- 数组类型原子类
- 引用类型原子类
- 对象的属性修改原子类
- 原子操作增强类

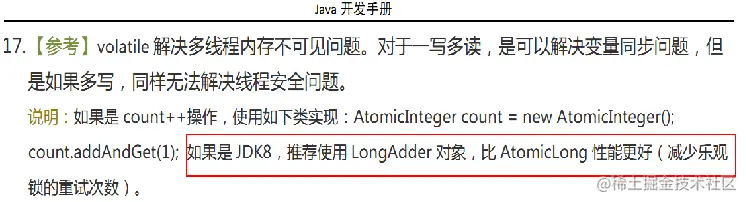

1.2 Java开发手册说明
volatile 只能解决可见性和有序性,不能解决原子性!!!
2. 基本类型原子类
2.1 AtomicInteger

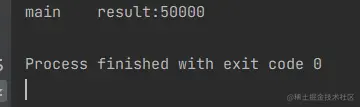

public class AtomicIntegerDemo {
public static final int SIZE = 50;
public static void main(String[] args) throws InterruptedException {
MyNumber myNumber = new MyNumber();
CountDownLatch countDownLatch = new CountDownLatch(SIZE);
for (int i = 0; i < SIZE; i++) {
new Thread(() -> {
try {
for (int j = 0; j < 1000; j++) {
myNumber.addPlusPlus();
}
} finally {
countDownLatch.countDown();
}
},String.valueOf(i)).start();
}
//等待上面50个线程完成后 再去获得最终值
//暂停10s 不推荐
//try { TimeUnit.SECONDS.sleep(10); } catch (InterruptedException e){ e.printStackTrace(); }
countDownLatch.await(); // 等待countDownLatch减为0

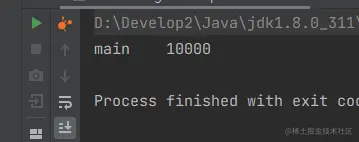

System.out.println(Thread.currentThread().getName() + "\t" + "result:" + myNumber.atomicInteger.get());
}
}
class MyNumber {
AtomicInteger atomicInteger = new AtomicInteger();
public void addPlusPlus() {
atomicInteger.getAndIncrement();
}
}
2.2 AtomicBoolean,AtomicLong
这两个类和AtomicInteger区别不大,就不给小伙伴们代码演示了
2.3 常用API简介
- public final int get() //获取当前的值
- public final int getAndSet(int newValue)//获取当前的值,并设置新的值
- public final int getAndIncrement()//获取当前的值,并自增
- public final int getAndDecrement() //获取当前的值,并自减
- public final int getAndAdd(int delta) //获取当前的值,并加上预期的值
- boolean compareAndSet(int expect, int update) //如果输入的数值等于预期值,则以原子方式将该值设置为输入值(update)
3. 数组类型原子类

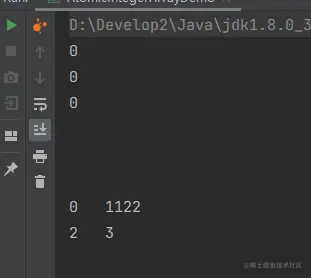

3.1 AtomicIntegerArray
public static void main(String[] args) {
AtomicIntegerArray atomicIntegerArray = new AtomicIntegerArray(new int[3]);
for (int i = 0; i <atomicIntegerArray.length(); i++) {
System.out.println(atomicIntegerArray.get(i));
}
System.out.println();
System.out.println();
System.out.println();
int tmpInt = 0;
tmpInt = atomicIntegerArray.getAndSet(0,1122);
System.out.println(tmpInt+"\t"+atomicIntegerArray.get(0));
atomicIntegerArray.getAndIncrement(1);
atomicIntegerArray.getAndIncrement(1);
tmpInt = atomicIntegerArray.getAndIncrement(1);
System.out.println(tmpInt+"\t"+atomicIntegerArray.get(1));
}
3.2 AtomicLongArray,AtomicReferenceArray
这两个类和AtomicIntegerArray区别不大,就不给小伙伴们代码演示了
4. 引用类型原子类
4.1 AtomicReference
public class AtomicReferenceDemo {
public static void main(String[] args) {
Integer i1 = 23;
Integer i2 = 10;
AtomicReference<Integer> atomicReference = new AtomicReference<>();
atomicReference.set(i1);

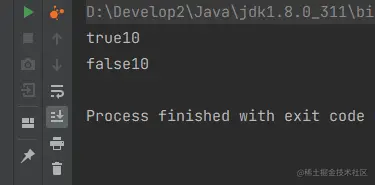

System.out.println(atomicReference.compareAndSet(i1,i2) + atomicReference.get().toString());
System.out.println(atomicReference.compareAndSet(i1,i2) + atomicReference.get().toString());
}
}
4.2 AtomicStampedReference 状态戳原子引用
携带版本号的引用类型原子类,可以解决ABA问题
解决修改过几次
static AtomicInteger atomicInteger = new AtomicInteger(100);
static AtomicStampedReference atomicStampedReference = new AtomicStampedReference(100,1);
public static void main(String[] args)
{
abaProblem();
abaResolve();
}
public static void abaResolve()
{
new Thread(() -> {
int stamp = atomicStampedReference.getStamp();
System.out.println("t3 ----第1次stamp "+stamp);
try { TimeUnit.SECONDS.sleep(1); } catch (InterruptedException e) { e.printStackTrace(); }
atomicStampedReference.compareAndSet(100,101,stamp,stamp+1);
System.out.println("t3 ----第2次stamp "+atomicStampedReference.getStamp());
atomicStampedReference.compareAndSet(101,100,atomicStampedReference.getStamp(),atomicStampedReference.getStamp()+1);
System.out.println("t3 ----第3次stamp "+atomicStampedReference.getStamp());
},"t3").start();
new Thread(() -> {
int stamp = atomicStampedReference.getStamp();
System.out.println("t4 ----第1次stamp "+stamp);
//暂停几秒钟线程
try { TimeUnit.SECONDS.sleep(3); } catch (InterruptedException e) { e.printStackTrace(); }
boolean result = atomicStampedReference.compareAndSet(100, 20210308, stamp, stamp + 1);
System.out.println(Thread.currentThread().getName()+"\t"+result+"\t"+atomicStampedReference.getReference());
},"t4").start();
}
public static void abaProblem()
{
new Thread(() -> {
atomicInteger.compareAndSet(100,101);
atomicInteger.compareAndSet(101,100);
},"t1").start();
try { TimeUnit.MILLISECONDS.sleep(200); } catch (InterruptedException e) { e.printStackTrace(); }
new Thread(() -> {
atomicInteger.compareAndSet(100,20210308);
System.out.println(atomicInteger.get());
},"t2").start();
}

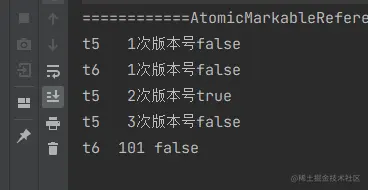

4.3 AtomicMarkableReference
和## AtomicStampedReference类似,但是AtomicMarkableReference是用来原子更新带有标记位的引用类型对象。
解决是否修改过
它的定义就是将状态戳简化为true|false ,类似一次性筷子
static AtomicInteger atomicInteger = new AtomicInteger(100);
static AtomicStampedReference<Integer> stampedReference = new AtomicStampedReference<>(100,1);
static AtomicMarkableReference<Integer> markableReference = new AtomicMarkableReference<>(100,false);
public static void main(String[] args)
{
System.out.println("============AtomicMarkableReference不关心引用变量更改过几次,只关心是否更改过======================");
new Thread(() -> {
boolean marked = markableReference.isMarked();
System.out.println(Thread.currentThread().getName()+"\t 1次版本号"+marked);
try { TimeUnit.MILLISECONDS.sleep(100); } catch (InterruptedException e) { e.printStackTrace(); }
markableReference.compareAndSet(100,101,marked,!marked);
System.out.println(Thread.currentThread().getName()+"\t 2次版本号"+markableReference.isMarked());
markableReference.compareAndSet(101,100,markableReference.isMarked(),!markableReference.isMarked());
System.out.println(Thread.currentThread().getName()+"\t 3次版本号"+markableReference.isMarked());
},"t5").start();
new Thread(() -> {
boolean marked = markableReference.isMarked();
System.out.println(Thread.currentThread().getName()+"\t 1次版本号"+marked);
//暂停几秒钟线程
try { TimeUnit.MILLISECONDS.sleep(100); } catch (InterruptedException e) { e.printStackTrace(); }
markableReference.compareAndSet(100,2020,marked,!marked);
System.out.println(Thread.currentThread().getName()+"\t"+markableReference.getReference()+"\t"+markableReference.isMarked());
},"t6").start();
}
5. 对象的属性修改原子类
5.1 使用目的与要求
目的: 以一种线程安全的方式操作非线程安全对象内的某些字段
要求:
- 更新的对象属性必须使用
public volatile 修饰符。
- 因为对象的属性修改类型原子类都是抽象类,所以每次使用都必须
使用静态方法newUpdater()创建一个更新器
,并且需要设置想要更新的类和属性
。
5.2 AtomicIntegerFieldUpdater
原子更新对象中int类型字段的值
更新的属性都必须使用public volatile修饰!!!!!!
class BankAccount
{
private String bankName = "CCB";//银行
public volatile int money = 0;//钱数
AtomicIntegerFieldUpdater<BankAccount> accountAtomicIntegerFieldUpdater = AtomicIntegerFieldUpdater.newUpdater(BankAccount.class,"money");
//不加锁+性能高,局部微创
public void transferMoney(BankAccount bankAccount)
{
accountAtomicIntegerFieldUpdater.incrementAndGet(bankAccount);
}
}
/*
* 需求:
* 1000个人同时向一个账号转账一元钱,那么累计应该增加1000元,
* 除了synchronized和CAS,还可以使用AtomicIntegerFieldUpdater来实现。
/
public class AtomicIntegerFieldUpdaterDemo
{
public static void main(String[] args)
{
BankAccount bankAccount = new BankAccount();
for (int i = 1; i <=1000; i++) {
int finalI = i;
new Thread(() -> {
bankAccount.transferMoney(bankAccount);
},String.valueOf(i)).start();
}
//暂停毫秒
try { TimeUnit.MILLISECONDS.sleep(500); } catch (InterruptedException e) { e.printStackTrace(); }
System.out.println(bankAccount.money);
}
}
5.3 AtomicLongFieldUpdater
原子更新对象中Long类型字段的值
同AtomicIntegerFieldUpdater

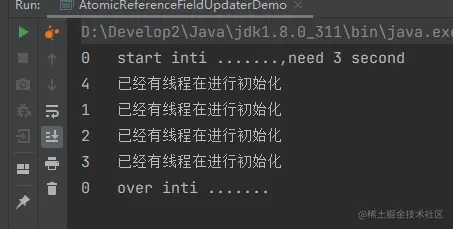

5.4 AtomicReferenceFieldUpdater
原子更新引用类型字段的值
class MyVar
{
public volatile Boolean isInit = Boolean.FALSE;
AtomicReferenceFieldUpdater<MyVar,Boolean> atomicReferenceFieldUpdater = AtomicReferenceFieldUpdater.newUpdater(MyVar.class,Boolean.class,"isInit");
public void init(MyVar myVar)
{
if(atomicReferenceFieldUpdater.compareAndSet(myVar,Boolean.FALSE,Boolean.TRUE))
{
System.out.println(Thread.currentThread().getName()+"\t"+"---init.....");
//暂停几秒钟线程
try { TimeUnit.SECONDS.sleep(2); } catch (InterruptedException e) { e.printStackTrace(); }
System.out.println(Thread.currentThread().getName()+"\t"+"---init.....over");
}else{
System.out.println(Thread.currentThread().getName()+"\t"+"------其它线程正在初始化");
}
}
}
/**
* 多线程并发调用一个类的初始化方法,如果未被初始化过,将执行初始化工作,要求只能初始化一次
*/
public class AtomicIntegerFieldUpdaterDemo
{
public static void main(String[] args) throws InterruptedException
{
MyVar myVar = new MyVar();
for (int i = 1; i <=5; i++) {
new Thread(() -> {
myVar.init(myVar);
},String.valueOf(i)).start();
}
}
}

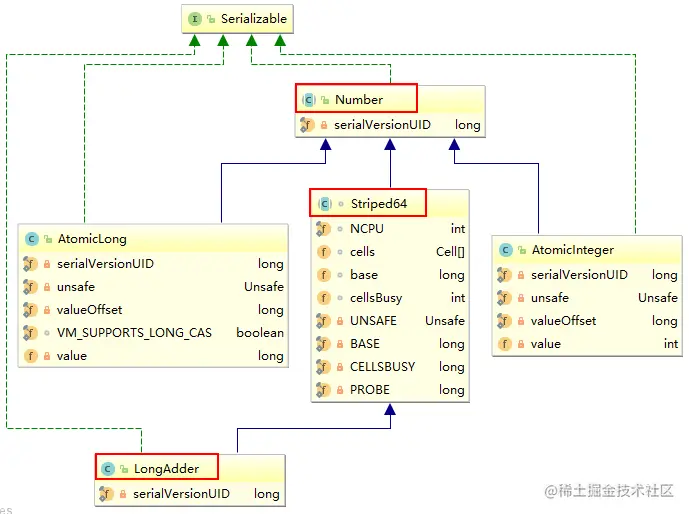

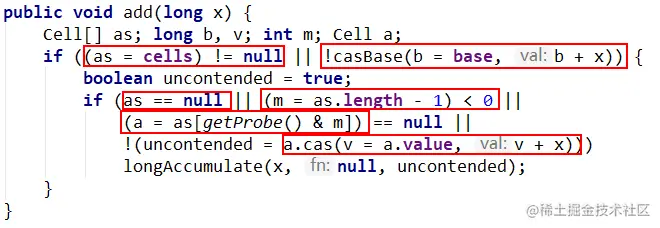

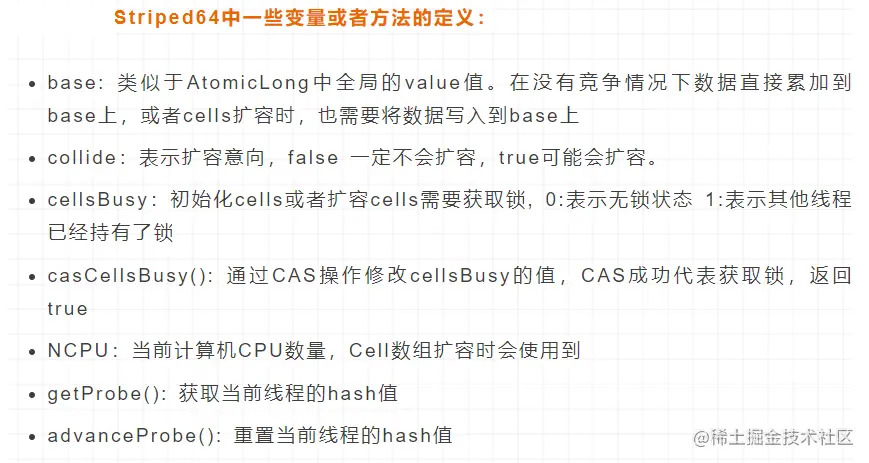

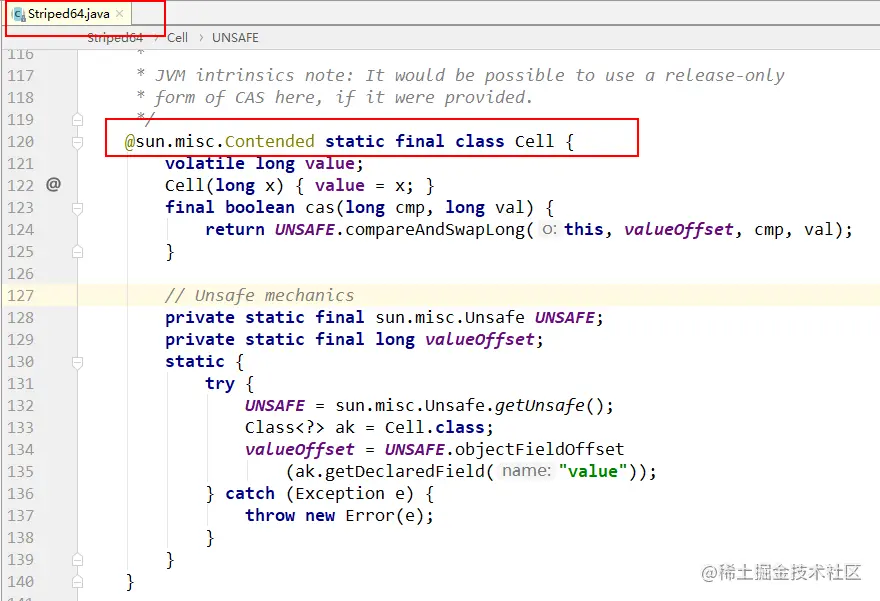

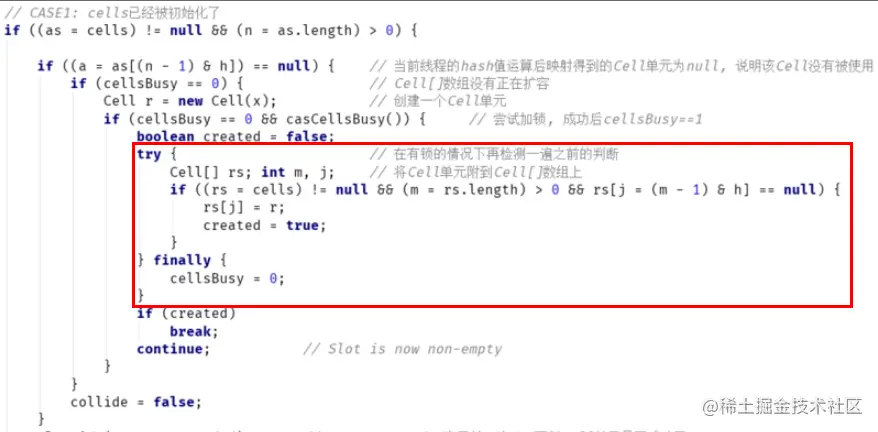

6. 原子操作增强类原理深度解析
6.1 有哪些原子操作增强类
- DoubleAccumulator
- DoubleAdder
- LongAccumulator
- LongAdder
上面四个类型分成两组 Double和Long 所以只讲解一个

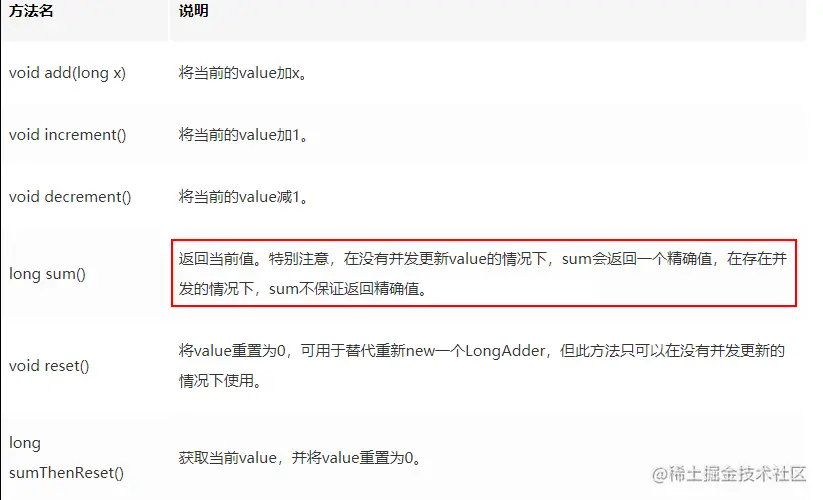

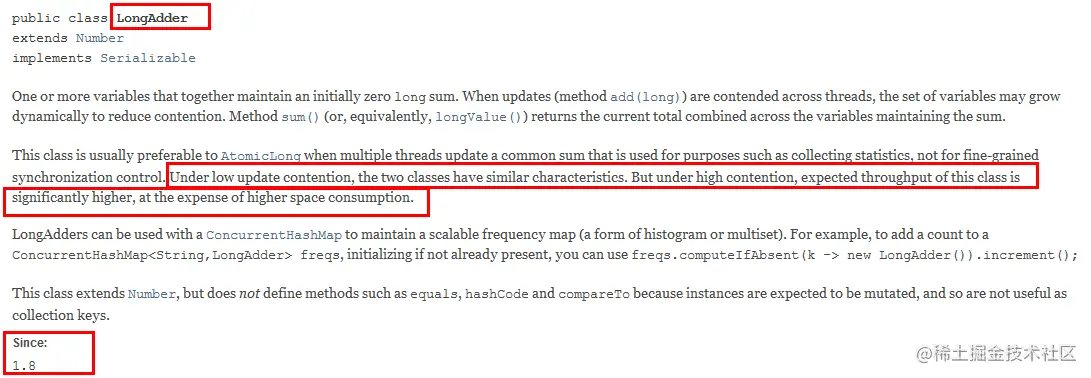

6.2 LongAdder
LongAdder只能用来计算加法,且从零开始计算
public static void main(String[] args) {
LongAdder longAdder = new LongAdder();
longAdder.increment();
longAdder.increment();
longAdder.increment();
long sum = longAdder.sum();
System.out.println(sum);//3
}

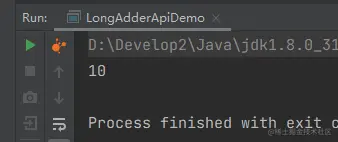

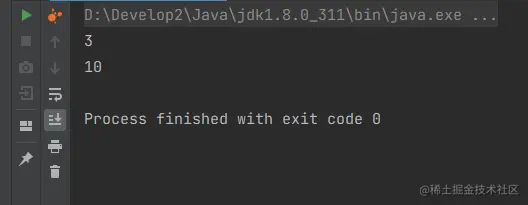

6.3 LongAccumulator
LongAccumulator提供了自定义的函数操作
public static void main(String[] args) {
LongAccumulator longAccumulator = new LongAccumulator((x,y) -> x + y,0); // 这时0相当于x 下面的5相当于y
longAccumulator.accumulate(5); //5
longAccumulator.accumulate(5); //10
System.out.println(longAccumulator.get());
LongAccumulator la = new LongAccumulator(new LongBinaryOperator() {
@Override
public long applyAsLong(long left, long right) {
return left + right;
}
},0);
}
//LongAccumulator longAccumulator = new LongAccumulator((x, y) -> x + y,0);
LongAccumulator longAccumulator = new LongAccumulator(new LongBinaryOperator()
{
@Override
public long applyAsLong(long left, long right)
{
return left - right;
}
},777);

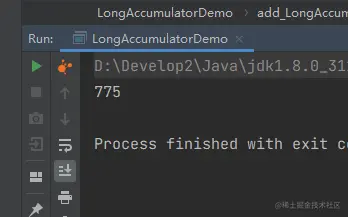

public void add_LongAccumulator()
{
longAccumulator.accumulate(1);
}
public static void main(String[] args)
{
LongAccumulatorDemo demo = new LongAccumulatorDemo();
demo.add_LongAccumulator();
demo.add_LongAccumulator();
System.out.println(demo.longAccumulator.longValue());
}
left表示初始值或者每次运算后的结果

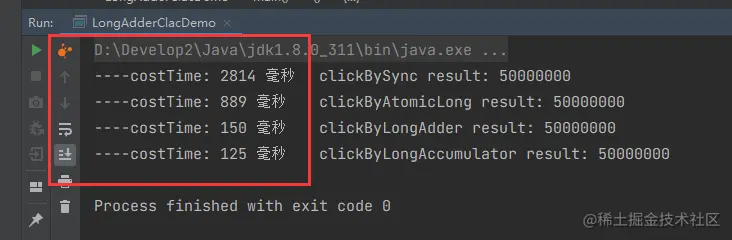

6.4 LongAdder高性能对比Code演示
class ClickNumberNet
{
int number = 0;
public synchronized void clickBySync()
{
number++;
}
AtomicLong atomicLong = new AtomicLong(0);
public void clickByAtomicLong()
{
atomicLong.incrementAndGet();
}
LongAdder longAdder = new LongAdder();
public void clickByLongAdder()
{
longAdder.increment();
}
LongAccumulator longAccumulator = new LongAccumulator((x,y) -> x + y,0);
public void clickByLongAccumulator()
{
longAccumulator.accumulate(1);
}
}
/**
* @auther zzyy
* @create 2020-05-21 22:23
* 50个线程,每个线程100W次,总点赞数出来
*/
public class LongAdderDemo2
{
public static void main(String[] args) throws InterruptedException
{
ClickNumberNet clickNumberNet = new ClickNumberNet();
long startTime;
long endTime;
CountDownLatch countDownLatch = new CountDownLatch(50);
CountDownLatch countDownLatch2 = new CountDownLatch(50);
CountDownLatch countDownLatch3 = new CountDownLatch(50);
CountDownLatch countDownLatch4 = new CountDownLatch(50);
startTime = System.currentTimeMillis();
for (int i = 1; i <=50; i++) {
new Thread(() -> {
try
{
for (int j = 1; j <=100 * 10000; j++) {
clickNumberNet.clickBySync();
}
}finally {
countDownLatch.countDown();
}
},String.valueOf(i)).start();
}
countDownLatch.await();
endTime = System.currentTimeMillis();
System.out.println("----costTime: "+(endTime - startTime) +" 毫秒"+"\t clickBySync result: "+clickNumberNet.number);
startTime = System.currentTimeMillis();
for (int i = 1; i <=50; i++) {
new Thread(() -> {
try
{
for (int j = 1; j <=100 * 10000; j++) {
clickNumberNet.clickByAtomicLong();
}
}finally {
countDownLatch2.countDown();
}
},String.valueOf(i)).start();
}
countDownLatch2.await();
endTime = System.currentTimeMillis();
System.out.println("----costTime: "+(endTime - startTime) +" 毫秒"+"\t clickByAtomicLong result: "+clickNumberNet.atomicLong);
startTime = System.currentTimeMillis();
for (int i = 1; i <=50; i++) {
new Thread(() -> {
try
{
for (int j = 1; j <=100 * 10000; j++) {
clickNumberNet.clickByLongAdder();
}
}finally {
countDownLatch3.countDown();
}
},String.valueOf(i)).start();
}
countDownLatch3.await();
endTime = System.currentTimeMillis();
System.out.println("----costTime: "+(endTime - startTime) +" 毫秒"+"\t clickByLongAdder result: "+clickNumberNet.longAdder.sum());
startTime = System.currentTimeMillis();
for (int i = 1; i <=50; i++) {
new Thread(() -> {
try
{
for (int j = 1; j <=100 * 10000; j++) {
clickNumberNet.clickByLongAccumulator();
}
}finally {
countDownLatch4.countDown();
}
},String.valueOf(i)).start();
}
countDownLatch4.await();
endTime = System.currentTimeMillis();
System.out.println("----costTime: "+(endTime - startTime) +" 毫秒"+"\t clickByLongAccumulator result: "+clickNumberNet.longAccumulator.longValue());
}
}
7. LongAdder源码、原理分析
7.1 架构 (LongAdder是Striped64的子类)
7.2 LongAdder为什么这么快
- 官网说明与阿里要求
-

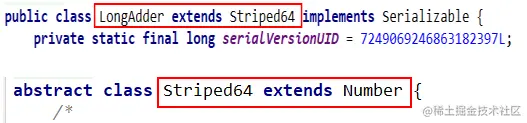

LongAdder是Striped64的子类
-

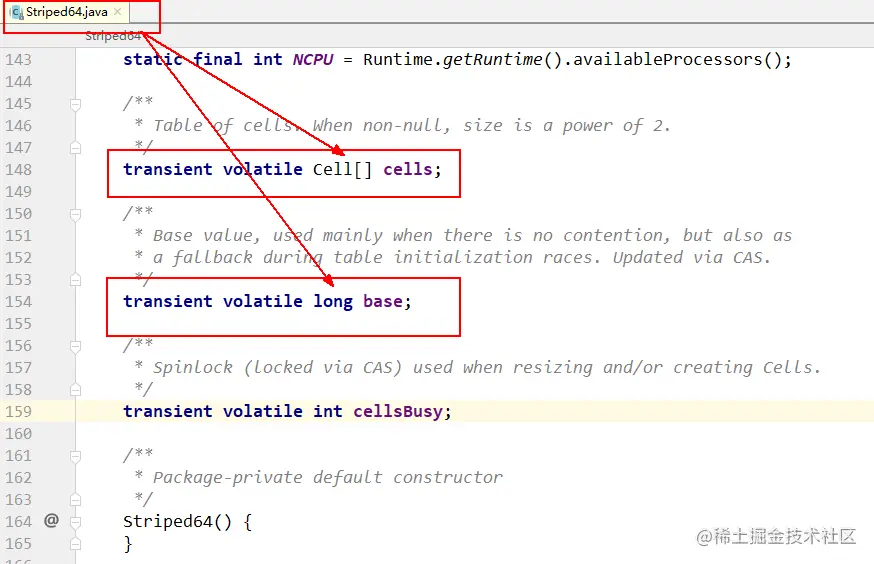

Striped64
- Striped64有几个比较重要的成员函数
/** Number of CPUS, to place bound on table size CPU数量,即cells数组的最大长度 */ static final int NCPU = Runtime.getRuntime().availableProcessors(); /** * Table of cells. When non-null, size is a power of 2. cells数组,为2的幂,2,4,8,16.....,方便以后位运算 */ transient volatile Cell[] cells; /**基础value值,当并发较低时,只累加该值主要用于没有竞争的情况,通过CAS更新。 * Base value, used mainly when there is no contention, but also as * a fallback during table initialization races. Updated via CAS. */ transient volatile long base; /**创建或者扩容Cells数组时使用的自旋锁变量调整单元格大小(扩容),创建单元格时使用的锁。 * Spinlock (locked via CAS) used when resizing and/or creating Cells. */ transient volatile int cellsBusy;
- 最重要2个
- Cell
Cell[]数组:
竞态条件下
,累加个各个线程自己的槽Cell[i]
中是 java.util.concurrent.atomic 下 Striped64 的一个内部类
- Base
base变量:
非竞态条件下
,直接累加
到该变量上

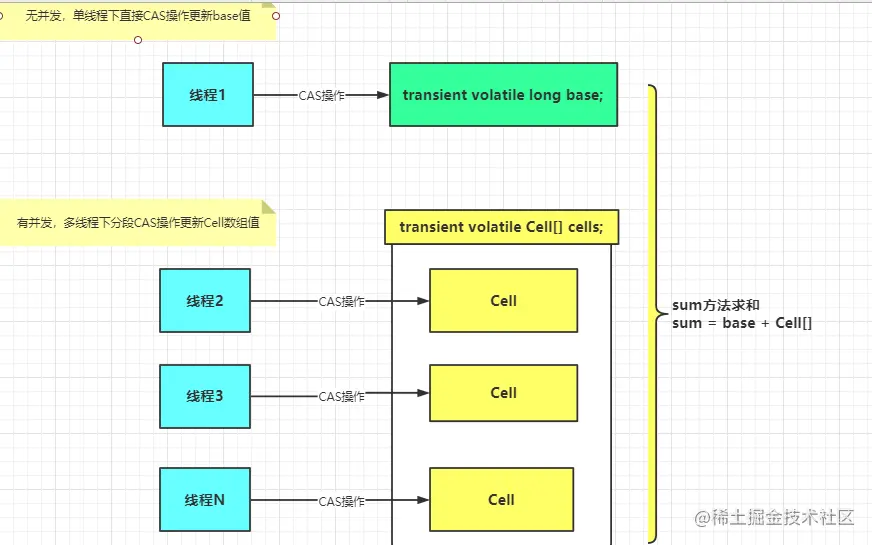

7.3 小总结

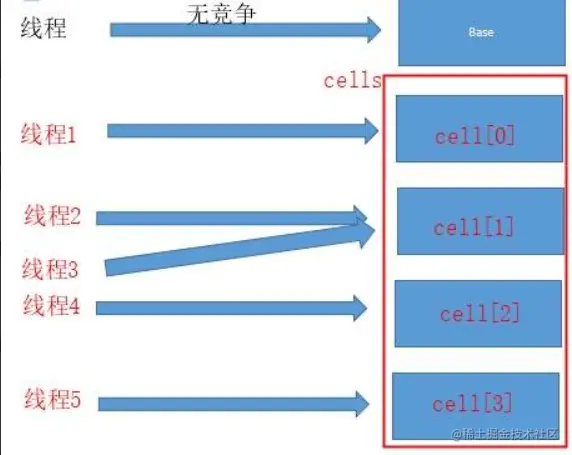

LongAdder的基本思路就是分散热点
,将value值分散到一个Cell数组中,不同线程会命中到数组的不同槽
中,各个线程只对自己槽中的那个值进行CAS操作
,这样热点就被分散了,冲突的概率就小很多。如果要获取真正的long值,只要将各个槽中的变量值累加返回
。
sum()会将所有Cell数组中的value和base累加作为返回值,核心的思想就是将之前AtomicLong一个value的更新压力分散到多个value中去,
从而降级更新热点
。
Value = Base +
7.4 源码解读深度分析
LongAdder在无竞争的情况,跟AtomicLong一样,对同一个base
进行操作,当出现竞争关系时则是采用化整为零的做法,从空间换时间,用一个数组cells,将一个value拆分进这个数组cells
。多个线程需要同时对value进行操作时候,可以对线程id进行hash得到hash值,再根据hash值映射到这个数组cells的某个下标,再对该下标所对应的值进行自增操作。当所有线程操作完毕,将数组cells的所有值和无竞争值base
都加起来作为最终结果。
下面讲解 longAdder.increment()

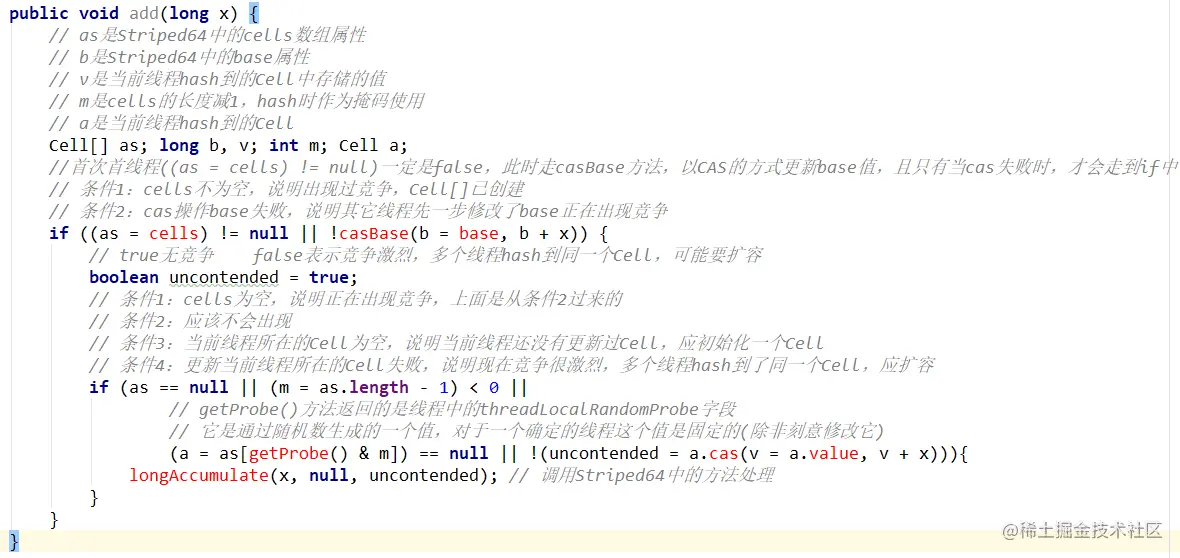

7.4.1 add(1L)

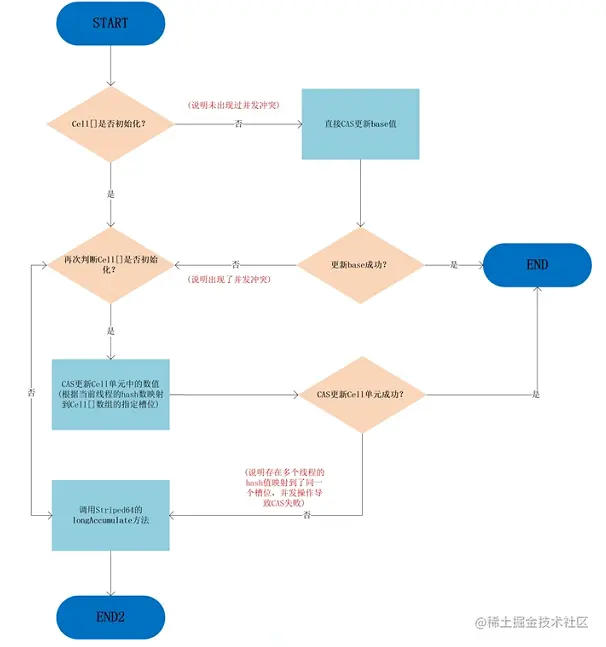

流程解释
- 最初无竞争时只更新base
- 如果更新base失败后,首次新建一个Cell[]数组
- 当多个线程竞争同一个Cell比较激烈时,可能就要对Cell[]扩容
7.4.2 longAccumulate
final void longAccumulate(long x, LongBinaryOperator fn,
boolean wasUncontended) {
int h;
if ((h = getProbe()) == 0) {
ThreadLocalRandom.current(); // force initialization
h = getProbe();
wasUncontended = true;
}
boolean collide = false; // True if last slot nonempty
for (;;) {
Cell[] as; Cell a; int n; long v;
if ((as = cells) != null && (n = as.length) > 0) {
if ((a = as[(n - 1) & h]) == null) {
if (cellsBusy == 0) { // Try to attach new Cell
Cell r = new Cell(x); // Optimistically create
if (cellsBusy == 0 && casCellsBusy()) {
boolean created = false;
try { // Recheck under lock
Cell[] rs; int m, j;
if ((rs = cells) != null &&
(m = rs.length) > 0 &&
rs[j = (m - 1) & h] == null) {
rs[j] = r;
created = true;
}
} finally {
cellsBusy = 0;
}
if (created)
break;
continue; // Slot is now non-empty
}
}
collide = false;
}

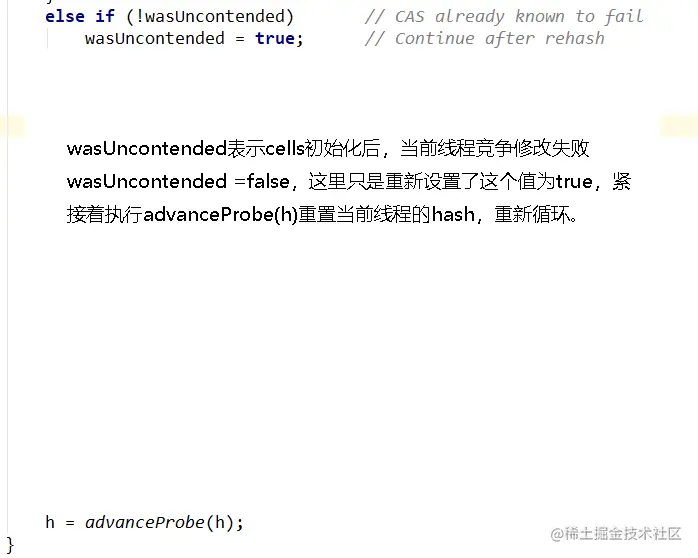

else if (!wasUncontended) // CAS already known to fail
wasUncontended = true; // Continue after rehash
else if (a.cas(v = a.value, ((fn == null) ? v + x :
fn.applyAsLong(v, x))))
break;
else if (n >= NCPU || cells != as)
collide = false; // At max size or stale
else if (!collide)
collide = true;

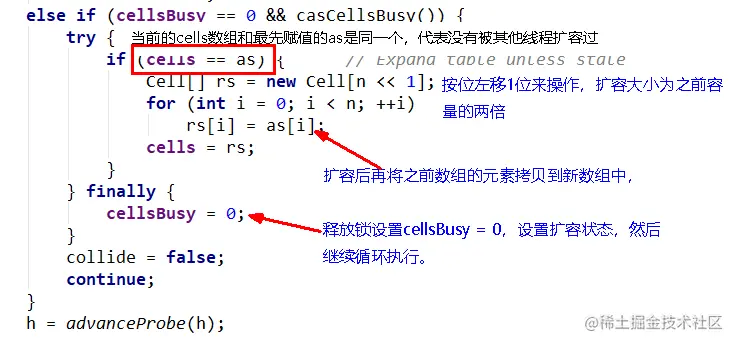

else if (cellsBusy == 0 && casCellsBusy()) {
try {
if (cells == as) { // Expand table unless stale
Cell[] rs = new Cell[n << 1];
for (int i = 0; i < n; ++i)
rs[i] = as[i];
cells = rs;
}
} finally {
cellsBusy = 0;
}
collide = false;
continue; // Retry with expanded table
}
h = advanceProbe(h);
}
else if (cellsBusy == 0 && cells == as && casCellsBusy()) {
boolean init = false;
try { // Initialize table
if (cells == as) {
Cell[] rs = new Cell[2];
rs[h & 1] = new Cell(x);
cells = rs;
init = true;
}
} finally {
cellsBusy = 0;
}
if (init)
break;
}
else if (casBase(v = base, ((fn == null) ? v + x :
fn.applyAsLong(v, x))))
break; // Fall back on using base
}
}

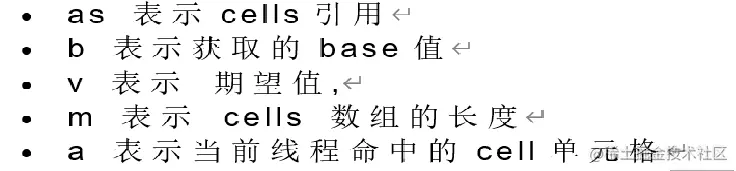

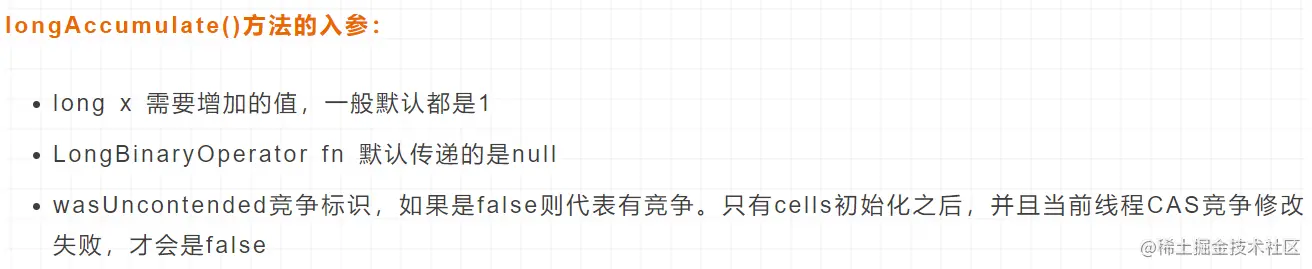

1. longAccumulate入参说明
2. Striped64中一些变量或者方法的定义

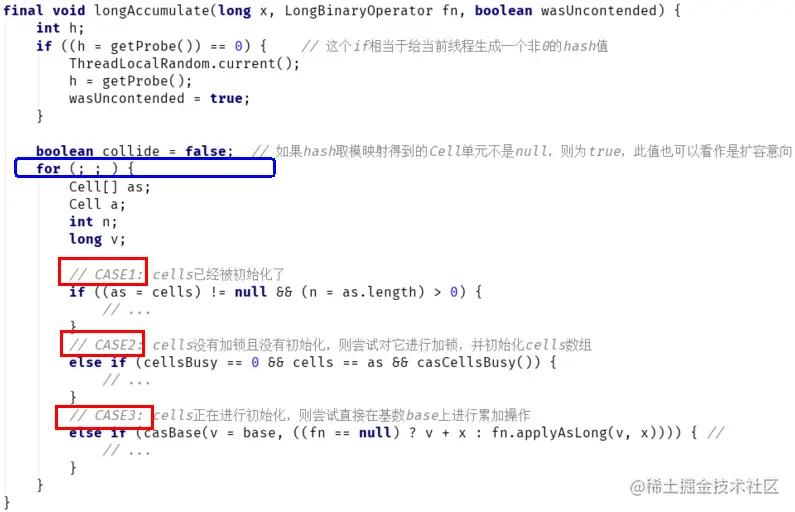

3. 总纲
上述代码首先给当前线程分配一个hash值,然后进入一个for(;;)自旋,这个自旋分为三个分支:
CASE1:Cell[]数组已经初始化
CASE2:Cell[]数组未初始化(首次新建)
CASE3:Cell[]数组正在初始化中
4. 流程

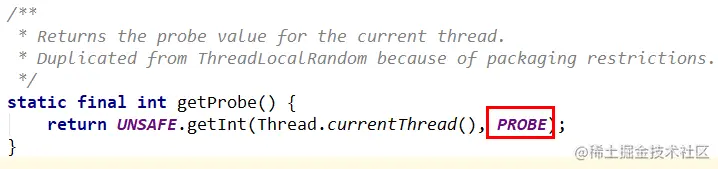

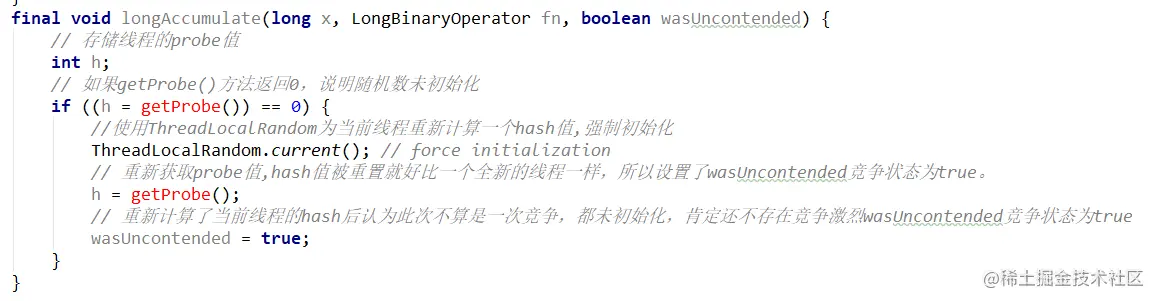

- 步骤一

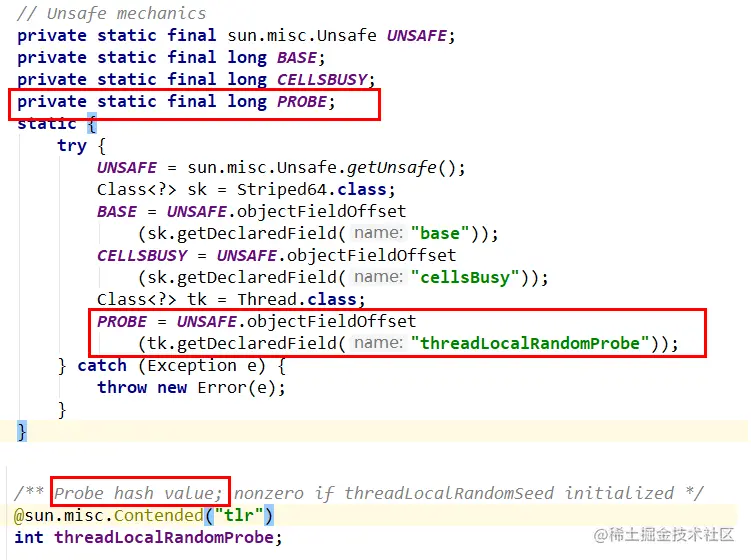

- 设置线程hash值(probe)
-
-
-

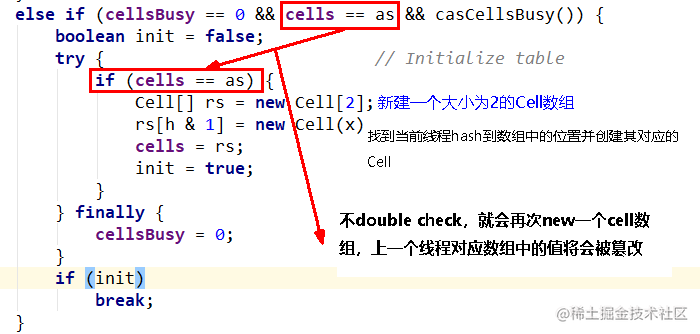

- 步骤二 (CASE2)
- 刚刚要初始化Cell[]数组(首次新建)
- 未初始化过Cell[]数组,尝试占有锁并首次初始化cells数组
-
- 如果上面条件都执行成功就会执行数组的初始化及赋值操作, Cell[] rs = new Cell[2]表示数组的长度为2,
rs[h & 1] = new Cell(x) 表示创建一个新的Cell元素,value是x值,默认为1
。
h & 1类似于我们之前HashMap常用到的计算散列桶index的算法
,通常都是hash & (table.len - 1)。同hashmap一个意思。
- 步骤三 (属于兜底方案 CASE3)
- 多个线程尝试CAS修改失败的线程会走到这个分支
-
- 该分支实现直接操作base基数,将值累加到base上,也即`其它线程正在初始化`,多个线程正在更新base的值。

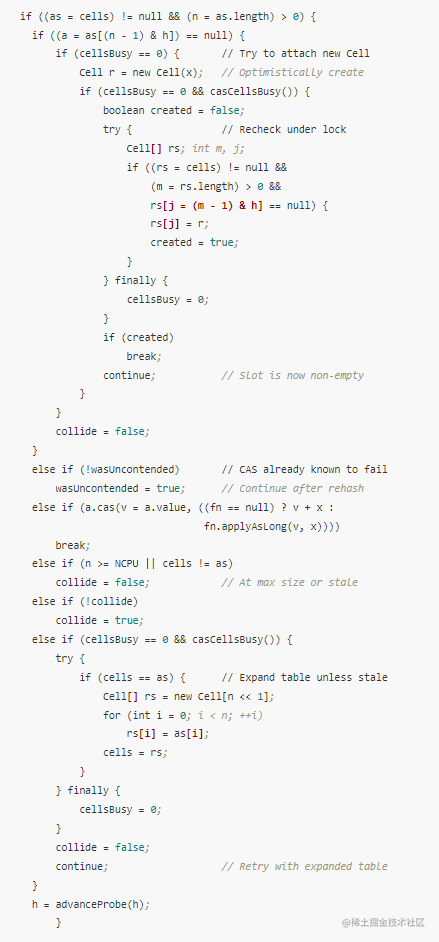

- 步骤四 (CASE1)
- `Cell数组不再为空且可能存在Cell数组扩容`
- 多个线程同时命中一个cell的竞争
- 总代吗

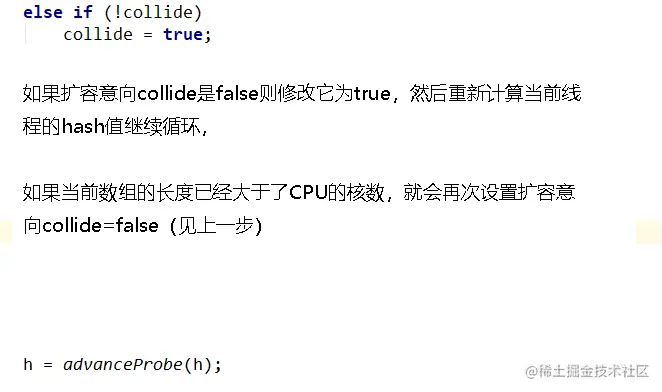

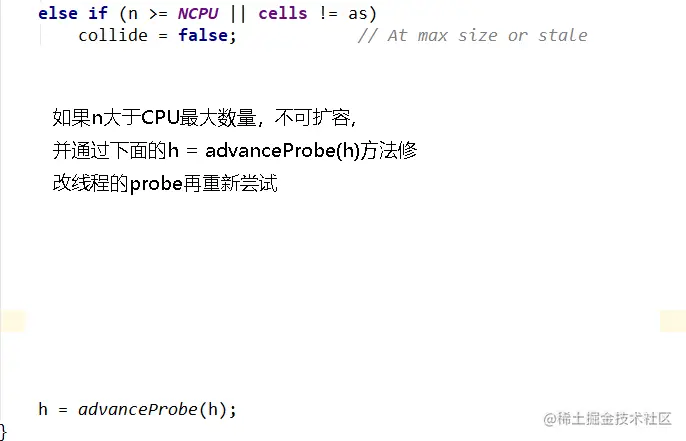

5. 上述步骤四操作流程细化讲解
下面每一幅图表示一个流程
上面代码判断当前线程hash后指向的数据位置元素是否为空, 如果为空则将Cell数据放入数组中,跳出循环。 如果不空则继续循环。
- 说明当前线程对应的数组中有了数据,也重置过hash值, 这时通过CAS操作尝试对当前数中的value值进行累加x操作,x默认为1,如果CAS成功则直接跳出循环。

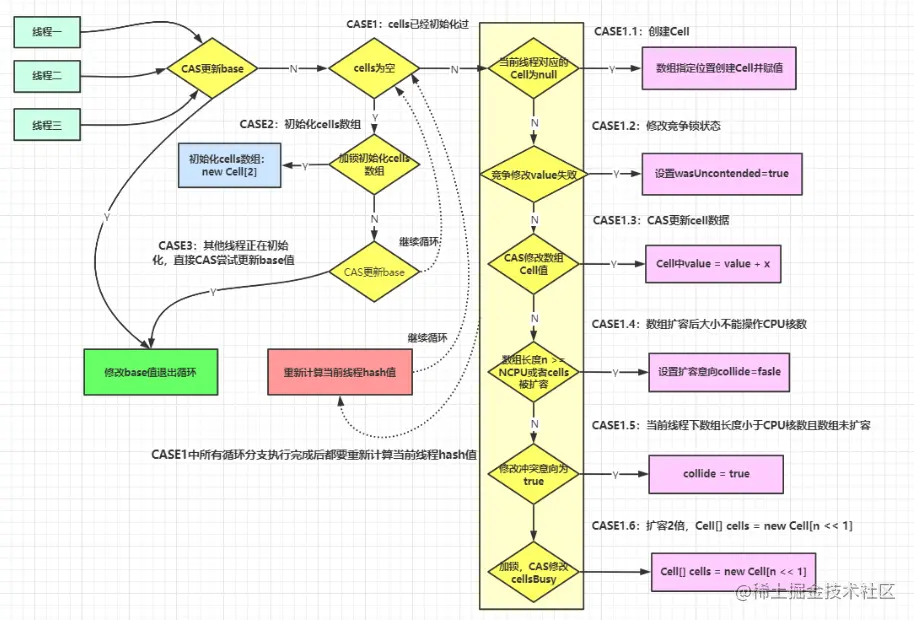

6. 上述6个步骤总结
7.4.3 sum
sum()会将所有Cell数组中的value和base累加作为返回值。
核心的思想就是将之前AtomicLong一个value的更新压力分散到多个value中去,从而降级更新热点
。
为啥在并发情况下sum的值不精确
sum执行时,并没有限制对base和cells的更新
(一句要命的话)。所以LongAdder不是强一致性的,它是最终一致性的。
首先,最终返回的sum局部变量,初始被复制为base,而最终返回时,很可能base已经被更新了,而此时局部变量sum不会更新,造成不一致。 其次,这里对cell的读取也无法保证是最后一次写入的值。所以,sum方法在没有并发的情况下,可以获得正确的结果。
7.5 LongAdder与AtomicLong使用总结
AtomicLong
- 线程安全,可允许一些性能损耗,要求高精度时可使用
- 保证精度,性能代价
- AtomicLong是多个线程针对单个热点值value进行原子操作
LongAdder
- 当需要在高并发下有较好的性能表现,且对值的精确度要求不高时,可以使用
- 保证性能,精度代价
- LongAdder是每个线程拥有自己的槽,各个线程一般只对自己槽中的那个值进行CAS操作
8. 终章总结
8.1 AtomicLong
原理
是 CAS+自旋
场景
是 低并发下的全局计算 + AtomicLong能保证并发情况下计数的准确性,其内部通过CAS来解决并发安全性的问题。
缺点
是 高并发后性能急剧下降,因为AtomicLong的自旋会成为瓶颈(
N个线程CAS操作修改线程的值,每次只有一个成功过,其它N - 1失败,失败的不停的自旋直到成功,这样大量失败自旋的情况,一下子cpu就打高了
)
8.2 LongAdder vs AtomicLong Performance
blog.palominolabs.com/2014/02/10/…
8.3 LongAdder
原理
是 CAS+Base+Cell数组分散 -> 空间换时间并分散了热点数据
场景
是 高并发下的全局计算
缺点
是 sum求和后还有计算线程修改结果的话,最后结果不够准确
这章就讲完了,其实这章并不难,希望小伙伴们慢慢体会!!
