在这篇文章中，我们将看到如何从 Elasticsearch 索引和 Kibana 的 CSV 报告中导出数据 - post-url 到 pandas 数据帧。 数据的可视化可以在 Kibana 中完成，但如果你想对数据进行更精细的分析并创建更动态的可视化，将数据导出到 pandas dataframe 将是一个不错的选择。
在如下的演示中，我将使用 Elastic Stack 8.5.3 来进行展示。
安装
为了说明问题的方便，我们可以选择只有基本安全的 Elastic Stack 安装。我们可以参考之前的文章 “Elastic Stack 8.0 安装 - 保护你的 Elastic Stack 现在比以往任何时候都简单” 中的 “如何配置 Elasticsearch 只带有基本安全” 章节。针对我们的安装，我们配置 Elasticsearch 的超级用户 elastic 的密码为 password。你也可以参考另外一篇文章 “Elasticsearch：如何在 Docker 上运行 Elasticsearch 8.x 进行本地开发” 进行安装。
准备数据

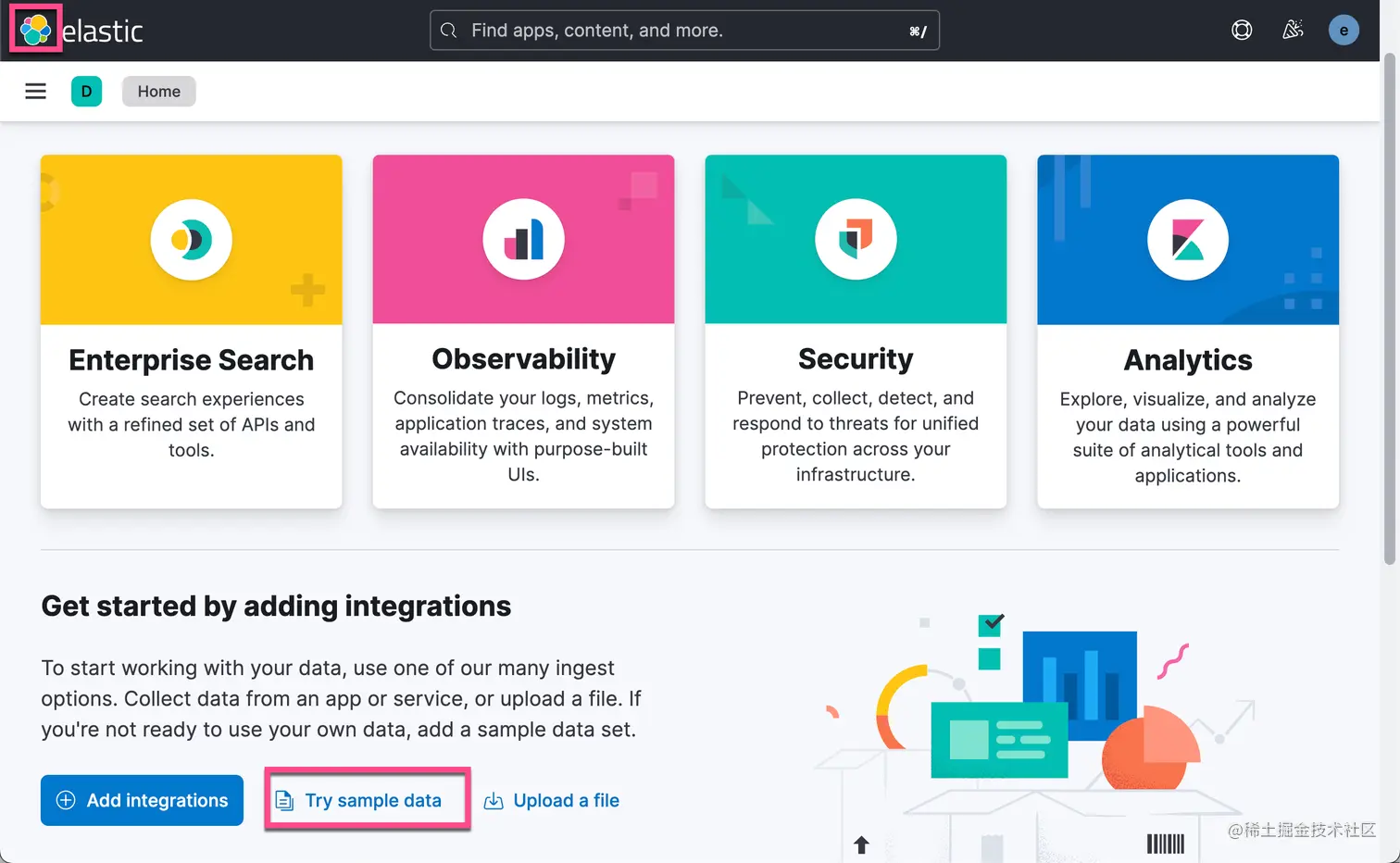

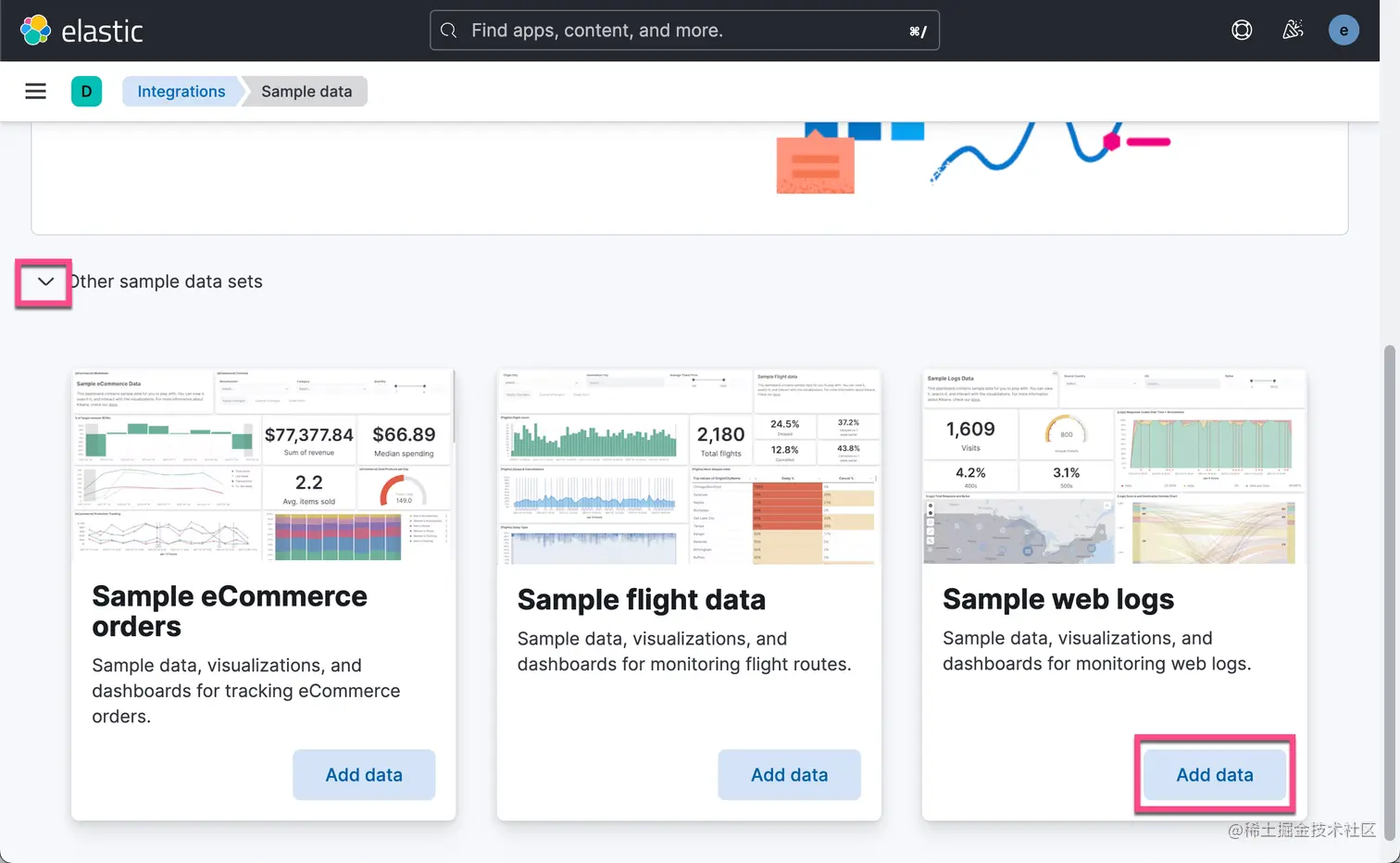

我们选用 Kibana 中自带的数据来进行展示。我们打开 Kibana：

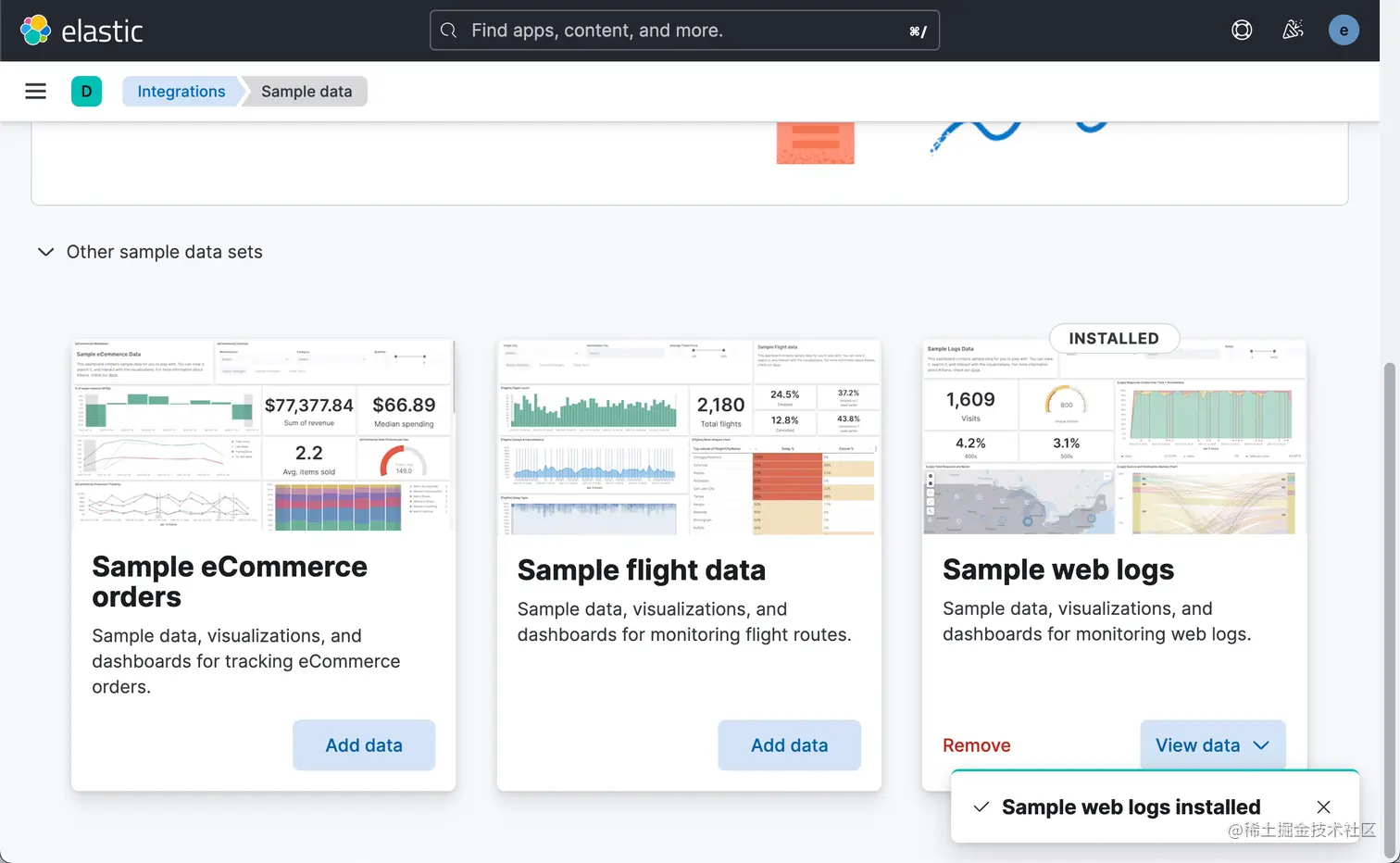

这样就有一个叫做 kibana_sample_data_logs 的索引在 Elasticsearch 中被创造。我们在 Discover 中打开：

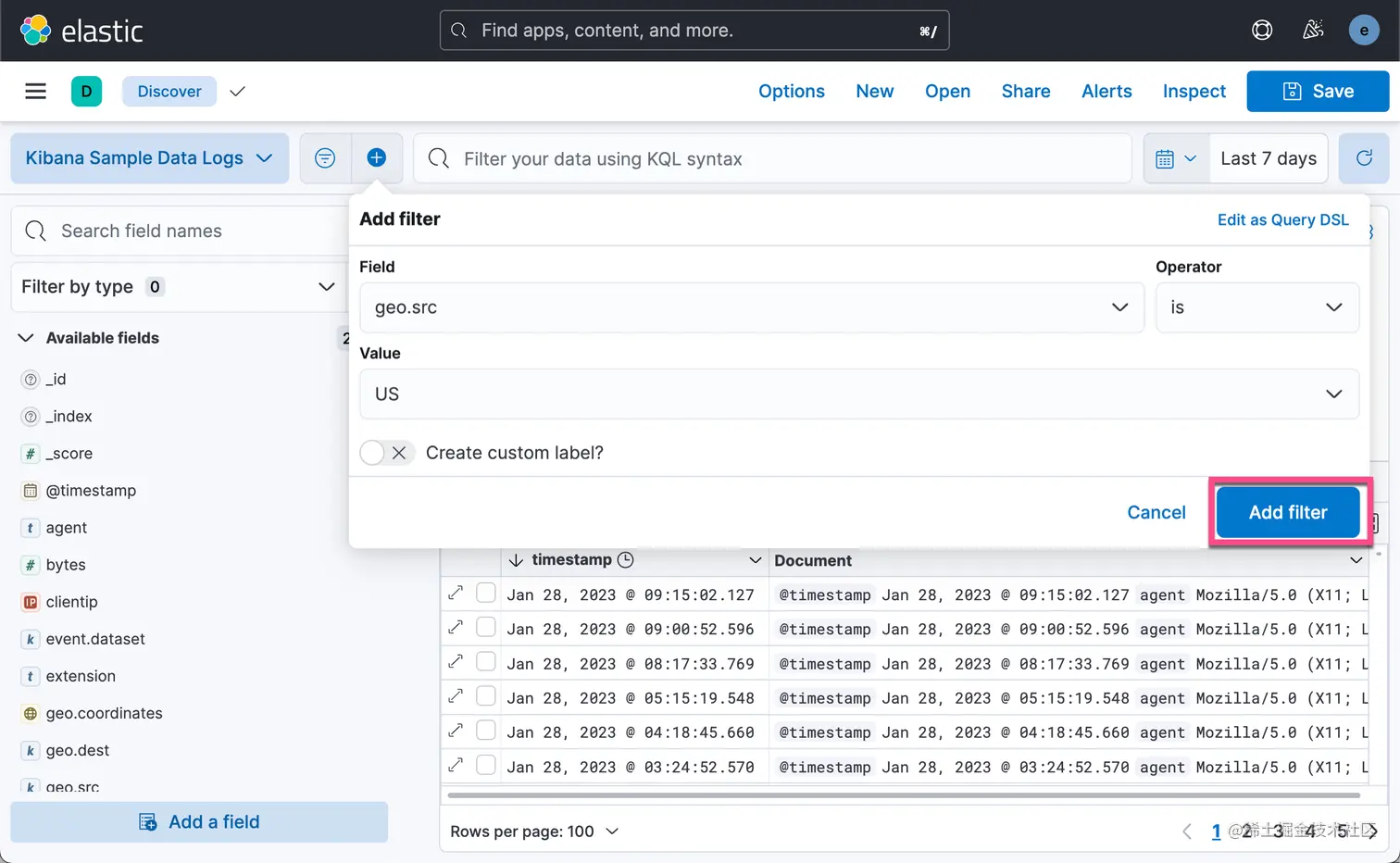

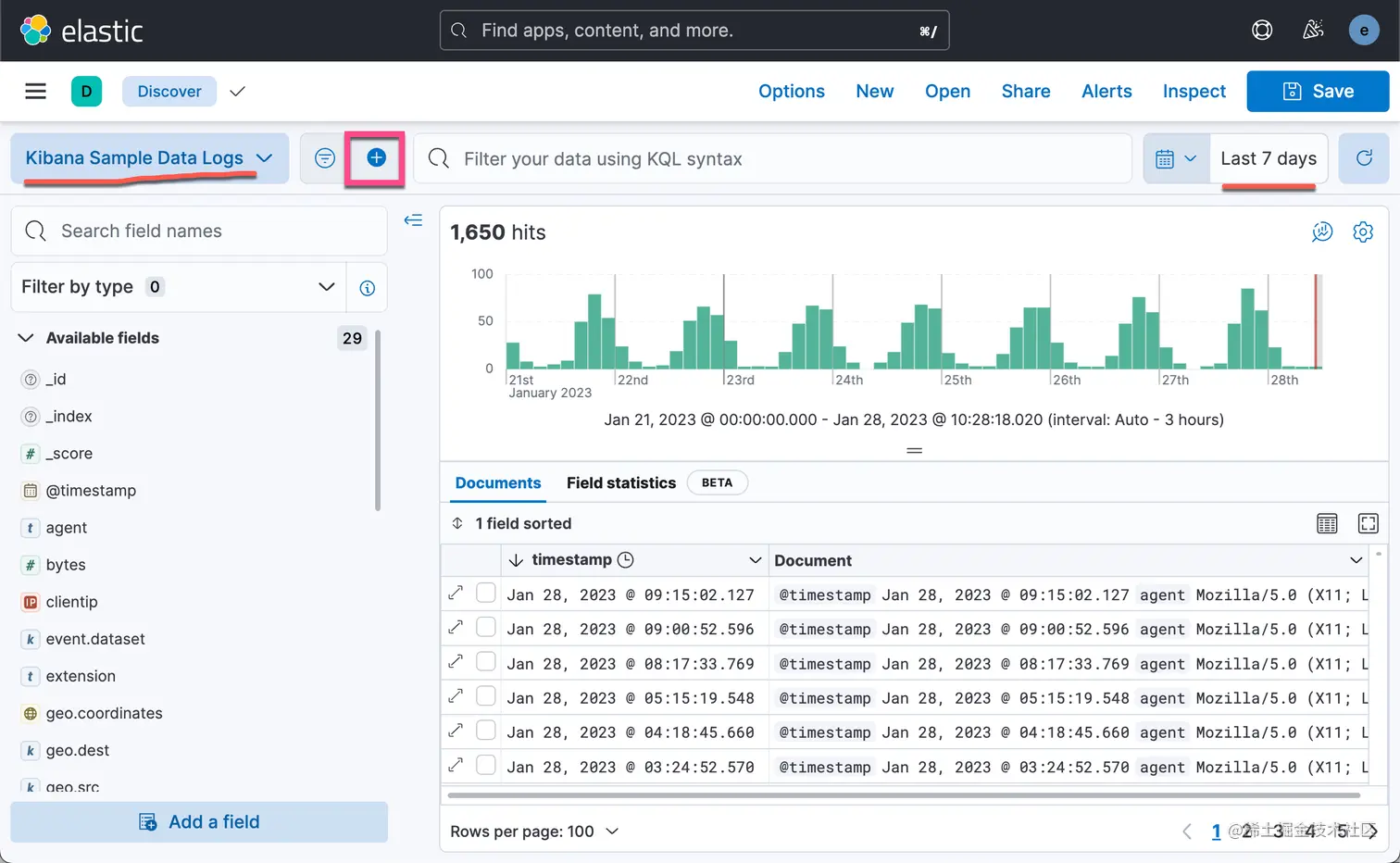

如上所示，我们可以看到数据的时序直方图。我们选择合适的时间区域，然后添加一个 filter：

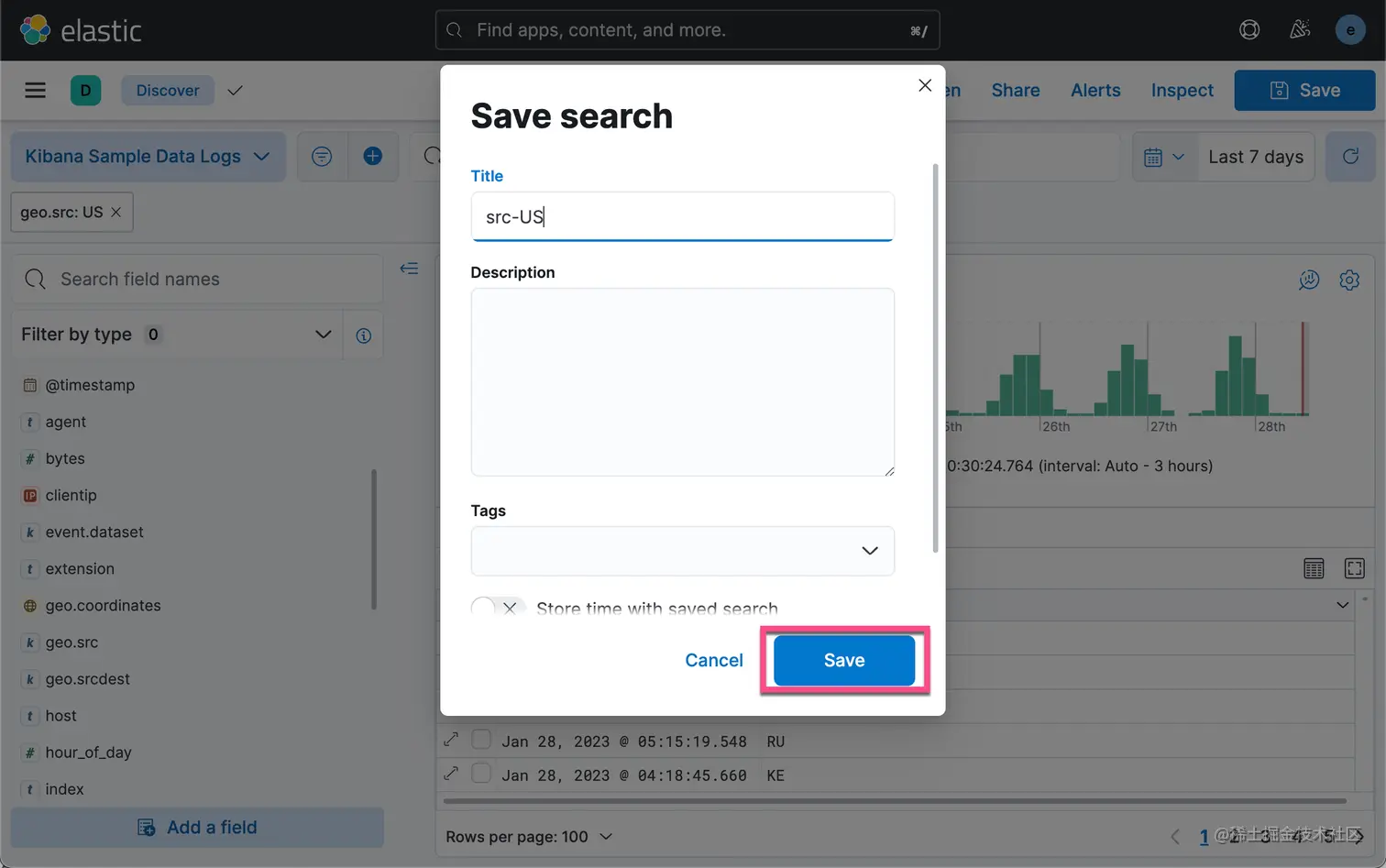

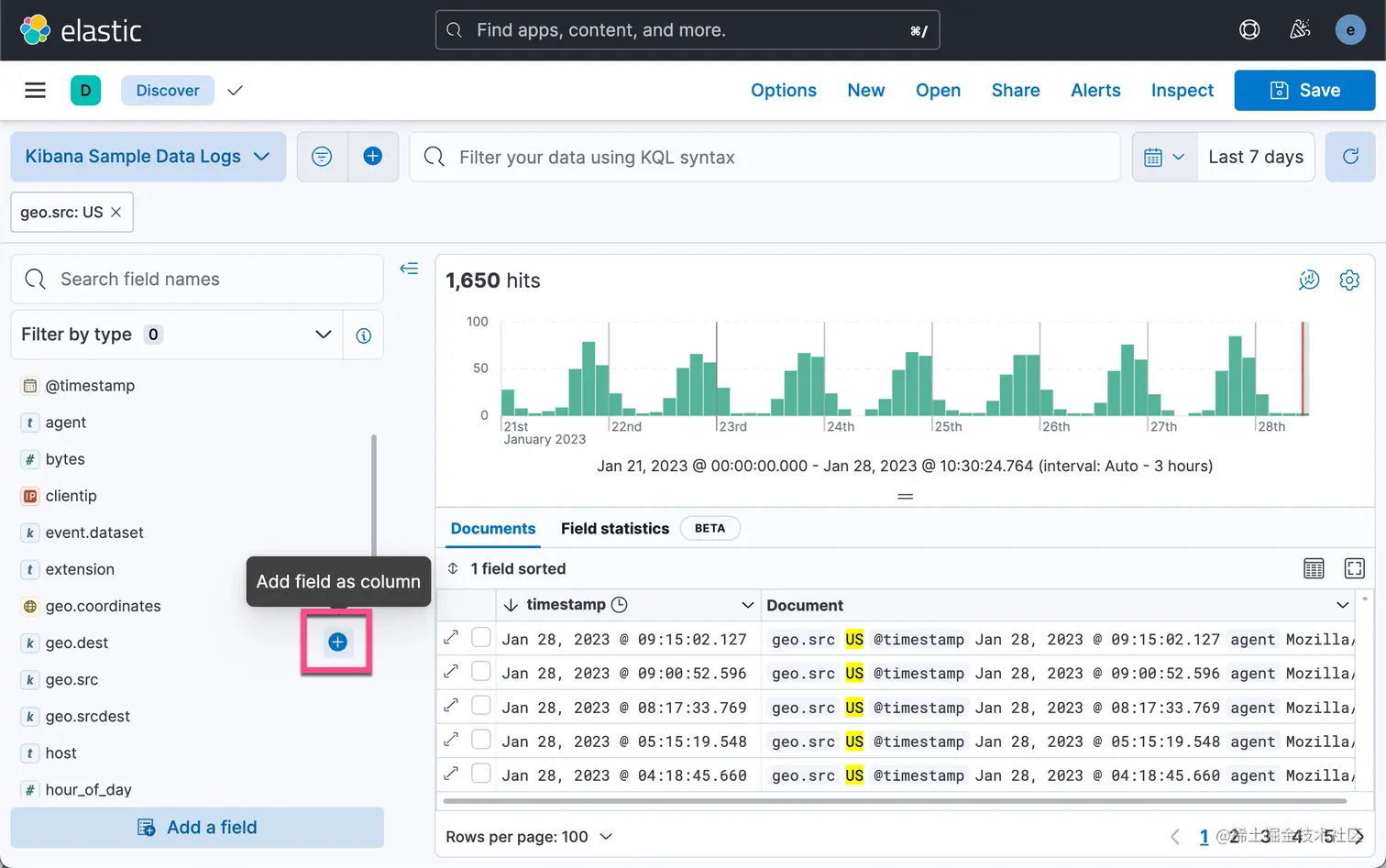

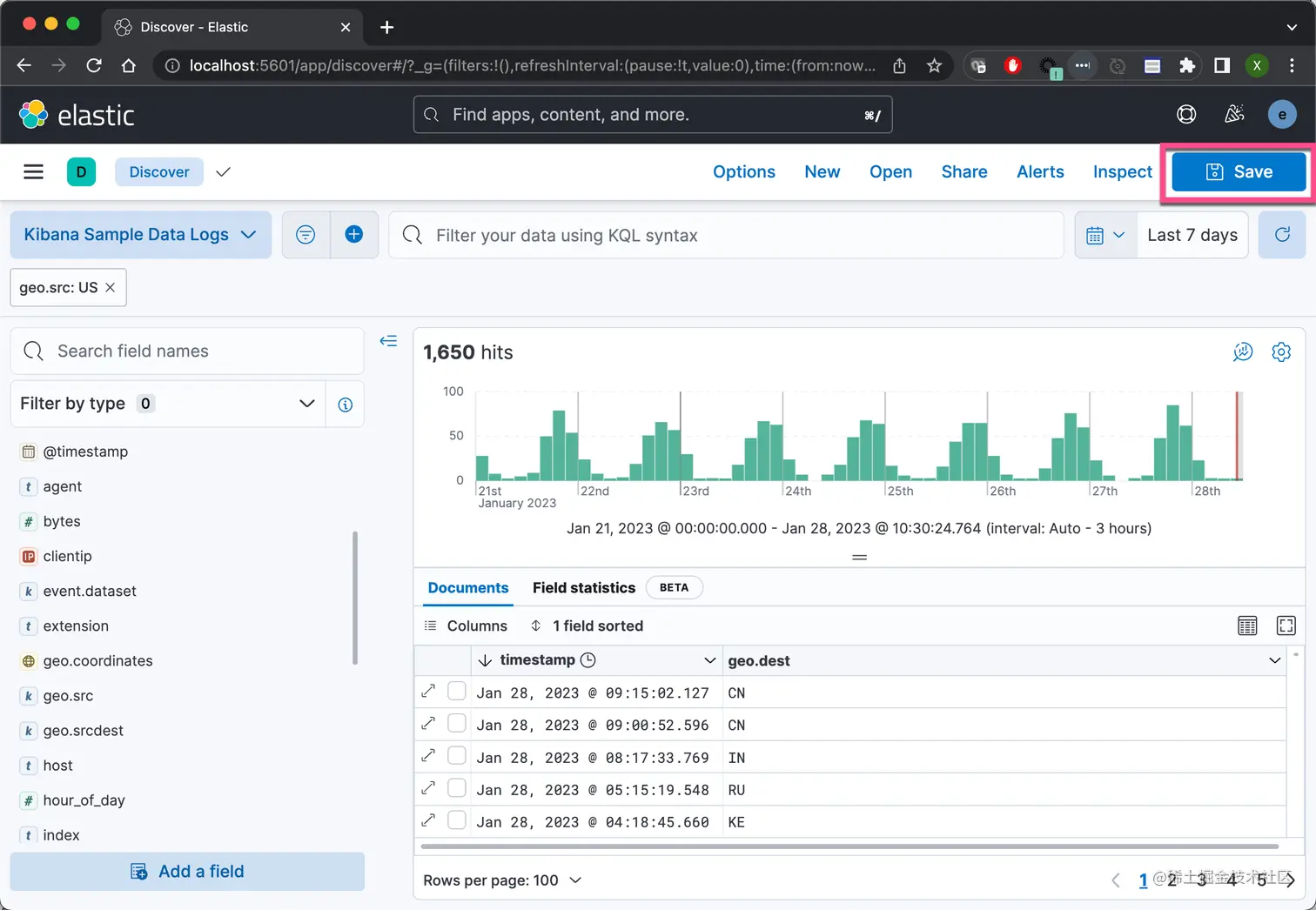

如上所示，我们仅做了一个很简单的表格。第一行是 timestamp，而第二行是 geo.dest。我们在搜索中创建了一个 geo.src 为 US 的过滤器。我们保存当前的搜索：

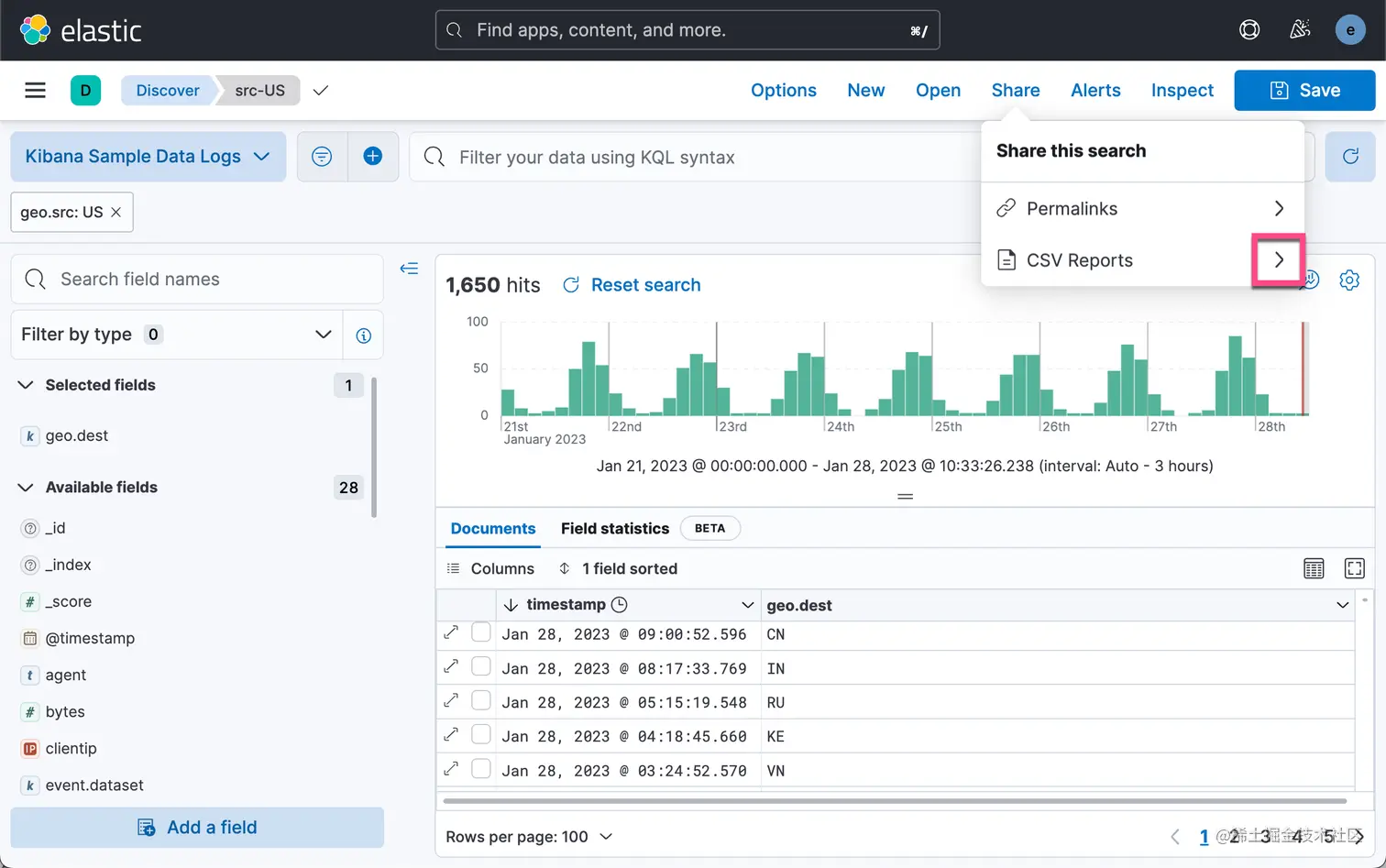

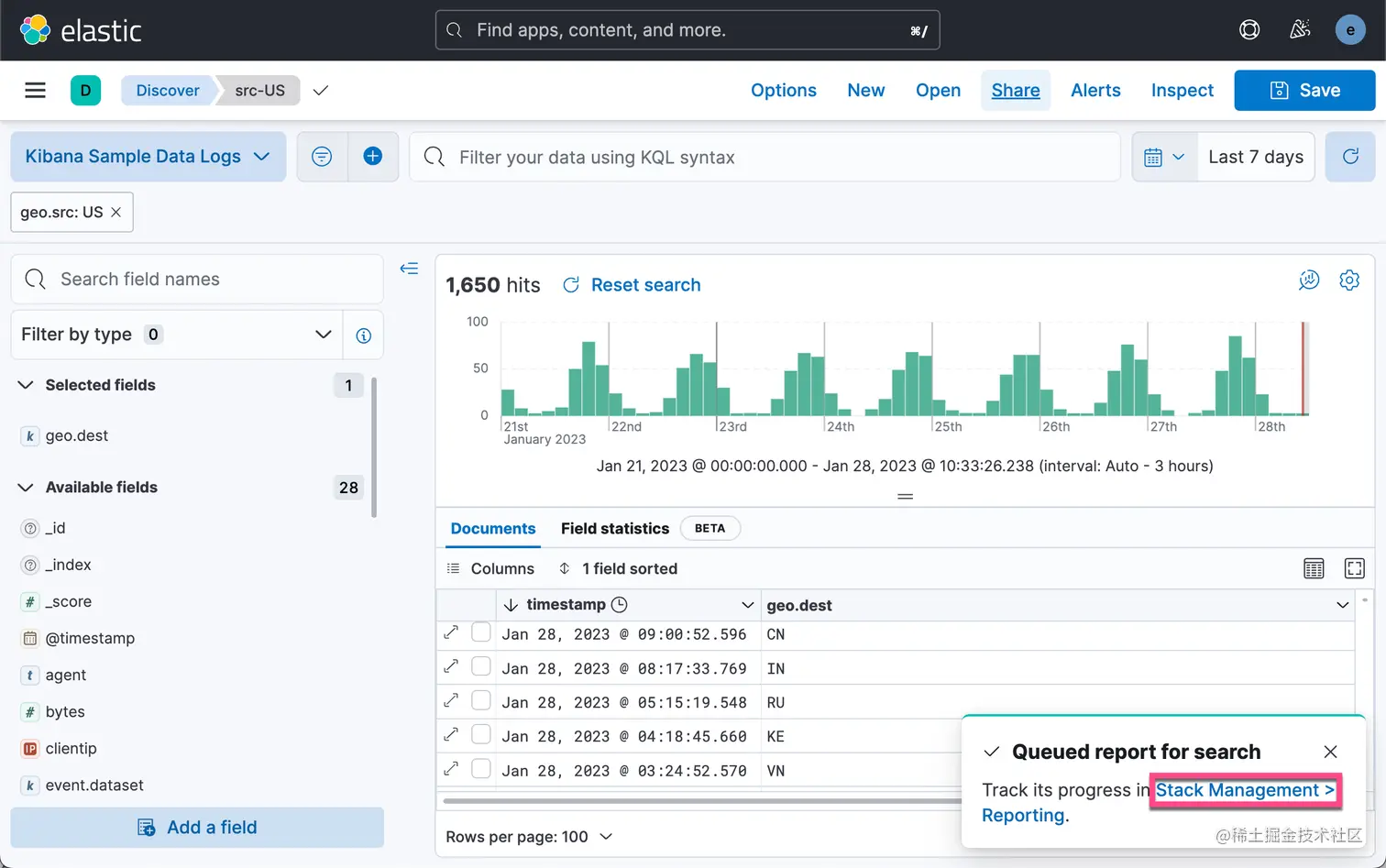

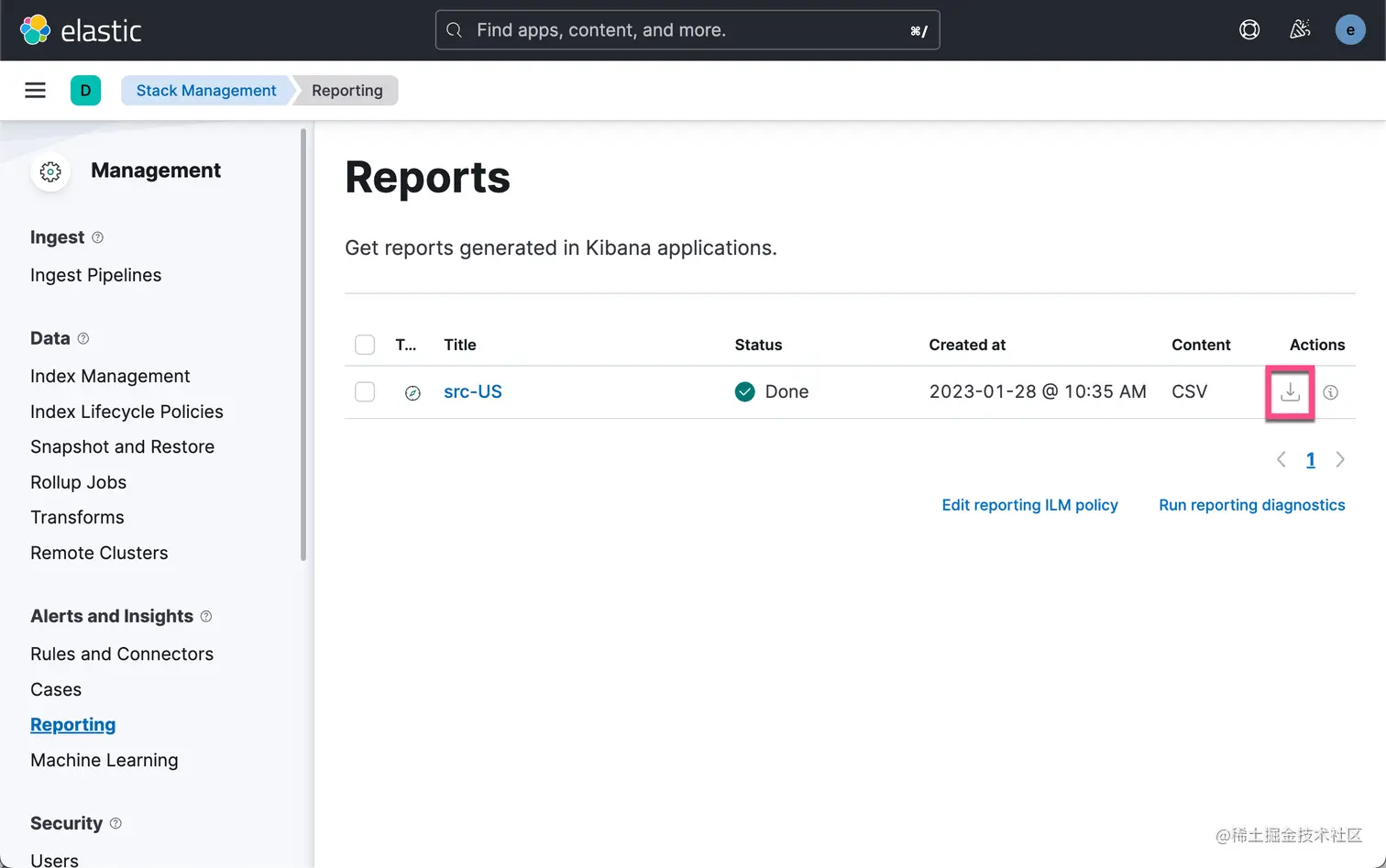

如上所示，我们有两种方法可以得到一个 CSV 格式的输出。一中是使用 Generate CSV 按钮。点击它后，我们可以在如下的地址下载相应的 CSV 文件。

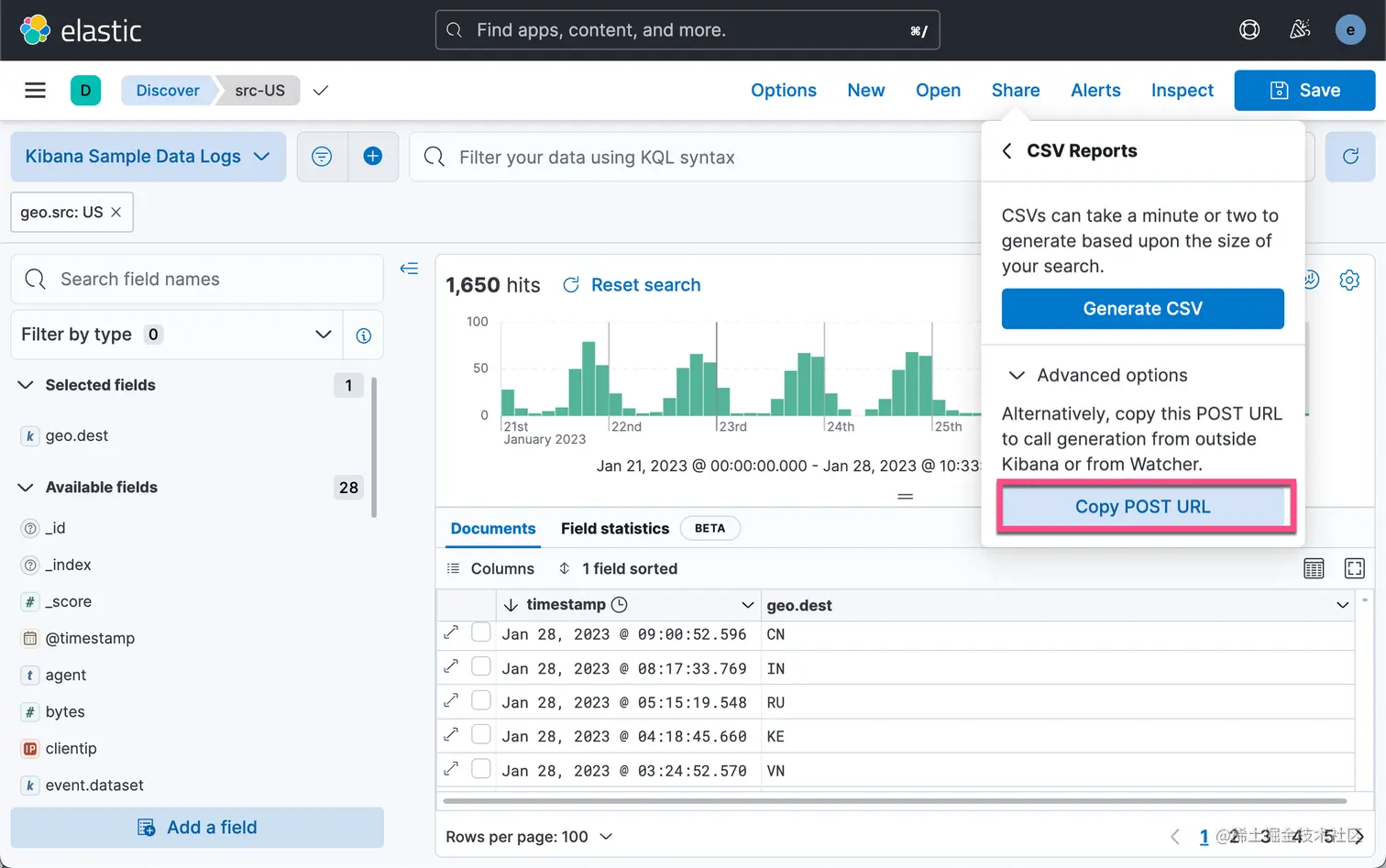

我们可以看到如上所示 CSV 输出。另外一种方式是使用 POST URL 来通过软件的方式来获得这个数据。我们在上面的图中选择 Copy POST URL。我们可以得到如下所示的一个链接：
http://localhost:5601/api/reporting/generate/csv_searchsource?jobParams=%28browserTimezone%3AAsia%2FShanghai%2Ccolumns%3A%21%28timestamp%2Cgeo.dest%29%2CobjectType%3Asearch%2CsearchSource%3A%28fields%3A%21%28%28field%3Atimestamp%2Cinclude_unmapped%3Atrue%29%2C%28field%3Ageo.dest%2Cinclude_unmapped%3Atrue%29%29%2Cfilter%3A%21%28%28meta%3A%28field%3Atimestamp%2Cindex%3A%2790943e30-9a47-11e8-b64d-95841ca0b247%27%2Cparams%3A%28%29%29%2Cquery%3A%28range%3A%28timestamp%3A%28format%3Astrict_date_optional_time%2Cgte%3Anow-7d%2Fd%2Clte%3Anow%29%29%29%29%29%2Cindex%3A%2790943e30-9a47-11e8-b64d-95841ca0b247%27%2Cparent%3A%28filter%3A%21%28%28%27%24state%27%3A%28store%3AappState%29%2Cmeta%3A%28alias%3A%21n%2Cdisabled%3A%21f%2Cindex%3A%2790943e30-9a47-11e8-b64d-95841ca0b247%27%2Ckey%3Ageo.src%2Cnegate%3A%21f%2Cparams%3A%28query%3AUS%29%2Ctype%3Aphrase%29%2Cquery%3A%28match_phrase%3A%28geo.src%3AUS%29%29%29%29%2Cindex%3A%2790943e30-9a47-11e8-b64d-95841ca0b247%27%2Cquery%3A%28language%3Akuery%2Cquery%3A%27%27%29%29%2Csort%3A%21%28%28timestamp%3Adesc%29%29%2CtrackTotalHits%3A%21t%29%2Ctitle%3Asrc-US%2Cversion%3A%278.5.3%27%29
方法一：从 Kibana 中获取数据
我们把上面的链接复制并粘贴到如下的代码中：
kibana-to-pandas.py
`
1. import pandas as pd
2. import requests
3. from requests.auth import HTTPBasicAuth
4. from io import StringIO
5. import json
6. import time
8. kibana_ip = "0.0.0.0"
10. headers = {"kbn-xsrf": "reporting"}
12. # post_url = 'http://' + kibana_ip + \
13. # '/api/reporting/generate/csv?jobParams=(conflictedTypesFields:!(),fields:!(xxxxx))'
15. post_url = "http://localhost:5601/api/reporting/generate/csv_searchsource?jobParams=%28browserTimezone%3AAsia%2FShanghai%2Ccolumns%3A%21%28timestamp%2Cgeo.dest%29%2CobjectType%3Asearch%2CsearchSource%3A%28fields%3A%21%28%28field%3Atimestamp%2Cinclude_unmapped%3Atrue%29%2C%28field%3Ageo.dest%2Cinclude_unmapped%3Atrue%29%29%2Cfilter%3A%21%28%28meta%3A%28field%3Atimestamp%2Cindex%3A%2790943e30-9a47-11e8-b64d-95841ca0b247%27%2Cparams%3A%28%29%29%2Cquery%3A%28range%3A%28timestamp%3A%28format%3Astrict_date_optional_time%2Cgte%3Anow-7d%2Fd%2Clte%3Anow%29%29%29%29%29%2Cindex%3A%2790943e30-9a47-11e8-b64d-95841ca0b247%27%2Cparent%3A%28filter%3A%21%28%28%27%24state%27%3A%28store%3AappState%29%2Cmeta%3A%28alias%3A%21n%2Cdisabled%3A%21f%2Cindex%3A%2790943e30-9a47-11e8-b64d-95841ca0b247%27%2Ckey%3Ageo.src%2Cnegate%3A%21f%2Cparams%3A%28query%3AUS%29%2Ctype%3Aphrase%29%2Cquery%3A%28match_phrase%3A%28geo.src%3AUS%29%29%29%29%2Cindex%3A%2790943e30-9a47-11e8-b64d-95841ca0b247%27%2Cquery%3A%28language%3Akuery%2Cquery%3A%27%27%29%29%2Csort%3A%21%28%28timestamp%3Adesc%29%29%2CtrackTotalHits%3A%21t%29%2Ctitle%3Asrc-US%2Cversion%3A%278.5.3%27%29"
17. # print(post_url)
19. post_url_data = requests.post(post_url, \
20. auth = HTTPBasicAuth('elastic', 'password'), \
21. headers = headers)
23. get_api_json = json.loads(post_url_data.text)
25. print(get_api_json)
27. time.sleep(10)
29. print(get_api_json['path'])
31. api_url = "http://" + "localhost:5601" + get_api_json['path']
32. print(api_url)
34. csv_url = requests.get(api_url, \
35. auth = HTTPBasicAuth('elastic', 'password'), \
36. headers = headers)
38. print(csv_url)
40. traffic_data = pd.read_csv(StringIO(csv_url.text))
42. print(traffic_data.head())
43. print(traffic_data)
`
在上面的代码中，特别需要注意的是：
time.sleep(10)
我们在发送完请求后，需要等待一定的时间让 Kibana 做相应的处理，并得到相应的数据。在上面，我使用了超级用户 elastic 的账号信息。运行上面的代码：
`
1. $ pwd
2. /Users/liuxg/python/pandas
3. $ ls
4. kibana-to-pandas.py
5. $ python kibana-to-pandas.py
6. {'path': '/api/reporting/jobs/download/ldfcx8kq1k9b9c2bfe5reij0', 'job': {'id': 'ldfcx8kq1k9b9c2bfe5reij0', 'index': '.reporting-2023-01-22', 'jobtype': 'csv_searchsource', 'created_at': '2023-01-28T02:51:55.178Z', 'created_by': 'elastic', 'meta': {'objectType': 'search'}, 'status': 'pending', 'attempts': 0, 'migration_version': '7.14.0', 'payload': {'browserTimezone': 'Asia/Shanghai', 'columns': ['timestamp', 'geo.dest'], 'objectType': 'search', 'searchSource': {'fields': [{'field': 'timestamp', 'include_unmapped': 'true'}, {'field': 'geo.dest', 'include_unmapped': 'true'}], 'filter': [{'meta': {'field': 'timestamp', 'index': '90943e30-9a47-11e8-b64d-95841ca0b247', 'params': {}}, 'query': {'range': {'timestamp': {'format': 'strict_date_optional_time', 'gte': 'now-7d/d', 'lte': 'now'}}}}], 'index': '90943e30-9a47-11e8-b64d-95841ca0b247', 'parent': {'filter': [{'$state': {'store': 'appState'}, 'meta': {'alias': None, 'disabled': False, 'index': '90943e30-9a47-11e8-b64d-95841ca0b247', 'key': 'geo.src', 'negate': False, 'params': {'query': 'US'}, 'type': 'phrase'}, 'query': {'match_phrase': {'geo.src': 'US'}}}], 'index': '90943e30-9a47-11e8-b64d-95841ca0b247', 'query': {'language': 'kuery', 'query': ''}}, 'sort': [{'timestamp': 'desc'}], 'trackTotalHits': True}, 'title': 'src-US', 'version': '8.5.3'}, 'output': {}}}
7. /api/reporting/jobs/download/ldfcx8kq1k9b9c2bfe5reij0
8. http://localhost:5601/api/reporting/jobs/download/ldfcx8kq1k9b9c2bfe5reij0
9. <Response [200]>
10. timestamp geo.dest
11. 0 Jan 28, 2023 @ 09:15:02.127 CN
12. 1 Jan 28, 2023 @ 09:00:52.596 CN
13. 2 Jan 28, 2023 @ 08:17:33.769 IN
14. 3 Jan 28, 2023 @ 05:15:19.548 RU
15. 4 Jan 28, 2023 @ 04:18:45.660 KE
16. timestamp geo.dest
17. 0 Jan 28, 2023 @ 09:15:02.127 CN
18. 1 Jan 28, 2023 @ 09:00:52.596 CN
19. 2 Jan 28, 2023 @ 08:17:33.769 IN
20. 3 Jan 28, 2023 @ 05:15:19.548 RU
21. 4 Jan 28, 2023 @ 04:18:45.660 KE
22. ... ... ...
23. 1608 Jan 21, 2023 @ 11:30:30.110 TJ
24. 1609 Jan 21, 2023 @ 11:14:28.231 IN
25. 1610 Jan 21, 2023 @ 11:05:31.057 FR
26. 1611 Jan 21, 2023 @ 10:40:26.055 TR
27. 1612 Jan 21, 2023 @ 10:24:53.405 IN
29. [1613 rows x 2 columns]
`
从上面的输出中，我们可以看到 pandas 的 dataframe 输出。
请注意，它只能根据您在 kibana.yml 文件中指定的字节大小检索部分数据。 请增加 xpack.reporting.csv.maxSizeBytes 的值以获得完整数据。
方法二：从 Elasticsearch 中获取数据
下面的代码片段将有助于直接从 Elasticsearch 索引中检索数据，但它不足以检索大量数据，因此你可能需要根据你的情况决定使用 kibana 的 csv 报告还是 Elasticsearch 索引要求。
关于如何连接到 Elasticsearch，请参阅我之前的文章 “Elasticsearch：关于在 Python 中使用 Elasticsearch 你需要知道的一切 - 8.x”。我们创建如下的一个 python 文件：
elasticsearch-to-pandas.py
`
1. from elasticsearch import Elasticsearch
2. import pandas as pd
3. import numpy as np
4. import json
6. # create a client instance of the library
8. es = Elasticsearch("http://localhost:9200", basic_auth=("elastic", "password"))
9. resp = es.info()
10. # print(resp)
12. total_docs = 50
14. search_query = {
15. "match_all": {}
16. }
18. response = es.search(
19. _source="false",
20. index='kibana_sample_data_logs',
21. query=search_query,
22. size=total_docs,
23. fields=[
24. "@timestamp",
25. "clientip",
26. "host"
27. ]
28. )
30. # print(response)
32. elastic_docs = response["hits"]["hits"]
33. # print(elastic_docs)
35. fields = {}
36. for num, doc in enumerate(elastic_docs):
37. fields_data = doc["fields"]
38. for key, val in fields_data.items():
39. try:
40. fields[key] = np.append(fields[key], val)
41. except KeyError:
42. fields[key] = np.array([val])
44. # print(fields)
45. traffic_data = pd.DataFrame(fields)
46. print(traffic_data.info())
`
在上面我们做了如下的一个搜索：
1. GET kibana_sample_data_logs/_search
2. {
3. "_source": false,
4. "query": {
5. "match_all": {}
6. },
7. "fields": [
8. "@timestamp",
9. "clientip",
10. "host"
11. ]
12. }
上面的查询返回如下的结果：
`
1. {
2. "took": 0,
3. "timed_out": false,
4. "_shards": {
5. "total": 1,
6. "successful": 1,
7. "skipped": 0,
8. "failed": 0
9. },
10. "hits": {
11. "total": {
12. "value": 10000,
13. "relation": "gte"
14. },
15. "max_score": 1,
16. "hits": [
17. {
18. "_index": "kibana_sample_data_logs",
19. "_id": "Gf8y9oUBLUWnAhRe7p8u",
20. "_score": 1,
21. "fields": {
22. "@timestamp": [
23. "2023-01-15T00:39:02.912Z"
24. ],
25. "clientip": [
26. "223.87.60.27"
27. ],
28. "host": [
29. "artifacts.elastic.co"
30. ]
31. }
32. },
33. {
34. "_index": "kibana_sample_data_logs",
35. "_id": "Gv8y9oUBLUWnAhRe7p8u",
36. "_score": 1,
37. "fields": {
38. "@timestamp": [
39. "2023-01-15T03:26:21.326Z"
40. ],
41. "clientip": [
42. "130.246.123.197"
43. ],
44. "host": [
45. "www.elastic.co"
46. ]
47. }
48. },
49. {
50. "_index": "kibana_sample_data_logs",
51. "_id": "G_8y9oUBLUWnAhRe7p8u",
52. "_score": 1,
53. "fields": {
54. "@timestamp": [
55. "2023-01-15T03:30:25.131Z"
56. ],
57. "clientip": [
58. "120.49.143.213"
59. ],
60. "host": [
61. "cdn.elastic-elastic-elastic.org"
62. ]
63. }
64. },
65. {
66. "_index": "kibana_sample_data_logs",
67. "_id": "HP8y9oUBLUWnAhRe7p8u",
68. "_score": 1,
69. "fields": {
70. "@timestamp": [
71. "2023-01-15T03:34:43.399Z"
72. ],
73. "clientip": [
74. "99.74.118.237"
75. ],
76. "host": [
77. "artifacts.elastic.co"
78. ]
79. }
80. },
81. {
82. "_index": "kibana_sample_data_logs",
83. "_id": "Hf8y9oUBLUWnAhRe7p8u",
84. "_score": 1,
85. "fields": {
86. "@timestamp": [
87. "2023-01-15T03:37:04.863Z"
88. ],
89. "clientip": [
90. "177.111.217.54"
91. ],
92. "host": [
93. "www.elastic.co"
94. ]
95. }
96. },
97. {
98. "_index": "kibana_sample_data_logs",
99. "_id": "Hv8y9oUBLUWnAhRe7p8u",
100. "_score": 1,
101. "fields": {
102. "@timestamp": [
103. "2023-01-15T03:49:40.669Z"
104. ],
105. "clientip": [
106. "106.225.58.146"
107. ],
108. "host": [
109. "www.elastic.co"
110. ]
111. }
112. }
113. ...
`
运行上面的代码，我们可以得到如下的数据：
`
1. $ pwd
2. /Users/liuxg/python/pandas
3. $ ls
4. elasticsearch-to-pandas.py kibana-to-pandas.py
5. $ python elasticsearch-to-pandas.py
6. <class 'pandas.core.frame.DataFrame'>
7. RangeIndex: 50 entries, 0 to 49
8. Data columns (total 3 columns):
9. # Column Non-Null Count Dtype
10. --- ------ -------------- -----
11. 0 @timestamp 50 non-null object
12. 1 clientip 50 non-null object
13. 2 host 50 non-null object
14. dtypes: object(3)
15. memory usage: 1.3+ KB
16. None
`
