Hadoop源码解析、调度器任务执行(YarnChild)

185 阅读4分钟

开启掘金成长之旅!这是我参与「掘金日新计划 · 12 月更文挑战」的第32天,点击查看活动详情

点击MRAppMaster.java 中的initAndStartAppMaster 方法中的appMaster.start();

public void start() {
  if (isInState(STATE.STARTED)) {
    return;
  }
  //enter the started state
  synchronized (stateChangeLock) {
    if (stateModel.enterState(STATE.STARTED) != STATE.STARTED) {
      try {
        startTime = System.currentTimeMillis();
		// 调用MRAppMaster中的serviceStart()方法
        serviceStart();
        if (isInState(STATE.STARTED)) {
          //if the service started (and isn't now in a later state), notify
          LOG.debug("Service {} is started", getName());
          notifyListeners();
        }
      } catch (Exception e) {
        noteFailure(e);
        ServiceOperations.stopQuietly(LOG, this);
        throw ServiceStateException.convert(e);
      }
    }
  }
}

protected void serviceStart() throws Exception {
  ... ...
  if (initFailed) {
    JobEvent initFailedEvent = new JobEvent(job.getID(), JobEventType.JOB_INIT_FAILED);
    jobEventDispatcher.handle(initFailedEvent);
  } else {
    // All components have started, start the job.
	// 初始化成功后,提交Job到队列中
    startJobs();
  }
}

protected void startJobs() {
  /** create a job-start event to get this ball rolling */
  JobEvent startJobEvent = new JobStartEvent(job.getID(),
      recoveredJobStartTime);
  /** send the job-start event. this triggers the job execution. */
  // 这里将job存放到yarn队列
  // dispatcher = AsyncDispatcher
  // getEventHandler()返回的是GenericEventHandler
  dispatcher.getEventHandler().handle(startJobEvent);
}

ctrl + alt +B 查找handle实现类,GenericEventHandler.java

class GenericEventHandler implements EventHandler<Event> {
  public void handle(Event event) {
    ... ...
    try {
	  // 将job存储到yarn队列中
      eventQueue.put(event);
    } catch (InterruptedException e) {
      ... ...
    }
  };
}

5.5 调度器任务执行(YarnChild)

1)启动MapTask ctrl +n 查找YarnChild,搜索main方法

public static void main(String[] args) throws Throwable {
  Thread.setDefaultUncaughtExceptionHandler(new YarnUncaughtExceptionHandler());
  LOG.debug("Child starting");

  ... ...

  task = myTask.getTask();
  YarnChild.taskid = task.getTaskID();
  ... ...

  // Create a final reference to the task for the doAs block
  final Task taskFinal = task;
  childUGI.doAs(new PrivilegedExceptionAction<Object>() {
      @Override
      public Object run() throws Exception {
        // use job-specified working directory
        setEncryptedSpillKeyIfRequired(taskFinal);
        FileSystem.get(job).setWorkingDirectory(job.getWorkingDirectory());
		// 调用task执行(maptask或者reducetask)
        taskFinal.run(job, umbilical); // run the task
        return null;
      }
    });
  }
  ... ...
}

ctrl + alt +B 查找run实现类,maptask.java

public void run(final JobConf job, final TaskUmbilicalProtocol umbilical)
  throws IOException, ClassNotFoundException, InterruptedException {
  this.umbilical = umbilical;

  // 判断是否是MapTask
  if (isMapTask()) {
    // If there are no reducers then there won't be any sort. Hence the map
    // phase will govern the entire attempt's progress.
	// 如果reducetask个数为零,maptask占用整个任务的100%
    if (conf.getNumReduceTasks() == 0) {
      mapPhase = getProgress().addPhase("map", 1.0f);
    } else {
      // If there are reducers then the entire attempt's progress will be
      // split between the map phase (67%) and the sort phase (33%).
	  // 如果reduceTask个数不为零,MapTask占用整个任务的66.7% sort阶段占比
      mapPhase = getProgress().addPhase("map", 0.667f);
      sortPhase  = getProgress().addPhase("sort", 0.333f);
    }
  }
  ... ...
  if (useNewApi) {
    // 调用新的API执行maptask
    runNewMapper(job, splitMetaInfo, umbilical, reporter);
  } else {
    runOldMapper(job, splitMetaInfo, umbilical, reporter);
  }
  done(umbilical, reporter);
}

void runNewMapper(final JobConf job,
                  final TaskSplitIndex splitIndex,
                  final TaskUmbilicalProtocol umbilical,
                  TaskReporter reporter
                  ) throws IOException, ClassNotFoundException,
                           InterruptedException {
  ... ...

  try {
    input.initialize(split, mapperContext);
	// 运行maptask
    mapper.run(mapperContext);

    mapPhase.complete();
    setPhase(TaskStatus.Phase.SORT);
    statusUpdate(umbilical);
    input.close();
    input = null;
    output.close(mapperContext);
    output = null;
  } finally {
    closeQuietly(input);
    closeQuietly(output, mapperContext);
  }
}

Mapper.java(和Map联系在一起)

public void run(Context context) throws IOException, InterruptedException {
  setup(context);
  try {
    while (context.nextKeyValue()) {
      map(context.getCurrentKey(), context.getCurrentValue(), context);
    }
  } finally {
    cleanup(context);
  }
}

2)启动ReduceTask 在YarnChild.java类中的main方法中ctrl + alt +B 查找run实现类,reducetask.java

public void run(JobConf job, final TaskUmbilicalProtocol umbilical)
  throws IOException, InterruptedException, ClassNotFoundException {
  job.setBoolean(JobContext.SKIP_RECORDS, isSkipping());

  ... ...

  if (useNewApi) {
	// 调用新API执行reduce
    runNewReducer(job, umbilical, reporter, rIter, comparator,
                  keyClass, valueClass);
  } else {
    runOldReducer(job, umbilical, reporter, rIter, comparator,
                  keyClass, valueClass);
  }

  shuffleConsumerPlugin.close();
  done(umbilical, reporter);
}

void runNewReducer(JobConf job,
                   final TaskUmbilicalProtocol umbilical,
                   final TaskReporter reporter,
                   RawKeyValueIterator rIter,
                   RawComparator<INKEY> comparator,
                   Class<INKEY> keyClass,
                   Class<INVALUE> valueClass
                   ) throws IOException,InterruptedException,
                            ClassNotFoundException {
  ... ...
  try {
    // 调用reducetask的run方法
    reducer.run(reducerContext);
  } finally {
    trackedRW.close(reducerContext);
  }
}

Reduce.java

public void run(Context context) throws IOException, InterruptedException {
  setup(context);
  try {
    while (context.nextKey()) {
      reduce(context.getCurrentKey(), context.getValues(), context);
      // If a back up store is used, reset it
      Iterator<VALUEIN> iter = context.getValues().iterator();
      if(iter instanceof ReduceContext.ValueIterator) {
        ((ReduceContext.ValueIterator<VALUEIN>)iter).resetBackupStore();
      }
    }
  } finally {
    cleanup(context);
  }
}

第六章 MapReduce源码解析

6.1 Job提交流程源码和切片源码详解

1)Job提交流程源码详解

waitForCompletion()

submit();

// 1建立连接
	connect();
		// 1)创建提交Job的代理
		new Cluster(getConfiguration());
			// (1)判断是本地运行环境还是yarn集群运行环境
			initialize(jobTrackAddr, conf);

// 2 提交job
submitter.submitJobInternal(Job.this, cluster)

	// 1)创建给集群提交数据的Stag路径
	Path jobStagingArea = JobSubmissionFiles.getStagingDir(cluster, conf);

	// 2)获取jobid ,并创建Job路径
	JobID jobId = submitClient.getNewJobID();

	// 3)拷贝jar包到集群
copyAndConfigureFiles(job, submitJobDir);
	rUploader.uploadFiles(job, jobSubmitDir);

	// 4)计算切片,生成切片规划文件
writeSplits(job, submitJobDir);
		maps = writeNewSplits(job, jobSubmitDir);
		input.getSplits(job);

	// 5)向Stag路径写XML配置文件
writeConf(conf, submitJobFile);
	conf.writeXml(out);

	// 6)提交Job,返回提交状态
status = submitClient.submitJob(jobId, submitJobDir.toString(), job.getCredentials());

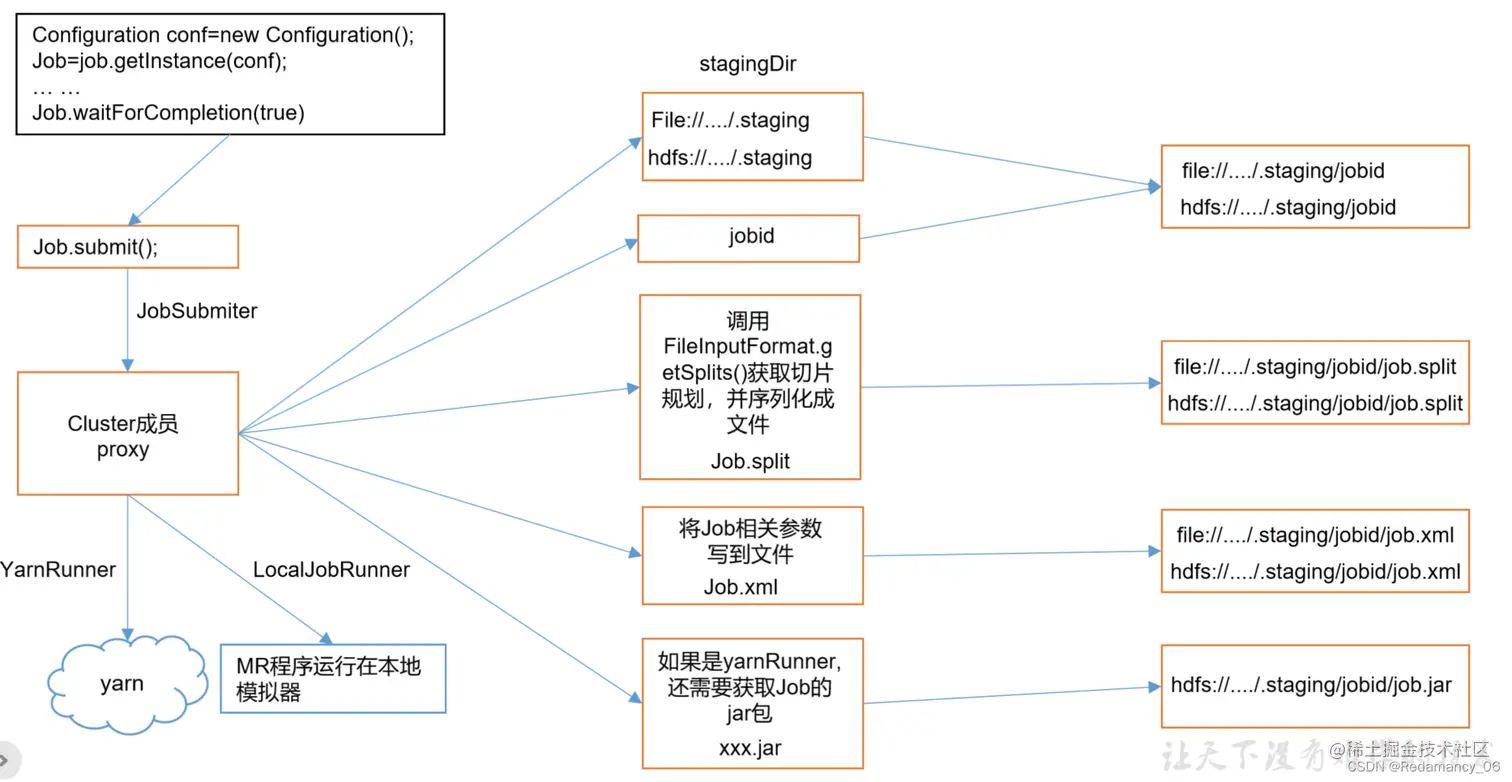

6.2 Job提交流程源码解析

Configuration conf=new Configuration(); Job=job.getInstance(conf); … … Job.waitForCompletion(true) Job.submit(); MR程序运行在本地 模拟器 yarn JobSubmiter Cluster成员 proxy YarnRunner LocalJobRunner stagingDir File://..../.staging hdfs://..../.staging jobid file://..../.staging/jobid hdfs://..../.staging/jobid 调用 FileInputFormat.ge tSplits()获取切片 规划,并序列化成 文件 Job.split Job.xml 将Job相关参数 写到文件 如果是yarnRunner, 还需要获取Job的 jar包 xxx.jar file://..../.staging/jobid/job.split hdfs://..../.staging/jobid/job.split file://..../.staging/jobid/job.xml hdfs://..../.staging/jobid/job.xml hdfs://..../.staging/jobid/job.jar

在这里插入图片描述

2)FileInputFormat切片源码解析(input.getSplits(job))

6.1.2 FileInputFormat切片源码解析

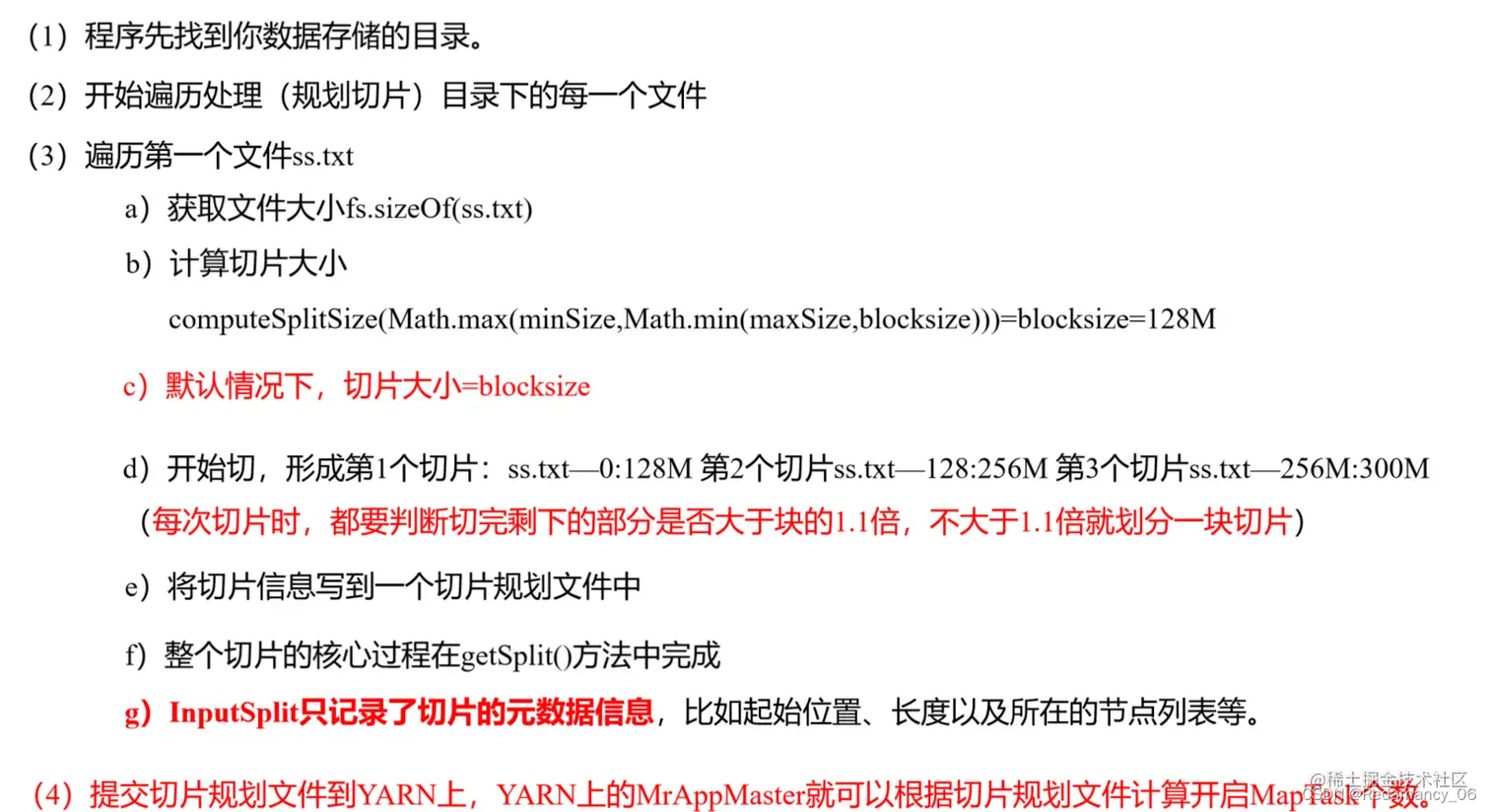

(1)程序先找到你数据存储的目录。 (2)开始遍历处理(规划切片)目录下的每一个文件 (3)遍历第一个文件ss.txt a)获取文件大小fs.sizeOf(ss.txt) b)计算切片大小 computeSplitSize(Math.max(minSize,Math.min(maxSize,blocksize)))=blocksize=128M c)默认情况下,切片大小=blocksize d)开始切,形成第1个切片:ss.txt—0:128M 第2个切片ss.txt—128:256M 第3个切片ss.txt—256M:300M (每次切片时,都要判断切完剩下的部分是否大于块的1.1倍,不大于1.1倍就划分一块切片) e)将切片信息写到一个切片规划文件中 f)整个切片的核心过程在getSplit()方法中完成 g)InputSplit只记录了切片的元数据信息,比如起始位置、长度以及所在的节点列表等。 (4)提交切片规划文件到YARN上,YARN上的MrAppMaster就可以根据切片规划文件计算开启MapTask个数。

在这里插入图片描述
