第一章 RPC通信原理解析

1.1 回顾

HDFS、YARN、MapReduce三者关系

1.2 需求：

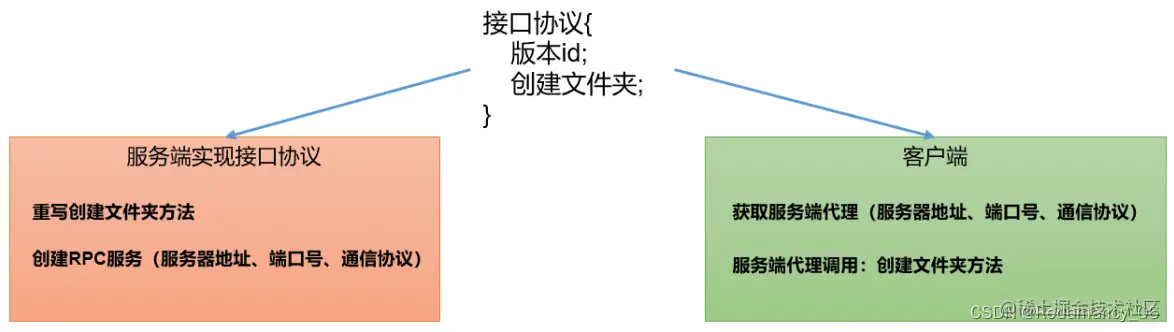

模拟RPC的客户端、服务端、通信协议三者如何工作的

1.3 代码编写：

（1）在HDFSClient项目基础上创建包名com.summer.rpc （2）创建RPC协议

package com.summer.rpc;

public interface RPCProtocol {

    long versionID = 666;

    void mkdirs(String path);
}

（3）创建RPC服务端

package com.summer.rpc;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.ipc.RPC;
import org.apache.hadoop.ipc.Server;

import java.io.IOException;

public class NNServer implements RPCProtocol{

    @Override
    public void mkdirs(String path) {
        System.out.println("服务端，创建路径" + path);
    }

    public static void main(String[] args) throws IOException {

        Server server = new RPC.Builder(new Configuration())
                .setBindAddress("localhost")
                .setPort(8888)
                .setProtocol(RPCProtocol.class)
                .setInstance(new NNServer())
                .build();

        System.out.println("服务器开始工作");

        server.start();
    }
}

（4）创建RPC客户端

package com.summer.rpc;

import org.apache.hadoop.conf.Configuration;
import org.apache.hadoop.ipc.RPC;

import java.io.IOException;
import java.net.InetSocketAddress;

public class HDFSClient {

    public static void main(String[] args) throws IOException {
        RPCProtocol client = RPC.getProxy(
                RPCProtocol.class,
                RPCProtocol.versionID,
                new InetSocketAddress("localhost", 8888),
                new Configuration());

        System.out.println("我是客户端");

        client.mkdirs("/input");
    }
}

1.4 测试

（1）启动服务端 观察控制台打印：服务器开始工作 在控制台Terminal窗口输入，jps，查看到NNServer服务 （2）启动客户端 观察客户端控制台打印：我是客户端 观察服务端控制台打印：服务端，创建路径/input

1.5 总结

RPC的客户端调用通信协议方法，方法的执行在服务端； 通信协议就是接口规范。

第二章 NameNode启动源码解析

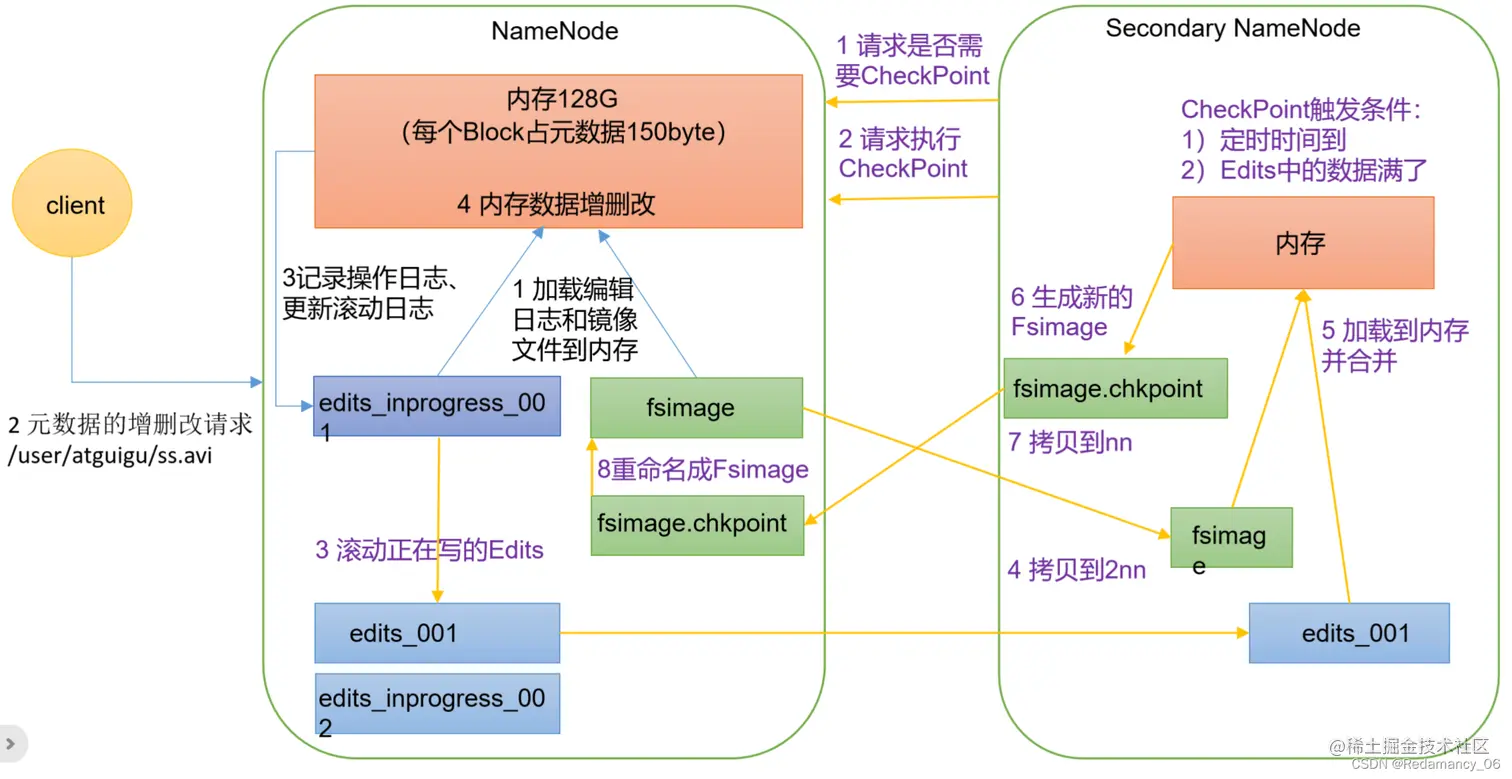

2.1 NameNode工作机制

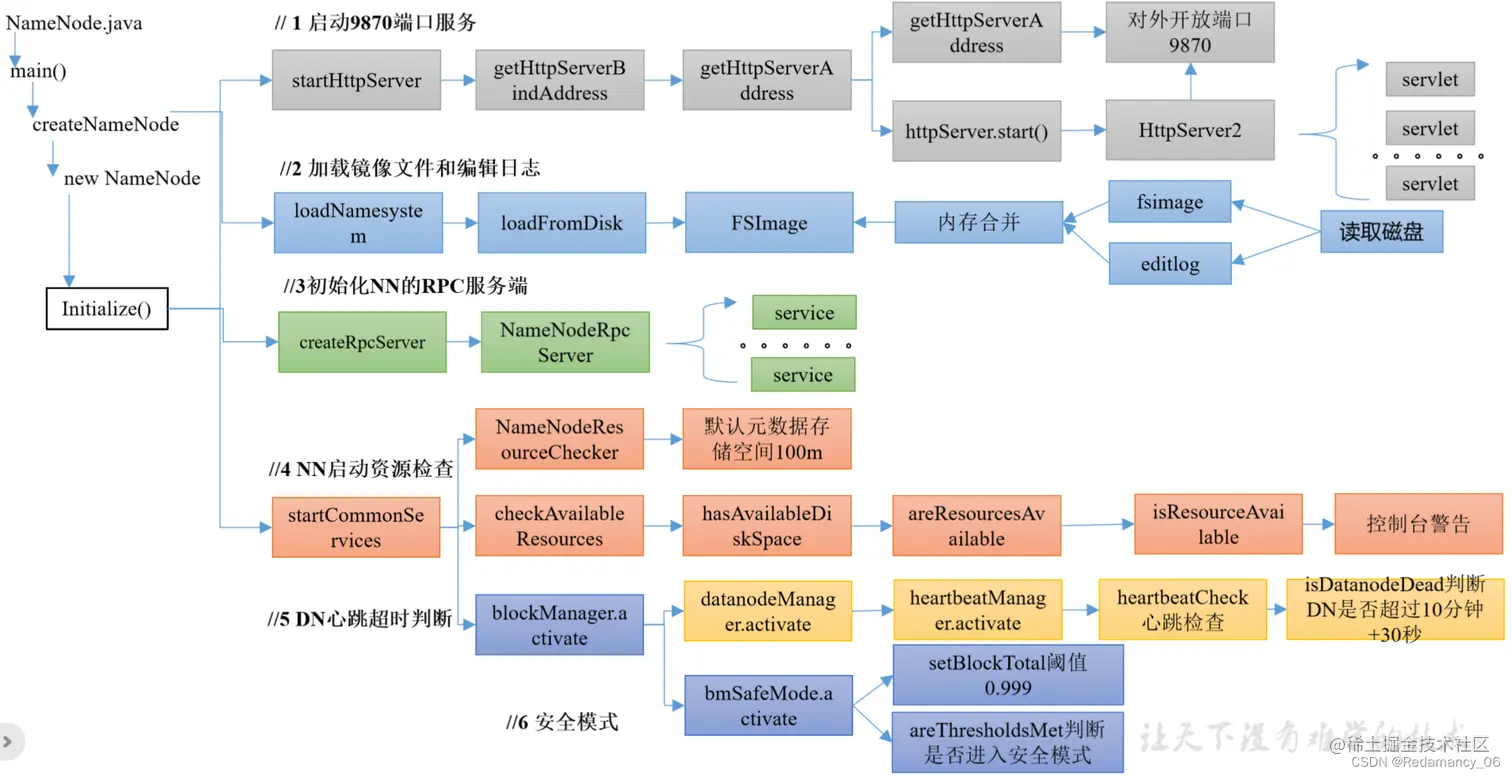

2.2 NameNode启动源码解析

2.2.1 在pom.xml中增加如下依赖

<dependencies>
	<dependency>
		<groupId>org.apache.hadoop</groupId>
		<artifactId>hadoop-client</artifactId>
		<version>3.1.3</version>
	</dependency>

	<dependency>
		<groupId>org.apache.hadoop</groupId>
		<artifactId>hadoop-hdfs</artifactId>
		<version>3.1.3</version>
	</dependency>

	<dependency>
		<groupId>org.apache.hadoop</groupId>
		<artifactId>hadoop-hdfs-client</artifactId>
		<version>3.1.3</version>
		<scope>provided</scope>
	</dependency>
</dependencies>

2.2.2 ctrl + n 全局查找namenode，进入NameNode.java

NameNode官方说明

NameNode serves as both directory namespace manager and "inode table" for the Hadoop DFS. There is a single NameNode running in any DFS deployment. (Well, except when there is a second backup/failover NameNode, or when using federated NameNodes.) The NameNode controls two critical tables: 1) filename->blocksequence (namespace) 2) block->machinelist ("inodes") The first table is stored on disk and is very precious. The second table is rebuilt every time the NameNode comes up. 'NameNode' refers to both this class as well as the 'NameNode server'. The 'FSNamesystem' class actually performs most of the filesystem management. The majority of the 'NameNode' class itself is concerned with exposing the IPC interface and the HTTP server to the outside world, plus some configuration management. NameNode implements the ClientProtocol interface, which allows clients to ask for DFS services. ClientProtocol is not designed for direct use by authors of DFS client code. End-users should instead use the FileSystem class. NameNode also implements the DatanodeProtocol interface, used by DataNodes that actually store DFS data blocks. These methods are invoked repeatedly and automatically by all the DataNodes in a DFS deployment. NameNode also implements the NamenodeProtocol interface, used by secondary namenodes or rebalancing processes to get partial NameNode state, for example partial blocksMap etc.

2.2.3 ctrl + f，查找main方法

NameNode.java

public static void main(String argv[]) throws Exception {
	if (DFSUtil.parseHelpArgument(argv, NameNode.USAGE, System.out, true)) {
		System.exit(0);
	}

	try {
		StringUtils.startupShutdownMessage(NameNode.class, argv, LOG);
		// 创建NameNode
		NameNode namenode = createNameNode(argv, null);
		if (namenode != null) {
			namenode.join();
		}
	} catch (Throwable e) {
		LOG.error("Failed to start namenode.", e);
		terminate(1, e);
	}
}

点击createNameNode

public static NameNode createNameNode(String argv[], Configuration conf)
    throws IOException {
  … …
  StartupOption startOpt = parseArguments(argv);
  if (startOpt == null) {
    printUsage(System.err);
    return null;
  }
  setStartupOption(conf, startOpt);

  boolean aborted = false;
  switch (startOpt) {
  case FORMAT:
    aborted = format(conf, startOpt.getForceFormat(),
        startOpt.getInteractiveFormat());
    terminate(aborted ? 1 : 0);
    return null; // avoid javac warning
  case GENCLUSTERID:
    … …
  default:
    DefaultMetricsSystem.initialize("NameNode");
	// 创建NameNode对象
    return new NameNode(conf);
  }
}

点击NameNode

public NameNode(Configuration conf) throws IOException {
  this(conf, NamenodeRole.NAMENODE);
}

protected NameNode(Configuration conf, NamenodeRole role)
    throws IOException {
  ... ...

  try {
    initializeGenericKeys(conf, nsId, namenodeId);
    initialize(getConf());
    ... ...
  } catch (IOException e) {
    this.stopAtException(e);
    throw e;
  } catch (HadoopIllegalArgumentException e) {
    this.stopAtException(e);
    throw e;
  }
  this.started.set(true);
}

点击initialize

protected void initialize(Configuration conf) throws IOException {
  ... ...

  if (NamenodeRole.NAMENODE == role) {
	// 启动HTTP服务端（9870）
    startHttpServer(conf);
  }

  // 加载镜像文件和编辑日志到内存
  loadNamesystem(conf);
  startAliasMapServerIfNecessary(conf);

  // 创建NN的RPC服务端
  rpcServer = createRpcServer(conf);

  initReconfigurableBackoffKey();

  if (clientNamenodeAddress == null) {
    // This is expected for MiniDFSCluster. Set it now using
    // the RPC server's bind address.
    clientNamenodeAddress =
        NetUtils.getHostPortString(getNameNodeAddress());
    LOG.info("Clients are to use " + clientNamenodeAddress + " to access"
        + " this namenode/service.");
  }
  if (NamenodeRole.NAMENODE == role) {
    httpServer.setNameNodeAddress(getNameNodeAddress());
    httpServer.setFSImage(getFSImage());
  }

  // NN启动资源检查
  startCommonServices(conf);
  startMetricsLogger(conf);
}

2.3 启动9870端口服务

2.3.1 点击startHttpServer

NameNode.java

private void startHttpServer(final Configuration conf) throws IOException {
	httpServer = new NameNodeHttpServer(conf, this, getHttpServerBindAddress(conf));
	httpServer.start();
	httpServer.setStartupProgress(startupProgress);
}

protected InetSocketAddress getHttpServerBindAddress(Configuration conf) {
  InetSocketAddress bindAddress = getHttpServerAddress(conf);

  ... ...
  return bindAddress;
}

protected InetSocketAddress getHttpServerAddress(Configuration conf) {
  return getHttpAddress(conf);
}

public static InetSocketAddress getHttpAddress(Configuration conf) {
	return  NetUtils.createSocketAddr(
      conf.getTrimmed(DFS_NAMENODE_HTTP_ADDRESS_KEY, DFS_NAMENODE_HTTP_ADDRESS_DEFAULT));
}

public static final String  DFS_NAMENODE_HTTP_ADDRESS_DEFAULT = "0.0.0.0:" + DFS_NAMENODE_HTTP_PORT_DEFAULT;

public static final int     DFS_NAMENODE_HTTP_PORT_DEFAULT =
HdfsClientConfigKeys.DFS_NAMENODE_HTTP_PORT_DEFAULT;

int  DFS_NAMENODE_HTTP_PORT_DEFAULT = 9870;

2.3.2 点击startHttpServer方法中的httpServer.start();

NameNodeHttpServer.java

void start() throws IOException {
  ... ...
  // Hadoop自己封装了HttpServer，形成自己的HttpServer2
  HttpServer2.Builder builder = DFSUtil.httpServerTemplateForNNAndJN(conf,
      httpAddr, httpsAddr, "hdfs",
      DFSConfigKeys.DFS_NAMENODE_KERBEROS_INTERNAL_SPNEGO_PRINCIPAL_KEY,
      DFSConfigKeys.DFS_NAMENODE_KEYTAB_FILE_KEY);
  ... ...

  httpServer = builder.build();

  ... ...

  httpServer.setAttribute(NAMENODE_ATTRIBUTE_KEY, nn);
  httpServer.setAttribute(JspHelper.CURRENT_CONF, conf);
  setupServlets(httpServer, conf);
  httpServer.start();

  ... ...
}

2.3.3 点击setupServlets

private static void setupServlets(HttpServer2 httpServer, Configuration conf) {
	httpServer.addInternalServlet("startupProgress",
		StartupProgressServlet.PATH_SPEC, StartupProgressServlet.class);
	httpServer.addInternalServlet("fsck", "/fsck", FsckServlet.class,
		true);
	httpServer.addInternalServlet("imagetransfer", ImageServlet.PATH_SPEC,
      ImageServlet.class, true);
}

2.4 加载镜像文件和编辑日志

2.4.1 点击loadNamesystem

NameNode.java

protected void loadNamesystem(Configuration conf) throws IOException {
	this.namesystem = FSNamesystem.loadFromDisk(conf);
}

static FSNamesystem loadFromDisk(Configuration conf) throws IOException {

  checkConfiguration(conf);

  FSImage fsImage = new FSImage(conf,
      FSNamesystem.getNamespaceDirs(conf),
      FSNamesystem.getNamespaceEditsDirs(conf));

  FSNamesystem namesystem = new FSNamesystem(conf, fsImage, false);
  StartupOption startOpt = NameNode.getStartupOption(conf);
  if (startOpt == StartupOption.RECOVER) {
    namesystem.setSafeMode(SafeModeAction.SAFEMODE_ENTER);
  }

  long loadStart = monotonicNow();
  try {
    namesystem.loadFSImage(startOpt);
  } catch (IOException ioe) {
    LOG.warn("Encountered exception loading fsimage", ioe);
    fsImage.close();
    throw ioe;
  }
  long timeTakenToLoadFSImage = monotonicNow() - loadStart;
  LOG.info("Finished loading FSImage in " + timeTakenToLoadFSImage + " msecs");
  NameNodeMetrics nnMetrics = NameNode.getNameNodeMetrics();
  if (nnMetrics != null) {
    nnMetrics.setFsImageLoadTime((int) timeTakenToLoadFSImage);
  }
  namesystem.getFSDirectory().createReservedStatuses(namesystem.getCTime());
  return namesystem;
}

2.5 初始化NN的RPC服务端

2.5.1 点击createRpcServer

NameNode.java

protected NameNodeRpcServer createRpcServer(Configuration conf)
    throws IOException {
  return new NameNodeRpcServer(conf, this);
}

NameNodeRpcServer.java

public NameNodeRpcServer(Configuration conf, NameNode nn)
      throws IOException {
	... ....
    serviceRpcServer = new RPC.Builder(conf)
        .setProtocol(
            org.apache.hadoop.hdfs.protocolPB.ClientNamenodeProtocolPB.class)
        .setInstance(clientNNPbService)
        .setBindAddress(bindHost)
        .setPort(serviceRpcAddr.getPort())
        .setNumHandlers(serviceHandlerCount)
        .setVerbose(false)
        .setSecretManager(namesystem.getDelegationTokenSecretManager())
        .build();
	... ....
}
