7.部署docker

master和node安装docker-ce：

[root@k8s-master01 ~]# cat install_docker_binary.sh
#!/bin/bash
#
#**********************************************************************************************
#Author:        Raymond
#QQ:            88563128
#Date:          2021-12-07
#FileName:      install_docker_binary.sh
#URL:           raymond.blog.csdn.net
#Description:   install_docker_binary for centos 7/8 & ubuntu 18.04/20.04 & Rocky 8
#Copyright (C): 2021 All rights reserved
#*********************************************************************************************
SRC_DIR=/usr/local/src
COLOR="echo -e \\033[01;31m"
END='\033[0m'
URL='https://mirrors.cloud.tencent.com/docker-ce/linux/static/stable/x86_64/'
DOCKER_FILE=docker-20.10.12.tgz
HARBOR_DOMAIN=harbor.raymonds.cc

os(){
    OS_ID=`sed -rn '/^NAME=/s@.*="([[:alpha:]]+).*"$@\1@p' /etc/os-release`
}

check_file (){
    cd ${SRC_DIR}
    rpm -q wget &> /dev/null || yum -y install wget &> /dev/null
    if [ ! -e ${DOCKER_FILE} ];then
        ${COLOR}"缺少${DOCKER_FILE}文件,如果是离线包,请把文件放到${SRC_DIR}目录下"${END}
        ${COLOR}'开始下载DOCKER二进制安装包'${END}
        wget ${URL}${DOCKER_FILE} || { ${COLOR}"DOCKER二进制安装包下载失败"${END}; exit; }
    else
        ${COLOR}"相关文件已准备好"${END}
    fi
}

install(){
    [ -f /usr/bin/docker ] && { ${COLOR}"DOCKER已存在，安装失败"${END};exit; }
    ${COLOR}"开始安装DOCKER..."${END}
    tar xf ${DOCKER_FILE}
    mv docker/* /usr/bin/
    cat > /lib/systemd/system/docker.service <<-EOF
[Unit]
Description=Docker Application Container Engine
Documentation=https://docs.docker.com
After=network-online.target firewalld.service
Wants=network-online.target

[Service]
Type=notify
# the default is not to use systemd for cgroups because the delegate issues still
# exists and systemd currently does not support the cgroup feature set required
# for containers run by docker
ExecStart=/usr/bin/dockerd -H unix://var/run/docker.sock
ExecReload=/bin/kill -s HUP \$MAINPID
# Having non-zero Limit*s causes performance problems due to accounting overhead
# in the kernel. We recommend using cgroups to do container-local accounting.
LimitNOFILE=infinity
LimitNPROC=infinity
LimitCORE=infinity
# Uncomment TasksMax if your systemd version supports it.
# Only systemd 226 and above support this version.
#TasksMax=infinity
TimeoutStartSec=0
# set delegate yes so that systemd does not reset the cgroups of docker containers
Delegate=yes
# kill only the docker process, not all processes in the cgroup
KillMode=process
# restart the docker process if it exits prematurely
Restart=on-failure
StartLimitBurst=3
StartLimitInterval=60s

[Install]
WantedBy=multi-user.target
EOF
    mkdir -p /etc/docker
    cat > /etc/docker/daemon.json <<-EOF
{
    "registry-mirrors": [
        "https://registry.docker-cn.com",
        "http://hub-mirror.c.163.com",
        "https://docker.mirrors.ustc.edu.cn"
    ],
    "insecure-registries": ["${HARBOR_DOMAIN}"],
    "exec-opts": ["native.cgroupdriver=systemd"],
    "max-concurrent-downloads": 10,
    "max-concurrent-uploads": 5,
    "log-opts": {
        "max-size": "300m",
        "max-file": "2"
    },
    "live-restore": true
}
EOF
    echo 'alias rmi="docker images -qa|xargs docker rmi -f"' >> ~/.bashrc
    echo 'alias rmc="docker ps -qa|xargs docker rm -f"' >> ~/.bashrc
    systemctl daemon-reload
    systemctl enable --now docker &> /dev/null
    systemctl is-active docker &> /dev/null && ${COLOR}"Docker 服务启动成功"${END} || { ${COLOR}"Docker 启动失败"${END};exit; }
    docker version && ${COLOR}"Docker 安装成功"${END} || ${COLOR}"Docker 安装失败"${END}
}

set_swap_limit(){
    if [ ${OS_ID} == "Ubuntu" ];then
        ${COLOR}'设置Docker的"WARNING: No swap limit support"警告'${END}
        sed -ri '/^GRUB_CMDLINE_LINUX=/s@"$@ swapaccount=1"@' /etc/default/grub
        update-grub &> /dev/null
        ${COLOR}"10秒后，机器会自动重启"${END}
        sleep 10
        reboot
    fi
}

main(){
    os
    check_file
    install
    set_swap_limit
}

main

[root@k8s-master01 ~]# bash install_docker_binary.sh

[root@k8s-master02 ~]# bash install_docker_binary.sh

[root@k8s-master03 ~]# bash install_docker_binary.sh

[root@k8s-node01 ~]# bash install_docker_binary.sh

[root@k8s-node02 ~]# bash install_docker_binary.sh

[root@k8s-node03 ~]# bash install_docker_binary.sh

8.部署master

8.1 创建etcd相关目录和复制etcd证书

master节点创建etcd证书目录

[root@k8s-master01 ~]# mkdir /etc/etcd/ssl -p
[root@k8s-master02 ~]# mkdir /etc/etcd/ssl -p
[root@k8s-master03 ~]# mkdir /etc/etcd/ssl -p

将etcd证书复制到master节点

[root@k8s-etcd01 pki]# for NODE in k8s-master01 k8s-master02 k8s-master03; do
     ssh -o StrictHostKeyChecking=no $NODE "mkdir -p /etc/etcd/ssl"
     for FILE in etcd-ca-key.pem  etcd-ca.pem  etcd-key.pem  etcd.pem; do
       scp -o StrictHostKeyChecking=no /etc/etcd/ssl/${FILE} $NODE:/etc/etcd/ssl/${FILE}
     done
 done

所有master节点创建etcd的证书目录

[root@k8s-master01 ~]# mkdir /etc/kubernetes/pki/etcd -p
[root@k8s-master02 ~]# mkdir /etc/kubernetes/pki/etcd -p
[root@k8s-master03 ~]# mkdir /etc/kubernetes/pki/etcd -p

[root@k8s-master01 ~]# ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/
[root@k8s-master02 ~]# ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/
[root@k8s-master03 ~]# ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/

8.2 安装kubernetes组件

下载kubernetes安装包

[root@k8s-master01 ~]# wget https://dl.k8s.io/v1.21.8/kubernetes-server-linux-amd64.tar.gz

需要下载最新的1.21.x版本：

github.com/kubernetes/…

打开页面后点击： 在这里插入图片描述 解压kubernetes安装文件

[root@k8s-master01 ~]# tar -xf kubernetes-server-linux-amd64.tar.gz  --strip-components=3 -C /usr/local/bin kubernetes/server/bin/kube{let,ctl,-apiserver,-controller-manager,-scheduler,-proxy}

版本查看

[root@k8s-master01 ~]# kubelet --version
Kubernetes v1.21.8

将组件发送到其他master节点

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do echo $NODE; scp -o StrictHostKeyChecking=no /usr/local/bin/kube{let,ctl,-apiserver,-controller-manager,-scheduler,-proxy} $NODE:/usr/local/bin/; done

master节点创建/opt/cni/bin目录

[root@k8s-master01 ~]# mkdir -p /opt/cni/bin
[root@k8s-master02 ~]# mkdir -p /opt/cni/bin
[root@k8s-master03 ~]# mkdir -p /opt/cni/bin

8.3 生成k8s组件证书

二进制安装最关键步骤，一步错误全盘皆输，一定要注意每个步骤都要是正确的

master节点创建kubernetes相关目录

[root@k8s-master01 ~]# mkdir -p /etc/kubernetes/pki
[root@k8s-master02 ~]# mkdir -p /etc/kubernetes/pki
[root@k8s-master03 ~]# mkdir -p /etc/kubernetes/pki

master01下载生成证书工具

[root@k8s-master01 ~]# wget "https://pkg.cfssl.org/R1.2/cfssl_linux-amd64" -O /usr/local/bin/cfssl

[root@k8s-master01 ~]# wget "https://pkg.cfssl.org/R1.2/cfssljson_linux-amd64" -O /usr/local/bin/cfssljson

[root@k8s-master01 ~]# chmod +x /usr/local/bin/cfssl /usr/local/bin/cfssljson

8.3.1 生成ca证书

[root@k8s-master01 ~]# mkdir pki
[root@k8s-master01 ~]# cd pki/

[root@k8s-master01 pki]# cat ca-csr.json
{
  "CN": "kubernetes",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "Kubernetes",
      "OU": "Kubernetes-manual"
    }
  ],
  "ca": {
    "expiry": "876000h"
  }
}

[root@k8s-master01 pki]# cfssl gencert -initca ca-csr.json | cfssljson -bare /etc/kubernetes/pki/ca
#执行结果
2022/02/25 16:19:52 [INFO] generating a new CA key and certificate from CSR
2022/02/25 16:19:52 [INFO] generate received request
2022/02/25 16:19:52 [INFO] received CSR
2022/02/25 16:19:52 [INFO] generating key: rsa-2048
2022/02/25 16:19:52 [INFO] encoded CSR
2022/02/25 16:19:52 [INFO] signed certificate with serial number 50700045204155982111782984381054779655420622936

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/ca*
-rw-r--r-- 1 root root 1025 Feb 25 16:19 /etc/kubernetes/pki/ca.csr
-rw------- 1 root root 1675 Feb 25 16:19 /etc/kubernetes/pki/ca-key.pem
-rw-r--r-- 1 root root 1411 Feb 25 16:19 /etc/kubernetes/pki/ca.pem

8.3.2 生成apiserver证书

# 10.96.0.是k8s service的网段，如果说需要更改k8s service网段，那就需要更改10.96.0.1，

# 如果不是高可用集群，172.31.3.188为Master01的IP

[root@k8s-master01 pki]# cat ca-config.json
{
  "signing": {
    "default": {
      "expiry": "876000h"
    },
    "profiles": {
      "kubernetes": {
        "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ],
        "expiry": "876000h"
      }
    }
  }
}

[root@k8s-master01 pki]# cat apiserver-csr.json
{
  "CN": "kube-apiserver",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "Kubernetes",
      "OU": "Kubernetes-manual"
    }
  ]
}

[root@k8s-master01 pki]# cfssl gencert   -ca=/etc/kubernetes/pki/ca.pem   -ca-key=/etc/kubernetes/pki/ca-key.pem   -config=ca-config.json   -hostname=10.96.0.1,172.31.3.188,127.0.0.1,kubernetes,kubernetes.default,kubernetes.default.svc,kubernetes.default.svc.cluster,kubernetes.default.svc.cluster.local,172.31.3.101,172.31.3.102,172.31.3.103 -profile=kubernetes   apiserver-csr.json | cfssljson -bare /etc/kubernetes/pki/apiserver
#执行结果
2022/02/25 16:21:42 [INFO] generate received request
2022/02/25 16:21:42 [INFO] received CSR
2022/02/25 16:21:42 [INFO] generating key: rsa-2048
2022/02/25 16:21:42 [INFO] encoded CSR
2022/02/25 16:21:42 [INFO] signed certificate with serial number 14326114816925312981811634565226925868722808544

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/apiserver*
-rw-r--r-- 1 root root 1029 Feb 25 16:21 /etc/kubernetes/pki/apiserver.csr
-rw------- 1 root root 1675 Feb 25 16:21 /etc/kubernetes/pki/apiserver-key.pem
-rw-r--r-- 1 root root 1692 Feb 25 16:21 /etc/kubernetes/pki/apiserver.pem

8.3.3 生成apiserver的聚合证书

生成apiserver的聚合证书。Requestheader-client-xxx requestheader-allowwd-xxx:aggerator

[root@k8s-master01 pki]# cat front-proxy-ca-csr.json
{
  "CN": "kubernetes",
  "key": {
     "algo": "rsa",
     "size": 2048
  }
}

[root@k8s-master01 pki]# cfssl gencert   -initca front-proxy-ca-csr.json | cfssljson -bare /etc/kubernetes/pki/front-proxy-ca
#执行结果
2022/02/25 16:23:07 [INFO] generating a new CA key and certificate from CSR
2022/02/25 16:23:07 [INFO] generate received request
2022/02/25 16:23:07 [INFO] received CSR
2022/02/25 16:23:07 [INFO] generating key: rsa-2048
2022/02/25 16:23:07 [INFO] encoded CSR
2022/02/25 16:23:07 [INFO] signed certificate with serial number 60929528331736839052879833998406013639330884564

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/front-proxy-ca*
-rw-r--r-- 1 root root  891 Feb 25 16:23 /etc/kubernetes/pki/front-proxy-ca.csr
-rw------- 1 root root 1679 Feb 25 16:23 /etc/kubernetes/pki/front-proxy-ca-key.pem
-rw-r--r-- 1 root root 1143 Feb 25 16:23 /etc/kubernetes/pki/front-proxy-ca.pem

[root@k8s-master01 pki]# cat ca-config.json
{
  "signing": {
    "default": {
      "expiry": "876000h"
    },
    "profiles": {
      "kubernetes": {
        "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ],
        "expiry": "876000h"
      }
    }
  }
}

[root@k8s-master01 pki]# cat front-proxy-client-csr.json
{
  "CN": "front-proxy-client",
  "key": {
     "algo": "rsa",
     "size": 2048
  }
}

[root@k8s-master01 pki]# cfssl gencert   -ca=/etc/kubernetes/pki/front-proxy-ca.pem   -ca-key=/etc/kubernetes/pki/front-proxy-ca-key.pem   -config=ca-config.json   -profile=kubernetes   front-proxy-client-csr.json | cfssljson -bare /etc/kubernetes/pki/front-proxy-client
#返回结果（忽略警告）
2022/02/25 16:24:29 [INFO] generate received request
2022/02/25 16:24:29 [INFO] received CSR
2022/02/25 16:24:29 [INFO] generating key: rsa-2048
2022/02/25 16:24:29 [INFO] encoded CSR
2022/02/25 16:24:29 [INFO] signed certificate with serial number 625247142890350892356758545319462713918431205897
2022/02/25 16:24:29 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/front-proxy-client*
-rw-r--r-- 1 root root  903 Feb 25 16:24 /etc/kubernetes/pki/front-proxy-client.csr
-rw------- 1 root root 1675 Feb 25 16:24 /etc/kubernetes/pki/front-proxy-client-key.pem
-rw-r--r-- 1 root root 1188 Feb 25 16:24 /etc/kubernetes/pki/front-proxy-client.pem

8.3.4 生成controller-manage的证书和配置文件

[root@k8s-master01 pki]# cat ca-config.json
{
  "signing": {
    "default": {
      "expiry": "876000h"
    },
    "profiles": {
      "kubernetes": {
        "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ],
        "expiry": "876000h"
      }
    }
  }
}

[root@k8s-master01 pki]# cat manager-csr.json
{
  "CN": "system:kube-controller-manager",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:kube-controller-manager",
      "OU": "Kubernetes-manual"
    }
  ]
}

[root@k8s-master01 pki]# cfssl gencert \
   -ca=/etc/kubernetes/pki/ca.pem \
   -ca-key=/etc/kubernetes/pki/ca-key.pem \
   -config=ca-config.json \
   -profile=kubernetes \
   manager-csr.json | cfssljson -bare /etc/kubernetes/pki/controller-manager
#执行结果
2022/02/25 16:30:55 [INFO] generate received request
2022/02/25 16:30:55 [INFO] received CSR
2022/02/25 16:30:55 [INFO] generating key: rsa-2048
2022/02/25 16:30:56 [INFO] encoded CSR
2022/02/25 16:30:56 [INFO] signed certificate with serial number 603818792655902270143954916469072941384696164716
2022/02/25 16:30:56 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/controller-manager*
-rw-r--r-- 1 root root 1082 Feb 25 16:30 /etc/kubernetes/pki/controller-manager.csr
-rw------- 1 root root 1675 Feb 25 16:30 /etc/kubernetes/pki/controller-manager-key.pem
-rw-r--r-- 1 root root 1501 Feb 25 16:30 /etc/kubernetes/pki/controller-manager.pem

# 注意，如果不是高可用集群，172.31.3.188:6443改为master01的地址
# set-cluster：设置一个集群项，
[root@k8s-master01 pki]# kubectl config set-cluster kubernetes \
     --certificate-authority=/etc/kubernetes/pki/ca.pem \
     --embed-certs=true \
     --server=https://172.31.3.188:6443 \
     --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig
#执行结果
Cluster "kubernetes" set.

# set-credentials 设置一个用户项
[root@k8s-master01 pki]# kubectl config set-credentials system:kube-controller-manager \
     --client-certificate=/etc/kubernetes/pki/controller-manager.pem \
     --client-key=/etc/kubernetes/pki/controller-manager-key.pem \
     --embed-certs=true \
     --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig
#执行结果
User "system:kube-controller-manager" set.

# 设置一个环境项，一个上下文
[root@k8s-master01 pki]# kubectl config set-context system:kube-controller-manager@kubernetes \
    --cluster=kubernetes \
    --user=system:kube-controller-manager \
    --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig
#执行结果
Context "system:kube-controller-manager@kubernetes" created.

# 使用某个环境当做默认环境
[root@k8s-master01 pki]# kubectl config use-context system:kube-controller-manager@kubernetes \
     --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig
#执行结果
Switched to context "system:kube-controller-manager@kubernetes".

8.3.5 生成scheduler的证书和配置文件

[root@k8s-master01 pki]# cat scheduler-csr.json
{
  "CN": "system:kube-scheduler",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:kube-scheduler",
      "OU": "Kubernetes-manual"
    }
  ]
}

[root@k8s-master01 pki]# cfssl gencert \
   -ca=/etc/kubernetes/pki/ca.pem \
   -ca-key=/etc/kubernetes/pki/ca-key.pem \
   -config=ca-config.json \
   -profile=kubernetes \
   scheduler-csr.json | cfssljson -bare /etc/kubernetes/pki/scheduler
#执行结果
2022/02/25 16:34:13 [INFO] generate received request
2022/02/25 16:34:13 [INFO] received CSR
2022/02/25 16:34:13 [INFO] generating key: rsa-2048
2022/02/25 16:34:14 [INFO] encoded CSR
2022/02/25 16:34:14 [INFO] signed certificate with serial number 28588241162948355825534653175725392424189325408
2022/02/25 16:34:14 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/scheduler*
-rw-r--r-- 1 root root 1058 Feb 25 16:34 /etc/kubernetes/pki/scheduler.csr
-rw------- 1 root root 1679 Feb 25 16:34 /etc/kubernetes/pki/scheduler-key.pem
-rw-r--r-- 1 root root 1476 Feb 25 16:34 /etc/kubernetes/pki/scheduler.pem

# 注意，如果不是高可用集群，172.31.3.188:6443改为master01的地址
[root@k8s-master01 pki]# kubectl config set-cluster kubernetes \
     --certificate-authority=/etc/kubernetes/pki/ca.pem \
     --embed-certs=true \
     --server=https://172.31.3.188:6443 \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig
#执行结果
Cluster "kubernetes" set.

[root@k8s-master01 pki]# kubectl config set-credentials system:kube-scheduler \
     --client-certificate=/etc/kubernetes/pki/scheduler.pem \
     --client-key=/etc/kubernetes/pki/scheduler-key.pem \
     --embed-certs=true \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig
#执行结果
User "system:kube-scheduler" set.

[root@k8s-master01 pki]# kubectl config set-context system:kube-scheduler@kubernetes \
     --cluster=kubernetes \
     --user=system:kube-scheduler \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig
#执行结果
Context "system:kube-scheduler@kubernetes" created.

[root@k8s-master01 pki]# kubectl config use-context system:kube-scheduler@kubernetes \
     --kubeconfig=/etc/kubernetes/scheduler.kubeconfig
#执行结果
Switched to context "system:kube-scheduler@kubernetes".

8.3.6 生成admin证书和配置文件

[root@k8s-master01 pki]# cat ca-config.json
{
  "signing": {
    "default": {
      "expiry": "876000h"
    },
    "profiles": {
      "kubernetes": {
        "usages": [
            "signing",
            "key encipherment",
            "server auth",
            "client auth"
        ],
        "expiry": "876000h"
      }
    }
  }
}

[root@k8s-master01 pki]# cat admin-csr.json
{
  "CN": "admin",
  "key": {
    "algo": "rsa",
    "size": 2048
  },
  "names": [
    {
      "C": "CN",
      "ST": "Beijing",
      "L": "Beijing",
      "O": "system:masters",
      "OU": "Kubernetes-manual"
    }
  ]
}

[root@k8s-master01 pki]# cfssl gencert \
   -ca=/etc/kubernetes/pki/ca.pem \
   -ca-key=/etc/kubernetes/pki/ca-key.pem \
   -config=ca-config.json \
   -profile=kubernetes \
   admin-csr.json | cfssljson -bare /etc/kubernetes/pki/admin
#执行结果
2022/02/25 16:37:03 [INFO] generate received request
2022/02/25 16:37:03 [INFO] received CSR
2022/02/25 16:37:03 [INFO] generating key: rsa-2048
2022/02/25 16:37:03 [INFO] encoded CSR
2022/02/25 16:37:03 [INFO] signed certificate with serial number 406554626408020347401920084654276875970659166990
2022/02/25 16:37:03 [WARNING] This certificate lacks a "hosts" field. This makes it unsuitable for
websites. For more information see the Baseline Requirements for the Issuance and Management
of Publicly-Trusted Certificates, v.1.1.6, from the CA/Browser Forum (https://cabforum.org);
specifically, section 10.2.3 ("Information Requirements").

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/admin*
-rw-r--r-- 1 root root 1025 Feb 25 16:37 /etc/kubernetes/pki/admin.csr
-rw------- 1 root root 1675 Feb 25 16:37 /etc/kubernetes/pki/admin-key.pem
-rw-r--r-- 1 root root 1444 Feb 25 16:37 /etc/kubernetes/pki/admin.pem

# 注意，如果不是高可用集群，172.31.3.188:8443改为master01的地址
[root@k8s-master01 pki]# kubectl config set-cluster kubernetes     --certificate-authority=/etc/kubernetes/pki/ca.pem     --embed-certs=true     --server=https://172.31.3.188:6443     --kubeconfig=/etc/kubernetes/admin.kubeconfig
#执行结果
Cluster "kubernetes" set.

[root@k8s-master01 pki]# kubectl config set-credentials kubernetes-admin     --client-certificate=/etc/kubernetes/pki/admin.pem     --client-key=/etc/kubernetes/pki/admin-key.pem     --embed-certs=true     --kubeconfig=/etc/kubernetes/admin.kubeconfig
#执行结果
User "kubernetes-admin" set.

[root@k8s-master01 pki]# kubectl config set-context kubernetes-admin@kubernetes     --cluster=kubernetes     --user=kubernetes-admin     --kubeconfig=/etc/kubernetes/admin.kubeconfig
#执行结果
Context "kubernetes-admin@kubernetes" created.

[root@k8s-master01 pki]# kubectl config use-context kubernetes-admin@kubernetes     --kubeconfig=/etc/kubernetes/admin.kubeconfig
#执行结果
Switched to context "kubernetes-admin@kubernetes".

8.3.7 创建sa key

创建ServiceAccount Key à secret

[root@k8s-master01 pki]# openssl genrsa -out /etc/kubernetes/pki/sa.key 2048
#返回结果
Generating RSA private key, 2048 bit long modulus
..............................+++
....................................+++
e is 65537 (0x10001)

[root@k8s-master01 pki]# openssl rsa -in /etc/kubernetes/pki/sa.key -pubout -out /etc/kubernetes/pki/sa.pub
#执行结果
writing RSA key

[root@k8s-master01 pki]# ll /etc/kubernetes/pki/sa*
-rw-r--r-- 1 root root 1675 Feb 25 16:38 /etc/kubernetes/pki/sa.key
-rw-r--r-- 1 root root  451 Feb 25 16:39 /etc/kubernetes/pki/sa.pub

发送证书至其他master节点

[root@k8s-master01 pki]# for NODE in k8s-master02 k8s-master03; do
    for FILE in $(ls /etc/kubernetes/pki | grep -v etcd); do
        scp /etc/kubernetes/pki/${FILE} $NODE:/etc/kubernetes/pki/${FILE};
    done;
    for FILE in admin.kubeconfig controller-manager.kubeconfig scheduler.kubeconfig; do
        scp /etc/kubernetes/${FILE} $NODE:/etc/kubernetes/${FILE};
    done;
done

查看证书文件

[root@k8s-master01 pki]# ll -R /etc/kubernetes/pki/
/etc/kubernetes/pki/:
total 92
-rw-r--r-- 1 root root 1025 Feb 25 16:37 admin.csr
-rw------- 1 root root 1675 Feb 25 16:37 admin-key.pem
-rw-r--r-- 1 root root 1444 Feb 25 16:37 admin.pem
-rw-r--r-- 1 root root 1029 Feb 25 16:21 apiserver.csr
-rw------- 1 root root 1675 Feb 25 16:21 apiserver-key.pem
-rw-r--r-- 1 root root 1692 Feb 25 16:21 apiserver.pem
-rw-r--r-- 1 root root 1025 Feb 25 16:19 ca.csr
-rw------- 1 root root 1675 Feb 25 16:19 ca-key.pem
-rw-r--r-- 1 root root 1411 Feb 25 16:19 ca.pem
-rw-r--r-- 1 root root 1082 Feb 25 16:30 controller-manager.csr
-rw------- 1 root root 1675 Feb 25 16:30 controller-manager-key.pem
-rw-r--r-- 1 root root 1501 Feb 25 16:30 controller-manager.pem
drwxr-xr-x 2 root root   84 Feb 25 15:56 etcd
-rw-r--r-- 1 root root  891 Feb 25 16:23 front-proxy-ca.csr
-rw------- 1 root root 1679 Feb 25 16:23 front-proxy-ca-key.pem
-rw-r--r-- 1 root root 1143 Feb 25 16:23 front-proxy-ca.pem
-rw-r--r-- 1 root root  903 Feb 25 16:24 front-proxy-client.csr
-rw------- 1 root root 1675 Feb 25 16:24 front-proxy-client-key.pem
-rw-r--r-- 1 root root 1188 Feb 25 16:24 front-proxy-client.pem
-rw-r--r-- 1 root root 1675 Feb 25 16:38 sa.key
-rw-r--r-- 1 root root  451 Feb 25 16:39 sa.pub
-rw-r--r-- 1 root root 1058 Feb 25 16:34 scheduler.csr
-rw------- 1 root root 1679 Feb 25 16:34 scheduler-key.pem
-rw-r--r-- 1 root root 1476 Feb 25 16:34 scheduler.pem

/etc/kubernetes/pki/etcd:
total 0
lrwxrwxrwx 1 root root 29 Feb 25 15:56 etcd-ca-key.pem -> /etc/etcd/ssl/etcd-ca-key.pem
lrwxrwxrwx 1 root root 25 Feb 25 15:56 etcd-ca.pem -> /etc/etcd/ssl/etcd-ca.pem
lrwxrwxrwx 1 root root 26 Feb 25 15:56 etcd-key.pem -> /etc/etcd/ssl/etcd-key.pem
lrwxrwxrwx 1 root root 22 Feb 25 15:56 etcd.pem -> /etc/etcd/ssl/etcd.pem

8.4 Kubernetes组件配置

master节点创建相关目录

[root@k8s-master01 pki]# cd
[root@k8s-master01 ~]# mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

[root@k8s-master02 ~]# mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

[root@k8s-master03 ~]# mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

8.4.1 Apiserver

所有Master节点创建kube-apiserver service，# 注意，如果不是高可用集群，172.31.3.188改为master01的地址

8.4.1.1 Master01配置

注意本文档使用的k8s service网段为10.96.0.0/12，该网段不能和宿主机的网段、Pod网段的重复，请按需修改

[root@k8s-master01 ~]# vim /lib/systemd/system/kube-apiserver.service
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \
      --v=2  \
      --logtostderr=true  \
      --allow-privileged=true  \
      --bind-address=0.0.0.0  \
      --secure-port=6443  \
      --insecure-port=0  \
      --advertise-address=172.31.3.101 \
      --service-cluster-ip-range=10.96.0.0/12  \
      --service-node-port-range=30000-32767  \
      --etcd-servers=https://172.31.3.108:2379,https://172.31.3.109:2379,https://172.31.3.110:2379 \
      --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem  \
      --etcd-certfile=/etc/etcd/ssl/etcd.pem  \
      --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem  \
      --client-ca-file=/etc/kubernetes/pki/ca.pem  \
      --tls-cert-file=/etc/kubernetes/pki/apiserver.pem  \
      --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem  \
      --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem  \
      --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem  \
      --service-account-key-file=/etc/kubernetes/pki/sa.pub  \
      --service-account-signing-key-file=/etc/kubernetes/pki/sa.key  \
      --service-account-issuer=https://kubernetes.default.svc.cluster.local \
      --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \
      --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota  \
      --authorization-mode=Node,RBAC  \
      --enable-bootstrap-token-auth=true  \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem  \
      --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem  \
      --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem  \
      --requestheader-allowed-names=aggregator  \
      --requestheader-group-headers=X-Remote-Group  \
      --requestheader-extra-headers-prefix=X-Remote-Extra-  \
      --requestheader-username-headers=X-Remote-User
      # --token-auth-file=/etc/kubernetes/token.csv

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target

8.4.1.2 Master02配置

注意本文档使用的k8s service网段为10.96.0.0/12，该网段不能和宿主机的网段、Pod网段的重复，请按需修改

[root@k8s-master02 ~]# vim /lib/systemd/system/kube-apiserver.service
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \
      --v=2  \
      --logtostderr=true  \
      --allow-privileged=true  \
      --bind-address=0.0.0.0  \
      --secure-port=6443  \
      --insecure-port=0  \
      --advertise-address=172.31.3.102 \
      --service-cluster-ip-range=10.96.0.0/12  \
      --service-node-port-range=30000-32767  \
      --etcd-servers=https://172.31.3.108:2379,https://172.31.3.109:2379,https://172.31.3.110:2379 \
      --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem  \
      --etcd-certfile=/etc/etcd/ssl/etcd.pem  \
      --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem  \
      --client-ca-file=/etc/kubernetes/pki/ca.pem  \
      --tls-cert-file=/etc/kubernetes/pki/apiserver.pem  \
      --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem  \
      --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem  \
      --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem  \
      --service-account-key-file=/etc/kubernetes/pki/sa.pub  \
      --service-account-signing-key-file=/etc/kubernetes/pki/sa.key  \
      --service-account-issuer=https://kubernetes.default.svc.cluster.local \
      --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \
      --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota  \
      --authorization-mode=Node,RBAC  \
      --enable-bootstrap-token-auth=true  \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem  \
      --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem  \
      --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem  \
      --requestheader-allowed-names=aggregator  \
      --requestheader-group-headers=X-Remote-Group  \
      --requestheader-extra-headers-prefix=X-Remote-Extra-  \
      --requestheader-username-headers=X-Remote-User
      # --token-auth-file=/etc/kubernetes/token.csv

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target

8.4.1.3 Master03配置

注意本文档使用的k8s service网段为10.96.0.0/12，该网段不能和宿主机的网段、Pod网段的重复，请按需修改

[root@k8s-master03 ~]# vim /lib/systemd/system/kube-apiserver.service
[Unit]
Description=Kubernetes API Server
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-apiserver \
      --v=2  \
      --logtostderr=true  \
      --allow-privileged=true  \
      --bind-address=0.0.0.0  \
      --secure-port=6443  \
      --insecure-port=0  \
      --advertise-address=172.31.3.103 \
      --service-cluster-ip-range=10.96.0.0/12  \
      --service-node-port-range=30000-32767  \
      --etcd-servers=https://172.31.3.108:2379,https://172.31.3.109:2379,https://172.31.3.110:2379 \
      --etcd-cafile=/etc/etcd/ssl/etcd-ca.pem  \
      --etcd-certfile=/etc/etcd/ssl/etcd.pem  \
      --etcd-keyfile=/etc/etcd/ssl/etcd-key.pem  \
      --client-ca-file=/etc/kubernetes/pki/ca.pem  \
      --tls-cert-file=/etc/kubernetes/pki/apiserver.pem  \
      --tls-private-key-file=/etc/kubernetes/pki/apiserver-key.pem  \
      --kubelet-client-certificate=/etc/kubernetes/pki/apiserver.pem  \
      --kubelet-client-key=/etc/kubernetes/pki/apiserver-key.pem  \
      --service-account-key-file=/etc/kubernetes/pki/sa.pub  \
      --service-account-signing-key-file=/etc/kubernetes/pki/sa.key  \
      --service-account-issuer=https://kubernetes.default.svc.cluster.local \
      --kubelet-preferred-address-types=InternalIP,ExternalIP,Hostname  \
      --enable-admission-plugins=NamespaceLifecycle,LimitRanger,ServiceAccount,DefaultStorageClass,DefaultTolerationSeconds,NodeRestriction,ResourceQuota  \
      --authorization-mode=Node,RBAC  \
      --enable-bootstrap-token-auth=true  \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem  \
      --proxy-client-cert-file=/etc/kubernetes/pki/front-proxy-client.pem  \
      --proxy-client-key-file=/etc/kubernetes/pki/front-proxy-client-key.pem  \
      --requestheader-allowed-names=aggregator  \
      --requestheader-group-headers=X-Remote-Group  \
      --requestheader-extra-headers-prefix=X-Remote-Extra-  \
      --requestheader-username-headers=X-Remote-User
      # --token-auth-file=/etc/kubernetes/token.csv

Restart=on-failure
RestartSec=10s
LimitNOFILE=65535

[Install]
WantedBy=multi-user.target

8.4.1.4 启动apiserver

所有Master节点开启kube-apiserver

[root@k8s-master01 ~]# systemctl daemon-reload && systemctl enable --now kube-apiserver

[root@k8s-master02 ~]# systemctl daemon-reload && systemctl enable --now kube-apiserver

[root@k8s-master03 ~]# systemctl daemon-reload && systemctl enable --now kube-apiserver

检测kube-server状态

[root@k8s-master01 ~]# systemctl status kube-apiserver
● kube-apiserver.service - Kubernetes API Server
   Loaded: loaded (/usr/lib/systemd/system/kube-apiserver.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2022-02-25 16:55:38 CST; 15s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 13671 (kube-apiserver)
    Tasks: 8
   Memory: 302.6M
   CGroup: /system.slice/kube-apiserver.service
           └─13671 /usr/local/bin/kube-apiserver --v=2 --logtostderr=true --allow-privileged=true --bind-address=0.0.0.0 --secure-port=6443 ...

Feb 25 16:55:43 k8s-master01.example.local kube-apiserver[13671]: I0225 16:55:43.090985   13671 storage_rbac.go:326] created rolebindin...ystem
Feb 25 16:55:43 k8s-master01.example.local kube-apiserver[13671]: I0225 16:55:43.100954   13671 storage_rbac.go:326] created rolebindin...ystem
Feb 25 16:55:43 k8s-master01.example.local kube-apiserver[13671]: I0225 16:55:43.102507   13671 healthz.go:244] poststarthook/rbac/boot...eadyz
Feb 25 16:55:43 k8s-master01.example.local kube-apiserver[13671]: [-]poststarthook/rbac/bootstrap-roles failed: not finished
Feb 25 16:55:43 k8s-master01.example.local kube-apiserver[13671]: I0225 16:55:43.110647   13671 storage_rbac.go:326] created rolebindin...ystem
Feb 25 16:55:43 k8s-master01.example.local kube-apiserver[13671]: I0225 16:55:43.120843   13671 storage_rbac.go:326] created rolebindin...ystem
Feb 25 16:55:43 k8s-master01.example.local kube-apiserver[13671]: I0225 16:55:43.130291   13671 storage_rbac.go:326] created rolebindin...ublic
Feb 25 16:55:43 k8s-master01.example.local kube-apiserver[13671]: W0225 16:55:43.237118   13671 lease.go:233] Resetting endpoints for m....101]
Feb 25 16:55:43 k8s-master01.example.local kube-apiserver[13671]: I0225 16:55:43.238022   13671 controller.go:609] quota admission adde...oints
Feb 25 16:55:43 k8s-master01.example.local kube-apiserver[13671]: I0225 16:55:43.245826   13671 controller.go:609] quota admission adde...8s.io
Hint: Some lines were ellipsized, use -l to show in full.

[root@k8s-master02 ~]# systemctl status kube-apiserver
[root@k8s-master03 ~]# systemctl status kube-apiserver

系统日志的这些提示可以忽略

[root@k8s-master01 ~]#  tail -f /var/log/messages
...
Feb 25 16:56:23 k8s-master01 kube-apiserver: I0225 16:56:23.136848   13671 controlbuf.go:508] transport: loopyWriter.run returning. connection error: desc = "transport is closing"

8.4.2 ControllerManager

所有Master节点配置kube-controller-manager service

注意本文档使用的k8s Pod网段为192.168.0.0/12，该网段不能和宿主机的网段、k8s Service网段的重复，请按需修改

[root@k8s-master01 ~]# vim /lib/systemd/system/kube-controller-manager.service
[Unit]
Description=Kubernetes Controller Manager
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-controller-manager \
      --v=2 \
      --logtostderr=true \
      --address=127.0.0.1 \
      --root-ca-file=/etc/kubernetes/pki/ca.pem \
      --cluster-signing-cert-file=/etc/kubernetes/pki/ca.pem \
      --cluster-signing-key-file=/etc/kubernetes/pki/ca-key.pem \
      --service-account-private-key-file=/etc/kubernetes/pki/sa.key \
      --kubeconfig=/etc/kubernetes/controller-manager.kubeconfig \
      --leader-elect=true \
      --use-service-account-credentials=true \
      --node-monitor-grace-period=40s \
      --node-monitor-period=5s \
      --pod-eviction-timeout=2m0s \
      --controllers=*,bootstrapsigner,tokencleaner \
      --allocate-node-cidrs=true \
      --cluster-cidr=192.168.0.0/12 \
      --requestheader-client-ca-file=/etc/kubernetes/pki/front-proxy-ca.pem \
      --node-cidr-mask-size=24

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do scp /lib/systemd/system/kube-controller-manager.service $NODE:/lib/systemd/system/; done

所有Master节点启动kube-controller-manager

[root@k8s-master01 ~]# systemctl daemon-reload && systemctl enable --now kube-controller-manager
[root@k8s-master02 ~]# systemctl daemon-reload && systemctl enable --now kube-controller-manager
[root@k8s-master03 ~]# systemctl daemon-reload && systemctl enable --now kube-controller-manager

查看启动状态

[root@k8s-master01 ~]# systemctl status kube-controller-manager
● kube-controller-manager.service - Kubernetes Controller Manager
   Loaded: loaded (/usr/lib/systemd/system/kube-controller-manager.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2022-02-25 16:58:09 CST; 16s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 13723 (kube-controller)
    Tasks: 6
   Memory: 38.7M
   CGroup: /system.slice/kube-controller-manager.service
           └─13723 /usr/local/bin/kube-controller-manager --v=2 --logtostderr=true --address=127.0.0.1 --root-ca-file=/etc/kubernetes/pki/ca...

Feb 25 16:58:24 k8s-master01.example.local kube-controller-manager[13723]: I0225 16:58:24.294372   13723 reflector.go:219] Starting refl...:134
Feb 25 16:58:24 k8s-master01.example.local kube-controller-manager[13723]: I0225 16:58:24.294470   13723 reflector.go:219] Starting refl...:134
Feb 25 16:58:24 k8s-master01.example.local kube-controller-manager[13723]: I0225 16:58:24.294698   13723 reflector.go:219] Starting refl...:134
Feb 25 16:58:24 k8s-master01.example.local kube-controller-manager[13723]: I0225 16:58:24.294813   13723 reflector.go:219] Starting refl...:134
Feb 25 16:58:24 k8s-master01.example.local kube-controller-manager[13723]: I0225 16:58:24.294941   13723 reflector.go:219] Starting refl...o:90
Feb 25 16:58:24 k8s-master01.example.local kube-controller-manager[13723]: I0225 16:58:24.300284   13723 reflector.go:219] Starting refl...o:90
Feb 25 16:58:24 k8s-master01.example.local kube-controller-manager[13723]: I0225 16:58:24.593499   13723 shared_informer.go:247] Caches ...ctor
Feb 25 16:58:24 k8s-master01.example.local kube-controller-manager[13723]: I0225 16:58:24.593529   13723 garbagecollector.go:254] synced...ctor
Feb 25 16:58:24 k8s-master01.example.local kube-controller-manager[13723]: I0225 16:58:24.630713   13723 shared_informer.go:247] Caches ...ctor
Feb 25 16:58:24 k8s-master01.example.local kube-controller-manager[13723]: I0225 16:58:24.630766   13723 garbagecollector.go:151] Garbag...bage
Hint: Some lines were ellipsized, use -l to show in full.

[root@k8s-master02 ~]# systemctl status kube-controller-manager
[root@k8s-master03 ~]# systemctl status kube-controller-manager

8.4.3 Scheduler

所有Master节点配置kube-scheduler service

[root@k8s-master01 ~]# vim /lib/systemd/system/kube-scheduler.service
[Unit]
Description=Kubernetes Scheduler
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-scheduler \
      --v=2 \
      --logtostderr=true \
      --address=127.0.0.1 \
      --leader-elect=true \
      --kubeconfig=/etc/kubernetes/scheduler.kubeconfig

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do scp /lib/systemd/system/kube-scheduler.service $NODE:/lib/systemd/system/; done

[root@k8s-master01 ~]# systemctl daemon-reload && systemctl enable --now kube-scheduler
[root@k8s-master02 ~]# systemctl daemon-reload && systemctl enable --now kube-scheduler
[root@k8s-master03 ~]# systemctl daemon-reload && systemctl enable --now kube-scheduler

[root@k8s-master01 ~]# systemctl status kube-scheduler
● kube-scheduler.service - Kubernetes Scheduler
   Loaded: loaded (/usr/lib/systemd/system/kube-scheduler.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2022-02-25 16:59:50 CST; 14s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 13770 (kube-scheduler)
    Tasks: 7
   Memory: 18.1M
   CGroup: /system.slice/kube-scheduler.service
           └─13770 /usr/local/bin/kube-scheduler --v=2 --logtostderr=true --address=127.0.0.1 --leader-elect=true --kubeconfig=/etc/kubernet...

Feb 25 16:59:52 k8s-master01.example.local kube-scheduler[13770]: I0225 16:59:52.030124   13770 reflector.go:219] Starting reflector *v...o:134
Feb 25 16:59:52 k8s-master01.example.local kube-scheduler[13770]: I0225 16:59:52.030359   13770 reflector.go:219] Starting reflector *v...o:134
Feb 25 16:59:52 k8s-master01.example.local kube-scheduler[13770]: I0225 16:59:52.030534   13770 reflector.go:219] Starting reflector *v...o:134
Feb 25 16:59:52 k8s-master01.example.local kube-scheduler[13770]: I0225 16:59:52.030779   13770 reflector.go:219] Starting reflector *v...o:134
Feb 25 16:59:52 k8s-master01.example.local kube-scheduler[13770]: I0225 16:59:52.031157   13770 reflector.go:219] Starting reflector *v...o:134
Feb 25 16:59:52 k8s-master01.example.local kube-scheduler[13770]: I0225 16:59:52.031425   13770 reflector.go:219] Starting reflector *v...o:134
Feb 25 16:59:52 k8s-master01.example.local kube-scheduler[13770]: I0225 16:59:52.031717   13770 reflector.go:219] Starting reflector *v...o:134
Feb 25 16:59:52 k8s-master01.example.local kube-scheduler[13770]: I0225 16:59:52.032718   13770 reflector.go:219] Starting reflector *v...o:134
Feb 25 16:59:52 k8s-master01.example.local kube-scheduler[13770]: I0225 16:59:52.128803   13770 leaderelection.go:243] attempting to ac...er...
Feb 25 16:59:52 k8s-master01.example.local kube-scheduler[13770]: I0225 16:59:52.153623   13770 leaderelection.go:253] successfully acq...duler
Hint: Some lines were ellipsized, use -l to show in full.

[root@k8s-master02 ~]# systemctl status kube-scheduler
[root@k8s-master03 ~]# systemctl status kube-scheduler

8.4.4 TLS Bootstrapping配置

在Master01创建bootstrap

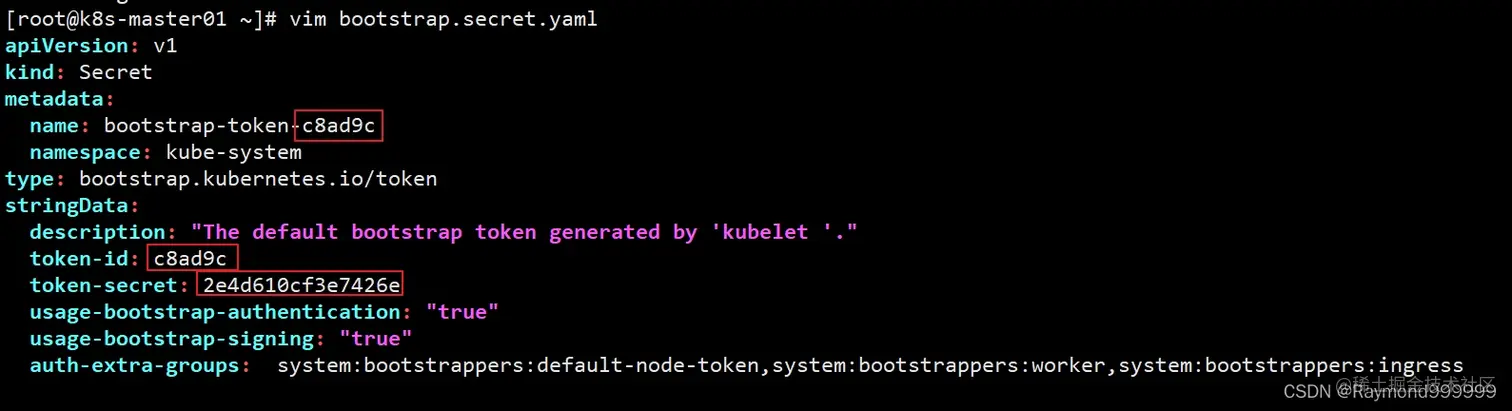

[root@k8s-master01 ~]# vim bootstrap.secret.yaml
apiVersion: v1
kind: Secret
metadata:
  name: bootstrap-token-c8ad9c
  namespace: kube-system
type: bootstrap.kubernetes.io/token
stringData:
  description: "The default bootstrap token generated by 'kubelet '."
  token-id: c8ad9c
  token-secret: 2e4d610cf3e7426e
  usage-bootstrap-authentication: "true"
  usage-bootstrap-signing: "true"
  auth-extra-groups:  system:bootstrappers:default-node-token,system:bootstrappers:worker,system:bootstrappers:ingress

---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: kubelet-bootstrap
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:node-bootstrapper
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: Group
  name: system:bootstrappers:default-node-token
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: node-autoapprove-bootstrap
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:certificates.k8s.io:certificatesigningrequests:nodeclient
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: Group
  name: system:bootstrappers:default-node-token
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: node-autoapprove-certificate-rotation
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:certificates.k8s.io:certificatesigningrequests:selfnodeclient
subjects:
- apiGroup: rbac.authorization.k8s.io
  kind: Group
  name: system:nodes
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRole
metadata:
  annotations:
    rbac.authorization.kubernetes.io/autoupdate: "true"
  labels:
    kubernetes.io/bootstrapping: rbac-defaults
  name: system:kube-apiserver-to-kubelet
rules:
  - apiGroups:
      - ""
    resources:
      - nodes/proxy
      - nodes/stats
      - nodes/log
      - nodes/spec
      - nodes/metrics
    verbs:
      - "*"
---
apiVersion: rbac.authorization.k8s.io/v1
kind: ClusterRoleBinding
metadata:
  name: system:kube-apiserver
  namespace: ""
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: system:kube-apiserver-to-kubelet
subjects:
  - apiGroup: rbac.authorization.k8s.io
    kind: User
    name: kube-apiserver

# 注意，如果不是高可用集群，172.31.3.188:6443改为master01的地址
[root@k8s-master01 ~]# kubectl config set-cluster kubernetes     --certificate-authority=/etc/kubernetes/pki/ca.pem     --embed-certs=true     --server=https://172.31.3.188:6443     --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
#执行结果
Cluster "kubernetes" set.

[root@k8s-master01 ~]# kubectl config set-credentials tls-bootstrap-token-user     --token=c8ad9c.2e4d610cf3e7426e --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
#执行结果
User "tls-bootstrap-token-user" set.

[root@k8s-master01 ~]# kubectl config set-context tls-bootstrap-token-user@kubernetes     --cluster=kubernetes     --user=tls-bootstrap-token-user     --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
#执行结果
Context "tls-bootstrap-token-user@kubernetes" modified.

[root@k8s-master01 ~]# kubectl config use-context tls-bootstrap-token-user@kubernetes     --kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig
#执行结果
Switched to context "tls-bootstrap-token-user@kubernetes".

注意：如果要修改bootstrap.secret.yaml的token-id和token-secret，需要保证下图红圈内的字符串一致的，并且位数是一样的。还要保证上个命令的黄色字体：c8ad9c.2e4d610cf3e7426e与你修改的字符串要一致

在这里插入图片描述

[root@k8s-master01 ~]# mkdir -p /root/.kube ; cp /etc/kubernetes/admin.kubeconfig /root/.kube/config

[root@k8s-master01 ~]# kubectl create -f bootstrap.secret.yaml
secret/bootstrap-token-c8ad9c created
clusterrolebinding.rbac.authorization.k8s.io/kubelet-bootstrap created
clusterrolebinding.rbac.authorization.k8s.io/node-autoapprove-bootstrap created
clusterrolebinding.rbac.authorization.k8s.io/node-autoapprove-certificate-rotation created
clusterrole.rbac.authorization.k8s.io/system:kube-apiserver-to-kubelet created
clusterrolebinding.rbac.authorization.k8s.io/system:kube-apiserver created

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do
     for FILE in bootstrap-kubelet.kubeconfig; do
       scp /etc/kubernetes/$FILE $NODE:/etc/kubernetes/${FILE}
     done
 done

8.4.5 Kubelet配置

master节点配置kubelet service

[root@k8s-master01 ~]# vim /lib/systemd/system/kubelet.service
[Unit]
Description=Kubernetes Kubelet
Documentation=https://github.com/kubernetes/kubernetes
After=docker.service
Requires=docker.service

[Service]
ExecStart=/usr/local/bin/kubelet

Restart=always
StartLimitInterval=0
RestartSec=10

[Install]
WantedBy=multi-user.target

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do scp /lib/systemd/system/kubelet.service $NODE:/lib/systemd/system/ ;done

下载镜像并上传至harbor：

[root@k8s-master01 ~]# docker login harbor.raymonds.cc
Username: admin
Password:
WARNING! Your password will be stored unencrypted in /root/.docker/config.json.
Configure a credential helper to remove this warning. See
https://docs.docker.com/engine/reference/commandline/login/#credentials-store

Login Succeeded

[root@k8s-master01 ~]# cat download_pause_images_3.4.1.sh
#!/bin/bash
#
#**********************************************************************************************
#Author:        Raymond
#QQ:            88563128
#Date:          2022-01-11
#FileName:      download_pause_images.sh
#URL:           raymond.blog.csdn.net
#Description:   The test script
#Copyright (C): 2022 All rights reserved
#*********************************************************************************************
COLOR="echo -e \\033[01;31m"
END='\033[0m'

PAUSE_VERSION=3.4.1
HARBOR_DOMAIN=harbor.raymonds.cc

images_download(){
    ${COLOR}"开始下载Pause镜像"${END}
        docker pull registry.aliyuncs.com/google_containers/pause:${PAUSE_VERSION}
        docker tag registry.aliyuncs.com/google_containers/pause:${PAUSE_VERSION} ${HARBOR_DOMAIN}/google_containers/pause:${PAUSE_VERSION}
        docker rmi registry.aliyuncs.com/google_containers/pause:${PAUSE_VERSION}
        docker push ${HARBOR_DOMAIN}/google_containers/pause:${PAUSE_VERSION}
    ${COLOR}"Pause镜像下载完成"${END}
}

images_download

[root@k8s-master01 ~]# bash download_pause_images_3.4.1.sh

[root@k8s-master01 ~]# docker images |grep pause
harbor.raymonds.cc/google_containers/pause      3.4.1                 80d28bedfe5d        23 months ago       683kB

master节点配置kubelet service的配置文件

[root@k8s-master01 ~]# vim /etc/systemd/system/kubelet.service.d/10-kubelet.conf
[Service]
Environment="KUBELET_KUBECONFIG_ARGS=--bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/kubelet.kubeconfig"
Environment="KUBELET_SYSTEM_ARGS=--network-plugin=cni --cni-conf-dir=/etc/cni/net.d --cni-bin-dir=/opt/cni/bin"
Environment="KUBELET_CONFIG_ARGS=--config=/etc/kubernetes/kubelet-conf.yml --pod-infra-container-image=harbor.raymonds.cc/google_containers/pause:3.4.1" #把harbor仓库改成自己的私有仓库地址
Environment="KUBELET_EXTRA_ARGS=--node-labels=node.kubernetes.io/node='' "
ExecStart=
ExecStart=/usr/local/bin/kubelet $KUBELET_KUBECONFIG_ARGS $KUBELET_CONFIG_ARGS $KUBELET_SYSTEM_ARGS $KUBELET_EXTRA_ARGS

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do scp /etc/systemd/system/kubelet.service.d/10-kubelet.conf $NODE:/etc/systemd/system/kubelet.service.d/ ;done

master创建kubelet的配置文件

注意：如果更改了k8s的service网段，需要更改kubelet-conf.yml 的clusterDNS:配置，改成k8s Service网段的第十个地址，比如10.96.0.10

[root@k8s-master01 ~]# vim /etc/kubernetes/kubelet-conf.yml
apiVersion: kubelet.config.k8s.io/v1beta1
kind: KubeletConfiguration
address: 0.0.0.0
port: 10250
readOnlyPort: 10255
authentication:
  anonymous:
    enabled: false
  webhook:
    cacheTTL: 2m0s
    enabled: true
  x509:
    clientCAFile: /etc/kubernetes/pki/ca.pem
authorization:
  mode: Webhook
  webhook:
    cacheAuthorizedTTL: 5m0s
    cacheUnauthorizedTTL: 30s
cgroupDriver: systemd
cgroupsPerQOS: true
clusterDNS:
- 10.96.0.10
clusterDomain: cluster.local
containerLogMaxFiles: 5
containerLogMaxSize: 10Mi
contentType: application/vnd.kubernetes.protobuf
cpuCFSQuota: true
cpuManagerPolicy: none
cpuManagerReconcilePeriod: 10s
enableControllerAttachDetach: true
enableDebuggingHandlers: true
enforceNodeAllocatable:
- pods
eventBurst: 10
eventRecordQPS: 5
evictionHard:
  imagefs.available: 15%
  memory.available: 100Mi
  nodefs.available: 10%
  nodefs.inodesFree: 5%
evictionPressureTransitionPeriod: 5m0s
failSwapOn: true
fileCheckFrequency: 20s
hairpinMode: promiscuous-bridge
healthzBindAddress: 127.0.0.1
healthzPort: 10248
httpCheckFrequency: 20s
imageGCHighThresholdPercent: 85
imageGCLowThresholdPercent: 80
imageMinimumGCAge: 2m0s
iptablesDropBit: 15
iptablesMasqueradeBit: 14
kubeAPIBurst: 10
kubeAPIQPS: 5
makeIPTablesUtilChains: true
maxOpenFiles: 1000000
maxPods: 110
nodeStatusUpdateFrequency: 10s
oomScoreAdj: -999
podPidsLimit: -1
registryBurst: 10
registryPullQPS: 5
resolvConf: /etc/resolv.conf
rotateCertificates: true
runtimeRequestTimeout: 2m0s
serializeImagePulls: true
staticPodPath: /etc/kubernetes/manifests
streamingConnectionIdleTimeout: 4h0m0s
syncFrequency: 1m0s
volumeStatsAggPeriod: 1m0s

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do scp /etc/kubernetes/kubelet-conf.yml $NODE:/etc/kubernetes/ ;done

启动master节点kubelet

[root@k8s-master01 ~]# systemctl daemon-reload && systemctl enable --now kubelet
[root@k8s-master02 ~]# systemctl daemon-reload && systemctl enable --now kubelet
[root@k8s-master03 ~]# systemctl daemon-reload && systemctl enable --now kubelet

[root@k8s-master01 ~]# systemctl status kubelet
● kubelet.service - Kubernetes Kubelet
   Loaded: loaded (/usr/lib/systemd/system/kubelet.service; enabled; vendor preset: disabled)
  Drop-In: /etc/systemd/system/kubelet.service.d
           └─10-kubelet.conf
   Active: active (running) since Fri 2022-02-25 17:14:21 CST; 19s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 13943 (kubelet)
    Tasks: 13
   Memory: 39.9M
   CGroup: /system.slice/kubelet.service
           └─13943 /usr/local/bin/kubelet --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/k...

Feb 25 17:14:34 k8s-master01.example.local kubelet[13943]: E0225 17:14:34.089479   13943 kubelet.go:2263] node "k8s-master01.example.l... found
Feb 25 17:14:34 k8s-master01.example.local kubelet[13943]: E0225 17:14:34.190545   13943 kubelet.go:2263] node "k8s-master01.example.l... found
Feb 25 17:14:34 k8s-master01.example.local kubelet[13943]: E0225 17:14:34.290854   13943 kubelet.go:2263] node "k8s-master01.example.l... found
Feb 25 17:14:34 k8s-master01.example.local kubelet[13943]: I0225 17:14:34.367572   13943 kubelet_node_status.go:74] Successfully regis....local
Feb 25 17:14:34 k8s-master01.example.local kubelet[13943]: I0225 17:14:34.391818   13943 kuberuntime_manager.go:1006] updating runtime...0.0/24
Feb 25 17:14:34 k8s-master01.example.local kubelet[13943]: I0225 17:14:34.392004   13943 docker_service.go:362] docker cri received ru...24,},}
Feb 25 17:14:34 k8s-master01.example.local kubelet[13943]: I0225 17:14:34.392109   13943 kubelet_network.go:77] Setting Pod CIDR:  -> ...0.0/24
Feb 25 17:14:34 k8s-master01.example.local kubelet[13943]: E0225 17:14:34.400995   13943 kubelet.go:2183] Container runtime network no...alized
Feb 25 17:14:36 k8s-master01.example.local kubelet[13943]: W0225 17:14:36.348085   13943 cni.go:239] Unable to update cni config: no n.../net.d
Feb 25 17:14:37 k8s-master01.example.local kubelet[13943]: E0225 17:14:37.720283   13943 kubelet.go:2183] Container runtime network no...alized
Hint: Some lines were ellipsized, use -l to show in full.

[root@k8s-master02 ~]# systemctl status kubelet
[root@k8s-master03 ~]# systemctl status kubelet

此时系统日志/var/log/messages

#显示只有如下信息为正常
Feb 25 17:16:16 k8s-master01 kubelet: W0225 17:16:16.358217   13943 cni.go:239] Unable to update cni config: no networks found in /etc/cni/net.d

查看集群状态

[root@k8s-master01 ~]# kubectl get nodes
NAME                         STATUS     ROLES    AGE   VERSION
k8s-master01.example.local   NotReady   <none>   13m   v1.20.14
k8s-master02.example.local   NotReady   <none>   73s   v1.20.14
k8s-master03.example.local   NotReady   <none>   70s   v1.20.14

8.4.6 kube-proxy配置

# 注意，如果不是高可用集群，172.31.3.188:6443改为master01的地址

[root@k8s-master01 ~]# kubectl -n kube-system create serviceaccount kube-proxy
#执行结果
serviceaccount/kube-proxy created

[root@k8s-master01 ~]# kubectl create clusterrolebinding system:kube-proxy         --clusterrole system:node-proxier         --serviceaccount kube-system:kube-proxy
#执行结果
clusterrolebinding.rbac.authorization.k8s.io/system:kube-proxy created

[root@k8s-master01 ~]# SECRET=$(kubectl -n kube-system get sa/kube-proxy \
    --output=jsonpath='{.secrets[0].name}')

[root@k8s-master01 ~]# JWT_TOKEN=$(kubectl -n kube-system get secret/$SECRET \
--output=jsonpath='{.data.token}' | base64 -d)

[root@k8s-master01 ~]# PKI_DIR=/etc/kubernetes/pki

[root@k8s-master01 ~]# K8S_DIR=/etc/kubernetes

[root@k8s-master01 ~]# kubectl config set-cluster kubernetes     --certificate-authority=/etc/kubernetes/pki/ca.pem     --embed-certs=true     --server=https://172.31.3.188:6443     --kubeconfig=${K8S_DIR}/kube-proxy.kubeconfig
#执行结果
Cluster "kubernetes" set.

[root@k8s-master01 ~]# kubectl config set-credentials kubernetes     --token=${JWT_TOKEN}     --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig
#执行结果
User "kubernetes" set.

[root@k8s-master01 ~]# kubectl config set-context kubernetes     --cluster=kubernetes     --user=kubernetes     --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig
#执行结果
Context "kubernetes" created.

[root@k8s-master01 ~]# kubectl config use-context kubernetes     --kubeconfig=/etc/kubernetes/kube-proxy.kubeconfig
#执行结果
Switched to context "kubernetes".

在master01将kube-proxy的systemd Service文件发送到其他节点

如果更改了集群Pod的网段，需要更改kube-proxy/kube-proxy.conf的clusterCIDR: 192.168.0.0/12参数为pod的网段。

[root@k8s-master01 ~]# vim /etc/kubernetes/kube-proxy.conf
apiVersion: kubeproxy.config.k8s.io/v1alpha1
bindAddress: 0.0.0.0
clientConnection:
  acceptContentTypes: ""
  burst: 10
  contentType: application/vnd.kubernetes.protobuf
  kubeconfig: /etc/kubernetes/kube-proxy.kubeconfig
  qps: 5
clusterCIDR: 192.168.0.0/12 #修改pod网段
configSyncPeriod: 15m0s
conntrack:
  max: null
  maxPerCore: 32768
  min: 131072
  tcpCloseWaitTimeout: 1h0m0s
  tcpEstablishedTimeout: 24h0m0s
enableProfiling: false
healthzBindAddress: 0.0.0.0:10256
hostnameOverride: ""
iptables:
  masqueradeAll: false
  masqueradeBit: 14
  minSyncPeriod: 0s
  syncPeriod: 30s
ipvs:
  masqueradeAll: true
  minSyncPeriod: 5s
  scheduler: "rr"
  syncPeriod: 30s
kind: KubeProxyConfiguration
metricsBindAddress: 127.0.0.1:10249
mode: "ipvs"
nodePortAddresses: null
oomScoreAdj: -999
portRange: ""
udpIdleTimeout: 250ms

[root@k8s-master01 ~]# vim /lib/systemd/system/kube-proxy.service
[Unit]
Description=Kubernetes Kube Proxy
Documentation=https://github.com/kubernetes/kubernetes
After=network.target

[Service]
ExecStart=/usr/local/bin/kube-proxy \
  --config=/etc/kubernetes/kube-proxy.conf \
  --v=2

Restart=always
RestartSec=10s

[Install]
WantedBy=multi-user.target

[root@k8s-master01 ~]# for NODE in k8s-master02 k8s-master03; do
     scp ${K8S_DIR}/kube-proxy.kubeconfig $NODE:/etc/kubernetes/kube-proxy.kubeconfig
     scp /etc/kubernetes/kube-proxy.conf $NODE:/etc/kubernetes/kube-proxy.conf
     scp /lib/systemd/system/kube-proxy.service $NODE:/lib/systemd/system/kube-proxy.service
 done

master节点启动kube-proxy

[root@k8s-master01 ~]# systemctl daemon-reload && systemctl enable --now kube-proxy
[root@k8s-master02 ~]# systemctl daemon-reload && systemctl enable --now kube-proxy
[root@k8s-master03 ~]# systemctl daemon-reload && systemctl enable --now kube-proxy

[root@k8s-master01 ~]# systemctl status kube-proxy
● kube-proxy.service - Kubernetes Kube Proxy
   Loaded: loaded (/usr/lib/systemd/system/kube-proxy.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2022-02-25 18:05:42 CST; 14s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 24062 (kube-proxy)
    Tasks: 6
   Memory: 16.3M
   CGroup: /system.slice/kube-proxy.service
           └─24062 /usr/local/bin/kube-proxy --config=/etc/kubernetes/kube-proxy.conf --v=2

Feb 25 18:05:42 k8s-master01.example.local kube-proxy[24062]: I0225 18:05:42.674150   24062 shared_informer.go:240] Waiting for caches...config
Feb 25 18:05:42 k8s-master01.example.local kube-proxy[24062]: I0225 18:05:42.674161   24062 config.go:224] Starting endpoint slice con...roller
Feb 25 18:05:42 k8s-master01.example.local kube-proxy[24062]: I0225 18:05:42.674163   24062 shared_informer.go:240] Waiting for caches...config
Feb 25 18:05:42 k8s-master01.example.local kube-proxy[24062]: I0225 18:05:42.674291   24062 reflector.go:219] Starting reflector *v1.S...go:134
Feb 25 18:05:42 k8s-master01.example.local kube-proxy[24062]: I0225 18:05:42.674706   24062 reflector.go:219] Starting reflector *v1be...go:134
Feb 25 18:05:42 k8s-master01.example.local kube-proxy[24062]: I0225 18:05:42.678410   24062 service.go:275] Service default/kubernetes... ports
Feb 25 18:05:42 k8s-master01.example.local kube-proxy[24062]: I0225 18:05:42.774399   24062 shared_informer.go:247] Caches are synced ...config
Feb 25 18:05:42 k8s-master01.example.local kube-proxy[24062]: I0225 18:05:42.774481   24062 proxier.go:1036] Not syncing ipvs rules un...master
Feb 25 18:05:42 k8s-master01.example.local kube-proxy[24062]: I0225 18:05:42.774491   24062 shared_informer.go:247] Caches are synced ...config
Feb 25 18:05:42 k8s-master01.example.local kube-proxy[24062]: I0225 18:05:42.774789   24062 service.go:390] Adding new service port "d...43/TCP
Hint: Some lines were ellipsized, use -l to show in full.

[root@k8s-master02 ~]# systemctl status kube-proxy
[root@k8s-master03 ~]# systemctl status kube-proxy

9.部署node

9.1 安装node组件

将组件发送到node节点

[root@k8s-master01 ~]# for NODE in k8s-node01 k8s-node02 k8s-node03; do echo $NODE; scp -o StrictHostKeyChecking=no /usr/local/bin/kube{let,-proxy} $NODE:/usr/local/bin/ ; done

node节点创建/opt/cni/bin目录

[root@k8s-node01 ~]# mkdir -p /opt/cni/bin
[root@k8s-node02 ~]# mkdir -p /opt/cni/bin
[root@k8s-node03 ~]# mkdir -p /opt/cni/bin

9.2 复制etcd证书

node节点创建etcd证书目录

[root@k8s-node01 ~]# mkdir /etc/etcd/ssl -p
[root@k8s-node02 ~]# mkdir /etc/etcd/ssl -p
[root@k8s-node03 ~]# mkdir /etc/etcd/ssl -p

将etcd证书复制到node节点

[root@k8s-etcd01 pki]# for NODE in k8s-node01 k8s-node02 k8s-node03; do
     ssh -o StrictHostKeyChecking=no $NODE "mkdir -p /etc/etcd/ssl"
     for FILE in etcd-ca-key.pem  etcd-ca.pem  etcd-key.pem  etcd.pem; do
       scp -o StrictHostKeyChecking=no /etc/etcd/ssl/${FILE} $NODE:/etc/etcd/ssl/${FILE}
     done
 done

所有master节点创建etcd的证书目录

[root@k8s-node01 ~]# mkdir /etc/kubernetes/pki/etcd -p
[root@k8s-node02 ~]# mkdir /etc/kubernetes/pki/etcd -p
[root@k8s-node03 ~]# mkdir /etc/kubernetes/pki/etcd -p

[root@k8s-node01 ~]# ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/
[root@k8s-node02 ~]# ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/
[root@k8s-node03 ~]# ln -s /etc/etcd/ssl/* /etc/kubernetes/pki/etcd/

9.3 复制kubernetes证书和配置文件

node节点创建kubernetes相关目录

[root@k8s-node01 ~]# mkdir -p /etc/kubernetes/pki
[root@k8s-node02 ~]# mkdir -p /etc/kubernetes/pki
[root@k8s-node03 ~]# mkdir -p /etc/kubernetes/pki

Master01节点复制证书至Node节点

[root@k8s-master01 ~]# for NODE in k8s-node01 k8s-node02 k8s-node03; do
     for FILE in pki/ca.pem pki/ca-key.pem pki/front-proxy-ca.pem bootstrap-kubelet.kubeconfig; do
       scp /etc/kubernetes/$FILE $NODE:/etc/kubernetes/${FILE}
     done
 done

9.4 配置kubelet

node节点创建相关目录

[root@k8s-node01 ~]# mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

[root@k8s-node02 ~]# mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

[root@k8s-node03 ~]# mkdir -p /etc/kubernetes/manifests/ /etc/systemd/system/kubelet.service.d /var/lib/kubelet /var/log/kubernetes

Master01节点复制配置文件kubelet service至Node节点

[root@k8s-master01 ~]# for NODE in k8s-node01 k8s-node02 k8s-node03; do scp /lib/systemd/system/kubelet.service $NODE:/lib/systemd/system/ ;done

Master01节点复制kubelet service的配置文件至Node节点

[root@k8s-master01 ~]# for NODE in k8s-node01 k8s-node02 k8s-node03; do scp /etc/systemd/system/kubelet.service.d/10-kubelet.conf $NODE:/etc/systemd/system/kubelet.service.d/ ;done

Master01节点kubelet的配置文件至Node节点

[root@k8s-master01 ~]# for NODE in k8s-node01 k8s-node02 k8s-node03; do scp /etc/kubernetes/kubelet-conf.yml $NODE:/etc/kubernetes/ ;done

启动node节点kubelet

[root@k8s-node01 ~]# systemctl daemon-reload && systemctl enable --now kubelet
[root@k8s-node02 ~]# systemctl daemon-reload && systemctl enable --now kubelet
[root@k8s-node03 ~]# systemctl daemon-reload && systemctl enable --now kubelet

[root@k8s-node01 ~]# systemctl status kubelet
● kubelet.service - Kubernetes Kubelet
   Loaded: loaded (/usr/lib/systemd/system/kubelet.service; enabled; vendor preset: disabled)
  Drop-In: /etc/systemd/system/kubelet.service.d
           └─10-kubelet.conf
   Active: active (running) since Fri 2022-02-25 17:40:22 CST; 10s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 13450 (kubelet)
    Tasks: 12
   Memory: 38.2M
   CGroup: /system.slice/kubelet.service
           └─13450 /usr/local/bin/kubelet --bootstrap-kubeconfig=/etc/kubernetes/bootstrap-kubelet.kubeconfig --kubeconfig=/etc/kubernetes/k...

Feb 25 17:40:30 k8s-node01.example.local kubelet[13450]: I0225 17:40:30.011461   13450 cpu_manager.go:194] [cpumanager] reconciling every 10s
Feb 25 17:40:30 k8s-node01.example.local kubelet[13450]: I0225 17:40:30.011478   13450 state_mem.go:36] [cpumanager] initializing new ... store
Feb 25 17:40:30 k8s-node01.example.local kubelet[13450]: I0225 17:40:30.014239   13450 policy_none.go:43] [cpumanager] none policy: Start
Feb 25 17:40:30 k8s-node01.example.local kubelet[13450]: W0225 17:40:30.052409   13450 manager.go:595] Failed to retrieve checkpoint f... found
Feb 25 17:40:30 k8s-node01.example.local kubelet[13450]: I0225 17:40:30.054679   13450 plugin_manager.go:114] Starting Kubelet Plugin Manager
Feb 25 17:40:30 k8s-node01.example.local kubelet[13450]: I0225 17:40:30.076391   13450 kuberuntime_manager.go:1006] updating runtime c...4.0/24
Feb 25 17:40:30 k8s-node01.example.local kubelet[13450]: I0225 17:40:30.076643   13450 docker_service.go:362] docker cri received runt...24,},}
Feb 25 17:40:30 k8s-node01.example.local kubelet[13450]: I0225 17:40:30.076779   13450 kubelet_network.go:77] Setting Pod CIDR:  -> 19...4.0/24
Feb 25 17:40:30 k8s-node01.example.local kubelet[13450]: E0225 17:40:30.083546   13450 kubelet.go:2183] Container runtime network not ...alized
Feb 25 17:40:30 k8s-node01.example.local kubelet[13450]: I0225 17:40:30.182896   13450 reconciler.go:157] Reconciler: start to sync state
Hint: Some lines were ellipsized, use -l to show in full.

[root@k8s-node02 ~]# systemctl status kubelet
[root@k8s-node03 ~]# systemctl status kubelet

查看集群状态

[root@k8s-master01 ~]# kubectl get nodes
NAME                         STATUS     ROLES    AGE    VERSION
k8s-master01.example.local   NotReady   <none>   2m3s   v1.21.8
k8s-master02.example.local   NotReady   <none>   2m     v1.21.8
k8s-master03.example.local   NotReady   <none>   2m     v1.21.8
k8s-node01.example.local     NotReady   <none>   16s    v1.21.8
k8s-node02.example.local     NotReady   <none>   16s    v1.21.8
k8s-node03.example.local     NotReady   <none>   16s    v1.21.8

9.5 配置kube-proxy

Master01节点复制kube-proxy相关文件到node

[root@k8s-master01 ~]# for NODE in k8s-node01 k8s-node02 k8s-node03; do
     scp ${K8S_DIR}/kube-proxy.kubeconfig $NODE:/etc/kubernetes/kube-proxy.kubeconfig
     scp /etc/kubernetes/kube-proxy.conf $NODE:/etc/kubernetes/kube-proxy.conf
     scp /lib/systemd/system/kube-proxy.service $NODE:/lib/systemd/system/kube-proxy.service
 done

node节点启动kube-proxy

[root@k8s-node01 ~]# systemctl daemon-reload && systemctl enable --now kube-proxy
[root@k8s-node02 ~]# systemctl daemon-reload && systemctl enable --now kube-proxy
[root@k8s-node03 ~]# systemctl daemon-reload && systemctl enable --now kube-proxy

[root@k8s-node01 ~]# systemctl status kube-proxy
● kube-proxy.service - Kubernetes Kube Proxy
   Loaded: loaded (/usr/lib/systemd/system/kube-proxy.service; enabled; vendor preset: disabled)
   Active: active (running) since Fri 2022-02-25 18:09:03 CST; 15s ago
     Docs: https://github.com/kubernetes/kubernetes
 Main PID: 19089 (kube-proxy)
    Tasks: 6
   Memory: 18.0M
   CGroup: /system.slice/kube-proxy.service
           └─19089 /usr/local/bin/kube-proxy --config=/etc/kubernetes/kube-proxy.conf --v=2

Feb 25 18:09:03 k8s-node01.example.local kube-proxy[19089]: I0225 18:09:03.647706   19089 config.go:315] Starting service config controller
Feb 25 18:09:03 k8s-node01.example.local kube-proxy[19089]: I0225 18:09:03.647751   19089 shared_informer.go:240] Waiting for caches t...config
Feb 25 18:09:03 k8s-node01.example.local kube-proxy[19089]: I0225 18:09:03.647767   19089 config.go:224] Starting endpoint slice confi...roller
Feb 25 18:09:03 k8s-node01.example.local kube-proxy[19089]: I0225 18:09:03.647770   19089 shared_informer.go:240] Waiting for caches t...config
Feb 25 18:09:03 k8s-node01.example.local kube-proxy[19089]: I0225 18:09:03.647868   19089 reflector.go:219] Starting reflector *v1beta...go:134
Feb 25 18:09:03 k8s-node01.example.local kube-proxy[19089]: I0225 18:09:03.648339   19089 reflector.go:219] Starting reflector *v1.Ser...go:134
Feb 25 18:09:03 k8s-node01.example.local kube-proxy[19089]: I0225 18:09:03.651713   19089 service.go:275] Service default/kubernetes u... ports
Feb 25 18:09:03 k8s-node01.example.local kube-proxy[19089]: I0225 18:09:03.748659   19089 shared_informer.go:247] Caches are synced fo...config
Feb 25 18:09:03 k8s-node01.example.local kube-proxy[19089]: I0225 18:09:03.748673   19089 shared_informer.go:247] Caches are synced fo...config
Feb 25 18:09:03 k8s-node01.example.local kube-proxy[19089]: I0225 18:09:03.749014   19089 service.go:390] Adding new service port "def...43/TCP
Hint: Some lines were ellipsized, use -l to show in full.

[root@k8s-node02 ~]# systemctl status kube-proxy
[root@k8s-node03 ~]# systemctl status kube-proxy

查看haproxy状态

http://172.31.3.188:9999/haproxy-status 在这里插入图片描述

avatar
文章
阅读
粉丝
