flink-cdc同步mysql数据到hbase

762

我的gitee地址:gitee.com/ddxygq/bigd… ,相关文章都放到这个仓库里了。

什么是CDC?

CDC是(Change Data Capture 变更数据获取)的简称。核心思想是,监测并捕获数据库的变动(包括数据 或 数据表的插入INSERT、更新UPDATE、删除DELETE等),将这些变更按发生的顺序完整记录下来,写入到消息中间件中以供其他服务进行订阅及消费。

Flink_CDC

1. 环境准备

  • mysql

  • hbase

  • flink 1.13.5 on yarn

说明:如果没有安装hadoop,那么可以不用yarn,直接用flink standalone环境吧。

2. 下载下列依赖包

下面两个地址下载flink的依赖包,放在lib目录下面。

  1. flink-sql-connector-hbase-1.4_2.11-1.13.5.jar
  2. flink-sql-connector-mysql-cdc-1.4.0.jar

如果你的Flink是其它版本,可以来这里下载。

我是flink1.13,这里flink-sql-connector-mysql-cdc,需要1.4.0以上版本。

image-20220913170030754

如果你是更高版本的flink,可以自行github.com/ververica/f… clean install -DskipTests 自己编译。


这是我编译的最新版2.2,传上去发现太新了,如果重新换个版本,我得去gitee下载源码,不然github速度太慢了,然后用IDEA编译打包,又得下载一堆依赖。我投降,我直接去网上下载了个1.4的直接用了。

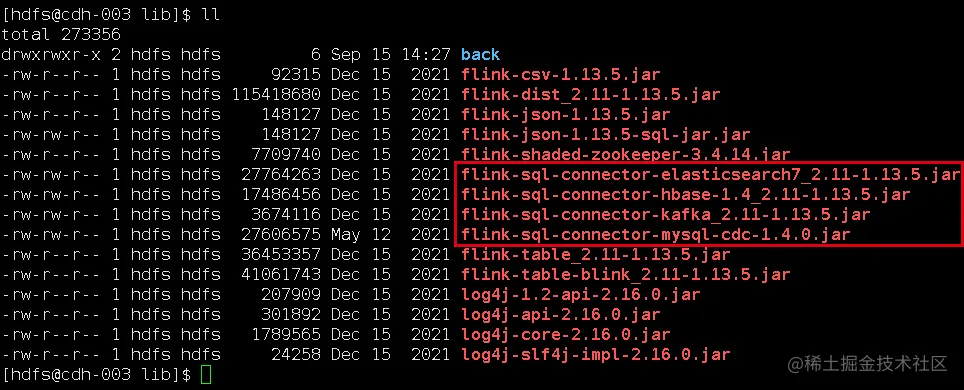

我下载的jar包,放在flink的lib目录下面:

image-20220915145142496

flink-sql-connector-hbase-1.4_2.11-1.13.5.jar
flink-sql-connector-mysql-cdc-1.4.0.jar

3. 启动flink-sql client

  1. 先在yarn上面启动一个application,进入flink13.5目录,执行:
bin/yarn-session.sh -d -s 2 -jm 1024 -tm 2048 -qu root.sparkstreaming -nm flink-cdc-hbase
  1. 进入flink sql命令行
bin/sql-client.sh embedded -s flink-cdc-hbase


4. 同步数据

这里有一张mysql表:

CREATE TABLE `product_view` (
`id` int(11) NOT NULL AUTO_INCREMENT,
`user_id` int(11) NOT NULL,
`product_id` int(11) NOT NULL,
`server_id` int(11) NOT NULL,
`duration` int(11) NOT NULL,
`times` varchar(11) NOT NULL,
`time` datetime NOT NULL,
PRIMARY KEY (`id`),
KEY `time` (`time`),
KEY `user_product` (`user_id`,`product_id`) USING BTREE,
KEY `times` (`times`) USING BTREE
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb4;

-- 样本数据
INSERT INTO `product_view` VALUES ('1', '1', '1', '1', '120', '120', '2020-04-24 13:14:00');
INSERT INTO `product_view` VALUES ('2', '1', '1', '1', '120', '120', '2020-04-24 13:14:00');
INSERT INTO `product_view` VALUES ('3', '1', '1', '3', '120', '120', '2020-04-24 13:14:00');
INSERT INTO `product_view` VALUES ('4', '1', '1', '2', '120', '120', '2020-04-24 13:14:00');
INSERT INTO `product_view` VALUES ('5', '8', '1', '1', '120', '120', '2020-05-14 13:14:00');
INSERT INTO `product_view` VALUES ('6', '8', '1', '2', '120', '120', '2020-05-13 13:14:00');
INSERT INTO `product_view` VALUES ('7', '8', '1', '3', '120', '120', '2020-04-24 13:14:00');
INSERT INTO `product_view` VALUES ('8', '8', '1', '3', '120', '120', '2020-04-23 13:14:00');
INSERT INTO `product_view` VALUES ('9', '8', '1', '2', '120', '120', '2020-05-13 13:14:00');
  1. 创建数据表关联mysql
CREATE TABLE product_view_source (
`id` int,
`user_id` int,
`product_id` int,
`server_id` int,
`duration` int,
`times` string,
`time` timestamp,
PRIMARY KEY (`id`) NOT ENFORCED
) WITH (
'connector' = 'mysql-cdc',
'hostname' = '192.168.1.2',
'port' = '3306',
'username' = 'bigdata',
'password' = 'bigdata',
'database-name' = 'test',
'table-name' = 'product_view'
);

这样,我们在flink sql client操作这个表相当于操作mysql里面的对应表。

  1. 创建数据表关联hbase
CREATE TABLE product_view_hbase (
 rowkey INT,
 family1 ROW<user_id INT, product_id INT, server_id INT, duration INT>,
 PRIMARY KEY (rowkey) NOT ENFORCED
) WITH (
 'connector' = 'hbase-1.4',
 'table-name' = 'product_view',
 'zookeeper.quorum' = 'cdh-001:2181'
);

这里,需要提前在hbase里面创建好product_view这个主题。

  1. 同步数据

flink-cdc-mysql2hbase

建立同步任务,可以使用sql如下:

insert into product_view_hbase select id as rowkey, ROW(user_id, product_id, server_id, duration) from product_view_source;

这个时候是可以退出flink sql-client的,然后进入flink web-ui,可以看到mysql表数据已经同步到hbase中了,对mysql进行插入,hbase都是同步更新的。

进入hbase shell,可以看到数据已经从mysql同步到hbase了:

hbase(main):009:0> scan 'product_view'
ROW                                    COLUMN+CELL
 \x00\x00\x00\x01                      column=family1:duration, timestamp=1663223736391, value=\x00\x00\x00x
 \x00\x00\x00\x01                      column=family1:product_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x01                      column=family1:server_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x01                      column=family1:user_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x02                      column=family1:duration, timestamp=1663223736391, value=\x00\x00\x00x
 \x00\x00\x00\x02                      column=family1:product_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x02                      column=family1:server_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x02                      column=family1:user_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x03                      column=family1:duration, timestamp=1663223736391, value=\x00\x00\x00x
 \x00\x00\x00\x03                      column=family1:product_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x03                      column=family1:server_id, timestamp=1663223736391, value=\x00\x00\x00\x03
 \x00\x00\x00\x03                      column=family1:user_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x04                      column=family1:duration, timestamp=1663223736391, value=\x00\x00\x00x
 \x00\x00\x00\x04                      column=family1:product_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x04                      column=family1:server_id, timestamp=1663223736391, value=\x00\x00\x00\x02
 \x00\x00\x00\x04                      column=family1:user_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x05                      column=family1:duration, timestamp=1663223736391, value=\x00\x00\x00x
 \x00\x00\x00\x05                      column=family1:product_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x05                      column=family1:server_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x05                      column=family1:user_id, timestamp=1663223736391, value=\x00\x00\x00\x08
 \x00\x00\x00\x06                      column=family1:duration, timestamp=1663223736391, value=\x00\x00\x00x
 \x00\x00\x00\x06                      column=family1:product_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x06                      column=family1:server_id, timestamp=1663223736391, value=\x00\x00\x00\x02
 \x00\x00\x00\x06                      column=family1:user_id, timestamp=1663223736391, value=\x00\x00\x00\x08
 \x00\x00\x00\x07                      column=family1:duration, timestamp=1663223736391, value=\x00\x00\x00x
 \x00\x00\x00\x07                      column=family1:product_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x07                      column=family1:server_id, timestamp=1663223736391, value=\x00\x00\x00\x03
 \x00\x00\x00\x07                      column=family1:user_id, timestamp=1663223736391, value=\x00\x00\x00\x08
 \x00\x00\x00\x09                      column=family1:duration, timestamp=1663223736391, value=\x00\x00\x00x
 \x00\x00\x00\x09                      column=family1:product_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x09                      column=family1:server_id, timestamp=1663223736391, value=\x00\x00\x00\x03
 \x00\x00\x00\x09                      column=family1:user_id, timestamp=1663223736391, value=\x00\x00\x00\x08
 \x00\x00\x00\x0A                      column=family1:duration, timestamp=1663223736391, value=\x00\x00\x00x
 \x00\x00\x00\x0A                      column=family1:product_id, timestamp=1663223736391, value=\x00\x00\x00\x01
 \x00\x00\x00\x0A                      column=family1:server_id, timestamp=1663223736391, value=\x00\x00\x00\x02
 \x00\x00\x00\x0A                      column=family1:user_id, timestamp=1663223736391, value=\x00\x00\x00\x08
9 row(s)
Took 0.1656 seconds

直接在flink-sql client里面查询hbase数据,也是可以的:

Flink SQL> select * from product_view_hbase ;
2022-09-15 15:38:23,205 INFO  org.apache.flink.yarn.YarnClusterDescriptor                  [] - No path for the flink jar passed. Using the location of class org.apache.flink.yarn.YarnClusterDescriptor to locate the jar
2022-09-15 15:38:23,207 INFO  org.apache.hadoop.yarn.client.ConfiguredRMFailoverProxyProvider [] - Failing over to rm72
2022-09-15 15:38:23,212 INFO  org.apache.flink.yarn.YarnClusterDescriptor                  [] - Found Web Interface cdh-001:35225 of application 'application_1633924491541_7321'.

执行上面查询sql,就会进入界面,这就是hbase里面的数据了:

image-20220915153846428

5. 关联查询

在这个flink-sql client环境中,这里有两张表:product_view_source(mysql的表)和product_view_hbase(hbase的表),后者是有前者查询导入的,这里为了简单,我没有再关联其它第三张表,就用这两张表,做关联查询,达到演示的目的。

select product_view_source.*, product_view_hbase.*  from product_view_source
inner join product_view_hbase
on product_view_source.id = product_view_hbase.rowkey;

这里做了个简单的关联查询,通过id跟rowkey关联,然后打开web-ui,通过flink web-ui结果可以看出,这里是个hash join,两个source,到join,一共3个task。

image-20220915160523185

看看查出来的结果吧,这是flnk-sql client:

image-20220915160617440

比如我选中这一行,进来后是这条数据的详细情况,是没有问题的:

image-20220915160731799

参考资料

nightlies.apache.org/flink/flink…
