前言

KMM的发展除了靠官方社区的支持外,一些大企业的开源落地也尤为重要。从这些开源中我们需要借鉴他的设计思想和实现方式。从而在落地遇到问题时,寻得更多的解决办法。

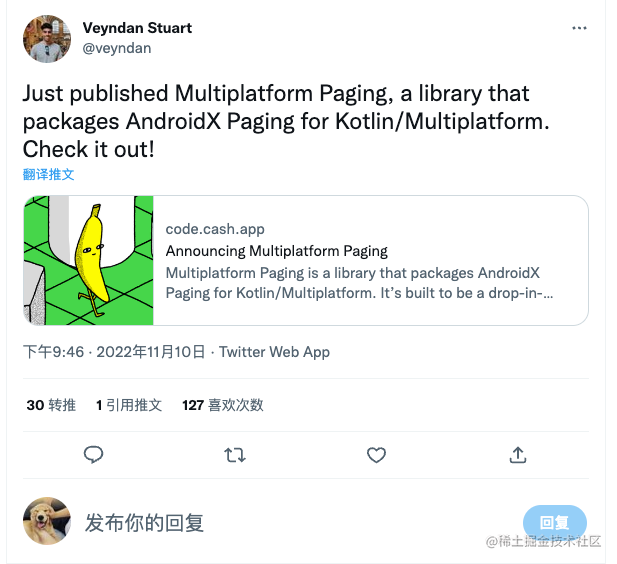

上周,Square正式将Paging分页库迁移到了Kotlin Multiplatform平台,使用在旗下的支付软件Cash App中。

迁移过程

初衷

据Cash App称,他们想在跨平台中使用分页逻辑,但是AndroidX Paging只支持Android平台。所以他们参照AndroidX下Paging库的设计,实现了一套Multiplatform Paging。

模型

与AndroidX下的Paging设计一样,paging-common模块提供存储层、视图模型层;paging-runtim模块提供UI层。

最主要的是,paging-common中的API与AndroidX 下的API完全相同,仅仅是将包从androidx.paging迁移到了app.cash.paging中,所以这部分的使用我们直接按照AndroidX中的Paging使用即可。如果之前项目已经使用了AndroiX的Paging库,则可以在Android平台上无缝迁移。

如果你之前从未使用过Paging库,可以参考许久之前我写的两篇相关文章:

在View中使用Paging3分页库

在Compose中使用分页库

接下来我们就以multiplatform-paging-samples为例,来看如何实现在Multiplatform使用Paging库。

项目分析

项目介绍

multiplatform-paging-samples项目(Demo)的功能是使用github的接口:api.github.com/search/repositories 查询项目,输出项目路径和start数量。

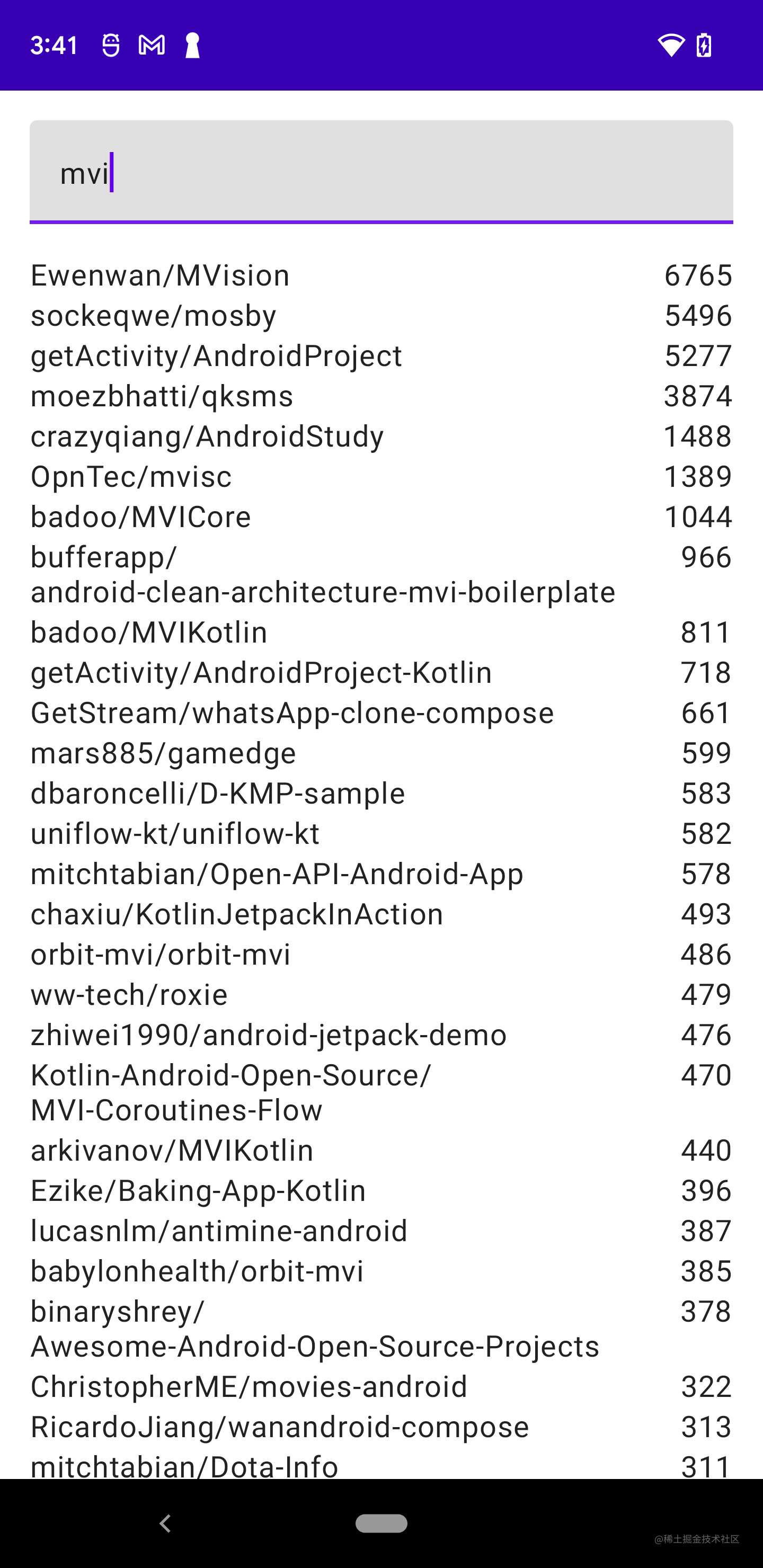

也就是github主页上的搜索功能。App运行截图如下所示。

这里我们搜索关键词为“MVI”,左侧输出为作者/项目名 右侧为start数量,且实现了分页功能。接着我们来看这个项目结构是怎么样的。

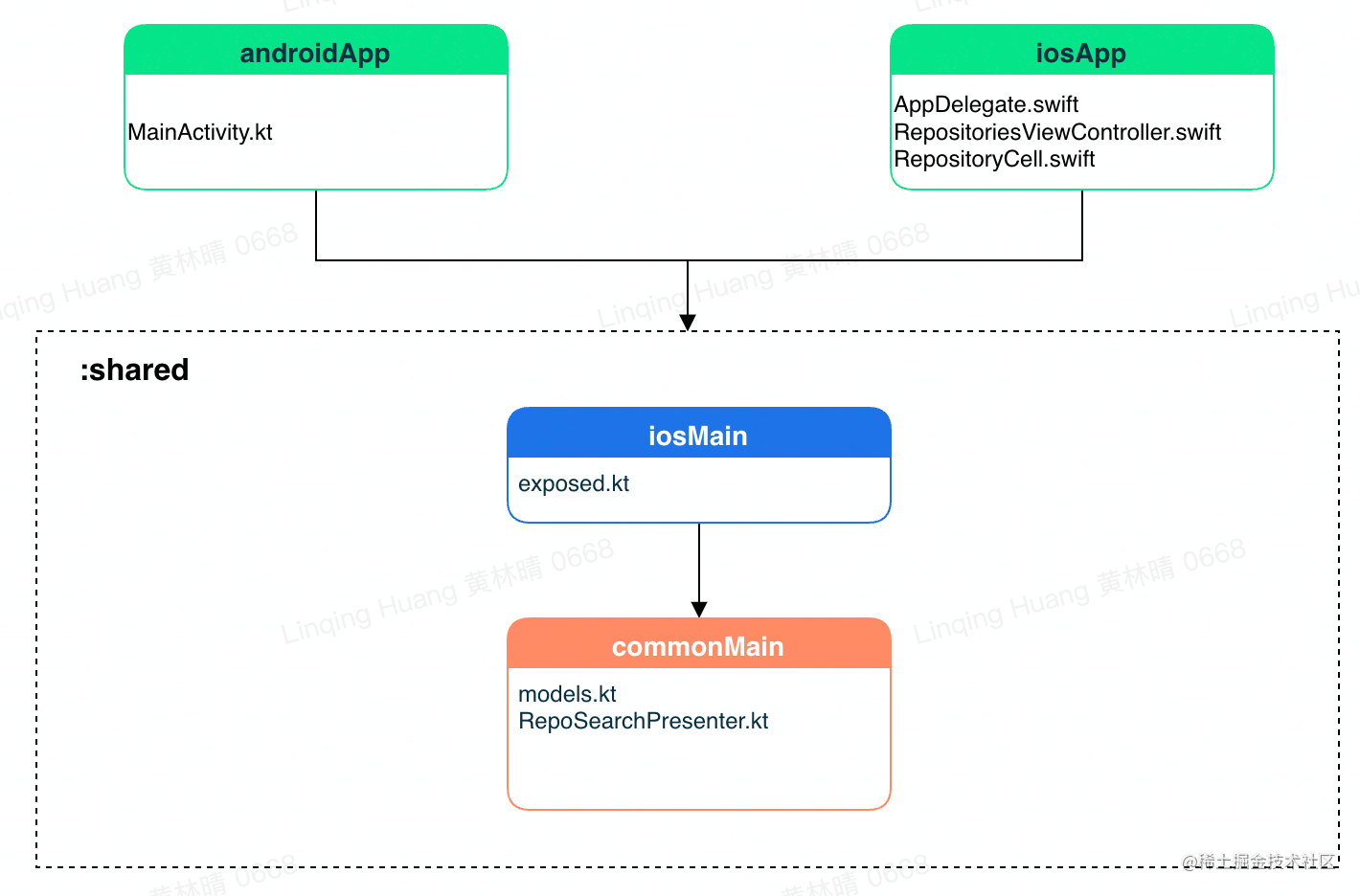

项目架构

从项目架构中可以看出在共享模块中,只有iosMain并没有AndroidMain,这是因为我们前面所讲到的针对Android平台是可以无缝迁移的。接着我们再来看shared模块中的通用逻辑。

commonMain通用逻辑

models.kt文件中定义了若干数据结构,部分代码如下所示。

sealed interface ViewModel {

  object Empty : ViewModel

  data class SearchResults(
    val searchTerm: String,
    val repositories: Flow<PagingData<Repository>>,
  ) : ViewModel
}

@Serializable
data class Repositories(
  @SerialName("total_count") val totalCount: Int,
  val items: List<Repository>,
)

@Serializable
data class Repository(
  @SerialName("full_name") val fullName: String,
  @SerialName("stargazers_count") val stargazersCount: Int,
)

RepoSearchPresenter类中主要做了三件事:

  • 定义HttpClient对象

  • 定义Pager与PagerSource

  • 定义查询数据的方法

定义HttpClient对象

这里的网络请求框架使用的是Ktor,代码如下所示:

private val httpClient = HttpClient {
  install(ContentNegotiation) {
    val json = Json {
      ignoreUnknownKeys = true
    }
    json(json)
  }
}

定义Pager与PagerSource

pager的声明如下所示:

private val pager: Pager<Int, Repository> = run {
  val pagingConfig = PagingConfig(pageSize = 20, initialLoadSize = 20)
  check(pagingConfig.pageSize == pagingConfig.initialLoadSize) {
    "As GitHub uses offset based pagination, an elegant PagingSource implementation requires each page to be of equal size."
  }
  Pager(pagingConfig) {
      RepositoryPagingSource(httpClient, latestSearchTerm)
  }
}

这里指定了pageSize的大小为20,并调用PagerSource的方法,RepositoryPagingSource声明如下所示:

private class RepositoryPagingSource(
  private val httpClient: HttpClient,
  private val searchTerm: String,
) : PagingSource<Int, Repository>() {

  override suspend fun load(params: PagingSourceLoadParams<Int>): PagingSourceLoadResult<Int, Repository> {
    val page = params.key ?: FIRST_PAGE_INDEX
    println("veyndan___ $page")
    val httpResponse = httpClient.get("https://api.github.com/search/repositories") {
      url {
        parameters.append("page", page.toString())
        parameters.append("per_page", params.loadSize.toString())
        parameters.append("sort", "stars")
        parameters.append("q", searchTerm)
      }
      headers {
        append(HttpHeaders.Accept, "application/vnd.github.v3+json")
      }
    }
    return when {
      httpResponse.status.isSuccess() -> {
        val repositories = httpResponse.body<Repositories>()
        println("veyndan___ ${repositories.items}")
        PagingSourceLoadResultPage(
          data = repositories.items,
          prevKey = (page - 1).takeIf { it >= FIRST_PAGE_INDEX },
          nextKey = if (repositories.items.isNotEmpty()) page + 1 else null,
        ) as PagingSourceLoadResult<Int, Repository>
      }
      httpResponse.status == HttpStatusCode.Forbidden -> {
        PagingSourceLoadResultError<Int, Repository>(
          Exception("Whoops! You just exceeded the GitHub API rate limit."),
        ) as PagingSourceLoadResult<Int, Repository>
      }
      else -> {
        PagingSourceLoadResultError<Int, Repository>(
          Exception("Received a ${httpResponse.status}."),
        ) as PagingSourceLoadResult<Int, Repository>
      }
    }
  }

  override fun getRefreshKey(state: PagingState<Int, Repository>): Int? = null

这部分代码没什么好解释的,和AndroidX的Paging使用是一样的。

定义查询数据的方法

这里还定一个一个查询数据的方法,使用flow分发分发给UI层,代码如下所示:

suspend fun produceViewModels(
    events: Flow<Event>,
  ): Flow<ViewModel> {
    return coroutineScope {
      channelFlow {
        events
          .collectLatest { event ->
            when (event) {
              is Event.SearchTerm -> {
                latestSearchTerm = event.searchTerm
                if (event.searchTerm.isEmpty()) {
                  send(ViewModel.Empty)
                } else {
                  send(ViewModel.SearchResults(latestSearchTerm, pager.flow))
                }
              }
            }
          }
      }
    }
  }
}

这里的Event是定义在models.kt中的密封接口。代码如下所示:

sealed interface Event {

  data class SearchTerm(
    val searchTerm: String,
  ) : Event
}

iosMain的逻辑

在iosMain中仅定义了两个未使用的方法,用于将类型导出到Object-C或Swift,代码如下所示。

@Suppress("unused", "UNUSED_PARAMETER") // Used to export types to Objective-C / Swift.
fun exposedTypes(
  pagingCollectionViewController: PagingCollectionViewController<*>,
  mutableSharedFlow: MutableSharedFlow<*>,
) {
  throw AssertionError()
}

@Suppress("unused") // Used to export types to Objective-C / Swift.
fun <T> mutableSharedFlow(extraBufferCapacity: Int) = MutableSharedFlow<T>(extraBufferCapacity = extraBufferCapacity)

Android UI层实现

Android UI层的实现比较简单,定义了一个event用于事件分发

val events = MutableSharedFlow<Event>(extraBufferCapacity = Int.MAX_VALUE)
lifecycleScope.launch {
  viewModels.emitAll(presenter.produceViewModels(events))
}

当输入框中的内容改变时,发送事件,收到结果显示数据即可,代码如下所示:

@Composable
private fun SearchResults(repositories: LazyPagingItems<Repository>) {
  LazyColumn(
    Modifier.fillMaxWidth(),
    contentPadding = PaddingValues(16.dp),
    horizontalAlignment = Alignment.CenterHorizontally,
  ) {
    when (val loadState = repositories.loadState.refresh) {
      LoadState.Loading -> {
        item {
          CircularProgressIndicator()
        }
      }
      is LoadState.NotLoading -> {
        items(repositories) { repository ->
          Row(Modifier.fillMaxWidth()) {
            Text(
              repository!!.fullName,
              Modifier.weight(1f),
            )
            Text(repository.stargazersCount.toString())
          }
        }
      }
      is LoadState.Error -> {
        item {
          Text(loadState.error.message!!)
        }
      }
    }
  }
}

iOS平台的实现

AppDelegate.swift文件是程序启动入口文件,RepositoryCell类继承自UICollectionViewCell,并补充了API中返回的字段信息,UICollectionViewCell是iOS中的集合视图,代码如下所示:

class RepositoryCell: UICollectionViewCell {
  @IBOutlet weak var fullName: UILabel!
  @IBOutlet weak var stargazersCount: UILabel!
}

iOS触发查询代码如下所示:

extension RepositoriesViewController: UITextFieldDelegate {
  func textFieldShouldReturn(_ textField: UITextField) -> Bool {
    let activityIndicator = UIActivityIndicatorView(style: .gray)
    textField.addSubview(activityIndicator)
    activityIndicator.frame = textField.bounds
    activityIndicator.startAnimating()

    self.collectionView?.reloadData()

    activityIndicator.removeFromSuperview()

    events.emit(value: EventSearchTerm(searchTerm: textField.text!), completionHandler: {error in
      print("error", error ?? "null")
    })

    presenter.produceViewModels(events: events, completionHandler: {viewModels,_ in
      viewModels?.collect(collector: ViewModelCollector(pagingCollectionViewController: self.delegate), completionHandler: {_ in print("completed")})
    })

    textField.resignFirstResponder()
    return true
  }
}

对iOS不太了解,就不详细讲解了。(偷偷学习一波~,让iOS无路可走)

写在最后

KMM的发展出除了靠官方社区的支持之外,一些有名项目的落地实践也很重要。目前我们所能做的就是持续关注KMM的动态,探索可尝试落地的组件,为己所用。
