废话开篇：利用计时器数字简单绘制个小闹钟
绘制数字： # 代码绘制计时器数字
数字效果：#给代码绘制计时器数字加个效果

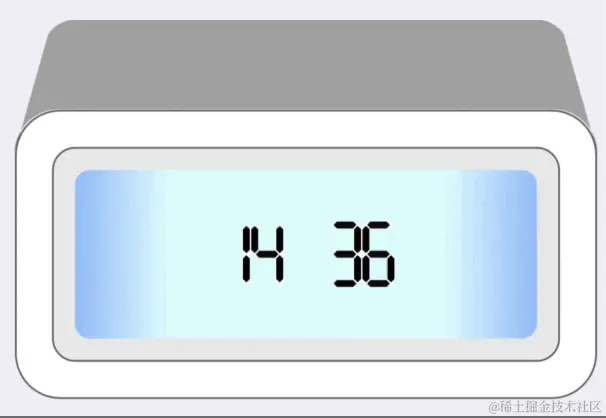

一、效果展示
这里面很简单，就是把之前的计时器数字在 view 的 draw 方法里绘制了一些图形，再把 NumberView 视图展示到对应的位置。
这里面除了时间显示 NumberView 以外，均为贝塞尔曲线绘制填充完成。
二、代码
#import "AlarmView.h"
#import "NumberView.h"
//定时器定时任务
typedef void(^ReadCurrenTimeBlock)(void);
@interface AlarmView()
//上面显示的距离
@property(nonatomic,assign) float topDistance;
//倒角半径
@property(nonatomic,assign) float radius;
//时钟展示区域
@property(nonatomic,assign) CGRect alarmFrame;
//基础展示视图
@property(nonatomic,strong) UIView * contentView;
//定时器
@property(nonatomic,strong) NSTimer * timer;
//定时器定时任务
@property(nonatomic,copy) ReadCurrenTimeBlock readCurrenTimeBlock;
@end
@implementation AlarmView
- (instancetype)initWithFrame:(CGRect)frame topDistance:(float)topDistance
{
if (self = [super initWithFrame:frame]) {
self.backgroundColor = [UIColor clearColor];
self.topDistance = topDistance;
self.radius = 30;
dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(0.1 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
[self createNumberView];
[self startTimer];
});
}
return self;
}
- (void)drawRect:(CGRect)rect
{
float sep = 1;
[self drawTopControl:CGRectMake(0, 0, rect.size.width, self.topDistance + self.radius) radius:20];
[self drawCustomRect:CGRectMake(sep, self.topDistance + sep, rect.size.width - sep * 2, rect.size.height - self.topDistance - sep * 2) radius:self.radius color:[UIColor whiteColor]];
sep += 25;
[self drawCustomRect:CGRectMake(sep, self.topDistance + sep, rect.size.width - sep * 2, rect.size.height - self.topDistance - sep * 2) radius:15 color:[UIColor colorWithRed:235 / 255.0 green:235 / 255.0 blue:235 / 255.0 alpha:1]];
sep += 15;
self.alarmFrame = CGRectMake(sep, self.topDistance + sep, rect.size.width - sep * 2, rect.size.height - self.topDistance - sep * 2);
[self drawMainScreen:self.alarmFrame radius:10];
}
#pragma mark -绘制顶部
- (void)drawTopControl:(CGRect)rect radius:(**float**)radius
{
[[UIColor lightGrayColor] set];
UIBezierPath *path = [UIBezierPath bezierPath];
[path addArcWithCenter:CGPointMake(CGRectGetMinX(rect) + self.radius, CGRectGetMaxY(rect)) radius:self.radius startAngle:M_PI endAngle:M_PI_2 * 3 clockwise:YES];
[path addLineToPoint:CGPointMake(CGRectGetMaxX(rect) - self.radius, CGRectGetMaxY(rect) - self.radius)];
[path addArcWithCenter:CGPointMake(CGRectGetMaxX(rect) - self.radius, CGRectGetMaxY(rect)) radius:self.radius startAngle:M_PI_2 * 3 endAngle:0 clockwise:YES];
[path addLineToPoint:CGPointMake(CGRectGetMaxX(rect) - radius,CGRectGetMinY(rect) + radius)];
[path addArcWithCenter:CGPointMake(CGRectGetMaxX(rect) - radius * 2, CGRectGetMinY(rect) + radius) radius:radius startAngle:M_PI * 2 - M_PI / 6.0 endAngle:M_PI_2 * 3 clockwise:NO];
[path addLineToPoint:CGPointMake(CGRectGetMinX(rect) + radius * 2,CGRectGetMinY(rect))];
[path addArcWithCenter:CGPointMake(CGRectGetMinX(rect) + radius * 2, CGRectGetMinY(rect) + radius) radius:radius startAngle:M_PI_2 * 3 endAngle:M_PI + M_PI / 6.0 clockwise:NO];
[path addLineToPoint:CGPointMake(CGRectGetMinX(rect), CGRectGetMaxY(rect))];
[path fill];
}
#pragma mark - 绘制边框
- (void)drawCustomRect:(CGRect)rect radius:(float)radius color:(UIColor *)color
{
[color set];
UIBezierPath *path = [UIBezierPath bezierPath];
//左上
[path addArcWithCenter:CGPointMake(CGRectGetMinX(rect) + radius, CGRectGetMinY(rect) + radius) radius:radius startAngle:M_PI endAngle:M_PI_2 * 3 clockwise:YES];
[path addLineToPoint:CGPointMake(CGRectGetMaxX(rect) - radius, CGRectGetMinY(rect))];
//右上
[path addArcWithCenter:CGPointMake(CGRectGetMaxX(rect) - radius, CGRectGetMinY(rect) + radius) radius:radius startAngle:M_PI_2 * 3 endAngle:0 clockwise:YES];
[path addLineToPoint:CGPointMake(CGRectGetMaxX(rect), CGRectGetMaxY(rect) - radius)];
//右下
[path addArcWithCenter:CGPointMake(CGRectGetMaxX(rect) - radius, CGRectGetMaxY(rect) - radius) radius:radius startAngle:0 endAngle:M_PI_2 clockwise:YES];
[path addLineToPoint:CGPointMake(CGRectGetMinX(rect) + radius, CGRectGetMaxY(rect))];
//左下
[path addArcWithCenter:CGPointMake(CGRectGetMinX(rect) + radius, CGRectGetMaxY(rect) - radius) radius:radius startAngle:M_PI_2 endAngle:M_PI clockwise:YES];
[path addLineToPoint:CGPointMake(CGRectGetMinX(rect), CGRectGetMinY(rect) + radius)];
[path fill];
color = [UIColor darkGrayColor];
[color set];
path.lineWidth = 1;
[path stroke];
}
#pragma mark - 绘制渐变色显示屏
- (void)drawMainScreen:(CGRect)rect radius:(**float**)radius
{
UIBezierPath *path = [UIBezierPath bezierPath];
//左上
[path addArcWithCenter:CGPointMake(CGRectGetMinX(rect) + radius, CGRectGetMinY(rect) + radius) radius:radius startAngle:M_PI endAngle:M_PI_2 * 3 clockwise:**YES**];
[path addLineToPoint:CGPointMake(CGRectGetMaxX(rect) - radius, CGRectGetMinY(rect))];
//右上
[path addArcWithCenter:CGPointMake(CGRectGetMaxX(rect) - radius, CGRectGetMinY(rect) + radius) radius:radius startAngle:M_PI_2 * 3 endAngle:0 clockwise:**YES**];
[path addLineToPoint:CGPointMake(CGRectGetMaxX(rect), CGRectGetMaxY(rect) - radius)];
//右下
[path addArcWithCenter:CGPointMake(CGRectGetMaxX(rect) - radius, CGRectGetMaxY(rect) - radius) radius:radius startAngle:0 endAngle:M_PI_2 clockwise:YES];
[path addLineToPoint:CGPointMake(CGRectGetMinX(rect) + radius, CGRectGetMaxY(rect))];
//左下
[path addArcWithCenter:CGPointMake(CGRectGetMinX(rect) + radius, CGRectGetMaxY(rect) - radius) radius:radius startAngle:M_PI_2 endAngle:M_PI clockwise:YES];
[path addLineToPoint:CGPointMake(CGRectGetMinX(rect), CGRectGetMinY(rect) + radius)];
//渐变色主屏幕
CGContextRef context = UIGraphicsGetCurrentContext();
CGColorSpaceRef colorSpace = CGColorSpaceCreateDeviceRGB();
CGFloat locations[] = { 0.0,0.2,0.8, 1.0 };
NSArray *colors = @[( __bridge id) [UIColor colorWithRed:159 / 255.0 green:195 / 255.0 blue:248 / 255.0 alpha:1].CGColor, ( __bridge id) [UIColor colorWithRed:226 / 255.0 green:253 / 255.0 blue:254 / 255.0 alpha:1].CGColor,( __bridge id) [UIColor colorWithRed:226 / 255.0 green:253 / 255.0 blue:254 / 255.0 alpha:1].CGColor,( __bridge id) [UIColor colorWithRed:159 / 255.0 green:195 / 255.0 blue:248 / 255.0 alpha:1].CGColor];
CGGradientRef gradient = CGGradientCreateWithColors(colorSpace, ( __bridge CFArrayRef) colors, locations);
CGRect pathRect = CGPathGetBoundingBox(path.CGPath);
CGPoint startPoint = CGPointMake(CGRectGetMinX(pathRect), CGRectGetMidY(pathRect));
CGPoint endPoint = CGPointMake(CGRectGetMaxX(pathRect), CGRectGetMidY(pathRect));
CGContextSaveGState(context);
CGContextAddPath(context, path.CGPath);
CGContextClip(context);
CGContextDrawLinearGradient(context, gradient, startPoint, endPoint, 0);
CGContextRestoreGState(context);
CGGradientRelease(gradient);
CGColorSpaceRelease(colorSpace);
UIImage *img = UIGraphicsGetImageFromCurrentImageContext();
UIGraphicsEndImageContext();
UIImageView *imgView = [[UIImageView alloc] initWithImage:img];
[self.layer addSublayer:imgView.layer];
}
#pragma mark - 创建秒数视图
- (void)createNumberView
{
self.contentView = [[UIView alloc] initWithFrame:self.alarmFrame];
self.contentView.backgroundColor = [UIColor clearColor];
[self addSubview:self.contentView];
float height = 45;
float flashingWidth = 30;
//小时
NumberView * hourNumberView = [[NumberView alloc] initWithFrame:CGRectMake(0, (self.contentView.frame.size.height - height) / 2.0, (self.contentView.frame.size.width - flashingWidth) / 2.0, height) maxDigits:2 numberAlignmentType:(NumberAlignmentRight) numberColor:[UIColor blackColor] numberChangeAnimation:(NumberChangeAnimationFade)];
hourNumberView.backgroundColor = [UIColor clearColor];
[self.contentView addSubview:hourNumberView];
//中间闪烁点
UIView * flashingView = [[UIView alloc] initWithFrame:CGRectMake(CGRectGetMaxX(hourNumberView.frame), 0, flashingWidth, self.contentView.frame.size.height)];
[self.contentView addSubview:flashingView];
//闪点宽度
float flashingCircleWidth = 6;
//闪点间隔
float flashingCircleSep = 10;
CALayer * circleTopLayer = [[CALayer alloc] init];
circleTopLayer.frame = CGRectMake((flashingView.frame.size.width - flashingCircleWidth) / 2.0, (flashingView.frame.size.height - (flashingCircleWidth * 2 + flashingCircleSep)) / 2.0, flashingCircleWidth, flashingCircleWidth);
circleTopLayer.backgroundColor = [UIColor blackColor].CGColor;
circleTopLayer.cornerRadius = flashingCircleWidth / 2.0;
[flashingView.layer addSublayer:circleTopLayer];
CALayer * circleDownLayer = [[CALayer alloc] init];
circleDownLayer.frame = CGRectMake((flashingView.frame.size.width - flashingCircleWidth) / 2.0, CGRectGetMaxY(circleTopLayer.frame) + flashingCircleSep, flashingCircleWidth, flashingCircleWidth);
circleDownLayer.backgroundColor = [UIColor blackColor].CGColor;
circleDownLayer.cornerRadius = flashingCircleWidth / 2.0;
[flashingView.layer addSublayer:circleDownLayer];
//分钟
NumberView * minutesNumberView = [[NumberView alloc] initWithFrame:CGRectMake(CGRectGetMaxX(flashingView.frame), (self.contentView.frame.size.height - height) / 2.0, (self.contentView.frame.size.width - flashingWidth) / 2.0, height) maxDigits:2 numberAlignmentType:(NumberAlignmentLeft) numberColor:[UIColor blackColor] numberChangeAnimation:(NumberChangeAnimationFade)];
minutesNumberView.backgroundColor = [UIColor clearColor];
[self.contentView addSubview:minutesNumberView];
//时间读取回调
self.readCurrenTimeBlock = ^{
//开始整理时间
NSDateFormatter *dateFormatter = [[NSDateFormatter alloc] init];
[dateFormatter setDateFormat:@"YYYY-MM-dd"];
NSDate *date = [NSDate date];
NSCalendar *calendar = [NSCalendar currentCalendar];
NSDateComponents *components = [calendar components:(NSCalendarUnitHour | NSCalendarUnitMinute) fromDate:date];
NSInteger hour = [components hour];
NSInteger minute = [components minute];
hourNumberView.currentNum = hour;
minutesNumberView.currentNum = minute;
//闪烁
flashingView.hidden = NO;
dispatch_after(dispatch_time(DISPATCH_TIME_NOW, (int64_t)(0.5 * NSEC_PER_SEC)), dispatch_get_main_queue(), ^{
flashingView.hidden = YES;
});
};
}
#pragma mark - 开启定时器
- (void)startTimer
{
__weak typeof(self) weakSelf = self;
if ( @available(iOS 10.0, *)) {
weakSelf.timer = [NSTimer scheduledTimerWithTimeInterval:1 repeats:YES block:^(NSTimer * _Nonnull timer) {
if(weakSelf.readCurrenTimeBlock){
weakSelf.readCurrenTimeBlock();
}
}];
[weakSelf.timer fire];
}
}
@end
三、总结与思考
没啥复杂的内容，很长时间不写iOS了，找找以前的感觉，代码拙劣，大神勿笑。[抱拳][抱拳][抱拳]
